SetRFArchitectureCmd Class Reference

#include <SetRFArchitectureCmd.hh>

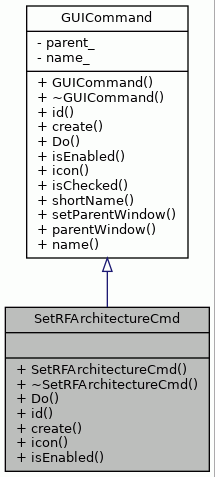

Inheritance diagram for SetRFArchitectureCmd:

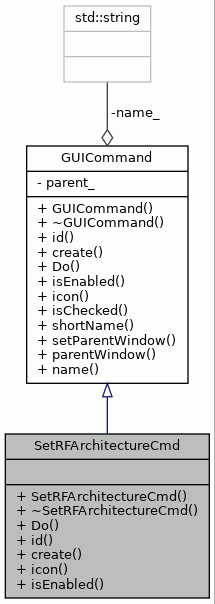

Collaboration diagram for SetRFArchitectureCmd:

Public Member Functions
	SetRFArchitectureCmd ()
virtual	~SetRFArchitectureCmd ()
virtual bool	Do ()
virtual int	id () const
virtual SetRFArchitectureCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for setting architecture of a RFEntry.

Definition at line 41 of file SetRFArchitectureCmd.hh.

Constructor & Destructor Documentation

SetRFArchitectureCmd()

SetRFArchitectureCmd::SetRFArchitectureCmd

(

)

The Constructor.

Definition at line 48 of file SetRFArchitectureCmd.cc.

                                           :
    GUICommand(HDBEditorConstants::COMMAND_NAME_SET_RF_ARCH, NULL) {
}

Referenced by create().

~SetRFArchitectureCmd()

SetRFArchitectureCmd::~SetRFArchitectureCmd ( )

virtual

The Destructor.

Definition at line 56 of file SetRFArchitectureCmd.cc.

                                            {
}

Member Function Documentation

create()

SetRFArchitectureCmd * SetRFArchitectureCmd::create ( ) const

virtual

Creates and returns a new instance of the command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 132 of file SetRFArchitectureCmd.cc.

                                   {
    return new SetRFArchitectureCmd();
}

References SetRFArchitectureCmd().

Here is the call graph for this function:

Do()

bool SetRFArchitectureCmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 63 of file SetRFArchitectureCmd.cc.

                         {

    HDBManager* manager = wxGetApp().mainFrame().hdbManager();

    if (manager == NULL) {
        return false;
    }

    const RFEntry* entry = manager->rfByID(
        wxGetApp().mainFrame().browser()->selectedRFEntry());

    wxString rfs[1000];
    const std::set<RowID> rfIDs = manager->rfArchitectureIDs();
    std::set<RowID>::iterator iter = rfIDs.begin();
    int i = 0;
    for (;iter != rfIDs.end(); iter++) {
        rfs[i] = WxConversion::toWxString(*iter);
        i++;
    }

    wxSingleChoiceDialog choicer(
        parentWindow(), _T("Choose Architecture"), _T("Choose Architecture"),
        i, rfs);

    if (choicer.ShowModal() != wxID_OK) {
        return false;
    }


    std::string archID = WxConversion::toString(choicer.GetStringSelection());
    RowID rowID = Conversion::toInt(archID);
    manager->unsetArchitectureForRF(entry->id());
    manager->setArchitectureForRF(entry->id(), rowID);

    wxGetApp().mainFrame().update();
    wxGetApp().mainFrame().browser()->selectRFEntry(entry->id());

    return true;
}

References HDB::HDBEntry::id(), GUICommand::parentWindow(), HDB::HDBManager::rfArchitectureIDs(), HDB::HDBManager::setArchitectureForRF(), Conversion::toInt(), WxConversion::toString(), WxConversion::toWxString(), and HDB::HDBManager::unsetArchitectureForRF().

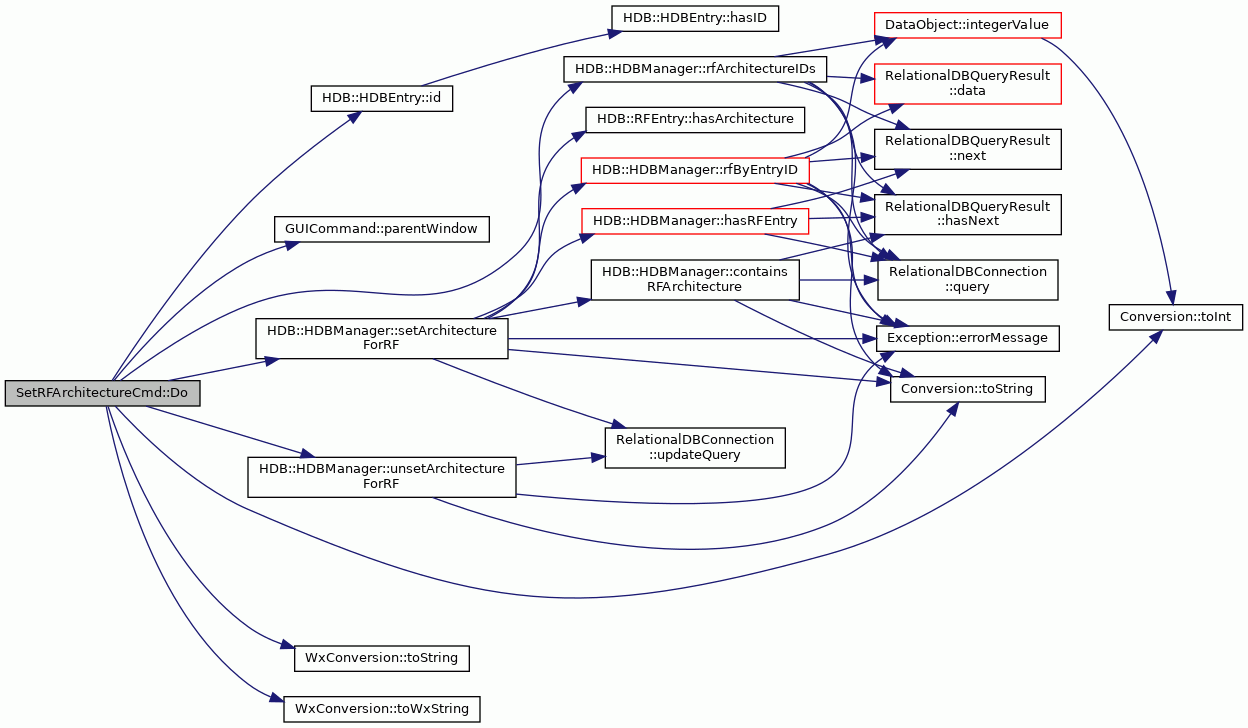

Here is the call graph for this function:

icon()

std::string SetRFArchitectureCmd::icon ( ) const

virtual

Returns name of the command icon file.

Returns

Command icon file name.

Implements GUICommand.

Definition at line 109 of file SetRFArchitectureCmd.cc.

                                 {
    return "";

}

id()

int SetRFArchitectureCmd::id ( ) const

virtual

Returns the command id.

Returns

Command identifier for this command.

Implements GUICommand.

Definition at line 121 of file SetRFArchitectureCmd.cc.

                               {
    return HDBEditorConstants::COMMAND_SET_RF_ARCH;
}

References HDBEditorConstants::COMMAND_SET_RF_ARCH.

isEnabled()

bool SetRFArchitectureCmd::isEnabled ( )

virtual

Returns true if the command should be enabled in the menu/toolbar.

Returns

True if the command is enabled, false if not.

Implements GUICommand.

Definition at line 142 of file SetRFArchitectureCmd.cc.

                                {
    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();

    if (manager == NULL) {
        return false;
    }

    if (!wxGetApp().mainFrame().browser()->isRFEntrySelected()) {
        return false;
    }
    return true;
}

---

The documentation for this class was generated from the following files:

• SetRFArchitectureCmd.hh
• SetRFArchitectureCmd.cc
