#include <SocketPortConnCmd.hh>

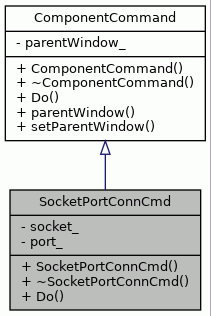

Inheritance diagram for SocketPortConnCmd:

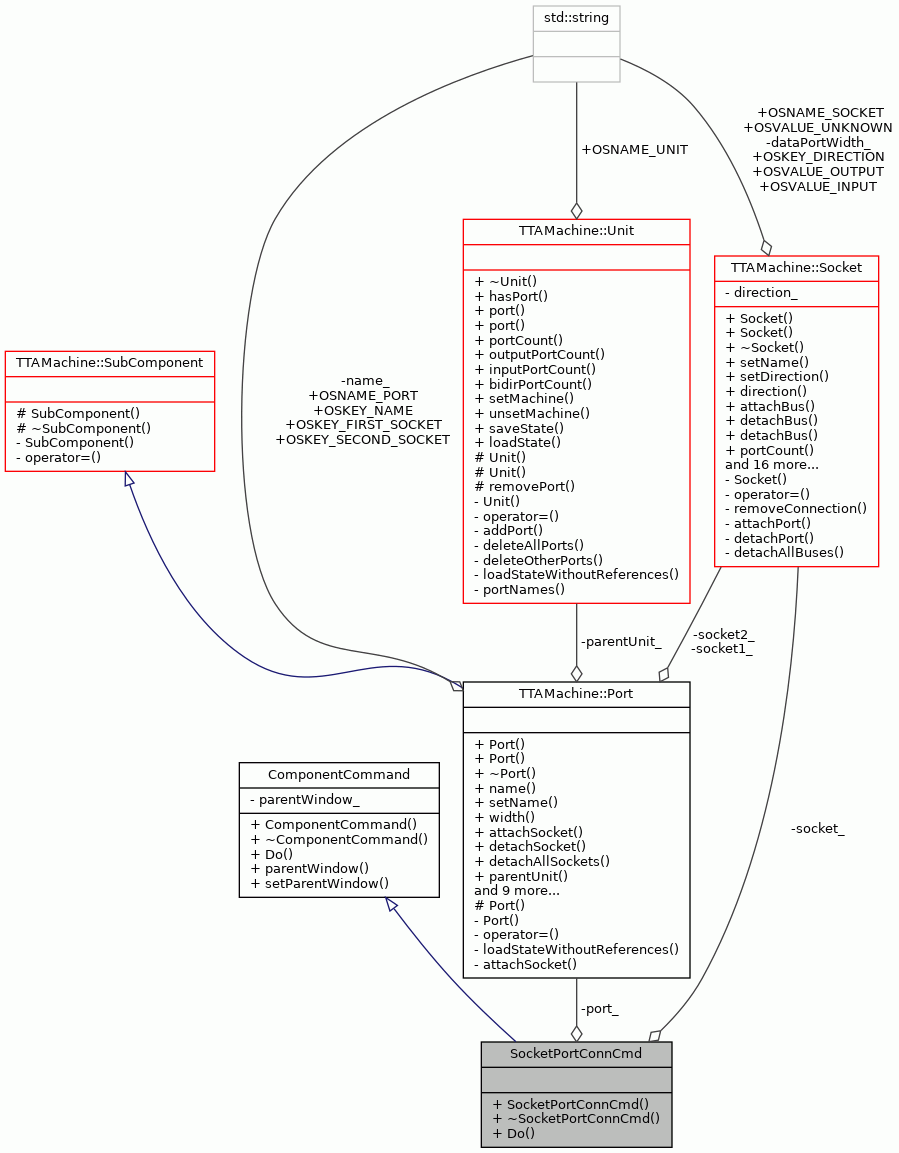

Collaboration diagram for SocketPortConnCmd:

Public Member Functions
	SocketPortConnCmd (TTAMachine::Socket socket, TTAMachine::Port port)

virtual	~SocketPortConnCmd ()

virtual bool	Do ()

Public Member Functions inherited from ComponentCommand
	ComponentCommand ()

virtual	~ComponentCommand ()

wxWindow *	parentWindow ()

void	setParentWindow (wxWindow *window)

Private Attributes
TTAMachine::Socket *	socket_
	Socket to connect.

TTAMachine::Port *	port_
	Port to connect.

Detailed Description

Command for connecting/disconencting ports to sockets.

Definition at line 46 of file SocketPortConnCmd.hh.

Constructor & Destructor Documentation

◆ SocketPortConnCmd()

SocketPortConnCmd::SocketPortConnCmd	(	TTAMachine::Socket *	socket,
		TTAMachine::Port *	port
	)

The Constructor.

Parameters

port	Port to connect/disconnect.
socket	Socket to connect/disconnect.

Definition at line 45 of file SocketPortConnCmd.cc.

                                                              :
    ComponentCommand(),
    socket_(socket), port_(port) {
}

◆ ~SocketPortConnCmd()

SocketPortConnCmd::~SocketPortConnCmd ( )

virtual

The Destructor.

Definition at line 54 of file SocketPortConnCmd.cc.

54 {

55}

Member Function Documentation

◆ Do()

bool SocketPortConnCmd::Do ( )

virtual

Executes the command.

Returns: true, if the command was succesfully executed, false otherwise.

Implements ComponentCommand.

Definition at line 64 of file SocketPortConnCmd.cc.

                      {

    if (port_->isConnectedTo(*socket_)) {
        try {
            port_->detachSocket(*socket_);
        } catch (Exception& e) {
            return false;
        }
    } else {
        try {
            port_->attachSocket(*socket_);
        } catch (Exception& e) {
            return false;
        }
    }

    return true;
}

References TTAMachine::Port::attachSocket(), TTAMachine::Port::detachSocket(), TTAMachine::Port::isConnectedTo(), port_, and socket_.

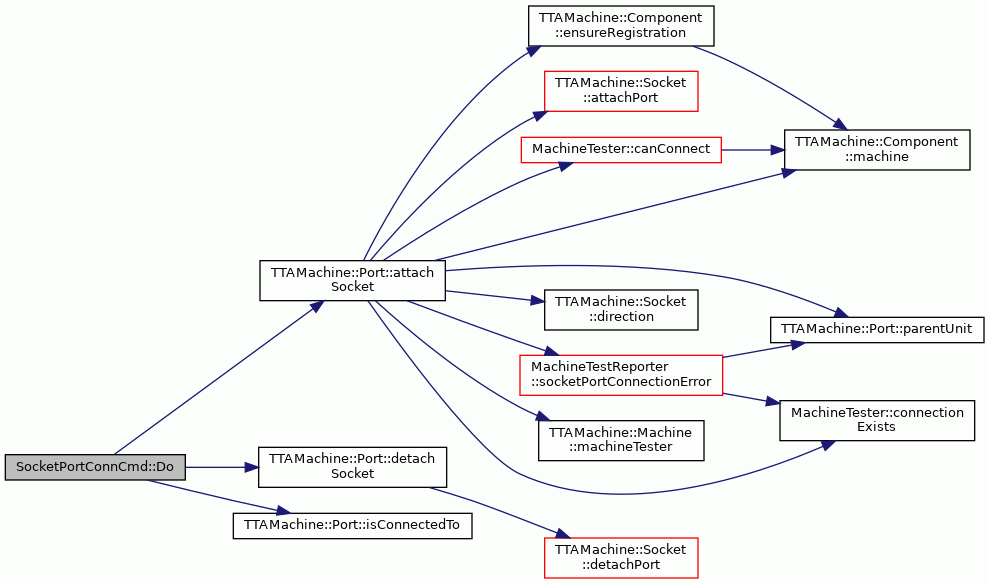

Here is the call graph for this function:

Member Data Documentation

◆ port_

TTAMachine::Port* SocketPortConnCmd::port_

private

Port to connect.

Definition at line 56 of file SocketPortConnCmd.hh.

Referenced by Do().

◆ socket_

TTAMachine::Socket* SocketPortConnCmd::socket_

private

Socket to connect.

Definition at line 54 of file SocketPortConnCmd.hh.
