TTAMachine::Port Class Reference

#include <Port.hh>

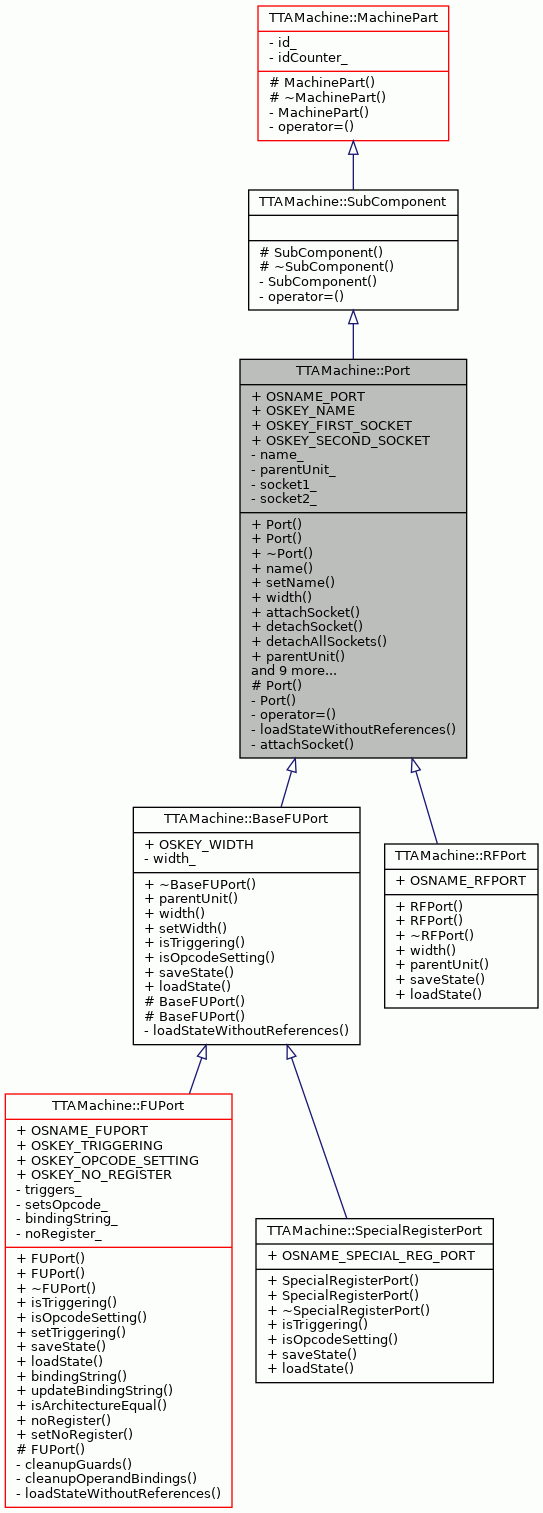

Inheritance diagram for TTAMachine::Port:

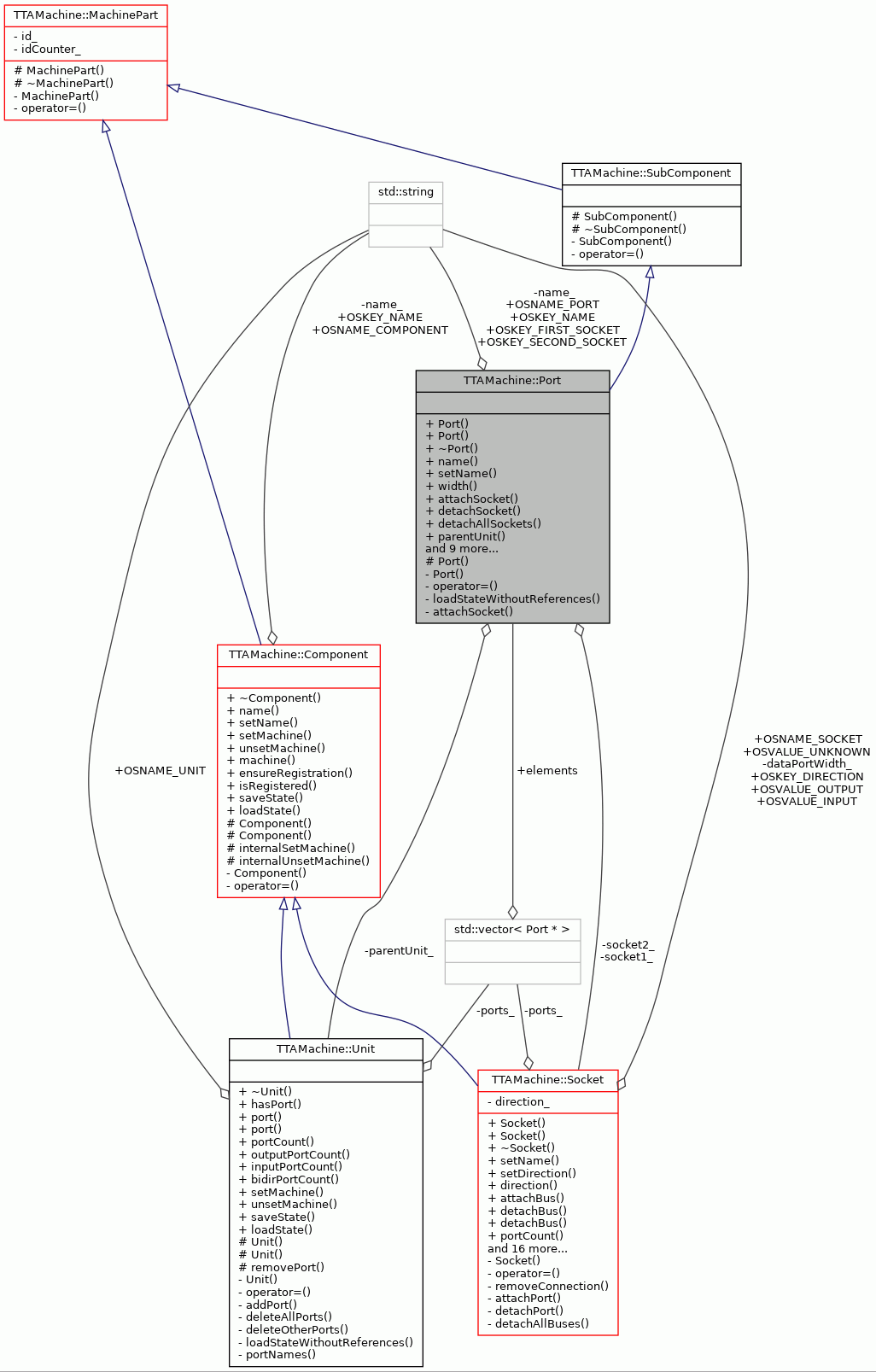

Collaboration diagram for TTAMachine::Port:

Classes
struct	PairComparator

Public Member Functions
	Port (const std::string &name, Unit &parentUnit)
	Port (const ObjectState *state, Unit &parentUnit)
virtual	~Port ()
virtual std::string	name () const
virtual void	setName (const std::string &name)
virtual int	width () const =0
virtual void	attachSocket (Socket &socket)
virtual void	detachSocket (Socket &socket)
virtual void	detachAllSockets ()
Unit *	parentUnit () const
virtual Socket *	inputSocket () const
virtual Socket *	outputSocket () const
virtual Socket *	unconnectedSocket (int index) const
virtual int	socketCount () const
virtual bool	isConnectedTo (const Socket &socket) const
virtual ObjectState *	saveState () const
virtual void	loadState (const ObjectState *state)
virtual bool	isOutput () const
virtual bool	isInput () const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_PORT = "port"
	ObjectState name for Port.
static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the port.
static const std::string	OSKEY_FIRST_SOCKET = "1_socket"
	ObjectState attribute key for the name of the connected socket.
static const std::string	OSKEY_SECOND_SOCKET = "2_socket"
	ObjectState attribute key for the name of the other connected socket.

Protected Member Functions
	Port (const std::string &name, FunctionUnit &parentUnit)
Protected Member Functions inherited from TTAMachine::SubComponent
	SubComponent ()
virtual	~SubComponent ()
Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()
virtual	~MachinePart ()

Private Member Functions
	Port (const Port &)
	Copying forbidden.
Port &	operator= (const Port &)
	Assingment forbidden.
void	loadStateWithoutReferences (const ObjectState *state)
void	attachSocket (const std::string &socketName)

Private Attributes
std::string	name_
	Name of the port.
Unit *	parentUnit_
	Parent unit.
Socket *	socket1_
	Connection to the first socket.
Socket *	socket2_
	Connection to the second socket.

Detailed Description

Represents a port between function units and sockets.

Definition at line 54 of file Port.hh.

Constructor & Destructor Documentation

Port() [1/4]

TTAMachine::Port::Port	(	const std::string &	name,
		Unit &	parentUnit
	)

Constructor.

Parameters

name	Name of the port.
parentUnit	Unit to which the port is connected.

Exceptions

ComponentAlreadyExists	If the parent unit already has another port by the same name.
InvalidName	If the given name is not a valid name for a component.

Definition at line 67 of file Port.cc.

    : SubComponent(),
      name_(name),
      parentUnit_(NULL),
      socket1_(NULL),
      socket2_(NULL) {
    if (!MachineTester::isValidComponentName(name)) {
        const string procName = "Port::Port";
        throw InvalidName(__FILE__, __LINE__, procName);
    }

    parentUnit.addPort(*this);
    parentUnit_ = &parentUnit;
}

References TTAMachine::Unit::addPort(), MachineTester::isValidComponentName(), name(), parentUnit(), and parentUnit_.

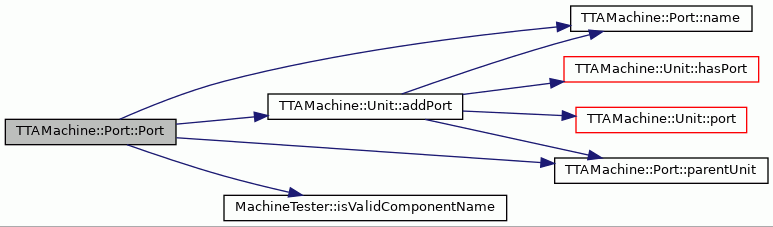

Here is the call graph for this function:

Port() [2/4]

TTAMachine::Port::Port	(	const ObjectState *	state,
		Unit &	parentUnit
	)

Constructor.

Loads its state from the given ObjectState instance but does not create connections to sockets.

Parameters

state	The ObjectState instance.
parentUnit	The unit which contains the port.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Definition at line 93 of file Port.cc.

    : SubComponent(),
      name_(""),
      parentUnit_(NULL),
      socket1_(NULL),
      socket2_(NULL) {
    loadStateWithoutReferences(state);
    try {
        parentUnit.addPort(*this);
    } catch (const ComponentAlreadyExists&) {
        const string procName = "Port::Port";
        MOMTextGenerator textGenerator;
        format errorMsg = textGenerator.text(
            MOMTextGenerator::TXT_PORT_EXISTS_BY_NAME);
        errorMsg % name() % parentUnit.name();
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, errorMsg.str());
    }
    parentUnit_ = &parentUnit;
}

References TTAMachine::Unit::addPort(), loadStateWithoutReferences(), TTAMachine::Component::name(), name(), parentUnit(), parentUnit_, Texts::TextGenerator::text(), and MOMTextGenerator::TXT_PORT_EXISTS_BY_NAME.

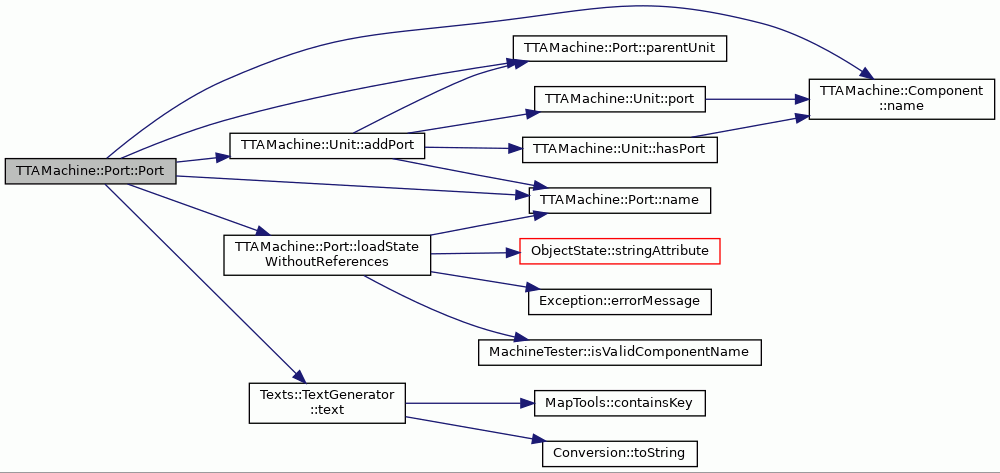

Here is the call graph for this function:

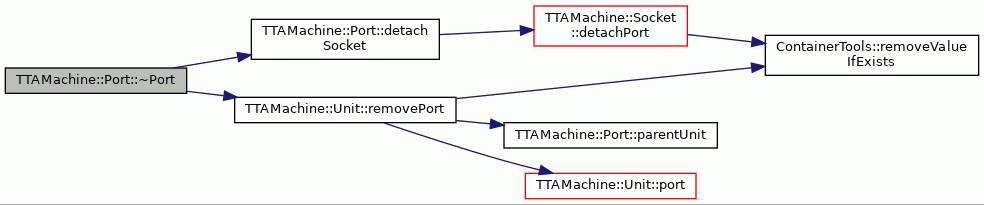

~Port()

TTAMachine::Port::~Port ( )

virtual

Destructor.

Definition at line 117 of file Port.cc.

            {

    Unit* parent = parentUnit_;

    parentUnit_ = NULL;
    assert(parent != NULL);
    parent->removePort(*this);

    if (socket1_ != NULL) {
        detachSocket(*socket1_);
    }

    if (socket2_ != NULL) {
        detachSocket(*socket2_);
    }
}

References assert, detachSocket(), parentUnit_, TTAMachine::Unit::removePort(), socket1_, and socket2_.

Here is the call graph for this function:

Port() [3/4]

TTAMachine::Port::Port ( const std::string &  name, FunctionUnit &  parentUnit  )

protected

Port() [4/4]

TTAMachine::Port::Port ( const Port &  )

private

Copying forbidden.

Member Function Documentation

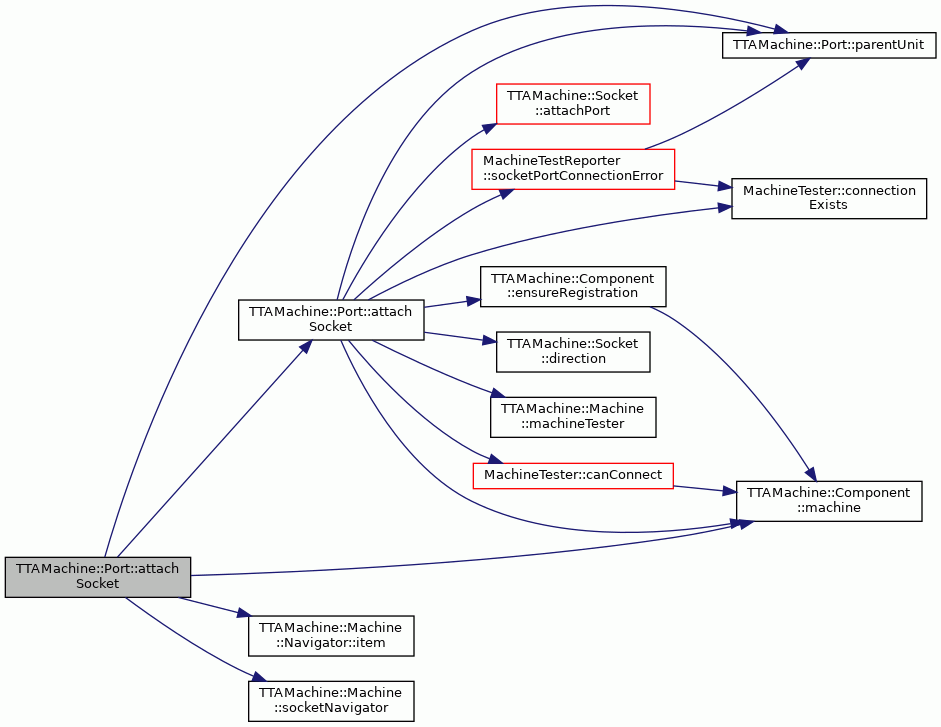

attachSocket() [1/2]

void TTAMachine::Port::attachSocket ( const std::string &  socketName )

private

Attaches the socket by the given name to the port.

The given socket must be registered to the same machine as the parent unit.

Parameters

socketName

Name of the socket to be attached.

Exceptions

InstanceNotFound	If the given socket is not found from the machine.
IllegalRegistration	If the parent unit is not registered to a machine.
ComponentAlreadyExists	If a socket by the given name is already attached.
IllegalConnectivity	If the socket cannot be attached because of connectivity reasons.

Definition at line 516 of file Port.cc.

                                              {
    const string procName = "Socket::attachSocket";

    Machine* mach = parentUnit()->machine();
    if (mach == NULL) {
        throw IllegalRegistration(__FILE__, __LINE__, procName);
    }

    Machine::SocketNavigator socketNav = mach->socketNavigator();
    Socket* socket = socketNav.item(socketName);
    attachSocket(*socket);
}

References attachSocket(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), parentUnit(), and TTAMachine::Machine::socketNavigator().

Here is the call graph for this function:

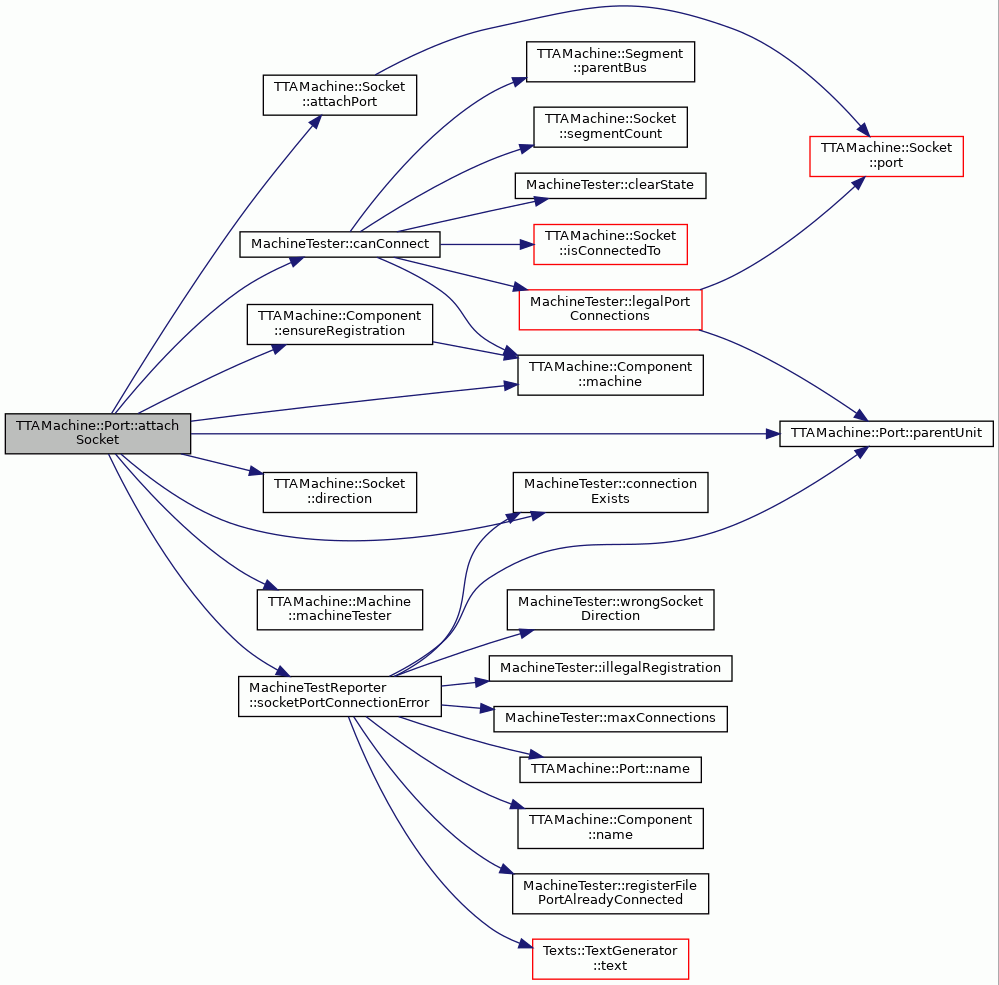

attachSocket() [2/2]

void TTAMachine::Port::attachSocket ( Socket &  socket )

virtual

Attaches a socket to this port.

NOTE! If the parent unit is a register file, attaching a socket may affect to the maximum simultaneous reads of the register file.

Parameters

socket

Socket to be attached.

Exceptions

IllegalRegistration	If the port and socket are not in the same machine.
ComponentAlreadyExists	If the given socket is already attached.
IllegalConnectivity	If the socket cannot be attached because of connectivity reasons.

Definition at line 191 of file Port.cc.

                                 {
    parentUnit()->ensureRegistration(socket);
    string procName = "Port::attachSocket";

    MachineTester& tester = parentUnit()->machine()->machineTester();
    if (!tester.canConnect(socket, *this)) {
        if (tester.connectionExists()) {
            throw ComponentAlreadyExists(__FILE__, __LINE__, procName);
        } else {
            string errorMsg = MachineTestReporter::
                socketPortConnectionError(socket, *this, tester);
            throw IllegalConnectivity(
                __FILE__, __LINE__, procName, errorMsg);
        }
    }

    if (socket1_ == NULL) {
        socket1_ = &socket;
    } else if (socket2_ == NULL) {
        socket2_ = &socket;
    } else {
        assert(false);
    }

    // bookeeping of Socket internal state - private Socket operation
    // reserved solely to Port class!
    socket.attachPort(*this);

    // sanity check
    if (socket2_ != NULL) {
        assert(socket1_->direction() == Socket::UNKNOWN ||
               socket1_->direction() != socket2_->direction());
    }
}

References assert, TTAMachine::Socket::attachPort(), MachineTester::canConnect(), MachineTester::connectionExists(), TTAMachine::Socket::direction(), TTAMachine::Component::ensureRegistration(), TTAMachine::Component::machine(), TTAMachine::Machine::machineTester(), parentUnit(), socket1_, socket2_, MachineTestReporter::socketPortConnectionError(), and TTAMachine::Socket::UNKNOWN.

Referenced by attachSocket(), BlocksFU::BlocksFU(), BlocksGCU::BlocksGCU(), BlocksIMM::BlocksIMM(), BlocksRF::BlocksRF(), RemoveUnconnectedComponents::checkFUPorts(), RemoveUnconnectedComponents::checkRFPorts(), FullyConnectedCheck::connectFUPort(), FullyConnectedCheck::connectIUPort(), ADFCombiner::connectPorts(), FullyConnectedCheck::connectRFPort(), FullyConnectedCheck::connectSpecialRegisterPort(), ADFCombiner::connectVectorLSU(), UniversalMachine::construct(), ADFCombiner::createPortsAndSockets(), SocketPortConnCmd::Do(), UniversalFunctionUnit::ensureInputPorts(), UniversalFunctionUnit::ensureOutputPorts(), VLIWConnectIC::explore(), loadState(), FUPortDialog::onCancel(), RFPortDialog::onCancel(), SRPortDialog::onCancel(), IUPortDialog::onOK(), FUPortDialog::onSocketChoice(), RFPortDialog::onSocketChoice(), SRPortDialog::onSocketChoice(), IUPortDialog::updateSocket(), FUPortDialog::updateSockets(), RFPortDialog::updateSockets(), and SRPortDialog::updateSockets().

Here is the call graph for this function:

detachAllSockets()

void TTAMachine::Port::detachAllSockets ( )

virtual

Detaches all the sockets connected to the port.

NOTE! If the parent unit is a register file, detaching sockets may affect to the maximum simultaneous reads of the register file.

Definition at line 536 of file Port.cc.

                       {
    if (socket1_ != NULL) {
        socket1_->detachPort(*this);
        socket1_ = NULL;
    }
    if (socket2_ != NULL) {
        socket2_->detachPort(*this);
        socket2_ = NULL;
    }
}

References TTAMachine::Socket::detachPort(), socket1_, and socket2_.

Referenced by loadState(), FUPortDialog::onCancel(), RFPortDialog::onCancel(), SRPortDialog::onCancel(), IUPortDialog::onOK(), FUPortDialog::onSocketChoice(), RFPortDialog::onSocketChoice(), SRPortDialog::onSocketChoice(), and TTAMachine::Unit::unsetMachine().

Here is the call graph for this function:

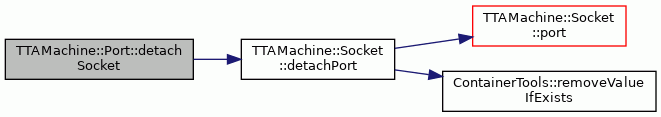

detachSocket()

void TTAMachine::Port::detachSocket ( Socket &  socket )

virtual

Detaches a socket from this port.

NOTE! If the parent unit is a register file, detaching a socket may affect to the maximum simultaneous reads of the register file.

Parameters

socket

Socket to be detached.

Exceptions

InstanceNotFound

If the given socket is not connected to the port.

Definition at line 237 of file Port.cc.

                                 {
    if (socket1_ == &socket) {
        socket1_ = NULL;
    } else if (socket2_ == &socket) {
        socket2_ = NULL;
    } else {
        string procName = "Port::detachSocket";
        throw InstanceNotFound(__FILE__, __LINE__, procName);
    }

    // bookeeping of Socket internal state - private Socket operation
    // reserved solely to Port class!
    socket.detachPort(*this);
}

References TTAMachine::Socket::detachPort(), socket1_, and socket2_.

Referenced by SocketPortConnCmd::Do(), IUPortDialog::updateSocket(), FUPortDialog::updateSockets(), RFPortDialog::updateSockets(), SRPortDialog::updateSockets(), and ~Port().

Here is the call graph for this function:

inputSocket()

Socket * TTAMachine::Port::inputSocket ( ) const

virtual

Returns the input socket of the port.

If the port does not have input socket (socket whose direction is Socket::INPUT), returns NULL.

Returns

Input socket of the port.

Definition at line 261 of file Port.cc.

                        {
    if (socket1_ != NULL && socket1_->direction() == Socket::INPUT) {
        return socket1_;
    } else if (socket2_ != NULL && socket2_->direction() == Socket::INPUT) {
        return socket2_;
    } else {
        return NULL;
    }
}

References TTAMachine::Socket::direction(), TTAMachine::Socket::INPUT, socket1_, and socket2_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), MachineStateBuilder::addPortToFU(), BusBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), InputPSocketBroker::allAvailableResources(), MachineConnectivityCheck::appendConnectedSourceBuses(), InputPSocketBroker::assign(), MachineConnectivityCheck::busConnectedToPort(), MachineTester::canConnect(), MachineConnectivityCheck::canWriteAllImmediates(), OperationBindingCheck::check(), POMValidator::checkConnectivity(), FullyConnectedCheck::connectFUPort(), ADFCombiner::connectPorts(), ProGe::RV32MicroCodeGenerator::connectRF(), UnitPortFactory::createEditPart(), OpsetDialog::createOperation(), ADFCombiner::createPortsAndSockets(), TTAProgram::Move::destinationSocket(), CodeCompressorPlugin::encodeFUTerminal(), CodeCompressorPlugin::encodeIUTerminal(), CodeCompressorPlugin::encodeRFTerminal(), UniversalFunctionUnit::ensureInputPorts(), ProgrammabilityValidator::findConnections(), TTAMachine::RegisterFile::firstWritePort(), FullyConnectedCheck::fix(), MachineConnectivityCheck::fromRfConnected(), InputPSocketBroker::isAlreadyAssigned(), BusBroker::isAvailable(), MachineConnectivityCheck::isConnected(), MachineConnectivityCheck::isConnected(), isInput(), MachineTester::legalPortConnections(), MachineAnalysis::MachineAnalysis(), MachineConnectivityCheck::needsRegisterCopiesDueImmediateOperands(), BlockImplementationDialog::onHDBSelection(), SmartHWOperation::port(), ProgrammabilityValidator::printConnection(), MachineResourceManager::registerFileIndexReference(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), ComponentImplementationSelector::rfImplementations(), MachineResourceManager::rFPortOrFUIndexReference(), ExecutionPipelineBroker::setupResourceLinks(), InputFUBroker::setupResourceLinks(), MachineConnectivityCheck::toRfConnected(), InputPSocketBroker::unassign(), FUPortDialog::updateSockets(), RFPortDialog::updateSockets(), SRPortDialog::updateSockets(), DefaultDecoderGenerator::writeControlRegisterMappings(), DefaultDecoderGenerator::writeControlRulesOfFUInputPort(), DefaultDecoderGenerator::writeControlRulesOfRFReadPort(), DefaultDecoderGenerator::writeControlRulesOfRFWritePort(), DefaultDecoderGenerator::writeFUCntrlSignals(), and DefaultDecoderGenerator::writeRulesForDestinationControlSignals().

Here is the call graph for this function:

isConnectedTo()

bool TTAMachine::Port::isConnectedTo ( const Socket &  socket ) const

virtual

Checks whether the port is connected to the given socket.

Parameters

socket

The socket.

Returns

True if the port is connected to the socket, otherwise false.

Definition at line 393 of file Port.cc.

                                              {
    return (socket1_ == &socket || socket2_ == &socket);
}

References socket1_, and socket2_.

Referenced by MachineTester::canConnect(), ProDePortEditPolicy::canHandle(), ProDeSocketEditPolicy::canHandle(), ADFCombiner::connectVectorLSU(), SocketPortConnCmd::Do(), and ConnectTool::figure().

isInput()

bool TTAMachine::Port::isInput ( ) const

virtual

Returns true if this port can be used to read data from bus to the unit.

Returns

True if input port.

Definition at line 298 of file Port.cc.

                    {
    return inputSocket() != NULL;
}

References inputSocket().

Referenced by ProGe::RV32MicroCodeGenerator::addBPorts(), RegisterCopyAdder::addConnectionRegisterCopies(), ProGe::NetlistGenerator::addGCUToNetlist(), ProGe::NetlistGenerator::addGeneratableFUsToNetlist(), ProGe::RV32MicroCodeGenerator::addRPorts(), ProGe::RV32MicroCodeGenerator::addSPorts(), TDGen::analyzeMachineRegisters(), TDGen::analyzeRegisters(), TTAMachine::Unit::bidirPortCount(), RFPortCheck::check(), DefaultDecoderGenerator::completeDecoderBlock(), RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR(), FUGen::createMandatoryPorts(), FUGen::createShadowRegisters(), TTAProgram::CodeGenerator::createTerminalRegister(), MachineConnectivityCheck::findWritePorts(), CompiledSimCodeGenerator::generateTriggerCode(), TTAMachine::Unit::inputPortCount(), ProGe::NetlistGenerator::netlistPort(), TTAMachine::HWOperation::numberOfInputs(), TTAMachine::Unit::outputPortCount(), PlatformIntegrator::readLsuParameters(), TTAMachine::RegisterFile::updateMaxReadsAndWrites(), and DefaultDecoderGenerator::writeControlRegisterMappings().

Here is the call graph for this function:

isOutput()

bool TTAMachine::Port::isOutput ( ) const

virtual

Returns true if this port can be used to write data from unit to bus.

Returns

True if output port.

Definition at line 308 of file Port.cc.

                     {
    return outputSocket() != NULL;
}

References outputSocket().

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), ProGe::NetlistGenerator::addGCUToNetlist(), ProGe::RV32MicroCodeGenerator::addIPorts(), ProGe::RV32MicroCodeGenerator::addR1RPorts(), ProGe::RV32MicroCodeGenerator::addRPorts(), ProGe::RV32MicroCodeGenerator::addUJPorts(), TDGen::analyzeMachineRegisters(), TDGen::analyzeRegisters(), TTAMachine::Unit::bidirPortCount(), FUGen::checkForValidity(), SimulatorFrontend::compareState(), RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR(), llvm::LLVMTCEBuilder::createTerminalRegister(), TTAProgram::CodeGenerator::createTerminalRegister(), llvm::LLVMTCEBuilder::emitSPInitialization(), MachineConnectivityCheck::findPossibleSourcePorts(), MachineConnectivityCheck::findReadPorts(), CompiledSimCodeGenerator::fuOutputPorts(), CompiledSimCodeGenerator::generateTriggerCode(), getOutputPort(), CompiledSimCodeGenerator::handleOperationWithoutDag(), TTAMachine::Unit::inputPortCount(), ProGe::NetlistGenerator::netlistPort(), TTAMachine::HWOperation::numberOfOutputs(), TTAMachine::Unit::outputPortCount(), FUGen::parseOperations(), TTAMachine::RegisterFile::updateMaxReadsAndWrites(), and DefaultDecoderGenerator::writeRFCntrlSignals().

Here is the call graph for this function:

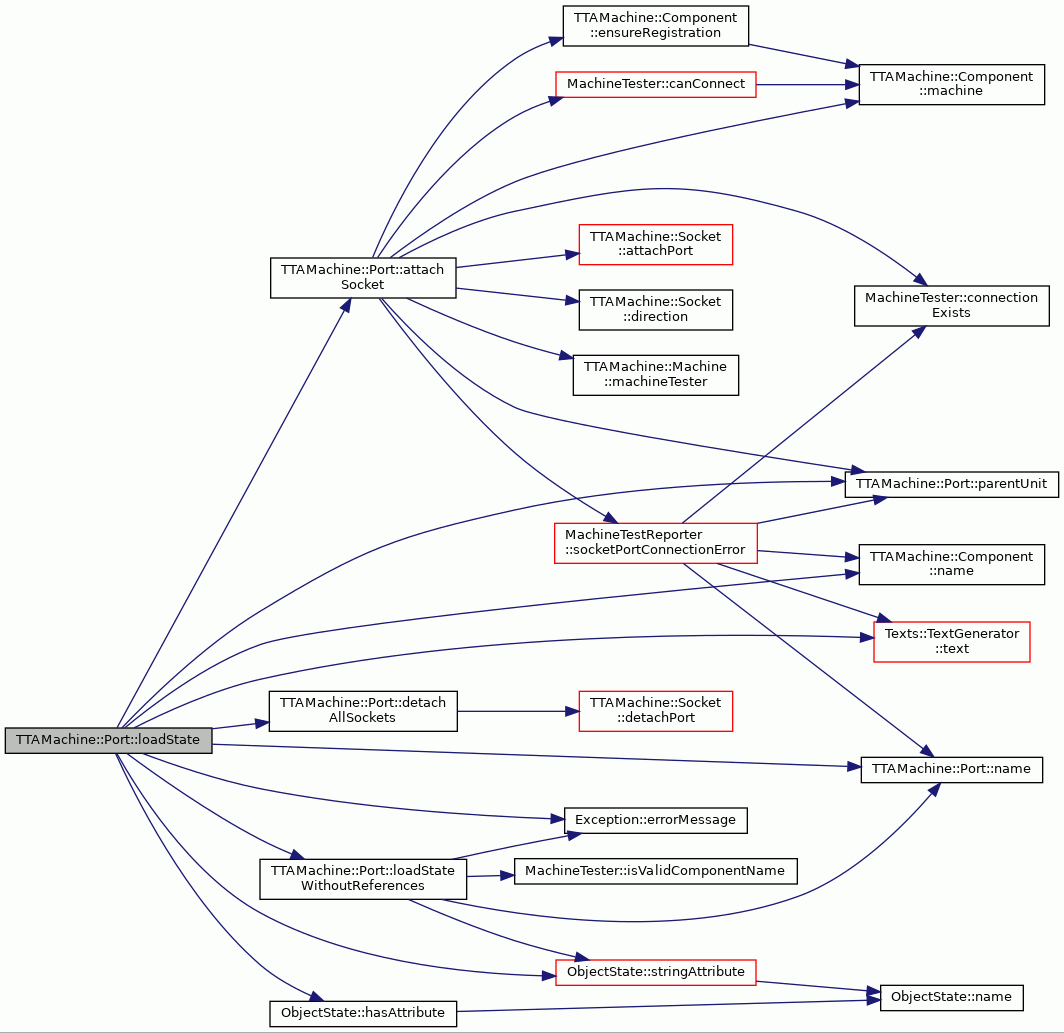

loadState()

void TTAMachine::Port::loadState ( const ObjectState *  state )

virtual

Loads its state from the given ObjectState instance.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the parent unit has a port by the same name as the coming name of this unit or if loading the references to sockets fails.

Implements Serializable.

Reimplemented in TTAMachine::BaseFUPort, TTAMachine::FUPort, TTAMachine::RFPort, TTAMachine::SpecialRegisterPort, and UniversalFUPort.

Definition at line 459 of file Port.cc.

                                        {
    const string procName = "Port::loadState";
    detachAllSockets();
    loadStateWithoutReferences(state);
    string socketName = "";
    MOMTextGenerator textGenerator;

    try {
        if (state->hasAttribute(OSKEY_FIRST_SOCKET)) {
            socketName = state->stringAttribute(OSKEY_FIRST_SOCKET);
            attachSocket(socketName);
        }
        if (state->hasAttribute(OSKEY_SECOND_SOCKET)) {
            socketName = state->stringAttribute(OSKEY_SECOND_SOCKET);
            attachSocket(socketName);
        }
    } catch (const InstanceNotFound&) {
        format errorMsg = textGenerator.text(
            MOMTextGenerator::TXT_PORT_REF_LOAD_ERR_SOCKET);
        errorMsg % socketName % name() % parentUnit()->name();
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, errorMsg.str());
    } catch (const IllegalRegistration&) {
        format errorMsg = textGenerator.text(
            MOMTextGenerator::TXT_PORT_REF_LOAD_ERR_SOCKET);
        errorMsg % socketName % name() % parentUnit()->name();
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, errorMsg.str());
    } catch (const ComponentAlreadyExists&) {
        format errorMsg = textGenerator.text(
            MOMTextGenerator::TXT_PORT_EXISTS_BY_NAME);
        errorMsg % name() % parentUnit()->name();
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, errorMsg.str());
    } catch (const IllegalConnectivity& exception) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References attachSocket(), detachAllSockets(), Exception::errorMessage(), ObjectState::hasAttribute(), loadStateWithoutReferences(), TTAMachine::Component::name(), name(), OSKEY_FIRST_SOCKET, OSKEY_SECOND_SOCKET, parentUnit(), ObjectState::stringAttribute(), Texts::TextGenerator::text(), MOMTextGenerator::TXT_PORT_EXISTS_BY_NAME, and MOMTextGenerator::TXT_PORT_REF_LOAD_ERR_SOCKET.

Referenced by TTAMachine::BaseFUPort::loadState(), TTAMachine::RFPort::loadState(), and TTAMachine::Unit::loadState().

Here is the call graph for this function:

loadStateWithoutReferences()

void TTAMachine::Port::loadStateWithoutReferences ( const ObjectState *  state )

private

Loads its state from the given ObjectState instance but does not create connections to sockets.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Definition at line 434 of file Port.cc.

                                                         {
    const string procName = "Port::loadStateWithoutReferences";

    try {
        string name = state->stringAttribute(OSKEY_NAME);
        if (!MachineTester::isValidComponentName(name)) {
            throw InvalidName(__FILE__, __LINE__, procName);
        }
        name_ = name;
    } catch (const Exception& exception) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References Exception::errorMessage(), MachineTester::isValidComponentName(), name(), name_, OSKEY_NAME, and ObjectState::stringAttribute().

Referenced by loadState(), and Port().

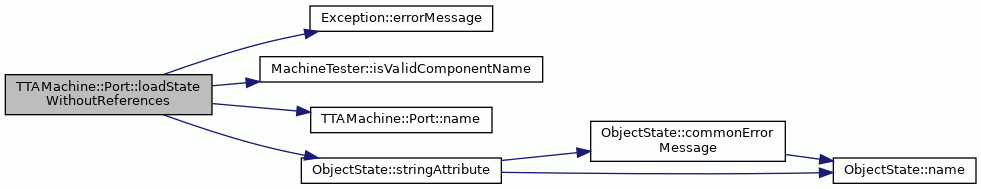

Here is the call graph for this function:

name()

std::string TTAMachine::Port::name ( ) const

virtual

Returns the name of the port.

Returns

Name of the port.

Definition at line 141 of file Port.cc.

                 {
    return name_;
}

References name_.

Referenced by CodeCompressorPlugin::addBitsForGuardField(), BEMGenerator::addEncodings(), HDB::HDBManager::addFUArchitecture(), ProGe::NetlistGenerator::addGCUToNetlist(), TTAMachine::Unit::addPort(), BEMGenerator::addPortCodes(), MachineStateBuilder::addPortToFU(), MachineStateBuilder::addVirtualOpcodeSettingPortsToFU(), BusBroker::allAvailableResources(), MachineStateBuilder::bindPortsToOperands(), CostDatabase::buildFunctionUnits(), MachineStateBuilder::buildMachineState(), UtilizationStats::calculateForInstruction(), FullyConnectedCheck::check(), POMValidator::checkConnectivity(), BEMValidator::checkGuardField(), ExecutionPipelineResource::checkOperandAllowed(), BEMValidator::checkSocketCodeTable(), SimulatorFrontend::compareState(), DefaultDecoderGenerator::completeDecoderBlock(), ADFCombiner::connectVectorLSU(), TTAProgram::ProgramWriter::createCodeSection(), UnitPortFactory::createEditPart(), POMDisassembler::createFUPort(), POMDisassembler::createGuard(), FUGen::createMandatoryPorts(), ADFCombiner::createPortsAndSockets(), FUGen::createShadowRegisters(), TTAMachine::Unit::deleteOtherPorts(), ProximFUDetailsCmd::Do(), ProximFUPortDetailsCmd::Do(), AddFUImplementationCmd::Do(), CodeCompressorPlugin::encodeFUTerminal(), InterpolatingFUEstimator::estimatePortReadDelay(), InterpolatingRFEstimator::estimatePortReadDelay(), InterpolatingFUEstimator::estimatePortWriteDelay(), InterpolatingRFEstimator::estimatePortWriteDelay(), InfoPortsCommand::execute(), BlocksConnectIC::explore(), CostEstimator::Estimator::findAllICPaths(), DefaultDecoderGenerator::findGuard(), SimulatorFrontend::findPort(), HDBToHtml::fuArchToHtml(), TTAProgram::TPEFResourceUpdater::functionUnitPort(), CostEstimator::Estimator::functionUnitPortReadDelay(), CostEstimator::Estimator::functionUnitPortWriteDelay(), CompiledSimCodeGenerator::generateAddFUResult(), ProximPortEditPolicy::getCommand(), ProDePortEditPolicy::getCommand(), getOutputPort(), DefaultDecoderGenerator::guardPortName(), TTAMachine::HWOperation::io(), BusBroker::isAvailable(), HDB::HDBManager::isMatchingArchitecture(), TTAMachine::HWOperation::loadState(), loadState(), TTAMachine::FUPort::loadStateWithoutReferences(), loadStateWithoutReferences(), CostEstimator::Estimator::longestPath(), main(), ProGe::NetlistGenerator::netlistPort(), GCUDialog::onEditPort(), AddWatchDialog::onFUChoice(), FUGuardDialog::onFUChoice(), FUArchitectureDialog::onOK(), FUPortDialog::onOK(), IUPortDialog::onOK(), RFPortDialog::onOK(), SRPortDialog::onOK(), OperationDialog::onOperandSelection(), ExecutionPipelineResource::operandAllowedAtCycle(), operandBindingsString(), ExecutionPipelineResource::operandOverwritten(), HDB::FUArchitecture::operator==(), FUTestbenchGenerator::parseFuPorts(), FUGen::parseOperations(), Port(), Port(), TTAMachine::PortGuard::PortGuard(), CompiledSimSymbolGenerator::portSymbol(), BF2Scheduler::preAllocateFunctionUnits(), SimProgramBuilder::processBidirTerminal(), CostEstimator::Estimator::registerFilePortReadDelay(), CostEstimator::Estimator::registerFilePortWriteDelay(), BF2Scheduler::releasePortForOp(), HDB::HDBManager::resolveArchitecturePort(), MachineResourceManager::rFPortOrFUIndexReference(), TTAMachine::PortGuard::saveState(), saveState(), FUGen::scheduleOperations(), setName(), MachineTestReporter::socketDirectionSettingError(), MachineTestReporter::socketPortConnectionError(), MachineTestReporter::socketSegmentConnectionError(), SimulatorFrontend::state(), ProGe::RV32MicroCodeGenerator::throwInputPortError(), ProGe::RV32MicroCodeGenerator::throwOutputPortError(), ProGe::RV32MicroCodeGenerator::throwTriggeringPortError(), FUGuardDialog::TransferDataToWindow(), FUPortDialog::TransferDataToWindow(), IUPortDialog::TransferDataToWindow(), RFPortDialog::TransferDataToWindow(), SRPortDialog::TransferDataToWindow(), ProximPortWindow::update(), FUArchitectureDialog::update(), BusDialog::updateGuardLists(), OperationDialog::updateOperandList(), FUDialog::updatePortList(), GCUDialog::updatePortList(), IUDialog::updatePortList(), RFDialog::updatePortList(), GCUDialog::updateRAPortChoice(), DefaultDecoderGenerator::writeControlRegisterMappings(), DefaultDecoderGenerator::writeControlRulesOfFUInputPort(), DefaultDecoderGenerator::writeControlRulesOfFUOutputPort(), DefaultDecoderGenerator::writeControlRulesOfRFReadPort(), DefaultDecoderGenerator::writeControlRulesOfRFWritePort(), DefaultDecoderGenerator::writeFUCntrlSignals(), DefaultDecoderGenerator::writeRFCntrlSignals(), and DefaultDecoderGenerator::writeRFSRAMDecodingProcess().

operator=()

Port & TTAMachine::Port::operator= ( const Port &  )

private

Assingment forbidden.

outputSocket()

Socket * TTAMachine::Port::outputSocket ( ) const

virtual

Returns the output socket of the port.

If the port does not have output socket (socket whose direction is Socket::OUTPUT), returns NULL.

Returns

Output socket of the port.

Definition at line 281 of file Port.cc.

                         {
    if (socket1_ != NULL && socket1_->direction() == Socket::OUTPUT) {
        return socket1_;
    } else if (socket2_ != NULL &&
               socket2_->direction() == Socket::OUTPUT) {
        return socket2_;
    } else {
        return NULL;
    }
}

References TTAMachine::Socket::direction(), TTAMachine::Socket::OUTPUT, socket1_, and socket2_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), MachineStateBuilder::addPortToFU(), BusBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), MachineConnectivityCheck::appendConnectedDestinationBuses(), OutputFUBroker::assign(), OutputPSocketBroker::assign(), MachineTester::canConnect(), OperationBindingCheck::check(), POMValidator::checkConnectivity(), FullyConnectedCheck::connectFUPort(), ADFCombiner::connectPorts(), ProGe::RV32MicroCodeGenerator::connectRF(), UnitPortFactory::createEditPart(), OpsetDialog::createOperation(), ADFCombiner::createPortsAndSockets(), CodeCompressorPlugin::encodeFUTerminal(), CodeCompressorPlugin::encodeIUTerminal(), CodeCompressorPlugin::encodeRFTerminal(), UniversalFunctionUnit::ensureOutputPorts(), VLIWConnectIC::explore(), ProgrammabilityValidator::findConnections(), TTAMachine::RegisterFile::firstReadPort(), FullyConnectedCheck::fix(), MachineConnectivityCheck::fromRfConnected(), MachineConnectivityCheck::immBits(), OutputPSocketBroker::isAlreadyAssigned(), OutputPSocketBroker::isAnyResourceAvailable(), BusBroker::isAvailable(), MachineConnectivityCheck::isConnected(), MachineConnectivityCheck::isConnected(), isOutput(), MachineTester::legalPortConnections(), MachineAnalysis::MachineAnalysis(), BlockImplementationDialog::onHDBSelection(), SmartHWOperation::port(), ProgrammabilityValidator::printConnection(), MachineResourceManager::registerFileIndexReference(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), ComponentImplementationSelector::rfImplementations(), MachineResourceManager::rFPortOrFUIndexReference(), ExecutionPipelineBroker::setupResourceLinks(), IUBroker::setupResourceLinks(), OutputFUBroker::setupResourceLinks(), TTAProgram::Move::sourceSocket(), MachineConnectivityCheck::toRfConnected(), FUGuardDialog::TransferDataToWindow(), IUPortDialog::updateSocket(), FUPortDialog::updateSockets(), RFPortDialog::updateSockets(), SRPortDialog::updateSockets(), DefaultDecoderGenerator::writeControlRegisterMappings(), DefaultDecoderGenerator::writeControlRulesOfFUOutputPort(), DefaultDecoderGenerator::writeControlRulesOfRFReadPort(), DefaultDecoderGenerator::writeRFCntrlSignals(), DefaultDecoderGenerator::writeRFSRAMDecodingProcess(), and DefaultDecoderGenerator::writeRulesForSourceControlSignals().

Here is the call graph for this function:

parentUnit()

Unit * TTAMachine::Port::parentUnit

(

)

const

Referenced by CodeCompressorPlugin::addBitsForGuardField(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), ProgrammabilityValidator::addConnectionToProgram(), ProgrammabilityValidator::addDirectConnection(), ProgrammabilityValidator::addGlobalRegisterConnection(), TTAMachine::Unit::addPort(), BEMGenerator::addPortCodes(), BusBroker::allAvailableResources(), InputPSocketBroker::assign(), OutputPSocketBroker::assign(), attachSocket(), attachSocket(), MachineConnectivityCheck::busConnectedToDestination(), OutputPSocketResource::canAssign(), MachineTester::canConnect(), ProDeSocketEditPolicy::canHandle(), MachineConnectivityCheck::canWriteAllImmediates(), POMValidator::checkConnectivity(), BEMValidator::checkSocketCodeTable(), TTAMachine::FUPort::cleanupGuards(), TTAMachine::FUPort::cleanupOperandBindings(), TTAProgram::TPEFProgramFactory::createInstruction(), BlocksConnectIC::explore(), VLIWConnectIC::explore(), CostEstimator::Estimator::findAllICPaths(), MachineConnectivityCheck::findPossibleDestinationPorts(), MachineConnectivityCheck::findPossibleSourcePorts(), MachineConnectivityCheck::findRoutes(), TTAProgram::TPEFResourceUpdater::functionUnitPort(), BF2Scheduler::getDstUnit(), ProgramOperation::hwopFromOutMove(), BusBroker::isAvailable(), MachineConnectivityCheck::isPortApplicableToWidths(), MachineTester::legalPortConnections(), loadState(), TTAMachine::FUPort::loadStateWithoutReferences(), CostEstimator::Estimator::longestPath(), main(), BEMValidator::needsSocketCodeTable(), ProGe::NetlistGenerator::netlistPort(), IUPortDialog::onOK(), RFPortDialog::onOK(), RFPortDialog::onSocketChoice(), ProgramOperation::outputIndexFromGuard(), TTAMachine::BaseFUPort::parentUnit(), TTAMachine::RFPort::parentUnit(), ExecutionPipelineResource::poConflictsWithInputPort(), Port(), Port(), CompiledSimSymbolGenerator::portSymbol(), ProgrammabilityValidator::printConnection(), SimProgramBuilder::processBidirTerminal(), SimpleICOptimizer::removeAllConnections(), TTAMachine::Unit::removePort(), RegisterRenamer::renameLiveRange(), TTAProgram::TPEFProgramFactory::resolveSocketAllocations(), setName(), InputPSocketBroker::setupResourceLinks(), OutputPSocketBroker::setupResourceLinks(), MachineTestReporter::socketDirectionSettingError(), MachineTestReporter::socketPortConnectionError(), MachineTestReporter::socketSegmentConnectionError(), ConnectionSweeper::sweepBypasses(), ConnectionSweeper::sweepRFs(), TTAProgram::ProgramWriter::terminalResource(), IUPortDialog::updateSocket(), and RFPortDialog::updateSockets().

saveState()

ObjectState * TTAMachine::Port::saveState ( ) const

virtual

Saves the contents to an ObjectState tree.

Returns

The newly created ObjectState tree.

Implements Serializable.

Reimplemented in TTAMachine::BaseFUPort, TTAMachine::FUPort, TTAMachine::RFPort, and TTAMachine::SpecialRegisterPort.

Definition at line 404 of file Port.cc.

                      {

    ObjectState* port = new ObjectState(OSNAME_PORT);
    port->setAttribute(OSKEY_NAME, name());

    // set first socket
    if (socket1_ != NULL) {
        port->setAttribute(OSKEY_FIRST_SOCKET, socket1_->name());
    } else if (socket2_ != NULL) {
        port->setAttribute(OSKEY_FIRST_SOCKET, socket2_->name());
    }

    // set second socket
    if (socket1_ != NULL && socket2_ != NULL) {
        port->setAttribute(OSKEY_SECOND_SOCKET, socket2_->name());
    }

    return port;
}

References TTAMachine::Component::name(), name(), OSKEY_FIRST_SOCKET, OSKEY_NAME, OSKEY_SECOND_SOCKET, OSNAME_PORT, ObjectState::setAttribute(), socket1_, and socket2_.

Referenced by TTAMachine::BaseFUPort::saveState(), TTAMachine::RFPort::saveState(), and TTAMachine::Unit::saveState().

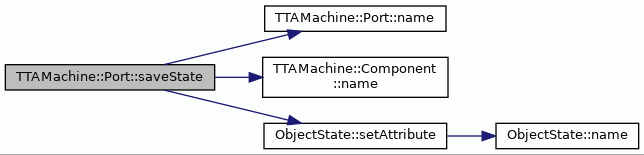

Here is the call graph for this function:

setName()

void TTAMachine::Port::setName ( const std::string &  name )

virtual

Sets the name of the port.

Parameters

name	The new name.

Exceptions

ComponentAlreadyExists	If a port with the given name already exists in the same unit.
InvalidName	If the given name is not a valid component name.

Reimplemented in UniversalFUPort.

Definition at line 155 of file Port.cc.

                                   {
    if (name == this->name()) {
        return;
    }

    const string procName = "Port::setName";

    if (!MachineTester::isValidComponentName(name)) {
        throw InvalidName(__FILE__, __LINE__, procName);
    }

    Unit* parent = this->parentUnit();
    for (int i = 0; i < parent->portCount(); i++) {
        Port* port = parent->port(i);
        if (port->name() == name) {
            throw ComponentAlreadyExists(__FILE__, __LINE__, procName);
        }
    }

    name_ = name;
}

References MachineTester::isValidComponentName(), name(), name_, parentUnit(), TTAMachine::Unit::port(), and TTAMachine::Unit::portCount().

Referenced by AddFUFromHDBDialog::onAdd(), FUPortDialog::onOK(), IUPortDialog::onOK(), RFPortDialog::onOK(), and SRPortDialog::onOK().

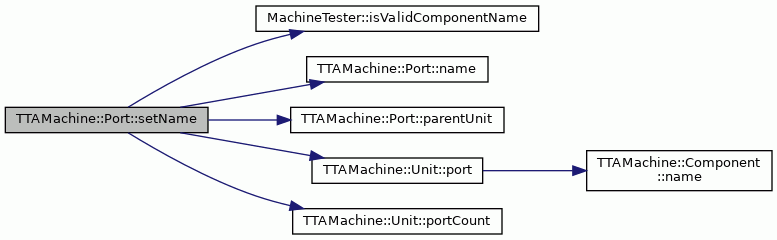

Here is the call graph for this function:

socketCount()

int TTAMachine::Port::socketCount ( ) const

virtual

Returns the number of sockets attached to the port.

Returns

The number of sockets.

Definition at line 375 of file Port.cc.

                        {
    if (socket1_ != NULL && socket2_ != NULL) {
        return 2;
    } else if (socket1_ != NULL || socket2_ != NULL) {
        return 1;
    } else {
        return 0;
    }
}

References socket1_, and socket2_.

Referenced by MachineTester::canConnect(), FullyConnectedCheck::check(), FullyConnectedCheck::check(), MachineValidator::checkFUConnections(), RemoveUnconnectedComponents::checkFUPorts(), RemoveUnconnectedComponents::checkRFPorts(), FullyConnectedCheck::connectControlUnit(), ADFCombiner::connectVectorLSU(), FullyConnectedCheck::fix(), RemoveUnconnectedComponents::removeUnconnectedFUs(), and unconnectedSocket().

unconnectedSocket()

Socket * TTAMachine::Port::unconnectedSocket ( int  index ) const

virtual

Returns the first or the second unconnected socket attached to this port. If there is no such socket, returns NULL.

Parameters

index

The index which indicates which of the unconnected sockets is returned. If there is only one unconnected socket, the index value 0 returns it and value 1 returns NULL.

Returns

The unconnected socket by the given index.

Exceptions

OutOfRange

If the given index is not 0 or 1.

Definition at line 323 of file Port.cc.

                                       {
    const string procName = "Port::unconnectedSocket";

    if (index < 0 || index > 1) {
        throw OutOfRange(__FILE__, __LINE__, procName);
    }

    if (socketCount() == 0) {
        return NULL;
    } else if (socketCount() == 1) {
        if (index == 1) {
            return NULL;
        } else if (socket1_ != NULL && socket1_->segmentCount() == 0) {
            return socket1_;
        } else if (socket2_ != NULL && socket2_->segmentCount() == 0) {
            return socket2_;
        } else {
            return NULL;
        }
    } else if (socketCount() == 2) {
        if (index == 0) {
            if (socket1_->segmentCount() == 0) {
                return socket1_;
            } else if (socket2_->segmentCount() == 0) {
                return socket2_;
            } else {
                return NULL;
            }
        } else {
            if (socket2_->segmentCount() == 0) {
                return socket2_;
            } else {
                return NULL;
            }
        }
    } else {
        string errorMsg = "Too many sockets attached to a port.";
        Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
        Application::abortProgram();

        // this return statement is just to avoid compilation warning in some
        // environments.
        return NULL;
    }
}

References Application::abortProgram(), TTAMachine::Socket::segmentCount(), socket1_, socket2_, socketCount(), and Application::writeToErrorLog().

Referenced by MachineTester::canConnect(), ADFCombiner::connectPorts(), and UnitPortFactory::createEditPart().

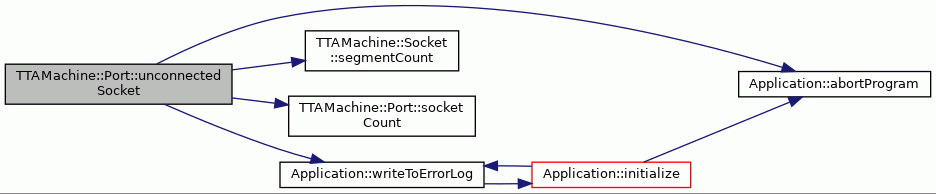

Here is the call graph for this function:

width()

virtual int TTAMachine::Port::width ( ) const

pure virtual

Implemented in TTAMachine::BaseFUPort, and TTAMachine::RFPort.

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), ProGe::NetlistGenerator::addGCUToNetlist(), DefaultICDecoderEstimator::busParameters(), BusResource::canAssign(), MachineConnectivityCheck::canWriteAllImmediates(), UnitPortFactory::createEditPart(), llvm::LLVMTCEBuilder::createMove(), DefaultICDecoderGenerator::dataPortWidth(), llvm::LLVMTCEBuilder::emitMove(), BlocksConnectIC::explore(), VLIWConnectIC::explore(), MachineResourceManager::functionUnitPortResource(), CompiledSimCodeGenerator::generateInstruction(), DefaultICGenerator::inputSocketDataPortWidth(), DefaultICGenerator::maxOutputSocketDataPortWidth(), DefaultICGenerator::outputSocketDataPortWidth(), SimProgramBuilder::processMove(), MachineResourceManager::rFPortOrFUIndexReference(), DefaultICDecoderEstimator::socketParameters(), MachineConnectivityCheck::toRfConnected(), and DefaultICGenerator::writeInterconnectionNetwork().

Member Data Documentation

name_

std::string TTAMachine::Port::name_

private

Name of the port.

Definition at line 107 of file Port.hh.

Referenced by loadStateWithoutReferences(), name(), and setName().

OSKEY_FIRST_SOCKET

const string TTAMachine::Port::OSKEY_FIRST_SOCKET = "1_socket"

static

ObjectState attribute key for the name of the connected socket.

Definition at line 84 of file Port.hh.

Referenced by loadState(), ADFSerializer::machineFUPort(), ADFSerializer::machineRFPort(), ADFSerializer::machineSRPort(), ADFSerializer::mdfPort(), and saveState().

OSKEY_NAME

const string TTAMachine::Port::OSKEY_NAME = "name"

static

ObjectState attribute key for the name of the port.

Definition at line 82 of file Port.hh.

Referenced by TTAMachine::Unit::loadState(), loadStateWithoutReferences(), TTAMachine::Unit::loadStateWithoutReferences(), ADFSerializer::machineFUPort(), ADFSerializer::mdfPort(), TTAMachine::Unit::portNames(), and saveState().

OSKEY_SECOND_SOCKET

const string TTAMachine::Port::OSKEY_SECOND_SOCKET = "2_socket"

static

ObjectState attribute key for the name of the other connected socket.

Definition at line 86 of file Port.hh.

Referenced by loadState(), ADFSerializer::machineFUPort(), ADFSerializer::machineRFPort(), ADFSerializer::machineSRPort(), ADFSerializer::mdfPort(), and saveState().

OSNAME_PORT

const string TTAMachine::Port::OSNAME_PORT = "port"

static

ObjectState name for Port.

Definition at line 80 of file Port.hh.

Referenced by saveState().

parentUnit_

Unit* TTAMachine::Port::parentUnit_

private

Parent unit.

Definition at line 109 of file Port.hh.

Referenced by Port(), Port(), and ~Port().

socket1_

Socket* TTAMachine::Port::socket1_

private

Connection to the first socket.

Definition at line 111 of file Port.hh.

Referenced by attachSocket(), detachAllSockets(), detachSocket(), inputSocket(), isConnectedTo(), outputSocket(), saveState(), socketCount(), unconnectedSocket(), and ~Port().

socket2_

Socket* TTAMachine::Port::socket2_

private

Connection to the second socket.

Definition at line 113 of file Port.hh.

Referenced by attachSocket(), detachAllSockets(), detachSocket(), inputSocket(), isConnectedTo(), outputSocket(), saveState(), socketCount(), unconnectedSocket(), and ~Port().

---

The documentation for this class was generated from the following files:

• Port.hh
• Port.cc
