Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions | Static Protected Member Functions | Private Member Functions | Static Private Attributes | List of all members
TPEF::BinaryReader Class Referenceabstract

#include <BinaryReader.hh>

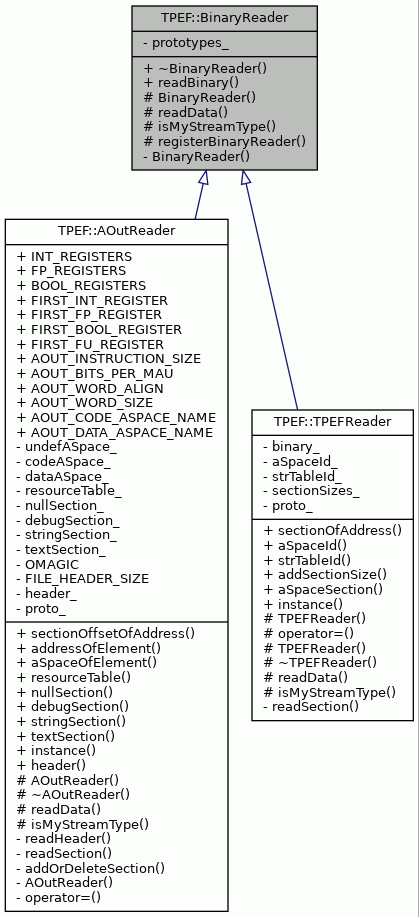

Inheritance diagram for TPEF::BinaryReader:
Inheritance graph

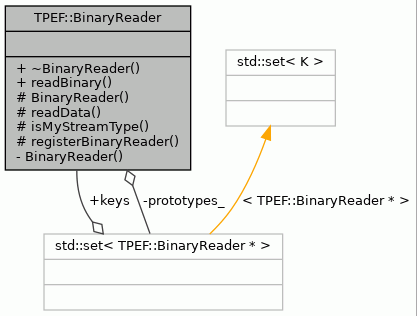

Collaboration diagram for TPEF::BinaryReader:
Collaboration graph

Public Types

typedef unsigned long Length


Public Member Functions

virtual ~BinaryReader ()


Static Public Member Functions

static BinaryreadBinary (BinaryStream &stream)


Protected Member Functions

 BinaryReader ()

virtual BinaryreadData (BinaryStream &stream) const =0
 Does actual reading and constructing part.

virtual bool isMyStreamType (BinaryStream &stream) const =0
 Checks if given stream can be read with this BinaryReader class.


Static Protected Member Functions

static void registerBinaryReader (BinaryReader *reader)


Private Member Functions

 BinaryReader (const BinaryReader &)


Static Private Attributes

static std::set< BinaryReader * > * prototypes_ = NULL
 Contains instances of concrete BinaryReaders.


Detailed Description

Abstract base class for each actual BinaryReader class.

Handles registrations and storing of every BinaryReader instance. BinaryReaders implement Singleton design pattern.

Definition at line 51 of file BinaryReader.hh.

Member Typedef Documentation

◆ Length

typedef unsigned long TPEF::BinaryReader::Length

Definition at line 53 of file BinaryReader.hh.

Constructor & Destructor Documentation

◆ ~BinaryReader()

TPEF::BinaryReader::~BinaryReader ( )
virtual

Destructor.

Definition at line 64 of file BinaryReader.cc.

64 {
65}

◆ BinaryReader() [1/2]

TPEF::BinaryReader::BinaryReader ( )
protected

Constructor.

Definition at line 58 of file BinaryReader.cc.

58 {
59}

◆ BinaryReader() [2/2]

TPEF::BinaryReader::BinaryReader ( const BinaryReader )
private

Member Function Documentation

◆ isMyStreamType()

virtual bool TPEF::BinaryReader::isMyStreamType ( BinaryStream stream) const
protectedpure virtual

Checks if given stream can be read with this BinaryReader class.

Implemented in TPEF::AOutReader, and TPEF::TPEFReader.

◆ readBinary()

Binary * TPEF::BinaryReader::readBinary ( BinaryStream stream)
static

Constructs a Binary object by reading data from the given binary stream.

Looks for the concrete binary reader class that can read the given binary stream. If found, that reader is used to read and construct a Binary object. This method cleans keytables of reference manager so after running this method reference manager contain keys of just read binary file.

Parameters
streamStream to read binarys data from.
Returns
Binary that was created from the given stream.
Exceptions
InstanceNotFoundIf instance for reading wasn't found.
UnreachableStreamIf given stream can't be read.
KeyAlreadyExistsKey was in use when trying to register object.
EndOfFileIf end of file were reached while it shouldn't.
OutOfRangeSome read value was out of range.
WrongSubclassSome class couldn't do what it was asked for.
UnexpectedValueIf there was unexpected value when reading.
UnresolvedReferenceIf there was unresolved references during reading.

Definition at line 88 of file BinaryReader.cc.

88 {
89 if (prototypes_ != NULL) {
90
91 unsigned long startPos = stream.readPosition();
92
93 set<BinaryReader*>::iterator readers = prototypes_->begin();
94
95 // checks if any BinaryReader registered can read this stream
96 while (readers != prototypes_->end()) {
97 // isMyStreamType should not move stream position.
98 assert(stream.readPosition() == startPos);
99
100 if ((*readers)->isMyStreamType(stream)) {
101
102 // isMyStreamtype must leave stream as it was
103 assert(stream.readPosition() == startPos);
104
106
107 Binary *readBinary = (*readers)->readData(stream);
108
109 try {
111 } catch (const UnresolvedReference &e) {
112 std::stringstream newErrorMsg;
113 newErrorMsg
114 << "Error was probably caused by a broken input file."
115 << std::endl
116 << "Unresolved references during reading: ";
117
119 __FILE__, __LINE__, __func__,
120 newErrorMsg.str() + e.errorMessage());
121
122 error.setCause(e);
123 throw error;
124 }
125
127
128 try {
130 } catch (const UnresolvedReference &e) {
131 std::stringstream newErrorMsg;
132 newErrorMsg
133 << "Error was probably caused by a broken input file."
134 << std::endl
135 << "Unresolved references during finalization of "
136 << "reading: ";
137
139 __FILE__, __LINE__, __func__,
140 newErrorMsg.str() + e.errorMessage());
141
142 error.setCause(e);
143 throw error;
144 }
145
146 // clean up after reading, to avoid abuse of reference manager
148
149 return readBinary;
150 }
151 readers++;
152 }
153 }
154 throw InstanceNotFound(
155 __FILE__, __LINE__, __func__,
156 "Cannot find suitable reader implementation for file.");
157}
#define __func__
#define assert(condition)
std::string errorMessage() const
Definition Exception.cc:123
static std::set< BinaryReader * > * prototypes_
Contains instances of concrete BinaryReaders.
static Binary * readBinary(BinaryStream &stream)
static void finalizeBinary(Binary *binaryToFinalize, BinaryReader *reader)

References __func__, assert, TPEF::ReferenceManager::SafePointer::cleanupKeyTables(), Exception::errorMessage(), TPEF::SectionReader::finalizeBinary(), prototypes_, readBinary(), TPEF::BinaryStream::readPosition(), TPEF::ReferenceManager::SafePointer::resolve(), and Exception::setCause().

Referenced by TTAProgram::Program::loadFromTPEF(), TTAProgram::Program::loadFromUnscheduledTPEF(), TTAProgram::Program::loadFromUnscheduledTPEF(), loadInputs(), SimulatorFrontend::loadProgram(), loadTPEF(), main(), and readBinary().

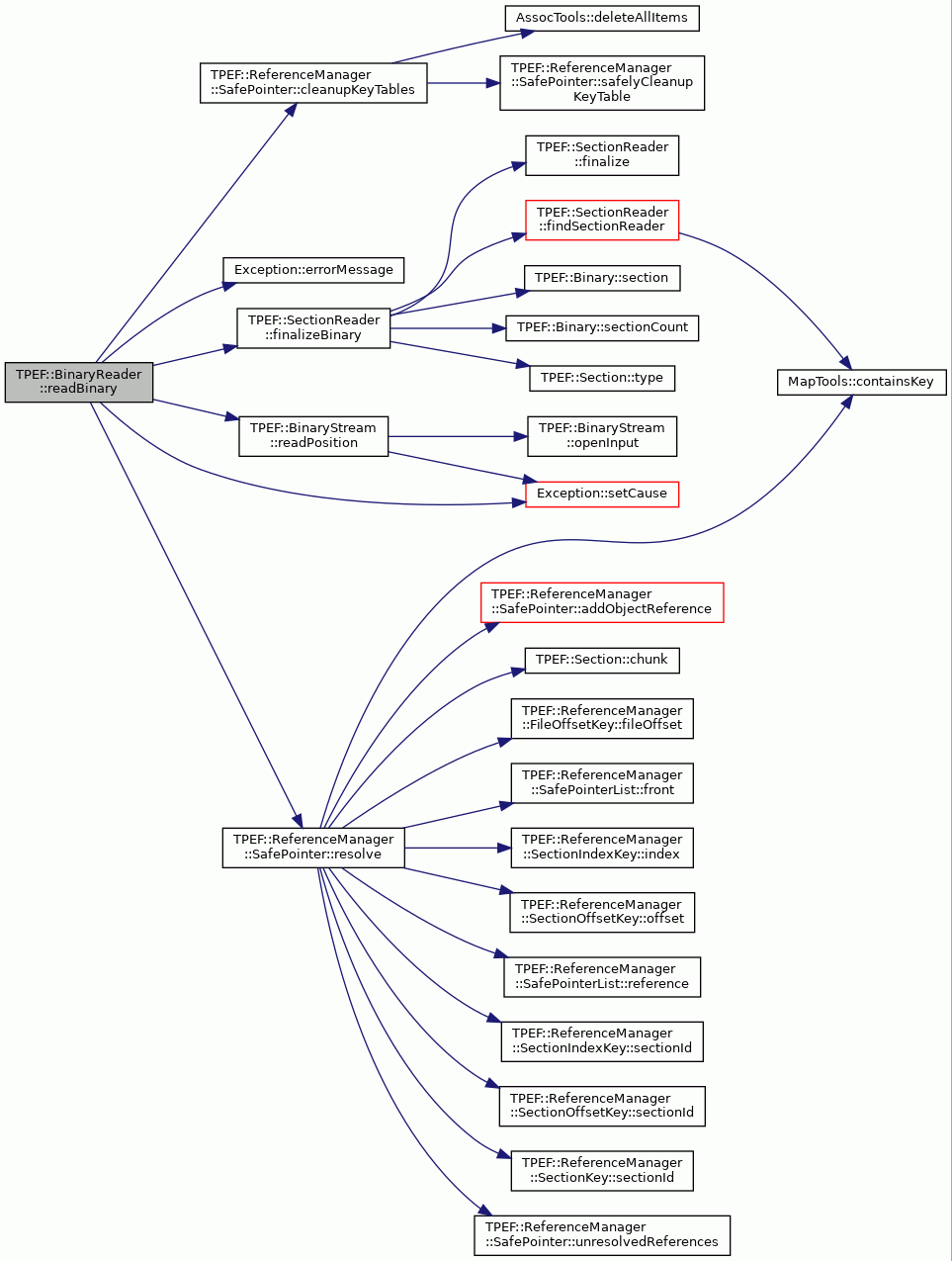

Here is the call graph for this function:

◆ readData()

virtual Binary * TPEF::BinaryReader::readData ( BinaryStream stream) const
protectedpure virtual

Does actual reading and constructing part.

Implemented in TPEF::AOutReader, and TPEF::TPEFReader.

◆ registerBinaryReader()

void TPEF::BinaryReader::registerBinaryReader ( BinaryReader reader)
staticprotected

Registers a concrete BinaryReader instance for reading a file type.

Parameters
readerConcrete reader to be registred.

Definition at line 165 of file BinaryReader.cc.

165 {
166
167 if (prototypes_ == NULL) {
168 prototypes_ = new set<BinaryReader*>();
169 }
170
171 prototypes_->insert(prototypes_->end(),reader);
172}

References prototypes_.

Referenced by TPEF::AOutReader::AOutReader(), and TPEF::TPEFReader::TPEFReader().

Member Data Documentation

◆ prototypes_

set< BinaryReader * > * TPEF::BinaryReader::prototypes_ = NULL
staticprivate

Contains instances of concrete BinaryReaders.

Definition at line 74 of file BinaryReader.hh.

Referenced by readBinary(), and registerBinaryReader().


The documentation for this class was generated from the following files:
