TPEF::SectionReader Class Reference

#include <SectionReader.hh>

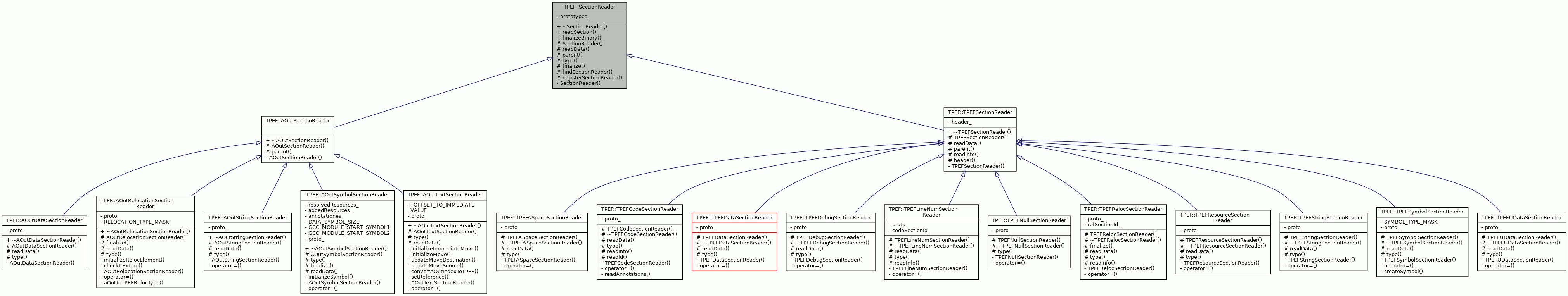

Inheritance diagram for TPEF::SectionReader:

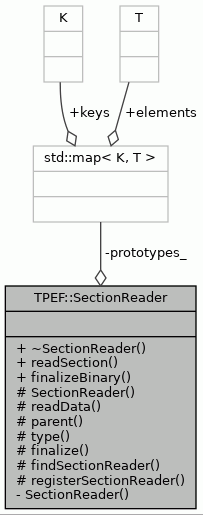

Collaboration diagram for TPEF::SectionReader:

Public Types
typedef BinaryReader::Length	Length

Public Member Functions
virtual	~SectionReader ()

Static Public Member Functions
static void	readSection (BinaryStream &stream, Section *section, BinaryReader *reader)
static void	finalizeBinary (Binary *binaryToFinalize, BinaryReader *reader)

Protected Member Functions
	SectionReader ()
virtual void	readData (BinaryStream &stream, Section *section) const =0
	Does actual reading part for constructing section.
virtual BinaryReader *	parent () const =0
	Returns binary reader whose sections actual section reader reads.
virtual Section::SectionType	type () const =0
	Returns type (TPEF) section which actual section reader reads.
virtual void	finalize (Section *section) const

Static Protected Member Functions
static const SectionReader *	findSectionReader (const Section::SectionType type, const BinaryReader *bReader)
static void	registerSectionReader (const SectionReader *sReader)

Private Types
typedef std::pair< const Section::SectionType, const BinaryReader * >	MapKey
	Key type for finding values in map of section readers.
typedef std::map< MapKey, const SectionReader * >	MapType
	Map type that contains instances of registered section readers.

Private Member Functions
	SectionReader (const SectionReader &)
	Copying is not allowed.

Static Private Attributes
static MapType *	prototypes_ = NULL
	Contains section readers for all kinds of sections and all kinds of binary formats that are supported.

Detailed Description

Abstract base class for SectionReaders.

Implements user friendly interface for registration and finding concrete SectionReader instances. Defines also interface for reading sections so there is no need to know interface or even type of concrete SectionReaders.

Definition at line 56 of file SectionReader.hh.

Member Typedef Documentation

Length

typedef BinaryReader::Length TPEF::SectionReader::Length

Definition at line 58 of file SectionReader.hh.

MapKey

typedef std::pair<const Section::SectionType, const BinaryReader*> TPEF::SectionReader::MapKey

private

Key type for finding values in map of section readers.

Definition at line 94 of file SectionReader.hh.

MapType

typedef std::map<MapKey, const SectionReader*> TPEF::SectionReader::MapType

private

Map type that contains instances of registered section readers.

Definition at line 97 of file SectionReader.hh.

Constructor & Destructor Documentation

~SectionReader()

TPEF::SectionReader::~SectionReader ( )

virtual

Destructor

Definition at line 63 of file SectionReader.cc.

                              {
}

SectionReader() [1/2]

TPEF::SectionReader::SectionReader ( )

protected

Constructor

Definition at line 57 of file SectionReader.cc.

                             {
}

SectionReader() [2/2]

TPEF::SectionReader::SectionReader ( const SectionReader &  )

private

Copying is not allowed.

Member Function Documentation

finalize()

void TPEF::SectionReader::finalize ( Section *  section ) const

protectedvirtual

Default finalizer method all sections.

Does nothing. This method is runned for every read section after body of every section is read and references are resolved once.

Parameters

section

Section to finalize.

Reimplemented in TPEF::AOutRelocationSectionReader, TPEF::AOutSymbolSectionReader, and TPEF::TPEFRelocSectionReader.

Definition at line 169 of file SectionReader.cc.

                                        {
}

Referenced by finalizeBinary().

finalizeBinary()

void TPEF::SectionReader::finalizeBinary ( Binary *  bin, BinaryReader *  reader  )

static

Finalizes binary whose all data is read and resolved.

Parameters

bin	Binary to resolve.
reader	Reader which was used for reading.

Definition at line 99 of file SectionReader.cc.

                                                               {

    for (Word i = 0; i < bin->sectionCount(); i++) {
        // get section and finalize it
        Section* sect = bin->section(i);

        try {
            const SectionReader* sectionReader =
                findSectionReader(sect->type(), reader);
            sectionReader->finalize(sect);

        } catch (const InstanceNotFound &e) {
            // there is not always reader for every created section
            // and it's ok.
        }
    }
}

References finalize(), findSectionReader(), TPEF::Binary::section(), TPEF::Binary::sectionCount(), and TPEF::Section::type().

Referenced by TPEF::BinaryReader::readBinary().

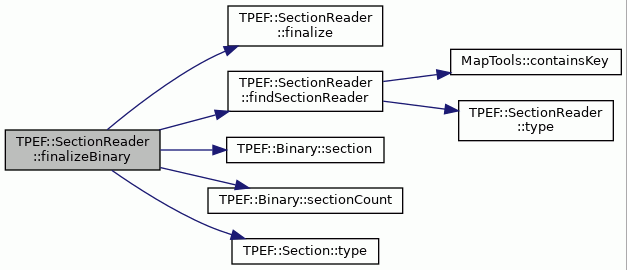

Here is the call graph for this function:

findSectionReader()

const SectionReader * TPEF::SectionReader::findSectionReader ( const Section::SectionType  type, const BinaryReader *  reader  )

staticprotected

Finds SectionReader instance by SectionType and BinaryReader*.

Parameters

type	Type of section to find.
reader	BinaryReader which requested finding section.

Returns

Instance which can read section.

Exceptions

InstanceNotFound

Reader instance was not found.

Definition at line 126 of file SectionReader.cc.

                                                               {
    MapKey key(type, reader);

    if (prototypes_ == NULL ||
        !MapTools::containsKey(*prototypes_, key)) {
        throw InstanceNotFound(__FILE__, __LINE__,
                               "SectionReader::findSectionReader");
    }

    return (*prototypes_)[key];
}

References MapTools::containsKey(), prototypes_, and type().

Referenced by finalizeBinary(), and readSection().

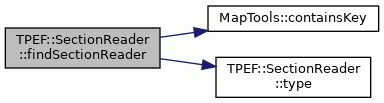

Here is the call graph for this function:

parent()

virtual BinaryReader * TPEF::SectionReader::parent ( ) const

protectedpure virtual

Returns binary reader whose sections actual section reader reads.

Implemented in TPEF::AOutSectionReader, and TPEF::TPEFSectionReader.

Referenced by registerSectionReader().

readData()

virtual void TPEF::SectionReader::readData ( BinaryStream &  stream, Section *  section  ) const

protectedpure virtual

Does actual reading part for constructing section.

Implemented in TPEF::AOutDataSectionReader, TPEF::AOutRelocationSectionReader, TPEF::AOutStringSectionReader, TPEF::AOutSymbolSectionReader, TPEF::AOutTextSectionReader, TPEF::TPEFASpaceSectionReader, TPEF::TPEFCodeSectionReader, TPEF::TPEFDataSectionReader, TPEF::TPEFDebugSectionReader, TPEF::TPEFLineNumSectionReader, TPEF::TPEFRelocSectionReader, TPEF::TPEFResourceSectionReader, TPEF::TPEFSectionReader, TPEF::TPEFStringSectionReader, TPEF::TPEFSymbolSectionReader, and TPEF::TPEFUDataSectionReader.

Referenced by readSection().

readSection()

void TPEF::SectionReader::readSection ( BinaryStream &  stream, Section *  section, BinaryReader *  reader  )

static

Reads a section from BinaryStream.

Finds correct concrete SectionReader object for reading section and uses it for reading.

Parameters

stream	Stream from which section's data is read.
section	Section instance where section elements are stored.
reader	BinaryReader* of file type that we try to read.

Exceptions

InstanceNotFound	There is no prototype registred for reading.
UnreachableStream	If reading of section fails.
KeyAlreadyExists	Key was in use when trying to register object.
EndOfFile	If end of file were reached while it shouldn't.
OutOfRange	Some of read values were out of range.
WrongSubclass	Some class couldn't do what it was asked for.
UnexpectedValue	If there was unexpected value when reading.

Definition at line 84 of file SectionReader.cc.

                                                                  {
    const SectionReader* sectionReader =
        findSectionReader(section->type(), reader);

    sectionReader->readData(stream, section);
}

References findSectionReader(), readData(), and TPEF::Section::type().

Referenced by TPEF::TPEFReader::readData().

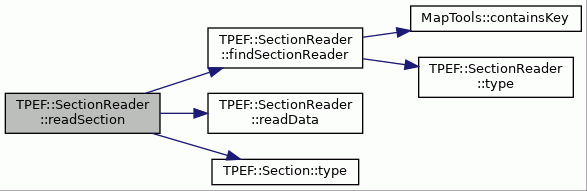

Here is the call graph for this function:

registerSectionReader()

void TPEF::SectionReader::registerSectionReader ( const SectionReader *  reader )

staticprotected

Registers SectionReader instance for reading specific section type.

Parameters

reader

Instance to register for reading.

Definition at line 145 of file SectionReader.cc.

                                                                {

    MapKey key(reader->type(), reader->parent());

    // We can't define a static prototypes_ map, because we cannot guarantee
    // that it is initialized before this method is called.
    if (prototypes_ == NULL) {
        prototypes_ = new MapType();
    }

    assert(!MapTools::containsKey(*prototypes_, key));

    (*prototypes_)[key] = reader;
}

References assert, MapTools::containsKey(), parent(), prototypes_, and type().

Referenced by TPEF::AOutDataSectionReader::AOutDataSectionReader(), TPEF::AOutRelocationSectionReader::AOutRelocationSectionReader(), TPEF::AOutStringSectionReader::AOutStringSectionReader(), TPEF::AOutSymbolSectionReader::AOutSymbolSectionReader(), TPEF::AOutTextSectionReader::AOutTextSectionReader(), TPEF::TPEFASpaceSectionReader::TPEFASpaceSectionReader(), TPEF::TPEFCodeSectionReader::TPEFCodeSectionReader(), TPEF::TPEFDataSectionReader::TPEFDataSectionReader(), TPEF::TPEFDebugSectionReader::TPEFDebugSectionReader(), TPEF::TPEFLEDataSectionReader::TPEFLEDataSectionReader(), TPEF::TPEFLineNumSectionReader::TPEFLineNumSectionReader(), TPEF::TPEFNullSectionReader::TPEFNullSectionReader(), TPEF::TPEFRelocSectionReader::TPEFRelocSectionReader(), TPEF::TPEFResourceSectionReader::TPEFResourceSectionReader(), TPEF::TPEFStringSectionReader::TPEFStringSectionReader(), TPEF::TPEFSymbolSectionReader::TPEFSymbolSectionReader(), and TPEF::TPEFUDataSectionReader::TPEFUDataSectionReader().

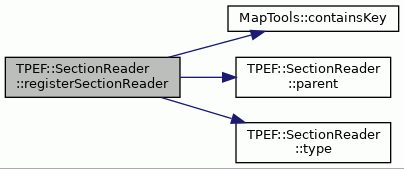

Here is the call graph for this function:

type()

virtual Section::SectionType TPEF::SectionReader::type ( ) const

protectedpure virtual

Returns type (TPEF) section which actual section reader reads.

Implemented in TPEF::AOutDataSectionReader, TPEF::AOutRelocationSectionReader, TPEF::AOutStringSectionReader, TPEF::AOutSymbolSectionReader, TPEF::AOutTextSectionReader, TPEF::TPEFASpaceSectionReader, TPEF::TPEFCodeSectionReader, TPEF::TPEFDataSectionReader, TPEF::TPEFDebugSectionReader, TPEF::TPEFLEDataSectionReader, TPEF::TPEFLineNumSectionReader, TPEF::TPEFNullSectionReader, TPEF::TPEFRelocSectionReader, TPEF::TPEFResourceSectionReader, TPEF::TPEFStringSectionReader, TPEF::TPEFSymbolSectionReader, and TPEF::TPEFUDataSectionReader.

Referenced by findSectionReader(), and registerSectionReader().

Member Data Documentation

prototypes_

SectionReader::MapType * TPEF::SectionReader::prototypes_ = NULL

staticprivate

Contains section readers for all kinds of sections and all kinds of binary formats that are supported.

Definition at line 101 of file SectionReader.hh.

Referenced by findSectionReader(), and registerSectionReader().

---

The documentation for this class was generated from the following files:

• SectionReader.hh
• SectionReader.cc
