TTAProgram::DataMemory Class Reference

#include <DataMemory.hh>

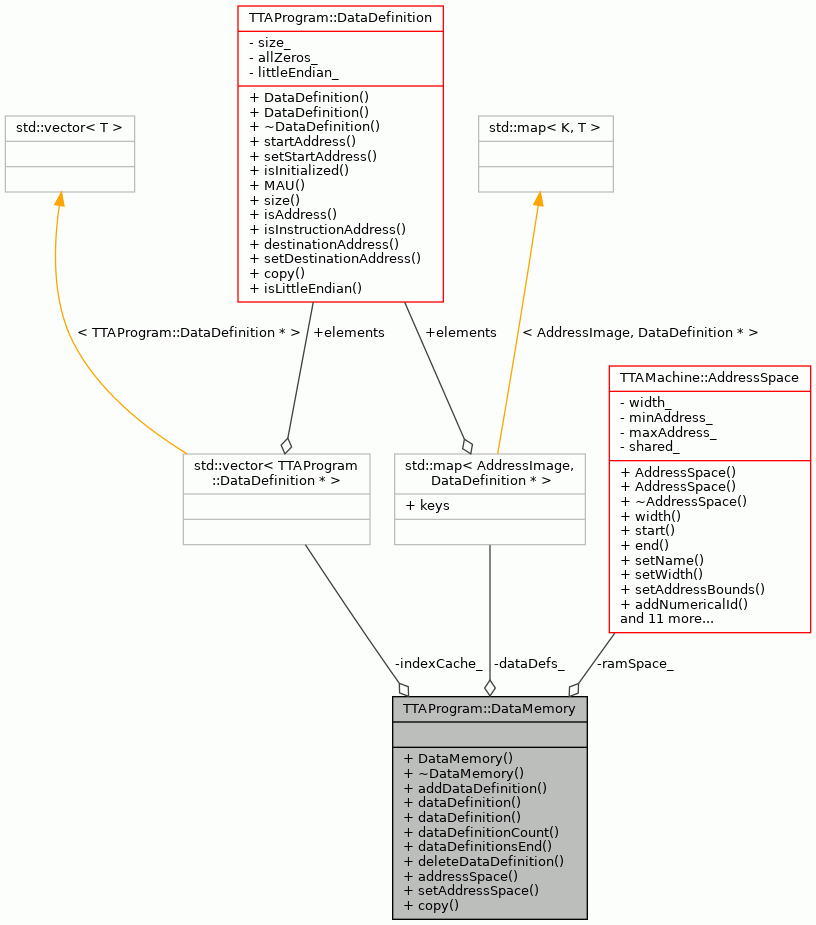

Collaboration diagram for TTAProgram::DataMemory:

Public Member Functions
	DataMemory (const TTAMachine::AddressSpace &aSpace)
virtual	~DataMemory ()
void	addDataDefinition (DataDefinition *dataDef)
DataDefinition &	dataDefinition (Address address) const
DataDefinition &	dataDefinition (int index) const
int	dataDefinitionCount () const
int	dataDefinitionsEnd () const
void	deleteDataDefinition (int index)
const TTAMachine::AddressSpace &	addressSpace () const
void	setAddressSpace (const TTAMachine::AddressSpace &space)
DataMemory *	copy () const

Private Types
typedef std::map< AddressImage, DataDefinition * >	DataDefMap
	Map for data definitions.

Private Attributes
const TTAMachine::AddressSpace *	ramSpace_
	Address space of the memory.
DataDefMap	dataDefs_
	Data definitions for the address space.
std::vector< DataDefinition * >	indexCache_
	Cache for indexing dataDefinitions.

Detailed Description

Represents an address space containing data.

Data definitions are ordered in the DataMemory class so that largest index contains the last data definition.

Definition at line 56 of file DataMemory.hh.

Member Typedef Documentation

DataDefMap

typedef std::map<AddressImage, DataDefinition*> TTAProgram::DataMemory::DataDefMap

private

Map for data definitions.

Definition at line 76 of file DataMemory.hh.

Constructor & Destructor Documentation

DataMemory()

TTAProgram::DataMemory::DataMemory

(

const TTAMachine::AddressSpace &

aSpace

)

Sets address space of the memory.

Parameters

aSpace

Address space of the memory.

Definition at line 46 of file DataMemory.cc.

                                                           :
    ramSpace_(&aSpace) {
}

~DataMemory()

TTAProgram::DataMemory::~DataMemory ( )

virtual

Deletes all the added definitions.

Definition at line 53 of file DataMemory.cc.

                        {
    MapTools::deleteAllValues(dataDefs_);
}

References dataDefs_, and MapTools::deleteAllValues().

Here is the call graph for this function:

Member Function Documentation

addDataDefinition()

void TTAProgram::DataMemory::addDataDefinition

(

DataDefinition *

dataDef

)

Adds data to memory.

Data definitions are sorted by starting address of defined area.

Parameters

dataDef

Definition to add.

Definition at line 66 of file DataMemory.cc.

                                                     {
    dataDefs_[dataDef->startAddress().location()] = dataDef;
    // clear index cache since indices may change
    indexCache_.clear();
}

References dataDefs_, indexCache_, TTAProgram::Address::location(), and TTAProgram::DataDefinition::startAddress().

Referenced by copy(), TTAProgram::Program::copyDataMemoriesFrom(), llvm::LLVMTCEBuilder::createDataDefinition(), TTAProgram::TPEFProgramFactory::createDataMemories(), llvm::LLVMTCEBuilder::createFPDataDefinition(), llvm::LLVMTCEBuilder::createGlobalValueDataDefinition(), llvm::LLVMTCEBuilder::createIntDataDefinition(), llvm::LLVMTCEBuilder::emitDataDef(), llvm::LLVMTCEBuilder::emitSPInitialization(), llvm::LLVMTCEBuilder::initDataSections(), and llvm::LLVMTCEBuilder::padToAlignment().

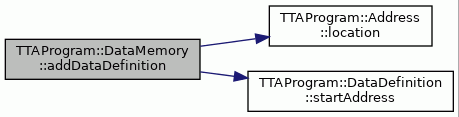

Here is the call graph for this function:

addressSpace()

const TTAMachine::AddressSpace & TTAProgram::DataMemory::addressSpace

(

)

const

Returns the address space of the data memory.

Returns

The address space of the data memory.

Definition at line 182 of file DataMemory.cc.

                               {
    return *ramSpace_;
}

References ramSpace_.

Referenced by TTAProgram::Program::copyDataMemoriesFrom(), TTAProgram::ProgramWriter::createDataSections(), TTAProgram::Program::dataMemory(), POMDisassembler::disassembleProgram(), SimulatorFrontend::initializeDataMemories(), and main().

copy()

DataMemory * TTAProgram::DataMemory::copy

(

)

const

POM style copy constructor, which supports dynamic binding.

Returns

Copy of the object.

Definition at line 206 of file DataMemory.cc.

                       {
    DataMemory* memCopy = new DataMemory(*ramSpace_);

    for (int i = 0; i < dataDefinitionCount(); i++) {
        memCopy->addDataDefinition(dataDefinition(i).copy());
    }

    return memCopy;
}

References addDataDefinition(), TTAProgram::DataDefinition::copy(), dataDefinition(), dataDefinitionCount(), and ramSpace_.

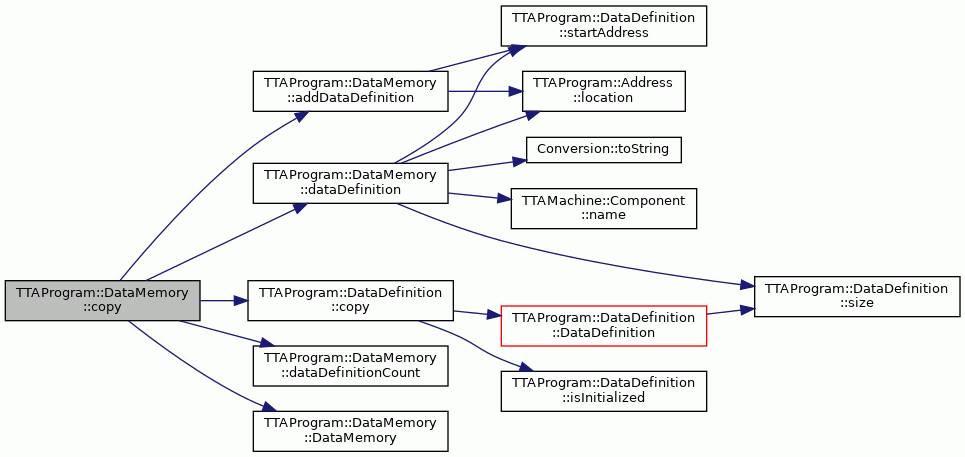

Here is the call graph for this function:

dataDefinition() [1/2]

DataDefinition & TTAProgram::DataMemory::dataDefinition

(

Address

address

)

const

Finds the data definition, which contains the requested address.

Parameters

address

Address whose data definition is requested.

Returns

Data definition, which contains requested address.

Definition at line 79 of file DataMemory.cc.

                                                {
    std::map<AddressImage, DataDefinition*>::const_iterator iter =
        dataDefs_.upper_bound(address.location());

    if (iter != dataDefs_.begin()) {
        iter--;
        DataDefinition* dataDef = (*iter).second;
        // this data definition should contain the requested address
        if (address.location() < dataDef->startAddress().location() +
            dataDef->size()) {
            return *dataDef;
        }
    }

    throw NotAvailable(
        __FILE__, __LINE__, __func__,
        "Address space: " + ramSpace_->name() +
        " does not contain data definition for requested address:" +
        Conversion::toString(address.location()));
}

References __func__, dataDefs_, TTAProgram::Address::location(), TTAMachine::Component::name(), ramSpace_, TTAProgram::DataDefinition::size(), TTAProgram::DataDefinition::startAddress(), and Conversion::toString().

Referenced by StaticProgramAnalyzer::addProgram(), ControlFlowGraph::computeLeadersFromRelocations(), copy(), TTAProgram::Program::copyDataMemoriesFrom(), TTAProgram::TPEFProgramFactory::createDataMemories(), TTAProgram::ProgramWriter::createDataSections(), llvm::LLVMTCEBuilder::deleteDeadProcedures(), POMDisassembler::disassembleProgram(), SimulatorFrontend::initializeDataMemories(), main(), TTAProgram::Program::replaceUniversalAddressSpaces(), and setAddressSpace().

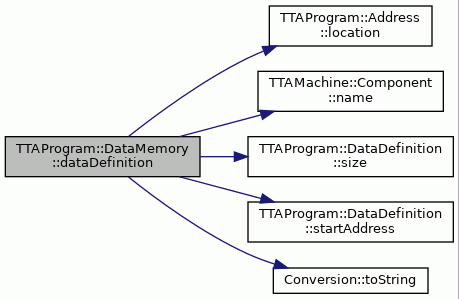

Here is the call graph for this function:

dataDefinition() [2/2]

DataDefinition & TTAProgram::DataMemory::dataDefinition

(

int

index

)

const

Finds the data definition by index.

Indices may change if new definitions are added to memory.

Parameters

index

Index of the requested data definition.

Returns

Data definition, which contains requested address.

Definition at line 110 of file DataMemory.cc.

                                          {
    if (indexCache_.empty()) {
        // create cache
        for (std::map<AddressImage, DataDefinition*>::const_iterator iter =
                 dataDefs_.begin(); iter != dataDefs_.end(); iter++) {

            indexCache_.push_back((*iter).second);
        }
    }

    return *indexCache_[index];
}

References dataDefs_, and indexCache_.

dataDefinitionCount()

int TTAProgram::DataMemory::dataDefinitionCount

(

)

const

Returns the number of data definitions stored in memory.

Returns

Number of data definitions.

Definition at line 129 of file DataMemory.cc.

                                      {
    return dataDefs_.size();
}

References dataDefs_, and TTAProgram::DataDefinition::size().

Referenced by StaticProgramAnalyzer::addProgram(), ControlFlowGraph::computeLeadersFromRelocations(), copy(), TTAProgram::Program::copyDataMemoriesFrom(), TTAProgram::TPEFProgramFactory::createDataMemories(), TTAProgram::ProgramWriter::createDataSections(), deleteDataDefinition(), POMDisassembler::disassembleProgram(), SimulatorFrontend::initializeDataMemories(), main(), TTAProgram::Program::replaceUniversalAddressSpaces(), and setAddressSpace().

Here is the call graph for this function:

dataDefinitionsEnd()

int TTAProgram::DataMemory::dataDefinitionsEnd

(

)

const

Returns the place where the data definitions end. Calculates it based only on the last data definition (since dataDefs_ is sorted).

Returns

int end of data definitions

Definition at line 141 of file DataMemory.cc.

                                     {
    std::map<AddressImage, DataDefinition*>::const_reverse_iterator iter =
        dataDefs_.rbegin();

    if (iter != dataDefs_.rend()) {
        DataDefinition* dataDef = (*iter).second;
        // this data definition should be the last one
        return dataDef->startAddress().location() + dataDef->size();
    }
    // no data definitions added
    return 0;
}

References dataDefs_, TTAProgram::Address::location(), TTAProgram::DataDefinition::size(), and TTAProgram::DataDefinition::startAddress().

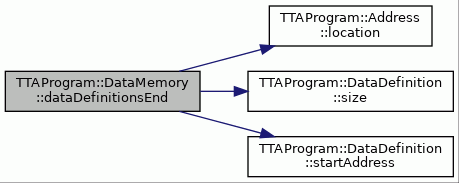

Here is the call graph for this function:

deleteDataDefinition()

void TTAProgram::DataMemory::deleteDataDefinition

(

int

index

)

Deletes the data definition at the given index.

Parameters

index

Which data definition to delete.

Definition at line 160 of file DataMemory.cc.

                                          {

    if (index < 0 || index >= dataDefinitionCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    DataDefMap::iterator iter = dataDefs_.begin();

    for (int i = 0; i < index; i++) {
        iter++;
    }

    dataDefs_.erase(iter);
    indexCache_.clear();
}

References __func__, dataDefinitionCount(), dataDefs_, and indexCache_.

Here is the call graph for this function:

setAddressSpace()

void TTAProgram::DataMemory::setAddressSpace

(

const TTAMachine::AddressSpace &

space

)

Set new address space for the data memory.

Parameters

space

New address space.

Definition at line 192 of file DataMemory.cc.

                                                               {
    ramSpace_ = &space;
    for (int i = 0; i < dataDefinitionCount(); i++) {
        DataDefinition& def = dataDefinition(i);
        def.setStartAddress(Address(def.startAddress().location(), space));
    }
}

References dataDefinition(), dataDefinitionCount(), TTAProgram::Address::location(), ramSpace_, TTAProgram::DataDefinition::setStartAddress(), and TTAProgram::DataDefinition::startAddress().

Referenced by TTAProgram::Program::replaceUniversalAddressSpaces().

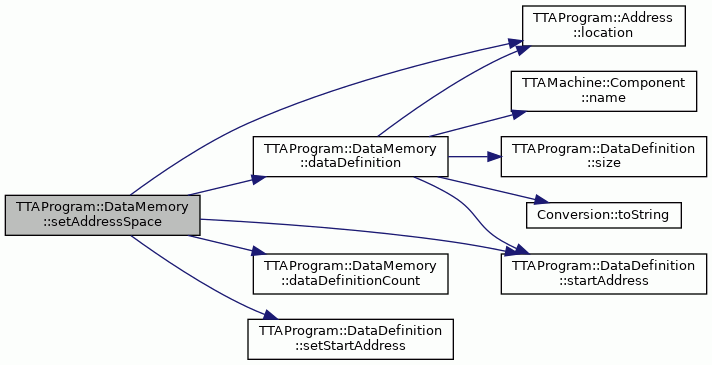

Here is the call graph for this function:

Member Data Documentation

dataDefs_

DataDefMap TTAProgram::DataMemory::dataDefs_

private

Data definitions for the address space.

Definition at line 82 of file DataMemory.hh.

Referenced by addDataDefinition(), dataDefinition(), dataDefinition(), dataDefinitionCount(), dataDefinitionsEnd(), deleteDataDefinition(), and ~DataMemory().

indexCache_

std::vector<DataDefinition*> TTAProgram::DataMemory::indexCache_

mutableprivate

Cache for indexing dataDefinitions.

Definition at line 85 of file DataMemory.hh.

Referenced by addDataDefinition(), dataDefinition(), and deleteDataDefinition().

ramSpace_

const TTAMachine::AddressSpace* TTAProgram::DataMemory::ramSpace_

private

Address space of the memory.

Definition at line 79 of file DataMemory.hh.

Referenced by addressSpace(), copy(), dataDefinition(), and setAddressSpace().

---

The documentation for this class was generated from the following files:

• DataMemory.hh
• DataMemory.cc
