TTAProgram::ProgramAnnotation Class Reference

#include <ProgramAnnotation.hh>

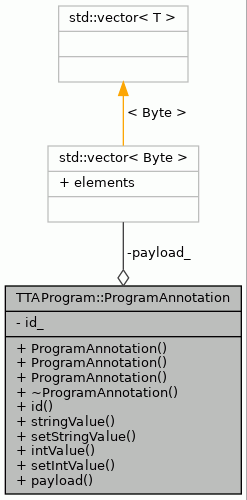

Collaboration diagram for TTAProgram::ProgramAnnotation:
Collaboration graph

Public Types

enum  Id {
  ANN_FIRST_RESERVED = 0x00000000 , ANN_LAST_RESERVED = 0x0000FFFF , ANN_STACKFRAME_BEGIN = 0x00011000 , ANN_STACKFRAME_LVAR_ALLOC = 0x00011010 ,
  ANN_STACKFRAME_LVAR_DEALLOC = 0x00011011 , ANN_STACKFRAME_LVAR_RA_ALLOC = 0x00011012 , ANN_STACKFRAME_LVAR_RA_DEALLOC = 0x00011013 , ANN_STACKFRAME_RA_ALLOC = 0x00011020 ,
  ANN_STACKFRAME_RA_DEALLOC = 0x00011021 , ANN_STACKFRAME_RA_SAVE = 0x00011022 , ANN_STACKFRAME_RA_RESTORE = 0x00011023 , ANN_STACKFRAME_GPR_SAVE_BEGIN = 0x00011030 ,
  ANN_STACKFRAME_GPR_SAVE = 0x00011031 , ANN_STACKFRAME_GPR_SAVE_REG = 0x00011032 , ANN_STACKFRAME_GPR_RESTORE_REG = 0x00011038 , ANN_STACKFRAME_GPR_RESTORE = 0x00011039 ,
  ANN_STACKFRAME_FPR_SAVE_BEGIN = 0x00011040 , ANN_STACKFRAME_FPR_SAVE = 0x00011041 , ANN_STACKFRAME_FPR_SAVE_REG = 0x00011042 , ANN_STACKFRAME_FPR_RESTORE_REG = 0x00011048 ,
  ANN_STACKFRAME_FPR_RESTORE = 0x00011049 , ANN_STACKFRAME_OUT_PARAM_ALLOC = 0x00011050 , ANN_STACKFRAME_OUT_PARAM_DEALLOC = 0x00011051 , ANN_STACKFRAME_PROCEDURE_RETURN = 0x00011060 ,
  ANN_STACKFRAME_STACK_INIT = 0x00011070 , ANN_STACKFRAME_UNKNOWN = 0x00011FFE , ANN_STACKFRAME_END = 0x00011FFF , ANN_STACKUSE_BEGIN = 0x00012000 ,
  ANN_STACKUSE_OUT_PARAM = 0x00012010 , ANN_STACKUSE_LOCAL_VARIABLE = 0x00012011 , ANN_STACKUSE_RA = 0x00012012 , ANN_STACKUSE_IN_PARAM = 0x00012013 ,
  ANN_STACKUSE_SAVED_GPR = 0x00012014 , ANN_STACKUSE_SAVED_FPR = 0x00012015 , ANN_STACKUSE_SPILL = 0x00012016 , ANN_STACKUSE_RA_SAVE = 0x00012017 ,
  ANN_STACKUSE_FP_SAVE = 0x00012018 , ANN_STACKUSE_END = 0x00012FFF , ANN_REGISTER_BEGIN = 0x00020000 , ANN_REGISTER_RV_SAVE = 0x00020010 ,
  ANN_REGISTER_RV_READ = 0x00020011 , ANN_REGISTER_SP_SAVE = 0x00020020 , ANN_REGISTER_SP_READ = 0x00020021 , ANN_REGISTER_IPARAM_SAVE = 0x00020030 ,
  ANN_REGISTER_IPARAM_READ = 0x00020031 , ANN_REGISTER_FP_SAVE = 0x00020040 , ANN_REGISTER_FP_READ = 0x00020041 , ANN_REGISTER_END = 0x0002FFFF ,
  ANN_ALLOWED_UNIT_SRC = 0x00030000 , ANN_ALLOWED_UNIT_DST = 0x00030001 , ANN_CONN_CANDIDATE_UNIT_SRC = 0x00030005 , ANN_CONN_CANDIDATE_UNIT_DST = 0x00030006 ,
  ANN_REJECTED_UNIT_SRC = 0x00030007 , ANN_REJECTED_UNIT_DST = 0x00030008 , ANN_CONNECTIVITY_MOVE = 0x00030002 , ANN_REQUIRES_LIMM = 0x00030003 ,
  ANN_JUMP_FUNCTION_CALL = 0x00030004 , ANN_DEBUG_SOURCE_CODE_PATH = 0x00040000 , ANN_DEBUG_SOURCE_CODE_LINE = 0x00040001 , ANN_OPENCL_WORK_ITEM_ID = 0x00050000 ,
  ANN_OPENCL_WORK_ITEM_ID_LAST = 0x00050001 , ANN_JUMP_TO_NEXT = 0x00500001 , ANN_LOOP_TRIP_COUNT = 0x00600000 , ANN_LOOP_INNER ,
  ANN_PARALLEL_REGION_ID = 0x00070000 , ANN_POINTER_NAME = 0x00700000 , ANN_POINTER_OFFSET = 0x00700001 , ANN_POINTER_NOALIAS = 0x00700002 ,
  ANN_POINTER_ADDR_SPACE = 0x00700003 , ANN_VECTOR_ID = 0x00800000 , ANN_CONSTANT_MEM = 0x00900000 , ANN_IRF_FETCH_BLOCK_BEGIN = 0x00A00000 ,
  ANN_IRF_FETCH_BLOCK_FT = 0x00A00001 , ANN_IRF_FETCH_BLOCK_JUMP = 0x00A00002 , ANN_IRF_FETCH_BLOCK_CALL = 0x00A00003 , ANN_IRF_FETCH_BLOCK_RET = 0x00A00004 ,
  ANN_IRF_LOCAL_JUMP = 0x00A00005 , ANN_IRF_BLOCK_HEADER = 0x00A00010 , ANN_IRF_BLOCK_HEADER_NOCACHE = 0x00A00011 , ANN_IRF_NOCACHE_BEGIN = 0x00A00020 ,
  ANN_IRF_BLOCK_FWJUMP_CYCLES = 0x00A00030 , ANN_UNDEF_ID = 0xFF000000
}
 the ID in TPEF is 24 bits, here enum More...


Public Member Functions

 ProgramAnnotation (Id id, int value)

 ProgramAnnotation (Id id, const std::string &data="")

 ProgramAnnotation (Id id, const std::vector< Byte > &payload)

 ~ProgramAnnotation ()

ProgramAnnotation::Id id () const

std::string stringValue () const

void setStringValue (const std::string &data)

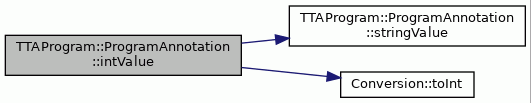

int intValue () const

void setIntValue (int value)

const std::vector< Byte > & payload () const


Private Attributes

Id id_
 the id

std::vector< Bytepayload_
 the payload data


Detailed Description

ProgramAnnotations provide means for adding arbitrary "annotations" to moves or immediate values in instructions of TTA programs.

This is a POM API to support the corresponding TPEF feature.

Definition at line 49 of file ProgramAnnotation.hh.

Member Enumeration Documentation

◆ Id

the ID in TPEF is 24 bits, here enum

Enumerator
ANN_FIRST_RESERVED

First reserved annot.

ANN_LAST_RESERVED

Last reserved annot.

ANN_STACKFRAME_BEGIN

First stackframe ann.

ANN_STACKFRAME_LVAR_ALLOC

Local variable alloc.

ANN_STACKFRAME_LVAR_DEALLOC

Local var dealloc.

ANN_STACKFRAME_LVAR_RA_ALLOC

Local var+RA alloc.

ANN_STACKFRAME_LVAR_RA_DEALLOC

Local var+RA dealloc.

ANN_STACKFRAME_RA_ALLOC

Return Address alloc.

ANN_STACKFRAME_RA_DEALLOC

Return Addr dealloc.

ANN_STACKFRAME_RA_SAVE

Return Address save.

ANN_STACKFRAME_RA_RESTORE

Return Addr restore.

ANN_STACKFRAME_GPR_SAVE_BEGIN

Used to count saves.

ANN_STACKFRAME_GPR_SAVE

GPR save by pushing.

ANN_STACKFRAME_GPR_SAVE_REG
ANN_STACKFRAME_GPR_RESTORE_REG
ANN_STACKFRAME_GPR_RESTORE

GPR restore by pop.

ANN_STACKFRAME_FPR_SAVE_BEGIN

Used to count saves.

ANN_STACKFRAME_FPR_SAVE

FPR save by pushing.

ANN_STACKFRAME_FPR_SAVE_REG

FPR save by pushing.

ANN_STACKFRAME_FPR_RESTORE_REG

FPR restore by pop.

ANN_STACKFRAME_FPR_RESTORE

FPR restore by pop.

ANN_STACKFRAME_OUT_PARAM_ALLOC

outgoing param alloc

ANN_STACKFRAME_OUT_PARAM_DEALLOC

outgoing param deall.

ANN_STACKFRAME_PROCEDURE_RETURN

precedure return jmp

ANN_STACKFRAME_STACK_INIT

Stack initialization.

ANN_STACKFRAME_UNKNOWN

Unknown SF-related.

ANN_STACKFRAME_END

Last stackfame annot.

ANN_STACKUSE_BEGIN
ANN_STACKUSE_OUT_PARAM

output parameter.

ANN_STACKUSE_LOCAL_VARIABLE

local variable

ANN_STACKUSE_RA

ra, old frontend

ANN_STACKUSE_IN_PARAM

input parameter

ANN_STACKUSE_SAVED_GPR

saved GPR

ANN_STACKUSE_SAVED_FPR

saved FPR

ANN_STACKUSE_SPILL

spilled variable

ANN_STACKUSE_RA_SAVE

ra, new frontend

ANN_STACKUSE_FP_SAVE

frame ptr save/load

ANN_STACKUSE_END
ANN_REGISTER_BEGIN
ANN_REGISTER_RV_SAVE

Save to RV register.

ANN_REGISTER_RV_READ

Read from RV reg.

ANN_REGISTER_SP_SAVE

save to Stack pointer

ANN_REGISTER_SP_READ

Stack Pointer read.

ANN_REGISTER_IPARAM_SAVE

Save to int param reg.

ANN_REGISTER_IPARAM_READ

Read from int param.

ANN_REGISTER_FP_SAVE

Frame Pointer save.

ANN_REGISTER_FP_READ

Frame Pointer read.

ANN_REGISTER_END
ANN_ALLOWED_UNIT_SRC

Candidate units can be passed for resource manager for choosing the source/destination unit of the move. If this annotation is present, the move's source or destination unit should be chosen from the set given in annotation payload data string. Naturally, there can be multiple annotations of the same type to define multiple candidates for choosing the unit for source/destination.

Src. unit candidate

ANN_ALLOWED_UNIT_DST

Dst. unit candidate.

ANN_CONN_CANDIDATE_UNIT_SRC

Src. unit candidate.

ANN_CONN_CANDIDATE_UNIT_DST

Dst. unit candidate.

ANN_REJECTED_UNIT_SRC

Src. unit rejected.

ANN_REJECTED_UNIT_DST

Dst. unit rejected.

ANN_CONNECTIVITY_MOVE

A reg to reg move that was added because of missing connectivity between the original target and destination (a temp move).

ANN_REQUIRES_LIMM
ANN_JUMP_FUNCTION_CALL

The JUMP in the annotated move is a function call and should be treated as such in the data dependency analysis.

ANN_DEBUG_SOURCE_CODE_PATH

debugging info annotations

Full path to the program source code file the annotated move originates from

ANN_DEBUG_SOURCE_CODE_LINE

The line number in the source code file the annotated move originates from.

ANN_OPENCL_WORK_ITEM_ID
ANN_OPENCL_WORK_ITEM_ID_LAST
ANN_JUMP_TO_NEXT
ANN_LOOP_TRIP_COUNT

An instruction annotated with this annotation is the first instruction of a basic block in a loop with the trip count stored in the annotation payload.

ANN_LOOP_INNER

An instruction annotated with this annotation is the first instruction of a basic block in an inner loop.

ANN_PARALLEL_REGION_ID

The ID from the _TCEPREGION_START(N) markers.

ANN_POINTER_NAME

information retrieved (from LLVM) about a pointer access

ANN_POINTER_OFFSET
ANN_POINTER_NOALIAS
ANN_POINTER_ADDR_SPACE
ANN_VECTOR_ID

Vector indentifier for vector operations.

ANN_CONSTANT_MEM

Constant memory access.

ANN_IRF_FETCH_BLOCK_BEGIN

Beginning of a IRF fetch block.

ANN_IRF_FETCH_BLOCK_FT
ANN_IRF_FETCH_BLOCK_JUMP
ANN_IRF_FETCH_BLOCK_CALL
ANN_IRF_FETCH_BLOCK_RET
ANN_IRF_LOCAL_JUMP
ANN_IRF_BLOCK_HEADER

Dummy empty instrution for block header.

ANN_IRF_BLOCK_HEADER_NOCACHE
ANN_IRF_NOCACHE_BEGIN

Just to show this starts a non-irf block.

ANN_IRF_BLOCK_FWJUMP_CYCLES

how many stalls may be needed due forward jumps

ANN_UNDEF_ID

an illegal annotation ID (the id is only 24 bits, this has more meaningful bits)

Definition at line 52 of file ProgramAnnotation.hh.

52 {
53 ANN_FIRST_RESERVED = 0x00000000, ///<First reserved annot.
54 ANN_LAST_RESERVED = 0x0000FFFF, ///<Last reserved annot.
55 ANN_STACKFRAME_BEGIN = 0x00011000, ///<First stackframe ann.
56 ANN_STACKFRAME_LVAR_ALLOC = 0x00011010, ///<Local variable alloc
57 ANN_STACKFRAME_LVAR_DEALLOC = 0x00011011, ///<Local var dealloc
58 ANN_STACKFRAME_LVAR_RA_ALLOC = 0x00011012, ///<Local var+RA alloc
59 ANN_STACKFRAME_LVAR_RA_DEALLOC = 0x00011013, ///<Local var+RA dealloc
60 ANN_STACKFRAME_RA_ALLOC = 0x00011020, ///<Return Address alloc
61 ANN_STACKFRAME_RA_DEALLOC = 0x00011021, ///<Return Addr dealloc
62 ANN_STACKFRAME_RA_SAVE = 0x00011022, ///<Return Address save
63 ANN_STACKFRAME_RA_RESTORE = 0x00011023, ///<Return Addr restore
64 ANN_STACKFRAME_GPR_SAVE_BEGIN = 0x00011030, ///<Used to count saves
65 ANN_STACKFRAME_GPR_SAVE = 0x00011031, ///<GPR save by pushing
66 ANN_STACKFRAME_GPR_SAVE_REG = 0x00011032,
68 ANN_STACKFRAME_GPR_RESTORE = 0x00011039, ///<GPR restore by pop
69 ANN_STACKFRAME_FPR_SAVE_BEGIN = 0x00011040, ///<Used to count saves
70 ANN_STACKFRAME_FPR_SAVE = 0x00011041, ///<FPR save by pushing
71 ANN_STACKFRAME_FPR_SAVE_REG = 0x00011042, ///<FPR save by pushing
72 ANN_STACKFRAME_FPR_RESTORE_REG = 0x00011048, ///<FPR restore by pop
73 ANN_STACKFRAME_FPR_RESTORE = 0x00011049, ///<FPR restore by pop
74 ANN_STACKFRAME_OUT_PARAM_ALLOC = 0x00011050, ///<outgoing param alloc
75 ANN_STACKFRAME_OUT_PARAM_DEALLOC= 0x00011051, ///<outgoing param deall.
76 ANN_STACKFRAME_PROCEDURE_RETURN = 0x00011060, ///<precedure return jmp
77
78 ANN_STACKFRAME_STACK_INIT = 0x00011070, ///<Stack initialization
79 ANN_STACKFRAME_UNKNOWN = 0x00011FFE, ///<Unknown SF-related
80 ANN_STACKFRAME_END = 0x00011FFF, ///<Last stackfame annot.
81
82 ANN_STACKUSE_BEGIN = 0x00012000,
83 ANN_STACKUSE_OUT_PARAM = 0x00012010,///<output parameter.
84 ANN_STACKUSE_LOCAL_VARIABLE = 0x00012011,///<local variable
85 ANN_STACKUSE_RA = 0x00012012,///<ra, old frontend
86 ANN_STACKUSE_IN_PARAM = 0x00012013,///<input parameter
87 ANN_STACKUSE_SAVED_GPR = 0x00012014,///<saved GPR
88 ANN_STACKUSE_SAVED_FPR = 0x00012015,///<saved FPR
89 ANN_STACKUSE_SPILL = 0x00012016,///<spilled variable
90 ANN_STACKUSE_RA_SAVE = 0x00012017,///<ra, new frontend
91 ANN_STACKUSE_FP_SAVE = 0x00012018,///<frame ptr save/load
92 ANN_STACKUSE_END = 0x00012FFF,
93
94 ANN_REGISTER_BEGIN = 0x00020000,
95 ANN_REGISTER_RV_SAVE = 0x00020010,///<Save to RV register
96 ANN_REGISTER_RV_READ = 0x00020011,///<Read from RV reg
97 ANN_REGISTER_SP_SAVE = 0x00020020,///<save to Stack pointer
98 ANN_REGISTER_SP_READ = 0x00020021,///<Stack Pointer read
99 ANN_REGISTER_IPARAM_SAVE = 0x00020030,///<Save to int param reg
100 ANN_REGISTER_IPARAM_READ = 0x00020031,///<Read from int param
101 ANN_REGISTER_FP_SAVE = 0x00020040,///<Frame Pointer save
102 ANN_REGISTER_FP_READ = 0x00020041,///<Frame Pointer read
103 ANN_REGISTER_END = 0x0002FFFF,
104
105 /// Candidate units can be passed for resource manager for
106 /// choosing the source/destination unit of the move. If this
107 /// annotation is present, the move's source or destination unit
108 /// should be chosen from the set given in annotation
109 /// payload data string. Naturally, there can be multiple annotations
110 /// of the same type to define multiple candidates for choosing
111 /// the unit for source/destination.
112 ANN_ALLOWED_UNIT_SRC = 0x00030000,///<Src. unit candidate
113 ANN_ALLOWED_UNIT_DST = 0x00030001,///<Dst. unit candidate
114
115 ANN_CONN_CANDIDATE_UNIT_SRC = 0x00030005,///<Src. unit candidate
116 ANN_CONN_CANDIDATE_UNIT_DST = 0x00030006,///<Dst. unit candidate
117
118 ANN_REJECTED_UNIT_SRC = 0x00030007,///<Src. unit rejected
119 ANN_REJECTED_UNIT_DST = 0x00030008,///<Dst. unit rejected
120
121 /// A reg to reg move that was added because of missing connectivity
122 /// between the original target and destination (a temp move).
123 ANN_CONNECTIVITY_MOVE = 0x00030002,
124
125 ANN_REQUIRES_LIMM = 0x00030003,
126
127 /// The JUMP in the annotated move is a function call and should
128 /// be treated as such in the data dependency analysis.
129 ANN_JUMP_FUNCTION_CALL = 0x00030004,
130 /// debugging info annotations
131
132 /// Full path to the program source code file the annotated move
133 /// originates from
134 ANN_DEBUG_SOURCE_CODE_PATH = 0x00040000,
135
136 /// The line number in the source code file the annotated move
137 /// originates from
138 ANN_DEBUG_SOURCE_CODE_LINE = 0x00040001,
139
140
141 /* Moves with this annotation are from an OpenCL work item at
142 the given local ID "offset". The ID does not necessarily map
143 to real work item local ids, but depends on the work group
144 loop parallelization level ("warp size") etc.
145
146 The local ID components are stored to the same integer payload
147 to make ID comparisons fast and easy:
148
149 (z & 0x0FF) | ((y & 0x0FF) << 8) | ((x & 0x0FF) << 16)
150
151 Thus, the maximum allowed WI "offset" is (255, 255, 255). */
152
153 ANN_OPENCL_WORK_ITEM_ID = 0x00050000,
154 // In case of vector memory access, the work item id from the
155 // memory access is for the first of the work items in the vector
156 // access. Also the last of the work item ID in the vector access is
157 // necessary.
158 ANN_OPENCL_WORK_ITEM_ID_LAST = 0x00050001,
159
160 ANN_JUMP_TO_NEXT = 0x00500001,
161
162 /// An instruction annotated with this annotation is the first
163 /// instruction of a basic block in a loop with the
164 /// trip count stored in the annotation payload.
165 ANN_LOOP_TRIP_COUNT = 0x00600000,
166 /// An instruction annotated with this annotation is the first
167 /// instruction of a basic block in an inner loop.
169
170 /// The ID from the _TCEPREGION_START(N) markers.
171 ANN_PARALLEL_REGION_ID = 0x00070000,
172
173 /// information retrieved (from LLVM) about a pointer access
174 ANN_POINTER_NAME = 0x00700000,
175 ANN_POINTER_OFFSET = 0x00700001,
176 ANN_POINTER_NOALIAS = 0x00700002,
177 ANN_POINTER_ADDR_SPACE = 0x00700003,
178
179 /// Vector indentifier for vector operations
180 ANN_VECTOR_ID = 0x00800000,
181
182 /// Constant memory access
183 ANN_CONSTANT_MEM = 0x00900000,
184
185 /// Beginning of a IRF fetch block
186 ANN_IRF_FETCH_BLOCK_BEGIN = 0x00A00000,
187 ANN_IRF_FETCH_BLOCK_FT = 0x00A00001,
188 ANN_IRF_FETCH_BLOCK_JUMP = 0x00A00002,
189 ANN_IRF_FETCH_BLOCK_CALL = 0x00A00003,
190 ANN_IRF_FETCH_BLOCK_RET = 0x00A00004,
191 ANN_IRF_LOCAL_JUMP = 0x00A00005,
192 /// Dummy empty instrution for block header.
193 ANN_IRF_BLOCK_HEADER = 0x00A00010,
194 ANN_IRF_BLOCK_HEADER_NOCACHE = 0x00A00011,
195 /// Just to show this starts a non-irf block
196 ANN_IRF_NOCACHE_BEGIN = 0x00A00020,
197 /// how many stalls may be needed due forward jumps
198 ANN_IRF_BLOCK_FWJUMP_CYCLES = 0x00A00030,
199
200 /// an illegal annotation ID (the id is only 24 bits, this has more
201 /// meaningful bits)
202 ANN_UNDEF_ID = 0xFF000000
203
204 };
@ ANN_STACKFRAME_PROCEDURE_RETURN
precedure return jmp
@ ANN_REGISTER_SP_READ
Stack Pointer read.
@ ANN_STACKFRAME_RA_ALLOC
Return Address alloc.
@ ANN_LOOP_TRIP_COUNT
An instruction annotated with this annotation is the first instruction of a basic block in a loop wit...
@ ANN_STACKFRAME_LVAR_RA_ALLOC
Local var+RA alloc.
@ ANN_STACKFRAME_FPR_RESTORE_REG
FPR restore by pop.
@ ANN_STACKUSE_OUT_PARAM
output parameter.
@ ANN_REGISTER_IPARAM_READ
Read from int param.
@ ANN_IRF_BLOCK_HEADER
Dummy empty instrution for block header.
@ ANN_REJECTED_UNIT_SRC
Src. unit rejected.
@ ANN_REGISTER_FP_SAVE
Frame Pointer save.
@ ANN_REGISTER_IPARAM_SAVE
Save to int param reg.
@ ANN_REGISTER_SP_SAVE
save to Stack pointer
@ ANN_POINTER_NAME
information retrieved (from LLVM) about a pointer access
@ ANN_STACKFRAME_OUT_PARAM_ALLOC
outgoing param alloc
@ ANN_IRF_BLOCK_FWJUMP_CYCLES
how many stalls may be needed due forward jumps
@ ANN_REJECTED_UNIT_DST
Dst. unit rejected.
@ ANN_REGISTER_FP_READ
Frame Pointer read.
@ ANN_STACKFRAME_GPR_RESTORE
GPR restore by pop.
@ ANN_ALLOWED_UNIT_DST
Dst. unit candidate.
@ ANN_STACKFRAME_RA_RESTORE
Return Addr restore.
@ ANN_IRF_NOCACHE_BEGIN
Just to show this starts a non-irf block.
@ ANN_STACKUSE_LOCAL_VARIABLE
local variable
@ ANN_STACKFRAME_UNKNOWN
Unknown SF-related.
@ ANN_CONN_CANDIDATE_UNIT_DST
Dst. unit candidate.
@ ANN_STACKFRAME_RA_SAVE
Return Address save.
@ ANN_STACKFRAME_LVAR_ALLOC
Local variable alloc.
@ ANN_REGISTER_RV_SAVE
Save to RV register.
@ ANN_STACKFRAME_FPR_SAVE_REG
FPR save by pushing.
@ ANN_FIRST_RESERVED
First reserved annot.
@ ANN_STACKFRAME_FPR_RESTORE
FPR restore by pop.
@ ANN_UNDEF_ID
an illegal annotation ID (the id is only 24 bits, this has more meaningful bits)
@ ANN_JUMP_FUNCTION_CALL
The JUMP in the annotated move is a function call and should be treated as such in the data dependenc...
@ ANN_LAST_RESERVED
Last reserved annot.
@ ANN_CONN_CANDIDATE_UNIT_SRC
Src. unit candidate.
@ ANN_PARALLEL_REGION_ID
The ID from the _TCEPREGION_START(N) markers.
@ ANN_VECTOR_ID
Vector indentifier for vector operations.
@ ANN_IRF_FETCH_BLOCK_BEGIN
Beginning of a IRF fetch block.
@ ANN_STACKFRAME_BEGIN
First stackframe ann.
@ ANN_ALLOWED_UNIT_SRC
Candidate units can be passed for resource manager for choosing the source/destination unit of the mo...
@ ANN_STACKFRAME_OUT_PARAM_DEALLOC
outgoing param deall.
@ ANN_STACKFRAME_STACK_INIT
Stack initialization.
@ ANN_LOOP_INNER
An instruction annotated with this annotation is the first instruction of a basic block in an inner l...
@ ANN_STACKFRAME_FPR_SAVE_BEGIN
Used to count saves.
@ ANN_STACKFRAME_LVAR_RA_DEALLOC
Local var+RA dealloc.
@ ANN_DEBUG_SOURCE_CODE_LINE
The line number in the source code file the annotated move originates from.
@ ANN_STACKFRAME_GPR_SAVE_BEGIN
Used to count saves.
@ ANN_STACKFRAME_END
Last stackfame annot.
@ ANN_STACKFRAME_LVAR_DEALLOC
Local var dealloc.
@ ANN_STACKFRAME_FPR_SAVE
FPR save by pushing.
@ ANN_STACKUSE_FP_SAVE
frame ptr save/load
@ ANN_CONSTANT_MEM
Constant memory access.
@ ANN_STACKFRAME_RA_DEALLOC
Return Addr dealloc.
@ ANN_DEBUG_SOURCE_CODE_PATH
debugging info annotations
@ ANN_CONNECTIVITY_MOVE
A reg to reg move that was added because of missing connectivity between the original target and dest...
@ ANN_STACKFRAME_GPR_SAVE
GPR save by pushing.
@ ANN_REGISTER_RV_READ
Read from RV reg.

Constructor & Destructor Documentation

◆ ProgramAnnotation() [1/3]

TTAProgram::ProgramAnnotation::ProgramAnnotation ( Id  id,
int  value
)

Definition at line 60 of file ProgramAnnotation.cc.

60 :
61 id_(id) {
62 setIntValue(value);
63}

References setIntValue().

Here is the call graph for this function:

◆ ProgramAnnotation() [2/3]

TTAProgram::ProgramAnnotation::ProgramAnnotation ( Id  id,
const std::string &  data = ""
)

Constructor.

Note
Exceeding the maximum annotation length of TPEF leads to an assertion!
Parameters
idThe id of the annotation (a 24-bit value).
dataThe payload data as a string.

Definition at line 53 of file ProgramAnnotation.cc.

53 :
54 id_(id) {
55 assert(data.length() <=
57 setStringValue(data);
58}
#define assert(condition)
static const size_t MAX_ANNOTATION_BYTES
Maximum number of bytes that annotation may contain.
void setStringValue(const std::string &data)

References assert, TPEF::InstructionAnnotation::MAX_ANNOTATION_BYTES, and setStringValue().

Here is the call graph for this function:

◆ ProgramAnnotation() [3/3]

TTAProgram::ProgramAnnotation::ProgramAnnotation ( Id  id,
const std::vector< Byte > &  payload
)

Constructor.

Parameters
idThe id of the annotation (a 24-bit value).
dataThe payload data as a byte vector.

Definition at line 71 of file ProgramAnnotation.cc.

72 :
73 id_(id), payload_(payload) {
74 assert(payload.size() <=
76}
const std::vector< Byte > & payload() const
std::vector< Byte > payload_
the payload data

References assert, TPEF::InstructionAnnotation::MAX_ANNOTATION_BYTES, and payload().

Here is the call graph for this function:

◆ ~ProgramAnnotation()

TTAProgram::ProgramAnnotation::~ProgramAnnotation ( )

Destructor.

Definition at line 81 of file ProgramAnnotation.cc.

81 {
82}

Member Function Documentation

◆ id()

ProgramAnnotation::Id TTAProgram::ProgramAnnotation::id ( ) const

◆ intValue()

int TTAProgram::ProgramAnnotation::intValue ( ) const

Definition at line 95 of file ProgramAnnotation.cc.

95 {
97}
static int toInt(const T &source)

References stringValue(), and Conversion::toInt().

Referenced by PRegionAliasAnalyzer::analyze().

Here is the call graph for this function:

◆ payload()

const std::vector< Byte > & TTAProgram::ProgramAnnotation::payload ( ) const

Return the payload data as a non-mutable char vector.

Returns
The payload data.

Definition at line 121 of file ProgramAnnotation.cc.

121 {
122 return payload_;
123}

References payload_.

Referenced by llvm::LLVMTCEBuilder::copyFUAnnotations(), TTAProgram::ProgramWriter::createCodeSection(), DataDependenceGraph::mergeAndKeepSource(), DataDependenceGraph::mergeAndKeepUser(), BFUpdateMoveOnBypass::operator()(), and ProgramAnnotation().

◆ setIntValue()

void TTAProgram::ProgramAnnotation::setIntValue ( int  value)

Definition at line 100 of file ProgramAnnotation.cc.

100 {
101 std::string data = Conversion::toString(value);
102 payload_ = std::vector<Byte>(data.begin(), data.end());
103}
static std::string toString(const T &source)

References payload_, and Conversion::toString().

Referenced by ProgramAnnotation().

Here is the call graph for this function:

◆ setStringValue()

void TTAProgram::ProgramAnnotation::setStringValue ( const std::string &  data)
inline

Definition at line 216 of file ProgramAnnotation.hh.

216 {
217 payload_ = std::vector<Byte>(data.begin(), data.end());
218 };

References payload_.

Referenced by ProgramAnnotation().

◆ stringValue()

std::string TTAProgram::ProgramAnnotation::stringValue ( ) const

The payload data as a std::string.

Returns
The data as a std::string.

Definition at line 90 of file ProgramAnnotation.cc.

90 {
91 return std::string(payload_.begin(), payload_.end());
92}

References payload_.

Referenced by MachineConnectivityCheck::addAnnotatedFUs(), BFOptimization::assign(), DataDependenceGraphBuilder::findStaticRegisters(), intValue(), DataDependenceGraphBuilder::memoryCategory(), and TTAProgram::Move::sourceFileName().

Member Data Documentation

◆ id_

Id TTAProgram::ProgramAnnotation::id_
private

the id

Definition at line 226 of file ProgramAnnotation.hh.

Referenced by id().

◆ payload_

std::vector<Byte> TTAProgram::ProgramAnnotation::payload_
private

the payload data

Definition at line 228 of file ProgramAnnotation.hh.

Referenced by payload(), setIntValue(), setStringValue(), and stringValue().


The documentation for this class was generated from the following files:
