#include <TclInterpreter.hh>

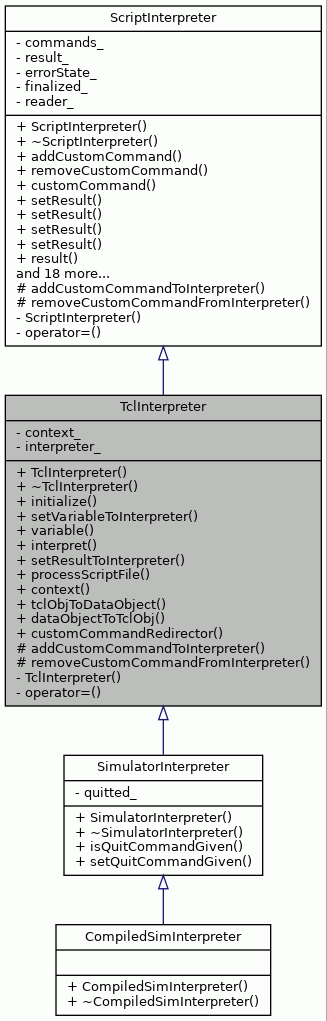

Inheritance diagram for TclInterpreter:

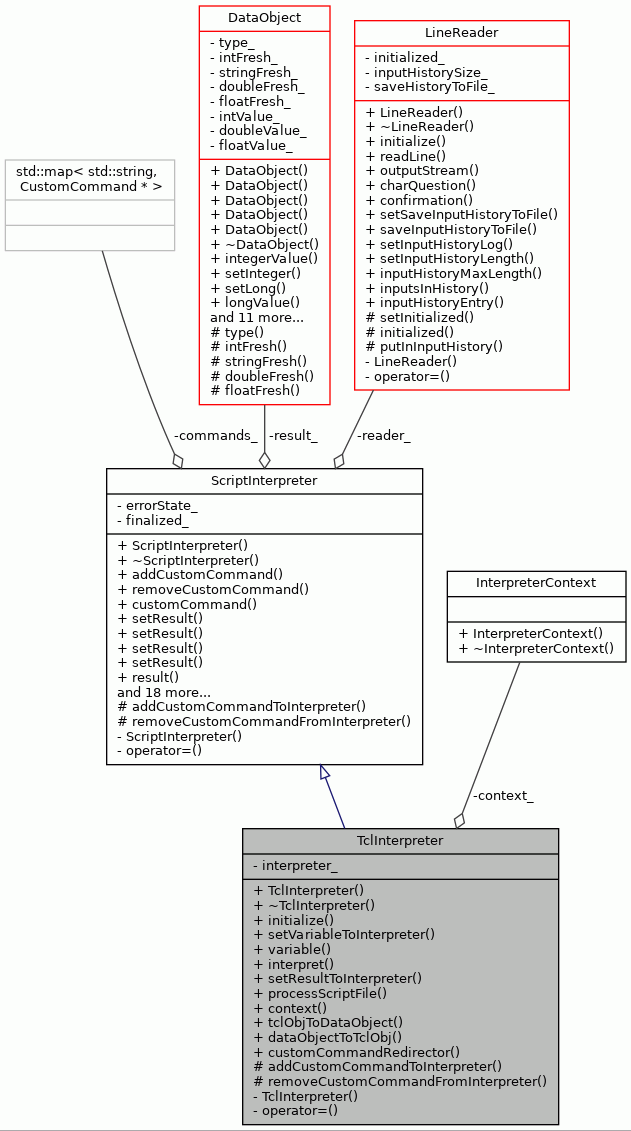

Collaboration diagram for TclInterpreter:

Public Member Functions
	TclInterpreter ()

virtual	~TclInterpreter ()

virtual void	initialize (int argc, char argv[], InterpreterContext context, LineReader *reader)

virtual void	setVariableToInterpreter (const std::string &name, const DataObject &value)

virtual DataObject	variable (const std::string &name)

virtual bool	interpret (const std::string &commandLine)

virtual void	setResultToInterpreter (const DataObject &value)

virtual bool	processScriptFile (const std::string &scriptFileName)

virtual InterpreterContext &	context () const

Public Member Functions inherited from ScriptInterpreter
	ScriptInterpreter ()

virtual	~ScriptInterpreter ()

virtual void	addCustomCommand (CustomCommand *command)

virtual void	removeCustomCommand (const std::string &commandName)

virtual CustomCommand *	customCommand (const std::string &commandName)

virtual void	setResult (DataObject *result)

virtual void	setResult (const std::string &result)

virtual void	setResult (int result)

virtual void	setResult (double result)

virtual std::string	result ()

virtual void	setError (bool state)

virtual void	setError (std::string errorMessage)

virtual bool	error () const

virtual void	setVariable (const std::string &interpreterVariableName, const std::string &value)

virtual void	setVariable (const std::string &interpreterVariableName, int value)

virtual std::string	variableStringValue (const std::string &interpreterVariableName)

virtual int	variableIntegerValue (const std::string &interpreterVariableName)

virtual void	finalize ()

virtual void	setLineReader (LineReader *reader)

virtual LineReader *	lineReader () const

std::vector< std::string >	customCommandsSortedByName ()

Static Public Member Functions
static DataObject	tclObjToDataObject (Tcl_Obj *object)

static Tcl_Obj *	dataObjectToTclObj (const DataObject &object)

static int	customCommandRedirector (ClientData cd, Tcl_Interp interp, int objc, Tcl_Obj CONST objv[])

Protected Member Functions
virtual void	addCustomCommandToInterpreter (const CustomCommand &command)

virtual void	removeCustomCommandFromInterpreter (const CustomCommand &command)

Private Member Functions
	TclInterpreter (const TclInterpreter &)
	Copying not allowed.

TclInterpreter &	operator= (const TclInterpreter &)
	Assignment not allowed.

Private Attributes
InterpreterContext *	context_
	Context for interpreter.

Tcl_Interp *	interpreter_
	Interpreter instance.

Detailed Description

Tcl implementation of ScriptInterpreter.

Tcl (Tool command language) is a very simple programming language. In TCE it is used for command language for Simulator. (Maybe for some other application too.)

Is able to interpret all tcl commands and user defined CustomCommands.

Definition at line 52 of file TclInterpreter.hh.

Constructor & Destructor Documentation

◆ TclInterpreter() [1/2]

TclInterpreter::TclInterpreter ( )

Constructor.

Definition at line 49 of file TclInterpreter.cc.

                               :
    ScriptInterpreter(), context_(NULL), interpreter_(NULL) {
}

◆ ~TclInterpreter()

TclInterpreter::~TclInterpreter ( )

virtual

Destructor.

Definition at line 56 of file TclInterpreter.cc.

                                {
    Tcl_DeleteInterp(interpreter_);
}

References interpreter_.

◆ TclInterpreter() [2/2]

TclInterpreter::TclInterpreter ( const TclInterpreter & )

private

Copying not allowed.

Member Function Documentation

◆ addCustomCommandToInterpreter()

void TclInterpreter::addCustomCommandToInterpreter ( const CustomCommand & command )

protectedvirtual

Adds CustomCommand to interpreter.

Parameters

command The command to be added.

Implements ScriptInterpreter.

Definition at line 192 of file TclInterpreter.cc.

                                                                          {
    char* cName = StringTools::stringToCharPtr(command.name());
    Tcl_CreateObjCommand(
        interpreter_, cName, customCommandRedirector, (ClientData)(&command),
        NULL);
    delete[] cName;
}

References customCommandRedirector(), interpreter_, CustomCommand::name(), and StringTools::stringToCharPtr().

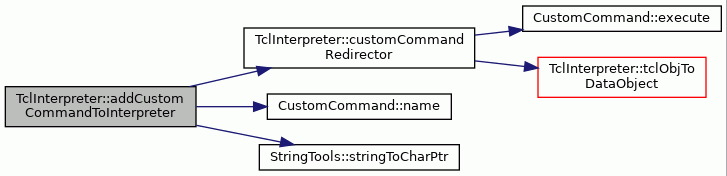

Here is the call graph for this function:

◆ context()

InterpreterContext & TclInterpreter::context ( ) const

virtual

Returns the context of the interpreter.

Returns: The context of the interpreter.

Implements ScriptInterpreter.

Definition at line 298 of file TclInterpreter.cc.

                              {
    return *context_;
}

References context_.

Referenced by initialize(), and SimulatorInterpreter::SimulatorInterpreter().

◆ customCommandRedirector()

int TclInterpreter::customCommandRedirector	(	ClientData	cd,
		Tcl_Interp *	interp,
		int	objc,
		Tcl_Obj *CONST	objv[]
	)

static

This handler function is used to handle all CustomCommands.

ClientData field contains CustomCommand to be executed. Tcl_Objs are converted to DataObjects which are then passed to CustomCommand.

Parameters

cd	ClientData field.
interp	Not used.
objc	The number of Tcl_Objs.
objv	The Tcl_Objs.

Definition at line 270 of file TclInterpreter.cc.

                           {

    vector<DataObject> args;

    for (int i = 0; i < objc; i++) {
        DataObject dObj = TclInterpreter::tclObjToDataObject(objv[i]);
        args.push_back(dObj);
    }

    CustomCommand* targetCommand = static_cast<CustomCommand*>(cd);
    assert(cd != NULL);

    if (targetCommand->execute(args)) {
        return TCL_OK;
    }
    return TCL_ERROR;
}

References assert, CustomCommand::execute(), and tclObjToDataObject().

Referenced by addCustomCommandToInterpreter().

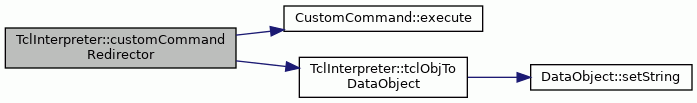

Here is the call graph for this function:

◆ dataObjectToTclObj()

Tcl_Obj * TclInterpreter::dataObjectToTclObj ( const DataObject & object )

static

Converts DataObject to Tcl_Obj.

Parameters

object The object to be converted.

Returns: Tcl_Obj converted from DataObject.

Exceptions

NumberFormatException If conversion fails.

Definition at line 235 of file TclInterpreter.cc.

                                                           {
    char* cName = StringTools::stringToCharPtr(object.stringValue());
    Tcl_Obj* obj = Tcl_NewStringObj(cName, -1);
    delete[] cName;
    return obj;
}

References StringTools::stringToCharPtr().

Referenced by setResultToInterpreter().

Here is the call graph for this function:

◆ initialize()

void TclInterpreter::initialize	(	int	argc,
		char *	argv[],
		InterpreterContext *	context,
		LineReader *	reader
	)

virtual

Initializes the interpreter.

Interpreter instance is created, as well as argc and argv variables are set in interpreter.

Parameters

argc	The number of command line arguments.
argv	The command line arguments.
context	The context for interpreter.
reader	LineReader for the interpreter.

Implements ScriptInterpreter.

Definition at line 72 of file TclInterpreter.cc.

                        {

    setLineReader(reader);
    context_ = context;
    interpreter_ = Tcl_CreateInterp();

    if (argc == 0 || argv == NULL) {
    return;
    }

    // argv is set to interpreter
    char* args = Tcl_Merge(argc-1, (char **)argv+1);
    char* argvStr = const_cast<char*>("argv");
    Tcl_SetVar(interpreter_, argvStr, args, TCL_GLOBAL_ONLY);
    ckfree(args);

    // argc is set to interpreter
    string buffer = Conversion::toString(argc-1);
    setVariable("argc", buffer);
    setVariable("argv0", argv[0]);
}

References context(), context_, interpreter_, ScriptInterpreter::setLineReader(), ScriptInterpreter::setVariable(), and Conversion::toString().

Referenced by SimulatorInterpreter::SimulatorInterpreter().

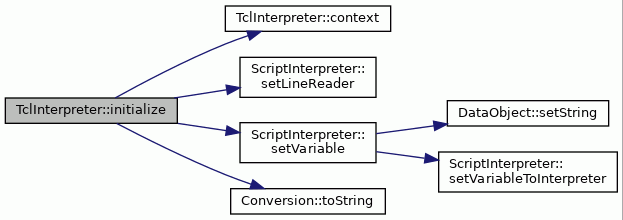

Here is the call graph for this function:

◆ interpret()

bool TclInterpreter::interpret ( const std::string & commandLine )

virtual

Interprets one command line.

Parameters

commandLine The line to be interpreted.

Returns: True if interpreting is successful, false otherwise.

Todo:: This does not work with nested loops correctly! It stops after it encouters the first line with only "}", thus it stops after the nested loop definition stops.

Implements ScriptInterpreter.

Definition at line 138 of file TclInterpreter.cc.

                                                      {

    LineReader* reader = lineReader();
    StringTools::trim(commandLine);
    string command = StringTools::trim(commandLine);
    if (!command.empty() && command.substr(command.length() - 1, 1) == "{" &&
        reader != NULL) {
        // command line ended with '{' so let's wait for more input
        /// @todo This does not work with nested loops correctly!
        /// It stops after it encouters the first line with only "}",
        /// thus it stops after the nested loop definition stops.
        string line = "";
        do {
            line = StringTools::trim(reader->readLine("  "));
            StringTools::trim(line);
            command += "\n" + line;
        } while (!line.empty() && line.substr(line.length() - 1, 1) != "}");
    }

    char* cCommandLine = StringTools::stringToCharPtr(command);
    int code = Tcl_Eval(interpreter_, cCommandLine);
    delete[] cCommandLine;

    Tcl_Obj* object = Tcl_GetObjResult(interpreter_);
    DataObject* dObject = new DataObject(tclObjToDataObject(object));
    setResult(dObject);

    if (code == TCL_OK) {
        setError(false);
        return true;
    } else {
        setError(true);
        return false;
    }
}

References interpreter_, ScriptInterpreter::lineReader(), LineReader::readLine(), ScriptInterpreter::setError(), ScriptInterpreter::setResult(), StringTools::stringToCharPtr(), tclObjToDataObject(), and StringTools::trim().

Referenced by ProximSimulationThread::Entry(), SimulatorCLI::interpreteAndPrintResults(), Proxim::OnInit(), processScriptFile(), SimulatorCLI::run(), and DesignSpaceExplorer::simulate().

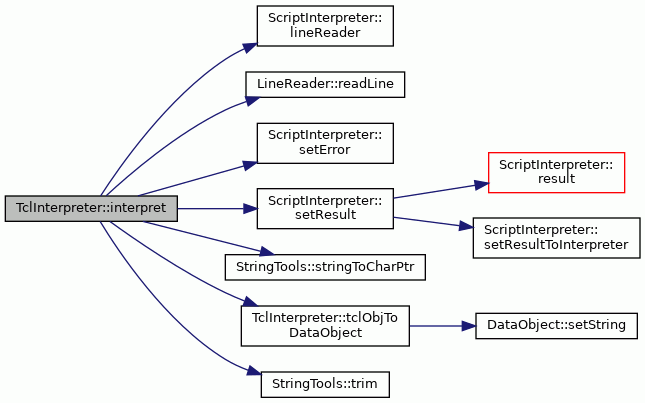

Here is the call graph for this function:

◆ operator=()

TclInterpreter & TclInterpreter::operator= ( const TclInterpreter & )

private

Assignment not allowed.

◆ processScriptFile()

bool TclInterpreter::processScriptFile ( const std::string & scriptFileName )

virtual

Processes script file.

Parameters

scriptFileName The name of the script file.

Returns: True, if process is successful, false otherwise.

Exceptions

UnreachableStream Don't throw it.

Reimplemented from ScriptInterpreter.

Definition at line 250 of file TclInterpreter.cc.

                                                                 {
    string command = "source " + scriptFileName;
    if (!interpret(command)) {
        return false;
    }
    return true;
}

References interpret().

Referenced by main(), and TTASimulatorCLI::TTASimulatorCLI().

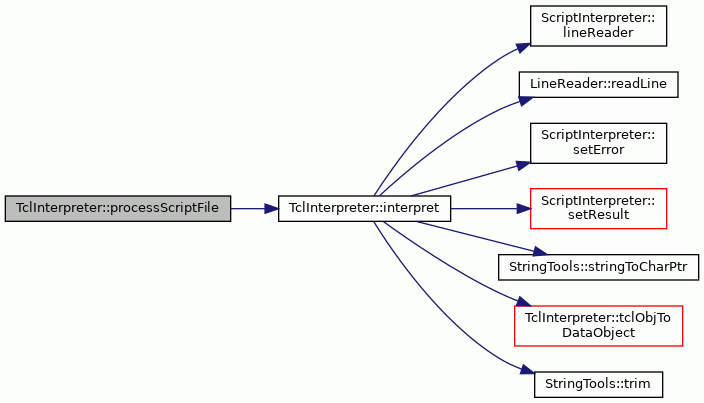

Here is the call graph for this function:

◆ removeCustomCommandFromInterpreter()

void TclInterpreter::removeCustomCommandFromInterpreter ( const CustomCommand & command )

protectedvirtual

Removes custom command from interpreter.

Parameters

command The command to be removed.

Implements ScriptInterpreter.

Definition at line 206 of file TclInterpreter.cc.

                                  {

    char* cName = StringTools::stringToCharPtr(command.name());
    Tcl_DeleteCommand(interpreter_, cName);
    delete[] cName;
}

References interpreter_, CustomCommand::name(), and StringTools::stringToCharPtr().

Here is the call graph for this function:

◆ setResultToInterpreter()

void TclInterpreter::setResultToInterpreter ( const DataObject & value )

virtual

Sets result to concrete interpreter.

Parameters

value The value to be set.

Exceptions

NumberFormatException If conversion to Tcl_Obj fails.

Implements ScriptInterpreter.

Definition at line 181 of file TclInterpreter.cc.

                                                              {
    Tcl_Obj* object = dataObjectToTclObj(value);
    Tcl_SetObjResult(interpreter_, object);
}

References dataObjectToTclObj(), and interpreter_.

Here is the call graph for this function:

◆ setVariableToInterpreter()

void TclInterpreter::setVariableToInterpreter	(	const std::string &	name,
		const DataObject &	value
	)

virtual

Sets a variable for interpreter.

Parameters

name	The name of the variable.
value	The value for a variable.

Exceptions

NumberFormatException If converting value to string fails.

Implements ScriptInterpreter.

Definition at line 106 of file TclInterpreter.cc.

                                                    {
    char* cName = StringTools::stringToCharPtr(name);
    char* cValue = StringTools::stringToCharPtr(value.stringValue());
    Tcl_SetVar(interpreter_, cName, cValue, TCL_GLOBAL_ONLY);
    delete[] cName;
    delete[] cValue;
}

References interpreter_, StringTools::stringToCharPtr(), and DataObject::stringValue().

Here is the call graph for this function:

◆ tclObjToDataObject()

DataObject TclInterpreter::tclObjToDataObject ( Tcl_Obj * object )

static

Converts Tcl_Obj to DataObject.

Parameters

object The object to be converted.

Returns: DataObject which was converted from Tcl_Obj.

Definition at line 221 of file TclInterpreter.cc.

                                                  {
    DataObject dObj;
    dObj.setString(Tcl_GetStringFromObj(object, NULL));
    return dObj;
}

References DataObject::setString().

Referenced by customCommandRedirector(), and interpret().

Here is the call graph for this function:

◆ variable()

DataObject TclInterpreter::variable ( const std::string & name )

virtual

Returns the DataObject corresponding a certain variable.

Parameters

name	The name of the variable.

Returns: The DataObject which holds the value of variable.

Implements ScriptInterpreter.

Definition at line 122 of file TclInterpreter.cc.

                                              {
    DataObject object;
    char* cName = StringTools::stringToCharPtr(name);
    string value = Tcl_GetVar(interpreter_, cName, TCL_GLOBAL_ONLY);
    delete[] cName;
    object.setString(value);
    return object;
}

References interpreter_, and StringTools::stringToCharPtr().

Here is the call graph for this function:

Member Data Documentation

◆ context_

InterpreterContext* TclInterpreter::context_

private

Context for interpreter.

Definition at line 94 of file TclInterpreter.hh.

Referenced by context(), and initialize().

◆ interpreter_

Tcl_Interp* TclInterpreter::interpreter_

private

Interpreter instance.

Definition at line 96 of file TclInterpreter.hh.

Referenced by addCustomCommandToInterpreter(), initialize(), interpret(), removeCustomCommandFromInterpreter(), setResultToInterpreter(), setVariableToInterpreter(), variable(), and ~TclInterpreter().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TclInterpreter() [1/2]

◆ ~TclInterpreter()

◆ TclInterpreter() [2/2]

Member Function Documentation

◆ addCustomCommandToInterpreter()

◆ context()

◆ customCommandRedirector()

◆ dataObjectToTclObj()

◆ initialize()

◆ interpret()

◆ operator=()

◆ processScriptFile()

◆ removeCustomCommandFromInterpreter()

◆ setResultToInterpreter()

◆ setVariableToInterpreter()

◆ tclObjToDataObject()

◆ variable()

Member Data Documentation

◆ context_

◆ interpreter_
