#include <BFAssignToBody.hh>

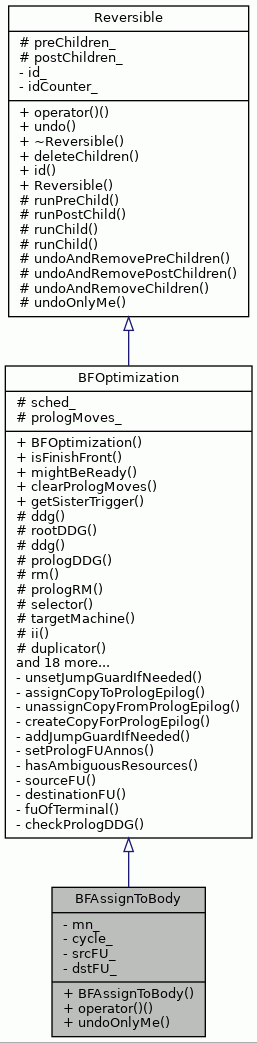

Inheritance diagram for BFAssignToBody:

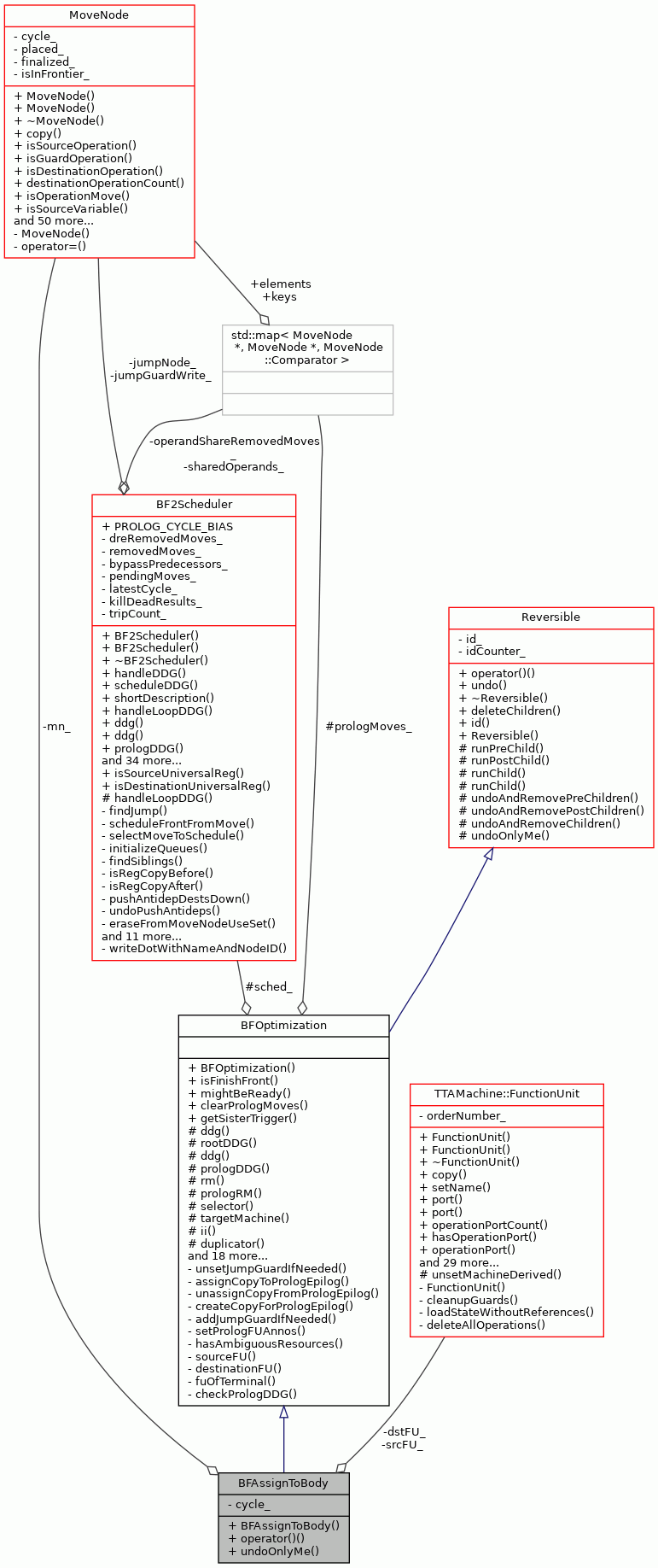

Collaboration diagram for BFAssignToBody:

Public Member Functions
	BFAssignToBody (BF2Scheduler &sched, MoveNode &mn, int cycle, const TTAMachine::FunctionUnit srcFU, const TTAMachine::FunctionUnit dstFU)

bool	operator() () override

void	undoOnlyMe () override

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Private Attributes
MoveNode &	mn_

int	cycle_

const TTAMachine::FunctionUnit *	srcFU_

const TTAMachine::FunctionUnit *	dstFU_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 42 of file BFAssignToBody.hh.

Constructor & Destructor Documentation

◆ BFAssignToBody()

BFAssignToBody::BFAssignToBody	(	BF2Scheduler &	sched,
		MoveNode &	mn,
		int	cycle,
		const TTAMachine::FunctionUnit *	srcFU,
		const TTAMachine::FunctionUnit *	dstFU
	)

inline

Definition at line 44 of file BFAssignToBody.hh.

                                                         :
         BFOptimization(sched), mn_(mn), cycle_(cycle), srcFU_(srcFU),
         dstFU_(dstFU) {}

Member Function Documentation

◆ operator()()

bool BFAssignToBody::operator() ( )

overridevirtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 41 of file BFAssignToBody.cc.

                                 {
     if (!rm().canAssign(cycle_, mn_, nullptr, srcFU_, dstFU_)) {
         return false;
     }
     rm().assign(cycle_, mn_, nullptr, srcFU_, dstFU_);
     return true;
 }

References SimpleResourceManager::assign(), BFOptimization::canAssign(), cycle_, dstFU_, mn_, BFOptimization::rm(), and srcFU_.

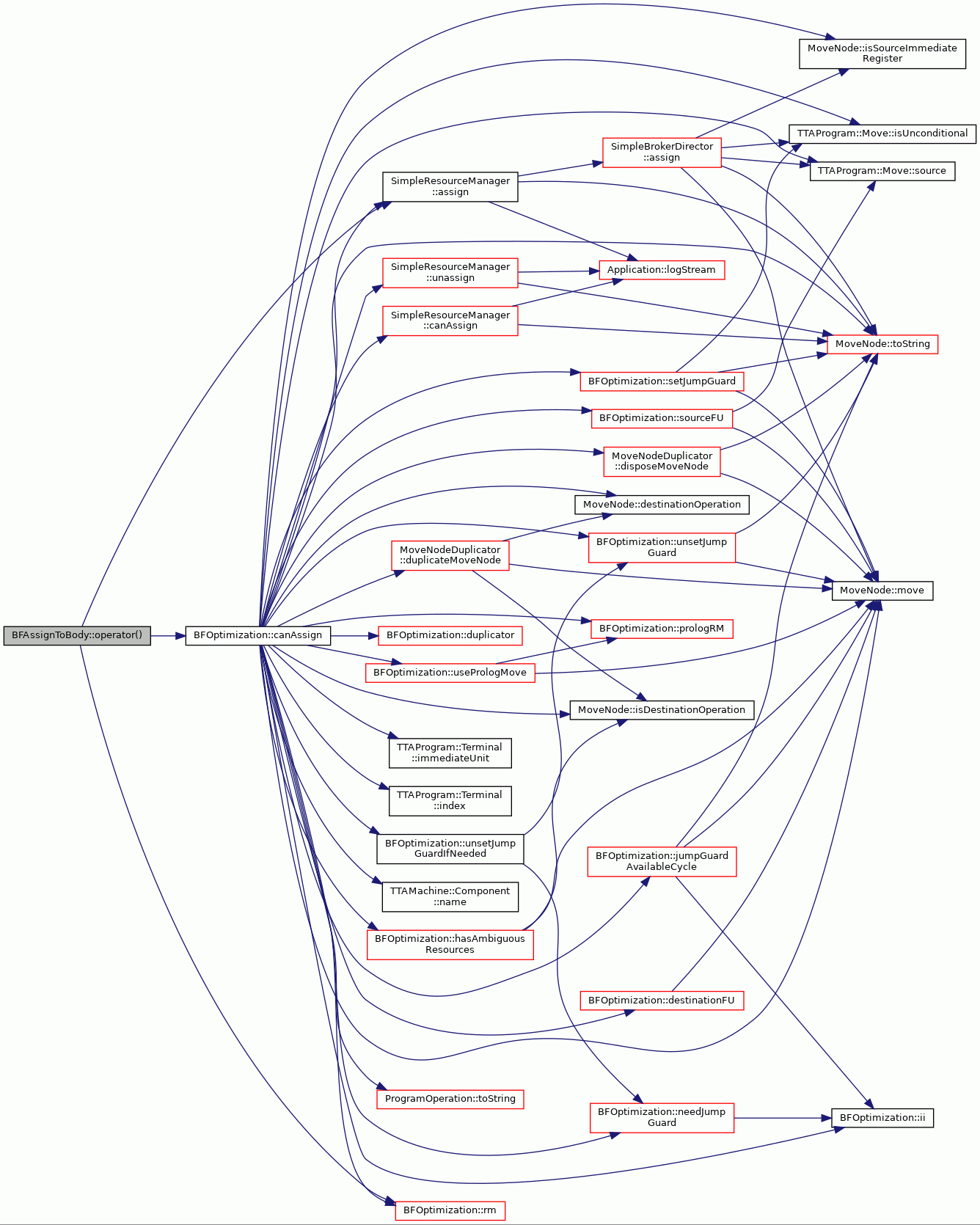

Here is the call graph for this function:

◆ undoOnlyMe()

void BFAssignToBody::undoOnlyMe ( )

overridevirtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented from Reversible.

Definition at line 49 of file BFAssignToBody.cc.

                                 {
     rm().unassign(mn_);
 }

References mn_, BFOptimization::rm(), and SimpleResourceManager::unassign().

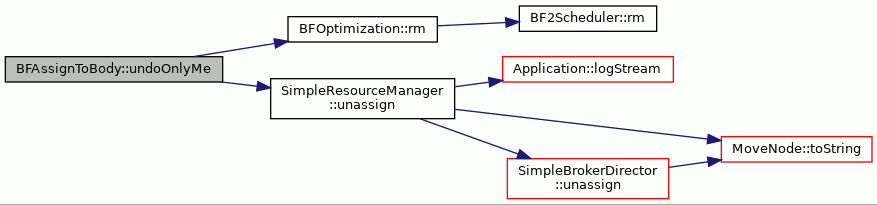

Here is the call graph for this function:

Member Data Documentation

◆ cycle_

int BFAssignToBody::cycle_

private

Definition at line 53 of file BFAssignToBody.hh.

Referenced by operator()().

◆ dstFU_

const TTAMachine::FunctionUnit* BFAssignToBody::dstFU_

private

Definition at line 55 of file BFAssignToBody.hh.

Referenced by operator()().

◆ mn_

MoveNode& BFAssignToBody::mn_

private

Definition at line 52 of file BFAssignToBody.hh.

Referenced by operator()(), and undoOnlyMe().

◆ srcFU_

const TTAMachine::FunctionUnit* BFAssignToBody::srcFU_

private

Definition at line 54 of file BFAssignToBody.hh.

Referenced by operator()().

The documentation for this class was generated from the following files:
