#include <BFLateBypasses.hh>

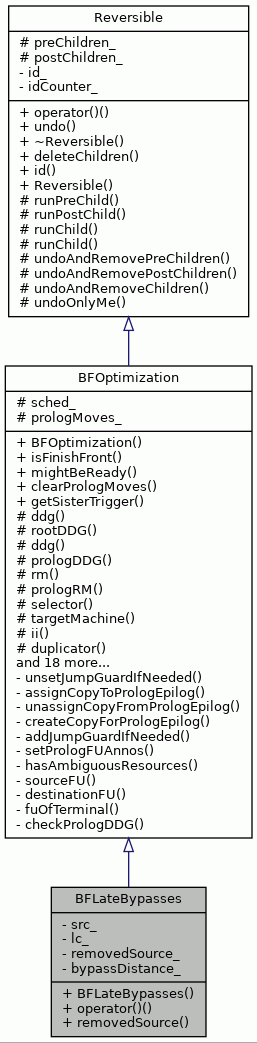

Inheritance diagram for BFLateBypasses:

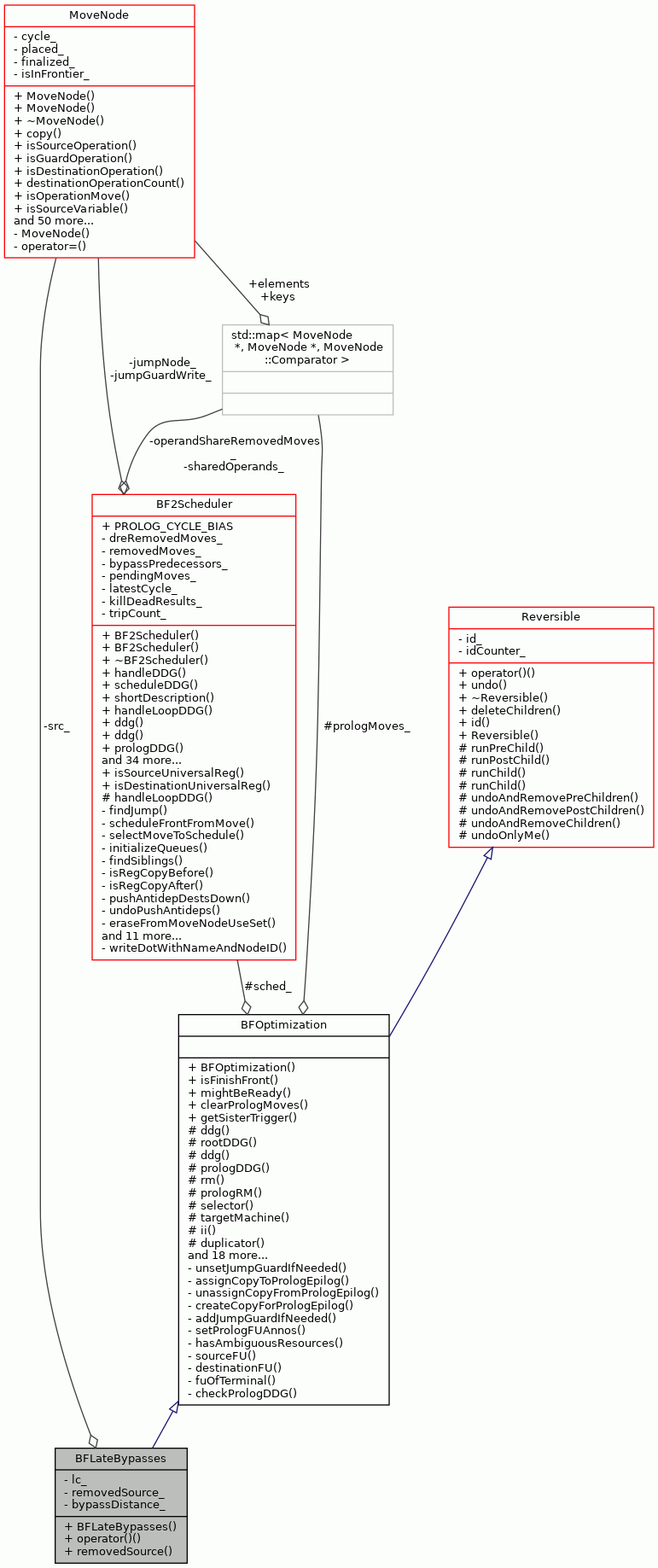

Collaboration diagram for BFLateBypasses:

Public Member Functions
	BFLateBypasses (BF2Scheduler &sched, MoveNode &src, int lc)

virtual bool	operator() ()

bool	removedSource ()

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Private Attributes
MoveNode &	src_

int	lc_

bool	removedSource_

int	bypassDistance_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

virtual void	undoOnlyMe ()

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 44 of file BFLateBypasses.hh.

Constructor & Destructor Documentation

◆ BFLateBypasses()

BFLateBypasses::BFLateBypasses	(	BF2Scheduler &	sched,
		MoveNode &	src,
		int	lc
	)

Definition at line 53 of file BFLateBypasses.cc.

                                                                          :
     BFOptimization(sched), src_(src), lc_(lc), removedSource_(false),
     bypassDistance_(5) {
     SchedulerCmdLineOptions* opts =
         dynamic_cast<SchedulerCmdLineOptions*>(Application::cmdLineOptions());
     if (opts != NULL) {
         if (opts->bypassDistance() > -1) {
             bypassDistance_ = opts->bypassDistance();
         }
     }
 }

References SchedulerCmdLineOptions::bypassDistance(), bypassDistance_, and Application::cmdLineOptions().

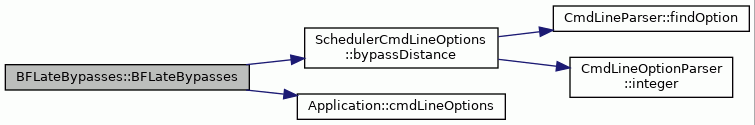

Here is the call graph for this function:

Member Function Documentation

◆ operator()()

bool BFLateBypasses::operator() ( )

virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 66 of file BFLateBypasses.cc.

                            {

     int variableDstCount = 0;
     bool bypassed = false;
     auto rrDestinations =
         ddg().onlyRegisterRawDestinationsWithEdges(src_, false);

     // the boolean specifies whether this is normal or guard bypass.
     std::map<MoveNode*, bool, MoveNode::Comparator> bypassDestinations;

     int earliestDst = INT_MAX;
     // first just search all potentials.
     for (auto i : rrDestinations) {
         MoveNode* n = i.second;
         int guardParam = i.first->guardUse() ? 1 : 2;
         // TODO: the rootgraph here prevents over-loop-edge bypass.
         // TODO: enable over-loop-edge bypass when it works.
         // Needs update to ddg.mergeAndKeep() to put backedge
         // properties and BFOptimization::assign() to keep original
         // register in prolog. (create copy MN of original for prolog
         // when bypassing?
         if ((static_cast<DataDependenceGraph*>(ddg().rootGraph()))->
             onlyRegisterRawSource(*n, guardParam) == NULL) {
             continue;
         }

         // not guard but normal read
         if (guardParam == 2) {
             MachineConnectivityCheck::PortSet destinationPorts;
             destinationPorts.insert(&n->move().destination().port());

             if (MachineConnectivityCheck::canSourceWriteToAnyDestinationPort(
                     src_, destinationPorts)) {
                 if (n->isScheduled() == false
                     && (static_cast<SimpleResourceManager&>(
                             rm()).initiationInterval() != 0)) {
                     // Found node connected by loop edge, ignore it.
                     continue;
                 }
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
                 std::cerr << "\t\tFound ok bypass dest: " << n->toString()
                           << std::endl;
 #endif

                 if (!ddg().guardsAllowBypass(src_, *n)) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
                     std::cerr << "\t\tGuards do not allow bypass to: "
                               << n->toString() << std::endl;
 #endif
                     continue;
                 }

                 assert(n->isScheduled());
                 int originalCycle = n->cycle();
                 int earliestLimit = originalCycle - bypassDistance_;
                 if (lc_ < earliestLimit) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
                     std::cerr << "\t\t\tcycle limites prevent late bypass "
                               << std::endl;
 #endif
                     continue;
                 }
                 earliestDst = std::min(earliestDst, originalCycle);
                 bypassDestinations.insert(std::make_pair(n, false));
             }
         } else {
             // TODO: test if guard bypass possible.
             // now handled in the guard bypass class itself.
             assert(n->isScheduled());
             int originalCycle = n->cycle();
             int earliestLimit = originalCycle - bypassDistance_;
             if (lc_ < earliestLimit) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
                 std::cerr << "\t\t\tcycle limites prevent late bypass "
                           << std::endl;
 #endif
                 continue;
             }
             earliestDst = std::min(earliestDst, originalCycle);
             bypassDestinations.insert(std::make_pair(n, true));
         }
     }

     // Do the critical one first. This may force the source FU.
     for (auto n : bypassDestinations) {
         if (n.first->cycle() == earliestDst) {
             if (!n.second) {

                 // if always write results,
                 // op cannot have more than one register target.
                 if (targetMachine().alwaysWriteResults() &&
                     src_.isSourceOperation() &&
                     n.first->isDestinationVariable() &&
                     variableDstCount>0) {
                     continue;
                 }

                 BFLateBypass* lbp =
                     new BFLateBypass(sched_, src_, *n.first, lc_);
                 if (runPreChild(lbp)) {
                     bypassed = true;
                     if (n.first->isDestinationVariable()) {
                         variableDstCount++;
                     }
                 }
                 bypassDestinations.erase(n.first);
                 break;
             } else {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
                 std::cerr << "\nAttempting guard bypass from: " <<
                     src_.toString() << " to: " << n.first->toString()
                           << std::endl;
 #endif
                 // guard bypass
                 BFLateBypassGuard* lbp =
                     new BFLateBypassGuard(sched_, src_, *n.first, lc_);
                 if (runPreChild(lbp)) {
                     bypassed = true;
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
                     std::cerr << "\tguard bypass ok." << std::endl;
                 } else {
                     std::cerr << "\tGuard bypass failed." << std::endl;
 #endif
                 }
                 bypassDestinations.erase(n.first);
                 break;
             }
         }
     }

     // then actually do the bypass for the other, non-critical moves
     for (auto n : bypassDestinations) {
         if (!n.second) {
             // if always write results,
             // op cannot have more than one register target.
             if (targetMachine().alwaysWriteResults() &&
                 src_.isSourceOperation() &&
                 n.first->isDestinationVariable() &&
                 variableDstCount>0) {
                 continue;
             }

             int originalCycle = n.first->cycle();
             if (originalCycle > earliestDst + bypassDistance_) {
                 continue;
             }
             BFLateBypass* lbp = new BFLateBypass(sched_, src_, *n.first, lc_);
             if (runPreChild(lbp)) {
                 bypassed = true;
                 if (n.first->isDestinationVariable()) {
                     variableDstCount++;
                 }
             }
         }
     }
     if (!bypassed) {
         return false;
     }

     // if always write results,
     // op must have exactly one register target.
     if (targetMachine().alwaysWriteResults() &&
         src_.isSourceOperation()) {
         // if none of the bypassed are to reg,
         // may not DRE
         if (variableDstCount == 0) {
             return true;
         }
         assert(variableDstCount == 1);
         // if one of the bypasses are to reg,
         // MUST dre.
         BFDRELate* dre = new BFDRELate(sched_, src_);
         if (runPostChild(dre)) {
             removedSource_ = true;
             return true;
         } else {
             undoAndRemovePreChildren();
             return false;
         }
     }

     BFDRELate* dre = new BFDRELate(sched_, src_);
     if (runPostChild(dre)) {
         removedSource_ = true;
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
         std::cerr << "DRE ok!" << std::endl;
     } else {
         std::cerr << "Could not DRE away: " << src_.toString() << std::endl;
 #endif
     }
     return true;
 }

References assert, bypassDistance_, MachineConnectivityCheck::canSourceWriteToAnyDestinationPort(), MoveNode::cycle(), BFOptimization::ddg(), TTAProgram::Move::destination(), MoveNode::isScheduled(), MoveNode::isSourceOperation(), lc_, MoveNode::move(), DataDependenceGraph::onlyRegisterRawDestinationsWithEdges(), TTAProgram::Terminal::port(), removedSource_, BFOptimization::rm(), Reversible::runPostChild(), Reversible::runPreChild(), BFOptimization::sched_, src_, BFOptimization::targetMachine(), MoveNode::toString(), and Reversible::undoAndRemovePreChildren().

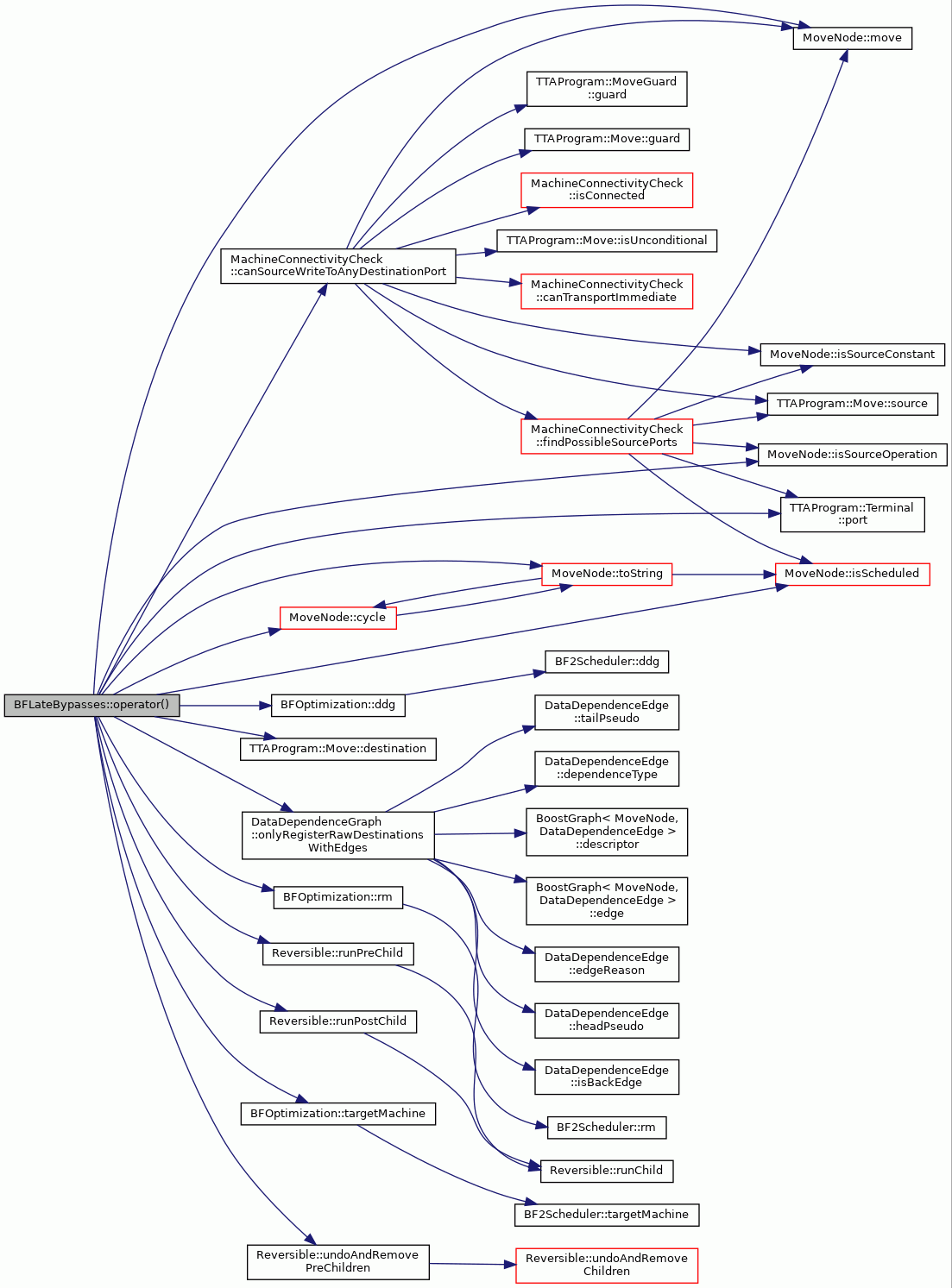

Here is the call graph for this function:

◆ removedSource()

bool BFLateBypasses::removedSource ( )

inline

Definition at line 49 of file BFLateBypasses.hh.

49 { return removedSource_;}

References removedSource_.

Referenced by BFScheduleTD::operator()(), and BFScheduleBU::operator()().

Member Data Documentation

◆ bypassDistance_

int BFLateBypasses::bypassDistance_

private

Definition at line 54 of file BFLateBypasses.hh.

Referenced by BFLateBypasses(), and operator()().

◆ lc_

int BFLateBypasses::lc_

private

Definition at line 52 of file BFLateBypasses.hh.

Referenced by operator()().

◆ removedSource_

bool BFLateBypasses::removedSource_

private

Definition at line 53 of file BFLateBypasses.hh.

Referenced by operator()(), and removedSource().

◆ src_

MoveNode& BFLateBypasses::src_

private

Definition at line 51 of file BFLateBypasses.hh.

Referenced by operator()().

The documentation for this class was generated from the following files:
