CmdAdvanceClock Class Reference

#include <TestOsal.hh>

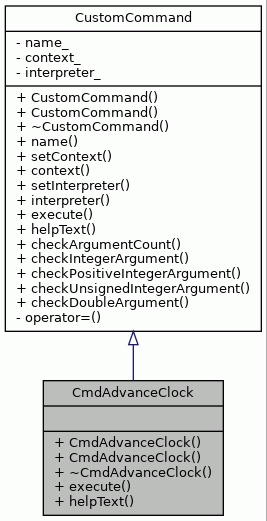

Inheritance diagram for CmdAdvanceClock:

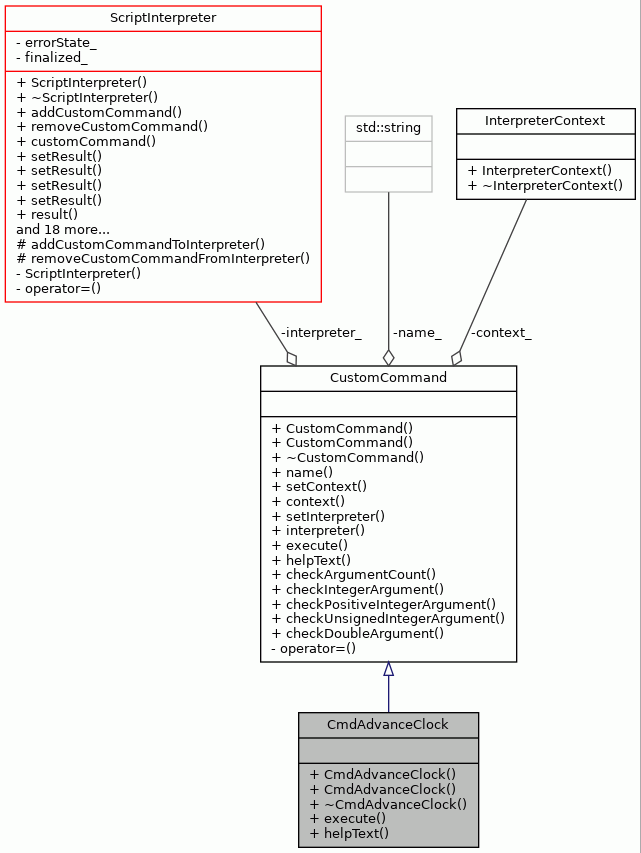

Collaboration diagram for CmdAdvanceClock:

Public Member Functions
	CmdAdvanceClock ()
	CmdAdvanceClock (const CmdAdvanceClock &cmd)
virtual	~CmdAdvanceClock ()
virtual bool	execute (const std::vector< DataObject > &arguments)
virtual std::string	helpText () const
Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)
	CustomCommand (const CustomCommand &cmd)
virtual	~CustomCommand ()
std::string	name () const
void	setContext (InterpreterContext *context)
InterpreterContext *	context () const
void	setInterpreter (ScriptInterpreter *si)
ScriptInterpreter *	interpreter () const
bool	checkArgumentCount (int argumentCount, int minimum, int maximum)
bool	checkIntegerArgument (const DataObject &argument)
bool	checkPositiveIntegerArgument (const DataObject &argument)
bool	checkUnsignedIntegerArgument (const DataObject &argument)
bool	checkDoubleArgument (const DataObject &argument)

Detailed Description

Advances clock by one cycle.

Definition at line 195 of file TestOsal.hh.

Constructor & Destructor Documentation

CmdAdvanceClock() [1/2]

CmdAdvanceClock::CmdAdvanceClock

(

)

Constructor.

Definition at line 840 of file TestOsal.cc.

                                 : CustomCommand("advanceclock") {
}

CmdAdvanceClock() [2/2]

CmdAdvanceClock::CmdAdvanceClock ( const CmdAdvanceClock &  cmd )

explicit

Copy constructor.

Parameters

cmd	Command to be copied.

Definition at line 848 of file TestOsal.cc.

                                                           :
    CustomCommand(cmd) {
}

~CmdAdvanceClock()

CmdAdvanceClock::~CmdAdvanceClock ( )

virtual

Destructor.

Definition at line 855 of file TestOsal.cc.

                                  {
}

Member Function Documentation

execute()

bool CmdAdvanceClock::execute ( const std::vector< DataObject > &  arguments )

virtual

Executes the command.

Parameters

arguments

Arguments for the command.

Returns

True if execution is successful.

Exceptions

NumberFormatException

If DataObject conversion fails.

Implements CustomCommand.

Definition at line 866 of file TestOsal.cc.

                                                               {
    ScriptInterpreter* scriptInterp = interpreter();
    OsalInterpreter* interp = dynamic_cast<OsalInterpreter*>(scriptInterp);
    assert(interp != NULL);

    DataObject* result = new DataObject();

    if (arguments.size() != 1) {
        result->setString("wrong number of arguments");
        interp->setResult(result);
        return false;
    }

    TesterContext& context =
        *(dynamic_cast<TesterContext*>(&interp->context()));

    Memory& memory = context.operationContext().memory();
    memory.advanceClock();
    context.operationContext().advanceClock();
    result->setString("");
    interp->setResult(result);
    return true;
}

References Memory::advanceClock(), assert, CustomCommand::context(), SimpleScriptInterpreter::context(), CustomCommand::interpreter(), ScriptInterpreter::setResult(), and DataObject::setString().

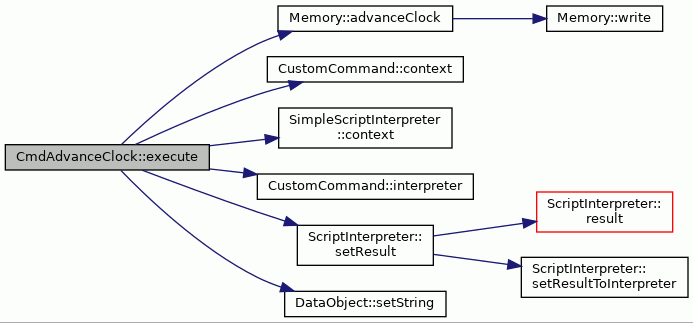

Here is the call graph for this function:

helpText()

string CmdAdvanceClock::helpText ( ) const

virtual

Returns the help text of the command.

Returns

The help text.

Implements CustomCommand.

Definition at line 896 of file TestOsal.cc.

                                {
    return "Advances clock per one cycle";
}

---

The documentation for this class was generated from the following files:

• TestOsal.hh
• TestOsal.cc
