HDBEditorModifyCmd Class Reference

#include <HDBEditorModifyCmd.hh>

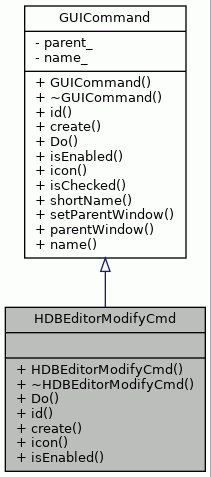

Inheritance diagram for HDBEditorModifyCmd:

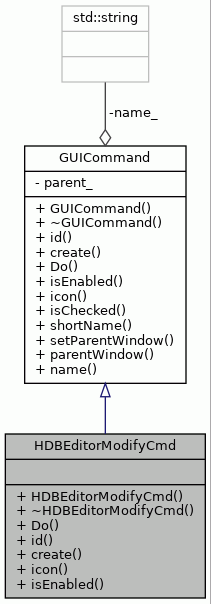

Collaboration diagram for HDBEditorModifyCmd:

Public Member Functions
	HDBEditorModifyCmd ()
virtual	~HDBEditorModifyCmd ()
virtual bool	Do ()
virtual int	id () const
virtual HDBEditorModifyCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for modifying HDB items.

Definition at line 41 of file HDBEditorModifyCmd.hh.

Constructor & Destructor Documentation

HDBEditorModifyCmd()

HDBEditorModifyCmd::HDBEditorModifyCmd

(

)

The Constructor.

Definition at line 60 of file HDBEditorModifyCmd.cc.

                                       :
    GUICommand(HDBEditorConstants::COMMAND_NAME_MODIFY, NULL) {
}

Referenced by create().

~HDBEditorModifyCmd()

HDBEditorModifyCmd::~HDBEditorModifyCmd ( )

virtual

The Destructor.

Definition at line 68 of file HDBEditorModifyCmd.cc.

                                        {
}

Member Function Documentation

create()

HDBEditorModifyCmd * HDBEditorModifyCmd::create ( ) const

virtual

Creates a new instance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 207 of file HDBEditorModifyCmd.cc.

                                 {
    return new HDBEditorModifyCmd();
}

References HDBEditorModifyCmd().

Here is the call graph for this function:

Do()

bool HDBEditorModifyCmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 75 of file HDBEditorModifyCmd.cc.

                       {

    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();
    if (manager == NULL) {
        return false;
    }

    HDBBrowserWindow* browser = wxGetApp().mainFrame().browser();


    if (browser->isFUImplementationSelected()) {

        // FU implementation modification.

        int entryID = manager->fuEntryIDOfImplementation(
            browser->selectedFUImplementation());

        HDB::FUEntry* entry = manager->fuByEntryID(entryID);

        FUImplementationDialog dialog(
            parentWindow(), -1, entry->implementation(),
            entry->architecture().architecture());

        if (dialog.ShowModal() == wxID_OK) {
            try {
                assert(entry->hasImplementation() &&
                       entry->implementation().hasID());

                int implID = entry->implementation().id();
                manager->removeFUImplementation(implID);
                int id = manager->addFUImplementation(*entry);
                wxGetApp().mainFrame().update();
                wxGetApp().mainFrame().browser()->selectFUImplementation(id);
            } catch (Exception& e) {
                wxString message = _T("Error:\n");
                message.Append(WxConversion::toWxString(e.errorMessage()));
                message.Append(_T("\n"));
                message.Append(WxConversion::toWxString(e.lineNum()));
                message.Append(_T(": "));
                message.Append(WxConversion::toWxString(e.fileName()));
                ErrorDialog dialog(parentWindow(), message);
                dialog.ShowModal();
                delete entry;
                return false;
            }
        } else {
            delete entry;
        }

        return true;
    } else if (browser->isRFImplementationSelected()) {

        // RF implementation modification.

        int entryID = manager->rfEntryIDOfImplementation(
            browser->selectedRFImplementation());

        HDB::RFEntry* entry = manager->rfByEntryID(entryID);

        RFImplementationDialog dialog(
            parentWindow(), -1, entry->implementation());

        if (dialog.ShowModal() == wxID_OK) {
            try {
                assert(entry->hasImplementation() &&
                       entry->implementation().hasID());

                int implID = entry->implementation().id();
                manager->removeRFImplementation(implID);
                int id = manager->addRFImplementation(
                    entry->implementation(), entryID);
                //can be commented for not update DB-> fast editing
                wxGetApp().mainFrame().update();
                wxGetApp().mainFrame().browser()->selectRFImplementation(id);
            } catch (Exception& e) {
                wxString message = _T("Error:\n");
                message.Append(WxConversion::toWxString(e.errorMessage()));
                message.Append(_T("\n"));
                message.Append(WxConversion::toWxString(e.lineNum()));
                message.Append(_T(": "));
                message.Append(WxConversion::toWxString(e.fileName()));
                ErrorDialog dialog(parentWindow(), message);
                dialog.ShowModal();
                delete entry;
                return false;
            }
        } else {
            delete entry;
        }

        return true;
    } else if (browser->isCostFunctionPluginSelected()) {

        CostFunctionPluginDialog dialog(
            parentWindow(), -1,
            *manager, browser->selectedCostFunctionPlugin());

        dialog.ShowModal();
        wxGetApp().mainFrame().update();
        return true;
    }

    return false;
}

References HDB::HDBManager::addFUImplementation(), HDB::HDBManager::addRFImplementation(), HDB::FUArchitecture::architecture(), HDB::FUEntry::architecture(), assert, Exception::errorMessage(), Exception::fileName(), HDB::HDBManager::fuByEntryID(), HDB::HDBManager::fuEntryIDOfImplementation(), HDB::HWBlockImplementation::hasID(), HDB::FUEntry::hasImplementation(), HDB::RFEntry::hasImplementation(), HDB::HWBlockImplementation::id(), HDB::FUEntry::implementation(), HDB::RFEntry::implementation(), HDBBrowserWindow::isCostFunctionPluginSelected(), HDBBrowserWindow::isFUImplementationSelected(), HDBBrowserWindow::isRFImplementationSelected(), Exception::lineNum(), GUICommand::parentWindow(), HDB::HDBManager::removeFUImplementation(), HDB::HDBManager::removeRFImplementation(), HDB::HDBManager::rfByEntryID(), HDB::HDBManager::rfEntryIDOfImplementation(), HDBBrowserWindow::selectedCostFunctionPlugin(), HDBBrowserWindow::selectedFUImplementation(), HDBBrowserWindow::selectedRFImplementation(), and WxConversion::toWxString().

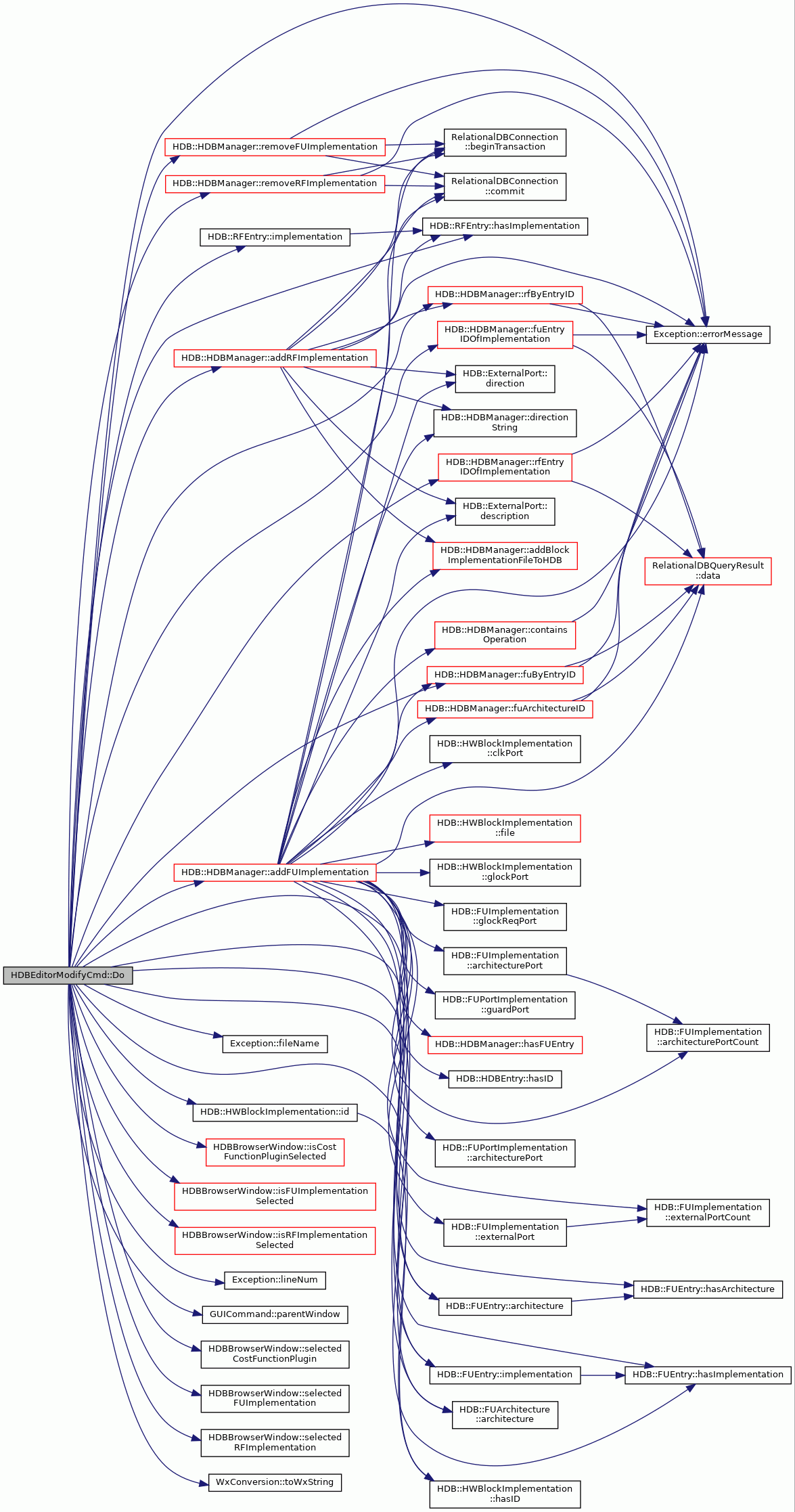

Here is the call graph for this function:

icon()

std::string HDBEditorModifyCmd::icon ( ) const

virtual

Returns name of the command icon file.

Returns

Command icon file name.

Implements GUICommand.

Definition at line 186 of file HDBEditorModifyCmd.cc.

                               {
    return "";
}

id()

int HDBEditorModifyCmd::id ( ) const

virtual

Returns the command id.

Returns

Command identifier.

Implements GUICommand.

Definition at line 196 of file HDBEditorModifyCmd.cc.

                             {
    return HDBEditorConstants::COMMAND_MODIFY;
}

References HDBEditorConstants::COMMAND_MODIFY.

isEnabled()

bool HDBEditorModifyCmd::isEnabled ( )

virtual

Returns true if the command should be enabled in the tool/menubar.

Returns

True if the command is enabled, false if not.

Implements GUICommand.

Definition at line 218 of file HDBEditorModifyCmd.cc.

                              {
    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();

    if (manager == NULL) {
        return false;
    }

    HDBBrowserWindow* browser = wxGetApp().mainFrame().browser();

    if (browser->isFUImplementationSelected() ||
        browser->isRFImplementationSelected() ||
        browser->isCostFunctionPluginSelected()) {
        return true;
    }

    return false;
}

References HDBBrowserWindow::isCostFunctionPluginSelected(), HDBBrowserWindow::isFUImplementationSelected(), and HDBBrowserWindow::isRFImplementationSelected().

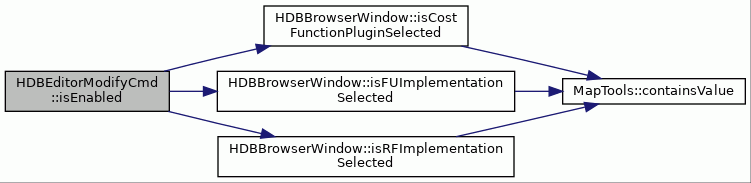

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• HDBEditorModifyCmd.hh
• HDBEditorModifyCmd.cc
