HDLGenerator::IntegerConstant Class Reference

#include <HDLGenerator.hh>

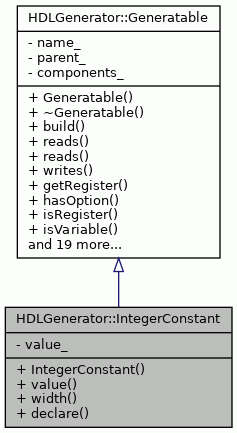

Inheritance diagram for HDLGenerator::IntegerConstant:

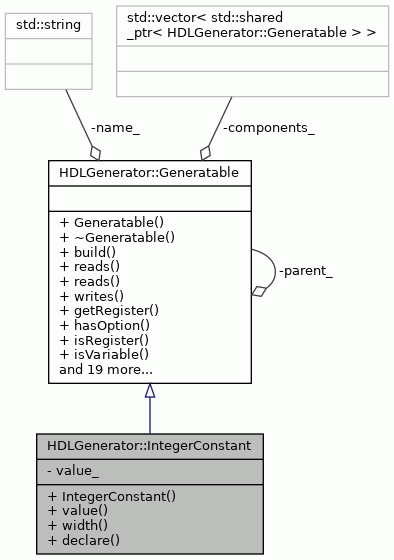

Collaboration diagram for HDLGenerator::IntegerConstant:

Public Member Functions
	IntegerConstant (std::string name, int value)
int	value () const noexcept
Width	width () final
void	declare (std::ostream &stream, Language lang, int level)
Public Member Functions inherited from HDLGenerator::Generatable
	Generatable (std::string name)
virtual	~Generatable ()=default
virtual void	build ()
virtual void	reads (const std::string &var)
virtual void	reads (const LHSValue &var)
virtual void	writes (const std::string &var)
virtual Register &	getRegister (const std::string &var)
virtual bool	hasOption (const std::string &var)
virtual bool	isRegister (const std::string &name)
virtual bool	isVariable (const std::string &name)
virtual bool	isConstant (const std::string &name)
virtual Width	width (const std::string &name)
int	integerWidth (const std::string &name)
virtual WireType	wireType (const std::string &name)
virtual WireType	wireType () const
virtual void	hdl (std::ostream &stream, Language lang, int indent)
virtual void	hdl (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang, int indent)
template<typename Func >
void	forAll (Func func)
template<typename Type , typename Func >
void	forAll (Func func)
template<class Type >
bool	parentIs ()
template<class Type >
Type *	parentType ()
void	pushComponent (std::shared_ptr< Generatable > c)
template<class Component >
void	addComponent (Component c)
const std::string &	name () const noexcept
void	setParent (Generatable *parent) noexcept
Generatable *	parent () const noexcept

Private Attributes
int	value_

Detailed Description

Integer constant.

Definition at line 287 of file HDLGenerator.hh.

Constructor & Destructor Documentation

IntegerConstant()

HDLGenerator::IntegerConstant::IntegerConstant ( std::string  name, int  value  )

inline

Definition at line 289 of file HDLGenerator.hh.

            : Generatable(name), value_(value) {}

Member Function Documentation

declare()

void HDLGenerator::IntegerConstant::declare ( std::ostream &  stream, Language  lang, int  level  )

inline

Definition at line 296 of file HDLGenerator.hh.

                                                                   {
            if (lang == Language::VHDL) {
                stream << StringTools::indent(level) << "constant " << name()
                       << " : integer := " << value() << ";\n";
            } else if (lang == Language::Verilog) {
                stream << StringTools::indent(level) << "localparam integer "
                       << name() << " = " << value() << ";\n";
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References StringTools::indent(), HDLGenerator::Generatable::name(), value(), HDLGenerator::Verilog, and HDLGenerator::VHDL.

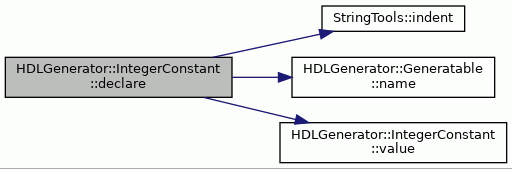

Here is the call graph for this function:

value()

int HDLGenerator::IntegerConstant::value ( ) const

inlinenoexcept

Definition at line 292 of file HDLGenerator.hh.

{ return value_; }

References value_.

Referenced by declare().

width()

Width HDLGenerator::IntegerConstant::width ( )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 294 of file HDLGenerator.hh.

{ return {name(), value_}; }

References HDLGenerator::Generatable::name(), and value_.

Here is the call graph for this function:

Member Data Documentation

value_

int HDLGenerator::IntegerConstant::value_

private

Definition at line 309 of file HDLGenerator.hh.

Referenced by value(), and width().

---

The documentation for this class was generated from the following file:

• HDLGenerator.hh
