HDLGenerator::Generatable Class Reference

#include <Generatable.hh>

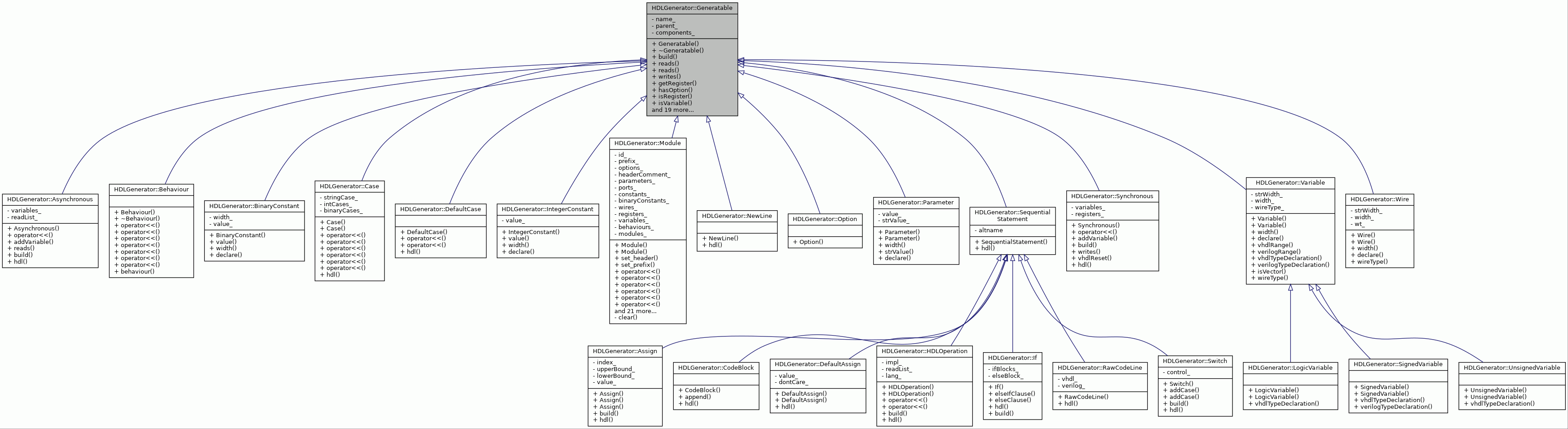

Inheritance diagram for HDLGenerator::Generatable:
Inheritance graph

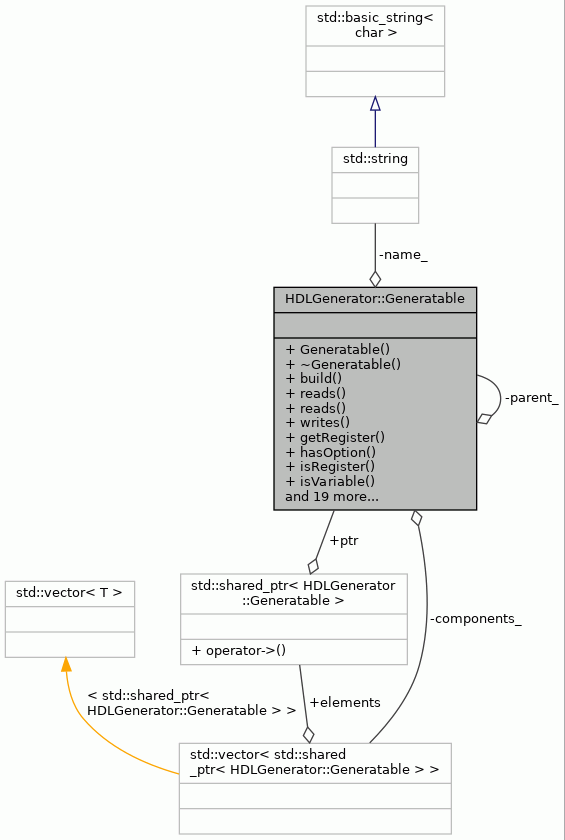

Collaboration diagram for HDLGenerator::Generatable:
Collaboration graph

Public Member Functions

 Generatable (std::string name)

virtual ~Generatable ()=default

virtual void build ()

virtual void reads (const std::string &var)

virtual void reads (const LHSValue &var)

virtual void writes (const std::string &var)

virtual Register & getRegister (const std::string &var)

virtual bool hasOption (const std::string &var)

virtual bool isRegister (const std::string &name)

virtual bool isVariable (const std::string &name)

virtual bool isConstant (const std::string &name)

virtual Width width (const std::string &name)

int integerWidth (const std::string &name)

virtual WireType wireType (const std::string &name)

virtual Width width ()

virtual WireType wireType () const

virtual void hdl (std::ostream &stream, Language lang, int indent)

virtual void hdl (std::ostream &stream, Language lang)

virtual void implementAll (std::ostream &stream, Language lang)

virtual void implementAll (std::ostream &stream, Language lang, int indent)

template<typename Func >
void forAll (Func func)

template<typename Type , typename Func >
void forAll (Func func)

template<class Type >
bool parentIs ()

template<class Type >
Type * parentType ()

void pushComponent (std::shared_ptr< Generatable > c)

template<class Component >
void addComponent (Component c)

const std::string & name () const noexcept

void setParent (Generatable *parent) noexcept

Generatable * parent () const noexcept


Private Attributes

std::string name_

Generatable * parent_

std::vector< std::shared_ptr< Generatable > > components_


Detailed Description

Base class for all generatable classes.

Definition at line 51 of file Generatable.hh.

Constructor & Destructor Documentation

◆ Generatable()

HDLGenerator::Generatable::Generatable ( std::string  name)
inline

Definition at line 53 of file Generatable.hh.

53 : name_(name), parent_(nullptr) {}

◆ ~Generatable()

virtual HDLGenerator::Generatable::~Generatable ( )
virtualdefault

Member Function Documentation

◆ addComponent()

template<class Component >
void HDLGenerator::Generatable::addComponent ( Component  c)
inline

Definition at line 235 of file Generatable.hh.

235  {
236  components_.push_back(std::make_shared<Component>(c));
237  }

References components_.

Referenced by HDLGenerator::Switch::addCase(), HDLGenerator::DefaultCase::operator<<(), and HDLGenerator::Behaviour::operator<<().

◆ build()

virtual void HDLGenerator::Generatable::build ( )
inlinevirtual

Reimplemented in HDLGenerator::Synchronous, HDLGenerator::Asynchronous, HDLGenerator::If, HDLGenerator::Switch, HDLGenerator::Assign, HDLGenerator::HDLOperation, and HDLGenerator::Module.

Definition at line 56 of file Generatable.hh.

56  {
57  forAll([this](std::shared_ptr<Generatable> c) {
58  c->setParent(this);
59  c->build();
60  });
61  }

References forAll().

Referenced by HDLGenerator::HDLOperation::build(), HDLGenerator::Assign::build(), HDLGenerator::Switch::build(), HDLGenerator::If::build(), HDLGenerator::Asynchronous::build(), and HDLGenerator::Synchronous::build().

Here is the call graph for this function:

◆ forAll() [1/2]

template<typename Func >
void HDLGenerator::Generatable::forAll ( Func  func)
inline

Definition at line 195 of file Generatable.hh.

195  {
196  for (auto&& c : components_) {
197  func(c);
198  }
199  }

References components_.

Referenced by HDLGenerator::Behaviour::behaviour(), build(), and implementAll().

◆ forAll() [2/2]

template<typename Type , typename Func >
void HDLGenerator::Generatable::forAll ( Func  func)
inline

Definition at line 201 of file Generatable.hh.

201  {
202  for (auto&& c : components_) {
203  Type* ptr = dynamic_cast<Type*>(c.get());
204  if (ptr != nullptr)
205  func(ptr);
206  }
207  }

References components_.

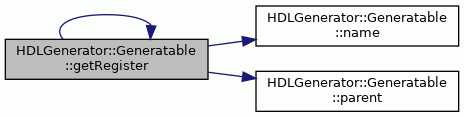

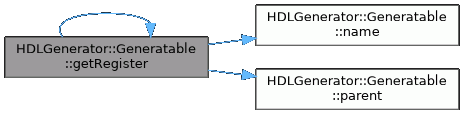

◆ getRegister()

virtual Register& HDLGenerator::Generatable::getRegister ( const std::string &  var)
inlinevirtual

Reimplemented in HDLGenerator::Module.

Definition at line 89 of file Generatable.hh.

89  {
90  if (parent() == nullptr) {
91  std::string err =
92  std::string("Couldn't find parent for ") + name();
93  throw std::runtime_error(err.c_str());
94  }
95  return parent()->getRegister(var);
96  }

References getRegister(), name(), and parent().

Referenced by getRegister(), HDLGenerator::Synchronous::hdl(), and HDLGenerator::Synchronous::vhdlReset().

Here is the call graph for this function:

◆ hasOption()

virtual bool HDLGenerator::Generatable::hasOption ( const std::string &  var)
inlinevirtual

Reimplemented in HDLGenerator::Module.

Definition at line 98 of file Generatable.hh.

98  {
99  if (parent() == nullptr) {
100  std::string err =
101  std::string("Couldn't find parent for ") + name();
102  throw std::runtime_error(err.c_str());
103  }
104  return parent()->hasOption(var);
105  }

References hasOption(), name(), and parent().

Referenced by hasOption(), HDLGenerator::Synchronous::hdl(), and HDLGenerator::Synchronous::vhdlReset().

Here is the call graph for this function:

◆ hdl() [1/2]

virtual void HDLGenerator::Generatable::hdl ( std::ostream &  stream,
Language  lang
)
inlinevirtual

Definition at line 178 of file Generatable.hh.

178  {
179  (void)lang;
180  stream << name();
181  }

References name().

Here is the call graph for this function:

◆ hdl() [2/2]

virtual void HDLGenerator::Generatable::hdl ( std::ostream &  stream,
Language  lang,
int  indent
)
inlinevirtual

Reimplemented in HDLGenerator::Synchronous, HDLGenerator::Asynchronous, HDLGenerator::CodeBlock, HDLGenerator::If, HDLGenerator::Switch, HDLGenerator::Case, HDLGenerator::DefaultCase, HDLGenerator::Assign, HDLGenerator::DefaultAssign, HDLGenerator::HDLOperation, HDLGenerator::NewLine, HDLGenerator::RawCodeLine, and HDLGenerator::SequentialStatement.

Definition at line 170 of file Generatable.hh.

170  {
171  (void)stream;
172  (void)lang;
173  (void)indent;
174  std::string err = std::string("Attempted to generate ") + name_;
175  throw std::runtime_error(err);
176  }

References name_.

◆ implementAll() [1/2]

virtual void HDLGenerator::Generatable::implementAll ( std::ostream &  stream,
Language  lang
)
inlinevirtual

Definition at line 183 of file Generatable.hh.

183  {
184  forAll([&](
185  std::shared_ptr<Generatable> c) { c->hdl(stream, lang); });
186  }

References forAll().

Referenced by HDLGenerator::DefaultCase::hdl(), HDLGenerator::Case::hdl(), HDLGenerator::Switch::hdl(), HDLGenerator::CodeBlock::hdl(), HDLGenerator::Asynchronous::hdl(), and HDLGenerator::Synchronous::hdl().

Here is the call graph for this function:

◆ implementAll() [2/2]

virtual void HDLGenerator::Generatable::implementAll ( std::ostream &  stream,
Language  lang,
int  indent
)
inlinevirtual

Definition at line 189 of file Generatable.hh.

189  {
190  forAll([&](std::shared_ptr<Generatable> c) {
191  c->hdl(stream, lang, indent);
192  });
193  }

References forAll().

Here is the call graph for this function:

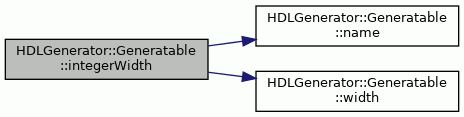

◆ integerWidth()

int HDLGenerator::Generatable::integerWidth ( const std::string &  name)
inline

Definition at line 143 of file Generatable.hh.

143  {
144  int intWidth = width(name).intWidth;
145  if (intWidth == -1) {
146  std::string err = name_
147  + std::string(" does not have an integer width value.");
148  throw std::runtime_error(err.c_str());
149  }
150  return intWidth;
151  }

References HDLGenerator::Width::intWidth, name(), name_, and width().

Here is the call graph for this function:

◆ isConstant()

virtual bool HDLGenerator::Generatable::isConstant ( const std::string &  name)
inlinevirtual

Reimplemented in HDLGenerator::Module.

Definition at line 125 of file Generatable.hh.

125  {
126  if (parent() == nullptr) {
127  std::string err =
128  std::string("Couldn't find parent for ") + name_;
129  throw std::runtime_error(err.c_str());
130  }
131  return parent()->isConstant(name);
132  }

References isConstant(), name(), name_, and parent().

Referenced by HDLGenerator::Asynchronous::hdl(), and isConstant().

Here is the call graph for this function:

◆ isRegister()

virtual bool HDLGenerator::Generatable::isRegister ( const std::string &  name)
inlinevirtual

Reimplemented in HDLGenerator::Module.

Definition at line 107 of file Generatable.hh.

107  {
108  if (parent() == nullptr) {
109  std::string err =
110  std::string("Couldn't find parent for ") + name_;
111  throw std::runtime_error(err.c_str());
112  }
113  return parent()->isRegister(name);
114  }

References isRegister(), name(), name_, and parent().

Referenced by HDLGenerator::Synchronous::build(), HDLGenerator::Assign::hdl(), isRegister(), and HDLGenerator::Synchronous::writes().

Here is the call graph for this function:

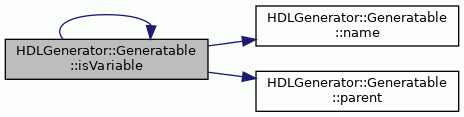

◆ isVariable()

virtual bool HDLGenerator::Generatable::isVariable ( const std::string &  name)
inlinevirtual

Reimplemented in HDLGenerator::Module.

Definition at line 116 of file Generatable.hh.

116  {
117  if (parent() == nullptr) {
118  std::string err =
119  std::string("Couldn't find parent for ") + name_;
120  throw std::runtime_error(err.c_str());
121  }
122  return parent()->isVariable(name);
123  }

References isVariable(), name(), name_, and parent().

Referenced by HDLGenerator::DefaultAssign::hdl(), HDLGenerator::Assign::hdl(), isVariable(), and HDLGenerator::Synchronous::writes().

Here is the call graph for this function:

◆ name()

const std::string& HDLGenerator::Generatable::name ( ) const
inlinenoexcept

Definition at line 239 of file Generatable.hh.

239 { return name_; }

References name_.

Referenced by HDLGenerator::Assign::build(), HDLGenerator::Parameter::declare(), HDLGenerator::BinaryConstant::declare(), HDLGenerator::IntegerConstant::declare(), HDLGenerator::Wire::declare(), HDLGenerator::Variable::declare(), HDLGenerator::Module::declare(), getRegister(), hasOption(), hdl(), HDLGenerator::DefaultAssign::hdl(), HDLGenerator::Assign::hdl(), HDLGenerator::Asynchronous::hdl(), HDLGenerator::Synchronous::hdl(), HDLGenerator::Module::implement(), HDLGenerator::Module::instantiate(), integerWidth(), isConstant(), HDLGenerator::Module::isConstant(), isRegister(), HDLGenerator::Module::isRegister(), isVariable(), HDLGenerator::Module::isVariable(), HDLGenerator::Module::Module(), reads(), width(), HDLGenerator::Parameter::width(), HDLGenerator::BinaryConstant::width(), HDLGenerator::IntegerConstant::width(), HDLGenerator::Module::width(), wireType(), HDLGenerator::Module::wireType(), and writes().

◆ parent()

Generatable* HDLGenerator::Generatable::parent ( ) const
inlinenoexcept

Definition at line 242 of file Generatable.hh.

242 { return parent_; }

References parent_.

Referenced by getRegister(), hasOption(), isConstant(), isRegister(), isVariable(), parentIs(), parentType(), reads(), HDLGenerator::Asynchronous::reads(), setParent(), width(), wireType(), and writes().

◆ parentIs()

template<class Type >
bool HDLGenerator::Generatable::parentIs ( )
inline

Definition at line 209 of file Generatable.hh.

209  {
210  if (parent() == nullptr) {
211  return false;
212  } else if (dynamic_cast<Type*>(parent()) != nullptr) {
213  return true;
214  } else {
215  return parent()->parentIs<Type>();
216  }
217  }

References parent(), and parentIs().

Referenced by parentIs().

Here is the call graph for this function:

◆ parentType()

template<class Type >
Type* HDLGenerator::Generatable::parentType ( )
inline

Definition at line 219 of file Generatable.hh.

219  {
220  if (parent() == nullptr) {
221  throw std::runtime_error("Couldn't find parent'");
222  } else if (dynamic_cast<Type*>(parent()) != nullptr) {
223  return dynamic_cast<Type*>(parent());
224  } else {
225  return parent()->parentType<Type>();
226  }
227  }

References parent(), and parentType().

Referenced by parentType().

Here is the call graph for this function:

◆ pushComponent()

void HDLGenerator::Generatable::pushComponent ( std::shared_ptr< Generatable >  c)
inline

Definition at line 230 of file Generatable.hh.

230  {
231  components_.push_back(c);
232  }

References components_.

Referenced by HDLGenerator::CodeBlock::append(), HDLGenerator::Case::operator<<(), HDLGenerator::Asynchronous::operator<<(), and HDLGenerator::Synchronous::operator<<().

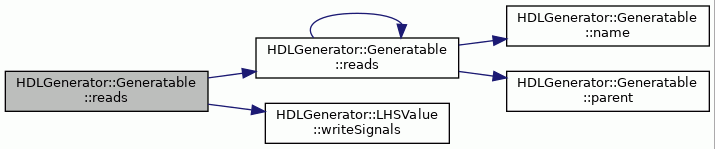

◆ reads() [1/2]

virtual void HDLGenerator::Generatable::reads ( const LHSValue &  var)
inlinevirtual

Definition at line 72 of file Generatable.hh.

72  {
73  std::unordered_set<std::string> readList;
74  var.writeSignals(readList);
75  for (auto&& r : readList) {
76  reads(r);
77  }
78  }

References reads(), and HDLGenerator::LHSValue::writeSignals().

Here is the call graph for this function:

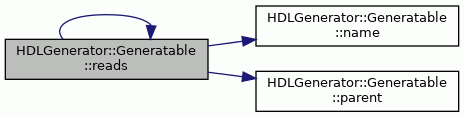

◆ reads() [2/2]

virtual void HDLGenerator::Generatable::reads ( const std::string &  var)
inlinevirtual

Reimplemented in HDLGenerator::Asynchronous, and HDLGenerator::Module.

Definition at line 63 of file Generatable.hh.

63  {
64  if (parent() == nullptr) {
65  std::string err =
66  std::string("Couldn't find parent for ") + name();
67  throw std::runtime_error(err.c_str());
68  }
69  parent()->reads(var);
70  }

References name(), parent(), and reads().

Referenced by HDLGenerator::HDLOperation::build(), HDLGenerator::Assign::build(), HDLGenerator::Switch::build(), HDLGenerator::If::build(), reads(), and HDLGenerator::Asynchronous::reads().

Here is the call graph for this function:

◆ setParent()

void HDLGenerator::Generatable::setParent ( Generatable *  parent)
inlinenoexcept

Definition at line 241 of file Generatable.hh.

241 { parent_ = parent; }

References parent(), and parent_.

Here is the call graph for this function:

◆ width() [1/2]

virtual Width HDLGenerator::Generatable::width ( )
inlinevirtual

Reimplemented in HDLGenerator::Variable, HDLGenerator::Wire, HDLGenerator::IntegerConstant, HDLGenerator::BinaryConstant, and HDLGenerator::Parameter.

Definition at line 162 of file Generatable.hh.

162  {
163  throw std::runtime_error("Shouldn't be here!");
164  }

Referenced by HDLGenerator::DefaultAssign::hdl(), and integerWidth().

◆ width() [2/2]

virtual Width HDLGenerator::Generatable::width ( const std::string &  name)
inlinevirtual

Reimplemented in HDLGenerator::Module.

Definition at line 134 of file Generatable.hh.

134  {
135  if (parent() == nullptr) {
136  std::string err =
137  std::string("Couldn't find parent for ") + name_;
138  throw std::runtime_error(err.c_str());
139  }
140  return parent()->width(name);
141  }

References name(), name_, parent(), and width().

Referenced by FUGen::createOutputPipeline(), and width().

Here is the call graph for this function:

◆ wireType() [1/2]

virtual WireType HDLGenerator::Generatable::wireType ( ) const
inlinevirtual

Reimplemented in HDLGenerator::Wire.

Definition at line 166 of file Generatable.hh.

166  {
167  throw std::runtime_error("Shouldn't be here!");
168  }

Referenced by HDLGenerator::DefaultAssign::hdl().

◆ wireType() [2/2]

virtual WireType HDLGenerator::Generatable::wireType ( const std::string &  name)
inlinevirtual

Reimplemented in HDLGenerator::Module.

Definition at line 153 of file Generatable.hh.

153  {
154  if (parent() == nullptr) {
155  std::string err =
156  std::string("Couldn't find parent for ") + name_;
157  throw std::runtime_error(err.c_str());
158  }
159  return parent()->wireType(name);
160  }

References name(), name_, parent(), and wireType().

Referenced by wireType().

Here is the call graph for this function:

◆ writes()

virtual void HDLGenerator::Generatable::writes ( const std::string &  var)
inlinevirtual

Reimplemented in HDLGenerator::Synchronous, and HDLGenerator::Module.

Definition at line 80 of file Generatable.hh.

80  {
81  if (parent() == nullptr) {
82  std::string err =
83  std::string("Couldn't find parent for ") + name();
84  throw std::runtime_error(err.c_str());
85  }
86  parent()->writes(var);
87  }

References name(), parent(), and writes().

Referenced by HDLGenerator::Assign::build(), and writes().

Here is the call graph for this function:

Member Data Documentation

◆ components_

std::vector<std::shared_ptr<Generatable> > HDLGenerator::Generatable::components_
private

Definition at line 247 of file Generatable.hh.

Referenced by addComponent(), forAll(), and pushComponent().

◆ name_

std::string HDLGenerator::Generatable::name_
private

Definition at line 245 of file Generatable.hh.

Referenced by hdl(), integerWidth(), isConstant(), isRegister(), isVariable(), name(), width(), and wireType().

◆ parent_

Generatable* HDLGenerator::Generatable::parent_
private

Definition at line 246 of file Generatable.hh.

Referenced by parent(), and setParent().

The documentation for this class was generated from the following file:
HDLGenerator::Generatable::writes
virtual void writes(const std::string &var)
Definition: Generatable.hh:80
HDLGenerator::Generatable::components_
std::vector< std::shared_ptr< Generatable > > components_
Definition: Generatable.hh:247
HDLGenerator::Generatable::parent_
Generatable * parent_
Definition: Generatable.hh:246
HDLGenerator::Generatable::wireType
virtual WireType wireType(const std::string &name)
Definition: Generatable.hh:153
HDLGenerator::Generatable::getRegister
virtual Register & getRegister(const std::string &var)
Definition: Generatable.hh:89
HDLGenerator::Width::intWidth
int intWidth
Definition: HWGenTools.hh:39
HDLGenerator::Generatable::hasOption
virtual bool hasOption(const std::string &var)
Definition: Generatable.hh:98
HDLGenerator::Generatable::forAll
void forAll(Func func)
Definition: Generatable.hh:195
HDLGenerator::Generatable::isConstant
virtual bool isConstant(const std::string &name)
Definition: Generatable.hh:125
HDLGenerator::Generatable::isRegister
virtual bool isRegister(const std::string &name)
Definition: Generatable.hh:107
HDLGenerator::Generatable::parent
Generatable * parent() const noexcept
Definition: Generatable.hh:242
HDLGenerator::Generatable::width
virtual Width width(const std::string &name)
Definition: Generatable.hh:134
HDLGenerator::Generatable::parentType
Type * parentType()
Definition: Generatable.hh:219
HDLGenerator::Generatable::parentIs
bool parentIs()
Definition: Generatable.hh:209
HDLGenerator::Generatable::reads
virtual void reads(const std::string &var)
Definition: Generatable.hh:63
HDLGenerator::Generatable::width
virtual Width width()
Definition: Generatable.hh:162
HDLGenerator::Generatable::isVariable
virtual bool isVariable(const std::string &name)
Definition: Generatable.hh:116
HDLGenerator::Generatable::name_
std::string name_
Definition: Generatable.hh:245
HDLGenerator::Generatable::name
const std::string & name() const noexcept
Definition: Generatable.hh:239
Generated by   doxygen 1.8.17
