HDLGenerator::Parameter Class Reference

#include <HDLGenerator.hh>

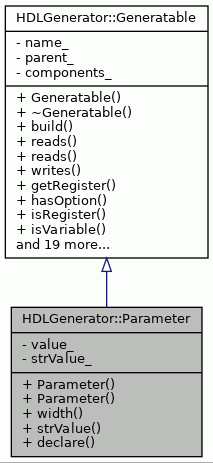

Inheritance diagram for HDLGenerator::Parameter:

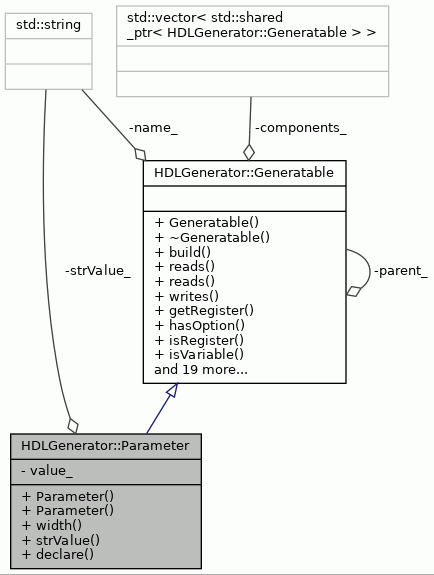

Collaboration diagram for HDLGenerator::Parameter:

Public Member Functions
	Parameter (std::string name, int value=-1)
	Parameter (std::string name, std::string value)
Width	width () final
std::string	strValue ()
void	declare (std::ostream &stream, Language lang, int level=0)
Public Member Functions inherited from HDLGenerator::Generatable
	Generatable (std::string name)
virtual	~Generatable ()=default
virtual void	build ()
virtual void	reads (const std::string &var)
virtual void	reads (const LHSValue &var)
virtual void	writes (const std::string &var)
virtual Register &	getRegister (const std::string &var)
virtual bool	hasOption (const std::string &var)
virtual bool	isRegister (const std::string &name)
virtual bool	isVariable (const std::string &name)
virtual bool	isConstant (const std::string &name)
virtual Width	width (const std::string &name)
int	integerWidth (const std::string &name)
virtual WireType	wireType (const std::string &name)
virtual WireType	wireType () const
virtual void	hdl (std::ostream &stream, Language lang, int indent)
virtual void	hdl (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang, int indent)
template<typename Func >
void	forAll (Func func)
template<typename Type , typename Func >
void	forAll (Func func)
template<class Type >
bool	parentIs ()
template<class Type >
Type *	parentType ()
void	pushComponent (std::shared_ptr< Generatable > c)
template<class Component >
void	addComponent (Component c)
const std::string &	name () const noexcept
void	setParent (Generatable *parent) noexcept
Generatable *	parent () const noexcept

Private Attributes
int	value_
std::string	strValue_

Detailed Description

Generic/parameter.

Definition at line 215 of file HDLGenerator.hh.

Constructor & Destructor Documentation

Parameter() [1/2]

HDLGenerator::Parameter::Parameter ( std::string  name, int  value = -1  )

inline

Definition at line 217 of file HDLGenerator.hh.

            : Generatable(name), value_(value) {}

Parameter() [2/2]

HDLGenerator::Parameter::Parameter ( std::string  name, std::string  value  )

inline

Definition at line 219 of file HDLGenerator.hh.

            : Generatable(name), value_(-1), strValue_(value) {}

Member Function Documentation

declare()

void HDLGenerator::Parameter::declare ( std::ostream &  stream, Language  lang, int  level = 0  )

inline

Definition at line 225 of file HDLGenerator.hh.

                                                                       {
            stream << StringTools::indent(level);
            if (lang == Language::VHDL) {
                 stream << name() << " : integer";
            } else if (lang == Language::Verilog) {
                stream << "parameter integer " << name();
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References StringTools::indent(), HDLGenerator::Generatable::name(), HDLGenerator::Verilog, and HDLGenerator::VHDL.

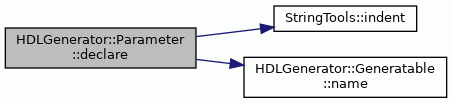

Here is the call graph for this function:

strValue()

std::string HDLGenerator::Parameter::strValue ( )

inline

Definition at line 223 of file HDLGenerator.hh.

{ return strValue_; }

References strValue_.

width()

Width HDLGenerator::Parameter::width ( )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 222 of file HDLGenerator.hh.

{ return {name(), value_}; }

References HDLGenerator::Generatable::name(), and value_.

Here is the call graph for this function:

Member Data Documentation

strValue_

std::string HDLGenerator::Parameter::strValue_

private

Definition at line 238 of file HDLGenerator.hh.

Referenced by strValue().

value_

int HDLGenerator::Parameter::value_

private

Definition at line 237 of file HDLGenerator.hh.

Referenced by width().

---

The documentation for this class was generated from the following file:

• HDLGenerator.hh
