InfoFunitsCommand Class Reference

Inheritance diagram for InfoFunitsCommand:

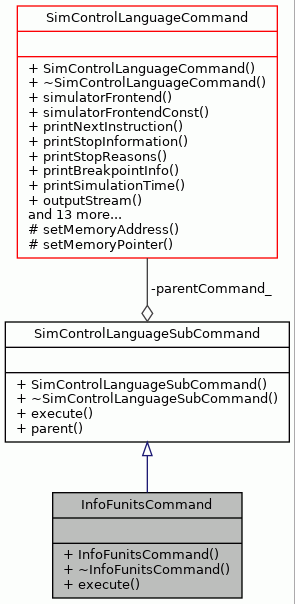

Collaboration diagram for InfoFunitsCommand:

Public Member Functions
	InfoFunitsCommand (SimControlLanguageCommand &parentCommand)
virtual	~InfoFunitsCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
Public Member Functions inherited from SimControlLanguageSubCommand
	SimControlLanguageSubCommand (SimControlLanguageCommand &parentCommand)
virtual	~SimControlLanguageSubCommand ()
virtual SimControlLanguageCommand &	parent ()

Detailed Description

Implementation of "info funits".

Definition at line 665 of file InfoCommand.cc.

Constructor & Destructor Documentation

InfoFunitsCommand()

InfoFunitsCommand::InfoFunitsCommand ( SimControlLanguageCommand &  parentCommand )

inline

Constructor.

Definition at line 670 of file InfoCommand.cc.

                                                                :
        SimControlLanguageSubCommand(parentCommand) {
    }

~InfoFunitsCommand()

virtual InfoFunitsCommand::~InfoFunitsCommand ( )

inlinevirtual

Destructor.

Definition at line 677 of file InfoCommand.cc.

                                 {
    }

Member Function Documentation

execute()

virtual bool InfoFunitsCommand::execute ( const std::vector< DataObject > &  arguments )

inlinevirtual

Executes the "info funits" command.

"info funits" prints the names of all the function units in the machine.

Parameters

arguments

No arguments should be given.

Returns

Always true.

Implements SimControlLanguageSubCommand.

Definition at line 689 of file InfoCommand.cc.

                                                                 {

        const int argumentCount = arguments.size() - 2;

        if (!parent().checkArgumentCount(argumentCount, 0, 0)) {
            return false;
        }
        if (!parent().checkMachineLoaded()) {
            return false;
        }
        const TTAMachine::Machine& mach =
            parent().simulatorFrontend().machine();
        const TTAMachine::Machine::FunctionUnitNavigator& nav =
            mach.functionUnitNavigator();
        std::string result = "";
        bool isFirst = true;
        for (int i = 0; i < nav.count(); ++i) {
            if (!isFirst)
                result += "\n";
            result += nav.item(i)->name();
            isFirst = false;
        }
        result += "\n" + mach.controlUnit()->name();
        parent().interpreter()->setResult(result);
        return true;
    }

References TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), CustomCommand::interpreter(), TTAMachine::Machine::Navigator< ComponentType >::item(), SimulatorFrontend::machine(), TTAMachine::Component::name(), SimControlLanguageSubCommand::parent(), ScriptInterpreter::setResult(), and SimControlLanguageCommand::simulatorFrontend().

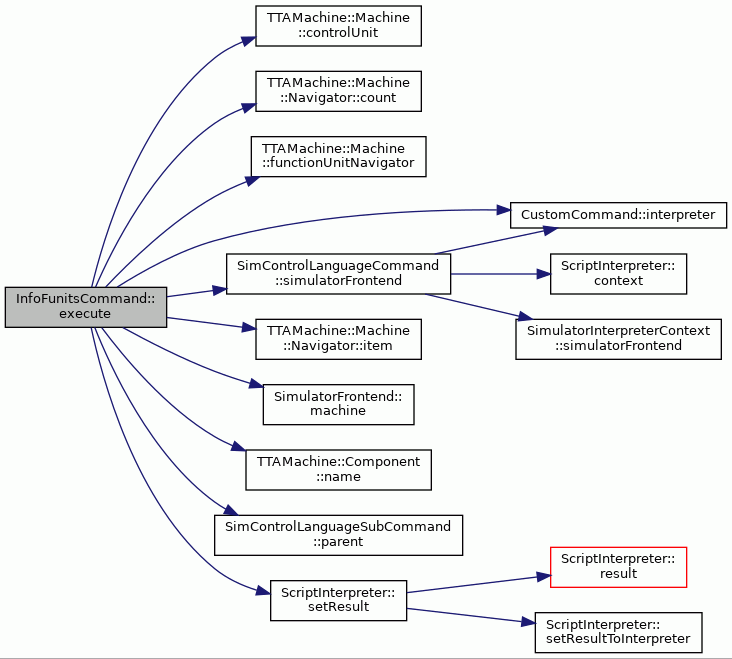

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• InfoCommand.cc
