InfoStatsCommand Class Reference

Inheritance diagram for InfoStatsCommand:

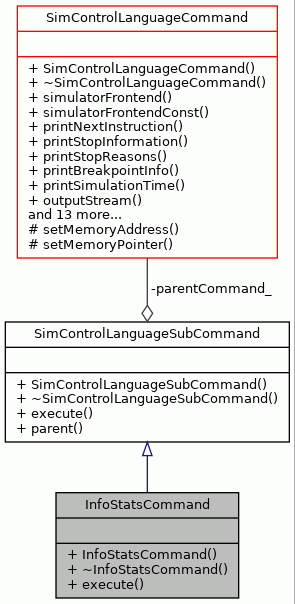

Collaboration diagram for InfoStatsCommand:

Public Member Functions
	InfoStatsCommand (SimControlLanguageCommand &parentCommand)
virtual	~InfoStatsCommand ()
virtual bool	execute (const std::vector< DataObject > &arguments)
Public Member Functions inherited from SimControlLanguageSubCommand
	SimControlLanguageSubCommand (SimControlLanguageCommand &parentCommand)
virtual	~SimControlLanguageSubCommand ()
virtual SimControlLanguageCommand &	parent ()

Detailed Description

Implementation of "info stats". The following sub-commands are supported: "executed_operations", "register_reads" and "register_writes"

Definition at line 1120 of file InfoCommand.cc.

Constructor & Destructor Documentation

InfoStatsCommand()

InfoStatsCommand::InfoStatsCommand ( SimControlLanguageCommand &  parentCommand )

inline

Constructor.

Definition at line 1125 of file InfoCommand.cc.

                                                               :
        SimControlLanguageSubCommand(parentCommand) {
    }

~InfoStatsCommand()

virtual InfoStatsCommand::~InfoStatsCommand ( )

inlinevirtual

Destructor.

Definition at line 1132 of file InfoCommand.cc.

                                {
    }

Member Function Documentation

execute()

virtual bool InfoStatsCommand::execute ( const std::vector< DataObject > &  arguments )

inlinevirtual

Executes the "info stats" command.

Parameters

arguments

Arguments to the command, including the command.

Returns

true in case execution was successful.

Implements SimControlLanguageSubCommand.

Definition at line 1141 of file InfoCommand.cc.

                                                                 {
        if (!parent().checkSimulationEnded() &&
            !parent().checkSimulationInitialized() &&
            !parent().checkSimulationStopped() &&
            !parent().simulatorFrontend().isSimulationRunning()) {
            return false;
        }

        const int argumentCount = arguments.size() - 2;

        if (!parent().checkArgumentCount(argumentCount, 1, 1)) {
            return false;
        }

        const std::string command =
            StringTools::stringToLower(arguments[2].stringValue());

        const UtilizationStats& stats =
            parent().simulatorFrontend().utilizationStatistics();

        const TTAMachine::Machine& mach =
            parent().simulatorFrontend().machine();

        ClockCycleCount totalOperationExecutions = 0;
        ClockCycleCount totalRegisterReads = 0;
        ClockCycleCount totalRegisterWrites = 0;

        const TTAMachine::Machine::FunctionUnitNavigator& fuNav =
            mach.functionUnitNavigator();

        const TTAMachine::Machine::RegisterFileNavigator& rfNav =
                mach.registerFileNavigator();

        if (command == "executed_operations") {
            for (int i = 0; i <= fuNav.count(); ++i) {
                TTAMachine::FunctionUnit* fu = NULL;
                if (i < fuNav.count())
                    fu = fuNav.item(i);
                else
                    fu = mach.controlUnit();
                assert(fu != NULL);

                for (int j = 0; j < fu->operationCount(); ++j) {
                    const TTAMachine::HWOperation* op = fu->operation(j);
                    assert (op != NULL);
                    totalOperationExecutions += stats.operationExecutions(
                    fu->name(), StringTools::stringToUpper(op->name()));
                }
            }
            parent().interpreter()->setResult(
                   static_cast<double>(totalOperationExecutions));
            return true;
        } else if (command == "register_reads") {
            for (int i = 0; i < rfNav.count(); ++i) {
                TTAMachine::RegisterFile* rf = rfNav.item(i);
                assert(rf != NULL);

                int lastReg = 0;
                lastReg = rf->numberOfRegisters() - 1;
                for (int reg = 0; reg <= lastReg; ++reg) {
                    totalRegisterReads += stats.registerReads(rf->name(), reg);
                }
            }
            parent().interpreter()->setResult(
                   static_cast<double>(totalRegisterReads));
            return true;

        } else if (command == "register_writes") {
            for (int i = 0; i < rfNav.count(); ++i) {
                TTAMachine::RegisterFile* rf = rfNav.item(i);
                assert(rf != NULL);

                int lastReg = 0;
                lastReg = rf->numberOfRegisters() - 1;
                for (int reg = 0; reg <= lastReg; ++reg) {
                    totalRegisterWrites += stats.registerWrites(rf->name(), reg);
                }
            }
            parent().interpreter()->setResult(
                   static_cast<double>(totalRegisterWrites));
            return true;

        } else {
            parent().interpreter()->setError(
                SimulatorToolbox::textGenerator().text(
                    Texts::TXT_UNKNOWN_SUBCOMMAND).str());
            return false;
        }
    }

References assert, TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), CustomCommand::interpreter(), TTAMachine::Machine::Navigator< ComponentType >::item(), SimulatorFrontend::machine(), TTAMachine::HWOperation::name(), TTAMachine::Component::name(), TTAMachine::BaseRegisterFile::numberOfRegisters(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), UtilizationStats::operationExecutions(), SimControlLanguageSubCommand::parent(), TTAMachine::Machine::registerFileNavigator(), UtilizationStats::registerReads(), UtilizationStats::registerWrites(), ScriptInterpreter::setError(), ScriptInterpreter::setResult(), SimControlLanguageCommand::simulatorFrontend(), StringTools::stringToLower(), StringTools::stringToUpper(), SimulatorToolbox::textGenerator(), Texts::TXT_UNKNOWN_SUBCOMMAND, and SimulatorFrontend::utilizationStatistics().

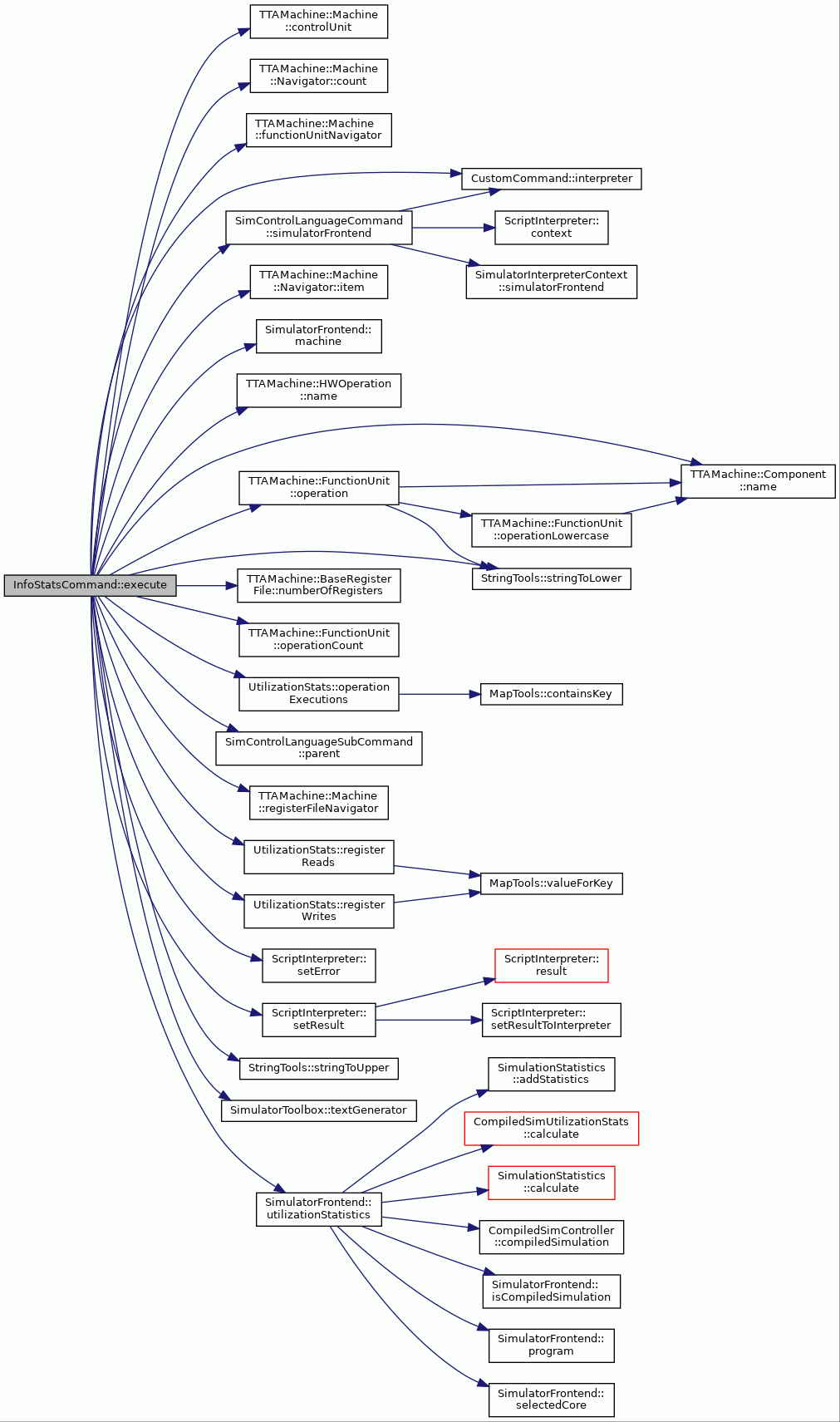

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• InfoCommand.cc
