MoveNodeGroupBuilder Class Reference

#include <MoveNodeGroupBuilder.hh>

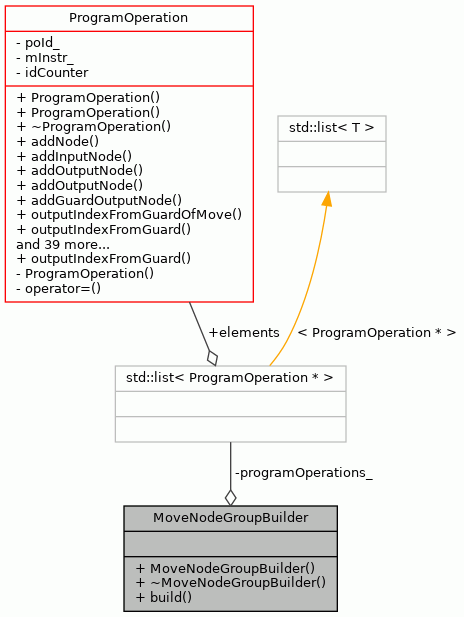

Collaboration diagram for MoveNodeGroupBuilder:

Public Types
typedef std::list< MoveNodeGroup * >	MoveNodeGroupList

Public Member Functions
	MoveNodeGroupBuilder ()
virtual	~MoveNodeGroupBuilder ()
MoveNodeGroupList *	build (TTAProgram::BasicBlock &bb)

Private Types
typedef std::list< ProgramOperation * >	ProgramOperationList

Private Attributes
ProgramOperationList	programOperations_

Detailed Description

Builds a list of MoveNodeGroups (MNG) from the input basic block.

Also builds MoveNodes and ProgramOperations and ensures the produced MNG list is in the input sequential order and that each MNG contains either one MoveNode or a set of MoveNodes consisting a ProgramOperation.

Definition at line 52 of file MoveNodeGroupBuilder.hh.

Member Typedef Documentation

MoveNodeGroupList

typedef std::list<MoveNodeGroup*> MoveNodeGroupBuilder::MoveNodeGroupList

Definition at line 54 of file MoveNodeGroupBuilder.hh.

ProgramOperationList

typedef std::list<ProgramOperation*> MoveNodeGroupBuilder::ProgramOperationList

private

Definition at line 63 of file MoveNodeGroupBuilder.hh.

Constructor & Destructor Documentation

MoveNodeGroupBuilder()

MoveNodeGroupBuilder::MoveNodeGroupBuilder ( )

inline

Definition at line 56 of file MoveNodeGroupBuilder.hh.

{}

~MoveNodeGroupBuilder()

virtual MoveNodeGroupBuilder::~MoveNodeGroupBuilder ( )

inlinevirtual

Definition at line 57 of file MoveNodeGroupBuilder.hh.

{}

Member Function Documentation

build()

MoveNodeGroupBuilder::MoveNodeGroupList * MoveNodeGroupBuilder::build

(

TTAProgram::BasicBlock &

bb

)

Creates movenodes and programoperations from the given BB.

Also builds MoveNodes and ProgramOperations and ensures the produced MNG list is in the input sequential order and that each MNG contains either one MoveNode or a set of MoveNodes consisting a ProgramOperation. The returned objects become owned by the caller. This supports also input that is already bypassed.

Definition at line 57 of file MoveNodeGroupBuilder.cc.

                                                    {

    /*
      Process each input move from the sequential unscheduled stream.
      Input moves can be already bypassed and operand shared.

      In case the move
      a) is a reg/imm -> FU.in:

         And if the 'in' is a non-triggering input move,
         add the move to a PO that has not been triggered yet in the FU.

         If it's a trigger move, set the PO to "triggered" state. The previous
         PO in "triggered" state can be set to "finished" state as there cannot
         be no more bypassed reads from the previous one as the new PO
         is overwriting its results and the input sequential code is not cycle
         accurately scheduled.
      b) is an FU.out -> reg:
         add it to an PO that has been triggered in the FU.
      c) is a FUA.out -> FUB.in: find the last PO started in FUA, add it there
         as an output move. Find the unstarted PO in FUB, add it there as
         an input move.
      d) reg/imm -> reg:
         just create the MNG

      Thus, there are two types of POs during the algorithm execution:
      1) untriggered: POs with operand moves still coming in, trigger not
         encountered.
      2) triggered: POs which are "on flight", thus the POs of which results
         can be still read to the upcoming POs.
      3) finished: these POs are just in the finished PO list

      There can be only one unstarted and only one started PO per FU in the
      sequential input, thus the indices are be per FU.

      The same input move can belong to multiple POs (operand sharing).
      How to treat those?

      At the moment an operation is moved to "started", check if all its
      input operand moves are found. If not, find the PO which had the
      original OperandMove (TODO: how?) and add them as inputs.

     */

    typedef std::map<TCEString, ProgramOperationPtr>
        FUProgramOperationIndex;

    FUProgramOperationIndex untriggered, triggered;
    // programOperations_ is the finished set

    MoveNodeGroupList* mngs = new MoveNodeGroupList();
    MoveNodeGroup* mng = NULL;
    // PO which is being constructed.
    ProgramOperationPtr po;
    for (int i = 0; i < bb.instructionCount(); i++) {
        TTAProgram::Instruction& ins = bb.instructionAtIndex(i);
        for (int j = 0; j < ins.moveCount(); j++) {
            // handle one move
            auto movePtr = ins.movePtr(j);
            TTAProgram::Move& move = *movePtr;
            MoveNode* moveNode = new MoveNode(movePtr);
            TTAProgram::Terminal& source = move.source();
            TTAProgram::Terminal& dest = move.destination();

            if (mng == NULL)
                mng = new MoveNodeGroup();

            bool sourceIsFU =
                (source.isFUPort() &&
                 !(dynamic_cast<const TTAMachine::SpecialRegisterPort*>(
                       &source.port())));

            bool destIsFU = (dest.isFUPort() &&
                !(dynamic_cast<const TTAMachine::SpecialRegisterPort*>(
                      &dest.port())));

#ifdef DEBUG_MNGBUILDER
            Application::logStream()
                << "processing move: " << move.toString() << " "
                << sourceIsFU << " " << destIsFU;
            Application::logStream() << std::endl;
#endif
            if (!sourceIsFU && destIsFU) {
                po = untriggered[dest.functionUnit().name()];
                if (po == NULL) {
                    Operation* op;
                    if (dest.isOpcodeSetting()) {
                        op = &dest.operation();
                    } else {
                        op = &dest.hintOperation();
                    }
                    po = ProgramOperationPtr(new ProgramOperation(*op));
                    untriggered[dest.functionUnit().name()] = po;

                    if (mng->nodeCount() > 0) {
                        // start a new move node group as it has to be
                        // a new operation as no previous untriggered
                        // operation was found for this FU
                        mngs->push_back(mng);
                        mng = new MoveNodeGroup();
                    }
                    mng->setProgramOperationPtr(po);
                }
                po->addInputNode(*moveNode);
                moveNode->addDestinationOperationPtr(po);
                mng->addNode(*moveNode);
                if (dest.isTriggering()) {
                    untriggered[dest.functionUnit().name()] = ProgramOperationPtr();
                    triggered[dest.functionUnit().name()] = po;
                }
            } else if (sourceIsFU && !destIsFU) {
                po = triggered[source.functionUnit().name()];
                assert(
                    po != NULL &&
                    "Encountered an FU read without a triggered operation.");

                po->addOutputNode(*moveNode);
                moveNode->setSourceOperationPtr(po);
                mng->addNode(*moveNode);
            } else if (sourceIsFU && destIsFU) {
                po = triggered[source.functionUnit().name()];
                assert(
                    po != NULL &&
                    "Encountered an FU read without a triggered operation.");
                po->addOutputNode(*moveNode);
                moveNode->setSourceOperationPtr(po);
                po = untriggered[dest.functionUnit().name()];
                if (po == NULL) { /* The 1st operand move? */
                    Operation* op;
                    if (dest.isOpcodeSetting()) {
                        op = &dest.operation();
                    } else {
                        op = &dest.hintOperation();
                    }
                    po = ProgramOperationPtr(new ProgramOperation(*op));
                    untriggered[dest.functionUnit().name()] = po;
                    // define the first operand move to start an operation
                    // always, thus split MNG at this point
                    mngs->push_back(mng);
                    mng = new MoveNodeGroup();
                    mng->setProgramOperationPtr(po);
                }
                mng->addNode(*moveNode);
                po->addInputNode(*moveNode);
                moveNode->addDestinationOperationPtr(po);
                if (dest.isTriggering()) {
                    untriggered[dest.functionUnit().name()] = ProgramOperationPtr();
                    triggered[dest.functionUnit().name()] = po;
                }
            } else if (!sourceIsFU && !destIsFU) {

                if (mng->nodeCount() > 0)
                    mngs->push_back(mng);

                // reg copies are always scheduled independently
                mng = new MoveNodeGroup();
                mng->addNode(*moveNode);
                mngs->push_back(mng);

                mng = new MoveNodeGroup();
            } else {
                abortWithError(moveNode->toString() + " is not implemented.");
            }
        }
    }

    if (mng != NULL && mng->nodeCount() > 0) {
        mngs->push_back(mng);
    }
    // untriggered POs are considered errors at this point as no
    // BB-crossing operations are supported in the sequential code
    for (FUProgramOperationIndex::const_iterator i = untriggered.begin();
         i != untriggered.end(); ++i) {
        ProgramOperationPtr po = (*i).second;
        if (po != NULL && po->inputMoveCount() > 0) {
            abortWithError(
                TCEString(
                    "Encountered an untriggered&unfinished "
                    "ProgramOperation\nat the end of the BB. "
                    "BB-crossing operations are not\nsupported "
                    "at this point." + po->toString()));
        }
    }

#ifdef DEBUG_MNGBUILDER
    int count = 0;
    Application::logStream() << "### ProgramOperations built:" << std::endl;
    for (ProgramOperationList::const_iterator i = programOperations_.begin();
         i != programOperations_.end(); ++i, ++count) {
        ProgramOperation* po = *i;
        Application::logStream() << count << " " <<po->toString() << std::endl;
    }

    Application::logStream() << "### MoveNodeGroups built:" << std::endl;
    count = 0;
    for (MoveNodeGroupList::const_iterator i = mngs->begin();
         i != mngs->end(); ++i, ++count) {
        MoveNodeGroup* mng = *i;
        Application::logStream()
            << count << ": " << mng->toString() << std::endl;
    }

#endif
    return mngs;
}

References abortWithError, MoveNode::addDestinationOperationPtr(), MoveNodeGroup::addNode(), assert, TTAProgram::Move::destination(), TTAProgram::Terminal::functionUnit(), TTAProgram::Terminal::hintOperation(), TTAProgram::CodeSnippet::instructionAtIndex(), TTAProgram::CodeSnippet::instructionCount(), TTAProgram::Terminal::isFUPort(), TTAProgram::Terminal::isOpcodeSetting(), TTAProgram::Terminal::isTriggering(), Application::logStream(), TTAProgram::Instruction::moveCount(), TTAProgram::Instruction::movePtr(), TTAMachine::Component::name(), MoveNodeGroup::nodeCount(), TTAProgram::Terminal::operation(), TTAProgram::Terminal::port(), programOperations_, MoveNodeGroup::setProgramOperationPtr(), MoveNode::setSourceOperationPtr(), TTAProgram::Move::source(), MoveNodeGroup::toString(), TTAProgram::Move::toString(), MoveNode::toString(), and ProgramOperation::toString().

Referenced by LLVMTCEDataDependenceGraphBuilder::buildLocalDDG(), and SequentialMoveNodeSelector::SequentialMoveNodeSelector().

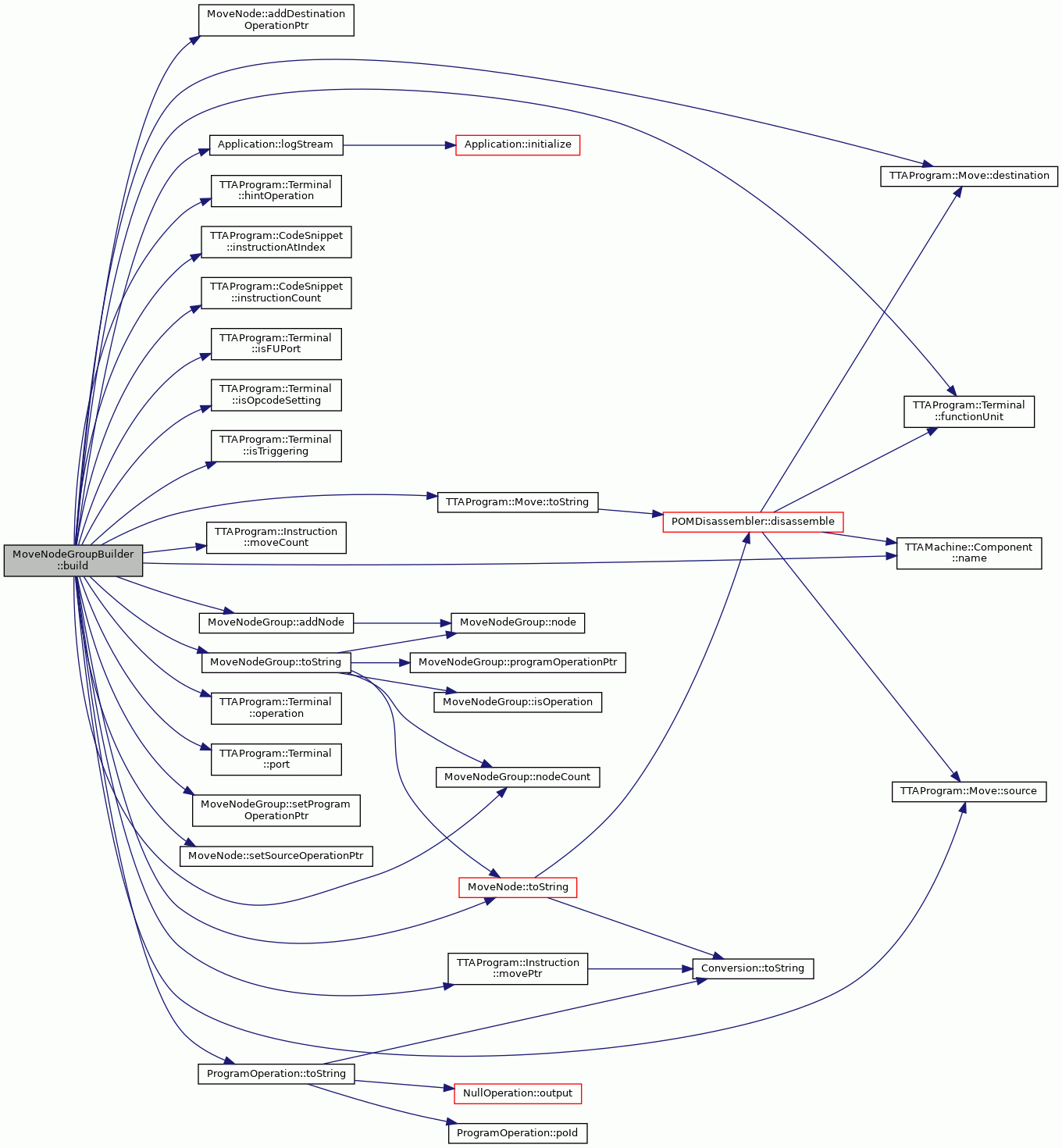

Here is the call graph for this function:

Member Data Documentation

programOperations_

ProgramOperationList MoveNodeGroupBuilder::programOperations_

private

Definition at line 64 of file MoveNodeGroupBuilder.hh.

Referenced by build().

---

The documentation for this class was generated from the following files:

• MoveNodeGroupBuilder.hh
• MoveNodeGroupBuilder.cc
