NullRFPortCode Class Reference

#include <NullRFPortCode.hh>

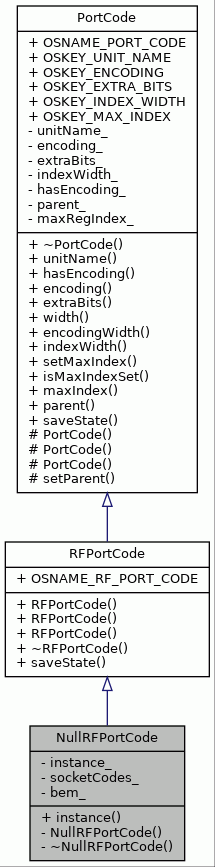

Inheritance diagram for NullRFPortCode:

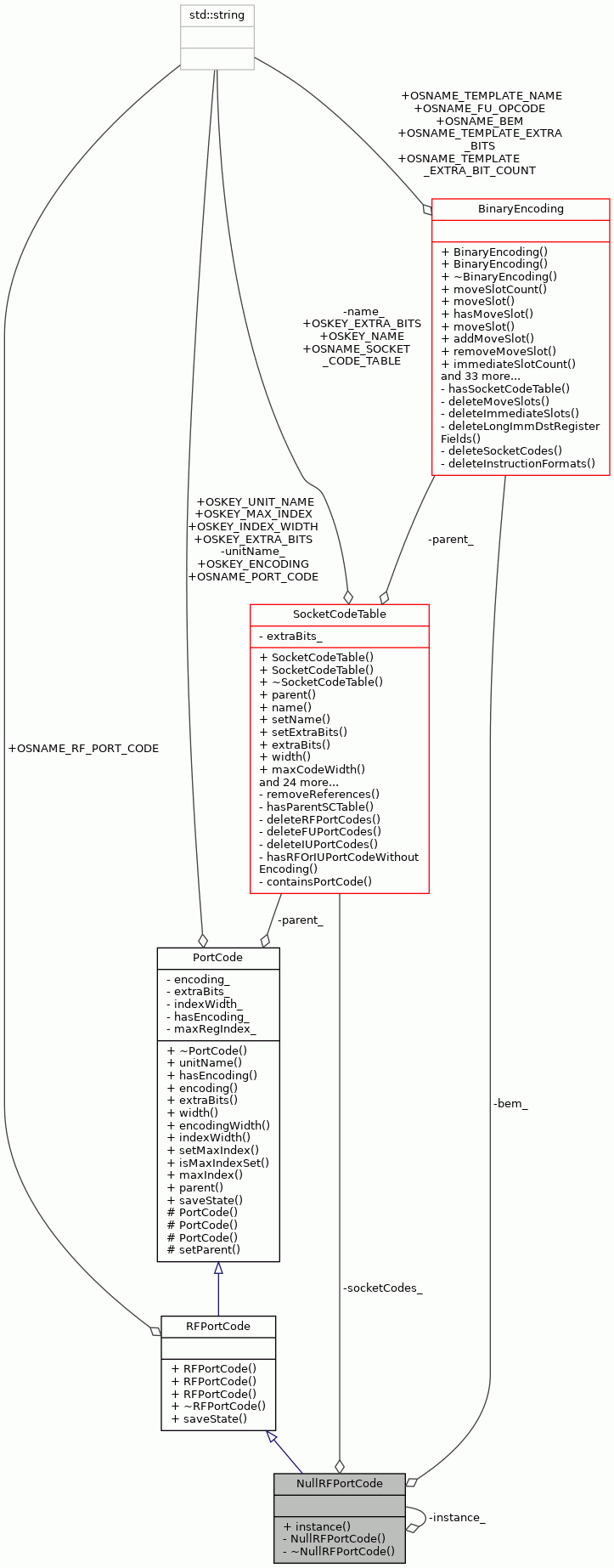

Collaboration diagram for NullRFPortCode:

Static Public Member Functions
static NullRFPortCode &	instance ()

Private Member Functions
	NullRFPortCode ()
virtual	~NullRFPortCode ()

Static Private Attributes
static NullRFPortCode	instance_
	The only instance. More...
static SocketCodeTable	socketCodes_
	The parent socket code table. More...
static BinaryEncoding	bem_
	The parent binary encoding. More...

Additional Inherited Members
Public Member Functions inherited from RFPortCode
	RFPortCode (const std::string &regFile, unsigned int encoding, unsigned int extraBits, int indexWidth, SocketCodeTable &parent)
	RFPortCode (const std::string &regFile, int indexWidth, SocketCodeTable &parent)
	RFPortCode (const ObjectState *state, SocketCodeTable &parent)
virtual	~RFPortCode ()
virtual ObjectState *	saveState () const
Public Member Functions inherited from PortCode
virtual	~PortCode ()
std::string	unitName () const
bool	hasEncoding () const
unsigned int	encoding () const
unsigned int	extraBits () const
int	width () const
int	encodingWidth () const
int	indexWidth () const
void	setMaxIndex (unsigned regIndex)
bool	isMaxIndexSet () const
unsigned	maxIndex () const
SocketCodeTable *	parent () const
Static Public Attributes inherited from RFPortCode
static const std::string	OSNAME_RF_PORT_CODE = "rf_port_code"
	ObjectState name for RF port code. More...
Static Public Attributes inherited from PortCode
static const std::string	OSNAME_PORT_CODE = "port_code"
	ObjectState name for PortCode. More...
static const std::string	OSKEY_UNIT_NAME = "unit_name"
	ObjectState attribute key for the name of the unit. More...
static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding. More...
static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits. More...
static const std::string	OSKEY_INDEX_WIDTH = "index_width"
	ObjectState attribute key for the widht of register index. More...
static const std::string	OSKEY_MAX_INDEX = "max-index"
	ObjectState attribute key for the max-index attribute. More...
Protected Member Functions inherited from PortCode
	PortCode (const std::string &unitName, unsigned int encoding, unsigned int extraBits, int indexWidth)
	PortCode (const std::string &unitName, int indexWidth)
	PortCode (const ObjectState *state)
void	setParent (SocketCodeTable *parent)

Detailed Description

A null version of RFPortCode class.

Definition at line 44 of file NullRFPortCode.hh.

Constructor & Destructor Documentation

NullRFPortCode()

NullRFPortCode::NullRFPortCode ( )

private

The constructor.

Definition at line 44 of file NullRFPortCode.cc.

                               :
    RFPortCode("NULL", 0, 0, 0, socketCodes_) {
}

~NullRFPortCode()

NullRFPortCode::~NullRFPortCode ( )

privatevirtual

The destructor.

Definition at line 52 of file NullRFPortCode.cc.

                                {
}

Member Function Documentation

instance()

NullRFPortCode & NullRFPortCode::instance ( )

static

Returns the only instance of NullRFPortCode.

Returns

The only instance.

Definition at line 62 of file NullRFPortCode.cc.

                         {
    return instance_;
}

References instance_.

Referenced by SocketCodeTable::hasRFPortCode(), and SocketCodeTable::rfPortCode().

Member Data Documentation

bem_

BinaryEncoding NullRFPortCode::bem_

staticprivate

The parent binary encoding.

Definition at line 57 of file NullRFPortCode.hh.

instance_

NullRFPortCode NullRFPortCode::instance_

staticprivate

The only instance.

Definition at line 53 of file NullRFPortCode.hh.

Referenced by instance().

socketCodes_

SocketCodeTable NullRFPortCode::socketCodes_

staticprivate

The parent socket code table.

Definition at line 55 of file NullRFPortCode.hh.

---

The documentation for this class was generated from the following files:

• NullRFPortCode.hh
• NullRFPortCode.cc
