NullSocketEncoding Class Reference

#include <NullSocketEncoding.hh>

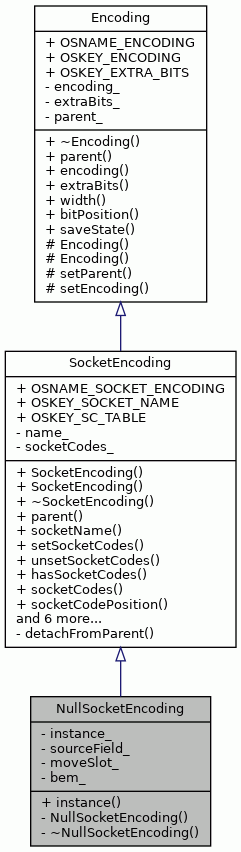

Inheritance diagram for NullSocketEncoding:

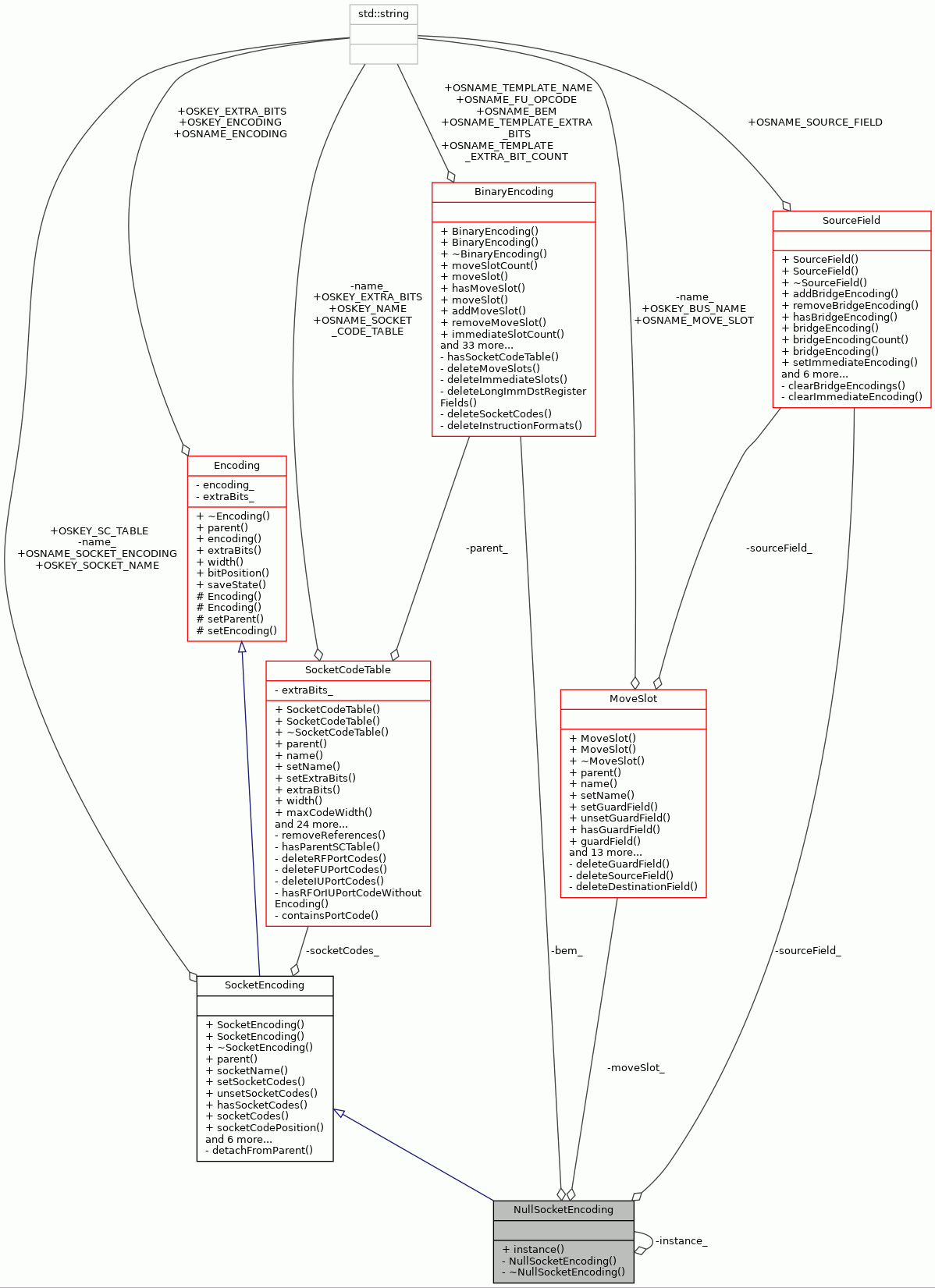

Collaboration diagram for NullSocketEncoding:

Static Public Member Functions
static NullSocketEncoding &	instance ()

Private Member Functions
	NullSocketEncoding ()
virtual	~NullSocketEncoding ()

Static Private Attributes
static NullSocketEncoding	instance_
	The only instance.
static SourceField	sourceField_
	The parent source field.
static MoveSlot	moveSlot_
	The parent move slot.
static BinaryEncoding	bem_
	The parent binary encoding.

Additional Inherited Members
Public Member Functions inherited from SocketEncoding
	SocketEncoding (const std::string &name, unsigned int encoding, unsigned int extraBits, SlotField &parent)
	SocketEncoding (const ObjectState *state, SlotField &parent)
virtual	~SocketEncoding ()
SlotField *	parent () const
std::string	socketName () const
void	setSocketCodes (SocketCodeTable &codeTable)
void	unsetSocketCodes ()
bool	hasSocketCodes () const
SocketCodeTable &	socketCodes () const
int	socketCodePosition () const
void	setEncoding (unsigned int encoding, unsigned int extraBits)
int	socketIDPosition () const
int	socketIDWidth () const
virtual int	width () const
virtual int	bitPosition () const
virtual ObjectState *	saveState () const
Public Member Functions inherited from Encoding
virtual	~Encoding ()
InstructionField *	parent () const
unsigned int	encoding () const
unsigned int	extraBits () const
Static Public Attributes inherited from SocketEncoding
static const std::string	OSNAME_SOCKET_ENCODING = "socket_encoding"
	ObjectState name for socket encoding.
static const std::string	OSKEY_SOCKET_NAME = "socket_name"
	ObjectState attribute key for the name of the socket.
static const std::string	OSKEY_SC_TABLE = "sc_table"
	ObjectState attribute key for the name of the socket code table.
Static Public Attributes inherited from Encoding
static const std::string	OSNAME_ENCODING = "encoding"
	ObjectState name for Encoding class.
static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding.
static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits.
Protected Member Functions inherited from Encoding
	Encoding (unsigned int encoding, unsigned int extraBits, InstructionField *parent)
	Encoding (const ObjectState *state, InstructionField *parent)
void	setParent (InstructionField *parent)
void	setEncoding (unsigned int encoding, unsigned int extraBits)

Detailed Description

A null version of SocketEncoding class.

Definition at line 45 of file NullSocketEncoding.hh.

Constructor & Destructor Documentation

NullSocketEncoding()

NullSocketEncoding::NullSocketEncoding ( )

private

The constructor.

Definition at line 47 of file NullSocketEncoding.cc.

                                       :
    SocketEncoding("NULL", 0, 0, sourceField_) {
}

~NullSocketEncoding()

NullSocketEncoding::~NullSocketEncoding ( )

privatevirtual

The destructor.

Definition at line 55 of file NullSocketEncoding.cc.

                                        {
}

Member Function Documentation

instance()

NullSocketEncoding & NullSocketEncoding::instance ( )

static

Returns the instance of NullSocketEncoding.

Returns

The only instance.

Definition at line 65 of file NullSocketEncoding.cc.

                             {
    return instance_;
}

References instance_.

Referenced by SlotField::socketEncoding().

Member Data Documentation

bem_

BinaryEncoding NullSocketEncoding::bem_

staticprivate

The parent binary encoding.

Definition at line 60 of file NullSocketEncoding.hh.

instance_

NullSocketEncoding NullSocketEncoding::instance_

staticprivate

The only instance.

Definition at line 54 of file NullSocketEncoding.hh.

Referenced by instance().

moveSlot_

MoveSlot NullSocketEncoding::moveSlot_

staticprivate

The parent move slot.

Definition at line 58 of file NullSocketEncoding.hh.

sourceField_

SourceField NullSocketEncoding::sourceField_

staticprivate

The parent source field.

Definition at line 56 of file NullSocketEncoding.hh.

---

The documentation for this class was generated from the following files:

• NullSocketEncoding.hh
• NullSocketEncoding.cc
