OSEdAboutDialog Class Reference

#include <OSEdAboutDialog.hh>

Inheritance diagram for OSEdAboutDialog:

Collaboration diagram for OSEdAboutDialog:

Public Member Functions
	OSEdAboutDialog (wxWindow *parent)
virtual	~OSEdAboutDialog ()

Private Types
enum	{ ID_ABOUT_TEXT = 11000, ID_LINE }

Private Member Functions
	OSEdAboutDialog (const OSEdAboutDialog &)
	Copying not allowed. More...
OSEdAboutDialog &	operator= (const OSEdAboutDialog &)
	Assignment not allowed. More...
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
void	setTexts ()

Detailed Description

About dialog of the application.

Definition at line 41 of file OSEdAboutDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Widget ids.

Enumerator
ID_ABOUT_TEXT
ID_LINE

Definition at line 58 of file OSEdAboutDialog.hh.

         {
        ID_ABOUT_TEXT = 11000,
        ID_LINE
    };

Constructor & Destructor Documentation

OSEdAboutDialog() [1/2]

OSEdAboutDialog::OSEdAboutDialog ( wxWindow *  parent )

explicit

Constructor.

Parameters

parent

Parent window.

Definition at line 56 of file OSEdAboutDialog.cc.

                                                 :
    wxDialog(parent, -1, _T(""),
             DialogPosition::getPosition(DialogPosition::DIALOG_ABOUT),
             wxDefaultSize) {

    createContents(this, true, true);
    setTexts();
}

References createContents(), and setTexts().

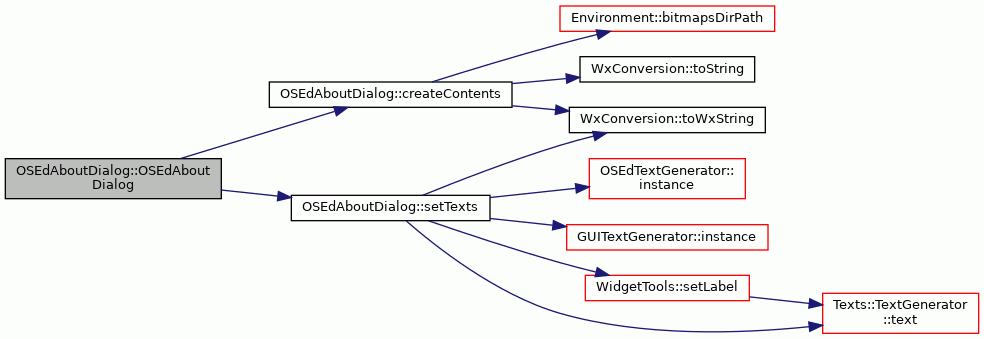

Here is the call graph for this function:

~OSEdAboutDialog()

OSEdAboutDialog::~OSEdAboutDialog ( )

virtual

Destructor.

Definition at line 68 of file OSEdAboutDialog.cc.

                                  {
    int x, y;
    GetPosition(&x, &y);
    wxPoint point(x, y);
    DialogPosition::setPosition(DialogPosition::DIALOG_ABOUT, point);
}

References DialogPosition::DIALOG_ABOUT, and DialogPosition::setPosition().

Here is the call graph for this function:

OSEdAboutDialog() [2/2]

OSEdAboutDialog::OSEdAboutDialog ( const OSEdAboutDialog &  )

private

Copying not allowed.

Member Function Documentation

createContents()

wxSizer * OSEdAboutDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the contents of the dialog.

Parameters

parent	Parent window.
call_fit	If true fits the contents inside the dialog.
set_sizer	If true, sets the sizer as dialog contents.

Returns

The created sizer.

Definition at line 106 of file OSEdAboutDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );
    wxBitmap logo;

    string dir = Environment::bitmapsDirPath(
        WxConversion::toString(OSEdConstants::APPLICATION_NAME));

    string fileName = dir + FileSystem::DIRECTORY_SEPARATOR +
        OSEdConstants::LOGO_NAME;

    logo.LoadFile(WxConversion::toWxString(fileName), wxBITMAP_TYPE_PNG);
    wxStaticBitmap* dialogLogo = new wxStaticBitmap(parent, -1, logo);

    item0->Add(dialogLogo, 0, wxALIGN_CENTER|wxALL, 5 );
    wxBoxSizer *item3 = new wxBoxSizer( wxVERTICAL );
    wxStaticText *item4 =
    new wxStaticText(parent, ID_ABOUT_TEXT, wxT("Operation Set Editor"),
             wxDefaultPosition, wxDefaultSize, 0);
    item3->Add( item4, 0, wxALIGN_CENTER|wxALL, 5 );
    wxStaticText *item5 =
    new wxStaticText(parent, -1, _T("OpenASIP ") + WxConversion::toWxString(VERSION),
             wxDefaultPosition, wxDefaultSize, 0);
    item3->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );

     wxStaticText *item6 =
    new wxStaticText(parent, -1, OSEdConstants::OSED_COPYRIGHT,
             wxDefaultPosition, wxDefaultSize, 0);
    item3->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );
    wxStaticLine *item7 =
    new wxStaticLine(parent, -1, wxDefaultPosition,
             wxSize(20,-1), wxLI_HORIZONTAL);
    item0->Add( item7, 0, wxGROW|wxALL, 5 );
    wxButton *item8 =
    new wxButton(parent, wxID_OK, wxT("&OK"), wxDefaultPosition,
             wxDefaultSize, 0);
    item0->Add( item8, 0, wxALIGN_CENTER|wxALL, 5 );
    if (set_sizer) {
        parent->SetAutoLayout( TRUE );
        parent->SetSizer( item0 );
        if (call_fit)
        {
            item0->Fit( parent );
            item0->SetSizeHints( parent );
        }
    }

    return item0;
}

References OSEdConstants::APPLICATION_NAME, Environment::bitmapsDirPath(), FileSystem::DIRECTORY_SEPARATOR, ID_ABOUT_TEXT, OSEdConstants::LOGO_NAME, OSEdConstants::OSED_COPYRIGHT, WxConversion::toString(), WxConversion::toWxString(), and TRUE.

Referenced by OSEdAboutDialog().

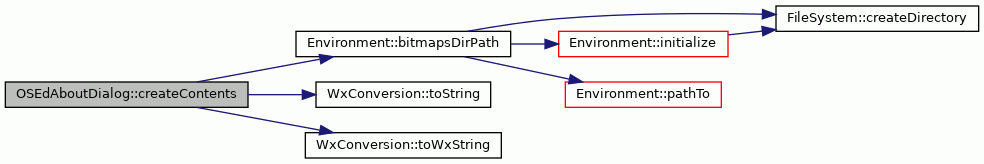

Here is the call graph for this function:

operator=()

OSEdAboutDialog& OSEdAboutDialog::operator= ( const OSEdAboutDialog &  )

private

Assignment not allowed.

setTexts()

void OSEdAboutDialog::setTexts ( )

private

Sets the texts for the dialog.

Definition at line 79 of file OSEdAboutDialog.cc.

                          {

    OSEdTextGenerator& osedTexts = OSEdTextGenerator::instance();
    GUITextGenerator& guiTexts = *GUITextGenerator::instance();

    // title
    format fmt = osedTexts.text(OSEdTextGenerator::TXT_ABOUT_DIALOG_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    // static texts
    WidgetTools::setLabel(&osedTexts, FindWindow(ID_ABOUT_TEXT),
                          OSEdTextGenerator::TXT_ABOUT);

    // buttons
    WidgetTools::setLabel(&guiTexts, FindWindow(wxID_OK),
                          GUITextGenerator::TXT_BUTTON_OK);
}

References ID_ABOUT_TEXT, OSEdTextGenerator::instance(), GUITextGenerator::instance(), WidgetTools::setLabel(), Texts::TextGenerator::text(), WxConversion::toWxString(), OSEdTextGenerator::TXT_ABOUT, OSEdTextGenerator::TXT_ABOUT_DIALOG_TITLE, and GUITextGenerator::TXT_BUTTON_OK.

Referenced by OSEdAboutDialog().

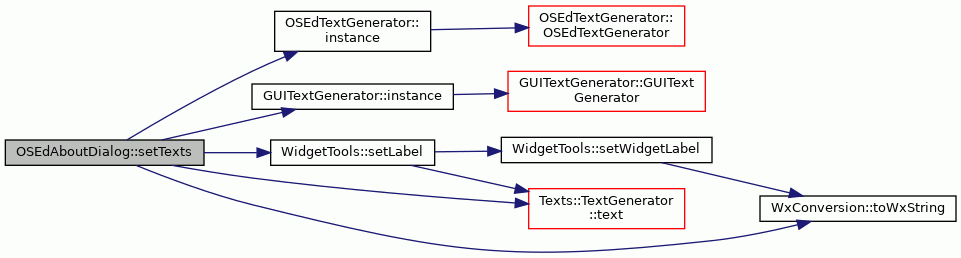

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• OSEdAboutDialog.hh
• OSEdAboutDialog.cc
