#include <OSEdTreeView.hh>

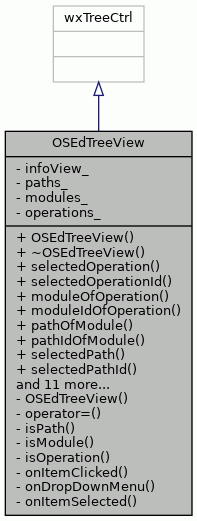

Inheritance diagram for OSEdTreeView:

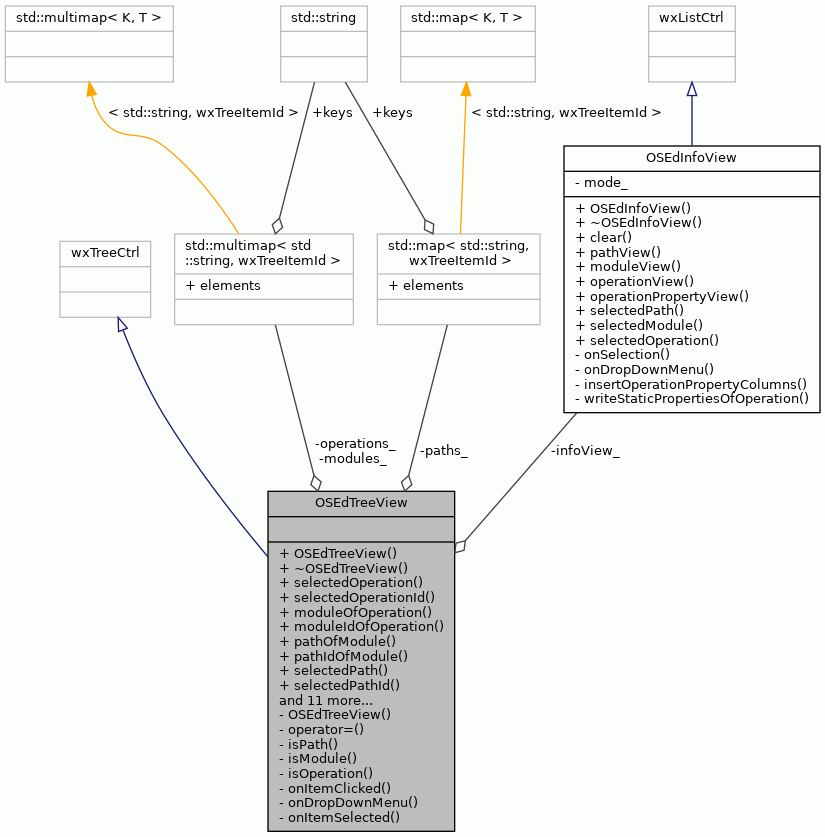

Collaboration diagram for OSEdTreeView:

Public Member Functions
	OSEdTreeView (wxWindow parent, OSEdInfoView infoView)

virtual	~OSEdTreeView ()

Operation *	selectedOperation ()

wxTreeItemId	selectedOperationId ()

std::string	moduleOfOperation (wxTreeItemId id)

wxTreeItemId	moduleIdOfOperation (wxTreeItemId id)

std::string	pathOfModule (wxTreeItemId id)

wxTreeItemId	pathIdOfModule (wxTreeItemId id)

std::string	selectedPath ()

wxTreeItemId	selectedPathId ()

wxTreeItemId	selectedModuleId ()

std::string	selectedModule ()

OSEdInfoView *	infoView () const

std::vector< std::string >	constructTree ()

void	addItem (wxTreeItemId parent, std::string item)

void	changeText (wxTreeItemId id, const std::string &text)

void	removeItem (wxTreeItemId id)

void	update ()

bool	isPathSelected () const

bool	isModuleSelected () const

bool	isOperationSelected () const

Private Types
typedef std::map< std::string, wxTreeItemId >::value_type	ValType
	Value type for the map. More...

typedef std::map< std::string, wxTreeItemId >::iterator	Iter
	Iterators for the maps. More...

typedef std::multimap< std::string, wxTreeItemId >::iterator	IterM

Private Member Functions
	OSEdTreeView (const OSEdTreeView &)
	Copying not allowed. More...

OSEdTreeView &	operator= (const OSEdTreeView &)
	Assignment not allowed. More...

bool	isPath (wxTreeItemId id) const

bool	isModule (wxTreeItemId id) const

bool	isOperation (wxTreeItemId id) const

void	onItemClicked (wxTreeEvent &event)

void	onDropDownMenu (wxMouseEvent &event)

void	onItemSelected (wxTreeEvent &event)

Private Attributes
OSEdInfoView *	infoView_
	An info window controlled by tree view. More...

std::map< std::string, wxTreeItemId >	paths_
	Paths of the operation data base. More...

std::multimap< std::string, wxTreeItemId >	modules_
	Modules of the operation data base. More...

std::multimap< std::string, wxTreeItemId >	operations_
	Operations of operation data base. More...

Detailed Description

Models a tree view of the operation data base.

Shows a tree-like structure of search paths, operation modules, and operations.

Definition at line 54 of file OSEdTreeView.hh.

Member Typedef Documentation

◆ Iter

typedef std::map<std::string, wxTreeItemId>::iterator OSEdTreeView::Iter

private

Iterators for the maps.

Definition at line 85 of file OSEdTreeView.hh.

◆ IterM

typedef std::multimap<std::string, wxTreeItemId>::iterator OSEdTreeView::IterM

private

Definition at line 86 of file OSEdTreeView.hh.

◆ ValType

typedef std::map<std::string, wxTreeItemId>::value_type OSEdTreeView::ValType

private

Value type for the map.

Definition at line 83 of file OSEdTreeView.hh.

Constructor & Destructor Documentation

◆ OSEdTreeView() [1/2]

OSEdTreeView::OSEdTreeView	(	wxWindow *	parent,
		OSEdInfoView *	infoView
	)

Constructor.

Parameters

parent.	Parent window.
infoView	Info view controlled by tree view.

Definition at line 71 of file OSEdTreeView.cc.

                                                                    :
     wxTreeCtrl(parent, OSEdConstants::CMD_TREE_ITEM), infoView_(infoView) {
 }

◆ ~OSEdTreeView()

OSEdTreeView::~OSEdTreeView ( )

virtual

Destructor.

Definition at line 78 of file OSEdTreeView.cc.

78 {

79 }

◆ OSEdTreeView() [2/2]

OSEdTreeView::OSEdTreeView ( const OSEdTreeView & )

private

Copying not allowed.

Member Function Documentation

◆ addItem()

void OSEdTreeView::addItem	(	wxTreeItemId	parent,
		std::string	item
	)

Adds an item to the tree.

Parameters

parent	Parent id.
item	The item to be added.

Definition at line 573 of file OSEdTreeView.cc.

                                                          {
     wxTreeItemId id = AppendItem(parent, WxConversion::toWxString(item));
     if (isPath(parent)) {
         modules_.insert(std::pair<std::string, wxTreeItemId>(item, id));
     } else if (isModule(parent)) {
         operations_.insert(std::pair<std::string, wxTreeItemId>(item, id));
         //operations_[item] = id;
     } else {
         assert(false);
     }
 }

References assert, isModule(), isPath(), modules_, operations_, and WxConversion::toWxString().

Referenced by OSEdAddModuleCmd::Do(), and OSEdAddOperationCmd::Do().

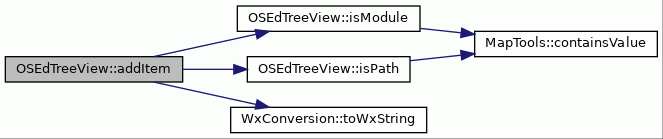

Here is the call graph for this function:

◆ changeText()

void OSEdTreeView::changeText	(	wxTreeItemId	id,
		const std::string &	text
	)

Changes the text of the item.

Parameters

id	Id of the item to be changed.
text	New label.

Definition at line 592 of file OSEdTreeView.cc.

                                                                {

     if (isOperation(id)) {
         string key = MapTools::keyForValue<string>(operations_, id);
         Iter it = operations_.find(key);
         operations_.erase(it);
         operations_.insert(std::pair<std::string, wxTreeItemId>(text, id));
         //operations_[text] = id;
     } else if (isModule(id)) {
         string key = MapTools::keyForValue<string>(modules_, id);
         IterM it = modules_.find(key);
         modules_.erase(it);
         modules_.insert(std::pair<std::string, wxTreeItemId>(text, id));
     } else if (isPath(id)) {
         string key = MapTools::keyForValue<string>(paths_, id);
         Iter it = paths_.find(key);
         paths_.erase(it);
         paths_[text] = id;
     }
     SetItemText(id, WxConversion::toWxString(text));
 }

References isModule(), isOperation(), isPath(), modules_, operations_, paths_, and WxConversion::toWxString().

Referenced by OSEdPropertiesCmd::Do().

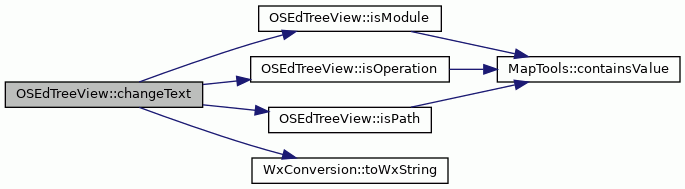

Here is the call graph for this function:

◆ constructTree()

vector< string > OSEdTreeView::constructTree ( )

Constructs the tree structure.

If errors occurs while constructing the tree structure, the error messages are collected and returned.

Returns: Results of erronous modules.

Definition at line 90 of file OSEdTreeView.cc.

                             {

     vector<string> results;
     OperationIndex& opIndex = OperationContainer::operationIndex();
     OperationSerializer& serializer =
         OperationContainer::operationSerializer();

     wxTreeItemId root = AddRoot(_T("root"));
     vector<string> paths = Environment::osalPaths();

     for (size_t i = 0; i < paths.size(); i++) {
         // add path
         string pathName = paths[i];
         wxTreeItemId path =
             AppendItem(root, WxConversion::toWxString(pathName));

         if (FileSystem::fileExists(pathName)) {
             SetItemBold(path);
         }

         paths_[pathName] = path;
         int modules = 0;
         try {
             modules = opIndex.moduleCount(pathName);
         } catch (const PathNotFound& p) {
             // no modules in this path
             continue;
         }
         for (int j = 0; j < modules; j++) {
             // add module
             OperationModule& mod = opIndex.module(j, pathName);
             wxTreeItemId module =
                 AppendItem(path, WxConversion::toWxString(mod.name()));

             modules_.insert(std::pair<std::string, wxTreeItemId>(mod.name(), module));

             int operations = 0;

             // test that operation properties can be loaded
             try {
                 operations = opIndex.operationCount(mod);
                 serializer.setSourceFile(mod.propertiesModule());
                 ObjectState* tree = serializer.readState();
                 if (tree->childCount() > 0) {
                     Operation temp("", NullOperationBehavior::instance());
                     temp.loadState(tree->child(0));
                 }
                 delete tree;
             } catch (const Exception& e) {
                 results.push_back(mod.propertiesModule() + ":\n");
                 results.push_back(e.errorMessage() + "\n");
                 results.push_back("\n");
             }

             for (int k = 0; k < operations; k++) {
                 // add operation
                 string opName = opIndex.operationName(k, mod);
                 wxTreeItemId oper =
                     AppendItem(module, WxConversion::toWxString(opName));

                 //operations_[opIndex.operationName(k, mod)] = oper;
                 operations_.insert(std::pair<std::string, wxTreeItemId>(opIndex.operationName(k, mod), oper));
             }
             SortChildren(module);
         }
         SortChildren(path);
     }
     infoView_->pathView();
     return results;
 }

References ObjectState::child(), ObjectState::childCount(), Exception::errorMessage(), FileSystem::fileExists(), infoView_, NullOperationBehavior::instance(), Operation::loadState(), OperationIndex::module(), OperationIndex::moduleCount(), modules_, OperationModule::name(), OperationIndex::operationCount(), OperationContainer::operationIndex(), OperationIndex::operationName(), operations_, OperationContainer::operationSerializer(), Environment::osalPaths(), paths_, OSEdInfoView::pathView(), OperationModule::propertiesModule(), OperationSerializer::readState(), OperationSerializer::setSourceFile(), and WxConversion::toWxString().

Referenced by OSEd::OnInit().

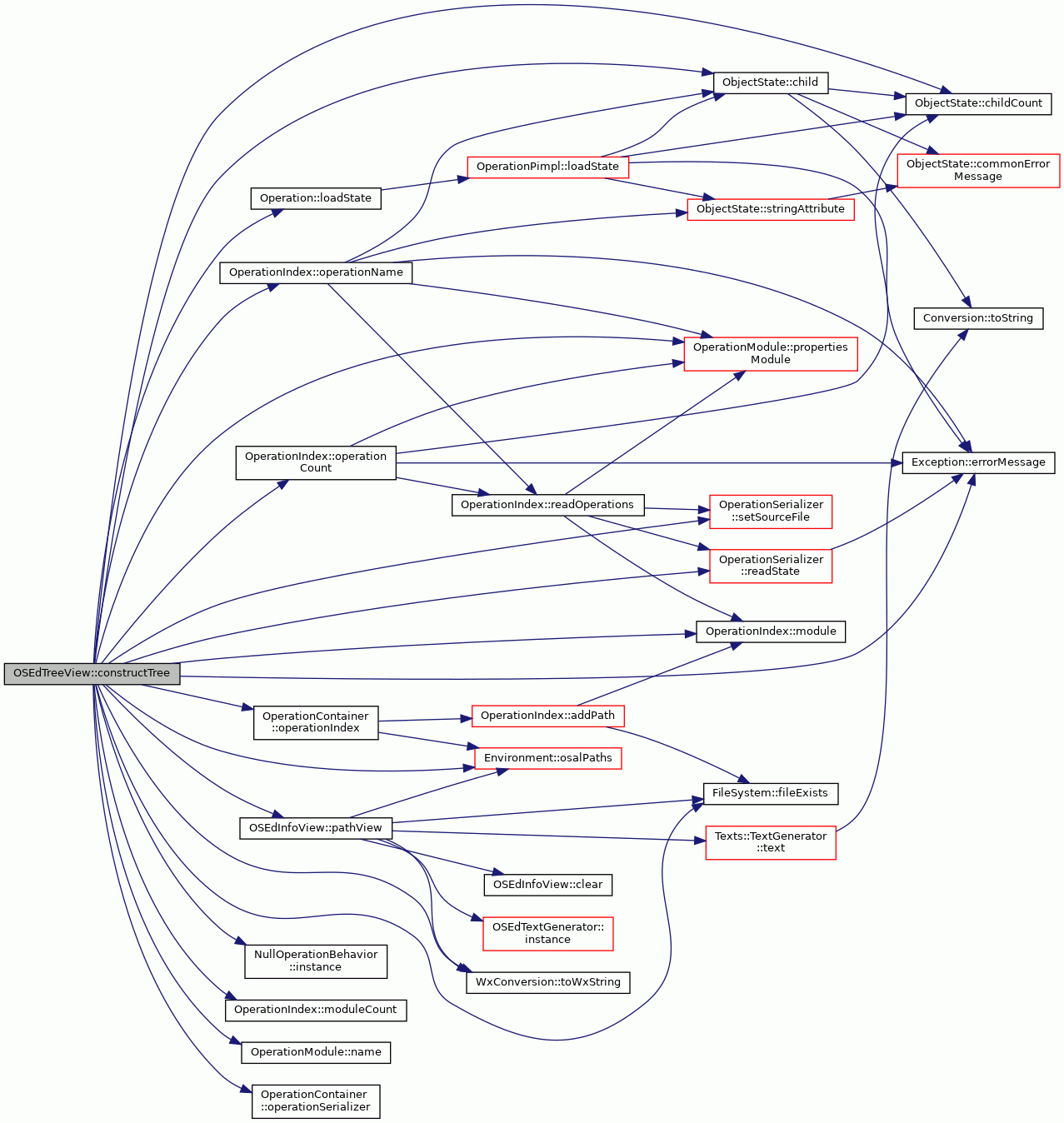

Here is the call graph for this function:

◆ infoView()

OSEdInfoView * OSEdTreeView::infoView ( ) const

Returns pointer to info view.

Returns: Pointer to info view.

Definition at line 662 of file OSEdTreeView.cc.

                              {
     return infoView_;
 }

References infoView_.

Referenced by OSEdRemoveModuleCmd::Do(), and OSEdRemoveOperationCmd::Do().

◆ isModule()

bool OSEdTreeView::isModule ( wxTreeItemId id ) const

private

Returns true if tree node with given id is a module.

Parameters

id	Id of the tree node.

Returns: True if id is a module.

Definition at line 305 of file OSEdTreeView.cc.

                                             {
     return MapTools::containsValue(modules_, id);
 }

References MapTools::containsValue(), and modules_.

Referenced by addItem(), changeText(), onDropDownMenu(), onItemSelected(), and removeItem().

Here is the call graph for this function:

◆ isModuleSelected()

bool OSEdTreeView::isModuleSelected ( ) const

Returns true if a module is selected.

Returns: True, if a module is selected.

Definition at line 731 of file OSEdTreeView.cc.

                                      {
     if (MapTools::containsValue(modules_, GetSelection()) ||
         infoView_->selectedModule() != "") {
         return true;
     }
     return false;
 }

References MapTools::containsValue(), infoView_, modules_, and OSEdInfoView::selectedModule().

Referenced by OSEdRemoveModuleCmd::isEnabled().

Here is the call graph for this function:

◆ isOperation()

bool OSEdTreeView::isOperation ( wxTreeItemId id ) const

private

Return true if tree node with given id is an operation.

Parameters

id	Id of the tree node.

Returns: True if id is an operation.

Definition at line 316 of file OSEdTreeView.cc.

                                                {
     return MapTools::containsValue(operations_, id);
 }

References MapTools::containsValue(), and operations_.

Referenced by changeText(), onDropDownMenu(), onItemClicked(), onItemSelected(), and removeItem().

Here is the call graph for this function:

◆ isOperationSelected()

bool OSEdTreeView::isOperationSelected ( ) const

Returns true if an operation is selected.

Returns: True, if an operation is selected.

Definition at line 745 of file OSEdTreeView.cc.

                                         {
     if (MapTools::containsValue(operations_, GetSelection()) ||
         infoView_->selectedOperation() != "") {

         return true;
     }
     return false;
 }

References MapTools::containsValue(), infoView_, operations_, and OSEdInfoView::selectedOperation().

Referenced by OSEdModifyBehaviorCmd::isEnabled(), OSEdSimulateCmd::isEnabled(), and OSEdRemoveOperationCmd::isEnabled().

Here is the call graph for this function:

◆ isPath()

bool OSEdTreeView::isPath ( wxTreeItemId id ) const

private

Returns true if tree node with given id is a path.

Parameters

id	Id of the tree node.

Returns: True if id is a path.

Definition at line 294 of file OSEdTreeView.cc.

                                           {
     return MapTools::containsValue(paths_, id);
 }

References MapTools::containsValue(), and paths_.

Referenced by addItem(), changeText(), onDropDownMenu(), onItemSelected(), and removeItem().

Here is the call graph for this function:

◆ isPathSelected()

bool OSEdTreeView::isPathSelected ( ) const

Returns true if a path is selected.

Returns: True, if a path is selected.

Definition at line 716 of file OSEdTreeView.cc.

                                    {
     if (MapTools::containsValue(paths_, GetSelection()) ||
         infoView_->selectedPath() != "") {

         return true;
     }
     return false;
 }

References MapTools::containsValue(), infoView_, paths_, and OSEdInfoView::selectedPath().

Here is the call graph for this function:

◆ moduleIdOfOperation()

wxTreeItemId OSEdTreeView::moduleIdOfOperation ( wxTreeItemId id )

Returns the id of the module of the operation with a given id.

Parameters

id	The id of the operation.

Returns: The id of the module.

Definition at line 420 of file OSEdTreeView.cc.

                                                  {
     return GetItemParent(id);
 }

Referenced by OSEdModifyBehaviorCmd::Do(), OSEdSimulateCmd::Do(), OSEdRemoveOperationCmd::Do(), OSEdPropertiesCmd::Do(), OSEdModifyBehaviorCmd::isEnabled(), and OSEdRemoveOperationCmd::isEnabled().

◆ moduleOfOperation()

string OSEdTreeView::moduleOfOperation ( wxTreeItemId id )

Returns the module of an operation with a given id.

Parameters

id	The id of operation.

Returns: The name of the module.

Definition at line 407 of file OSEdTreeView.cc.

                                                {
     wxTreeItemId modId = GetItemParent(id);
     string moduleName = MapTools::keyForValue<string>(modules_, modId);
     return moduleName;
 }

References modules_.

Referenced by OSEdModifyBehaviorCmd::Do(), OSEdRemoveOperationCmd::Do(), OSEdSimulateCmd::Do(), OSEdPropertiesCmd::Do(), OSEdModifyBehaviorCmd::isEnabled(), and onItemSelected().

◆ onDropDownMenu()

void OSEdTreeView::onDropDownMenu ( wxMouseEvent & event )

private

Handles the event when right mouse button is clicked.

A different drop down menu is showed, depending on where mouse button is clicked.

Parameters

event Event to be handled.

Definition at line 243 of file OSEdTreeView.cc.

                                                 {

     // coordinates of mouse click
     OSEdTextGenerator& text = OSEdTextGenerator::instance();
     OSEdMainFrame* mainFrame = wxGetApp().mainFrame();
     wxPoint pos = event.GetPosition();
     int flags = wxTREE_HITTEST_ONITEMLABEL;
     wxTreeItemId id = HitTest(pos, flags);

     // mouse is not clicked on a tree item
     if (!id.IsOk()) {
         return;
     }

     SelectItem(id);
     DropDownMenu* menu = NULL;
     if (isPath(id)) {

         format fmt = text.text(OSEdTextGenerator::TXT_STATUS_PATH_SELECTED);
         mainFrame->statusBar()->
             SetStatusText(WxConversion::toWxString(fmt.str()));
         menu = new DropDownMenu(DropDownMenu::MENU_PATH);
         PopupMenu(menu, pos);
     } else if (isModule(id)) {

         format fmt = text.text(OSEdTextGenerator::TXT_STATUS_MODULE_SELECTED);
         mainFrame->statusBar()->
             SetStatusText(WxConversion::toWxString(fmt.str()));
         menu = new DropDownMenu(DropDownMenu::MENU_MODULE);
         PopupMenu(menu, pos);
     } else if (isOperation(id)) {

         format fmt =
             text.text(OSEdTextGenerator::TXT_STATUS_OPERATION_SELECTED);
         mainFrame->statusBar()->
             SetStatusText(WxConversion::toWxString(fmt.str()));
         menu = new DropDownMenu(DropDownMenu::MENU_OPERATION);
         PopupMenu(menu, pos);
     } else {
         mainFrame->statusBar()->SetStatusText(_T("Cannot open"));
     }
     delete menu;
 }

References OSEdTextGenerator::instance(), isModule(), isOperation(), isPath(), DropDownMenu::MENU_MODULE, DropDownMenu::MENU_OPERATION, DropDownMenu::MENU_PATH, OSEdMainFrame::statusBar(), Texts::TextGenerator::text(), WxConversion::toWxString(), OSEdTextGenerator::TXT_STATUS_MODULE_SELECTED, OSEdTextGenerator::TXT_STATUS_OPERATION_SELECTED, and OSEdTextGenerator::TXT_STATUS_PATH_SELECTED.

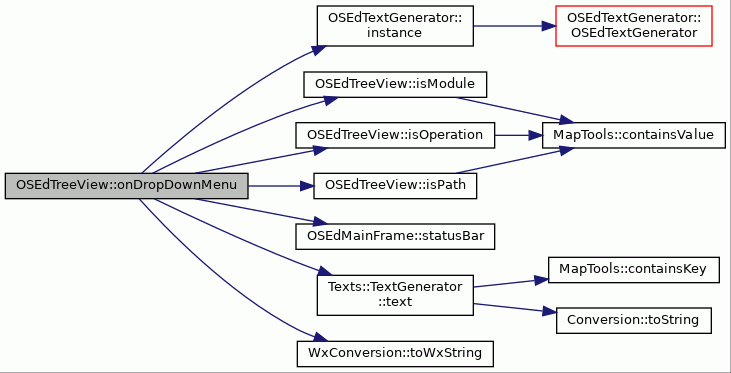

Here is the call graph for this function:

◆ onItemClicked()

void OSEdTreeView::onItemClicked ( wxTreeEvent & event )

private

Handles the event when item is selected on tree by double-clicking with mouse.

Double clicking an operation opens an operation property dialog, where operation properties can be modified.

Parameters

event Event to be handled.

Definition at line 220 of file OSEdTreeView.cc.

                                               {
     wxTreeItemId id = event.GetItem();
     if (isOperation(id)) {
         // operation is clicked, lets open the property dialog
         OSEdMainFrame* mainFrame = wxGetApp().mainFrame();
         CommandRegistry* registry = mainFrame->registry();
         GUICommand* command =
             registry->createCommand(OSEdConstants::CMD_PROPERTIES);
         command->setParentWindow(mainFrame);
         command->Do();
         delete command;
     }
 }

References OSEdConstants::CMD_PROPERTIES, CommandRegistry::createCommand(), GUICommand::Do(), isOperation(), OSEdMainFrame::registry(), and GUICommand::setParentWindow().

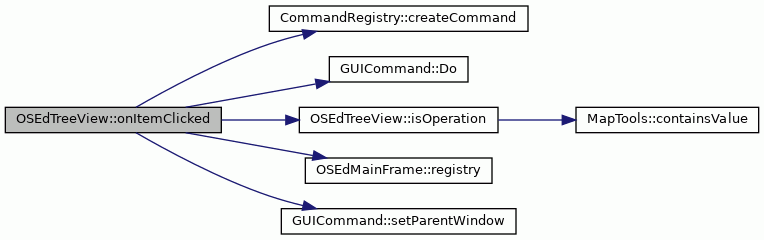

Here is the call graph for this function:

◆ onItemSelected()

void OSEdTreeView::onItemSelected ( wxTreeEvent & event )

private

Handles the event when item is selected on tree.

If selected item is a path, path view is shown. If selected item is a module, module view is shown. If selected item is an operation, operation view is shown.

Parameters

event The event to be handled.

Definition at line 171 of file OSEdTreeView.cc.

                                                {

     OSEdMainFrame* mainFrame = wxGetApp().mainFrame();
     OSEdTextGenerator& text = OSEdTextGenerator::instance();
     wxTreeItemId id = event.GetItem();

     if (isPath(id)) {
         string path = MapTools::keyForValue<string>(paths_, id);
         format fmt = text.text(OSEdTextGenerator::TXT_STATUS_PATH_SELECTED);
         mainFrame->statusBar()->
             SetStatusText(WxConversion::toWxString(fmt.str()));
         infoView_->moduleView(path);
     } else if (isModule(id)) {
         string moduleName = MapTools::keyForValue<string>(modules_, id);
         format fmt = text.text(OSEdTextGenerator::TXT_STATUS_MODULE_SELECTED);
         mainFrame->statusBar()->
             SetStatusText(WxConversion::toWxString(fmt.str()));
         string pathName = pathOfModule(id);
         infoView_->operationView(pathName, moduleName);
     } else if (isOperation(id)) {

         string opName = MapTools::keyForValue<string>(operations_, id);
         format fmt =
             text.text(OSEdTextGenerator::TXT_STATUS_OPERATION_SELECTED);

         mainFrame->statusBar()->
             SetStatusText(WxConversion::toWxString(fmt.str()));

         string modName = moduleOfOperation(id);
         string pathName = pathOfModule(GetItemParent(id));
         infoView_->operationPropertyView(opName, modName, pathName);
     } else {
         mainFrame->statusBar()->SetStatusText(_T(""));
         // root is selected
         infoView_->pathView();
     }
     wxGetApp().mainFrame()->updateMenuBar();
 }

References infoView_, OSEdTextGenerator::instance(), isModule(), isOperation(), isPath(), moduleOfOperation(), modules_, OSEdInfoView::moduleView(), OSEdInfoView::operationPropertyView(), operations_, OSEdInfoView::operationView(), pathOfModule(), paths_, OSEdInfoView::pathView(), OSEdMainFrame::statusBar(), Texts::TextGenerator::text(), WxConversion::toWxString(), OSEdTextGenerator::TXT_STATUS_MODULE_SELECTED, OSEdTextGenerator::TXT_STATUS_OPERATION_SELECTED, and OSEdTextGenerator::TXT_STATUS_PATH_SELECTED.

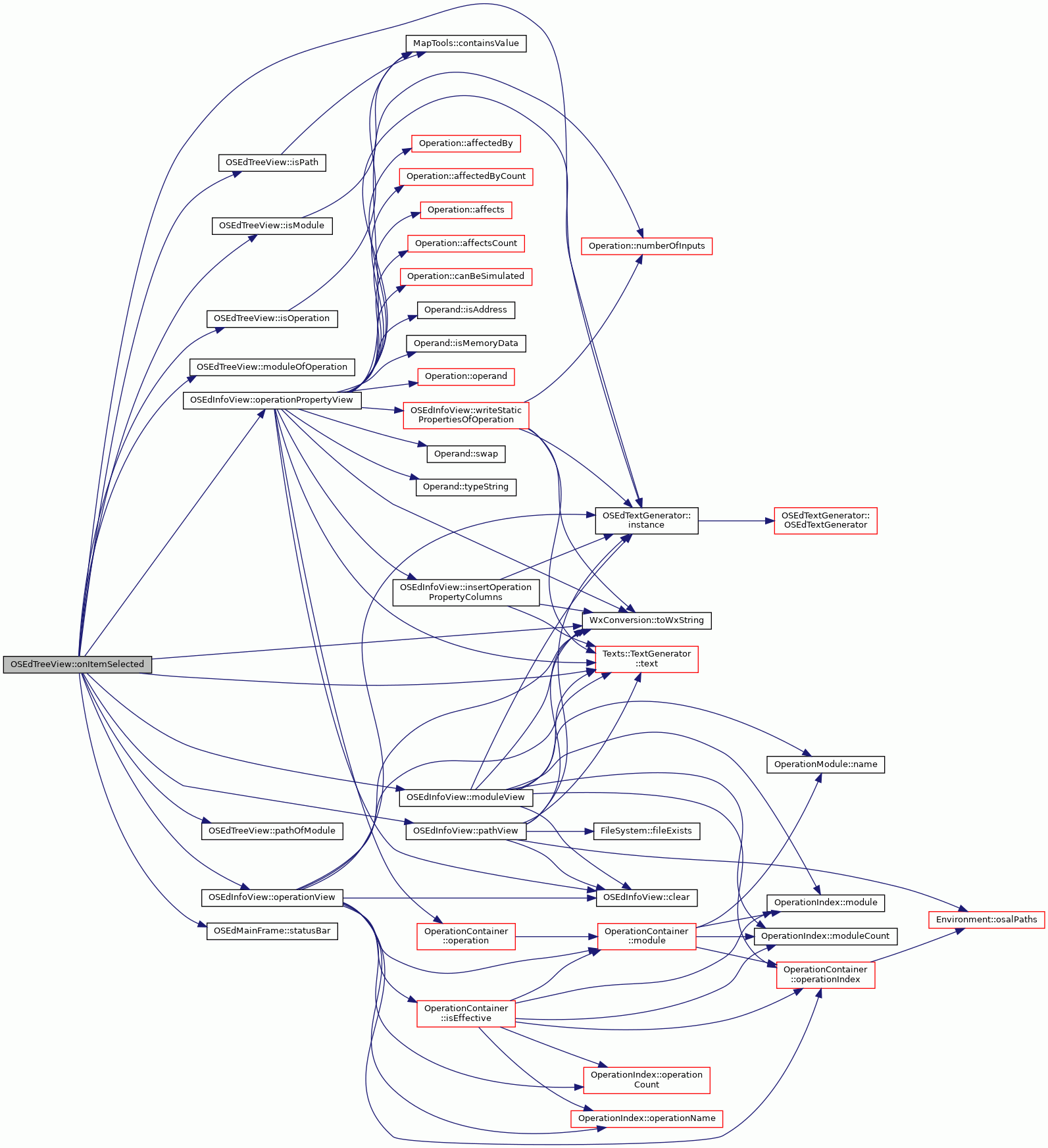

Here is the call graph for this function:

◆ operator=()

OSEdTreeView& OSEdTreeView::operator= ( const OSEdTreeView & )

private

Assignment not allowed.

◆ pathIdOfModule()

wxTreeItemId OSEdTreeView::pathIdOfModule ( wxTreeItemId id )

Returns the id of the path in which module with given id belongs to.

Parameters

id	Id of the module.

Returns: The id of the path.

Definition at line 444 of file OSEdTreeView.cc.

                                             {
     return GetItemParent(id);
 }

◆ pathOfModule()

string OSEdTreeView::pathOfModule ( wxTreeItemId id )

Returns the path of the module with given id.

Parameters

id	The id of the module.

Returns: The name of the path.

Definition at line 431 of file OSEdTreeView.cc.

                                           {
     wxTreeItemId pathId = GetItemParent(id);
     std::string path = MapTools::keyForValue<string>(paths_, pathId);
     return path;
 }

References paths_.

Referenced by OSEdAddOperationCmd::Do(), OSEdModifyBehaviorCmd::Do(), OSEdRemoveModuleCmd::Do(), OSEdRemoveOperationCmd::Do(), OSEdBuildCmd::Do(), OSEdSimulateCmd::Do(), OSEdPropertiesCmd::Do(), OSEdModifyBehaviorCmd::isEnabled(), OSEdBuildCmd::isEnabled(), OSEdRemoveOperationCmd::isEnabled(), OSEdAddOperationCmd::isEnabled(), OSEdRemoveModuleCmd::isEnabled(), onItemSelected(), and selectedOperation().

◆ removeItem()

void OSEdTreeView::removeItem ( wxTreeItemId id )

Removes an item from the tree view.

Collapses the parent and set the parent selected.

Parameters

id	The id of the item to be removed.

Definition at line 622 of file OSEdTreeView.cc.

                                         {

     wxTreeItemId parent = GetItemParent(id);
     Collapse(parent);
     SelectItem(parent);
     DeleteChildren(id);
     Delete(id);

     // remove the item from the inner data structure also
     if (isOperation(id)) {
         string key = MapTools::keyForValue<string>(operations_, id);
         Iter it = operations_.find(key);
         operations_.erase(it);
     } else if (isModule(id)) {
         string key = MapTools::keyForValue<string>(modules_, id);
         IterM it = modules_.find(key);
         modules_.erase(it);
         Iter ot = operations_.begin();
         while (ot != operations_.end()) {
             if (GetItemParent((*ot).second) == id) {
                 Iter next = ot;
                 next++;
                 operations_.erase(ot);
                 ot = next;
             } else {
                 ot++;
             }
         }
     } else if (isPath(id)) {
         // paths can not be erased
         assert(false);
     }
 }

References assert, isModule(), isOperation(), isPath(), modules_, and operations_.

Referenced by OSEdRemoveModuleCmd::Do(), and OSEdRemoveOperationCmd::Do().

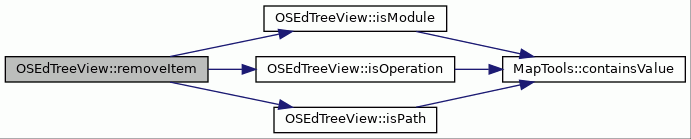

Here is the call graph for this function:

◆ selectedModule()

string OSEdTreeView::selectedModule ( )

Returns the selected module.

If no module is selected, an empty string is returned.

Returns: The selected module or an empty string.

Definition at line 513 of file OSEdTreeView.cc.

                              {

     IterM it = modules_.begin();

     // first look from the tree view
     while (it != modules_.end()) {
         if (IsSelected((*it).second)) {
             return (*it).first;
         }
         it++;
     }

     // then look from the info view
     string module = infoView_->selectedModule();
     return module;
 }

References infoView_, modules_, and OSEdInfoView::selectedModule().

Referenced by OSEdAddOperationCmd::Do(), OSEdRemoveModuleCmd::Do(), OSEdBuildCmd::Do(), OSEdBuildCmd::isEnabled(), OSEdAddOperationCmd::isEnabled(), and selectedOperation().

Here is the call graph for this function:

◆ selectedModuleId()

wxTreeItemId OSEdTreeView::selectedModuleId ( )

Returns the id of selected module.

Exceptions

NotAvailable If no module is selected.

Returns: The id of selected module.

Definition at line 537 of file OSEdTreeView.cc.

                                {
     if (MapTools::containsValue(modules_, GetSelection())) {
         return GetSelection();
     }

     IterM it = modules_.begin();
     // first search the selected module from tree view
     while (it != modules_.end()) {
         if (IsSelected((*it).second)) {
             return (*it).second;
         }
         it++;
     }

     // no module in tree view selected, look from the info view
     string module = infoView_->selectedModule();
     if (module != "") {
         try {
             it = modules_.find(module);
             wxTreeItemId id = it->second;
             return id;
         } catch (const KeyNotFound& k) {
             assert(false);
         }
     }

     throw NotAvailable(__FILE__, __LINE__, __func__);
 }

References __func__, assert, MapTools::containsValue(), infoView_, modules_, and OSEdInfoView::selectedModule().

Referenced by OSEdAddOperationCmd::Do(), OSEdRemoveModuleCmd::Do(), OSEdBuildCmd::Do(), OSEdAddOperationCmd::isEnabled(), OSEdBuildCmd::isEnabled(), OSEdRemoveModuleCmd::isEnabled(), and selectedOperation().

Here is the call graph for this function:

◆ selectedOperation()

Operation * OSEdTreeView::selectedOperation ( )

Returns the selected operation.

If no operation is selected, NULL is returned.

Returns: The selected operation.

Definition at line 328 of file OSEdTreeView.cc.

                                 {

     Iter it = operations_.begin();
     string opName = "";
     string modName = "";
     string pathName = "";

     // get the name of the selected operation, its module and its path.
     while(it != operations_.end()) {
         if (IsSelected((*it).second)) {
             opName = (*it).first;
             wxTreeItemId opId = (*it).second;

             wxTreeItemId moduleId = GetItemParent(opId);
             wxTreeItemId pathId = GetItemParent(moduleId);

             modName = WxConversion::toString(GetItemText(moduleId));
             pathName = WxConversion::toString(GetItemText(pathId));

             break;
         }
         it++;
     }

     // if no operation was selected in a tree view, let's look from
     // the info view
     if (opName == "") {
         opName = infoView_->selectedOperation();
         if (opName == "") {
             return NULL;
         } else {

             modName = selectedModule();
             assert(modName != "");

             pathName = pathOfModule(selectedModuleId());
             assert(pathName != "");
         }
     }

     Operation* op = OperationContainer::operation(pathName, modName, opName);
     return op;
 }

References assert, infoView_, OperationContainer::operation(), operations_, pathOfModule(), selectedModule(), selectedModuleId(), OSEdInfoView::selectedOperation(), and WxConversion::toString().

Referenced by OSEdPropertiesCmd::Do(), OSEdSimulateCmd::Do(), OSEdRemoveOperationCmd::Do(), OSEdPropertiesCmd::isEnabled(), and OSEdSimulateCmd::isEnabled().

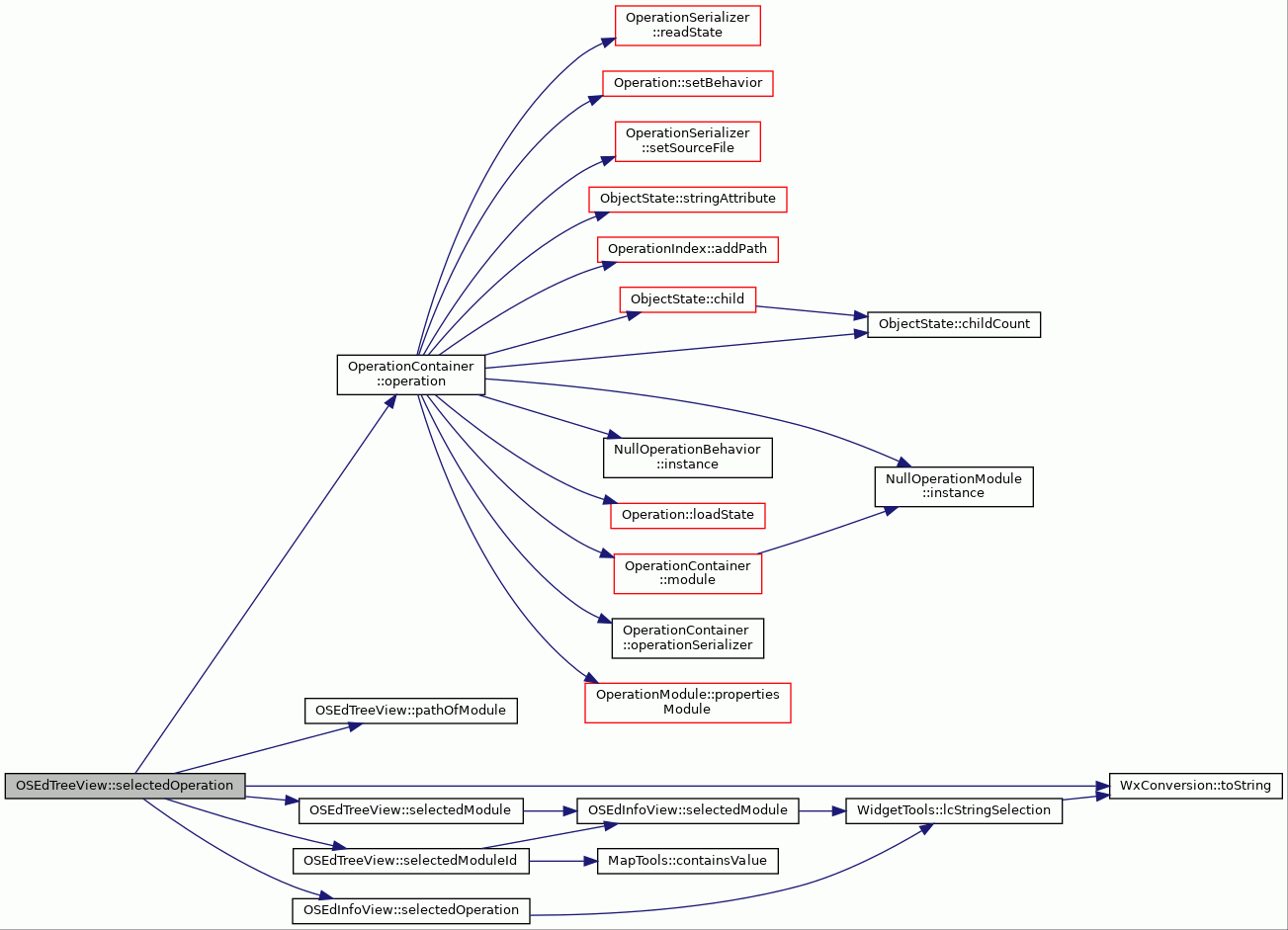

Here is the call graph for this function:

◆ selectedOperationId()

wxTreeItemId OSEdTreeView::selectedOperationId ( )

Returns the id of selected operation.

Exceptions

NotAvailable If no operation is selected.

Returns: The id of selected operation.

Definition at line 379 of file OSEdTreeView.cc.

                                   {
     Iter it = operations_.begin();
     // first look from the tree view
     while (it != operations_.end()) {
         if (IsSelected((*it).second)) {
             return (*it).second;
         }
         it++;
     }

     string name = infoView_->selectedOperation();
     it = operations_.begin();
     while (it != operations_.end()) {
         if ((*it).first == name) {
             return (*it).second;
         }
         it++;
     }
     throw NotAvailable(__FILE__, __LINE__, __func__);
 }

References __func__, infoView_, operations_, and OSEdInfoView::selectedOperation().

Referenced by OSEdModifyBehaviorCmd::Do(), OSEdSimulateCmd::Do(), OSEdRemoveOperationCmd::Do(), OSEdPropertiesCmd::Do(), OSEdModifyBehaviorCmd::isEnabled(), and OSEdRemoveOperationCmd::isEnabled().

Here is the call graph for this function:

◆ selectedPath()

string OSEdTreeView::selectedPath ( )

Returns the selected path.

If not path is selected, an empty string is returned.

Returns: The selected path, or an empty string.

Definition at line 456 of file OSEdTreeView.cc.

                            {

     Iter it = paths_.begin();

     // first look from the tree view
     while (it != paths_.end()) {
         if (IsSelected((*it).second)) {
             return (*it).first;
         }
         it++;
     }

     // then info view
     string path = infoView_->selectedPath();
     return path;
 }

References infoView_, paths_, and OSEdInfoView::selectedPath().

Referenced by OSEdAddModuleCmd::Do(), and OSEdAddModuleCmd::isEnabled().

Here is the call graph for this function:

◆ selectedPathId()

wxTreeItemId OSEdTreeView::selectedPathId ( )

Returns the id of selected path.

Exceptions

NotAvailable If path is not selected.

Returns: Id of selected path.

Definition at line 480 of file OSEdTreeView.cc.

                              {
     Iter it = paths_.begin();

     // first look from the tree view
     while (it != paths_.end()) {
         if (IsSelected((*it).second)) {
             return (*it).second;
         }
         it++;
     }

     // then look from the info view
     string path = infoView_->selectedPath();
     if (path != "") {
         try {
             wxTreeItemId id = paths_[path];
             return id;
         } catch (const KeyNotFound& k) {
             assert(false);
         }
     }

     throw NotAvailable(__FILE__, __LINE__, __func__);
 }

References __func__, assert, infoView_, paths_, and OSEdInfoView::selectedPath().

Referenced by OSEdAddModuleCmd::Do().

Here is the call graph for this function:

◆ update()

void OSEdTreeView::update ( )

Updates the treeview.

Definition at line 670 of file OSEdTreeView.cc.

                      {

     Iter it = paths_.begin();
     while (it != paths_.end()) {
         if (IsSelected((*it).second)) {
             infoView_->moduleView((*it).first);
             return;
         }
         it++;
     }

     IterM itm = modules_.begin();
     while (itm != modules_.end()) {
         if (IsSelected((*itm).second)) {
             wxTreeItemId pathId = GetItemParent((*itm).second);
             string pathName = WxConversion::toString(GetItemText(pathId));
             infoView_->operationView(pathName, (*itm).first);
             return;
         }
         itm++;
     }

     it = operations_.begin();
     while (it != operations_.end()) {
         if (IsSelected((*it).second)) {
             wxTreeItemId modId = GetItemParent((*it).second);
             wxTreeItemId pathId = GetItemParent(modId);

             string modName = WxConversion::toString(GetItemText(modId));
             string pathName = WxConversion::toString(GetItemText(pathId));

             infoView_->operationPropertyView((*it).first, modName, pathName);
             return;
         }
         it++;
     }

     infoView_->pathView();
 }

References infoView_, modules_, OSEdInfoView::moduleView(), OSEdInfoView::operationPropertyView(), operations_, OSEdInfoView::operationView(), paths_, OSEdInfoView::pathView(), and WxConversion::toString().

Referenced by OSEdAddModuleCmd::Do(), OSEdPropertiesCmd::Do(), and OSEdAddOperationCmd::Do().

Here is the call graph for this function:

Member Data Documentation

◆ infoView_

OSEdInfoView* OSEdTreeView::infoView_

private

An info window controlled by tree view.

Definition at line 102 of file OSEdTreeView.hh.

Referenced by constructTree(), infoView(), isModuleSelected(), isOperationSelected(), isPathSelected(), onItemSelected(), selectedModule(), selectedModuleId(), selectedOperation(), selectedOperationId(), selectedPath(), selectedPathId(), and update().

◆ modules_

std::multimap<std::string, wxTreeItemId> OSEdTreeView::modules_

private

Modules of the operation data base.

Definition at line 106 of file OSEdTreeView.hh.

Referenced by addItem(), changeText(), constructTree(), isModule(), isModuleSelected(), moduleOfOperation(), onItemSelected(), removeItem(), selectedModule(), selectedModuleId(), and update().

◆ operations_

std::multimap<std::string, wxTreeItemId> OSEdTreeView::operations_

private

Operations of operation data base.

Definition at line 108 of file OSEdTreeView.hh.

Referenced by addItem(), changeText(), constructTree(), isOperation(), isOperationSelected(), onItemSelected(), removeItem(), selectedOperation(), selectedOperationId(), and update().

◆ paths_

std::map<std::string, wxTreeItemId> OSEdTreeView::paths_

private

Paths of the operation data base.

Definition at line 104 of file OSEdTreeView.hh.

Referenced by changeText(), constructTree(), isPath(), isPathSelected(), onItemSelected(), pathOfModule(), selectedPath(), selectedPathId(), and update().

The documentation for this class was generated from the following files:

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ Iter

◆ IterM

◆ ValType

Constructor & Destructor Documentation

◆ OSEdTreeView() [1/2]

◆ ~OSEdTreeView()

◆ OSEdTreeView() [2/2]

Member Function Documentation

◆ addItem()

◆ changeText()

◆ constructTree()

◆ infoView()

◆ isModule()

◆ isModuleSelected()

◆ isOperation()

◆ isOperationSelected()

◆ isPath()

◆ isPathSelected()

◆ moduleIdOfOperation()

◆ moduleOfOperation()

◆ onDropDownMenu()

◆ onItemClicked()

◆ onItemSelected()

◆ operator=()

◆ pathIdOfModule()

◆ pathOfModule()

◆ removeItem()

◆ selectedModule()

◆ selectedModuleId()

◆ selectedOperation()

◆ selectedOperationId()

◆ selectedPath()

◆ selectedPathId()

◆ update()

Member Data Documentation

◆ infoView_

◆ modules_

◆ operations_

◆ paths_
