OperationBehavior Class Reference

#include <OperationBehavior.hh>

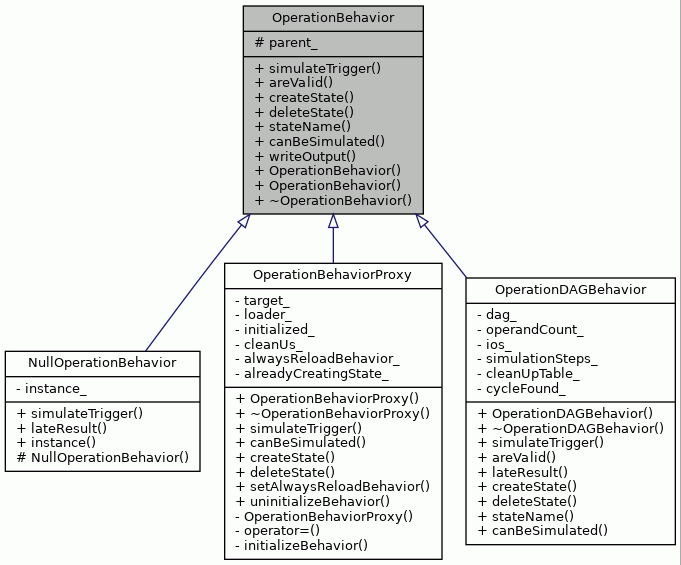

Inheritance diagram for OperationBehavior:

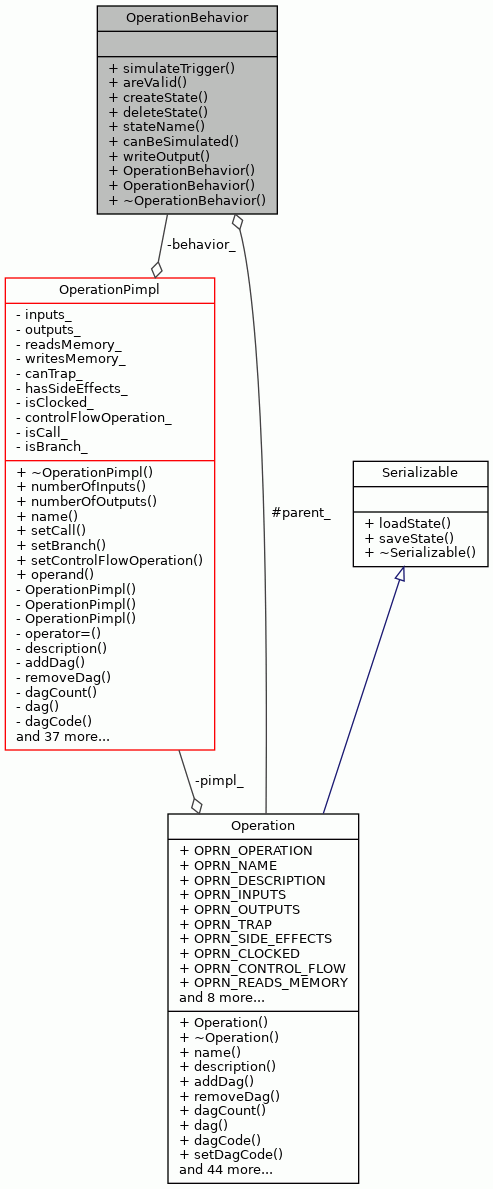

Collaboration diagram for OperationBehavior:

Public Types
typedef std::vector< SimValue >	InputOperandVector
	Input operand type for areValid() More...

Public Member Functions
virtual bool	simulateTrigger (SimValue **io, OperationContext &context) const =0
virtual bool	areValid (const InputOperandVector &inputs, const OperationContext &context) const
virtual void	createState (OperationContext &context) const
virtual void	deleteState (OperationContext &context) const
virtual const char *	stateName () const
virtual bool	canBeSimulated () const
virtual void	writeOutput (const char *text) const
	OperationBehavior ()
	OperationBehavior (const Operation &parent)
virtual	~OperationBehavior ()

Protected Attributes
const Operation &	parent_

Detailed Description

Interface to access the behavior model of TTA operations.

This abstract class that is inherited by the custom operation behavior classes. Instances of user defined OperationBehavior derived classes are loaded run-time from dynamic library modules (plugins).

Definition at line 53 of file OperationBehavior.hh.

Member Typedef Documentation

InputOperandVector

typedef std::vector<SimValue> OperationBehavior::InputOperandVector

Input operand type for areValid()

Definition at line 57 of file OperationBehavior.hh.

Constructor & Destructor Documentation

OperationBehavior() [1/2]

OperationBehavior::OperationBehavior

(

)

Constructor with NULL parent.

Definition at line 52 of file OperationBehavior.cc.

    : parent_(NullOperation::instance()){
}

OperationBehavior() [2/2]

OperationBehavior::OperationBehavior

(

const Operation &

parent

)

Constructor with parent.

Definition at line 59 of file OperationBehavior.cc.

    :   parent_(parent) {
}

~OperationBehavior()

OperationBehavior::~OperationBehavior ( )

virtual

Destructor.

Definition at line 66 of file OperationBehavior.cc.

                                      {
}

Member Function Documentation

areValid()

bool OperationBehavior::areValid ( const InputOperandVector &  inputs, const OperationContext &  context  ) const

virtual

The default implementation of input operand validation.

This always return true. This is meant to be overridden in derived classes when necessary.

Reimplemented in OperationDAGBehavior.

Definition at line 96 of file OperationBehavior.cc.

                                     {

    return true;
}

Referenced by Operation::areValid().

canBeSimulated()

bool OperationBehavior::canBeSimulated ( ) const

virtual

If behavior can be simulated.

Returns

true If simulation of behavior is possible.

Reimplemented in OperationDAGBehavior, and OperationBehaviorProxy.

Definition at line 162 of file OperationBehavior.cc.

                                        {
    return true;
}

Referenced by OperationPimpl::canBeSimulated().

createState()

void OperationBehavior::createState ( OperationContext &  context ) const

virtual

Creates the instance of operation state for this operation and adds it to its operation context.

By default this function does nothing (assumes that the operation has no state). If the operation context already contains the required operation state instance, nothing is done.

Parameters

context

The operation context to add the state to.

Reimplemented in OperationDAGBehavior, and OperationBehaviorProxy.

Definition at line 127 of file OperationBehavior.cc.

                                                      {
}

Referenced by SimulateDialog::createState(), OperationPimpl::createState(), and OsalInterpreter::operation().

deleteState()

void OperationBehavior::deleteState ( OperationContext &  context ) const

virtual

Deletes the instance of operation state for this operation from its operation context.

By default this function does nothing (assumes that the operation has no state). If the operation context does not contain the required operation state instance, nothing is done.

Parameters

context

The operation context to delete the state from.

Reimplemented in OperationDAGBehavior, and OperationBehaviorProxy.

Definition at line 141 of file OperationBehavior.cc.

                                                      {
}

Referenced by OperationPimpl::deleteState(), CmdReset::execute(), SimulateDialog::onReset(), and SimulateDialog::~SimulateDialog().

simulateTrigger()

bool OperationBehavior::simulateTrigger ( SimValue **  io, OperationContext &  context  ) const

pure virtual

Simulates the process of starting the execution of an operation.

Clients should invoke isTriggerLocking() before any attempt to call simulateTrigger() in current clock cycle. By default, an operation invocations are successful.

Parameters

io	The input operands and the results of the operation.
context	The operation context affecting the operation results.

Returns

bool True if all values could be computed, false otherwise.

Exceptions

Exception

Depends on the implementation.

Implemented in OperationDAGBehavior, OperationBehaviorProxy, and NullOperationBehavior.

Definition at line 83 of file OperationBehavior.cc.

                             {
    return true;
}

Referenced by OperationPimpl::simulateTrigger().

stateName()

const char * OperationBehavior::stateName ( ) const

virtual

Returns the name of the state of this operation behavior.

By default returns an empty string which denotes that there is no state.

Returns

The state name for this operation behavior.

Reimplemented in OperationDAGBehavior.

Definition at line 152 of file OperationBehavior.cc.

                                   {
    return "";
}

writeOutput()

void OperationBehavior::writeOutput ( const char *  text ) const

virtual

Writes text to the output stream specified

Parameters

text	text to be written to the output stream

Definition at line 110 of file OperationBehavior.cc.

                            {
    OperationGlobals::outputStream() << text;
}

References OperationGlobals::outputStream().

Here is the call graph for this function:

Member Data Documentation

parent_

const Operation& OperationBehavior::parent_

protected

Definition at line 80 of file OperationBehavior.hh.

---

The documentation for this class was generated from the following files:

• OperationBehavior.hh
• OperationBehavior.cc
