#include <OperationBehaviorProxy.hh>

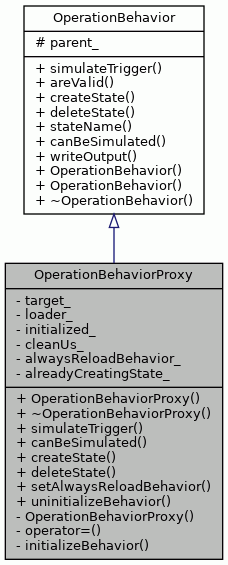

Inheritance diagram for OperationBehaviorProxy:

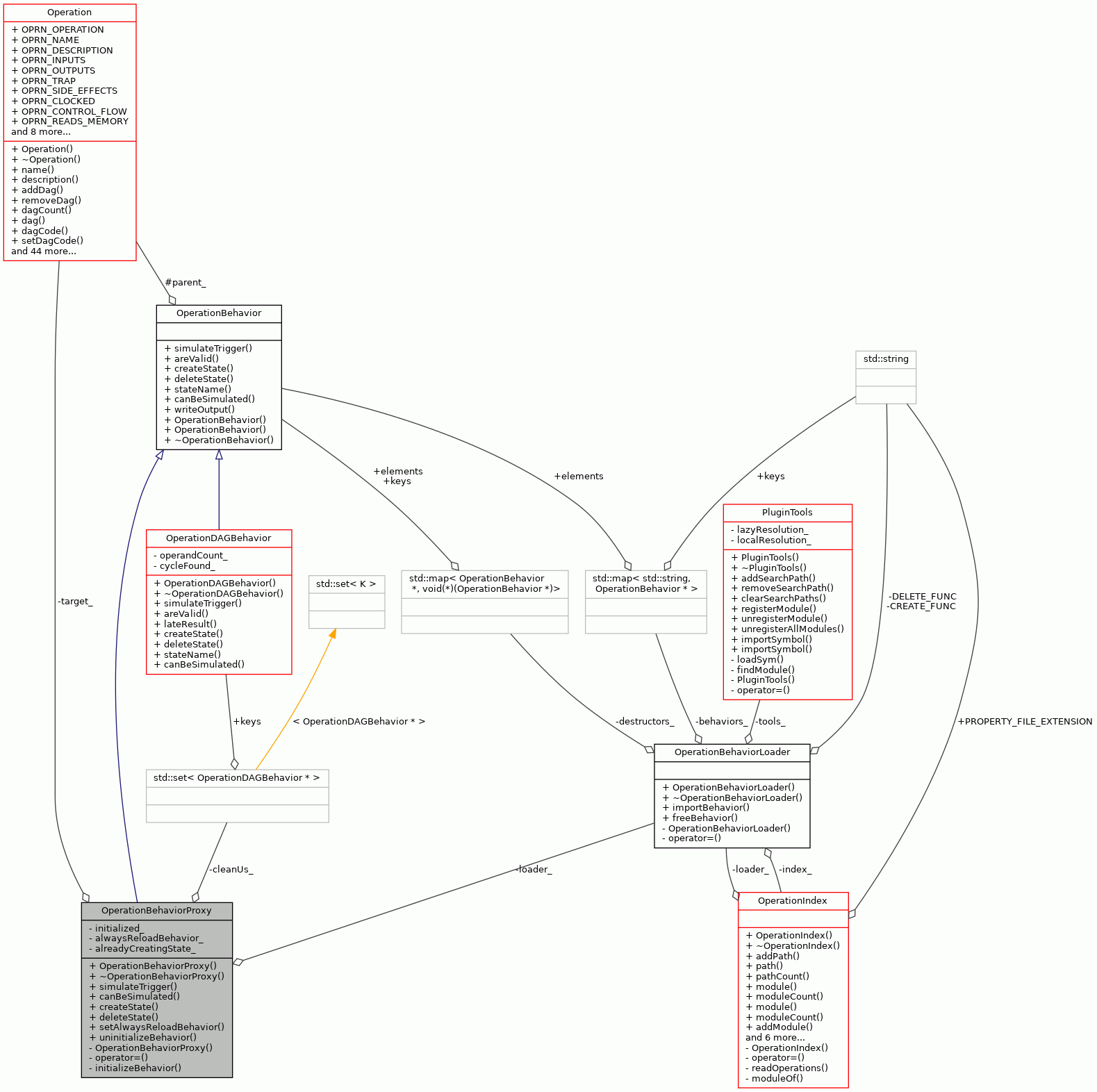

Collaboration diagram for OperationBehaviorProxy:

Public Member Functions
	OperationBehaviorProxy (Operation &targetOperation, OperationBehaviorLoader &loader, bool alwaysReloadBehavior=false)

virtual	~OperationBehaviorProxy ()

virtual bool	simulateTrigger (SimValue **io, OperationContext &context) const

virtual bool	canBeSimulated () const

virtual void	createState (OperationContext &context) const

virtual void	deleteState (OperationContext &context) const

virtual void	setAlwaysReloadBehavior (bool f)

void	uninitializeBehavior () const

Public Member Functions inherited from OperationBehavior
virtual bool	areValid (const InputOperandVector &inputs, const OperationContext &context) const

virtual const char *	stateName () const

virtual void	writeOutput (const char *text) const

	OperationBehavior ()

	OperationBehavior (const Operation &parent)

virtual	~OperationBehavior ()

Private Member Functions
	OperationBehaviorProxy (const OperationBehaviorProxy &)
	Copying not allowed. More...

OperationBehaviorProxy &	operator= (const OperationBehaviorProxy &)
	Assignment not allowed. More...

void	initializeBehavior () const

Private Attributes
Operation *	target_
	Operation that owns this proxy;. More...

OperationBehaviorLoader *	loader_
	Used to load behavior model for operation. More...

bool	initialized_
	Flag indicating whether proxy is initialized or not. More...

std::set< OperationDAGBehavior * >	cleanUs_
	Clean up list for created OperationDAGBehaviors. More...

bool	alwaysReloadBehavior_
	If this is true, the behavior is always (re)loaded from the dynamic library or the DAG instead of loading it once and reusing in the future calls. More...

bool	alreadyCreatingState_
	Helpers variable to catch infinite recursive function call due to missing or undefined operation behavior. More...

Additional Inherited Members
Public Types inherited from OperationBehavior
typedef std::vector< SimValue >	InputOperandVector
	Input operand type for areValid() More...

Protected Attributes inherited from OperationBehavior
const Operation &	parent_

Detailed Description

This class is used to create a behavior model of an operation.

A first time operation calls simulateTrigger() proxy creates the appropriate operation behavior model for the operation. Proxy replaces itself in the operation with the newly created behavior model. That new model then executes all simulation functions.

Definition at line 58 of file OperationBehaviorProxy.hh.

Constructor & Destructor Documentation

◆ OperationBehaviorProxy() [1/2]

OperationBehaviorProxy::OperationBehaviorProxy	(	Operation &	targetOperation,
		OperationBehaviorLoader &	loader,
		bool	alwaysReloadBehavior = `false`
	)

Constructor.

Registers the operation for which this proxy represents the behavior model. Registers the operation behavior loader that is used to find the appropriate behavior model of the operation.

Parameters

targetOperation	Target operation for proxy.
loader	Operation behavior loader for the proxy.

Definition at line 56 of file OperationBehaviorProxy.cc.

                                :
     OperationBehavior(), target_(&targetOperation), loader_(&loader),
     initialized_(false),  alwaysReloadBehavior_(alwaysReloadBehavior),
     alreadyCreatingState_(false) {
 }

◆ ~OperationBehaviorProxy()

OperationBehaviorProxy::~OperationBehaviorProxy ( )

virtual

Destructor.

Operation behavior loader frees all loaded operation behavior models.

Definition at line 70 of file OperationBehaviorProxy.cc.

                                                 {
     while (!cleanUs_.empty()) {
         delete *(cleanUs_.begin());
         cleanUs_.erase(cleanUs_.begin());
     }
 }

References cleanUs_.

◆ OperationBehaviorProxy() [2/2]

OperationBehaviorProxy::OperationBehaviorProxy ( const OperationBehaviorProxy & )

private

Copying not allowed.

Member Function Documentation

◆ canBeSimulated()

bool OperationBehaviorProxy::canBeSimulated ( ) const

virtual

Imports operation behavior model for the operation that owns this proxy and then delegates the work to that imported model.

After initializing the operation with imported operation behavior model proxy has done its job.

Returns: True if this operation has behavior, or dag which is

Reimplemented from OperationBehavior.

Definition at line 162 of file OperationBehaviorProxy.cc.

                                              {
     try {
         initializeBehavior();
     } catch (Exception&) {
         if (alwaysReloadBehavior_) uninitializeBehavior();
         return false;
     }
     // if initialization was not success
     if (&target_->behavior() == this) {
         if (alwaysReloadBehavior_) uninitializeBehavior();
         return false;
     } else {
         bool retVal = target_->canBeSimulated();
         if (alwaysReloadBehavior_) uninitializeBehavior();
         return retVal;
     }
 }

References alwaysReloadBehavior_, Operation::behavior(), Operation::canBeSimulated(), initializeBehavior(), target_, and uninitializeBehavior().

Here is the call graph for this function:

◆ createState()

void OperationBehaviorProxy::createState ( OperationContext & context ) const

virtual

Imports operation behavior model for the operation that owns this proxy and then delegates the work to that imported model.

After initializing the operation with imported operation behavior model proxy has done its job.

Parameters

context The operation context to add the state in.

Reimplemented from OperationBehavior.

Definition at line 111 of file OperationBehaviorProxy.cc.

                                                                    {
     initializeBehavior();

     // If operation does not have operation behavior defined or behavior file
     // is missing it causes infinite recursive call between
     // Operation::createState() and this function. Catch such event and break
     // out of it.
     if (alreadyCreatingState_) {
         throw IllegalOperationBehavior(__FILE__, __LINE__, __func__,
             std::string("Error while loading operation behavior for "
                 "operation \"")
             + target_->name()
             + "\". Operation behavior is undefined or missing.");
     }
     alreadyCreatingState_ = true;

     target_->createState(context);

     if (alwaysReloadBehavior_) {
         uninitializeBehavior();
     }
     alreadyCreatingState_ = true;
 }

References __func__, alreadyCreatingState_, alwaysReloadBehavior_, Operation::createState(), initializeBehavior(), Operation::name(), target_, and uninitializeBehavior().

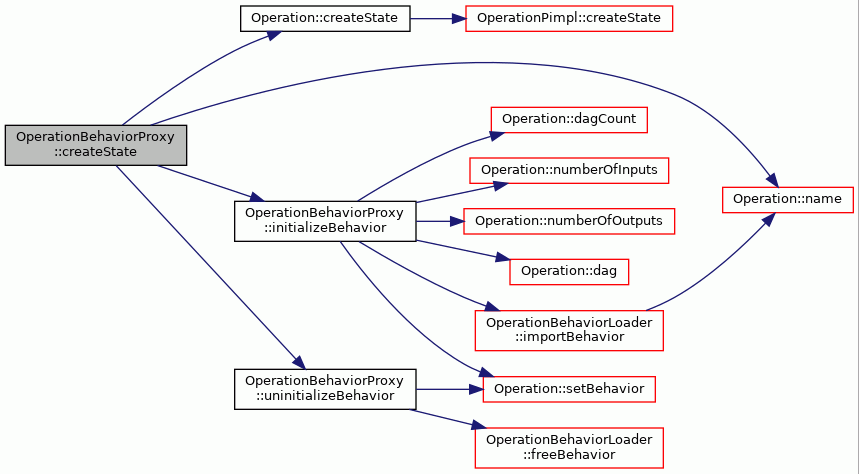

Here is the call graph for this function:

◆ deleteState()

void OperationBehaviorProxy::deleteState ( OperationContext & context ) const

virtual

Imports operation behavior model for the operation that owns this proxy and then delegates the work to that imported model.

After initializing the operation with imported operation behavior model proxy has done its job.

Parameters

context The operation context to delete the state from.

Reimplemented from OperationBehavior.

Definition at line 145 of file OperationBehaviorProxy.cc.

                                                                    {
     initializeBehavior();
     target_->deleteState(context);
     if (alwaysReloadBehavior_) uninitializeBehavior();
 }

References alwaysReloadBehavior_, Operation::deleteState(), initializeBehavior(), target_, and uninitializeBehavior().

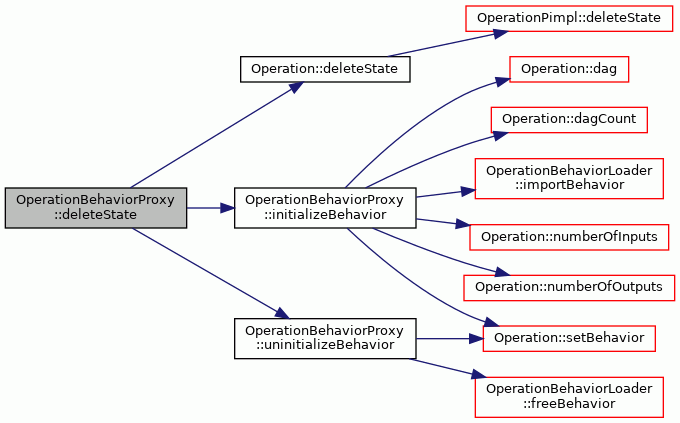

Here is the call graph for this function:

◆ initializeBehavior()

void OperationBehaviorProxy::initializeBehavior ( ) const

private

Initializes the operation that owns this proxy with an operation behavior model.

Proxy replaces itself with the imported operation behavior model. After that proxy methods are never called.

This method is executed only once. After that, this function does nothing. This function may abort the program, if error condition occurs while operation behavior model is imported.

Exceptions

DynamicLibraryException Leaked from importBehavior in case behavior file was invalid.

Definition at line 195 of file OperationBehaviorProxy.cc.

                                                  {

     if (initialized_) {
         return;
     }

     try {
         OperationBehavior& ob = loader_->importBehavior(*target_);
         target_->setBehavior(ob);
         return;
     } catch (FileNotFound&) {
     } catch (SymbolNotFound& e) {
         // try loading behavior from DAG
         if (target_->dagCount() == 0) {
             throw e;
         }
     } catch (Exception& e) {
         throw e;
     }

     // no compiled behavior in .opb found

     // if there is DAG to create behavior model...
     if (target_->dagCount() == 0) {
         initialized_ = true;
         return;
     }

     // there was not behavior plugin so let's use dag for simulation
     OperationDAGBehavior* behavior =
         new OperationDAGBehavior(
             target_->dag(0),
             target_->numberOfInputs() +
             target_->numberOfOutputs(),
             *target_);
     target_->setBehavior(*behavior);

     // add for cleanup
     cleanUs_.insert(behavior);

     initialized_ = true;
 }

References cleanUs_, Operation::dag(), Operation::dagCount(), OperationBehaviorLoader::importBehavior(), initialized_, loader_, Operation::numberOfInputs(), Operation::numberOfOutputs(), Operation::setBehavior(), and target_.

Referenced by canBeSimulated(), createState(), deleteState(), and simulateTrigger().

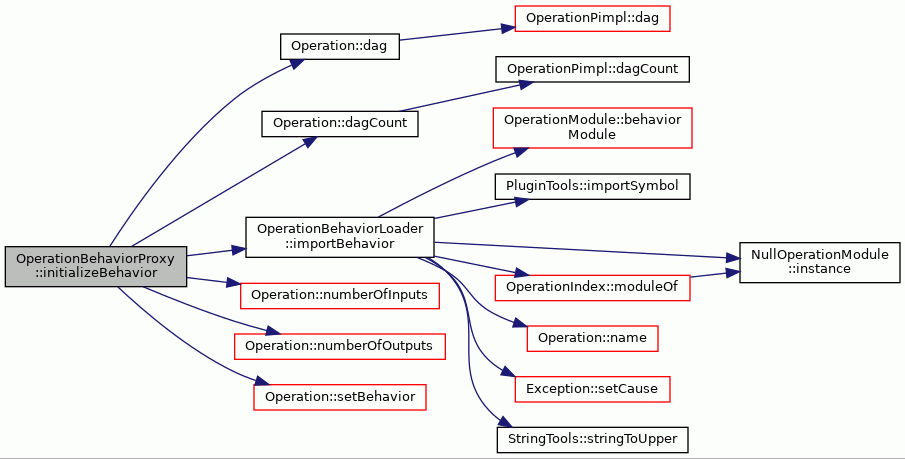

Here is the call graph for this function:

◆ operator=()

OperationBehaviorProxy& OperationBehaviorProxy::operator= ( const OperationBehaviorProxy & )

private

Assignment not allowed.

◆ setAlwaysReloadBehavior()

virtual void OperationBehaviorProxy::setAlwaysReloadBehavior ( bool f )

inlinevirtual

Definition at line 76 of file OperationBehaviorProxy.hh.

76 { alwaysReloadBehavior_ = f; }

References alwaysReloadBehavior_.

Referenced by SimulateDialog::~SimulateDialog().

◆ simulateTrigger()

bool OperationBehaviorProxy::simulateTrigger	(	SimValue **	io,
		OperationContext &	context
	)		const

virtual

Imports operation behavior model for the operation that owns this proxy and then delegates the work to that imported model.

After initializing the operation with imported operation behavior model proxy has done its job.

Parameters

io	The input and output operands.
context	The operation context.

Returns: True if all values could be computed, false otherwise.

Exceptions

IllegalOperationBehavior If trigger command lacks return statement.

Implements OperationBehavior.

Definition at line 91 of file OperationBehaviorProxy.cc.

                                      {

     initializeBehavior();
     bool retVal = target_->simulateTrigger(io, context);
     if (alwaysReloadBehavior_) uninitializeBehavior();
     return retVal;
 }

References alwaysReloadBehavior_, initializeBehavior(), Operation::simulateTrigger(), target_, and uninitializeBehavior().

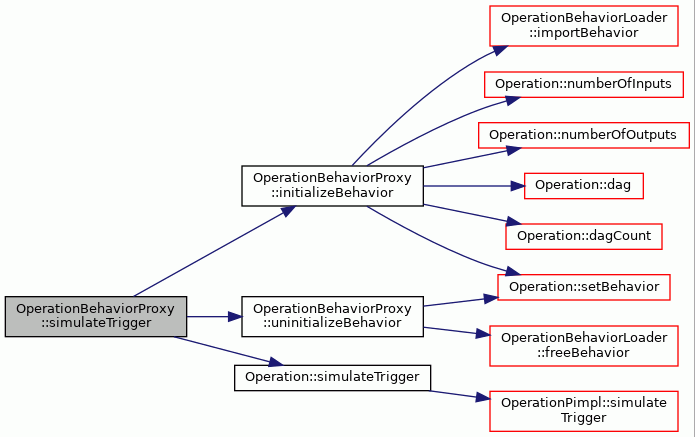

Here is the call graph for this function:

◆ uninitializeBehavior()

void OperationBehaviorProxy::uninitializeBehavior ( ) const

Uninitializes the behavior description from the operation so it will be reloaded again when a behavior method is called the next time.

Definition at line 244 of file OperationBehaviorProxy.cc.

                                                    {
     while (!cleanUs_.empty()) {
         OperationBehavior* behavior = *cleanUs_.begin();
         delete behavior;
         cleanUs_.erase(cleanUs_.begin());
     }
     target_->setBehavior(const_cast<OperationBehaviorProxy&>(*this));
     loader_->freeBehavior();
     initialized_ = false;
 }

References cleanUs_, OperationBehaviorLoader::freeBehavior(), initialized_, loader_, Operation::setBehavior(), and target_.

Referenced by canBeSimulated(), createState(), deleteState(), simulateTrigger(), and SimulateDialog::~SimulateDialog().

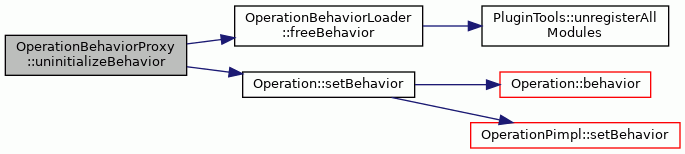

Here is the call graph for this function:

Member Data Documentation

◆ alreadyCreatingState_

bool OperationBehaviorProxy::alreadyCreatingState_

mutableprivate

Helpers variable to catch infinite recursive function call due to missing or undefined operation behavior.

Definition at line 101 of file OperationBehaviorProxy.hh.

Referenced by createState().

◆ alwaysReloadBehavior_

bool OperationBehaviorProxy::alwaysReloadBehavior_

private

If this is true, the behavior is always (re)loaded from the dynamic library or the DAG instead of loading it once and reusing in the future calls.

Definition at line 98 of file OperationBehaviorProxy.hh.

Referenced by canBeSimulated(), createState(), deleteState(), setAlwaysReloadBehavior(), and simulateTrigger().

◆ cleanUs_

std::set<OperationDAGBehavior*> OperationBehaviorProxy::cleanUs_

mutableprivate

Clean up list for created OperationDAGBehaviors.

Definition at line 94 of file OperationBehaviorProxy.hh.

Referenced by initializeBehavior(), uninitializeBehavior(), and ~OperationBehaviorProxy().

◆ initialized_

bool OperationBehaviorProxy::initialized_

mutableprivate

Flag indicating whether proxy is initialized or not.

Definition at line 92 of file OperationBehaviorProxy.hh.

Referenced by initializeBehavior(), and uninitializeBehavior().

◆ loader_

OperationBehaviorLoader* OperationBehaviorProxy::loader_

private

Used to load behavior model for operation.

Definition at line 90 of file OperationBehaviorProxy.hh.

Referenced by initializeBehavior(), and uninitializeBehavior().

◆ target_

Operation* OperationBehaviorProxy::target_

private

Operation that owns this proxy;.

Definition at line 88 of file OperationBehaviorProxy.hh.

Referenced by canBeSimulated(), createState(), deleteState(), initializeBehavior(), simulateTrigger(), and uninitializeBehavior().

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OperationBehaviorProxy() [1/2]

◆ ~OperationBehaviorProxy()

◆ OperationBehaviorProxy() [2/2]

Member Function Documentation

◆ canBeSimulated()

◆ createState()

◆ deleteState()

◆ initializeBehavior()

◆ operator=()

◆ setAlwaysReloadBehavior()

◆ simulateTrigger()

◆ uninitializeBehavior()

Member Data Documentation

◆ alreadyCreatingState_

◆ alwaysReloadBehavior_

◆ cleanUs_

◆ initialized_

◆ loader_

◆ target_
