#include <OutputOperandDialog.hh>

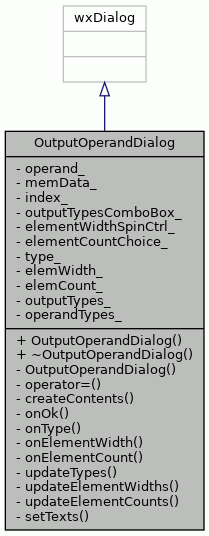

Inheritance diagram for OutputOperandDialog:

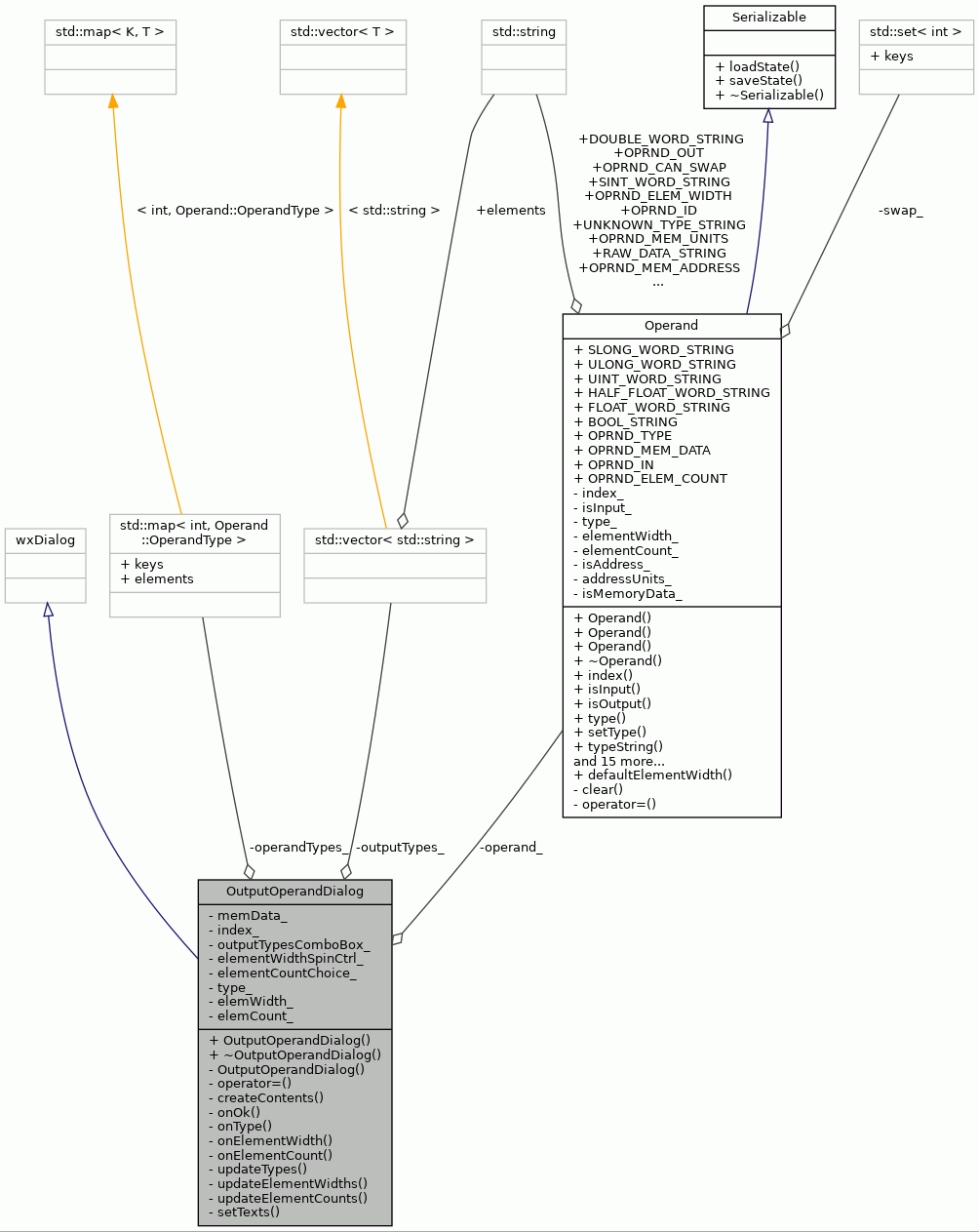

Collaboration diagram for OutputOperandDialog:

Public Member Functions
	OutputOperandDialog (wxWindow window, Operand operand, int index)

virtual	~OutputOperandDialog ()

Private Types
enum	{ ID_MEM_DATA, ID_OPERATION_OUTPUT_TYPES, ID_ELEMENT_WIDTH, ID_ELEMENT_COUNT, ID_TEXT_WIDTH, ID_TEXT_COUNT }

Private Member Functions
	OutputOperandDialog (const OutputOperandDialog &)
	Copying not allowed. More...

OutputOperandDialog &	operator= (const OutputOperandDialog &)
	Assignment not allowed. More...

wxSizer *	createContents (wxWindow *window, bool call_fit, bool set_sizer)

void	onOk (wxCommandEvent &event)

void	onType (wxCommandEvent &event)

void	onElementWidth (wxSpinEvent &event)

void	onElementCount (wxCommandEvent &event)

void	updateTypes ()

void	updateElementWidths ()

void	updateElementCounts ()

void	setTexts ()

Private Attributes
Operand *	operand_
	Operand to be modified. More...

bool	memData_
	Flag indicating whether operand is memory data or not. More...

int	index_
	Index of the operand. More...

wxChoice *	outputTypesComboBox_
	Choice box for operation input types. More...

wxSpinCtrl *	elementWidthSpinCtrl_
	Spin ctrl for operand element width. More...

wxChoice *	elementCountChoice_
	Choice box for operand element count. More...

int	type_
	Current operand type in choice box. More...

int	elemWidth_
	Current element width in choice box. More...

int	elemCount_
	Current element count in choice box. More...

std::vector< std::string >	outputTypes_
	Output types. More...

operandList	operandTypes_

Detailed Description

Class for adding or modifying output operands.

Definition at line 49 of file OutputOperandDialog.hh.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Component ids.

Enumerator
ID_MEM_DATA	Memory data choice.
ID_OPERATION_OUTPUT_TYPES	Output Type ComboBox.
ID_ELEMENT_WIDTH
ID_ELEMENT_COUNT
ID_TEXT_WIDTH
ID_TEXT_COUNT

Definition at line 74 of file OutputOperandDialog.hh.

          {
         ID_MEM_DATA,           ///< Memory data choice.
         ID_OPERATION_OUTPUT_TYPES, ///< Output Type ComboBox
         ID_ELEMENT_WIDTH,
         ID_ELEMENT_COUNT,
         ID_TEXT_WIDTH,
         ID_TEXT_COUNT
     };

Constructor & Destructor Documentation

◆ OutputOperandDialog() [1/2]

OutputOperandDialog::OutputOperandDialog	(	wxWindow *	parent,
		Operand *	operand,
		int	index
	)

Constructor.

Parameters

parent	Parent window.
operand	Operand to be added or modified.
index	Index of the operand.

Definition at line 66 of file OutputOperandDialog.cc.

                :
     wxDialog(parent, -1, _T(""),
              DialogPosition::getPosition(DialogPosition::DIALOG_OUTPUT_OPERAND)),
     operand_(operand), memData_(false), index_(index) {

     memData_ = operand_->isMemoryData();
     createContents(this, true, true);

     outputTypesComboBox_ =
         dynamic_cast<wxChoice*>(FindWindow(ID_OPERATION_OUTPUT_TYPES));

     elementWidthSpinCtrl_ =
         dynamic_cast<wxSpinCtrl*>(FindWindow(ID_ELEMENT_WIDTH));

     elementCountChoice_ =
         dynamic_cast<wxChoice*>(FindWindow(ID_ELEMENT_COUNT));

     FindWindow(ID_MEM_DATA)->SetValidator(wxGenericValidator(&memData_));

     outputTypes_.push_back(Operand::SINT_WORD_STRING);
     outputTypes_.push_back(Operand::UINT_WORD_STRING);
     outputTypes_.push_back(Operand::FLOAT_WORD_STRING);
     outputTypes_.push_back(Operand::DOUBLE_WORD_STRING);
     outputTypes_.push_back(Operand::HALF_FLOAT_WORD_STRING);
     outputTypes_.push_back(Operand::BOOL_STRING);
     outputTypes_.push_back(Operand::RAW_DATA_STRING);
     outputTypes_.push_back(Operand::SLONG_WORD_STRING);
     outputTypes_.push_back(Operand::ULONG_WORD_STRING);

     operandTypes_.insert(operandPair(0, Operand::SINT_WORD));
     operandTypes_.insert(operandPair(1, Operand::UINT_WORD));
     operandTypes_.insert(operandPair(2, Operand::FLOAT_WORD));
     operandTypes_.insert(operandPair(3, Operand::DOUBLE_WORD));
     operandTypes_.insert(operandPair(4, Operand::HALF_FLOAT_WORD));
     operandTypes_.insert(operandPair(5, Operand::BOOL));
     operandTypes_.insert(operandPair(6, Operand::RAW_DATA));
     operandTypes_.insert(operandPair(7, Operand::SLONG_WORD));
     operandTypes_.insert(operandPair(8, Operand::ULONG_WORD));

     FindWindow(wxID_OK)->SetFocus();

     type_ = operand_->type();
     elemWidth_ = operand_->elementWidth();
     elemCount_ = operand_->elementCount();
     updateTypes();
     updateElementWidths();
     updateElementCounts();

     setTexts();
 }

References Operand::BOOL, Operand::BOOL_STRING, Operand::DOUBLE_WORD, Operand::DOUBLE_WORD_STRING, Operand::FLOAT_WORD, Operand::FLOAT_WORD_STRING, Operand::HALF_FLOAT_WORD, Operand::HALF_FLOAT_WORD_STRING, Operand::RAW_DATA, Operand::RAW_DATA_STRING, Operand::SINT_WORD, Operand::SINT_WORD_STRING, Operand::SLONG_WORD, Operand::SLONG_WORD_STRING, Operand::UINT_WORD, Operand::UINT_WORD_STRING, Operand::ULONG_WORD, and Operand::ULONG_WORD_STRING.

◆ ~OutputOperandDialog()

OutputOperandDialog::~OutputOperandDialog ( )

virtual

Destructor.

Definition at line 123 of file OutputOperandDialog.cc.

                                           {
     int x, y;
     GetPosition(&x, &y);
     wxPoint point(x, y);
     DialogPosition::setPosition(DialogPosition::DIALOG_OUTPUT_OPERAND, point);
 }

References DialogPosition::DIALOG_OUTPUT_OPERAND, and DialogPosition::setPosition().

Here is the call graph for this function:

◆ OutputOperandDialog() [2/2]

OutputOperandDialog::OutputOperandDialog ( const OutputOperandDialog & )

private

Copying not allowed.

Member Function Documentation

◆ createContents()

wxSizer * OutputOperandDialog::createContents	(	wxWindow *	parent,
		bool	call_fit,
		bool	set_sizer
	)

private

Creates the contents of the dialog.

NOTE! This function was generated by wxDesigner. This is why it may be ugly.

Parameters

parent	Parent window.
call_fit	If true fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Returns: The created sizer.

Definition at line 347 of file OutputOperandDialog.cc.

                     {

     wxBoxSizer *item0 = new wxBoxSizer(wxVERTICAL);

     wxBoxSizer *item1 = new wxBoxSizer(wxHORIZONTAL);

     wxString strs9[] =
         {
             wxT("id: 1")
         };

     // Choice for input operand types
     wxChoice *itemOutputTypes = new wxChoice(parent, ID_OPERATION_OUTPUT_TYPES, wxDefaultPosition, wxSize(100,-1), 1, strs9);
     item1->Add(itemOutputTypes, 0, wxALIGN_CENTER|wxALL, 5);

     wxStaticText *itemTextWidth = new wxStaticText(parent, ID_TEXT_WIDTH, wxT("Element width:"), wxDefaultPosition, wxDefaultSize, 0);
     item1->Add(itemTextWidth, 0, wxALIGN_CENTER|wxALL, 5);
     wxSpinCtrl *itemElemWidth = new wxSpinCtrl(parent, ID_ELEMENT_WIDTH, wxT(""), wxDefaultPosition, wxSize(-1,-1), 1);
     item1->Add(itemElemWidth, 0, wxALIGN_CENTER|wxALL, 5);
     wxStaticText *itemTextCount = new wxStaticText(parent, ID_TEXT_COUNT, wxT("Element count:"), wxDefaultPosition, wxDefaultSize, 0);
     item1->Add(itemTextCount, 0, wxALIGN_CENTER|wxALL, 5);
     wxChoice *itemElemCount = new wxChoice(parent, ID_ELEMENT_COUNT, wxDefaultPosition, wxSize(70,-1), 1, strs9);
     item1->Add(itemElemCount, 0, wxALIGN_CENTER|wxALL, 5);

     wxBoxSizer *item1b = new wxBoxSizer(wxHORIZONTAL);
     wxCheckBox *item3 = new wxCheckBox(parent, ID_MEM_DATA, wxT("Memory data"), wxDefaultPosition, wxDefaultSize, 0);
     item1b->Add(item3, 0, wxALIGN_CENTER|wxALL, 5);

     item0->Add(item1, 0, wxALIGN_CENTER|wxALL, 5);
     item0->Add(item1b, 0, wxALIGN_CENTER|wxALL, 5);

     wxBoxSizer *item4 = new wxBoxSizer(wxHORIZONTAL);

     wxButton *item5 = new wxButton(parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0);
     item4->Add(item5, 0, wxALIGN_CENTER|wxALL, 5);

     wxButton *item6 = new wxButton(parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0);
     item4->Add(item6, 0, wxALIGN_CENTER|wxALL, 5);

     item0->Add(item4, 0, wxALIGN_CENTER|wxALL, 5);

     if (set_sizer)
     {
         parent->SetSizer(item0);
         if (call_fit)
             item0->SetSizeHints(parent);
     }

     return item0;
 }

References ID_ELEMENT_COUNT, ID_ELEMENT_WIDTH, ID_MEM_DATA, ID_OPERATION_OUTPUT_TYPES, ID_TEXT_COUNT, and ID_TEXT_WIDTH.

◆ onElementCount()

void OutputOperandDialog::onElementCount ( wxCommandEvent & event )

private

Event handler for element count choice box.

Definition at line 159 of file OutputOperandDialog.cc.

                                                    {
     // get the current choice box value and convert it to integer
     int index = elementCountChoice_->GetSelection();
     wxString number = elementCountChoice_->GetString(index);
     long value;
     if(!number.ToLong(&value)) {
         elemCount_ = 1;
         return;
     }

     // save current choice
     elemCount_ = static_cast<int>(value);
     // update spin ctrl range
     updateElementWidths();
 }

References elemCount_, elementCountChoice_, and updateElementWidths().

Here is the call graph for this function:

◆ onElementWidth()

void OutputOperandDialog::onElementWidth ( wxSpinEvent & event )

private

Event handler for element width spin ctrl.

Definition at line 149 of file OutputOperandDialog.cc.

                                                 {
     elemWidth_ = elementWidthSpinCtrl_->GetValue();
     // update choice box list cells
     updateElementCounts();
 }

References elementWidthSpinCtrl_, elemWidth_, and updateElementCounts().

Here is the call graph for this function:

◆ onOk()

void OutputOperandDialog::onOk ( wxCommandEvent & event )

private

Handles the event when OK button is pushed.

Definition at line 279 of file OutputOperandDialog.cc.

                                          {
     TransferDataFromWindow();
     ObjectState* root = new ObjectState("");
     root->setAttribute(Operand::OPRND_ID, operand_->index());

     int selected = outputTypesComboBox_->GetSelection();
     Operand::OperandType type = operandTypes_[selected];

     switch(type)
     {
         case Operand::SINT_WORD:
             root->setAttribute(Operand::OPRND_TYPE, Operand::SINT_WORD_STRING);
             break;
         case Operand::UINT_WORD:
             root->setAttribute(Operand::OPRND_TYPE, Operand::UINT_WORD_STRING);
             break;
         case Operand::FLOAT_WORD:
             root->setAttribute(Operand::OPRND_TYPE, Operand::FLOAT_WORD_STRING);
             break;
         case Operand::DOUBLE_WORD:
             root->setAttribute(Operand::OPRND_TYPE, Operand::DOUBLE_WORD_STRING);
             break;
         case Operand::HALF_FLOAT_WORD:
             root->setAttribute(
                 Operand::OPRND_TYPE, Operand::HALF_FLOAT_WORD_STRING);
             break;
         case Operand::BOOL:
             root->setAttribute(Operand::OPRND_TYPE, Operand::BOOL_STRING);
             break;
         case Operand::RAW_DATA:
             root->setAttribute(Operand::OPRND_TYPE, Operand::RAW_DATA_STRING);
             break;
         case Operand::SLONG_WORD:
             root->setAttribute(
                 Operand::OPRND_TYPE, Operand::SLONG_WORD_STRING);
             break;
         case Operand::ULONG_WORD:
             root->setAttribute(
                 Operand::OPRND_TYPE, Operand::ULONG_WORD_STRING);
             break;
         default:
             root->setAttribute(Operand::OPRND_TYPE, Operand::SINT_WORD_STRING);
             break;
     }

     root->setAttribute(Operand::OPRND_ELEM_WIDTH, elemWidth_);
     root->setAttribute(Operand::OPRND_ELEM_COUNT, elemCount_);

     root->setAttribute(Operand::OPRND_MEM_ADDRESS, false);
     root->setAttribute(Operand::OPRND_MEM_DATA, memData_);

     operand_->loadState(root);
     delete root;
     EndModal(wxID_OK);
 }

References Operand::BOOL, Operand::BOOL_STRING, Operand::DOUBLE_WORD, Operand::DOUBLE_WORD_STRING, elemCount_, elemWidth_, Operand::FLOAT_WORD, Operand::FLOAT_WORD_STRING, Operand::HALF_FLOAT_WORD, Operand::HALF_FLOAT_WORD_STRING, Operand::index(), Operand::loadState(), memData_, operand_, operandTypes_, Operand::OPRND_ELEM_COUNT, Operand::OPRND_ELEM_WIDTH, Operand::OPRND_ID, Operand::OPRND_MEM_ADDRESS, Operand::OPRND_MEM_DATA, Operand::OPRND_TYPE, outputTypesComboBox_, Operand::RAW_DATA, Operand::RAW_DATA_STRING, ObjectState::setAttribute(), Operand::SINT_WORD, Operand::SINT_WORD_STRING, Operand::SLONG_WORD, Operand::SLONG_WORD_STRING, Operand::UINT_WORD, Operand::UINT_WORD_STRING, Operand::ULONG_WORD, and Operand::ULONG_WORD_STRING.

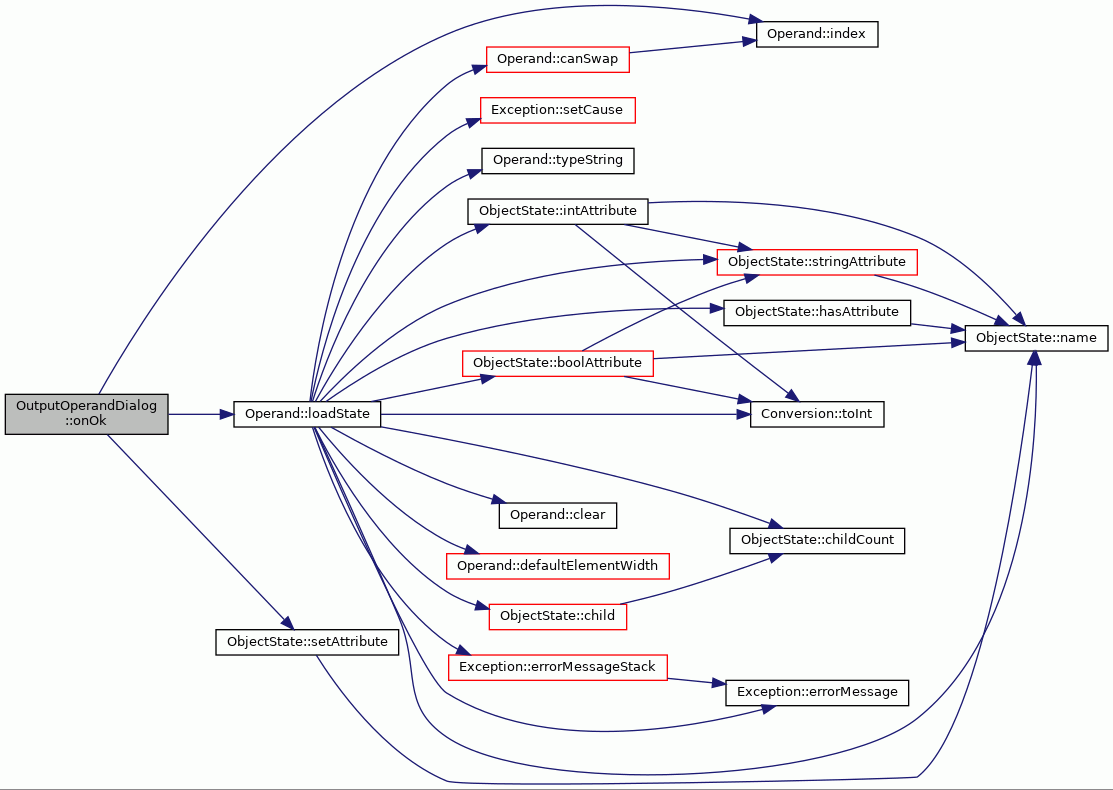

Here is the call graph for this function:

◆ onType()

void OutputOperandDialog::onType ( wxCommandEvent & event )

private

Event handler for operand type choice box.

Definition at line 134 of file OutputOperandDialog.cc.

                                            {

     type_ = outputTypesComboBox_->GetSelection();

     Operand::OperandType operType = static_cast<Operand::OperandType>(type_);
     elemWidth_ = Operand::defaultElementWidth(operType);
     elemCount_ = 1;
     updateElementWidths();
     updateElementCounts();
 }

References Operand::defaultElementWidth(), elemCount_, elemWidth_, outputTypesComboBox_, type_, updateElementCounts(), and updateElementWidths().

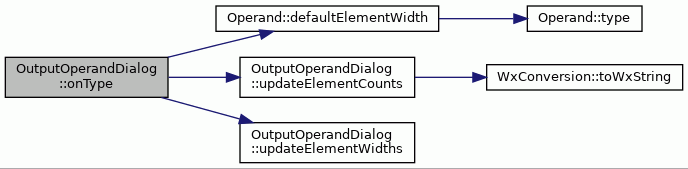

Here is the call graph for this function:

◆ operator=()

OutputOperandDialog& OutputOperandDialog::operator= ( const OutputOperandDialog & )

private

Assignment not allowed.

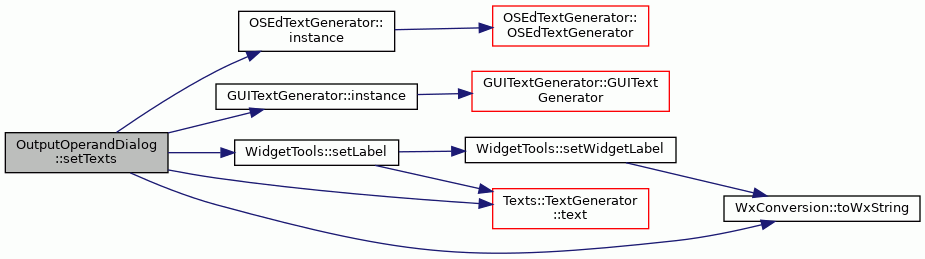

◆ setTexts()

void OutputOperandDialog::setTexts ( )

private

Set texts to widgets.

Definition at line 252 of file OutputOperandDialog.cc.

                               {

     GUITextGenerator& guiText = *GUITextGenerator::instance();
     OSEdTextGenerator& osedText = OSEdTextGenerator::instance();

     // title
     format fmt =
         osedText.text(OSEdTextGenerator::TXT_OUTPUT_OPERAND_DIALOG_TITLE);
     fmt % index_;
     SetTitle(WxConversion::toWxString(fmt.str()));

     // buttons
     WidgetTools::setLabel(&guiText, FindWindow(wxID_OK),
                           GUITextGenerator::TXT_BUTTON_OK);

     WidgetTools::setLabel(&guiText, FindWindow(wxID_CANCEL),
                           GUITextGenerator::TXT_BUTTON_CANCEL);

     // check boxes
     WidgetTools::setLabel(&osedText, FindWindow(ID_MEM_DATA),
                           OSEdTextGenerator::TXT_CHECKBOX_MEM_DATA);
 }

References ID_MEM_DATA, index_, OSEdTextGenerator::instance(), GUITextGenerator::instance(), WidgetTools::setLabel(), Texts::TextGenerator::text(), WxConversion::toWxString(), GUITextGenerator::TXT_BUTTON_CANCEL, GUITextGenerator::TXT_BUTTON_OK, OSEdTextGenerator::TXT_CHECKBOX_MEM_DATA, and OSEdTextGenerator::TXT_OUTPUT_OPERAND_DIALOG_TITLE.

Here is the call graph for this function:

◆ updateElementCounts()

void OutputOperandDialog::updateElementCounts ( )

private

Updates the element count choice box list.

Definition at line 230 of file OutputOperandDialog.cc.

                                          {

     elementCountChoice_->Clear();

     // update the list so that only shorter or equal than SIMD_WORD_WIDTH
     // width*count combinations are listed
     int elemCount = 1;
     int elemCountIndex = 0;
     while (elemCount*elemWidth_ <= SIMD_WORD_WIDTH) {
         if (elemCount < elemCount_) {
             ++elemCountIndex;
         }
         elementCountChoice_->Append(WxConversion::toWxString(elemCount));
         elemCount *= 2;
     }
     elementCountChoice_->SetSelection(elemCountIndex);
 }

References elemCount_, elementCountChoice_, elemWidth_, SIMD_WORD_WIDTH, and WxConversion::toWxString().

Referenced by onElementWidth(), and onType().

Here is the call graph for this function:

◆ updateElementWidths()

void OutputOperandDialog::updateElementWidths ( )

private

Updates the element width choice box list.

Definition at line 196 of file OutputOperandDialog.cc.

                                          {

     Operand::OperandType operType = static_cast<Operand::OperandType>(type_);

     if (operType == Operand::RAW_DATA) {
         // element width for raw data can be arbitrary up to the max width
         int elemWidth = 1;
         int lastValidWidth = 1;
         while (elemCount_*elemWidth <= SIMD_WORD_WIDTH) {
             lastValidWidth = elemWidth;
             elemWidth *= 2;
         }

         // degrade current element width if it is too big
         if (elemWidth_ > lastValidWidth) {
             elemWidth_ = lastValidWidth;
         }
         elementWidthSpinCtrl_->SetRange(1, lastValidWidth);
         elementWidthSpinCtrl_->SetValue(elemWidth_);
     } else if (operType == Operand::SINT_WORD || operType == Operand::UINT_WORD) {
         // element width for integers is 8 to 32
         elementWidthSpinCtrl_->SetRange(8, 32);
         elementWidthSpinCtrl_->SetValue(elemWidth_);
     } else {
         // element width for other types is their default type width
         elementWidthSpinCtrl_->SetRange(elemWidth_, elemWidth_);
         elementWidthSpinCtrl_->SetValue(elemWidth_);
     }
 }

References elemCount_, elementWidthSpinCtrl_, elemWidth_, Operand::RAW_DATA, SIMD_WORD_WIDTH, Operand::SINT_WORD, type_, and Operand::UINT_WORD.

Referenced by onElementCount(), and onType().

◆ updateTypes()

void OutputOperandDialog::updateTypes ( )

private

Updates the type lists.

Definition at line 179 of file OutputOperandDialog.cc.

                                  {

     outputTypesComboBox_->Clear();

     for (unsigned int i = 0; i < outputTypes_.size(); i++) {
         wxString oper = WxConversion::toWxString(outputTypes_.at(i));
         outputTypesComboBox_->Append(oper);
     }

     outputTypesComboBox_->SetSelection(type_);

 }

References outputTypes_, outputTypesComboBox_, WxConversion::toWxString(), and type_.

Here is the call graph for this function:

Member Data Documentation

◆ elemCount_

int OutputOperandDialog::elemCount_

private

Current element count in choice box.

Definition at line 100 of file OutputOperandDialog.hh.

Referenced by onElementCount(), onOk(), onType(), updateElementCounts(), and updateElementWidths().

◆ elementCountChoice_

wxChoice* OutputOperandDialog::elementCountChoice_

private

Choice box for operand element count.

Definition at line 94 of file OutputOperandDialog.hh.

Referenced by onElementCount(), and updateElementCounts().

◆ elementWidthSpinCtrl_

wxSpinCtrl* OutputOperandDialog::elementWidthSpinCtrl_

private

Spin ctrl for operand element width.

Definition at line 92 of file OutputOperandDialog.hh.

Referenced by onElementWidth(), and updateElementWidths().

◆ elemWidth_

int OutputOperandDialog::elemWidth_

private

Current element width in choice box.

Definition at line 98 of file OutputOperandDialog.hh.

Referenced by onElementWidth(), onOk(), onType(), updateElementCounts(), and updateElementWidths().

◆ index_

int OutputOperandDialog::index_

private

Index of the operand.

Definition at line 88 of file OutputOperandDialog.hh.

Referenced by setTexts().

◆ memData_

bool OutputOperandDialog::memData_

private

Flag indicating whether operand is memory data or not.

Definition at line 86 of file OutputOperandDialog.hh.

Referenced by onOk().

◆ operand_

Operand* OutputOperandDialog::operand_

private

Operand to be modified.

Definition at line 84 of file OutputOperandDialog.hh.

Referenced by onOk().

◆ operandTypes_

operandList OutputOperandDialog::operandTypes_

private

Definition at line 104 of file OutputOperandDialog.hh.

Referenced by onOk().

◆ outputTypes_

std::vector<std::string> OutputOperandDialog::outputTypes_

private

Output types.

Definition at line 103 of file OutputOperandDialog.hh.

Referenced by updateTypes().

◆ outputTypesComboBox_

wxChoice* OutputOperandDialog::outputTypesComboBox_

private

Choice box for operation input types.

Definition at line 90 of file OutputOperandDialog.hh.

Referenced by onOk(), onType(), and updateTypes().

◆ type_

int OutputOperandDialog::type_

private

Current operand type in choice box.

Definition at line 96 of file OutputOperandDialog.hh.

Referenced by onType(), updateElementWidths(), and updateTypes().

The documentation for this class was generated from the following files:

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ OutputOperandDialog() [1/2]

◆ ~OutputOperandDialog()

◆ OutputOperandDialog() [2/2]

Member Function Documentation

◆ createContents()

◆ onElementCount()

◆ onElementWidth()

◆ onOk()

◆ onType()

◆ operator=()

◆ setTexts()

◆ updateElementCounts()

◆ updateElementWidths()

◆ updateTypes()

Member Data Documentation

◆ elemCount_

◆ elementCountChoice_

◆ elementWidthSpinCtrl_

◆ elemWidth_

◆ index_

◆ memData_

◆ operand_

◆ operandTypes_

◆ outputTypes_

◆ outputTypesComboBox_

◆ type_
