#include <ProximDisassemblyWindow.hh>

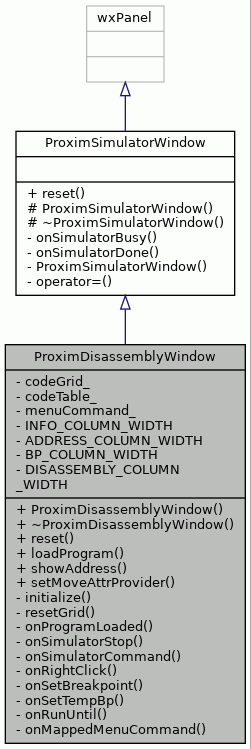

Inheritance diagram for ProximDisassemblyWindow:

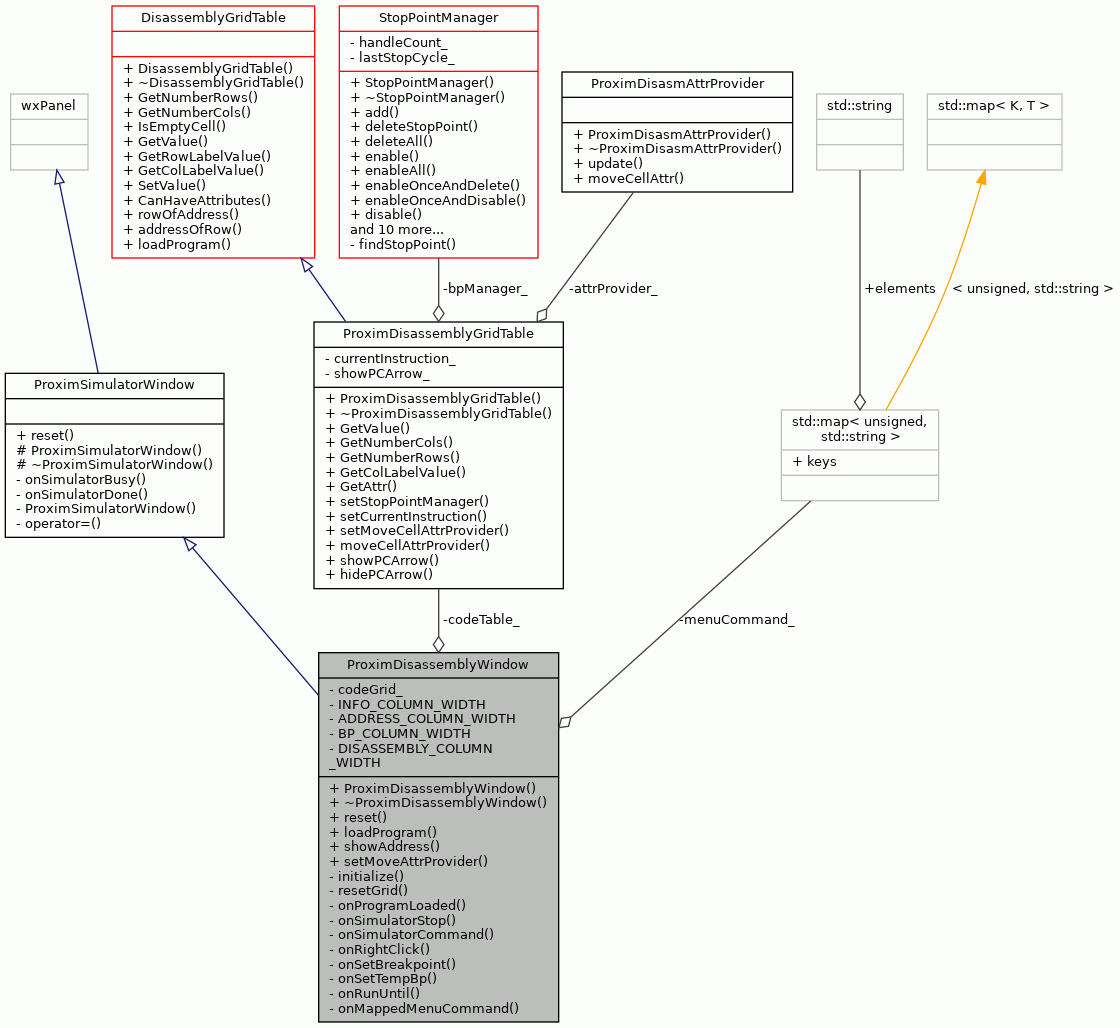

Collaboration diagram for ProximDisassemblyWindow:

Public Member Functions
	ProximDisassemblyWindow (ProximMainFrame *parent, int id)

virtual	~ProximDisassemblyWindow ()

virtual void	reset ()

void	loadProgram (const TTAProgram::Program &program)

void	showAddress (unsigned address)

void	setMoveAttrProvider (ProximDisasmAttrProvider *attrProvider)

Private Types
enum	{ MENU_ID_SET_BP = 10000 , MENU_ID_SET_TEMP_BP , MENU_ID_RUN_UNTIL , MENU_ID_FIRST_MAPPED }
	Context menu command IDs. More...

Private Member Functions
void	initialize ()

void	resetGrid ()

void	onProgramLoaded (const SimulatorEvent &event)

void	onSimulatorStop (const SimulatorEvent &event)

void	onSimulatorCommand (SimulatorEvent &event)

void	onRightClick (wxGridEvent &event)

void	onSetBreakpoint (wxCommandEvent &event)

void	onSetTempBp (wxCommandEvent &event)

void	onRunUntil (wxCommandEvent &event)

void	onMappedMenuCommand (wxCommandEvent &event)

Private Attributes
wxGrid *	codeGrid_
	The grid disapleying the disassembly.

ProximDisassemblyGridTable *	codeTable_
	Grid table which handles on-the-fly disassembly of the loaded program.

std::map< unsigned, std::string >	menuCommand_
	A map which contains command strings for context menu items.

Static Private Attributes
static const unsigned	INFO_COLUMN_WIDTH = 30
	Width of the column displaying the arrow pointign current instruction.

static const unsigned	ADDRESS_COLUMN_WIDTH = 60
	Width of the instruction address column.

static const unsigned	BP_COLUMN_WIDTH = 80
	Width of the breakpoint info column.

static const unsigned	DISASSEMBLY_COLUMN_WIDTH = 400
	Width of the instruction disassembly column.

Additional Inherited Members
Protected Member Functions inherited from ProximSimulatorWindow
	ProximSimulatorWindow (ProximMainFrame *mainFrame, wxWindowID id=-1, wxPoint pos=wxDefaultPosition, wxSize size=wxDefaultSize, long style=wxTAB_TRAVERSAL)

virtual	~ProximSimulatorWindow ()

Detailed Description

A window which can be utilized to display disassembly of a program object model.

This class listens to SimulatorEvents and updates the window information automatically.

Definition at line 58 of file ProximDisassemblyWindow.hh.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Context menu command IDs.

Enumerator
MENU_ID_SET_BP
MENU_ID_SET_TEMP_BP
MENU_ID_RUN_UNTIL
MENU_ID_FIRST_MAPPED

Definition at line 97 of file ProximDisassemblyWindow.hh.

         {
    MENU_ID_SET_BP = 10000,
        MENU_ID_SET_TEMP_BP,
        MENU_ID_RUN_UNTIL,
    MENU_ID_FIRST_MAPPED // Keep this as the last menu item.
    };

Constructor & Destructor Documentation

◆ ProximDisassemblyWindow()

ProximDisassemblyWindow::ProximDisassemblyWindow	(	ProximMainFrame *	parent,
		int	id
	)

Constructor.

Parameters

parent	Parent window of the window.
id	Window identifier.

Definition at line 84 of file ProximDisassemblyWindow.cc.

                                    :
    ProximSimulatorWindow(parent, id),
    codeGrid_(NULL),
    codeTable_(NULL) {

    initialize();
}

◆ ~ProximDisassemblyWindow()

ProximDisassemblyWindow::~ProximDisassemblyWindow ( )

virtual

Destructor.

Definition at line 97 of file ProximDisassemblyWindow.cc.

97 {

98}

Member Function Documentation

◆ initialize()

void ProximDisassemblyWindow::initialize ( )

private

Creates the window contents.

Definition at line 105 of file ProximDisassemblyWindow.cc.

                                    {

    wxBoxSizer* sizer = new wxBoxSizer(wxVERTICAL);
    SetSizer(sizer);
}

◆ loadProgram()

void ProximDisassemblyWindow::loadProgram ( const TTAProgram::Program & program )

Loads a program model to the window.

Parameters

program Program to load.

Definition at line 179 of file ProximDisassemblyWindow.cc.

                                                           {
    assert(codeTable_ == NULL);
    codeTable_ = new ProximDisassemblyGridTable();

    codeTable_->loadProgram(program);
    resetGrid();
    codeTable_->setCurrentInstruction(0);
    codeTable_->showPCArrow();
    StopPointManager& bpManager =
        ProximToolbox::frontend()->stopPointManager();
    codeTable_->setStopPointManager(bpManager);
}

References assert, codeTable_, ProximToolbox::frontend(), DisassemblyGridTable::loadProgram(), program, resetGrid(), ProximDisassemblyGridTable::setCurrentInstruction(), ProximDisassemblyGridTable::setStopPointManager(), ProximDisassemblyGridTable::showPCArrow(), and SimulatorFrontend::stopPointManager().

Referenced by onProgramLoaded().

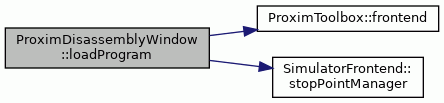

Here is the call graph for this function:

◆ onMappedMenuCommand()

void ProximDisassemblyWindow::onMappedMenuCommand ( wxCommandEvent & event )

private

Event handler for breakpoint submenus of the context menu.

Parameters

event Menu event to handle.

Definition at line 373 of file ProximDisassemblyWindow.cc.

                                                                  {

    if (!AssocTools::containsKey(menuCommand_, event.GetId())) {
    // Menu item ID doesn't have command associated, the event is skipped.
    event.Skip();
    }

    string command = menuCommand_[event.GetId()];
    wxGetApp().simulation()->lineReader().input(command);
}

References AssocTools::containsKey(), and menuCommand_.

Here is the call graph for this function:

◆ onProgramLoaded()

void ProximDisassemblyWindow::onProgramLoaded ( const SimulatorEvent & event )

private

Updates disassembly window when a program is loaded to the simulator.

Definition at line 198 of file ProximDisassemblyWindow.cc.

                                                              {
    loadProgram(ProximToolbox::program());
}

References loadProgram(), and ProximToolbox::program().

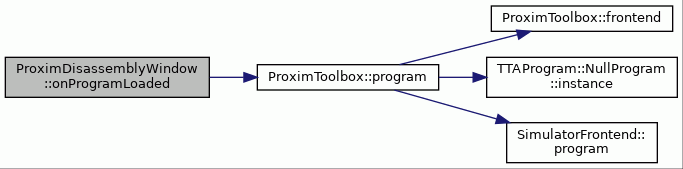

Here is the call graph for this function:

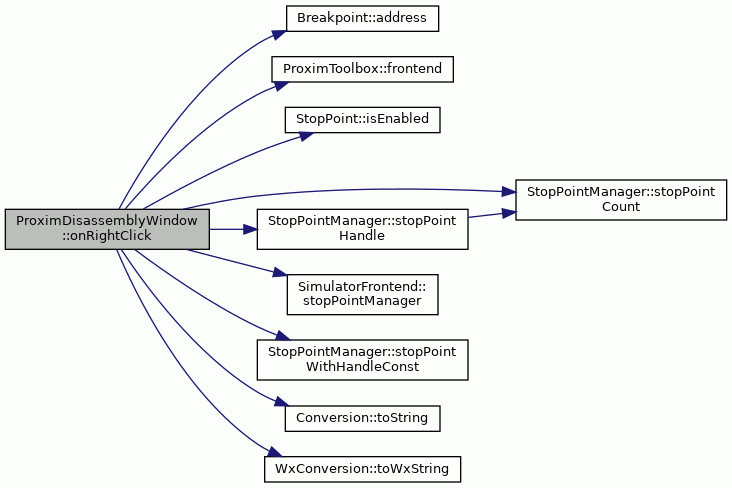

◆ onRightClick()

void ProximDisassemblyWindow::onRightClick ( wxGridEvent & event )

private

Handles RMB clicks on the disassembly window.

A context menu is displayed at the cursor location.

Definition at line 209 of file ProximDisassemblyWindow.cc.

                                                        {

    codeGrid_->SelectRow(event.GetRow());

    wxMenu* contextMenu = new wxMenu();
    Word address = codeTable_->addressOfRow(event.GetRow());
    contextMenu->Append(MENU_ID_SET_BP, _T("Set breakpoint"));
    contextMenu->Append(
        MENU_ID_SET_TEMP_BP, _T("Set temporary breakpoint"));

    contextMenu->AppendSeparator();
    contextMenu->Append(MENU_ID_RUN_UNTIL, _T("Run until"));
    contextMenu->AppendSeparator();

    menuCommand_.clear();

    StopPointManager& bpManager =
        ProximToolbox::frontend()->stopPointManager();

    // Create submenu for each breakpoint at the selected line.
    unsigned itemID = MENU_ID_FIRST_MAPPED;
    for (unsigned i = 0; i < bpManager.stopPointCount(); i++) {

    unsigned handle = bpManager.stopPointHandle(i);
    const Breakpoint* bp = dynamic_cast<const Breakpoint*>(
                &bpManager.stopPointWithHandleConst(handle));

        if (bp != NULL) {
            unsigned bpAddress = bp->address();
            if (bpAddress == address) {

                wxMenu* bpSubMenu = new wxMenu();
                string handleStr = Conversion::toString(handle);

                // Info menuitem.
                menuCommand_[itemID] = "info breakpoints " + handleStr;
                wxString infoLabel = _T("info");
                bpSubMenu->Append(itemID, infoLabel);
                itemID++;


                // Delete menuitem.
                menuCommand_[itemID] = "deletebp " + handleStr;
                wxString deleteLabel = _T("delete");
                bpSubMenu->Append(itemID, deleteLabel);
                itemID++;

                // Enable/disable menuitem.
                if (bp->isEnabled()) {
                    menuCommand_[itemID] =
                        "disablebp " + handleStr;
                    wxString disableLabel = _T("disable");
                    bpSubMenu->Append(itemID, disableLabel);
                } else {
                    menuCommand_[itemID] =
                        "enablebp " + handleStr;
                    wxString enableLabel = _T("enable");
                    bpSubMenu->Append(itemID, enableLabel);
                }
                itemID++;
                wxString menuLabel =
                    _T("breakpoint ") + WxConversion::toWxString(handle);

                contextMenu->Append(0, menuLabel, bpSubMenu);
            }
        }
    }

    PopupMenu(contextMenu, event.GetPosition());
}

References Breakpoint::address(), DisassemblyGridTable::addressOfRow(), codeGrid_, codeTable_, ProximToolbox::frontend(), StopPoint::isEnabled(), MENU_ID_FIRST_MAPPED, MENU_ID_RUN_UNTIL, MENU_ID_SET_BP, MENU_ID_SET_TEMP_BP, menuCommand_, StopPointManager::stopPointCount(), StopPointManager::stopPointHandle(), SimulatorFrontend::stopPointManager(), StopPointManager::stopPointWithHandleConst(), Conversion::toString(), and WxConversion::toWxString().

Here is the call graph for this function:

◆ onRunUntil()

void ProximDisassemblyWindow::onRunUntil ( wxCommandEvent & event )

private

Handles the context menu "run until" clicks.

Definition at line 314 of file ProximDisassemblyWindow.cc.

                                                   {
    unsigned address =
        codeTable_->addressOfRow(codeGrid_->GetSelectedRows().Item(0));
    string command = ProximConstants::SCL_RUN_UNTIL + " " +
        Conversion::toString(address);

    wxGetApp().simulation()->lineReader().input(command);
}

References DisassemblyGridTable::addressOfRow(), codeGrid_, codeTable_, ProximConstants::SCL_RUN_UNTIL, and Conversion::toString().

Here is the call graph for this function:

◆ onSetBreakpoint()

void ProximDisassemblyWindow::onSetBreakpoint ( wxCommandEvent & event )

private

Handles the event of adding new breakpoint with the context menu.

Definition at line 286 of file ProximDisassemblyWindow.cc.

                                                        {
    unsigned address =
        codeTable_->addressOfRow(codeGrid_->GetSelectedRows().Item(0));
    string command = ProximConstants::SCL_SET_BREAKPOINT + " " +
        Conversion::toString(address);

    wxGetApp().simulation()->lineReader().input(command);
}

References DisassemblyGridTable::addressOfRow(), codeGrid_, codeTable_, ProximConstants::SCL_SET_BREAKPOINT, and Conversion::toString().

Here is the call graph for this function:

◆ onSetTempBp()

void ProximDisassemblyWindow::onSetTempBp ( wxCommandEvent & event )

private

Handles the event of adding new temporary breakpoint with the context menu.

Definition at line 300 of file ProximDisassemblyWindow.cc.

                                                    {
    unsigned address =
        codeTable_->addressOfRow(codeGrid_->GetSelectedRows().Item(0));
    string command = ProximConstants::SCL_SET_TEMP_BP + " " +
        Conversion::toString(address);

    wxGetApp().simulation()->lineReader().input(command);
}

References DisassemblyGridTable::addressOfRow(), codeGrid_, codeTable_, ProximConstants::SCL_SET_TEMP_BP, and Conversion::toString().

Here is the call graph for this function:

◆ onSimulatorCommand()

void ProximDisassemblyWindow::onSimulatorCommand ( SimulatorEvent & event )

private

Updates the disassembly window when a command is executed.

Parameters

event Event of a command execution.

Definition at line 346 of file ProximDisassemblyWindow.cc.

                                                                 {
    if (codeGrid_ != NULL) {
        codeGrid_->ForceRefresh();
    }
    event.Skip();
}

References codeGrid_.

◆ onSimulatorStop()

void ProximDisassemblyWindow::onSimulatorStop ( const SimulatorEvent & event )

private

Updates the arrow displaying the current instruction when the simulation stops.

Definition at line 328 of file ProximDisassemblyWindow.cc.

                                                              {
    Word pc = wxGetApp().simulation()->frontend()->programCounter();
    if (codeTable_->moveCellAttrProvider() != NULL) {
        codeTable_->moveCellAttrProvider()->update();
    }
    codeTable_->setCurrentInstruction(pc);
    codeGrid_->SelectRow(pc);
    codeGrid_->MakeCellVisible(pc, 1);
    codeGrid_->ForceRefresh();
}

References codeGrid_, codeTable_, ProximDisassemblyGridTable::moveCellAttrProvider(), ProximDisassemblyGridTable::setCurrentInstruction(), and ProximDisasmAttrProvider::update().

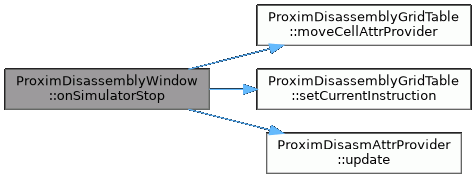

Here is the call graph for this function:

◆ reset()

void ProximDisassemblyWindow::reset ( )

virtual

Called when the simulator program, machine and memory models are deleted.

Reimplemented from ProximSimulatorWindow.

Definition at line 155 of file ProximDisassemblyWindow.cc.

                               {

    wxSizer* sizer = GetSizer();

    if (codeGrid_ != NULL) {
        sizer->Detach(codeGrid_);
        sizer->Layout();
        codeGrid_->Destroy();
        codeGrid_ = NULL;
    }

    if (codeTable_ != NULL) {
        delete codeTable_;
        codeTable_ = NULL;
    }
}

References codeGrid_, and codeTable_.

◆ resetGrid()

void ProximDisassemblyWindow::resetGrid ( )

private

Resets the grid. This function has to be called if a new program is loaded to the window.

Definition at line 117 of file ProximDisassemblyWindow.cc.

                                   {

    wxSizer* sizer = GetSizer();

    if (codeGrid_ != NULL) {
        sizer->Detach(codeGrid_);
        sizer->Layout();
        codeGrid_->Destroy();
    }

    codeGrid_ = new wxGrid(this, -1, wxDefaultPosition, wxDefaultSize);
    codeGrid_->SetTable(codeTable_);

    codeGrid_->EnableEditing(false);
    codeGrid_->DisableCellEditControl();
    codeGrid_->SetSelectionMode(wxGrid::wxGridSelectRows);
    codeGrid_->DisableDragGridSize();
    codeGrid_->DisableDragRowSize();
    codeGrid_->EnableGridLines(false);
    codeGrid_->SetDefaultColSize(200);

    codeGrid_->SetColSize(0, 100);
    codeGrid_->SetColSize(1, 80);

    codeGrid_->SetDefaultCellFont(*wxSMALL_FONT);
    codeGrid_->SetGridCursor(0, 0);

    sizer->Add(codeGrid_, 1, wxGROW);

    Layout();
}

References codeGrid_, and codeTable_.

Referenced by loadProgram().

◆ setMoveAttrProvider()

void ProximDisassemblyWindow::setMoveAttrProvider ( ProximDisasmAttrProvider * attrProvider )

Sets the move cell attribute provider.

Parameters

attrProvider New attribute provider.

Definition at line 391 of file ProximDisassemblyWindow.cc.

                                            {

    codeTable_->setMoveCellAttrProvider(attrProvider);
}

References codeTable_, and ProximDisassemblyGridTable::setMoveCellAttrProvider().

Referenced by ClearDisassemblyHighlightCmd::Do(), HighlightExecPercentageCmd::Do(), and HighlightTopExecCountsCmd::Do().

Here is the call graph for this function:

◆ showAddress()

void ProximDisassemblyWindow::showAddress ( unsigned address )

Selects the instruction at given address.

Parameters

address Address of the isntruction to show.

Definition at line 359 of file ProximDisassemblyWindow.cc.

                                                     {
    unsigned row = codeTable_->rowOfAddress(address);
    codeGrid_->SelectRow(row);
    codeGrid_->MakeCellVisible(row, 0);

}

References codeGrid_, codeTable_, and DisassemblyGridTable::rowOfAddress().

Referenced by ProximBreakpointWindow::onBreakpointLookup(), FindWindow::onFindNext(), FindWindow::onFindPrev(), FindWindow::onInputText(), and DisasmExecCountFrame::onSelection().

Here is the call graph for this function:

Member Data Documentation

◆ ADDRESS_COLUMN_WIDTH

const unsigned ProximDisassemblyWindow::ADDRESS_COLUMN_WIDTH = 60

staticprivate

Width of the instruction address column.

Definition at line 90 of file ProximDisassemblyWindow.hh.

◆ BP_COLUMN_WIDTH

const unsigned ProximDisassemblyWindow::BP_COLUMN_WIDTH = 80

staticprivate

Width of the breakpoint info column.

Definition at line 92 of file ProximDisassemblyWindow.hh.

◆ codeGrid_

wxGrid* ProximDisassemblyWindow::codeGrid_

private

The grid disapleying the disassembly.

Definition at line 80 of file ProximDisassemblyWindow.hh.

Referenced by onRightClick(), onRunUntil(), onSetBreakpoint(), onSetTempBp(), onSimulatorCommand(), onSimulatorStop(), reset(), resetGrid(), and showAddress().

◆ codeTable_

ProximDisassemblyGridTable* ProximDisassemblyWindow::codeTable_

private

Grid table which handles on-the-fly disassembly of the loaded program.

Definition at line 82 of file ProximDisassemblyWindow.hh.

Referenced by loadProgram(), onRightClick(), onRunUntil(), onSetBreakpoint(), onSetTempBp(), onSimulatorStop(), reset(), resetGrid(), setMoveAttrProvider(), and showAddress().

◆ DISASSEMBLY_COLUMN_WIDTH

const unsigned ProximDisassemblyWindow::DISASSEMBLY_COLUMN_WIDTH = 400

staticprivate

Width of the instruction disassembly column.

Definition at line 94 of file ProximDisassemblyWindow.hh.

◆ INFO_COLUMN_WIDTH

const unsigned ProximDisassemblyWindow::INFO_COLUMN_WIDTH = 30

staticprivate

Width of the column displaying the arrow pointign current instruction.

Definition at line 88 of file ProximDisassemblyWindow.hh.

◆ menuCommand_

std::map<unsigned, std::string> ProximDisassemblyWindow::menuCommand_

private

A map which contains command strings for context menu items.

Definition at line 85 of file ProximDisassemblyWindow.hh.

Referenced by onMappedMenuCommand(), and onRightClick().

The documentation for this class was generated from the following files:

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ ProximDisassemblyWindow()

◆ ~ProximDisassemblyWindow()

Member Function Documentation

◆ initialize()

◆ loadProgram()

◆ onMappedMenuCommand()

◆ onProgramLoaded()

◆ onRightClick()

◆ onRunUntil()

◆ onSetBreakpoint()

◆ onSetTempBp()

◆ onSimulatorCommand()

◆ onSimulatorStop()

◆ reset()

◆ resetGrid()

◆ setMoveAttrProvider()

◆ showAddress()

Member Data Documentation

◆ ADDRESS_COLUMN_WIDTH

◆ BP_COLUMN_WIDTH

◆ codeGrid_

◆ codeTable_

◆ DISASSEMBLY_COLUMN_WIDTH

◆ INFO_COLUMN_WIDTH

◆ menuCommand_
