SocketDialog Class Reference

#include <SocketDialog.hh>

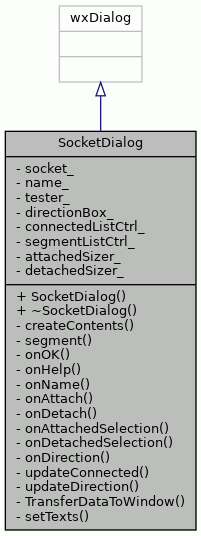

Inheritance diagram for SocketDialog:

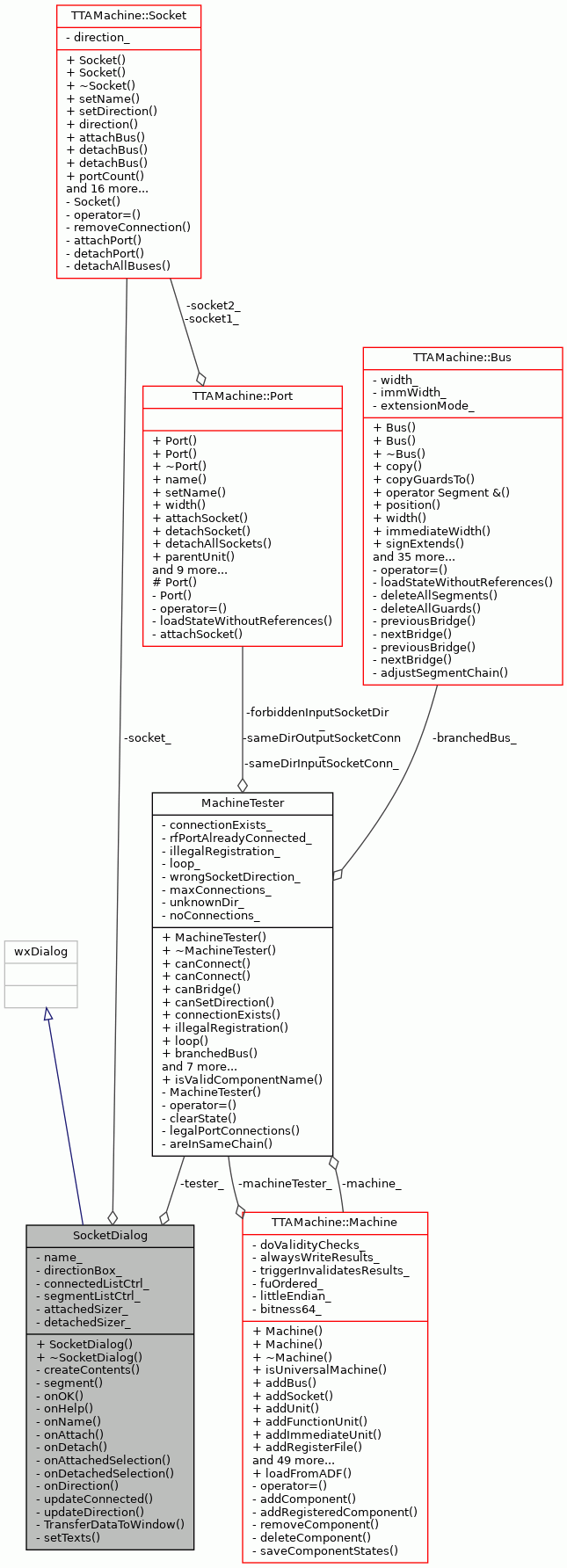

Collaboration diagram for SocketDialog:

Public Member Functions
	SocketDialog (wxWindow *parent, TTAMachine::Socket *socket)
virtual	~SocketDialog ()

Private Types
enum	{   ID_NAME = 10000 , ID_ATTACHED_LIST , ID_DETACHED_LIST , ID_ATTACH ,   ID_DETACH , ID_HELP , ID_DIRECTION , ID_LABEL_NAME ,   ID_LINE }

Private Member Functions
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
TTAMachine::Segment *	segment (wxListCtrl *listCtrl, int index)
void	onOK (wxCommandEvent &)
void	onHelp (wxCommandEvent &event)
void	onName (wxCommandEvent &)
void	onAttach (wxCommandEvent &)
void	onDetach (wxCommandEvent &)
void	onAttachedSelection (wxListEvent &)
void	onDetachedSelection (wxListEvent &)
void	onDirection (wxCommandEvent &)
void	updateConnected ()
void	updateDirection ()
virtual bool	TransferDataToWindow ()
void	setTexts ()

Private Attributes
TTAMachine::Socket *	socket_
	Socket to modify.
wxString	name_
	Name of the socket.
MachineTester *	tester_
	MachineTester which does sanity checks for the target machine.
wxRadioBox *	directionBox_
	Radio box for direction.
wxListCtrl *	connectedListCtrl_
	List control for connected (bus, segment) pairs.
wxListCtrl *	segmentListCtrl_
	List control for all (bus, segment) pairs.
wxStaticBoxSizer *	attachedSizer_
	Static boxsizer containing the list of attached buses.
wxStaticBoxSizer *	detachedSizer_
	Static boxsizer containing the list of detached buses.

Detailed Description

Dialog for modifying socket attributes.

Definition at line 50 of file SocketDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_NAME
ID_ATTACHED_LIST
ID_DETACHED_LIST
ID_ATTACH
ID_DETACH
ID_HELP
ID_DIRECTION
ID_LABEL_NAME
ID_LINE

Definition at line 88 of file SocketDialog.hh.

         {
        ID_NAME = 10000,
        ID_ATTACHED_LIST,
        ID_DETACHED_LIST,
        ID_ATTACH,
        ID_DETACH,
        ID_HELP,
        ID_DIRECTION,
        ID_LABEL_NAME,
        ID_LINE
    };

Constructor & Destructor Documentation

SocketDialog()

SocketDialog::SocketDialog	(	wxWindow *	parent,
		TTAMachine::Socket *	socket
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
socket	Socket to be modified with the dialog.

Definition at line 90 of file SocketDialog.cc.

                   :
    wxDialog(parent, -1, _T(""), wxDefaultPosition),
    socket_(socket),
    directionBox_(NULL),
    connectedListCtrl_(NULL),
    segmentListCtrl_(NULL),
    attachedSizer_(NULL),
    detachedSizer_(NULL) {

    createContents(this, true, true);
    tester_ = new MachineTester(*socket_->machine());

    name_ = WxConversion::toWxString(socket_->name());

    FindWindow(wxID_OK)->Disable();
    FindWindow(ID_ATTACH)->Disable();
    FindWindow(ID_DETACH)->Disable();

    // Set widget pointers.
    directionBox_ = dynamic_cast<wxRadioBox*>(FindWindow(ID_DIRECTION));
    connectedListCtrl_ =
        dynamic_cast<wxListCtrl*>(FindWindow(ID_ATTACHED_LIST));
    segmentListCtrl_ =
        dynamic_cast<wxListCtrl*>(FindWindow(ID_DETACHED_LIST));

    // Set widget validators.
    FindWindow(ID_NAME)->SetValidator(wxTextValidator(wxFILTER_ASCII, &name_));

    // sets labels for widgets
    setTexts();

    TransferDataToWindow();
}

References WxConversion::toWxString().

Here is the call graph for this function:

~SocketDialog()

SocketDialog::~SocketDialog ( )

virtual

The Destructor.

Definition at line 130 of file SocketDialog.cc.

                            {
    delete tester_;
}

References tester_.

Member Function Documentation

createContents()

wxSizer * SocketDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog window contents.

This method was initially generated with wxDesigner, code will be cleaned up later.

Returns

Main sizer of the created contents.

Parameters

parent	The dialog window.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Definition at line 567 of file SocketDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxGridSizer *item1 = new wxGridSizer( 2, 0, 0 );

    wxBoxSizer *item2 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item3 = new wxStaticText( parent, ID_LABEL_NAME, wxT("Name:"), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );

    wxTextCtrl *item4 = new wxTextCtrl( parent, ID_NAME, wxT(""), wxDefaultPosition, wxSize(120,-1), 0 );
    item2->Add( item4, 0, wxALIGN_CENTER|wxALL, 5 );

    item1->Add( item2, 0, wxGROW|wxALL, 5 );

    wxString strs5[] =
    {
        wxT("Input"),
        wxT("Output")
    };
    wxRadioBox *item5 = new wxRadioBox( parent, ID_DIRECTION, wxT("Direction:"), wxDefaultPosition, wxDefaultSize, 2, strs5, 1, wxRA_SPECIFY_COLS );
    item1->Add( item5, 0, wxGROW|wxALL, 5 );

    item0->Add( item1, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item6 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticBox *item8 = new wxStaticBox( parent, -1, wxT("Attached buses:") );
    wxStaticBoxSizer *item7 = new wxStaticBoxSizer( item8, wxVERTICAL );
    attachedSizer_ = item7;

    wxListCtrl *item9 = new wxListCtrl( parent, ID_ATTACHED_LIST, wxDefaultPosition, wxSize(200,120), wxLC_REPORT|wxSUNKEN_BORDER );
    item7->Add( item9, 0, wxALIGN_CENTER|wxALL, 5 );

    item6->Add( item7, 0, wxALIGN_CENTER|wxALL, 5 );

    wxBoxSizer *item10 = new wxBoxSizer( wxVERTICAL );

    wxButton *item11 = new wxButton( parent, ID_ATTACH, wxT("&Attach"), wxDefaultPosition, wxDefaultSize, 0 );
    item10->Add( item11, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item12 = new wxButton( parent, ID_DETACH, wxT("&Detach"), wxDefaultPosition, wxDefaultSize, 0 );
    item10->Add( item12, 0, wxALIGN_CENTER|wxALL, 5 );

    item6->Add( item10, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticBox *item14 = new wxStaticBox( parent, -1, wxT("Detached buses:") );
    wxStaticBoxSizer *item13 = new wxStaticBoxSizer( item14, wxVERTICAL );
    detachedSizer_ = item13;

    wxListCtrl *item15 = new wxListCtrl( parent, ID_DETACHED_LIST, wxDefaultPosition, wxSize(200,120), wxLC_REPORT|wxSUNKEN_BORDER );
    item13->Add( item15, 0, wxALIGN_CENTER|wxALL, 5 );

    item6->Add( item13, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item6, 0, wxALIGN_CENTER, 5 );

    wxStaticLine *item16 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item16, 0, wxGROW|wxALL, 5 );

    wxGridSizer *item17 = new wxGridSizer( 2, 0, 0 );

    wxButton *item18 = new wxButton( parent, ID_HELP, wxT("&Help"), wxDefaultPosition, wxDefaultSize, 0 );
    item17->Add( item18, 0, wxALL, 5 );

    wxBoxSizer *item19 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item20 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item19->Add( item20, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item21 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item19->Add( item21, 0, wxALIGN_CENTER|wxALL, 5 );

    item17->Add( item19, 0, wxALL, 5 );

    item0->Add( item17, 0, wxGROW|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References attachedSizer_, detachedSizer_, ID_ATTACH, ID_ATTACHED_LIST, ID_DETACH, ID_DETACHED_LIST, ID_DIRECTION, ID_HELP, ID_LABEL_NAME, ID_LINE, and ID_NAME.

onAttach()

void SocketDialog::onAttach ( wxCommandEvent &  )

private

Attaches selected segments on the segment list to the socket.

Definition at line 364 of file SocketDialog.cc.

                                      {

    long item = -1;
    item = segmentListCtrl_->GetNextItem(
        item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);

    // Socket state is saved, so it can be restored if the socket can't
    // be connected to all selected segments.
    ObjectState* savedState = socket_->saveState();
    MachineTester tester(*socket_->machine());

    // Try to connect socket to all selected segments.
    while (item != -1) {

        Segment* seg = segment(segmentListCtrl_, item);
        assert(seg != NULL);

        if (!tester.canConnect(*socket_, *seg)) {
            // Socket couldn't be connected to all selected segments.
            std::string error =
                MachineTestReporter::socketSegmentConnectionError(
                    *socket_, *seg, tester);
            wxString message = WxConversion::toWxString(error);
            InformationDialog dialog(this, message);
            dialog.ShowModal();
            socket_->loadState(savedState);
            break;
        }
        socket_->attachBus(*seg);
        item = segmentListCtrl_->GetNextItem(
            item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
    }
    delete savedState;
    savedState = NULL;

    updateConnected();
    updateDirection();

    // Select the first item in the segment list (if possible) to improve
    // the dialog usability.
    if (segmentListCtrl_->GetItemCount() > 0) {
        segmentListCtrl_->SetItemState(
            0, wxLIST_STATE_SELECTED | wxLIST_STATE_FOCUSED,
            wxLIST_STATE_SELECTED | wxLIST_STATE_FOCUSED);
    }

    wxListEvent dummy;
    onDetachedSelection(dummy);

}

References assert, TTAMachine::Socket::attachBus(), MachineTester::canConnect(), dummy, TTAMachine::Socket::loadState(), TTAMachine::Component::machine(), onDetachedSelection(), TTAMachine::Socket::saveState(), segment(), segmentListCtrl_, socket_, MachineTestReporter::socketSegmentConnectionError(), WxConversion::toWxString(), updateConnected(), and updateDirection().

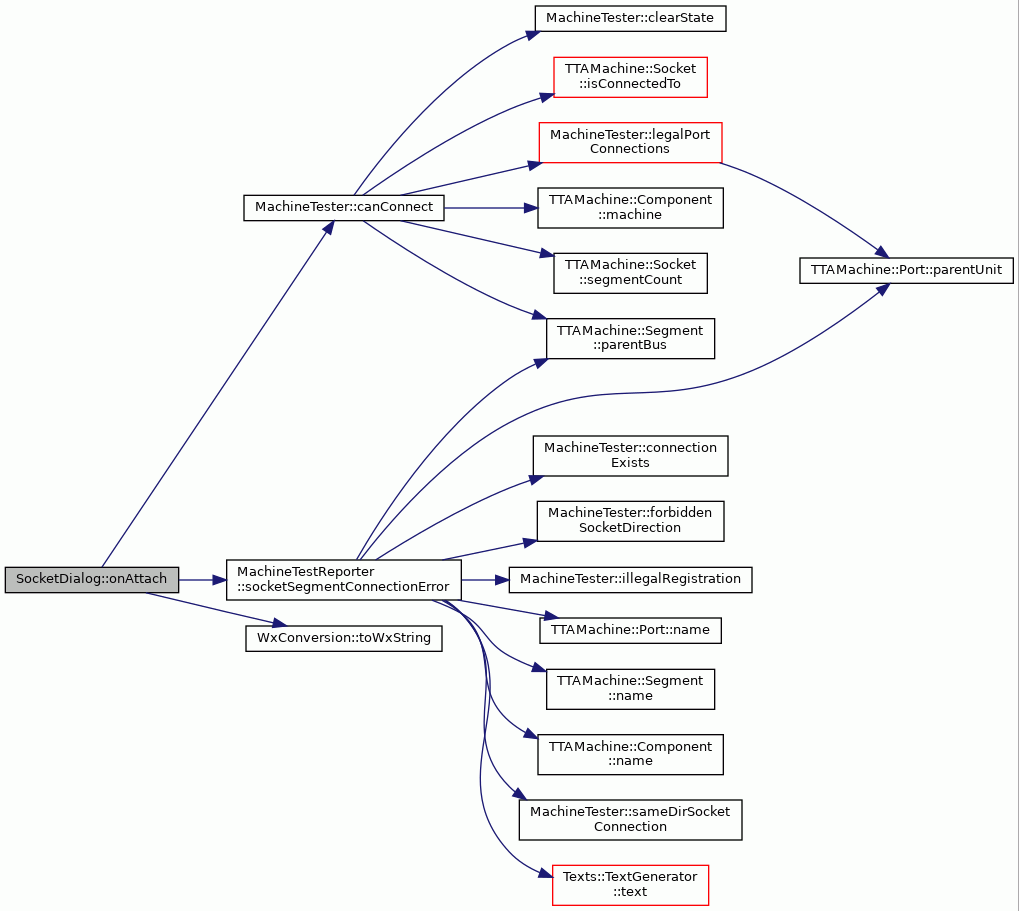

Here is the call graph for this function:

onAttachedSelection()

void SocketDialog::onAttachedSelection ( wxListEvent &  )

private

Disables and enables Detach button under the connected list.

If a (bus, segment) pair is selected, button is enabled. If no (bus, segment) pair is selected the button will be disabled.

Definition at line 530 of file SocketDialog.cc.

                                              {
    if (connectedListCtrl_->GetSelectedItemCount() < 1) {
        FindWindow(ID_DETACH)->Disable();
        return;
    }
    FindWindow(ID_DETACH)->Enable();
}

References connectedListCtrl_, and ID_DETACH.

Referenced by onDetach().

onDetach()

void SocketDialog::onDetach ( wxCommandEvent &  )

private

Detaches selected segments on the connection list from the socket.

Definition at line 419 of file SocketDialog.cc.

                                      {

    long item = -1;
    item = connectedListCtrl_->GetNextItem(
        item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);

    // Detach socket from all selected segments.
    while (item != -1) {
        Segment* seg = segment(connectedListCtrl_, item);
        assert(seg != NULL);
        socket_->detachBus(*seg);
        item = connectedListCtrl_->GetNextItem(
            item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
    }

    updateConnected();
    updateDirection();
    wxListEvent dummy;
    onAttachedSelection(dummy);

}

References assert, connectedListCtrl_, TTAMachine::Socket::detachBus(), dummy, onAttachedSelection(), segment(), socket_, updateConnected(), and updateDirection().

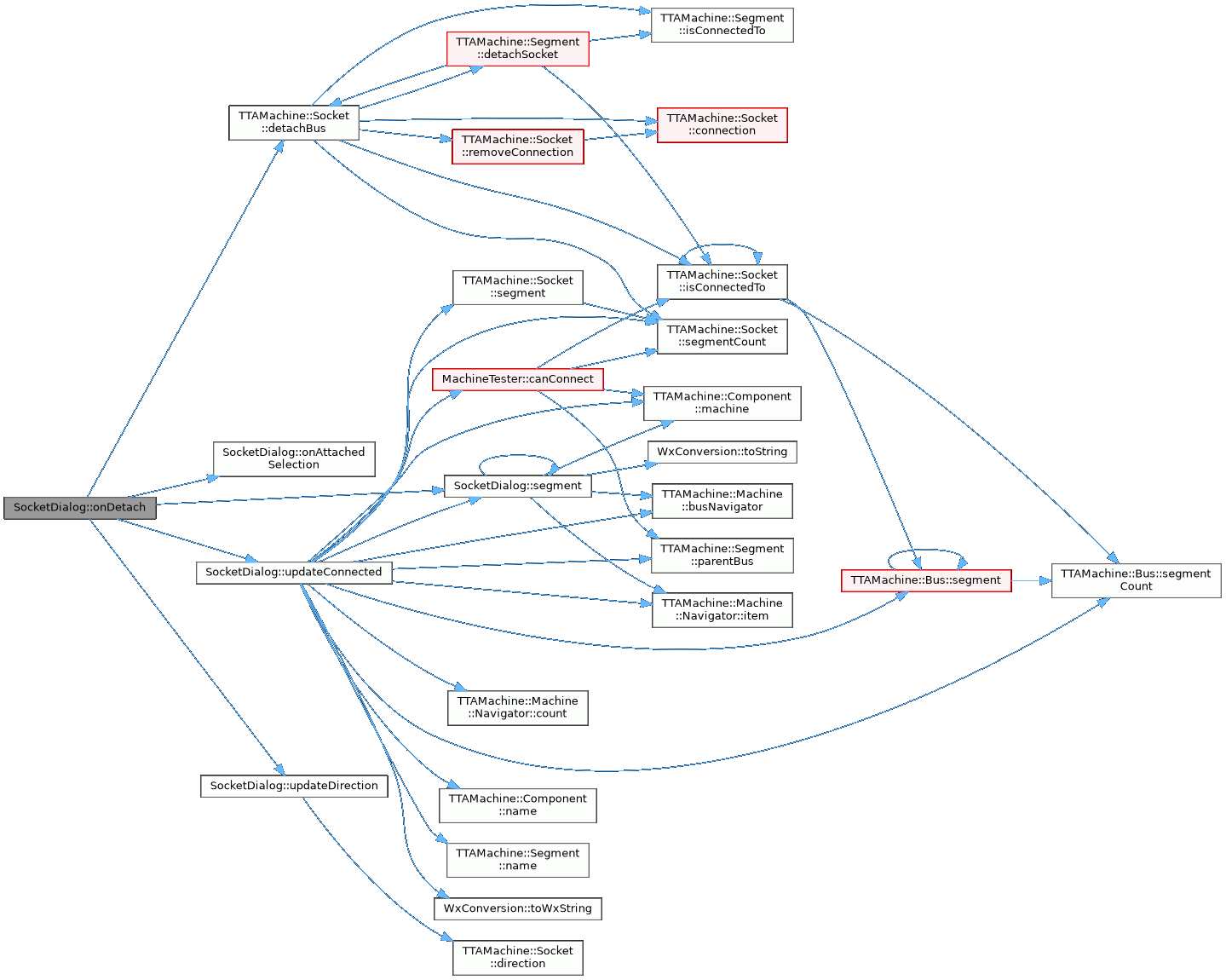

Here is the call graph for this function:

onDetachedSelection()

void SocketDialog::onDetachedSelection ( wxListEvent &  )

private

Disables and enables Attach button under the connected list.

If a (bus, segment) pair is selected, button is enabled. If no (bus, segment) pair is selected the button will be disabled.

Definition at line 546 of file SocketDialog.cc.

                                              {
    if (segmentListCtrl_->GetSelectedItemCount() < 1) {
        FindWindow(ID_ATTACH)->Disable();
        return;
    }
    FindWindow(ID_ATTACH)->Enable();
}

References ID_ATTACH, and segmentListCtrl_.

Referenced by onAttach().

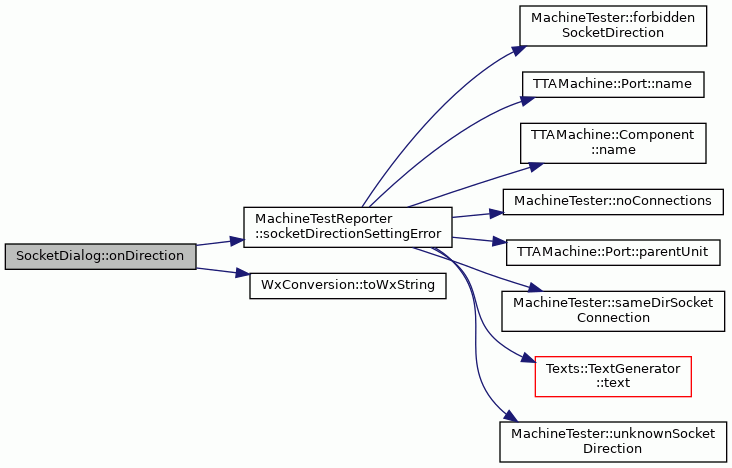

onDirection()

void SocketDialog::onDirection ( wxCommandEvent &  )

private

Checks whether socket direction can be changed.

Due to the port connections to the sockets it might be impossible. If the socket is connected to the port already containing a connection to socket of this direction, changing the direction is not allowed.

Definition at line 315 of file SocketDialog.cc.

                                         {

    wxString direction = directionBox_->GetStringSelection();

    if (direction.IsSameAs(ProDeConstants::SOCKET_DIRECTION_INPUT) &&
        !tester_->canSetDirection(*socket_, Socket::INPUT)) {

        // It wasn't legal to change the direction to input,
        // display an error message.
        string message =
            MachineTestReporter::socketDirectionSettingError(
                *socket_, Socket::INPUT, *tester_);

        WarningDialog dialog(this, WxConversion::toWxString(message));
        dialog.ShowModal();
        directionBox_->SetStringSelection(
            ProDeConstants::SOCKET_DIRECTION_OUTPUT);

    } else if(direction.IsSameAs(ProDeConstants::SOCKET_DIRECTION_OUTPUT) &&
        !tester_->canSetDirection(*socket_, Socket::OUTPUT)) {

        // It wasn't legal to change the direction to output,
        // display an error message.
        string message =
            MachineTestReporter::socketDirectionSettingError(
                *socket_, Socket::OUTPUT, *tester_);

        WarningDialog dialog(this, WxConversion::toWxString(message));

        dialog.ShowModal();
        directionBox_->SetStringSelection(
            ProDeConstants::SOCKET_DIRECTION_INPUT);
    }

    direction = directionBox_->GetStringSelection();

    if (direction.IsSameAs(ProDeConstants::SOCKET_DIRECTION_INPUT)) {
        socket_->setDirection(Socket::INPUT);
    }
    if (direction.IsSameAs(ProDeConstants::SOCKET_DIRECTION_OUTPUT)) {
        socket_->setDirection(Socket::OUTPUT);
    }
}

References MachineTester::canSetDirection(), directionBox_, TTAMachine::Socket::INPUT, TTAMachine::Socket::OUTPUT, TTAMachine::Socket::setDirection(), socket_, ProDeConstants::SOCKET_DIRECTION_INPUT, ProDeConstants::SOCKET_DIRECTION_OUTPUT, MachineTestReporter::socketDirectionSettingError(), tester_, and WxConversion::toWxString().

Here is the call graph for this function:

onHelp()

void SocketDialog::onHelp ( wxCommandEvent &  event )

private

onName()

void SocketDialog::onName ( wxCommandEvent &  )

private

Enables and disables OK button based on input in the socket name.

Definition at line 293 of file SocketDialog.cc.

                                    {
    if (!TransferDataFromWindow()) {
        assert(false);
    }
    wxString trimmedName = name_.Trim(false).Trim(true);
    if (trimmedName == _T("")) {
        FindWindow(wxID_OK)->Disable();
    } else {
        FindWindow(wxID_OK)->Enable();
    }
}

References assert, and name_.

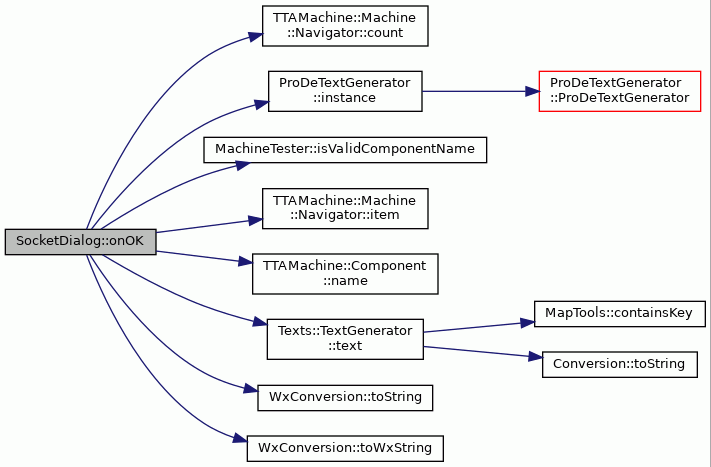

onOK()

void SocketDialog::onOK ( wxCommandEvent &  )

private

Validates input in the controls, and updates the Socket.

Definition at line 236 of file SocketDialog.cc.

                                  {

    if (!Validate()) {
        return;
    }
    if (!TransferDataFromWindow()) {
        return;
    }

    string trimmedName =
        WxConversion::toString(name_.Trim(false).Trim(true));

    // Check the name validity.
    if (!MachineTester::isValidComponentName(trimmedName)) {
        ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
        format message =
            prodeTexts->text(ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME);
        InformationDialog warning(
            this, WxConversion::toWxString(message.str()));
        warning.ShowModal();
        return;
    }

    if (trimmedName != socket_->name()) {
        Machine::SocketNavigator navigator =
            socket_->machine()->socketNavigator();
        for (int i = 0; i < navigator.count(); i++) {
            Socket* socket = navigator.item(i);
            if (trimmedName == socket->name()) {
                ProDeTextGenerator* prodeTexts =
                    ProDeTextGenerator::instance();
                format message =
                    prodeTexts->text(ProDeTextGenerator::MSG_ERROR_SAME_NAME);
                format a_soc =
                    prodeTexts->text(ProDeTextGenerator::COMP_A_SOCKET);
                format machine =
                    prodeTexts->text(ProDeTextGenerator::COMP_MACHINE);
                format soc =
                    prodeTexts->text(ProDeTextGenerator::COMP_SOCKET);
                message %
                    trimmedName % a_soc.str() % machine.str() % soc.str();
                WarningDialog warning(
                    this, WxConversion::toWxString(message.str()));
                warning.ShowModal();
                return;
            }
        }
    }
    socket_->setName(trimmedName);
    EndModal(wxID_OK);
}

References ProDeTextGenerator::COMP_A_SOCKET, ProDeTextGenerator::COMP_MACHINE, ProDeTextGenerator::COMP_SOCKET, TTAMachine::Machine::Navigator< ComponentType >::count(), ProDeTextGenerator::instance(), MachineTester::isValidComponentName(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), machine, ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME, ProDeTextGenerator::MSG_ERROR_SAME_NAME, TTAMachine::Component::name(), name_, TTAMachine::Socket::setName(), socket_, TTAMachine::Machine::socketNavigator(), Texts::TextGenerator::text(), WxConversion::toString(), and WxConversion::toWxString().

Here is the call graph for this function:

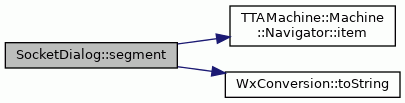

segment()

Segment * SocketDialog::segment ( wxListCtrl *  listCtrl, int  index  )

private

Returns pointer to a segment with given index on a list.

Parameters

listCtrl	List containing the segment.
index	List index of the segment.

Returns

Pointer to the segment.

Definition at line 449 of file SocketDialog.cc.

                                                     {

    wxListItem busItem;
    busItem.SetId(index);
    busItem.SetColumn(0);
    listCtrl->GetItem(busItem);
    string busName = WxConversion::toString(busItem.GetText());

    wxListItem segItem;
    segItem.SetId(index);
    segItem.SetColumn(1);
    listCtrl->GetItem(segItem);
    string segmentName = WxConversion::toString(segItem.GetText());

    Machine::BusNavigator navigator = socket_->machine()->busNavigator();
    Segment* segment = navigator.item(busName)->segment(segmentName);
    return segment;
}

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), segment(), socket_, and WxConversion::toString().

Referenced by onAttach(), onDetach(), segment(), and updateConnected().

Here is the call graph for this function:

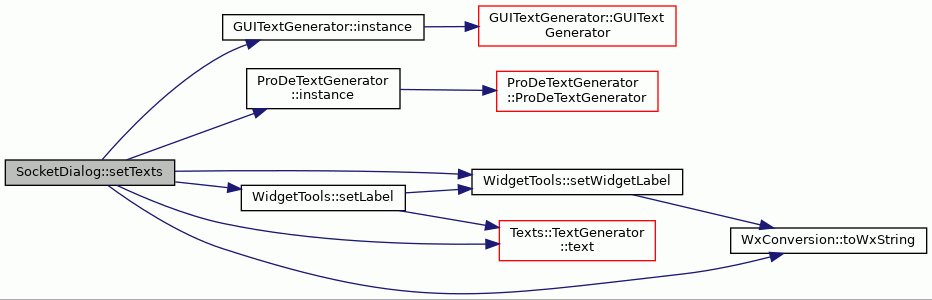

setTexts()

void SocketDialog::setTexts ( )

private

Sets texts for widgets.

Definition at line 139 of file SocketDialog.cc.

                       {
    GUITextGenerator* generator = GUITextGenerator::instance();
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();

    // Dialog title
    format fmt = prodeTexts->text(ProDeTextGenerator::TXT_SOCKET_DIALOG_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    // buttons
    WidgetTools::setLabel(generator, FindWindow(wxID_OK),
                          GUITextGenerator::TXT_BUTTON_OK);

    WidgetTools::setLabel(generator, FindWindow(wxID_CANCEL),
                          GUITextGenerator::TXT_BUTTON_CANCEL);

    WidgetTools::setLabel(generator, FindWindow(ID_HELP),
                          GUITextGenerator::TXT_BUTTON_HELP);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_ATTACH),
                          ProDeTextGenerator::TXT_BUTTON_ATTACH);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_DETACH),
                          ProDeTextGenerator::TXT_BUTTON_DETACH);

    // widget labels
    WidgetTools::setLabel(prodeTexts, FindWindow(ID_LABEL_NAME),
                          ProDeTextGenerator::TXT_LABEL_NAME);

    WidgetTools::setLabel(prodeTexts, FindWindow(ID_DIRECTION),
                          ProDeTextGenerator::TXT_LABEL_DIRECTION);

    // box sizer label
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_SOCKET_ATTACHED_BOX);
    WidgetTools::setWidgetLabel(attachedSizer_, fmt.str());

    fmt = prodeTexts->text(ProDeTextGenerator::TXT_SOCKET_DETACHED_BOX);
    WidgetTools::setWidgetLabel(detachedSizer_, fmt.str());

    // Create list columns.
    wxListCtrl* attachedList =
        dynamic_cast<wxListCtrl*>(FindWindow(ID_ATTACHED_LIST));
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_BUS);
    attachedList->InsertColumn(0, WxConversion::toWxString(fmt.str()),
                               wxLIST_FORMAT_LEFT, 100);
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_SEGMENT);
    attachedList->InsertColumn(1, WxConversion::toWxString(fmt.str()),
                               wxLIST_FORMAT_LEFT, 80);

    wxListCtrl* detachedList =
        dynamic_cast<wxListCtrl*>(FindWindow(ID_DETACHED_LIST));
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_BUS);
    detachedList->InsertColumn(0, WxConversion::toWxString(fmt.str()),
                               wxLIST_FORMAT_LEFT, 100);
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_SEGMENT);
    detachedList->InsertColumn(1, WxConversion::toWxString(fmt.str()),
                               wxLIST_FORMAT_LEFT, 80);

    // Radio button labels
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_RADIO_DIRECTION_INPUT);
    directionBox_->SetString(0, WxConversion::toWxString(fmt.str()));
    fmt = prodeTexts->text(ProDeTextGenerator::TXT_RADIO_DIRECTION_OUTPUT);
    directionBox_->SetString(1, WxConversion::toWxString(fmt.str()));
}

References attachedSizer_, detachedSizer_, directionBox_, ID_ATTACH, ID_ATTACHED_LIST, ID_DETACH, ID_DETACHED_LIST, ID_DIRECTION, ID_HELP, ID_LABEL_NAME, GUITextGenerator::instance(), ProDeTextGenerator::instance(), WidgetTools::setLabel(), WidgetTools::setWidgetLabel(), Texts::TextGenerator::text(), WxConversion::toWxString(), ProDeTextGenerator::TXT_BUTTON_ATTACH, GUITextGenerator::TXT_BUTTON_CANCEL, ProDeTextGenerator::TXT_BUTTON_DETACH, GUITextGenerator::TXT_BUTTON_HELP, GUITextGenerator::TXT_BUTTON_OK, ProDeTextGenerator::TXT_COLUMN_BUS, ProDeTextGenerator::TXT_COLUMN_SEGMENT, ProDeTextGenerator::TXT_LABEL_DIRECTION, ProDeTextGenerator::TXT_LABEL_NAME, ProDeTextGenerator::TXT_RADIO_DIRECTION_INPUT, ProDeTextGenerator::TXT_RADIO_DIRECTION_OUTPUT, ProDeTextGenerator::TXT_SOCKET_ATTACHED_BOX, ProDeTextGenerator::TXT_SOCKET_DETACHED_BOX, and ProDeTextGenerator::TXT_SOCKET_DIALOG_TITLE.

Here is the call graph for this function:

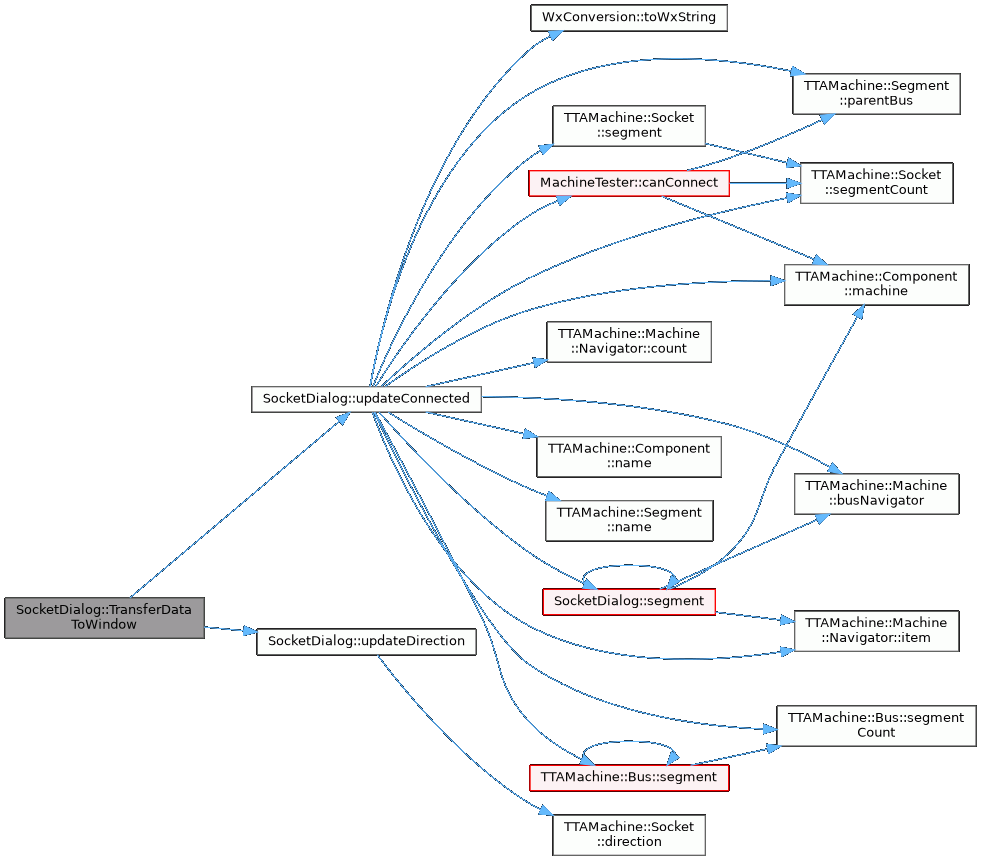

TransferDataToWindow()

bool SocketDialog::TransferDataToWindow ( )

privatevirtual

Transfers data from the socket object to the dialog widgets.

Definition at line 208 of file SocketDialog.cc.

                                   {
    // Socket direction.
    updateDirection();
    updateConnected();
    return wxDialog::TransferDataToWindow();
}

References updateConnected(), and updateDirection().

Here is the call graph for this function:

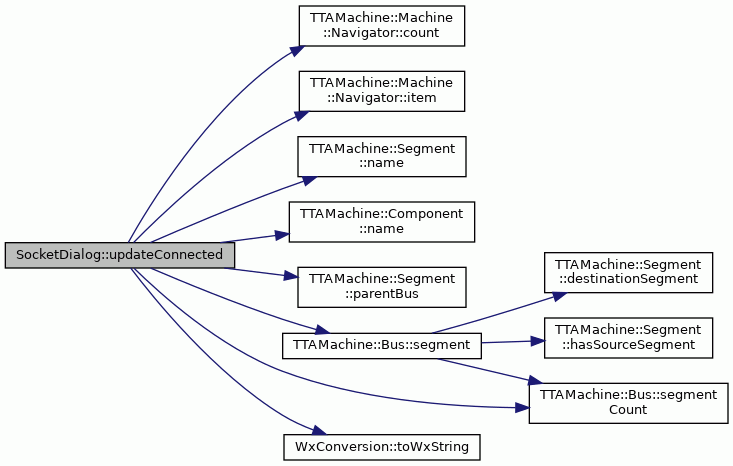

updateConnected()

void SocketDialog::updateConnected ( )

private

Updates connected list elements.

Definition at line 474 of file SocketDialog.cc.

                              {

    connectedListCtrl_->DeleteAllItems();
    segmentListCtrl_->DeleteAllItems();

    // update connections list
    for (int i = 0; i < socket_->segmentCount(); i++) {

        Segment* segment = socket_->segment(i);

        wxString segmentName =
            WxConversion::toWxString(segment->name());
        wxString busName =
            WxConversion::toWxString(segment->parentBus()->name());

        connectedListCtrl_->InsertItem(i, busName);
        connectedListCtrl_->SetItem(i, 1, segmentName);
    }

    // update list of segments available for connection
    Machine::BusNavigator navigator = socket_->machine()->busNavigator();
    int segments = 0;
    for (int i = 0; i < navigator.count(); i++) {
        Bus* bus = navigator.item(i);
        for (int j = 0; j < bus->segmentCount(); j++) {
            Segment* segment = bus->segment(j);
            if (tester_->canConnect(*socket_, *segment)) {
                wxString segmentName =
                    WxConversion::toWxString(segment->name());
                wxString busName =
                    WxConversion::toWxString(segment->parentBus()->name());

                segmentListCtrl_->InsertItem(segments, busName);
                segmentListCtrl_->SetItem(segments, 1, segmentName);
                segments++;
            }
        }
    }

    // Disable the direction control if the socket is not
    // connected to a bus.
    if (socket_->segmentCount() > 0) {
        FindWindow(ID_DIRECTION)->Enable();
    } else {
        FindWindow(ID_DIRECTION)->Disable();
    }
}

References TTAMachine::Machine::busNavigator(), MachineTester::canConnect(), connectedListCtrl_, TTAMachine::Machine::Navigator< ComponentType >::count(), ID_DIRECTION, TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), TTAMachine::Component::name(), TTAMachine::Segment::name(), TTAMachine::Segment::parentBus(), TTAMachine::Bus::segment(), TTAMachine::Socket::segment(), segment(), TTAMachine::Bus::segmentCount(), TTAMachine::Socket::segmentCount(), segmentListCtrl_, socket_, tester_, and WxConversion::toWxString().

Referenced by onAttach(), onDetach(), and TransferDataToWindow().

Here is the call graph for this function:

updateDirection()

void SocketDialog::updateDirection ( )

private

Updates the direction choicer.

Definition at line 220 of file SocketDialog.cc.

                              {
    if (socket_->direction() == Socket::INPUT) {
        directionBox_->SetStringSelection(
            ProDeConstants::SOCKET_DIRECTION_INPUT);
    } else if (socket_->direction() == Socket::OUTPUT) {
        directionBox_->SetStringSelection(
            ProDeConstants::SOCKET_DIRECTION_OUTPUT);
    }

}

References TTAMachine::Socket::direction(), directionBox_, TTAMachine::Socket::INPUT, TTAMachine::Socket::OUTPUT, socket_, ProDeConstants::SOCKET_DIRECTION_INPUT, and ProDeConstants::SOCKET_DIRECTION_OUTPUT.

Referenced by onAttach(), onDetach(), and TransferDataToWindow().

Here is the call graph for this function:

Member Data Documentation

attachedSizer_

wxStaticBoxSizer* SocketDialog::attachedSizer_

private

Static boxsizer containing the list of attached buses.

Definition at line 84 of file SocketDialog.hh.

Referenced by createContents(), and setTexts().

connectedListCtrl_

wxListCtrl* SocketDialog::connectedListCtrl_

private

List control for connected (bus, segment) pairs.

Definition at line 80 of file SocketDialog.hh.

Referenced by onAttachedSelection(), onDetach(), and updateConnected().

detachedSizer_

wxStaticBoxSizer* SocketDialog::detachedSizer_

private

Static boxsizer containing the list of detached buses.

Definition at line 86 of file SocketDialog.hh.

Referenced by createContents(), and setTexts().

directionBox_

wxRadioBox* SocketDialog::directionBox_

private

Radio box for direction.

Definition at line 78 of file SocketDialog.hh.

Referenced by onDirection(), setTexts(), and updateDirection().

name_

wxString SocketDialog::name_

private

Name of the socket.

Definition at line 74 of file SocketDialog.hh.

Referenced by onName(), and onOK().

segmentListCtrl_

wxListCtrl* SocketDialog::segmentListCtrl_

private

List control for all (bus, segment) pairs.

Definition at line 82 of file SocketDialog.hh.

Referenced by onAttach(), onDetachedSelection(), and updateConnected().

socket_

TTAMachine::Socket* SocketDialog::socket_

private

Socket to modify.

Definition at line 72 of file SocketDialog.hh.

Referenced by onAttach(), onDetach(), onDirection(), onOK(), segment(), updateConnected(), and updateDirection().

tester_

MachineTester* SocketDialog::tester_

private

MachineTester which does sanity checks for the target machine.

Definition at line 76 of file SocketDialog.hh.

Referenced by onDirection(), updateConnected(), and ~SocketDialog().

---

The documentation for this class was generated from the following files:

• SocketDialog.hh
• SocketDialog.cc
