#include <AOutStringSectionReader.hh>

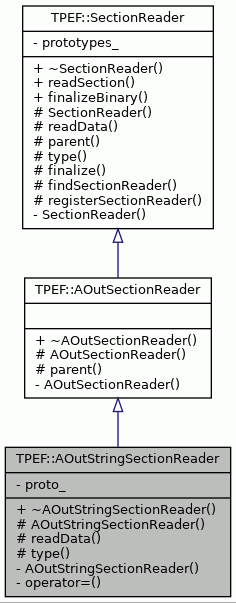

Inheritance diagram for TPEF::AOutStringSectionReader:

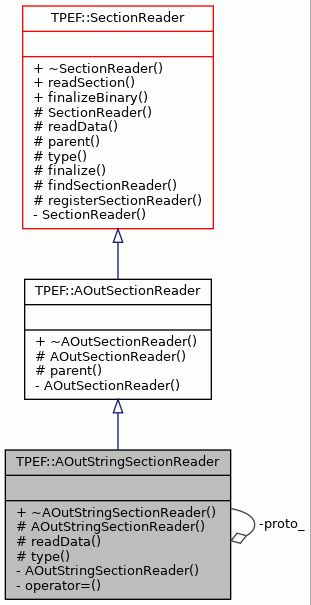

Collaboration diagram for TPEF::AOutStringSectionReader:

Public Member Functions
virtual	~AOutStringSectionReader ()

Public Member Functions inherited from TPEF::AOutSectionReader
virtual	~AOutSectionReader ()

Public Member Functions inherited from TPEF::SectionReader
virtual	~SectionReader ()

Protected Member Functions
	AOutStringSectionReader ()

virtual void	readData (BinaryStream &stream, Section *section) const

virtual Section::SectionType	type () const

Protected Member Functions inherited from TPEF::AOutSectionReader
	AOutSectionReader ()

virtual BinaryReader *	parent () const

Protected Member Functions inherited from TPEF::SectionReader
	SectionReader ()

virtual void	finalize (Section *section) const

Private Member Functions
	AOutStringSectionReader (const AOutStringSectionReader &)
	Copying not allowed. More...

AOutStringSectionReader &	operator= (const AOutStringSectionReader &)
	Assignment not allowed. More...

Static Private Attributes
static AOutStringSectionReader	proto_
	Static attribute enables registering to SectionReader before main function is executed. More...

Additional Inherited Members
Public Types inherited from TPEF::SectionReader
typedef BinaryReader::Length	Length

Static Public Member Functions inherited from TPEF::SectionReader
static void	readSection (BinaryStream &stream, Section section, BinaryReader reader)

static void	finalizeBinary (Binary binaryToFinalize, BinaryReader reader)

Static Protected Member Functions inherited from TPEF::SectionReader
static const SectionReader *	findSectionReader (const Section::SectionType type, const BinaryReader *bReader)

static void	registerSectionReader (const SectionReader *sReader)

Detailed Description

Reads string section from a.out binary file.

Definition at line 47 of file AOutStringSectionReader.hh.

Constructor & Destructor Documentation

◆ ~AOutStringSectionReader()

TPEF::AOutStringSectionReader::~AOutStringSectionReader ( )

virtual

Destructor.

Definition at line 63 of file AOutStringSectionReader.cc.

63 {

64 }

◆ AOutStringSectionReader() [1/2]

TPEF::AOutStringSectionReader::AOutStringSectionReader ( )

protected

Constructor.

Registers to SectionReader.

Definition at line 56 of file AOutStringSectionReader.cc.

                                                  : AOutSectionReader() {
     SectionReader::registerSectionReader(this);
 }

References TPEF::SectionReader::registerSectionReader().

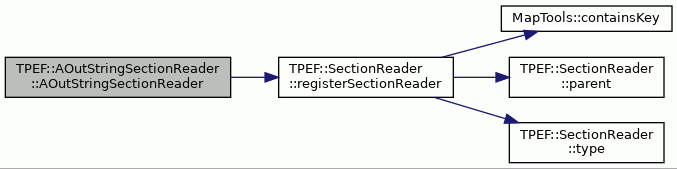

Here is the call graph for this function:

◆ AOutStringSectionReader() [2/2]

TPEF::AOutStringSectionReader::AOutStringSectionReader ( const AOutStringSectionReader & )

private

Copying not allowed.

Member Function Documentation

◆ operator=()

AOutStringSectionReader& TPEF::AOutStringSectionReader::operator= ( const AOutStringSectionReader & )

private

Assignment not allowed.

◆ readData()

void TPEF::AOutStringSectionReader::readData	(	BinaryStream &	stream,
		Section *	section
	)		const

protectedvirtual

Reads string section from a.out binary file.

Reads section from stream and makes sure that section starts withs zero.

Parameters

stream	Stream to be read from.
section	Section where to the information is stored.

Exceptions

UnreachableStream	If reading of section fails.
KeyAlreadyExists	Key was in use when trying to register object.
EndOfFile	If end of file were reached while it shouldn't.
OutOfRange	Some of read values were out of range.
WrongSubclass	Some class couldn't do what it was asked for.
UnexpectedValue	If there was unexpected value when reading.

Implements TPEF::SectionReader.

Definition at line 92 of file AOutStringSectionReader.cc.

                                                   {
     AOutReader* aOutReader = dynamic_cast<AOutReader*>(parent());

     StringSection* strSect = dynamic_cast<StringSection*>(section);
     assert(strSect != NULL);

     for (unsigned int i = 0;
          i < aOutReader->header().sectionSizeString(); i++) {
         strSect->addByte(stream.readByte());
     }

     // add zero byte if no data
     if (strSect->length() == 0) {
         strSect->addByte(0);
     }

     // section must start with zero.
     assert(strSect->byte(strSect->chunk(0)) == 0);
 }

References TPEF::DataSection::addByte(), assert, TPEF::DataSection::byte(), TPEF::RawSection::chunk(), TPEF::AOutReader::header(), TPEF::DataSection::length(), TPEF::AOutSectionReader::parent(), and TPEF::BinaryStream::readByte().

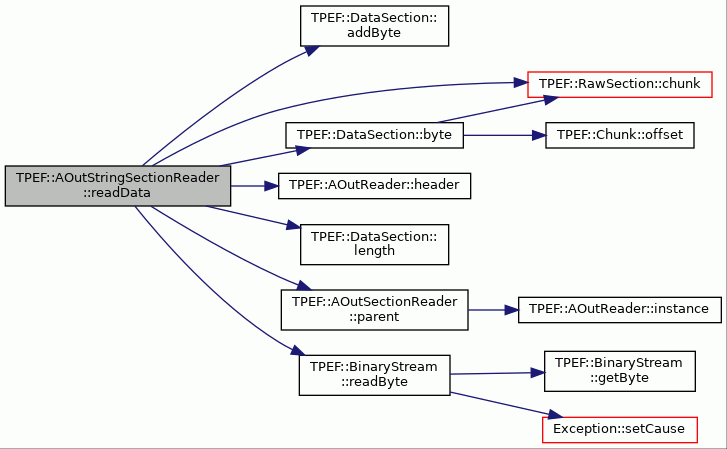

Here is the call graph for this function:

◆ type()

Section::SectionType TPEF::AOutStringSectionReader::type ( ) const

protectedvirtual

Returns the type of section that this class can read.

Returns: Type of section to read.

Implements TPEF::SectionReader.

Definition at line 72 of file AOutStringSectionReader.cc.

                                     {
     return Section::ST_STRTAB;
 }

References TPEF::Section::ST_STRTAB.

Member Data Documentation

◆ proto_

AOutStringSectionReader TPEF::AOutStringSectionReader::proto_

staticprivate

Static attribute enables registering to SectionReader before main function is executed.

Definition at line 66 of file AOutStringSectionReader.hh.
