TTAUnitTester.hh File Reference

#include <string>
#include "ImplementationTester.hh"

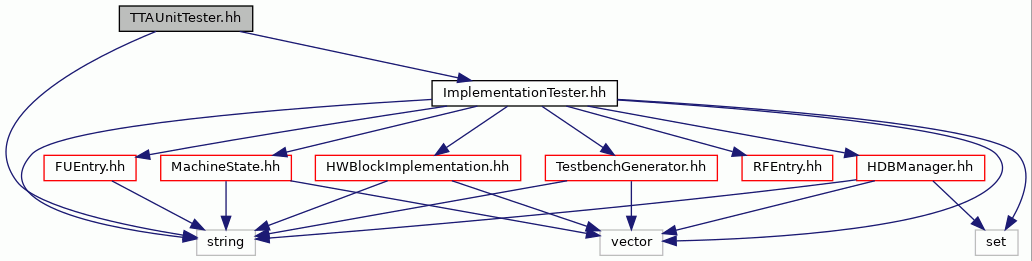

Include dependency graph for TTAUnitTester.hh:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	TTAMachine
namespace	IDF

Functions
TTAMachine::Machine *	readAdf (std::string adfName)
IDF::MachineImplementation *	readIdf (std::string idfName)
bool	validateIdf (const IDF::MachineImplementation &idf, const TTAMachine::Machine &machine)
bool	testUnits (const IDF::MachineImplementation &idf, VhdlSim simulator, bool verbose, bool leaveDirty)

Detailed Description

Declaration of TTAUnitTester utility program

Author

Otto Esko 2010 (otto.esko-no.spam-tut.fi)

Note

rating: red

Definition in file TTAUnitTester.hh.

Function Documentation

readAdf()

TTAMachine::Machine * readAdf

(

std::string

adfName

)

Definition at line 116 of file TTAUnitTester.cc.

                           {

    ADFSerializer reader;
    reader.setSourceFile(adfName);
    TTAMachine::Machine* mach = NULL;
    try {
        mach = reader.readMachine();
    } catch (Exception& e) {
        std::cerr << "Failed to load ADF file " << adfName << ": "
                  << e.errorMessage() << std::endl;
        return NULL;
    }
    return mach;
}

References Exception::errorMessage(), ADFSerializer::readMachine(), and XMLSerializer::setSourceFile().

Referenced by main().

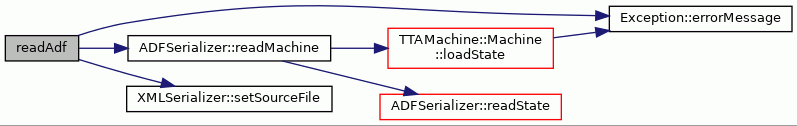

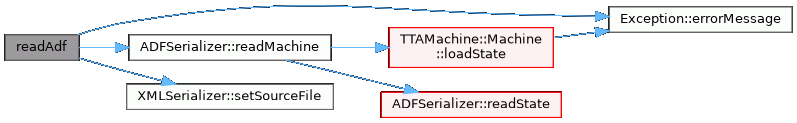

Here is the call graph for this function:

readIdf()

IDF::MachineImplementation * readIdf

(

std::string

idfName

)

Definition at line 133 of file TTAUnitTester.cc.

                           {

    IDF::IDFSerializer reader;
    reader.setSourceFile(idfName);
    IDF::MachineImplementation* implementation = NULL;
    try {
        implementation = reader.readMachineImplementation();
    } catch (Exception& e) {
        std::cerr << "Failed to load IDF file " << idfName << ": "
                  << e.errorMessage() << std::endl;
        return NULL;
    }
    return implementation;
}

References Exception::errorMessage(), implementation, IDF::IDFSerializer::readMachineImplementation(), and XMLSerializer::setSourceFile().

Referenced by main().

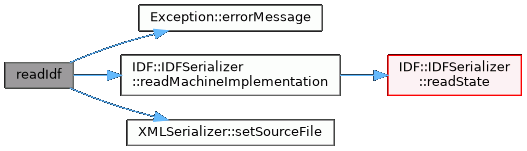

Here is the call graph for this function:

testUnits()

bool testUnits	(	const IDF::MachineImplementation &	idf,
		VhdlSim	simulator,
		bool	verbose,
		bool	leaveDirty
	)

Definition at line 167 of file TTAUnitTester.cc.

                                                      {

    HDBTester tester(std::cout, std::cerr, simulator, verbose, leaveDirty);

    bool allPassed = true;
    for (int i = 0; i < idf.fuImplementationCount(); i++) {
        IDF::UnitImplementationLocation* unit = &idf.fuImplementation(i);
        string hdb = unit->hdbFile();
        int entryId = unit->id();
        if (!tester.testOneFU(hdb, entryId)) {
            allPassed = false;
        }
    }

    for (int i = 0; i < idf.rfImplementationCount(); i++) {
        IDF::UnitImplementationLocation* unit = &idf.rfImplementation(i);
        string hdb = unit->hdbFile();
        int entryId = unit->id();
        if (!tester.testOneRF(hdb, entryId)) {
            allPassed = false;
        }
    }

    return allPassed;
}

References IDF::MachineImplementation::fuImplementation(), IDF::MachineImplementation::fuImplementationCount(), IDF::UnitImplementationLocation::hdbFile(), IDF::UnitImplementationLocation::id(), IDF::MachineImplementation::rfImplementation(), IDF::MachineImplementation::rfImplementationCount(), HDBTester::testOneFU(), and HDBTester::testOneRF().

Referenced by main().

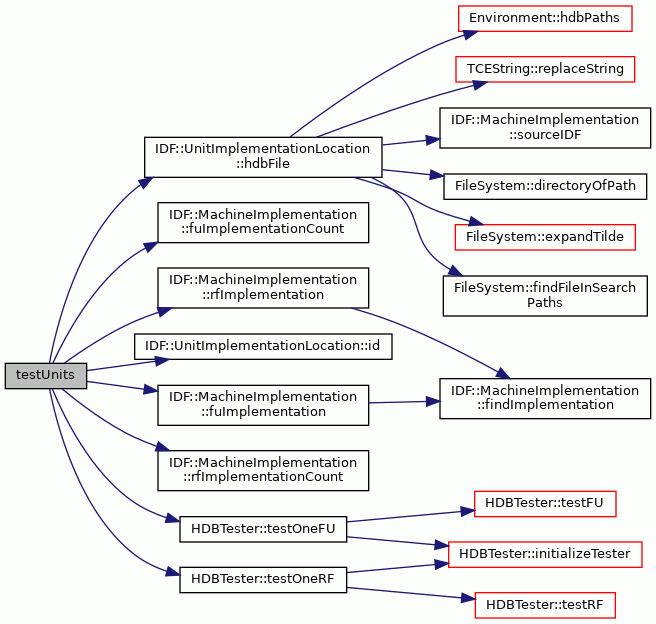

Here is the call graph for this function:

validateIdf()

bool validateIdf	(	const IDF::MachineImplementation &	idf,
		const TTAMachine::Machine &	machine
	)

Definition at line 150 of file TTAUnitTester.cc.

                                      {

    IDFValidator validator(idf, machine);

    bool success = validator.validate();
    if (!success) {
        for (int i = 0; i < validator.errorCount(); i++) {
            std::cerr << validator.errorMessage(i) << std::endl;
        }
    }
    return success;
}

References IDFValidator::errorCount(), IDFValidator::errorMessage(), machine, and IDFValidator::validate().

Referenced by main().

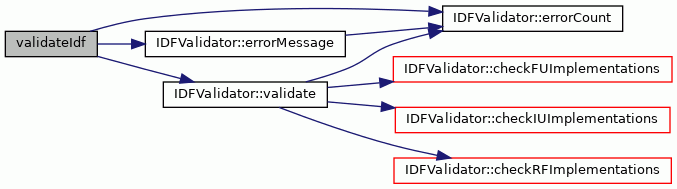

Here is the call graph for this function:
