IDF::UnitImplementationLocation Class Reference

#include <UnitImplementationLocation.hh>

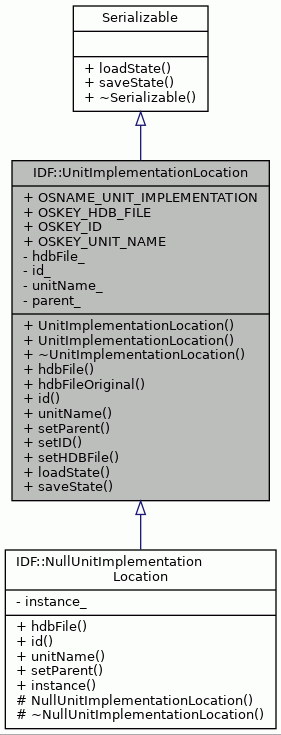

Inheritance diagram for IDF::UnitImplementationLocation:

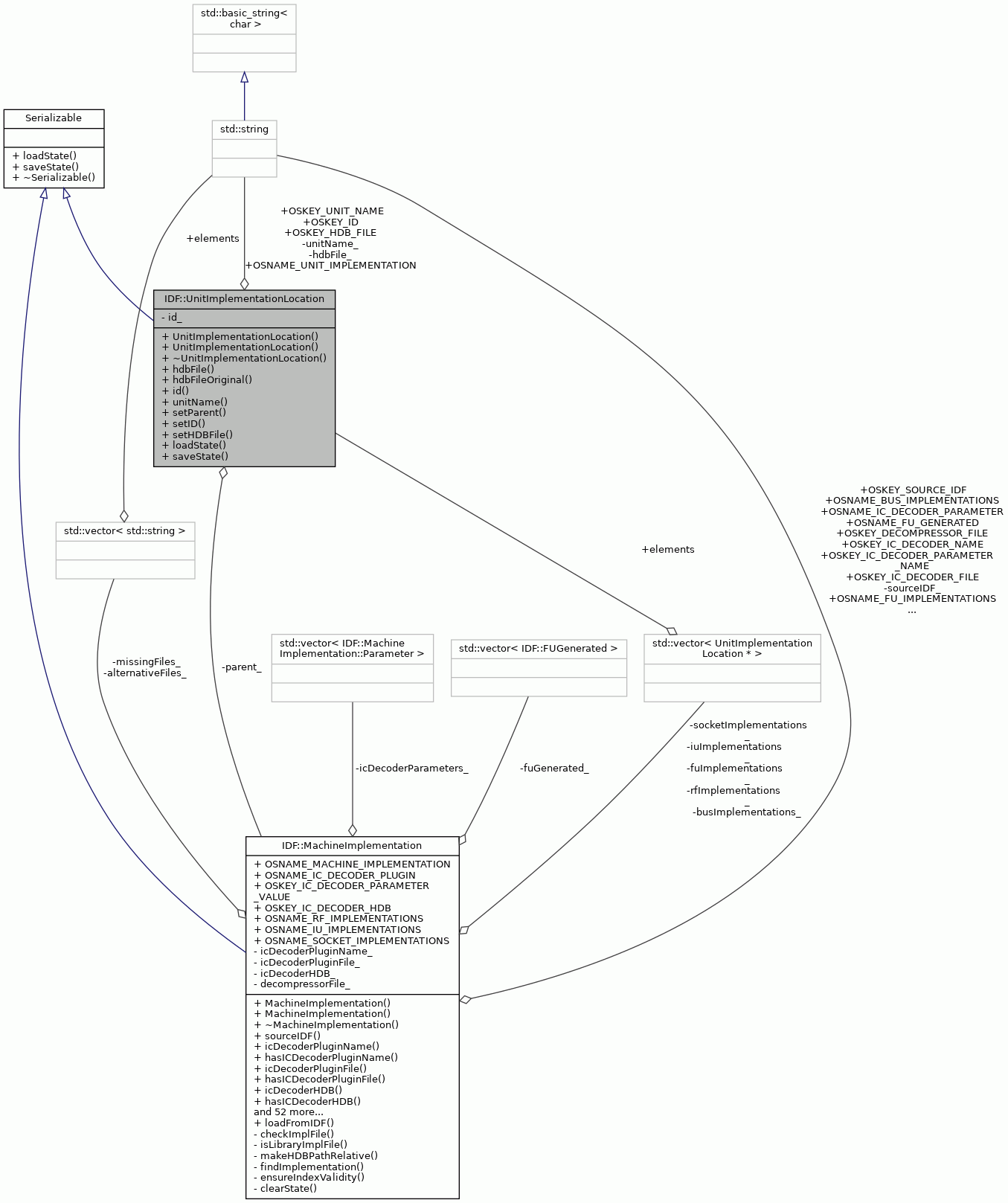

Collaboration diagram for IDF::UnitImplementationLocation:

Public Member Functions
	UnitImplementationLocation (const std::string &hdbFile, int id, const std::string &unitName)
	UnitImplementationLocation (const ObjectState *state)
virtual	~UnitImplementationLocation ()
virtual std::string	hdbFile () const
std::string	hdbFileOriginal () const
virtual int	id () const
virtual std::string	unitName () const
virtual void	setParent (MachineImplementation &parent)
virtual void	setID (int id)
virtual void	setHDBFile (std::string file)
void	loadState (const ObjectState *state)
ObjectState *	saveState () const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_UNIT_IMPLEMENTATION
	ObjectState name for unit implementation.
static const std::string	OSKEY_HDB_FILE = "hdb_file"
	ObjectState attribute key for the name of the HDB file.
static const std::string	OSKEY_ID = "id"
	ObjectState attribute key for the entry ID.
static const std::string	OSKEY_UNIT_NAME = "unit_name"
	Objectstate attribute key for the name of the unit.

Private Attributes
std::string	hdbFile_
	Name of the HDB file.
int	id_
	Entry ID in the HDB.
std::string	unitName_
	Name of the unit in ADF.
MachineImplementation *	parent_
	The parent MachineImplementation instance.

Detailed Description

Indicates what implementation of a unit is used.

Refers to an entry in an HDB.

Definition at line 48 of file UnitImplementationLocation.hh.

Constructor & Destructor Documentation

UnitImplementationLocation() [1/2]

IDF::UnitImplementationLocation::UnitImplementationLocation	(	const std::string &	hdbFile,
		int	id,
		const std::string &	unitName
	)

The constructor.

Parameters

hdbFile	The database that contains the implementation.
id	ID of the RF or FU entry in the database.
unitName	Name of the corresponding unit in ADF.

Definition at line 60 of file UnitImplementationLocation.cc.

                               :
    hdbFile_(hdbFile), id_(id), unitName_(unitName), parent_(NULL) {
}

UnitImplementationLocation() [2/2]

IDF::UnitImplementationLocation::UnitImplementationLocation

(

const ObjectState *

state

)

The constructor.

Loads the state of the object from the given ObjectState instance.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

this is used by NullFUImplementationLocation

Definition at line 77 of file UnitImplementationLocation.cc.

    : hdbFile_(""), id_(0), unitName_(""), parent_(NULL) {
    /// this is used by NullFUImplementationLocation
    if (state == NULL)
        return;
    loadState(state);
}

References loadState().

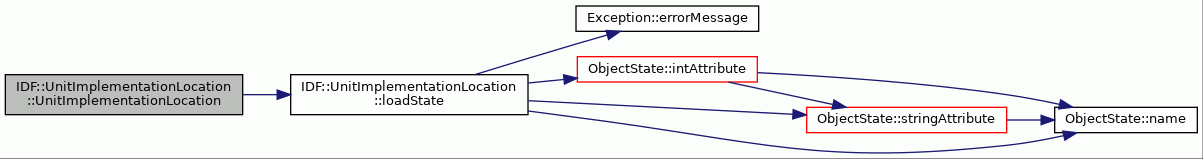

Here is the call graph for this function:

~UnitImplementationLocation()

IDF::UnitImplementationLocation::~UnitImplementationLocation ( )

virtual

The destructor.

Definition at line 88 of file UnitImplementationLocation.cc.

                                                        {
}

Member Function Documentation

hdbFile()

std::string IDF::UnitImplementationLocation::hdbFile ( ) const

virtual

Returns the absolute path to the HDB file.

Returns

Absolute path to the HDB file.

Exceptions

FileNotFound

If the HDB file is not found in the search paths.

Reimplemented in IDF::NullUnitImplementationLocation.

Definition at line 99 of file UnitImplementationLocation.cc.

                                          {
    vector<string> paths = Environment::hdbPaths();
    if (parent_) {
        paths.insert(
            paths.begin(), FileSystem::directoryOfPath(parent_->sourceIDF()));
    }
    TCEString expandedPath(hdbFile_);
    expandedPath.replaceString("tce:", "");
    expandedPath = FileSystem::expandTilde(expandedPath);
    return FileSystem::findFileInSearchPaths(paths, expandedPath);
}

References FileSystem::directoryOfPath(), FileSystem::expandTilde(), FileSystem::findFileInSearchPaths(), hdbFile_, Environment::hdbPaths(), parent_, TCEString::replaceString(), and IDF::MachineImplementation::sourceIDF().

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUToNetlist(), ProGe::ProcessorGenerator::checkIULatencies(), ProGe::BlockSourceCopier::copyShared(), CostEstimator::Estimator::fuCostFunctionPluginOfImplementation(), CostEstimator::Estimator::functionUnitArea(), CostEstimator::Estimator::functionUnitEnergy(), CostEstimator::Estimator::functionUnitMaximumComputationDelay(), CostEstimator::Estimator::functionUnitPortReadDelay(), CostEstimator::Estimator::functionUnitPortWriteDelay(), ProGeTestBenchGenerator::generate(), ProGe::ProGeUI::generateIDF(), ProGeScriptGenerator::getBlockOrder(), PlatformIntegrator::loadFUExternalPorts(), IDF::MachineImplementation::makeHDBPathRelative(), CostEstimator::Estimator::registerFileArea(), CostEstimator::Estimator::registerFileEnergy(), CostEstimator::Estimator::registerFileMaximumComputationDelay(), CostEstimator::Estimator::registerFilePortReadDelay(), CostEstimator::Estimator::registerFilePortWriteDelay(), CostEstimator::Estimator::rfCostFunctionPluginOfImplementation(), testUnits(), ProcessorImplementationWindow::updateFUList(), ProcessorImplementationWindow::updateImplementationLists(), and ProcessorImplementationWindow::updateRFList().

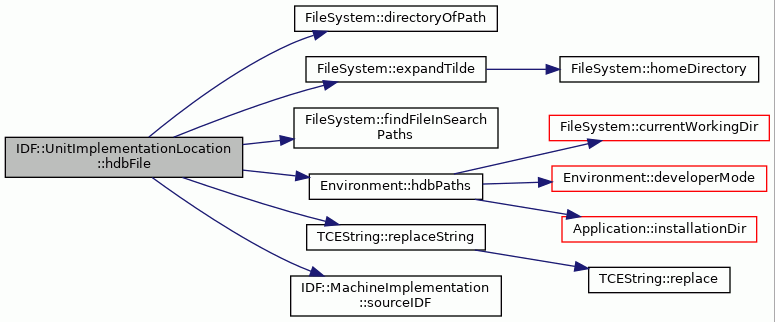

Here is the call graph for this function:

hdbFileOriginal()

std::string IDF::UnitImplementationLocation::hdbFileOriginal

(

)

const

Returns the path to the file, which was defined in IDF.

Returns

Path to the HDB in IDF file.

Definition at line 117 of file UnitImplementationLocation.cc.

                                                  {
    return hdbFile_;
}

References hdbFile_.

Referenced by IDF::MachineImplementation::checkImplFiles().

id()

int IDF::UnitImplementationLocation::id ( ) const

virtual

Returns the entry ID in HDB.

Returns

The entry ID.

Reimplemented in IDF::NullUnitImplementationLocation.

Definition at line 127 of file UnitImplementationLocation.cc.

                                     {
    return id_;
}

References id_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUToNetlist(), ProGe::ProcessorGenerator::checkIULatencies(), ProGe::BlockSourceCopier::copyShared(), AutoSelectImplementationsDialog::findFUImplementations(), AutoSelectImplementationsDialog::findIUImplementations(), AutoSelectImplementationsDialog::findRFImplementations(), CostEstimator::Estimator::fuCostFunctionPluginOfImplementation(), ProGeTestBenchGenerator::generate(), ProGe::ProGeUI::generateIDF(), PlatformIntegrator::loadFUExternalPorts(), CostEstimator::Estimator::rfCostFunctionPluginOfImplementation(), setID(), testUnits(), ProcessorImplementationWindow::updateFUList(), ProcessorImplementationWindow::updateImplementationLists(), and ProcessorImplementationWindow::updateRFList().

loadState()

void IDF::UnitImplementationLocation::loadState ( const ObjectState *  state )

virtual

Loads the state of the object from the given ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance.

Implements Serializable.

Definition at line 164 of file UnitImplementationLocation.cc.

                                                              {
    const string procName = "UnitImplementationLocation::loadState";

    if (state->name() != OSNAME_UNIT_IMPLEMENTATION) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    try {
        hdbFile_ = state->stringAttribute(OSKEY_HDB_FILE);
        id_ = state->intAttribute(OSKEY_ID);
        unitName_ = state->stringAttribute(OSKEY_UNIT_NAME);
    } catch (const Exception& exception) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References Exception::errorMessage(), hdbFile_, id_, ObjectState::intAttribute(), ObjectState::name(), OSKEY_HDB_FILE, OSKEY_ID, OSKEY_UNIT_NAME, OSNAME_UNIT_IMPLEMENTATION, ObjectState::stringAttribute(), and unitName_.

Referenced by UnitImplementationLocation().

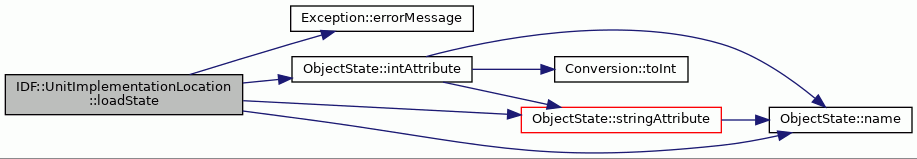

Here is the call graph for this function:

saveState()

ObjectState * IDF::UnitImplementationLocation::saveState ( ) const

virtual

Saves the state of the object to an ObjectState instance.

Returns

The newly created ObjectState instance.

Implements Serializable.

Definition at line 187 of file UnitImplementationLocation.cc.

                                            {
    ObjectState* state = new ObjectState(OSNAME_UNIT_IMPLEMENTATION);
    state->setAttribute(OSKEY_HDB_FILE, hdbFile_);
    state->setAttribute(OSKEY_ID, id());
    state->setAttribute(OSKEY_UNIT_NAME, unitName());
    return state;
}

References hdbFile_, OSKEY_HDB_FILE, OSKEY_ID, OSKEY_UNIT_NAME, OSNAME_UNIT_IMPLEMENTATION, ObjectState::setAttribute(), and unitName().

Referenced by IDF::MachineImplementation::saveState(), ComponentImplementationSelector::selectFUs(), ComponentImplementationSelector::selectIUs(), and ComponentImplementationSelector::selectRFs().

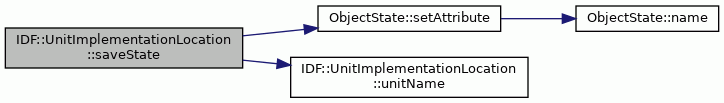

Here is the call graph for this function:

setHDBFile()

void IDF::UnitImplementationLocation::setHDBFile ( std::string  file )

virtual

Sets the absolute path to the HDB file.

Parameters

file	Absolute path to the HDB file.

Definition at line 201 of file UnitImplementationLocation.cc.

                                                     {
    hdbFile_ = file;
}

References hdbFile_.

Referenced by ProGeTools::checkForSelectableFU(), Automagic::checkForSelectableFU(), ProGeTools::checkForSelectableIU(), Automagic::checkForSelectableIU(), ProGeTools::checkForSelectableRF(), Automagic::checkForSelectableRF(), IDF::MachineImplementation::checkImplFiles(), BlockImplementationDialog::doOK(), and IDF::MachineImplementation::makeHDBPathRelative().

setID()

void IDF::UnitImplementationLocation::setID ( int  id )

virtual

Sets the entry ID in HDB.

Definition at line 210 of file UnitImplementationLocation.cc.

                                        {
    id_ = id;
}

References id(), and id_.

Referenced by ProGeTools::checkForSelectableFU(), Automagic::checkForSelectableFU(), ProGeTools::checkForSelectableIU(), Automagic::checkForSelectableIU(), ProGeTools::checkForSelectableRF(), Automagic::checkForSelectableRF(), and BlockImplementationDialog::doOK().

Here is the call graph for this function:

setParent()

void IDF::UnitImplementationLocation::setParent ( MachineImplementation &  parent )

virtual

Sets the parent of the object.

Parameters

parent

The parent MachineImplementation instance.

Exceptions

InvalidData

If the parent is already set.

Reimplemented in IDF::NullUnitImplementationLocation.

Definition at line 150 of file UnitImplementationLocation.cc.

                                                                   {
    if (parent_ != NULL) {
        throw InvalidData(__FILE__, __LINE__, __func__);
    }

    parent_ = &parent;
}

References __func__, and parent_.

unitName()

std::string IDF::UnitImplementationLocation::unitName ( ) const

virtual

Returns the name of the unit in ADF.

Returns

The name of the unit.

Reimplemented in IDF::NullUnitImplementationLocation.

Definition at line 138 of file UnitImplementationLocation.cc.

                                           {
    return unitName_;
}

References unitName_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUToNetlist(), ProGe::NetlistGenerator::addIUToNetlist(), ProGe::NetlistGenerator::addRFToNetlist(), IDFValidator::checkFUImplementations(), IDFValidator::checkIUImplementations(), IDFValidator::checkRFImplementations(), AutoSelectImplementationsDialog::onFind(), IDFValidator::removeUnknownImplementations(), and saveState().

Member Data Documentation

hdbFile_

std::string IDF::UnitImplementationLocation::hdbFile_

private

Name of the HDB file.

Definition at line 81 of file UnitImplementationLocation.hh.

Referenced by hdbFile(), hdbFileOriginal(), loadState(), saveState(), and setHDBFile().

id_

int IDF::UnitImplementationLocation::id_

private

Entry ID in the HDB.

Definition at line 83 of file UnitImplementationLocation.hh.

Referenced by id(), loadState(), and setID().

OSKEY_HDB_FILE

const string IDF::UnitImplementationLocation::OSKEY_HDB_FILE = "hdb_file"

static

ObjectState attribute key for the name of the HDB file.

Definition at line 73 of file UnitImplementationLocation.hh.

Referenced by IDF::IDFSerializer::convertToFileFormat(), IDF::IDFSerializer::convertToOMFormat(), loadState(), and saveState().

OSKEY_ID

const string IDF::UnitImplementationLocation::OSKEY_ID = "id"

static

ObjectState attribute key for the entry ID.

Definition at line 75 of file UnitImplementationLocation.hh.

Referenced by IDF::IDFSerializer::convertToFileFormat(), IDF::IDFSerializer::convertToOMFormat(), loadState(), and saveState().

OSKEY_UNIT_NAME

const string IDF::UnitImplementationLocation::OSKEY_UNIT_NAME = "unit_name"

static

Objectstate attribute key for the name of the unit.

Definition at line 77 of file UnitImplementationLocation.hh.

Referenced by IDF::IDFSerializer::convertToFileFormat(), IDF::IDFSerializer::convertToOMFormat(), loadState(), and saveState().

OSNAME_UNIT_IMPLEMENTATION

const string IDF::UnitImplementationLocation::OSNAME_UNIT_IMPLEMENTATION

static

Initial value:

=
    "unit_implementation"

ObjectState name for unit implementation.

Definition at line 71 of file UnitImplementationLocation.hh.

Referenced by IDF::IDFSerializer::convertToOMFormat(), loadState(), and saveState().

parent_

MachineImplementation* IDF::UnitImplementationLocation::parent_

private

The parent MachineImplementation instance.

Definition at line 87 of file UnitImplementationLocation.hh.

Referenced by hdbFile(), and setParent().

unitName_

std::string IDF::UnitImplementationLocation::unitName_

private

Name of the unit in ADF.

Definition at line 85 of file UnitImplementationLocation.hh.

Referenced by loadState(), and unitName().

---

The documentation for this class was generated from the following files:

• UnitImplementationLocation.hh
• UnitImplementationLocation.cc
