BlocksRF Class Reference

#include <BlocksRF.hh>

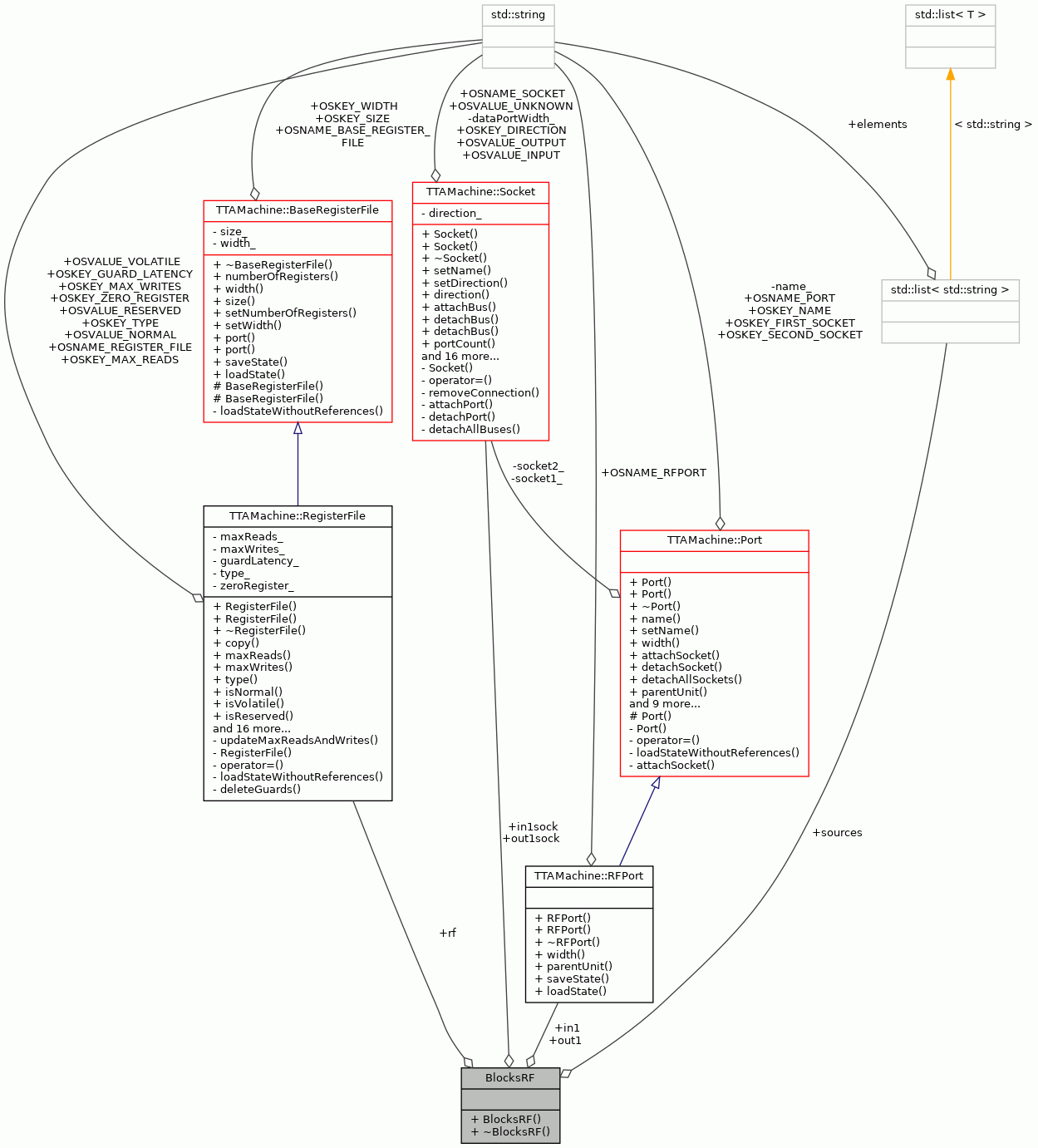

Collaboration diagram for BlocksRF:

Public Member Functions
	BlocksRF (TTAMachine::Machine &mach, const std::string &name, std::list< std::string > sources)
	~BlocksRF ()

Public Attributes
TTAMachine::RegisterFile *	rf
TTAMachine::RFPort *	in1
TTAMachine::RFPort *	out1
TTAMachine::Socket *	in1sock
TTAMachine::Socket *	out1sock
std::list< std::string >	sources

Detailed Description

Definition at line 41 of file BlocksRF.hh.

Constructor & Destructor Documentation

BlocksRF()

BlocksRF::BlocksRF	(	TTAMachine::Machine &	mach,
		const std::string &	name,
		std::list< std::string >	sources
	)

Default blocks Regierfile model

Parameters

mach	The TTA machine where the RF needs to be added.
name	The name of the RF.
sources	A list of sources that are attached to this unit's input.

Definition at line 42 of file BlocksRF.cc.

                                                                      {
    // Rf property constants
    unsigned int size = 16;
    // fixed for now, TODO: needs to be variable for mixed precision?
    unsigned int width = 32;
    unsigned int maxReads = 1;
    unsigned int maxWrites = 1;
    unsigned int guardLatency = 0;
    TTAMachine::RegisterFile::Type type =
        TTAMachine::RegisterFile::Type::NORMAL;

    rf = new RegisterFile(
        name, size, width, maxReads, maxWrites, guardLatency, type);
    this->sources = sources;
    in1 = new RFPort("in1", *rf);
    out1 = new RFPort("out1", *rf);
    mach.addRegisterFile(*rf);

    // Create sockets
    in1sock = new Socket(name + "_in1t");
    out1sock = new Socket(name + "_out1");
    mach.addSocket(*in1sock);
    mach.addSocket(*out1sock);
    in1->attachSocket(*in1sock);
    out1->attachSocket(*out1sock);
}

References TTAMachine::Machine::addRegisterFile(), TTAMachine::Machine::addSocket(), TTAMachine::Port::attachSocket(), in1, in1sock, TTAMachine::RegisterFile::NORMAL, out1, out1sock, rf, and sources.

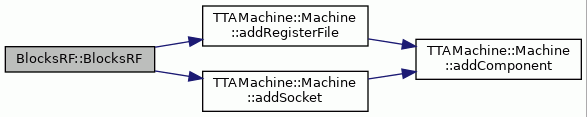

Here is the call graph for this function:

~BlocksRF()

BlocksRF::~BlocksRF ( )

inline

Definition at line 53 of file BlocksRF.hh.

                {
        delete out1;
        delete in1;
        delete in1sock;
        delete out1sock;
        delete rf;
    }

References in1, in1sock, out1, out1sock, and rf.

Member Data Documentation

in1

TTAMachine::RFPort* BlocksRF::in1

Definition at line 47 of file BlocksRF.hh.

Referenced by BlocksRF(), and ~BlocksRF().

in1sock

TTAMachine::Socket* BlocksRF::in1sock

Definition at line 49 of file BlocksRF.hh.

Referenced by BlocksRF(), and ~BlocksRF().

out1

TTAMachine::RFPort* BlocksRF::out1

Definition at line 48 of file BlocksRF.hh.

Referenced by BlocksRF(), and ~BlocksRF().

out1sock

TTAMachine::Socket* BlocksRF::out1sock

Definition at line 50 of file BlocksRF.hh.

Referenced by BlocksRF(), and ~BlocksRF().

rf

TTAMachine::RegisterFile* BlocksRF::rf

Definition at line 43 of file BlocksRF.hh.

Referenced by BlocksRF(), and ~BlocksRF().

sources

std::list<std::string> BlocksRF::sources

Definition at line 51 of file BlocksRF.hh.

Referenced by BlocksRF().

---

The documentation for this class was generated from the following files:

• BlocksRF.hh
• BlocksRF.cc
