#include <RegisterFile.hh>

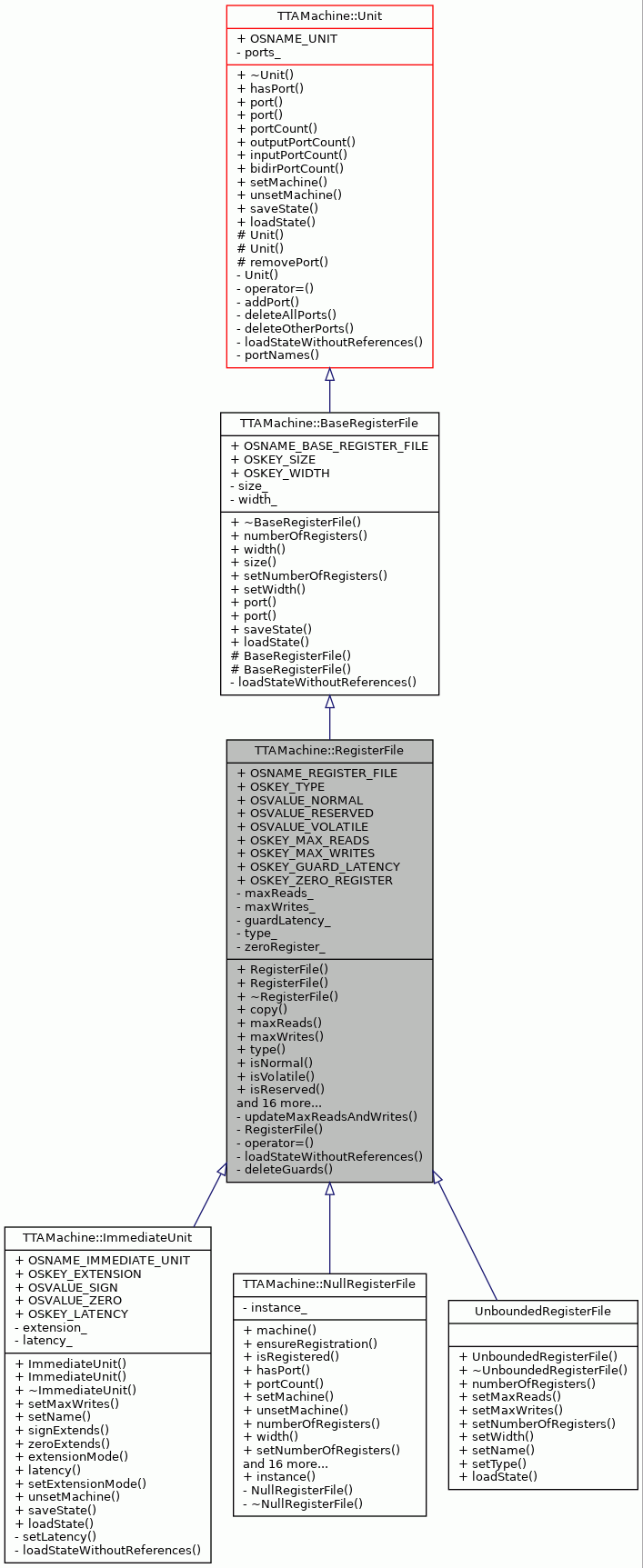

Inheritance diagram for TTAMachine::RegisterFile:

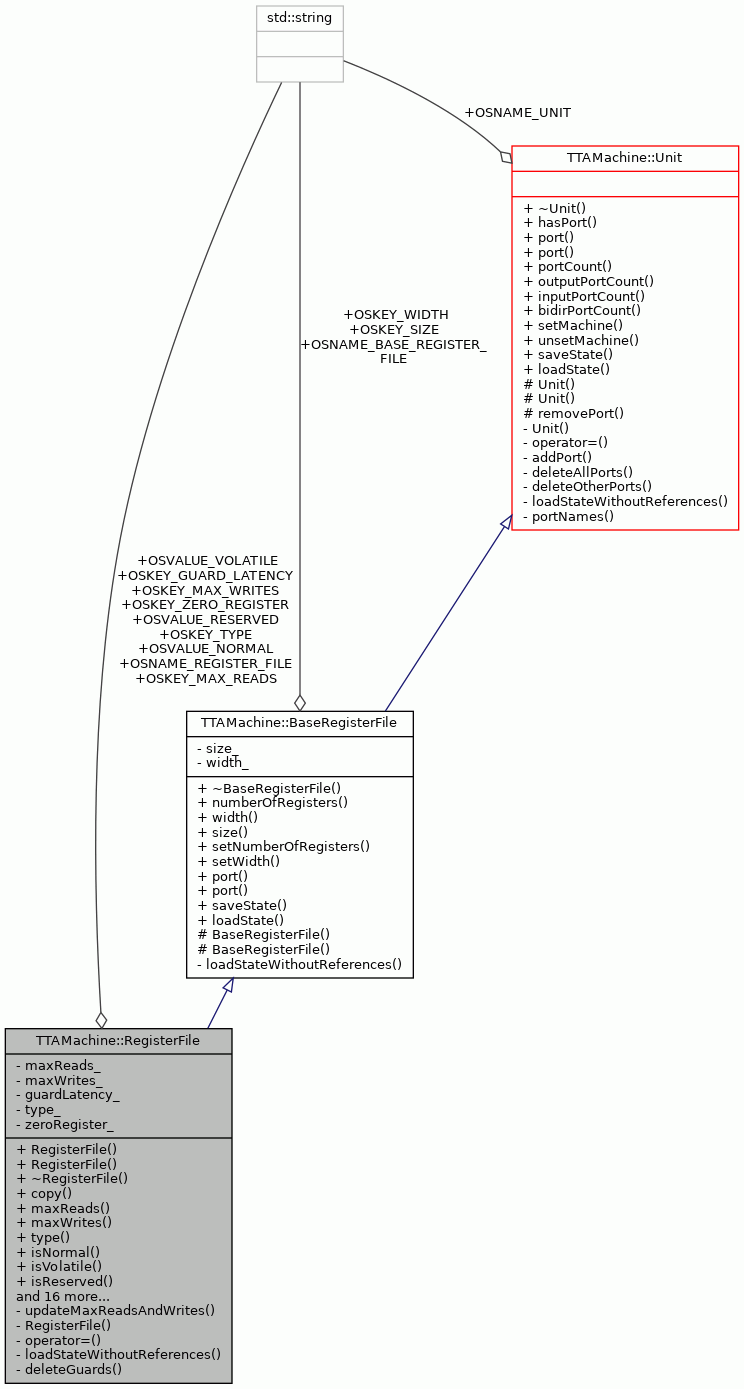

Collaboration diagram for TTAMachine::RegisterFile:

Public Types
enum	Type { NORMAL , RESERVED , VOLATILE }
	Type of the register file indicates how the RF is used. More...

Public Member Functions
	RegisterFile (const std::string &name, unsigned int size, unsigned int width, unsigned int maxReads, unsigned int maxwrites, unsigned int guardLatency, Type type, bool zeroRegister=false)

	RegisterFile (const ObjectState *state)

virtual	~RegisterFile ()

virtual RegisterFile *	copy () const

virtual int	maxReads () const

virtual int	maxWrites () const

virtual RegisterFile::Type	type () const

virtual bool	isNormal () const

virtual bool	isVolatile () const

virtual bool	isReserved () const

virtual void	setName (const std::string &name)

virtual void	setMaxReads (int maxReads)

virtual void	setMaxWrites (int maxWrites)

virtual void	setType (RegisterFile::Type type)

virtual void	setNumberOfRegisters (int registers)

virtual int	guardLatency () const

virtual void	setGuardLatency (int latency)

virtual void	unsetMachine ()

virtual ObjectState *	saveState () const

virtual void	loadState (const ObjectState *state)

virtual bool	isArchitectureEqual (const RegisterFile &rf) const

virtual bool	isUsedAsGuard () const

virtual bool	zeroRegister () const

virtual void	setZeroRegister (const bool &value)

Port *	firstReadPort () const

Port *	firstWritePort () const

Public Member Functions inherited from TTAMachine::BaseRegisterFile
virtual	~BaseRegisterFile ()

virtual int	numberOfRegisters () const

virtual int	width () const

virtual int	size () const

virtual void	setWidth (int width)

virtual RFPort *	port (const std::string &name) const

virtual RFPort *	port (int index) const

Public Member Functions inherited from TTAMachine::Unit
virtual	~Unit ()

virtual bool	hasPort (const std::string &name) const

virtual int	portCount () const

virtual int	outputPortCount (bool countBidir=false) const

virtual int	inputPortCount (bool countBidir=false) const

virtual int	bidirPortCount () const

virtual void	setMachine (Machine &mach)

Public Member Functions inherited from TTAMachine::Component
virtual	~Component ()

virtual TCEString	name () const

virtual Machine *	machine () const

virtual void	ensureRegistration (const Component &component) const

virtual bool	isRegistered () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_REGISTER_FILE = "reg_file"
	ObjectState name for RegisterFile.

static const std::string	OSKEY_TYPE = "type"
	ObjectState attribute key for register file type.

static const std::string	OSVALUE_NORMAL = "normal"
	ObjectState attribute value for normal register file type.

static const std::string	OSVALUE_RESERVED = "reserved"
	ObjectState attribute value for reserved register file type.

static const std::string	OSVALUE_VOLATILE = "volatile"
	ObjectState attribute value for volatile register file type.

static const std::string	OSKEY_MAX_READS = "max_r"
	ObjectState attribute key for maximum simultaneous readers.

static const std::string	OSKEY_MAX_WRITES = "max_w"
	ObjectState attribute key for maximum simultaneous writers.

static const std::string	OSKEY_GUARD_LATENCY = "g_latency"
	ObjectState attribute key for the guard latency.

static const std::string	OSKEY_ZERO_REGISTER = "zero_register"
	ObjectState attribute key for zero register flag.

Static Public Attributes inherited from TTAMachine::BaseRegisterFile
static const std::string	OSNAME_BASE_REGISTER_FILE = "baseregfile"
	ObjectState name for BaseRegisterFile.

static const std::string	OSKEY_SIZE = "size"
	ObjectState attribute key for the number of registers.

static const std::string	OSKEY_WIDTH = "width"
	ObjectState attribute key for bit width of the registers.

Static Public Attributes inherited from TTAMachine::Unit
static const std::string	OSNAME_UNIT = "unit"
	ObjectState name for Unit.

Static Public Attributes inherited from TTAMachine::Component
static const std::string	OSNAME_COMPONENT = "component"
	ObjectState name for component.

static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the component.

Private Member Functions
bool	updateMaxReadsAndWrites () const

	RegisterFile (const RegisterFile &)
	Copying forbidden, use the copy() method.

RegisterFile &	operator= (const RegisterFile &)
	Assingment forbidden.

void	loadStateWithoutReferences (const ObjectState *state)

void	deleteGuards (int registers) const

Private Attributes
int	maxReads_
	Max number of ports that can read a register all in the same cycle.

int	maxWrites_
	Max number of ports that can read a register all in the same cycle.

int	guardLatency_
	The guard latency of the register file.

Type	type_
	Type of the register file.

bool	zeroRegister_

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::BaseRegisterFile
	BaseRegisterFile (const std::string &name, int size, int width)

	BaseRegisterFile (const ObjectState *state)

Protected Member Functions inherited from TTAMachine::Unit
	Unit (const std::string &name)

	Unit (const ObjectState *state)

virtual void	removePort (Port &port)

Protected Member Functions inherited from TTAMachine::Component
	Component (const std::string &name)

	Component (const ObjectState *state)

void	internalSetMachine (Machine &machine)

void	internalUnsetMachine ()

Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()

virtual	~MachinePart ()

Detailed Description

Represents a register-file in TTA processor.

Definition at line 47 of file RegisterFile.hh.

Member Enumeration Documentation

◆ Type

enum TTAMachine::RegisterFile::Type

Type of the register file indicates how the RF is used.

Enumerator
NORMAL	Used for general register allocation.
RESERVED	Used for custom, user controlled register allocation.
VOLATILE	Used for user-controlled I/O communication.

Definition at line 50 of file RegisterFile.hh.

              {
        NORMAL,   ///< Used for general register allocation.
        RESERVED, ///< Used for custom, user controlled register allocation.
        VOLATILE  ///< Used for user-controlled I/O communication.
    };

Constructor & Destructor Documentation

◆ RegisterFile() [1/3]

TTAMachine::RegisterFile::RegisterFile	(	const std::string &	name,
		unsigned int	size,
		unsigned int	width,
		unsigned int	maxReads,
		unsigned int	maxWrites,
		unsigned int	guardLatency,
		Type	type,
		bool	zeroRegister = `false`
	)

Constructor.

Parameters

name	Name of the register file.
size	Number of registers in the register file.
width	Bit width of the registers in the register file.
maxReads	Maximum simultaneous reads of a register.
maxWrites	Maximum simultaneous writes of a register.
maxRw	Maximum simultaneous reads of a register in the same cycle the register is written.
type	Type of the register file, see RegisterFile::Type.

Exceptions

OutOfRange	If some of the given parameters has an illegal value.
InvalidName	If the given name is not a valid component name.

Definition at line 74 of file RegisterFile.cc.

    : BaseRegisterFile(name, size, width),
      maxReads_(0),
      maxWrites_(0),
      guardLatency_(0),
      type_(type),
      zeroRegister_(zeroRegister) {
    setMaxReads(maxReads);
    setMaxWrites(maxWrites);
    setGuardLatency(guardLatency);
}

References guardLatency(), maxReads(), maxWrites(), setGuardLatency(), setMaxReads(), and setMaxWrites().

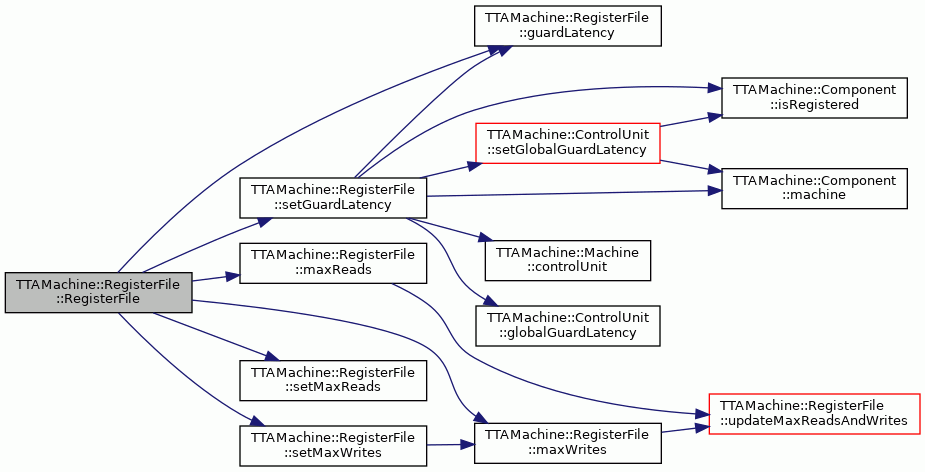

Here is the call graph for this function:

◆ RegisterFile() [2/3]

TTAMachine::RegisterFile::RegisterFile ( const ObjectState * state )

explicit

Constructor.

Loads the state of the register file from the given ObjectState instance. Does not load references to other components.

Parameters

state The ObjectState from which the name is taken.

Exceptions

ObjectStateLoadingException If the given ObjectState tree is invalid.

Definition at line 99 of file RegisterFile.cc.

    : BaseRegisterFile(state),
      maxReads_(0),
      maxWrites_(0),
      guardLatency_(0),
      type_(NORMAL),
      zeroRegister_(false) {

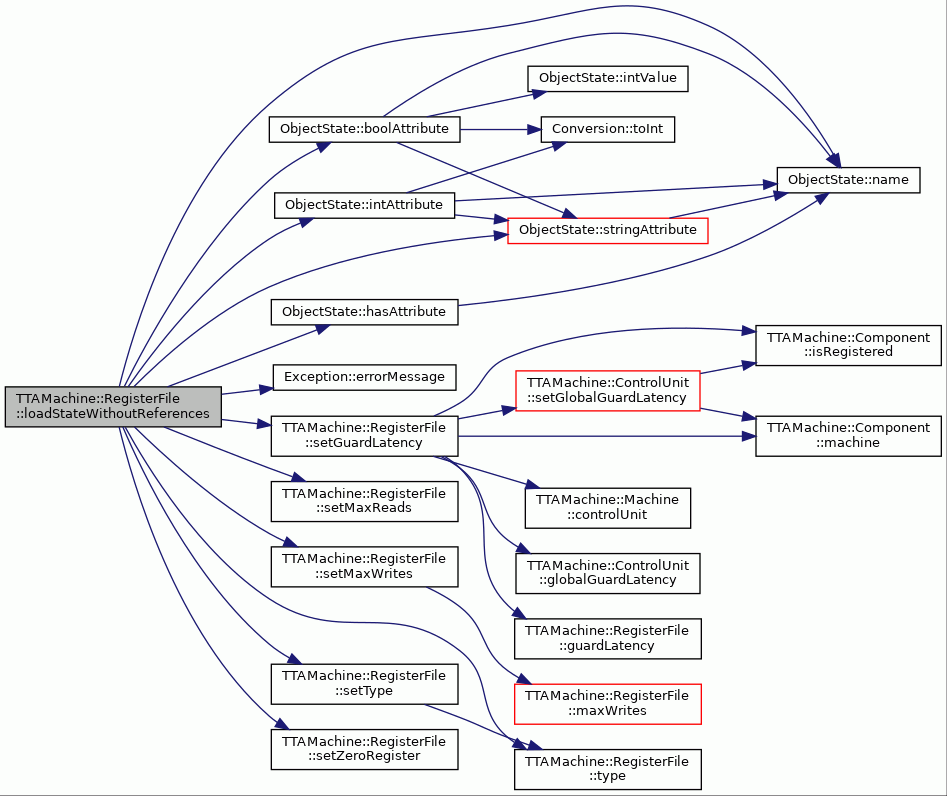

    loadStateWithoutReferences(state);
}

References loadStateWithoutReferences().

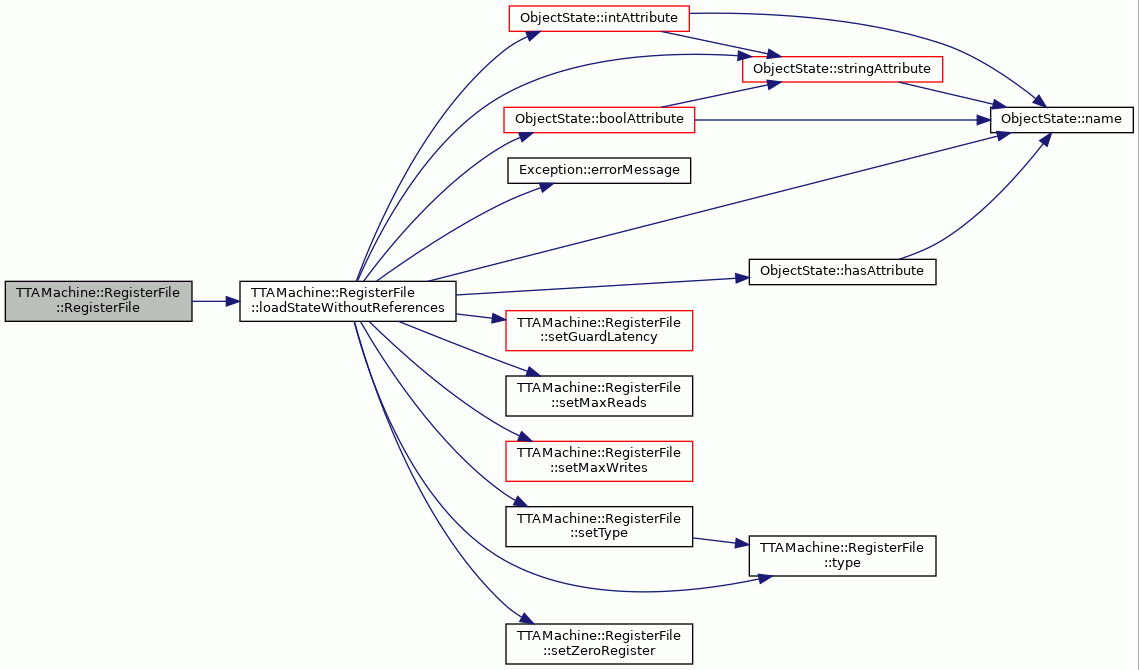

Here is the call graph for this function:

◆ ~RegisterFile()

TTAMachine::RegisterFile::~RegisterFile ( )

virtual

Destructor.

Definition at line 112 of file RegisterFile.cc.

                            {

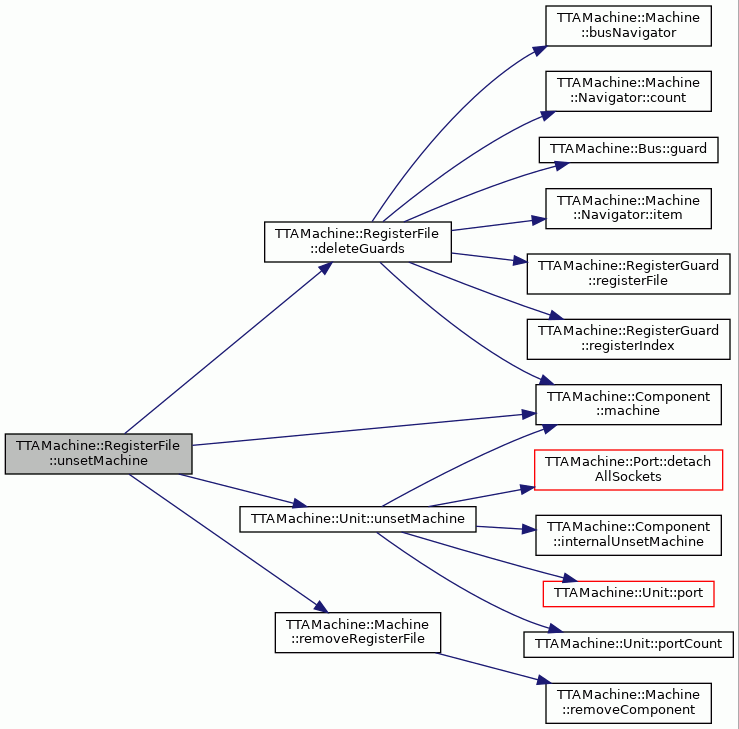

    unsetMachine();
}

References unsetMachine().

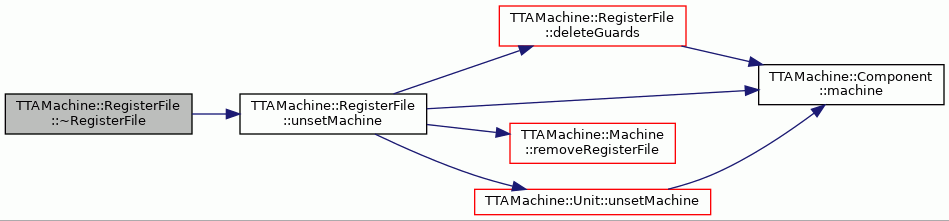

Here is the call graph for this function:

◆ RegisterFile() [3/3]

TTAMachine::RegisterFile::RegisterFile ( const RegisterFile & )

private

Copying forbidden, use the copy() method.

Member Function Documentation

◆ copy()

RegisterFile * TTAMachine::RegisterFile::copy ( ) const

virtual

Creates and returns a copy of the register file.

Returns: Copy of register file.

Definition at line 601 of file RegisterFile.cc.

                         {

    return new RegisterFile(saveState());
}

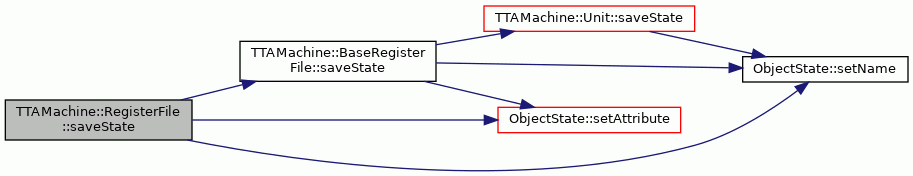

References saveState().

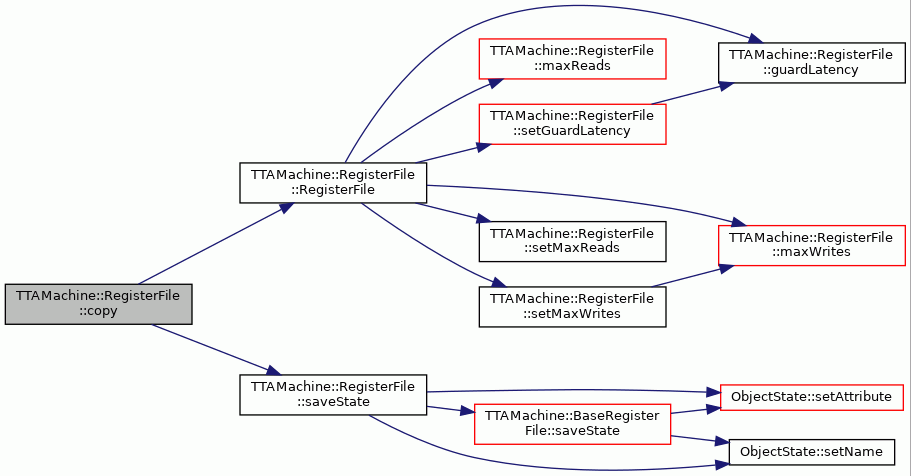

Here is the call graph for this function:

◆ deleteGuards()

void TTAMachine::RegisterFile::deleteGuards ( int registers ) const

private

Deletes the guards that refer to registers would not exist if there were the given number of registers in this register file.

Parameters

registers The number of registers.

Definition at line 492 of file RegisterFile.cc.

                                              {

    Machine* mach = machine();
    if (mach == NULL) {
        return;
    }

    // for each bus
    Machine::BusNavigator navi = mach->busNavigator();
    for (int busIndex = 0; busIndex < navi.count(); busIndex++) {
        Bus* bus = navi.item(busIndex);
        int guardIndex = 0;

        // delete register guards that refer to non-existing registers
        while (guardIndex < bus->guardCount()) {
            Guard* guard = bus->guard(guardIndex);
            RegisterGuard* regGuard =
                dynamic_cast<RegisterGuard*>(guard);
            if (regGuard != NULL && regGuard->registerFile() == this &&
                regGuard->registerIndex() >= registers) {

                // guard is removed from bus automatically
                delete regGuard;
            } else {
                guardIndex++;
            }
        }
    }
}

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Bus::guard(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), TTAMachine::RegisterGuard::registerFile(), and TTAMachine::RegisterGuard::registerIndex().

Referenced by setNumberOfRegisters(), and unsetMachine().

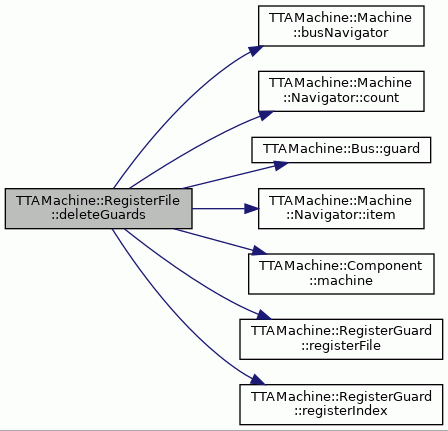

Here is the call graph for this function:

◆ firstReadPort()

Port * TTAMachine::RegisterFile::firstReadPort ( ) const

Definition at line 607 of file RegisterFile.cc.

                                  {
    for (int i = 0; i < portCount(); i++) {
        Port* p = port(i);
        if (p->outputSocket() != NULL) {
            return p;
        }
    }
    return NULL;
}

References TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), and TTAMachine::Unit::portCount().

Referenced by RegisterRenamer::renameLiveRange(), BFRenameLiveRange::setTerminals(), BFRegCopyAfter::splitMove(), and BFRegCopyBefore::splitMove().

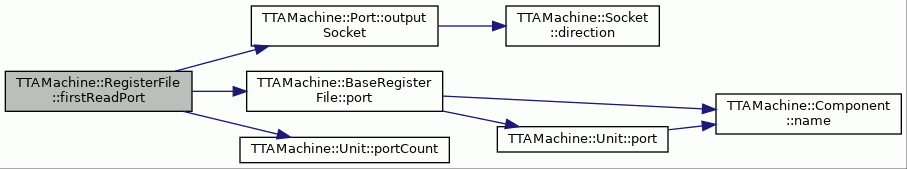

Here is the call graph for this function:

◆ firstWritePort()

Port * TTAMachine::RegisterFile::firstWritePort ( ) const

Definition at line 618 of file RegisterFile.cc.

                                   {
    for (int i = 0; i < portCount(); i++) {
        Port* p = port(i);
        if (p->inputSocket() != NULL) {
            return p;
        }
    }
    return NULL;
}

References TTAMachine::Port::inputSocket(), TTAMachine::BaseRegisterFile::port(), and TTAMachine::Unit::portCount().

Referenced by RegisterRenamer::renameLiveRange(), BFRenameLiveRange::setTerminals(), BFRegCopyAfter::splitMove(), and BFRegCopyBefore::splitMove().

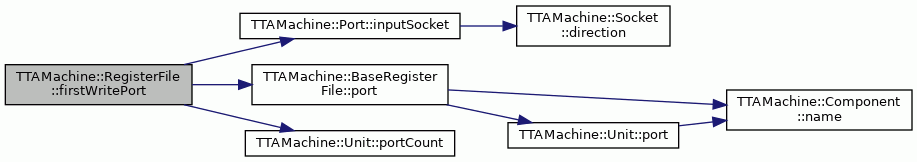

Here is the call graph for this function:

◆ guardLatency()

int TTAMachine::RegisterFile::guardLatency ( ) const

virtual

Returns the guard latency.

Returns: The guard latency.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 333 of file RegisterFile.cc.

                                 {
    return guardLatency_;
}

References guardLatency_.

Referenced by MachineStateBuilder::buildMachineState(), ProGeTools::checkForSelectableRF(), Automagic::checkForSelectableRF(), CompiledSimCodeGenerator::CompiledSimCodeGenerator(), TTAProgram::Move::guardLatency(), TTAMachine::ControlUnit::hasLocalGuardLatencyOfZero(), isArchitectureEqual(), TTAMachine::RegisterGuard::loadState(), MachineInfo::longestGuardLatency(), BlockImplementationDialog::onHDBSelection(), RegisterFile(), TTAMachine::RegisterGuard::RegisterGuard(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), ComponentImplementationSelector::rfImplementations(), SequentialScheduler::scheduleMove(), setGuardLatency(), and RFDialog::updateWidgets().

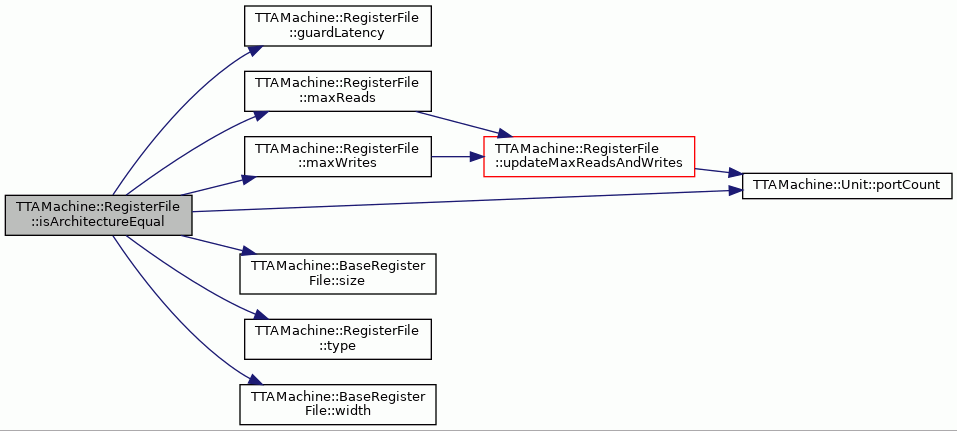

◆ isArchitectureEqual()

bool TTAMachine::RegisterFile::isArchitectureEqual ( const RegisterFile & rf ) const

virtual

Checks is this register file architecture equal with the given register file.

Architecture equality means that register files have same values, names and port names may differ.

Parameters

rf	Register file to compare with.

Returns: True if the register files are architecture equal.

Definition at line 532 of file RegisterFile.cc.

                                                              {

    if (size() != rf.size()) {
        return false;
    }
    if (width() != rf.width()) {
        return false;
    }
    if (maxReads_ != rf.maxReads()) {
        return false;
    }
    if (maxWrites_ != rf.maxWrites()) {
        return false;
    }
    if (type_ != rf.type()) {
        return false;
    }
    if (guardLatency_ != rf.guardLatency()) {
        return false;
    }
    if (portCount() != rf.portCount()) {
        return false;
    }
    // ports have same width that the register file, so port widths are not
    // needed to check

    return true;
}

References guardLatency(), guardLatency_, maxReads(), maxReads_, maxWrites(), maxWrites_, TTAMachine::Unit::portCount(), TTAMachine::BaseRegisterFile::size(), type(), type_, and TTAMachine::BaseRegisterFile::width().

Referenced by MachineResourceModifier::analyzeRegisters().

Here is the call graph for this function:

◆ isNormal()

bool TTAMachine::RegisterFile::isNormal ( ) const

virtual

Returns true if the type of the register file is normal, otherwise false.

Returns: True if the type of the register file is normal, otherwise false.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 158 of file RegisterFile.cc.

                             {
    return (type_ == NORMAL);
}

References NORMAL, and type_.

Referenced by ProDeRFEditPolicy::getCommand().

◆ isReserved()

bool TTAMachine::RegisterFile::isReserved ( ) const

virtual

Returns true if the type of the register file is reserved, otherwise false.

Returns: True if the type of the register file is reserved, otherwise false.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 184 of file RegisterFile.cc.

                               {
    return (type_ == RESERVED);
}

References RESERVED, and type_.

Referenced by TDGen::analyzeRegisters(), and ProDeRFEditPolicy::getCommand().

◆ isUsedAsGuard()

bool TTAMachine::RegisterFile::isUsedAsGuard ( ) const

virtual

Returns true if the register file is used as a guard.

Returns: True if the register file is used as a guard.

Definition at line 567 of file RegisterFile.cc.

                                  {

    Machine* mach = machine();
    if (mach == NULL) {
        return false;
    }

    // for each bus
    Machine::BusNavigator navi = mach->busNavigator();
    for (int busIndex = 0; busIndex < navi.count(); busIndex++) {
        Bus* bus = navi.item(busIndex);
        int guardIndex = 0;

        // check if there are register guards that refer to this register file
        while (guardIndex < bus->guardCount()) {
            Guard* guard = bus->guard(guardIndex);
            RegisterGuard* regGuard =
                dynamic_cast<RegisterGuard*>(guard);
            if (regGuard != NULL && regGuard->registerFile() == this) {
                return true;
            } else {
                guardIndex++;
            }
        }
    }
    return false;
}

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Bus::guard(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), and TTAMachine::RegisterGuard::registerFile().

Referenced by ProGeTools::checkForSelectableIU(), Automagic::checkForSelectableIU(), ProGeTools::checkForSelectableRF(), Automagic::checkForSelectableRF(), AutoSelectImplementationsDialog::findRFImplementations(), BlockImplementationDialog::onHDBSelection(), and ComponentImplementationSelector::selectRFs().

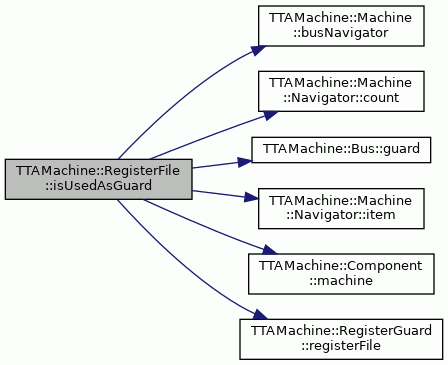

Here is the call graph for this function:

◆ isVolatile()

bool TTAMachine::RegisterFile::isVolatile ( ) const

virtual

Returns true if the type of the register file is volatile, otherwise false.

Returns: True if the type of the register file is volatile, otherwise false.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 171 of file RegisterFile.cc.

                               {
    return (type_ == VOLATILE);
}

References type_, and VOLATILE.

Referenced by ProDeRFEditPolicy::getCommand().

◆ loadState()

void TTAMachine::RegisterFile::loadState ( const ObjectState * state )

virtual

Loads its state from the given ObjectState instance.

Parameters

state The ObjectState instance.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is invalid.

Reimplemented from TTAMachine::BaseRegisterFile.

Reimplemented in TTAMachine::ImmediateUnit, TTAMachine::NullRegisterFile, and UnboundedRegisterFile.

Definition at line 433 of file RegisterFile.cc.

                                                {
    const string procName = "RegisterFile::loadState";
    loadStateWithoutReferences(state);
    BaseRegisterFile::loadState(state);
    MOMTextGenerator textGenerator;
}

References TTAMachine::BaseRegisterFile::loadState(), and loadStateWithoutReferences().

Referenced by TTAMachine::ImmediateUnit::loadState(), and TTAMachine::Machine::loadState().

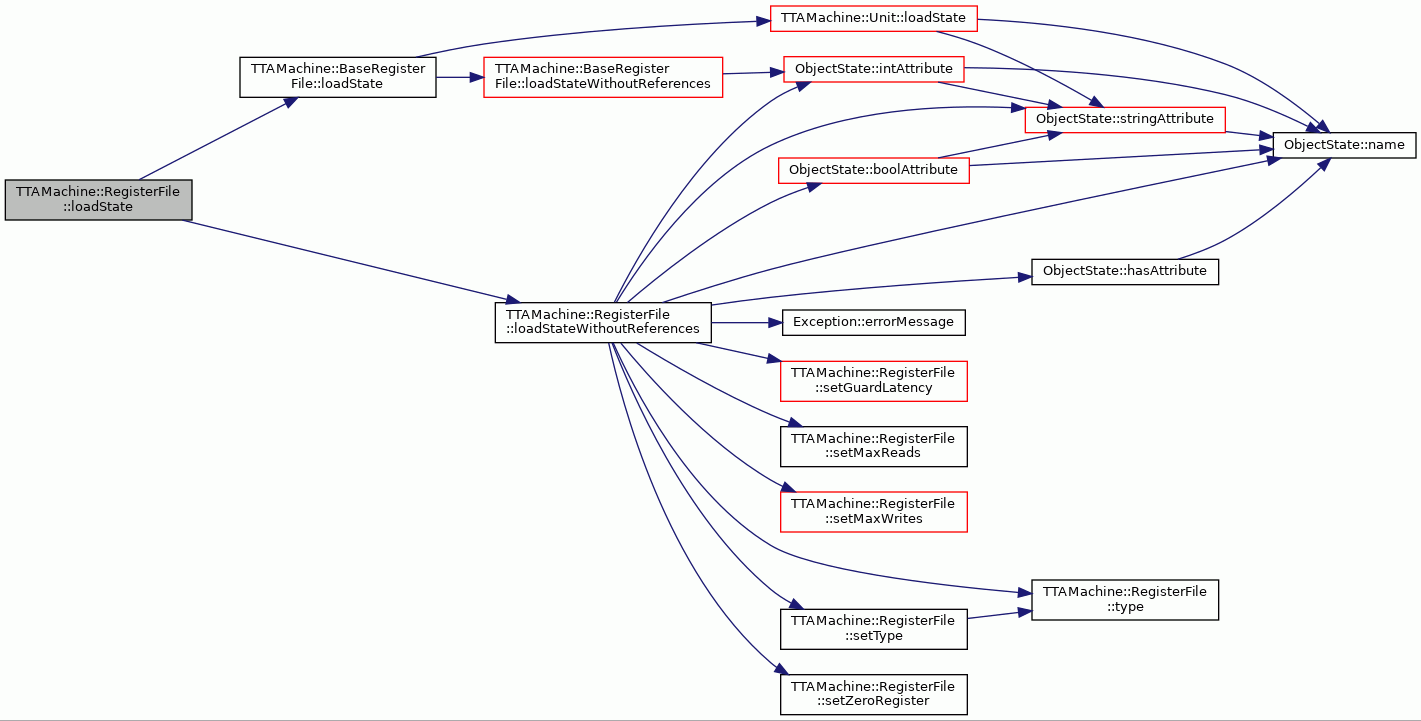

Here is the call graph for this function:

◆ loadStateWithoutReferences()

void TTAMachine::RegisterFile::loadStateWithoutReferences ( const ObjectState * state )

private

Loads the state of the register file without references to other components.

Parameters

state The ObjectState instance from which the state is loaded.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is invalid.

Definition at line 449 of file RegisterFile.cc.

                                                                 {
    const string procName = "RegisterFile::loadStateWithoutReferences";

    if (! (state->name() == OSNAME_REGISTER_FILE ||
           state->name() == ImmediateUnit::OSNAME_IMMEDIATE_UNIT)) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    try {
        string type = state->stringAttribute(OSKEY_TYPE);
        if (type == OSVALUE_NORMAL) {
            setType(NORMAL);
        } else if (type == OSVALUE_RESERVED) {
            setType(RESERVED);
        } else if (type == OSVALUE_VOLATILE) {
            setType(VOLATILE);
        } else {
            const string errorMsg = "Unknown register file type in "
                "ObjectState instance.";
            throw ObjectStateLoadingException(
                __FILE__, __LINE__, procName, errorMsg);
        }

        setMaxReads(state->intAttribute(OSKEY_MAX_READS));
        setMaxWrites(state->intAttribute(OSKEY_MAX_WRITES));
        setGuardLatency(state->intAttribute(OSKEY_GUARD_LATENCY));
        if (state->hasAttribute(OSKEY_ZERO_REGISTER)) {
            setZeroRegister(state->boolAttribute(OSKEY_ZERO_REGISTER));
        }

    } catch (const Exception& e) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, e.errorMessage());
    }
}

References ObjectState::boolAttribute(), Exception::errorMessage(), ObjectState::hasAttribute(), ObjectState::intAttribute(), ObjectState::name(), NORMAL, OSKEY_GUARD_LATENCY, OSKEY_MAX_READS, OSKEY_MAX_WRITES, OSKEY_TYPE, OSKEY_ZERO_REGISTER, TTAMachine::ImmediateUnit::OSNAME_IMMEDIATE_UNIT, OSNAME_REGISTER_FILE, OSVALUE_NORMAL, OSVALUE_RESERVED, OSVALUE_VOLATILE, RESERVED, setGuardLatency(), setMaxReads(), setMaxWrites(), setType(), setZeroRegister(), ObjectState::stringAttribute(), type(), and VOLATILE.

Referenced by loadState(), and RegisterFile().

Here is the call graph for this function:

◆ maxReads()

int TTAMachine::RegisterFile::maxReads ( ) const

virtual

Returns the number of ports that can read a register all in same cycle.

Returns: The number of ports that can read a register all in same cycle.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 123 of file RegisterFile.cc.

                             {
    updateMaxReadsAndWrites();
    return maxReads_;
}

References maxReads_, and updateMaxReadsAndWrites().

Referenced by ResourceConstraintAnalyzer::analyzeMoveNode(), ProGeTools::checkForSelectableIU(), Automagic::checkForSelectableIU(), ADFCombiner::createPortsAndSockets(), FullyConnectedCheck::fix(), isArchitectureEqual(), BlockImplementationDialog::onHDBSelection(), RegisterFile(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), ComponentImplementationSelector::rfImplementations(), BFOptimization::RFReadPortCountPreventsScheduling(), and RFDialog::updateWidgets().

Here is the call graph for this function:

◆ maxWrites()

int TTAMachine::RegisterFile::maxWrites ( ) const

virtual

Returns the number of ports that can write a register all in same cycle.

Returns: The number of ports that can write a register all in same cycle.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 135 of file RegisterFile.cc.

                              {
    updateMaxReadsAndWrites();
    return maxWrites_;
}

References maxWrites_, and updateMaxReadsAndWrites().

Referenced by ResourceConstraintAnalyzer::analyzeMoveNode(), ADFCombiner::createPortsAndSockets(), FullyConnectedCheck::fix(), isArchitectureEqual(), BlockImplementationDialog::onHDBSelection(), RegisterFile(), HDB::RFArchitecture::RFArchitecture(), HDB::RFArchitecture::RFArchitecture(), ComponentImplementationSelector::rfImplementations(), TTAMachine::ImmediateUnit::setMaxWrites(), setMaxWrites(), and RFDialog::updateWidgets().

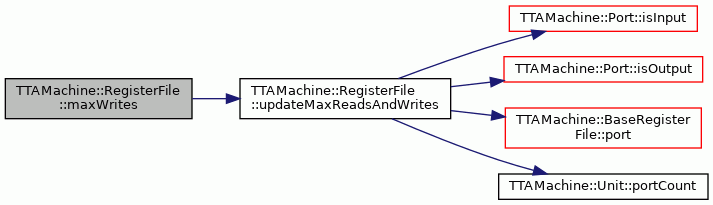

Here is the call graph for this function:

◆ operator=()

RegisterFile & TTAMachine::RegisterFile::operator= ( const RegisterFile & )

private

Assingment forbidden.

◆ saveState()

ObjectState * TTAMachine::RegisterFile::saveState ( ) const

virtual

Saves the contents to an ObjectState tree.

Returns: The newly created ObjectState tree.

Reimplemented from TTAMachine::BaseRegisterFile.

Reimplemented in TTAMachine::ImmediateUnit, and TTAMachine::NullRegisterFile.

Definition at line 392 of file RegisterFile.cc.

                              {

    ObjectState* regFile = BaseRegisterFile::saveState();
    regFile->setName(OSNAME_REGISTER_FILE);

    // set type
    switch(type_) {
    case NORMAL: regFile->setAttribute(OSKEY_TYPE, OSVALUE_NORMAL); break;
    case RESERVED: regFile->setAttribute(OSKEY_TYPE, OSVALUE_RESERVED);
        break;
    case VOLATILE: regFile->setAttribute(OSKEY_TYPE, OSVALUE_VOLATILE);
        break;
    default: assert(false);
    }

    // set max reads
    regFile->setAttribute(OSKEY_MAX_READS, maxReads_);

    // set max writes
    regFile->setAttribute(OSKEY_MAX_WRITES, maxWrites_);

    // set guard latency
    regFile->setAttribute(OSKEY_GUARD_LATENCY, guardLatency_);

    // set zero register
    if (zeroRegister_) {
        regFile->setAttribute(OSKEY_ZERO_REGISTER, zeroRegister_);
    }

    return regFile;
}

References assert, guardLatency_, maxReads_, maxWrites_, NORMAL, OSKEY_GUARD_LATENCY, OSKEY_MAX_READS, OSKEY_MAX_WRITES, OSKEY_TYPE, OSKEY_ZERO_REGISTER, OSNAME_REGISTER_FILE, OSVALUE_NORMAL, OSVALUE_RESERVED, OSVALUE_VOLATILE, RESERVED, TTAMachine::BaseRegisterFile::saveState(), ObjectState::setAttribute(), ObjectState::setName(), type_, VOLATILE, and zeroRegister_.

Referenced by copy(), and TTAMachine::ImmediateUnit::saveState().

Here is the call graph for this function:

◆ setGuardLatency()

void TTAMachine::RegisterFile::setGuardLatency ( int latency )

virtual

Sets the guard latency.

Parameters

latency The new guard latency.

Exceptions

OutOfRange If the given value is negative or if local + global guard latency would be zero.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 346 of file RegisterFile.cc.

                                         {
    if (latency < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    // check that local guard latency + global guard latency > 0
    if (latency == 0 && isRegistered()) {
        ControlUnit* gcu = machine()->controlUnit();
        if (gcu != NULL) {
            int oldLatency = guardLatency();
            guardLatency_ = latency;
            try {
                // this throws OutOfRange if the local guard latency cannot
                // be zero
                gcu->setGlobalGuardLatency(gcu->globalGuardLatency());
            } catch (const OutOfRange& exception) {
                guardLatency_ = oldLatency;
                throw exception;
            }
        }
    }

    guardLatency_ = latency;
}

References __func__, TTAMachine::Machine::controlUnit(), TTAMachine::ControlUnit::globalGuardLatency(), guardLatency(), guardLatency_, TTAMachine::Component::isRegistered(), TTAMachine::Component::machine(), and TTAMachine::ControlUnit::setGlobalGuardLatency().

Referenced by loadStateWithoutReferences(), RFDialog::onOK(), and RegisterFile().

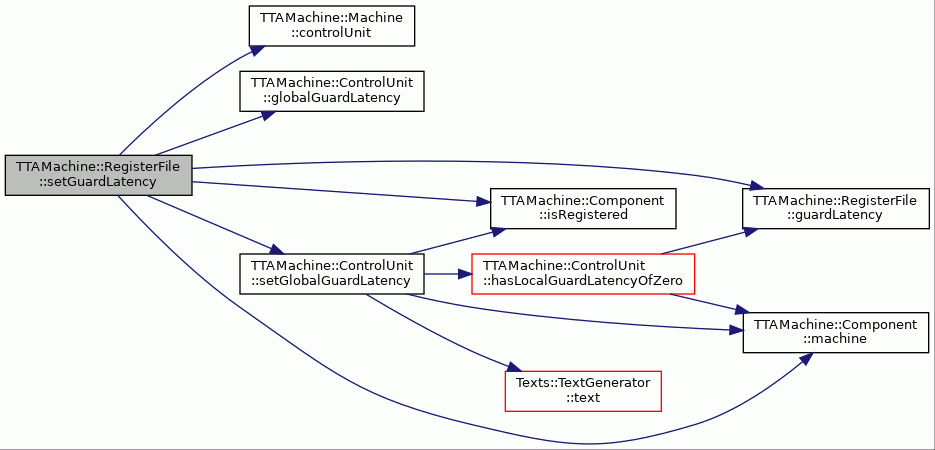

Here is the call graph for this function:

◆ setMaxReads()

void TTAMachine::RegisterFile::setMaxReads ( int reads )

virtual

Sets the maximum number of ports that can read a register all in the same cycle. Note that this function is only needed if all of the ports are unconnected, otherwise this value is computed automatically.

The given value must be at least zero.

Parameters

reads Maximum number of ports.

Exceptions

OutOfRange If the given number of maximum reads is out of range.

Reimplemented in TTAMachine::NullRegisterFile, and UnboundedRegisterFile.

Definition at line 227 of file RegisterFile.cc.

                                   {
    if (reads < 0) {
        std::string procName = "RegisterFile::setMaxReads";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
    maxReads_ = reads;
}

References maxReads_.

Referenced by loadStateWithoutReferences(), and RegisterFile().

◆ setMaxWrites()

void TTAMachine::RegisterFile::setMaxWrites ( int maxWrites )

virtual

Sets the maximum number of ports that can write a register all in the same cycle. Note that this function is only needed if all of the ports are unconnected, otherwise this value is computed automatically.

The given value must be at least zero.

Parameters

writes Maximum number of ports.

Exceptions

OutOfRange If the given number of maximum writes is out of range.

Reimplemented in TTAMachine::ImmediateUnit, TTAMachine::NullRegisterFile, and UnboundedRegisterFile.

Definition at line 247 of file RegisterFile.cc.

                                        {
    if (maxWrites < 0) {
        std::string procName = "RegisterFile::setMaxWrites";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
    maxWrites_ = maxWrites;
}

References maxWrites(), and maxWrites_.

Referenced by loadStateWithoutReferences(), RegisterFile(), and TTAMachine::ImmediateUnit::setMaxWrites().

Here is the call graph for this function:

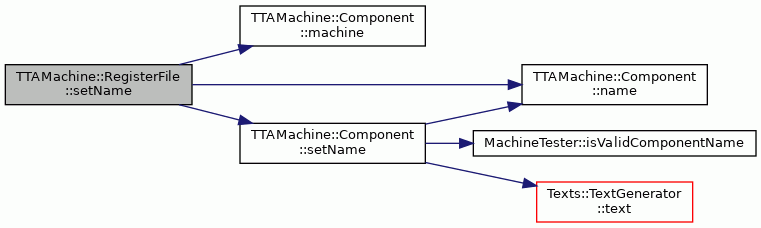

◆ setName()

void TTAMachine::RegisterFile::setName ( const std::string & name )

virtual

Sets the name of the register file.

Parameters

name	Name of the register file.

Exceptions

ComponentAlreadyExists	If a register file with the given name is already in the same machine.
InvalidName	If the given name is not a valid component name.

Reimplemented from TTAMachine::Component.

Reimplemented in TTAMachine::ImmediateUnit, TTAMachine::NullRegisterFile, and UnboundedRegisterFile.

Definition at line 198 of file RegisterFile.cc.

                                           {
    if (name == this->name()) {
        return;
    }

    if (machine() != NULL) {
        if (machine()->registerFileNavigator().hasItem(name)) {
            string procName = "RegisterFile::setName";
            throw ComponentAlreadyExists(__FILE__, __LINE__, procName);
        } else {
            Component::setName(name);
        }
    } else {
        Component::setName(name);
    }
}

References TTAMachine::Component::machine(), TTAMachine::Component::name(), and TTAMachine::Component::setName().

Referenced by ADFCombiner::addRegisterFiles(), MachineResourceModifier::increaseAllRFsThatDiffersByAmount(), RFDialog::onOK(), and MachineResourceModifier::percentualRegisterIncrease().

Here is the call graph for this function:

◆ setNumberOfRegisters()

void TTAMachine::RegisterFile::setNumberOfRegisters ( int registers )

virtual

Sets the number of registers in the register file.

If the number of registers decreases, deletes the register guards that were referencing to the registers that are removed.

Parameters

registers The new amount of registers.

Exceptions

OutOfRange If the given number of registers is less or equal to zero.

Reimplemented from TTAMachine::BaseRegisterFile.

Reimplemented in TTAMachine::NullRegisterFile, and UnboundedRegisterFile.

Definition at line 320 of file RegisterFile.cc.

                                                {
    if (registers < numberOfRegisters()) {
        deleteGuards(registers);
    }
    BaseRegisterFile::setNumberOfRegisters(registers);
}

References deleteGuards(), TTAMachine::BaseRegisterFile::numberOfRegisters(), and TTAMachine::BaseRegisterFile::setNumberOfRegisters().

Referenced by RegisterQuantityCheck::fixIntRegs(), TTAMachine::ImmediateUnit::ImmediateUnit(), IUDialog::onOK(), and RFDialog::onOK().

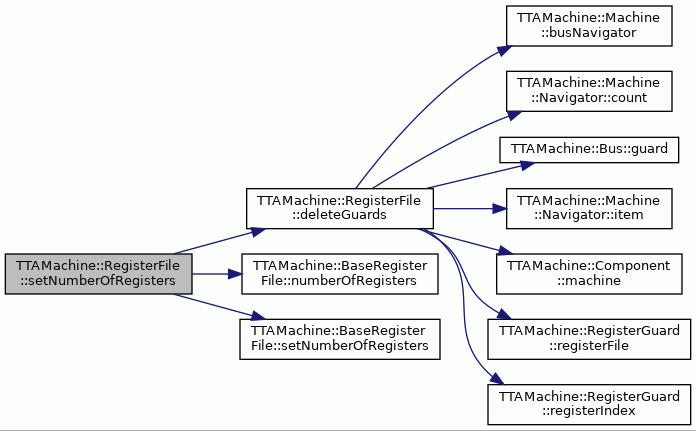

Here is the call graph for this function:

◆ setType()

void TTAMachine::RegisterFile::setType ( RegisterFile::Type type )

virtual

Sets the type of the register file.

Parameters

type	Type of the register file.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 304 of file RegisterFile.cc.

                                           {
    type_ = type;
}

References type(), and type_.

Referenced by loadStateWithoutReferences(), and RFDialog::onOK().

Here is the call graph for this function:

◆ setZeroRegister()

void TTAMachine::RegisterFile::setZeroRegister ( const bool & value )

virtual

Definition at line 634 of file RegisterFile.cc.

                                               {
    zeroRegister_ = value;
}

References zeroRegister_.

Referenced by loadStateWithoutReferences(), and RFDialog::onOK().

◆ type()

RegisterFile::Type TTAMachine::RegisterFile::type ( ) const

virtual

Returns the type of the register file.

Returns: Type of the register file.

Reimplemented in TTAMachine::NullRegisterFile.

Definition at line 147 of file RegisterFile.cc.

                         {
    return type_;
}

References type_.

Referenced by isArchitectureEqual(), loadStateWithoutReferences(), setType(), and RFDialog::updateWidgets().

◆ unsetMachine()

void TTAMachine::RegisterFile::unsetMachine ( )

virtual

Removes the register file from machine.

Reimplemented from TTAMachine::Unit.

Reimplemented in TTAMachine::ImmediateUnit, and TTAMachine::NullRegisterFile.

Definition at line 375 of file RegisterFile.cc.

                           {
    Machine* mach = machine();
    if (mach == NULL) {
        return;
    }
    deleteGuards(0);
    BaseRegisterFile::unsetMachine();
    mach->removeRegisterFile(*this);
}

References deleteGuards(), TTAMachine::Component::machine(), TTAMachine::Machine::removeRegisterFile(), and TTAMachine::Component::unsetMachine().

Referenced by ~RegisterFile().

Here is the call graph for this function:

◆ updateMaxReadsAndWrites()

bool TTAMachine::RegisterFile::updateMaxReadsAndWrites ( ) const

private

Updates RFs max reads/writes according in/output ports.

Port that is not assigned to a socket is considered to be a dead port, thus not counted towards the maximum number of reads or writes.

Returns: True if max reads/writes changed

Exceptions

OutOfRange If setMaxReads/setMaxWrites throws outOfRange exception.

Definition at line 266 of file RegisterFile.cc.

                                            {
    int reads = 0;
    int writes = 0;
    bool changed = false;

    for (int p = 0; p < portCount(); ++p) {
        if (!port(p)->isOutput() && !port(p)->isInput()) {

            // do not count unconnected ports
            //++reads;
            //++writes;

        } else {
            if (port(p)->isOutput()) {
                changed = true;
                ++reads;
            }
            if (port(p)->isInput()) {
                changed = true;
                ++writes;
            }
        }
    }

    if (changed)
    {
        maxReads_ = reads;
        maxWrites_ = writes;
    }
    return changed;
}

References TTAMachine::Port::isInput(), TTAMachine::Port::isOutput(), maxReads_, maxWrites_, TTAMachine::BaseRegisterFile::port(), and TTAMachine::Unit::portCount().

Referenced by maxReads(), and maxWrites().

Here is the call graph for this function:

◆ zeroRegister()

bool TTAMachine::RegisterFile::zeroRegister ( ) const

virtual

Definition at line 629 of file RegisterFile.cc.

                                 {
    return zeroRegister_;
}

References zeroRegister_.

Referenced by TDGen::analyzeRegisters(), MachineStateBuilder::buildMachineState(), ProGeTools::checkForSelectableRF(), ProGe::RV32MicroCodeGenerator::findRF(), BlockImplementationDialog::onHDBSelection(), RegisterRenamer::registersOfRFs(), ComponentImplementationSelector::rfImplementations(), and RFDialog::updateWidgets().

Member Data Documentation

◆ guardLatency_

int TTAMachine::RegisterFile::guardLatency_

private

The guard latency of the register file.

Definition at line 133 of file RegisterFile.hh.

Referenced by guardLatency(), isArchitectureEqual(), saveState(), and setGuardLatency().

◆ maxReads_

int TTAMachine::RegisterFile::maxReads_

mutableprivate

Max number of ports that can read a register all in the same cycle.

Definition at line 129 of file RegisterFile.hh.

Referenced by isArchitectureEqual(), maxReads(), saveState(), setMaxReads(), and updateMaxReadsAndWrites().

◆ maxWrites_

int TTAMachine::RegisterFile::maxWrites_

mutableprivate

Max number of ports that can read a register all in the same cycle.

Definition at line 131 of file RegisterFile.hh.

Referenced by isArchitectureEqual(), maxWrites(), saveState(), setMaxWrites(), and updateMaxReadsAndWrites().

◆ OSKEY_GUARD_LATENCY

const string TTAMachine::RegisterFile::OSKEY_GUARD_LATENCY = "g_latency"

static

ObjectState attribute key for the guard latency.

Definition at line 108 of file RegisterFile.hh.

Referenced by loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), and saveState().

◆ OSKEY_MAX_READS

const string TTAMachine::RegisterFile::OSKEY_MAX_READS = "max_r"

static

ObjectState attribute key for maximum simultaneous readers.

Definition at line 104 of file RegisterFile.hh.

Referenced by ADFSerializer::immediateUnitToMDF(), loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), and saveState().

◆ OSKEY_MAX_WRITES

const string TTAMachine::RegisterFile::OSKEY_MAX_WRITES = "max_w"

static

ObjectState attribute key for maximum simultaneous writers.

Definition at line 106 of file RegisterFile.hh.

Referenced by ADFSerializer::immediateUnitToMDF(), loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), and saveState().

◆ OSKEY_TYPE

const string TTAMachine::RegisterFile::OSKEY_TYPE = "type"

static

ObjectState attribute key for register file type.

Definition at line 96 of file RegisterFile.hh.

Referenced by ADFSerializer::immediateUnitToMDF(), loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), and saveState().

◆ OSKEY_ZERO_REGISTER

const string TTAMachine::RegisterFile::OSKEY_ZERO_REGISTER = "zero_register"

static

ObjectState attribute key for zero register flag.

Definition at line 110 of file RegisterFile.hh.

Referenced by loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), and saveState().

◆ OSNAME_REGISTER_FILE

const string TTAMachine::RegisterFile::OSNAME_REGISTER_FILE = "reg_file"

static

ObjectState name for RegisterFile.

Definition at line 94 of file RegisterFile.hh.

Referenced by ADFSerializer::convertToMDFFormat(), PasteComponentCmd::Do(), TTAMachine::Machine::loadState(), loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), and saveState().

◆ OSVALUE_NORMAL

const string TTAMachine::RegisterFile::OSVALUE_NORMAL = "normal"

static

ObjectState attribute value for normal register file type.

Definition at line 98 of file RegisterFile.hh.

Referenced by loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), and saveState().

◆ OSVALUE_RESERVED

const string TTAMachine::RegisterFile::OSVALUE_RESERVED = "reserved"

static

ObjectState attribute value for reserved register file type.

Definition at line 100 of file RegisterFile.hh.

Referenced by loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), and saveState().

◆ OSVALUE_VOLATILE

const string TTAMachine::RegisterFile::OSVALUE_VOLATILE = "volatile"

static

ObjectState attribute value for volatile register file type.

Definition at line 102 of file RegisterFile.hh.

Referenced by loadStateWithoutReferences(), ADFSerializer::registerFileToMachine(), ADFSerializer::registerFileToMDF(), and saveState().

◆ type_

Type TTAMachine::RegisterFile::type_

private

Type of the register file.

Definition at line 136 of file RegisterFile.hh.

Referenced by isArchitectureEqual(), isNormal(), isReserved(), isVolatile(), saveState(), setType(), and type().

◆ zeroRegister_

bool TTAMachine::RegisterFile::zeroRegister_

private

Definition at line 138 of file RegisterFile.hh.

Referenced by saveState(), setZeroRegister(), and zeroRegister().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Type

Constructor & Destructor Documentation

◆ RegisterFile() [1/3]

◆ RegisterFile() [2/3]

◆ ~RegisterFile()

◆ RegisterFile() [3/3]

Member Function Documentation

◆ copy()

◆ deleteGuards()

◆ firstReadPort()

◆ firstWritePort()

◆ guardLatency()

◆ isArchitectureEqual()

◆ isNormal()

◆ isReserved()

◆ isUsedAsGuard()

◆ isVolatile()

◆ loadState()

◆ loadStateWithoutReferences()

◆ maxReads()

◆ maxWrites()

◆ operator=()

◆ saveState()

◆ setGuardLatency()

◆ setMaxReads()

◆ setMaxWrites()

◆ setName()

◆ setNumberOfRegisters()

◆ setType()

◆ setZeroRegister()

◆ type()

◆ unsetMachine()

◆ updateMaxReadsAndWrites()

◆ zeroRegister()

Member Data Documentation

◆ guardLatency_

◆ maxReads_

◆ maxWrites_

◆ OSKEY_GUARD_LATENCY

◆ OSKEY_MAX_READS

◆ OSKEY_MAX_WRITES

◆ OSKEY_TYPE

◆ OSKEY_ZERO_REGISTER

◆ OSNAME_REGISTER_FILE

◆ OSVALUE_NORMAL

◆ OSVALUE_RESERVED

◆ OSVALUE_VOLATILE

◆ type_

◆ zeroRegister_
