BridgeEncoding Class Reference

#include <BridgeEncoding.hh>

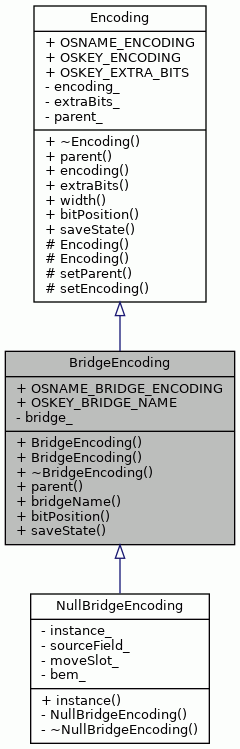

Inheritance diagram for BridgeEncoding:

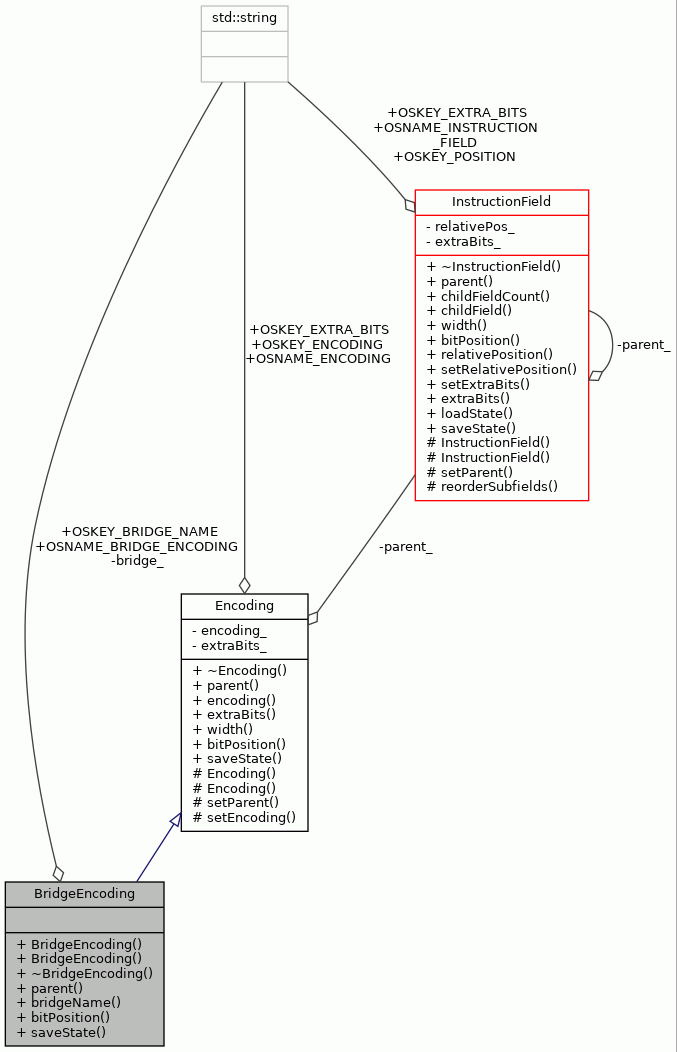

Collaboration diagram for BridgeEncoding:

Public Member Functions
	BridgeEncoding (const std::string &name, unsigned int encoding, unsigned int extraBits, SourceField &parent)
	BridgeEncoding (const ObjectState *state, SourceField &parent)
virtual	~BridgeEncoding ()
SourceField *	parent () const
std::string	bridgeName () const
virtual int	bitPosition () const
virtual ObjectState *	saveState () const
Public Member Functions inherited from Encoding
virtual	~Encoding ()
InstructionField *	parent () const
unsigned int	encoding () const
unsigned int	extraBits () const
virtual int	width () const

Static Public Attributes
static const std::string	OSNAME_BRIDGE_ENCODING = "bridge_encoding"
	ObjectState name for bridge encoding.
static const std::string	OSKEY_BRIDGE_NAME = "bridge_name"
	ObjectState attribute key for the name of the bridge.
Static Public Attributes inherited from Encoding
static const std::string	OSNAME_ENCODING = "encoding"
	ObjectState name for Encoding class.
static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding.
static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits.

Private Attributes
std::string	bridge_
	Name of the bridge.

Additional Inherited Members
Protected Member Functions inherited from Encoding
	Encoding (unsigned int encoding, unsigned int extraBits, InstructionField *parent)
	Encoding (const ObjectState *state, InstructionField *parent)
void	setParent (InstructionField *parent)
void	setEncoding (unsigned int encoding, unsigned int extraBits)

Detailed Description

Class BridgeEncoding maps a bridge to a binary encoding.

Definition at line 47 of file BridgeEncoding.hh.

Constructor & Destructor Documentation

BridgeEncoding() [1/2]

BridgeEncoding::BridgeEncoding	(	const std::string &	name,
		unsigned int	encoding,
		unsigned int	extraBits,
		SourceField &	parent
	)

The constructor.

Creates an encoding for the given bridge and registers it into the given source field.

Parameters

name	Name of the bridge.
encoding	The encoding.
extraBits	The number of extra (zero) bits in the encoding.
parent	The parent source field.

Exceptions

ObjectAlreadyExists

If the parent source field has an encoding for this bridge already or if the encoding is ambiguous with some other encoding.

Definition at line 60 of file BridgeEncoding.cc.

    : Encoding(encoding, extraBits, NULL), bridge_(name) {
    parent.addBridgeEncoding(*this);
    setParent(&parent);
}

References SourceField::addBridgeEncoding(), parent(), and Encoding::setParent().

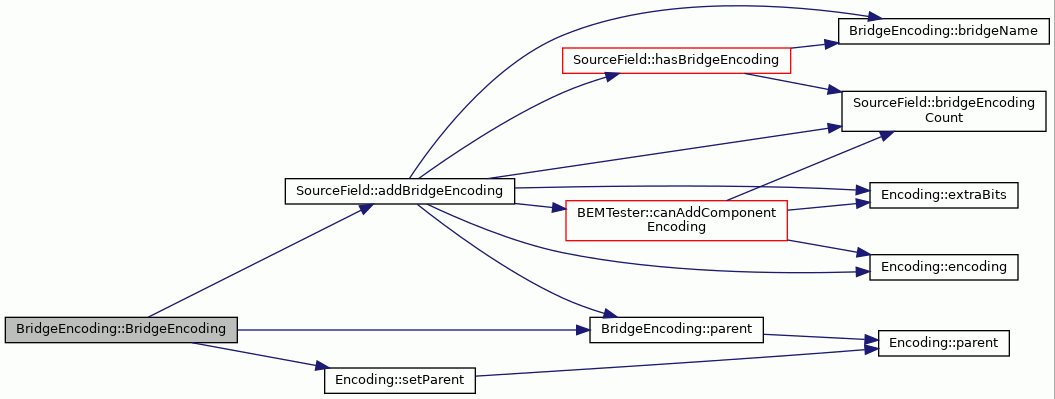

Here is the call graph for this function:

BridgeEncoding() [2/2]

BridgeEncoding::BridgeEncoding	(	const ObjectState *	state,
		SourceField &	parent
	)

The constructor.

Loads the state of the object from the given ObjectState instance.

Parameters

state	The ObjectState instance.
parent	The parent source field.

Exceptions

ObjectStateLoadingException	If an error occurs while loading the state.
ObjectAlreadyExists	If the parent source field has an encoding for this bridge already or if the encoding is ambiguous with some other encoding.

Definition at line 81 of file BridgeEncoding.cc.

    : Encoding(state, NULL), bridge_("") {
    const string procName = "BridgeEncoding::BridgeEncoding";

    if (state->name() != OSNAME_BRIDGE_ENCODING) {
    throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    try {
    bridge_ = state->stringAttribute(OSKEY_BRIDGE_NAME);
    } catch (const Exception& exception) {
    throw ObjectStateLoadingException(
        __FILE__, __LINE__, procName, exception.errorMessage());
    }

    parent.addBridgeEncoding(*this);
    setParent(&parent);
}

References SourceField::addBridgeEncoding(), bridge_, Exception::errorMessage(), ObjectState::name(), OSKEY_BRIDGE_NAME, OSNAME_BRIDGE_ENCODING, parent(), Encoding::setParent(), and ObjectState::stringAttribute().

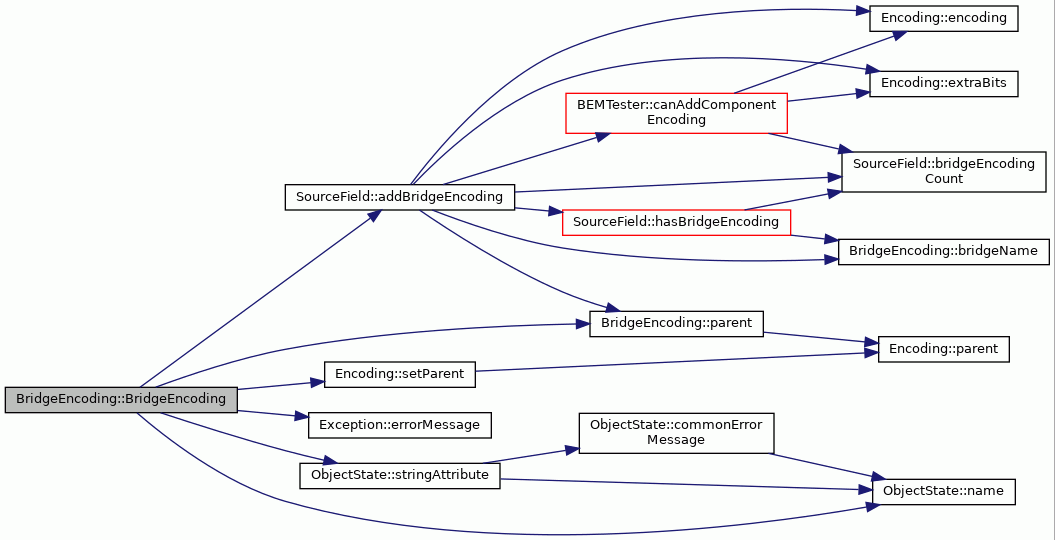

Here is the call graph for this function:

~BridgeEncoding()

BridgeEncoding::~BridgeEncoding ( )

virtual

The destructor.

Definition at line 103 of file BridgeEncoding.cc.

                                {
    SourceField* parent = this->parent();
    setParent(NULL);
    parent->removeBridgeEncoding(*this);
}

References parent(), SourceField::removeBridgeEncoding(), and Encoding::setParent().

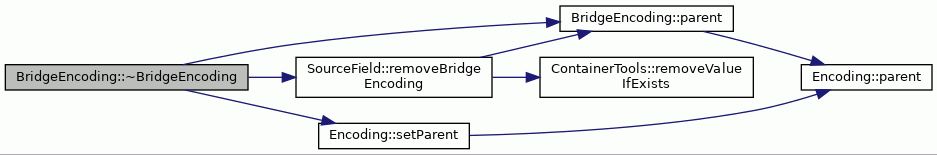

Here is the call graph for this function:

Member Function Documentation

bitPosition()

int BridgeEncoding::bitPosition ( ) const

virtual

Returns the position of the bridge encoding within the source field.

Returns

The position.

Implements Encoding.

Definition at line 145 of file BridgeEncoding.cc.

                                  {
    if (parent()->componentIDPosition() == BinaryEncoding::RIGHT) {
        return 0;
    } else {
        return parent()->width() - parent()->extraBits() - width();
    }
}

References InstructionField::extraBits(), parent(), BinaryEncoding::RIGHT, Encoding::width(), and SourceField::width().

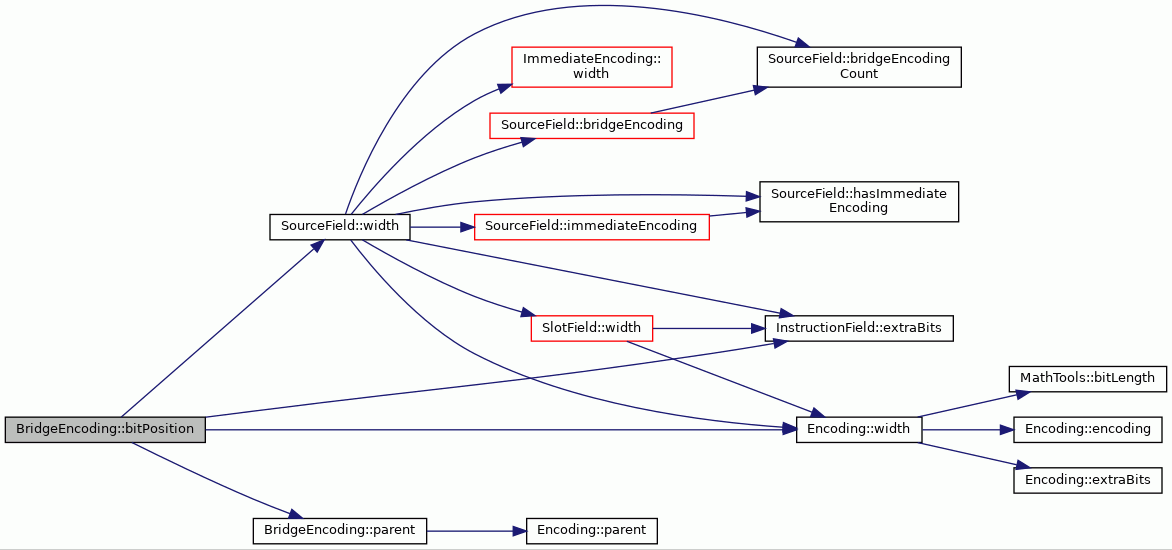

Here is the call graph for this function:

bridgeName()

std::string BridgeEncoding::bridgeName

(

)

const

Returns the name of the bridge.

Returns

The name of the bridge.

Definition at line 134 of file BridgeEncoding.cc.

                                 {
    return bridge_;
}

References bridge_.

Referenced by SourceField::addBridgeEncoding(), SourceField::bridgeEncoding(), SourceField::hasBridgeEncoding(), printSourceFieldEncodings(), and saveState().

parent()

SourceField * BridgeEncoding::parent

(

)

const

Returns the parent source field.

Returns

The parent source field.

Definition at line 116 of file BridgeEncoding.cc.

                             {
    InstructionField* parent = Encoding::parent();
    if (parent != NULL) {
        SourceField* sField = dynamic_cast<SourceField*>(parent);
        assert(sField != NULL);
        return sField;
    } else {
        return NULL;
    }
}

References assert, parent(), and Encoding::parent().

Referenced by SourceField::addBridgeEncoding(), bitPosition(), BridgeEncoding(), BridgeEncoding(), parent(), SourceField::removeBridgeEncoding(), and ~BridgeEncoding().

Here is the call graph for this function:

saveState()

ObjectState * BridgeEncoding::saveState ( ) const

virtual

Saves the state of the object to an ObjectState instance.

Returns

The newly created ObjectState instance.

Reimplemented from Encoding.

Definition at line 160 of file BridgeEncoding.cc.

                                {
    ObjectState* state = Encoding::saveState();
    state->setName(OSNAME_BRIDGE_ENCODING);
    state->setAttribute(OSKEY_BRIDGE_NAME, bridgeName());
    return state;
}

References bridgeName(), OSKEY_BRIDGE_NAME, OSNAME_BRIDGE_ENCODING, Encoding::saveState(), ObjectState::setAttribute(), and ObjectState::setName().

Referenced by SourceField::saveState().

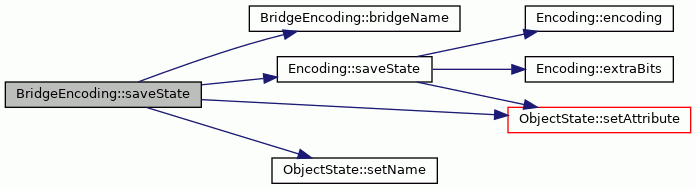

Here is the call graph for this function:

Member Data Documentation

bridge_

std::string BridgeEncoding::bridge_

private

Name of the bridge.

Definition at line 68 of file BridgeEncoding.hh.

Referenced by BridgeEncoding(), and bridgeName().

OSKEY_BRIDGE_NAME

const std::string BridgeEncoding::OSKEY_BRIDGE_NAME = "bridge_name"

static

ObjectState attribute key for the name of the bridge.

Definition at line 64 of file BridgeEncoding.hh.

Referenced by BridgeEncoding(), saveState(), BEMSerializer::sourceFieldToFile(), and BEMSerializer::sourceFieldToOM().

OSNAME_BRIDGE_ENCODING

const std::string BridgeEncoding::OSNAME_BRIDGE_ENCODING = "bridge_encoding"

static

ObjectState name for bridge encoding.

Definition at line 62 of file BridgeEncoding.hh.

Referenced by BridgeEncoding(), SourceField::loadState(), saveState(), BEMSerializer::sourceFieldToFile(), and BEMSerializer::sourceFieldToOM().

---

The documentation for this class was generated from the following files:

• BridgeEncoding.hh
• BridgeEncoding.cc
