InstructionField Class Reference

#include <InstructionField.hh>

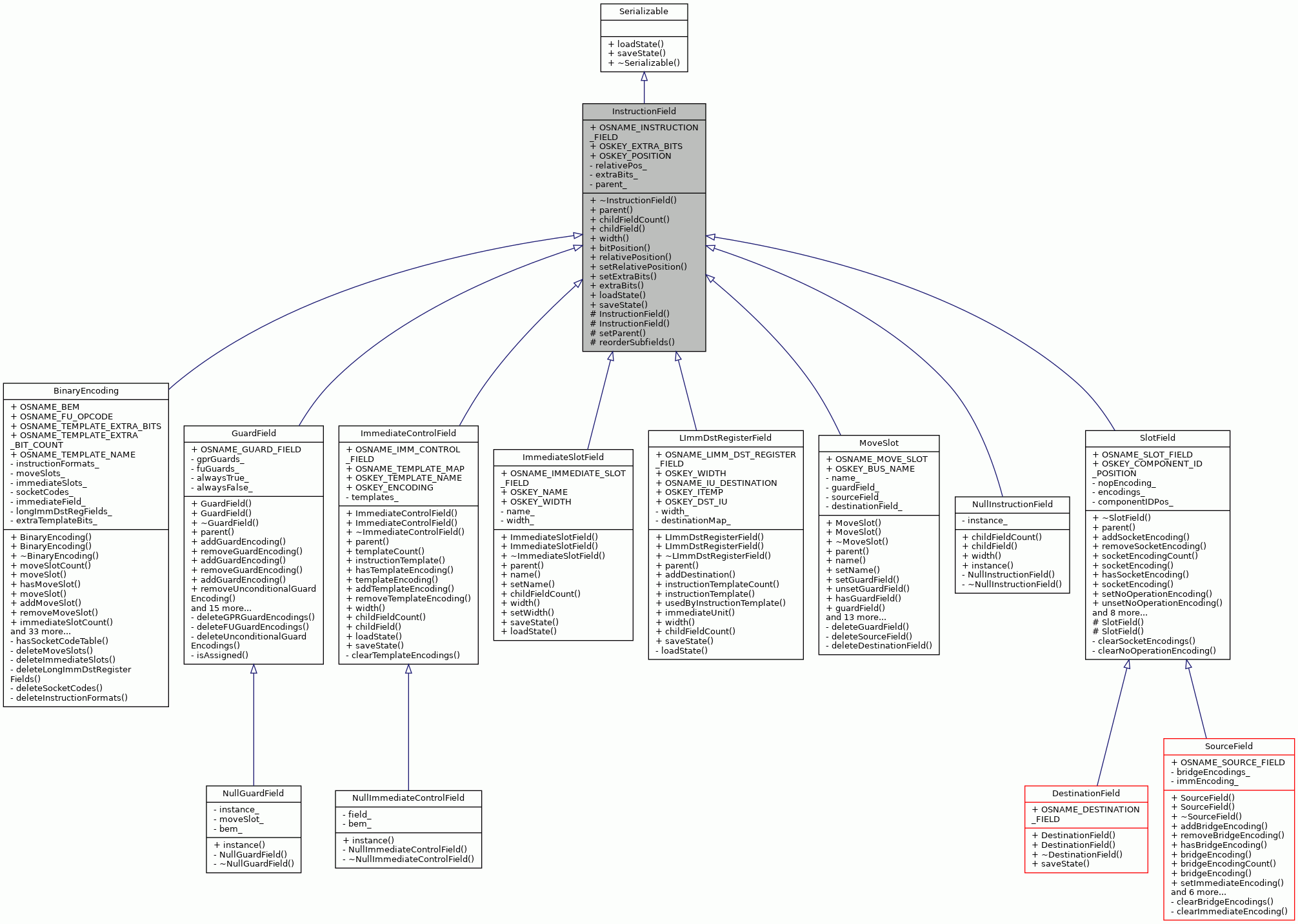

Inheritance diagram for InstructionField:

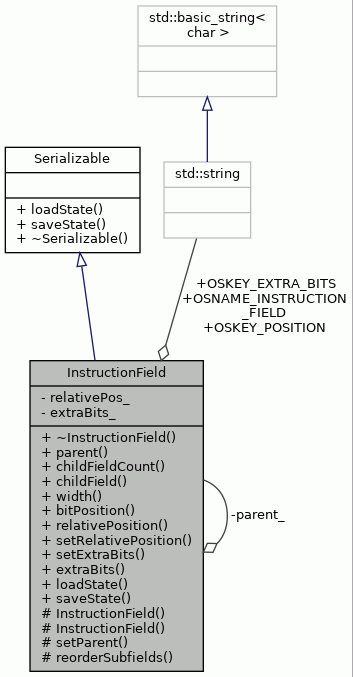

Collaboration diagram for InstructionField:

Public Member Functions
virtual	~InstructionField ()
InstructionField *	parent () const
virtual int	childFieldCount () const =0
virtual InstructionField &	childField (int position) const
virtual int	width () const =0
int	bitPosition () const
int	relativePosition () const
virtual void	setRelativePosition (int position)
void	setExtraBits (int bits)
int	extraBits () const
virtual void	loadState (const ObjectState *state)
virtual ObjectState *	saveState () const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_INSTRUCTION_FIELD = "instr_field"
	ObjectState name for instruction field.
static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits.
static const std::string	OSKEY_POSITION = "position"
	ObjectState attribute key for the relative position of the field.

Protected Member Functions
	InstructionField (InstructionField *parent)
	InstructionField (const ObjectState *state, InstructionField *parent)
void	setParent (InstructionField *parent)

Static Protected Member Functions
static void	reorderSubfields (ObjectState *state)

Private Attributes
int	relativePos_
	Indicates the relative position of the field.
int	extraBits_
	The number of extra bits.
InstructionField *	parent_
	The parent instruction field.

Detailed Description

InstructionField is an abstract base class that represents the properties common to all types of bit fields of the TTA instruction word.

Definition at line 43 of file InstructionField.hh.

Constructor & Destructor Documentation

~InstructionField()

InstructionField::~InstructionField ( )

virtual

The destructor.

Definition at line 88 of file InstructionField.cc.

                                    {
}

InstructionField() [1/2]

InstructionField::InstructionField ( InstructionField *  parent )

protected

The constructor.

Parameters

relativePosition	Relative position of the instruction field within its parent field.
parent	The parent instruction field.

Definition at line 56 of file InstructionField.cc.

                                                           :
    relativePos_(0), extraBits_(0), parent_(parent) {

    if (parent != NULL) {
        relativePos_ = parent->childFieldCount();
    }
}

References childFieldCount(), parent(), and relativePos_.

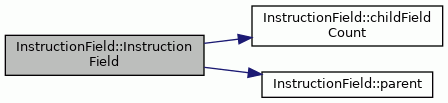

Here is the call graph for this function:

InstructionField() [2/2]

InstructionField::InstructionField ( const ObjectState *  state, InstructionField *  parent  )

protected

The constructor.

Loads the state of the object from the given ObjectState tree.

Parameters

state	The ObjectState tree.
parent	The parent instruction field.

Exceptions

ObjectStateLoadingException

If an error occurs while loading the state.

Definition at line 75 of file InstructionField.cc.

    : relativePos_(0), extraBits_(0), parent_(parent) {
    if (parent != NULL) {
        relativePos_ = parent->childFieldCount();
    }

    loadState(state);
}

References childFieldCount(), loadState(), parent(), and relativePos_.

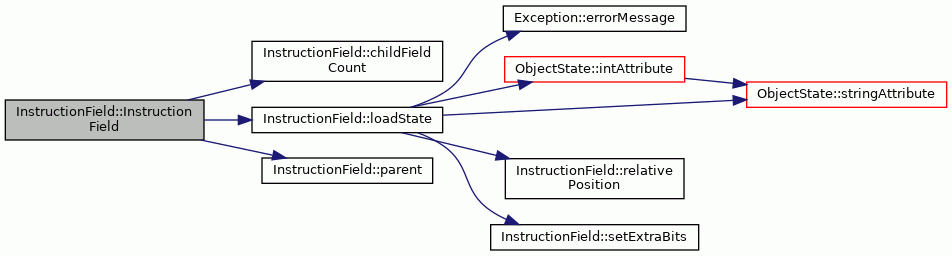

Here is the call graph for this function:

Member Function Documentation

bitPosition()

int InstructionField::bitPosition

(

)

const

Returns the bit-accurate position of the field within its parent field.

Returns

The position.

Definition at line 132 of file InstructionField.cc.

                                    {

    InstructionField* parent = this->parent();

    if (parent == NULL) {
        return 0;
    }

    int position(0);

    for (int i = 0; i < relativePosition(); i++) {
        InstructionField& childField = parent->childField(i);
        position += childField.width();
    }

    return position;
}

References childField(), parent(), relativePosition(), and width().

Referenced by BEMTester::canAddComponentPriorityEncoding(), BEMTester::fieldsOverlap(), ProGe::RV32MicroCodeGenerator::findBusWidths(), printImmediateControlField(), printLImmDstRegisterField(), printMoveSlot(), DefaultDecoderGenerator::writeInstructionDismembering(), and DefaultDecoderGenerator::writeInstructionTemplateProcedures().

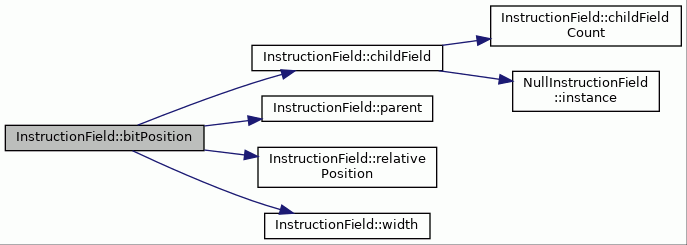

Here is the call graph for this function:

childField()

InstructionField & InstructionField::childField ( int  position ) const

virtual

Returns the child field which has the given relative position within the instruction field.

This base class implementation just checks whether the given position is out of range and throw the exception if necessary.

Parameters

position

The position.

Exceptions

OutOfRange

If the position is negative or not smaller than the number of child fields.

Reimplemented in BinaryEncoding, MoveSlot, NullInstructionField, SlotField, GuardField, and ImmediateControlField.

Definition at line 117 of file InstructionField.cc.

                                               {
    if (position < 0 || position >= childFieldCount()) {
        const string procName = "InstructionField::childField";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }

    return NullInstructionField::instance();
}

References childFieldCount(), and NullInstructionField::instance().

Referenced by bitPosition(), MoveSlot::childField(), and setRelativePosition().

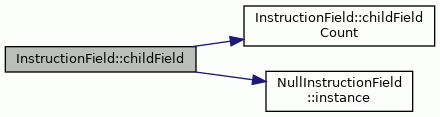

Here is the call graph for this function:

childFieldCount()

virtual int InstructionField::childFieldCount ( ) const

pure virtual

Returns the number of (immediate) child fields within the instruction field.

Implemented in BinaryEncoding, GuardField, ImmediateControlField, ImmediateSlotField, LImmDstRegisterField, MoveSlot, NullInstructionField, and SlotField.

Referenced by childField(), InstructionField(), InstructionField(), and setRelativePosition().

extraBits()

int InstructionField::extraBits

(

)

const

Returns the number of extra bits in the field.

Returns

The number of extra bits.

Definition at line 229 of file InstructionField.cc.

                                  {
    return extraBits_;
}

References extraBits_.

Referenced by BEMGenerator::addSubfields(), BridgeEncoding::bitPosition(), NOPEncoding::bitPosition(), ImmediateEncoding::encodingPosition(), ImmediateEncoding::immediatePosition(), printGuardFieldEncodings(), printImmediateControlField(), printSlotFieldEncodings(), printSourceFieldEncodings(), saveState(), SocketEncoding::socketCodePosition(), SocketEncoding::socketIDPosition(), GuardField::width(), ImmediateControlField::width(), SlotField::width(), SourceField::width(), and BinaryEncoding::width().

loadState()

void InstructionField::loadState ( const ObjectState *  state )

virtual

Loads the state of the object from the given ObjectState tree.

Parameters

state

The ObjectState tree.

Exceptions

ObjectStateLoadingException

If an error occurs while loading the state.

Implements Serializable.

Reimplemented in BinaryEncoding, GuardField, ImmediateControlField, ImmediateSlotField, LImmDstRegisterField, MoveSlot, SlotField, and SourceField.

Definition at line 242 of file InstructionField.cc.

                                                    {
    const string procName = "InstructionField::loadState";

    try {
        setExtraBits(state->intAttribute(OSKEY_EXTRA_BITS));
            if (relativePosition() != state->intAttribute(OSKEY_POSITION)) {
                format errorMsg(
                    "Invalid relative position %1%. Should be %2%.");
                errorMsg % state->stringAttribute(OSKEY_POSITION) %
                    relativePosition();
                throw ObjectStateLoadingException(
                    __FILE__, __LINE__, __func__, errorMsg.str());
            }

    } catch (const Exception& exception) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References __func__, Exception::errorMessage(), ObjectState::intAttribute(), OSKEY_EXTRA_BITS, OSKEY_POSITION, relativePosition(), setExtraBits(), and ObjectState::stringAttribute().

Referenced by InstructionField(), GuardField::loadState(), ImmediateControlField::loadState(), ImmediateSlotField::loadState(), LImmDstRegisterField::loadState(), MoveSlot::loadState(), and SlotField::loadState().

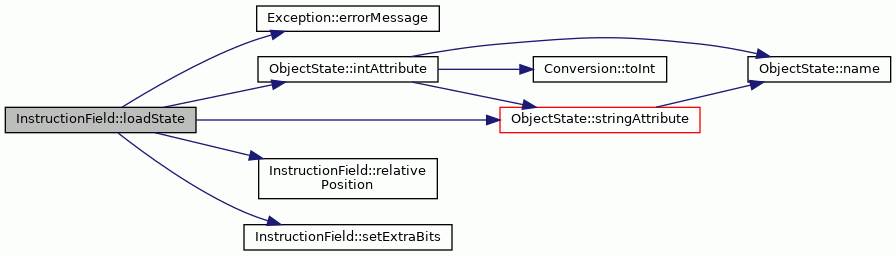

Here is the call graph for this function:

parent()

InstructionField * InstructionField::parent

(

)

const

Returns the parent instruction field.

Returns NULL if the field has no parent field (BinaryEncoding).

Returns

The parent instruction field.

Definition at line 100 of file InstructionField.cc.

                               {
    return parent_;
}

References parent_.

Referenced by bitPosition(), InstructionField(), InstructionField(), GuardField::parent(), ImmediateControlField::parent(), ImmediateSlotField::parent(), LImmDstRegisterField::parent(), MoveSlot::parent(), SlotField::parent(), setParent(), setRelativePosition(), and BinaryEncoding::unsetImmediateControlField().

relativePosition()

int InstructionField::relativePosition

(

)

const

Returns the relative position of the field compared to sibling fields.

If the field is the rightmost field, returns 0. The leftmost field returns the number of sibling fields - 1.

Returns

The relative position.

Definition at line 160 of file InstructionField.cc.

                                         {
    return relativePos_;
}

References relativePos_.

Referenced by bitPosition(), BinaryEncoding::childField(), MoveSlot::childField(), loadState(), ImmediateControlField::saveState(), saveState(), and setRelativePosition().

reorderSubfields()

void InstructionField::reorderSubfields ( ObjectState *  state )

staticprotected

Sorts the child ObjectState instances of the given ObjectState instance such that they are returned by child(index) method in the correct order.

The correct order means that at first the rightmost subfield is returned and then the next to left and so on.

Parameters

state

The ObjectState instance.

Definition at line 297 of file InstructionField.cc.

                                                     {

    typedef list<ObjectState*> OSList;
    OSList list;

    for (int i = 0; i < state->childCount();) {
        ObjectState* child = state->child(i);
        if (child->hasAttribute(InstructionField::OSKEY_POSITION)) {
            state->removeChild(child);
            int position = child->intAttribute(
                InstructionField::OSKEY_POSITION);

            // insert the object to the list at correct position
            bool inserted = false;
            for (OSList::iterator iter = list.begin(); iter != list.end();
                 iter++) {
                ObjectState* item = *iter;
                int itemPosition = item->intAttribute(
                    InstructionField::OSKEY_POSITION);
                if (itemPosition > position) {
                    list.insert(iter, child);
                    inserted = true;
                    break;
                }
            }
            if (!inserted) {
                list.push_back(child);
            }
        } else {
            i++;
        }
    }

    // add the sub fields again in the correct order
    for (OSList::const_iterator iter = list.begin(); iter != list.end();
         iter++) {
        ObjectState* child = *iter;
        state->addChild(child);
    }
}

References ObjectState::addChild(), ObjectState::child(), ObjectState::childCount(), ObjectState::hasAttribute(), ObjectState::intAttribute(), OSKEY_POSITION, and ObjectState::removeChild().

Referenced by BinaryEncoding::loadState(), and MoveSlot::loadState().

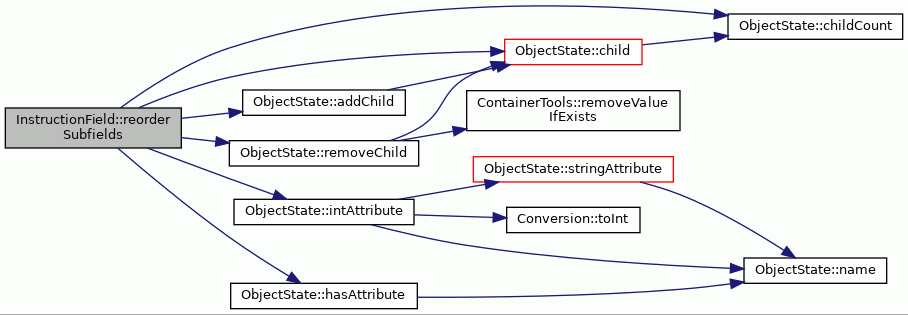

Here is the call graph for this function:

saveState()

ObjectState * InstructionField::saveState ( ) const

virtual

Saves the state of the object to an ObjectState tree.

Returns

The newly created ObjectState tree.

Implements Serializable.

Reimplemented in BinaryEncoding, DestinationField, GuardField, ImmediateControlField, ImmediateSlotField, LImmDstRegisterField, MoveSlot, SlotField, and SourceField.

Definition at line 268 of file InstructionField.cc.

                                  {
    ObjectState* state = new ObjectState(OSNAME_INSTRUCTION_FIELD);
    state->setAttribute(OSKEY_EXTRA_BITS, extraBits());
    state->setAttribute(OSKEY_POSITION, relativePosition());
    return state;
}

References extraBits(), OSKEY_EXTRA_BITS, OSKEY_POSITION, OSNAME_INSTRUCTION_FIELD, relativePosition(), and ObjectState::setAttribute().

Referenced by GuardField::saveState(), ImmediateControlField::saveState(), ImmediateSlotField::saveState(), LImmDstRegisterField::saveState(), MoveSlot::saveState(), and SlotField::saveState().

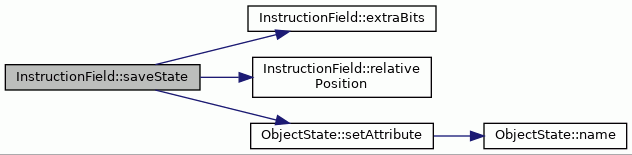

Here is the call graph for this function:

setExtraBits()

void InstructionField::setExtraBits

(

int

bits

)

Sets the number of extra (zero) bits to the field.

The field can be forced longer than necessary by defining some number of extra bits. In practice, there will be the given amount of zeros always in the MSB end of the field.

Parameters

bits	The number of extra bits.

Exceptions

OutOfRange

If the given number is negative.

Definition at line 214 of file InstructionField.cc.

                                       {
    if (bits < 0) {
        const string procName = "InstructionField::setExtraBits";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }

    extraBits_ = bits;
}

References extraBits_.

Referenced by BEMGenerator::addSubfields(), and loadState().

setParent()

void InstructionField::setParent ( InstructionField *  parent )

protected

Sets the parent instruction field.

Parameters

parent

The parent field.

Definition at line 282 of file InstructionField.cc.

                                                    {
    parent_ = parent;
}

References parent(), and parent_.

Referenced by DestinationField::DestinationField(), DestinationField::DestinationField(), GuardField::GuardField(), GuardField::GuardField(), ImmediateControlField::ImmediateControlField(), ImmediateControlField::ImmediateControlField(), ImmediateSlotField::ImmediateSlotField(), ImmediateSlotField::ImmediateSlotField(), LImmDstRegisterField::LImmDstRegisterField(), LImmDstRegisterField::LImmDstRegisterField(), MoveSlot::MoveSlot(), MoveSlot::MoveSlot(), SourceField::SourceField(), SourceField::SourceField(), DestinationField::~DestinationField(), GuardField::~GuardField(), ImmediateControlField::~ImmediateControlField(), ImmediateSlotField::~ImmediateSlotField(), LImmDstRegisterField::~LImmDstRegisterField(), MoveSlot::~MoveSlot(), and SourceField::~SourceField().

Here is the call graph for this function:

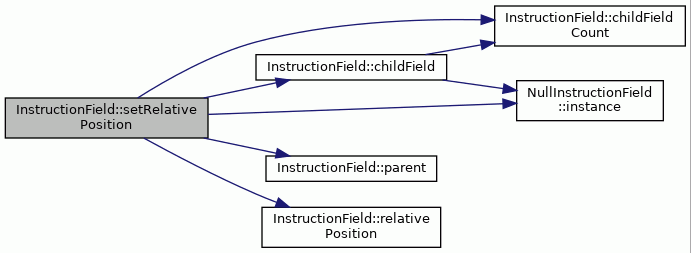

setRelativePosition()

void InstructionField::setRelativePosition ( int  position )

virtual

Sets a new relative position for the field.

Parameters

position

The new relative position.

Exceptions

OutOfRange

If the given position is negative.

Definition at line 172 of file InstructionField.cc.

                                                  {
    if (position < 0 || position >= parent()->childFieldCount()) {
        const string procName = "InstructionField::setRelativePosition";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }

    InstructionField& fieldToMove = parent()->childField(position);
    relativePos_ = position;

    int childFields = parent()->childFieldCount();
    int emptyPosition(-1);
    for (int i = 0; i < childFields; i++) {
        if (&parent()->childField(i) == &NullInstructionField::instance()) {
            emptyPosition = i;
            break;
        }
    }

    if (emptyPosition != -1) {
        if (emptyPosition < fieldToMove.relativePosition()) {
            fieldToMove.
            setRelativePosition(fieldToMove.relativePosition() - 1);
        } else if (emptyPosition > fieldToMove.relativePosition()) {
            fieldToMove.
            setRelativePosition(fieldToMove.relativePosition() + 1);
        } else {
            assert(false);
        }
    }
}

References assert, childField(), childFieldCount(), NullInstructionField::instance(), parent(), relativePos_, relativePosition(), and setRelativePosition().

Referenced by GuardField::GuardField(), and setRelativePosition().

Here is the call graph for this function:

width()

virtual int InstructionField::width ( ) const

pure virtual

Returns the bit width of the field.

Implemented in BinaryEncoding, GuardField, ImmediateControlField, ImmediateSlotField, LImmDstRegisterField, MoveSlot, NullInstructionField, SlotField, and SourceField.

Referenced by bitPosition(), BEMTester::fieldsOverlap(), and printInstructionLayout().

Member Data Documentation

extraBits_

int InstructionField::extraBits_

private

The number of extra bits.

Definition at line 90 of file InstructionField.hh.

Referenced by extraBits(), and setExtraBits().

OSKEY_EXTRA_BITS

const std::string InstructionField::OSKEY_EXTRA_BITS = "extra_bits"

static

ObjectState attribute key for the number of extra bits.

Definition at line 75 of file InstructionField.hh.

Referenced by BEMSerializer::guardFieldToFile(), BEMSerializer::guardFieldToOM(), BEMSerializer::immediateSlotToOM(), loadState(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmTagToFile(), BEMSerializer::longImmTagToOM(), BEMSerializer::moveSlotToFile(), BEMSerializer::moveSlotToOM(), saveState(), BEMSerializer::slotFieldToFile(), and BEMSerializer::slotFieldToOM().

OSKEY_POSITION

const std::string InstructionField::OSKEY_POSITION = "position"

static

ObjectState attribute key for the relative position of the field.

Definition at line 77 of file InstructionField.hh.

Referenced by BEMSerializer::guardFieldToFile(), BEMSerializer::guardFieldToOM(), BEMSerializer::immediateSlotToFile(), BEMSerializer::immediateSlotToOM(), loadState(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmDstRegisterFieldToFile(), BEMSerializer::longImmTagToFile(), BEMSerializer::longImmTagToOM(), BEMSerializer::moveSlotToFile(), BEMSerializer::moveSlotToOM(), reorderSubfields(), ImmediateControlField::saveState(), saveState(), BEMSerializer::slotFieldToFile(), and BEMSerializer::slotFieldToOM().

OSNAME_INSTRUCTION_FIELD

const std::string InstructionField::OSNAME_INSTRUCTION_FIELD = "instr_field"

static

ObjectState name for instruction field.

Definition at line 73 of file InstructionField.hh.

Referenced by saveState().

parent_

InstructionField* InstructionField::parent_

private

The parent instruction field.

Definition at line 92 of file InstructionField.hh.

Referenced by parent(), and setParent().

relativePos_

int InstructionField::relativePos_

private

Indicates the relative position of the field.

Definition at line 88 of file InstructionField.hh.

Referenced by InstructionField(), InstructionField(), relativePosition(), and setRelativePosition().

---

The documentation for this class was generated from the following files:

• InstructionField.hh
• InstructionField.cc
