#include <BrokerDirector.hh>

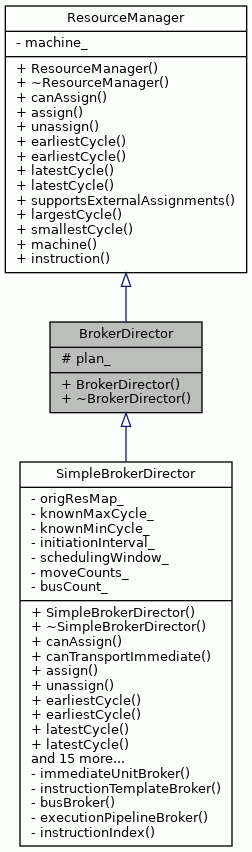

Inheritance diagram for BrokerDirector:

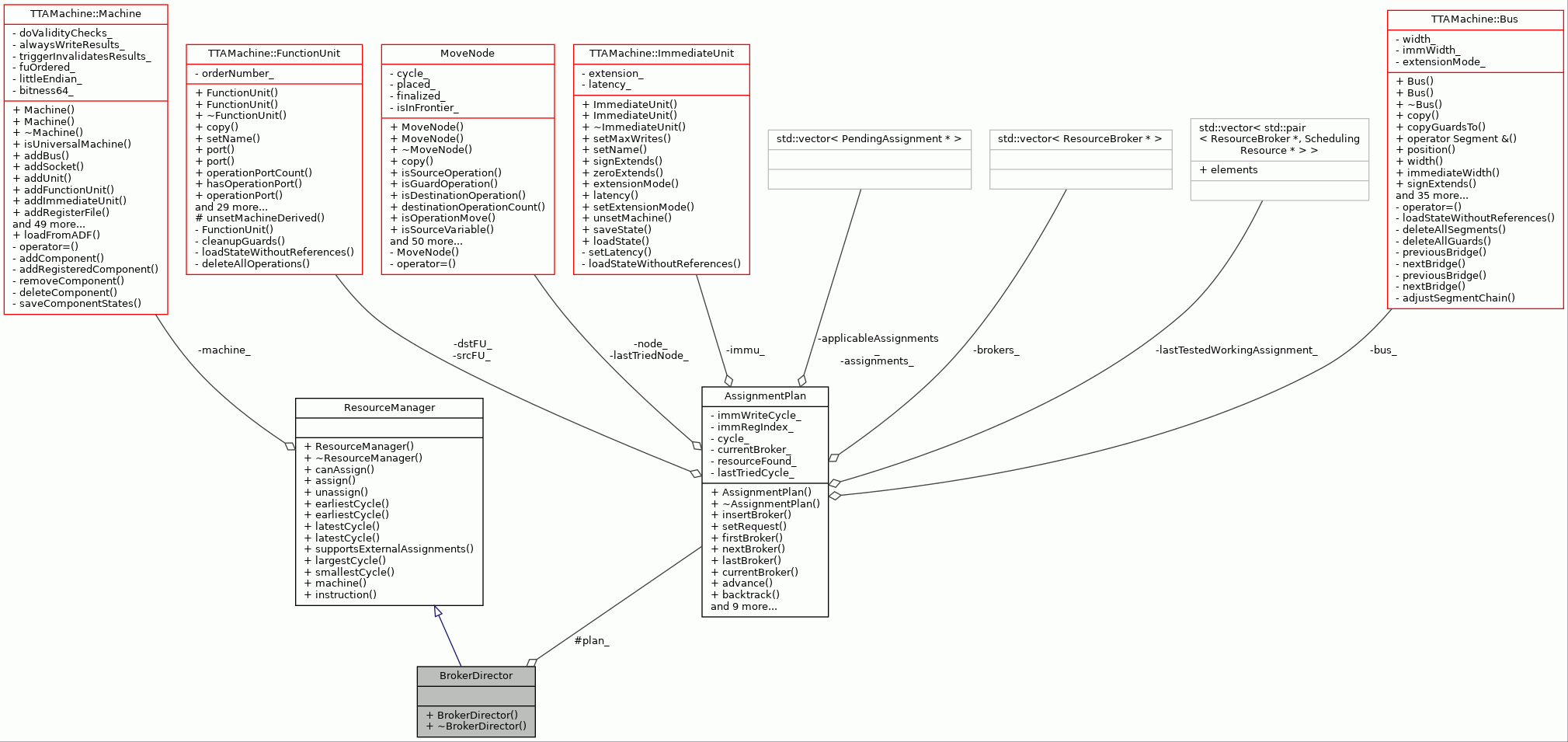

Collaboration diagram for BrokerDirector:

Public Member Functions
	BrokerDirector (const TTAMachine::Machine &machine, AssignmentPlan &plan)

virtual	~BrokerDirector ()

Public Member Functions inherited from ResourceManager
	ResourceManager (const TTAMachine::Machine &machine)

virtual	~ResourceManager ()

virtual bool	canAssign (int cycle, MoveNode &node, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const =0

virtual void	assign (int cycle, MoveNode &node, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1)=0

virtual void	unassign (MoveNode &node)=0

virtual int	earliestCycle (MoveNode &node, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const =0

virtual int	earliestCycle (int cycle, MoveNode &node, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const =0

virtual int	latestCycle (MoveNode &node, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const =0

virtual int	latestCycle (int cycle, MoveNode &node, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, int immWriteCycle=-1, const TTAMachine::ImmediateUnit immu=nullptr, int immRegIndex=-1) const =0

virtual bool	supportsExternalAssignments () const =0

virtual int	largestCycle () const =0

virtual int	smallestCycle () const =0

const TTAMachine::Machine &	machine () const

virtual TTAProgram::Instruction *	instruction (int cycle) const =0

Protected Attributes
AssignmentPlan *	plan_
	Assignment plan.

Detailed Description

Base interface for broker directors.

Definition at line 42 of file BrokerDirector.hh.

Constructor & Destructor Documentation

◆ BrokerDirector()

BrokerDirector::BrokerDirector	(	const TTAMachine::Machine &	machine,
		AssignmentPlan &	plan
	)

Constructor.

Parameters

machine	Target machine.
plan	Resource assignment plan.

Definition at line 41 of file BrokerDirector.cc.

                         :
    ResourceManager(machine), plan_(&plan) {
}

◆ ~BrokerDirector()

BrokerDirector::~BrokerDirector ( )

virtual

Destructor.

Definition at line 50 of file BrokerDirector.cc.

50 {

51}

Member Data Documentation

◆ plan_

AssignmentPlan* BrokerDirector::plan_

protected

Assignment plan.

Definition at line 49 of file BrokerDirector.hh.

Referenced by SimpleBrokerDirector::assign(), SimpleBrokerDirector::busBroker(), SimpleBrokerDirector::canAssign(), SimpleBrokerDirector::clear(), SimpleBrokerDirector::executionPipelineBroker(), SimpleBrokerDirector::immediateUnitBroker(), SimpleBrokerDirector::instructionTemplateBroker(), and SimpleBrokerDirector::unassign().

The documentation for this class was generated from the following files:
