#include <ImmediateUnit.hh>

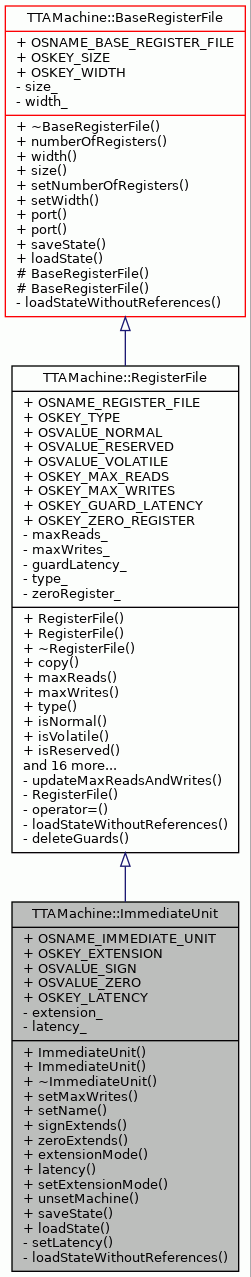

Inheritance diagram for TTAMachine::ImmediateUnit:

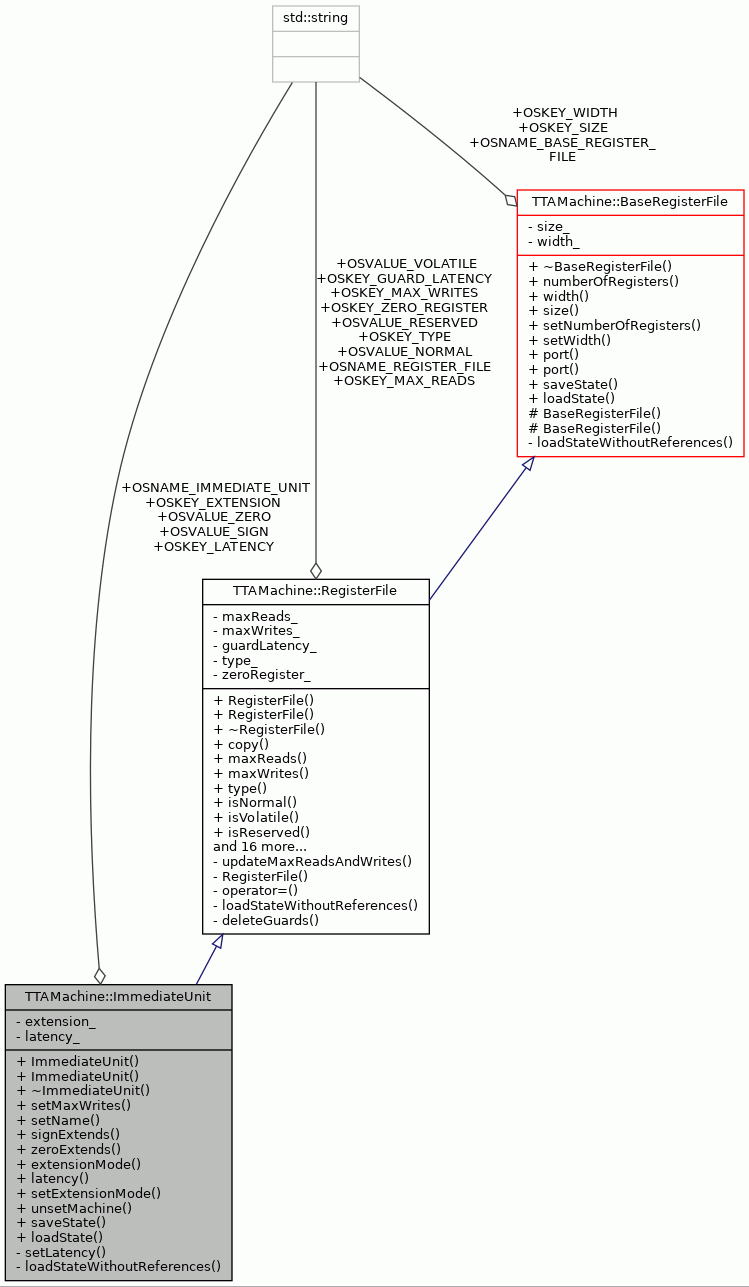

Collaboration diagram for TTAMachine::ImmediateUnit:

Public Member Functions
	ImmediateUnit (const std::string &name, unsigned int size, unsigned int width, unsigned int maxReads, unsigned int guardLatency, Machine::Extension extension)

	ImmediateUnit (const ObjectState *state)

	~ImmediateUnit ()

virtual void	setMaxWrites (int maxWrites)

virtual void	setName (const std::string &name)

bool	signExtends () const

bool	zeroExtends () const

virtual Machine::Extension	extensionMode () const

virtual int	latency () const

virtual void	setExtensionMode (Machine::Extension mode)

virtual void	unsetMachine ()

virtual ObjectState *	saveState () const

virtual void	loadState (const ObjectState *state)

Public Member Functions inherited from TTAMachine::RegisterFile
	RegisterFile (const std::string &name, unsigned int size, unsigned int width, unsigned int maxReads, unsigned int maxwrites, unsigned int guardLatency, Type type, bool zeroRegister=false)

	RegisterFile (const ObjectState *state)

virtual	~RegisterFile ()

virtual RegisterFile *	copy () const

virtual int	maxReads () const

virtual int	maxWrites () const

virtual RegisterFile::Type	type () const

virtual bool	isNormal () const

virtual bool	isVolatile () const

virtual bool	isReserved () const

virtual void	setMaxReads (int maxReads)

virtual void	setType (RegisterFile::Type type)

virtual void	setNumberOfRegisters (int registers)

virtual int	guardLatency () const

virtual void	setGuardLatency (int latency)

virtual bool	isArchitectureEqual (const RegisterFile &rf) const

virtual bool	isUsedAsGuard () const

virtual bool	zeroRegister () const

virtual void	setZeroRegister (const bool &value)

Port *	firstReadPort () const

Port *	firstWritePort () const

Public Member Functions inherited from TTAMachine::BaseRegisterFile
virtual	~BaseRegisterFile ()

virtual int	numberOfRegisters () const

virtual int	width () const

virtual int	size () const

virtual void	setWidth (int width)

virtual RFPort *	port (const std::string &name) const

virtual RFPort *	port (int index) const

Public Member Functions inherited from TTAMachine::Unit
virtual	~Unit ()

virtual bool	hasPort (const std::string &name) const

virtual int	portCount () const

virtual int	outputPortCount (bool countBidir=false) const

virtual int	inputPortCount (bool countBidir=false) const

virtual int	bidirPortCount () const

virtual void	setMachine (Machine &mach)

Public Member Functions inherited from TTAMachine::Component
virtual	~Component ()

virtual TCEString	name () const

virtual Machine *	machine () const

virtual void	ensureRegistration (const Component &component) const

virtual bool	isRegistered () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_IMMEDIATE_UNIT
	ObjectState name for ImmediateUnit.

static const std::string	OSKEY_EXTENSION = "extension"
	ObjectState attribute key for the extension mode.

static const std::string	OSVALUE_SIGN = "sign"
	ObjectState attribute value for sign extension.

static const std::string	OSVALUE_ZERO = "zero"
	ObjectState attribute value for zero extension.

static const std::string	OSKEY_LATENCY = "latency"
	ObjectState attribute key for latency.

Static Public Attributes inherited from TTAMachine::RegisterFile
static const std::string	OSNAME_REGISTER_FILE = "reg_file"
	ObjectState name for RegisterFile.

static const std::string	OSKEY_TYPE = "type"
	ObjectState attribute key for register file type.

static const std::string	OSVALUE_NORMAL = "normal"
	ObjectState attribute value for normal register file type.

static const std::string	OSVALUE_RESERVED = "reserved"
	ObjectState attribute value for reserved register file type.

static const std::string	OSVALUE_VOLATILE = "volatile"
	ObjectState attribute value for volatile register file type.

static const std::string	OSKEY_MAX_READS = "max_r"
	ObjectState attribute key for maximum simultaneous readers.

static const std::string	OSKEY_MAX_WRITES = "max_w"
	ObjectState attribute key for maximum simultaneous writers.

static const std::string	OSKEY_GUARD_LATENCY = "g_latency"
	ObjectState attribute key for the guard latency.

static const std::string	OSKEY_ZERO_REGISTER = "zero_register"
	ObjectState attribute key for zero register flag.

Static Public Attributes inherited from TTAMachine::BaseRegisterFile
static const std::string	OSNAME_BASE_REGISTER_FILE = "baseregfile"
	ObjectState name for BaseRegisterFile.

static const std::string	OSKEY_SIZE = "size"
	ObjectState attribute key for the number of registers.

static const std::string	OSKEY_WIDTH = "width"
	ObjectState attribute key for bit width of the registers.

Static Public Attributes inherited from TTAMachine::Unit
static const std::string	OSNAME_UNIT = "unit"
	ObjectState name for Unit.

Static Public Attributes inherited from TTAMachine::Component
static const std::string	OSNAME_COMPONENT = "component"
	ObjectState name for component.

static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for the name of the component.

Private Member Functions
virtual void	setLatency (int latency)

void	loadStateWithoutReferences (const ObjectState *state)

Private Attributes
Machine::Extension	extension_

int	latency_

Additional Inherited Members
Public Types inherited from TTAMachine::RegisterFile
enum	Type { NORMAL , RESERVED , VOLATILE }
	Type of the register file indicates how the RF is used. More...

Protected Member Functions inherited from TTAMachine::BaseRegisterFile
	BaseRegisterFile (const std::string &name, int size, int width)

	BaseRegisterFile (const ObjectState *state)

Protected Member Functions inherited from TTAMachine::Unit
	Unit (const std::string &name)

	Unit (const ObjectState *state)

virtual void	removePort (Port &port)

Protected Member Functions inherited from TTAMachine::Component
	Component (const std::string &name)

	Component (const ObjectState *state)

void	internalSetMachine (Machine &machine)

void	internalUnsetMachine ()

Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()

virtual	~MachinePart ()

Detailed Description

Represent a immediate unit in the machine.

Definition at line 50 of file ImmediateUnit.hh.

Constructor & Destructor Documentation

◆ ImmediateUnit() [1/2]

TTAMachine::ImmediateUnit::ImmediateUnit	(	const std::string &	name,
		unsigned int	size,
		unsigned int	width,
		unsigned int	maxReads,
		unsigned int	guardLatency,
		Machine::Extension	extension
	)

Constructor.

Parameters

name	Name of the immediate unit.
size	Number of immediate registers in the immediate unit.
width	Bit width of the long immediate registers in the immediate unit.
extension	Extension mode applied to the long immediate when it is narrower than the immediate register, see Machine::Extension.
latency	Number of cycles needed between the encoding of a long immediate and its earliest transport on a data bus. The value "0" indicates that the long immediate can be read onto a bus in the same cycle in which the instruction that encodes it is executed.

Exceptions

OutOfRange	If the given size or width is invalid.
InvalidName	If the given name is not a valid name for a component.

Definition at line 74 of file ImmediateUnit.cc.

    : RegisterFile(
          name, size, width, maxReads, MAX_WRITES, guardLatency,
          RegisterFile::NORMAL),
      extension_(extension),
      latency_(LATENCY) {
    RegisterFile::setNumberOfRegisters(size);
    setWidth(width);
}

References TTAMachine::RegisterFile::setNumberOfRegisters(), TTAMachine::BaseRegisterFile::setWidth(), TTAMachine::BaseRegisterFile::size(), and TTAMachine::BaseRegisterFile::width().

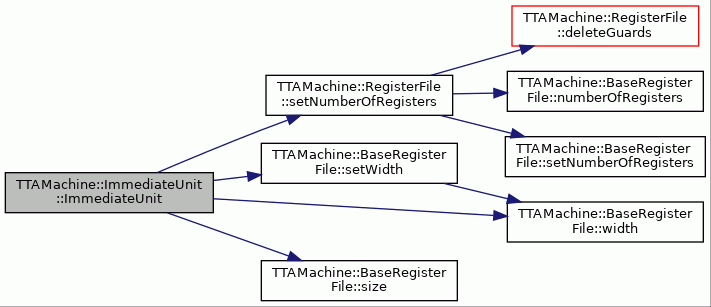

Here is the call graph for this function:

◆ ImmediateUnit() [2/2]

TTAMachine::ImmediateUnit::ImmediateUnit ( const ObjectState * state )

Constructor.

Loads the state of the immediate unit from the given ObjectState instance. Does not load references to other components.

Parameters

state The ObjectState instance.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is invalid or if connections to other machine parts cannot be made.

Definition at line 98 of file ImmediateUnit.cc.

                                                     : RegisterFile(state) {
    loadStateWithoutReferences(state);
}

References loadStateWithoutReferences().

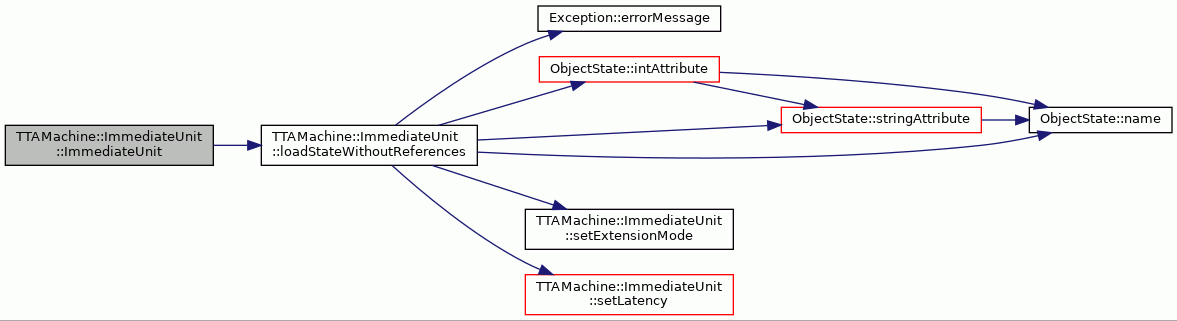

Here is the call graph for this function:

◆ ~ImmediateUnit()

TTAMachine::ImmediateUnit::~ImmediateUnit ( )

Destructor.

Definition at line 105 of file ImmediateUnit.cc.

                              {
    unsetMachine();
}

References unsetMachine().

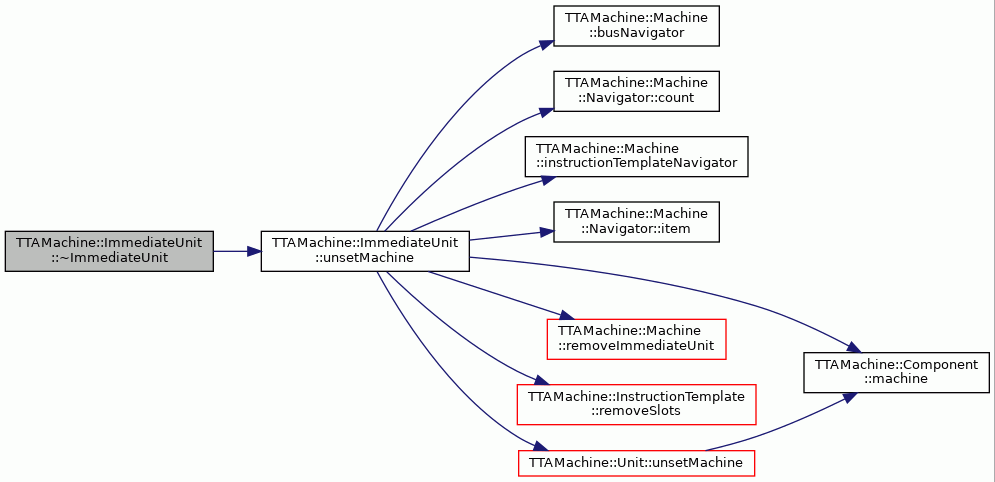

Here is the call graph for this function:

Member Function Documentation

◆ extensionMode()

Machine::Extension TTAMachine::ImmediateUnit::extensionMode ( ) const

virtual

Returns the extension mode of the immediate unit.

Returns: The extension mode of the immediate unit.

Definition at line 143 of file ImmediateUnit.cc.

                                   {
    return extension_;
}

References extension_.

Referenced by ITemplateBroker::assignImmediate(), IUBroker::buildResources(), POMValidator::checkLongImmediates(), ITemplateBroker::findITemplates(), MachineConnectivityCheck::findPossibleSourcePorts(), ProDeIUEditPolicy::getCommand(), IUDialog::TransferDataToWindow(), and DefaultDecoderGenerator::writeInstructionTemplateProcedures().

◆ latency()

int TTAMachine::ImmediateUnit::latency ( ) const

virtual

Returns the minimum number of cycles needed between the encoding of a long immediate and its earliest transport on a data bus.

Returns: Latency of the immediate unit.

Definition at line 155 of file ImmediateUnit.cc.

                             {
    return latency_;
}

References latency_.

Referenced by IUBroker::buildResources(), ProGeTools::checkForSelectableIU(), Automagic::checkForSelectableIU(), CopyingDelaySlotFiller::checkImmediatesAfter(), CopyingDelaySlotFiller::collectMoves(), CopyingDelaySlotFiller::findJumpImmediate(), ControlFlowGraph::findLimmWrite(), BlockImplementationDialog::onHDBSelection(), LoopPrologAndEpilogBuilder::optimizeProlog(), setLatency(), IUDialog::TransferDataToWindow(), and CopyingDelaySlotFiller::tryToAssignNodes().

◆ loadState()

void TTAMachine::ImmediateUnit::loadState ( const ObjectState * state )

virtual

Loads its state from the given ObjectState instance.

Parameters

state The ObjectState instance.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is invalid or if the connections to other machine parts cannot be made.

Reimplemented from TTAMachine::RegisterFile.

Definition at line 261 of file ImmediateUnit.cc.

                                                 {
    loadStateWithoutReferences(state);
    RegisterFile::loadState(state);
}

References TTAMachine::RegisterFile::loadState(), and loadStateWithoutReferences().

Referenced by TTAMachine::Machine::loadState().

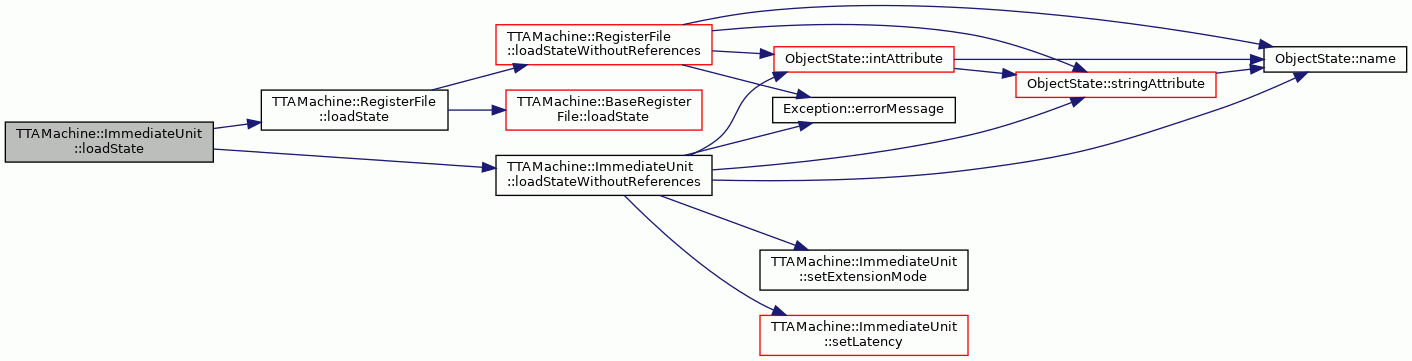

Here is the call graph for this function:

◆ loadStateWithoutReferences()

void TTAMachine::ImmediateUnit::loadStateWithoutReferences ( const ObjectState * state )

private

Loads the state of the immediate unit without references to other components.

Parameters

state The ObjectState instance from which the state is loaded.

Exceptions

ObjectStateLoadingException If an error occurs while loading the state.

Definition at line 275 of file ImmediateUnit.cc.

                                                                  {
    const string procName = "ImmediateUnit::loadStateWithoutReferences";

    if (state->name() != OSNAME_IMMEDIATE_UNIT) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    try {
        string extension = state->stringAttribute(OSKEY_EXTENSION);
        if (extension == OSVALUE_SIGN) {
            setExtensionMode(Machine::SIGN);
        } else if (extension == OSVALUE_ZERO) {
            setExtensionMode(Machine::ZERO);
        } else {
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
        }

        setLatency(state->intAttribute(OSKEY_LATENCY));
        assert(latency_ >= 0);

    } catch (const Exception& e) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, e.errorMessage());
    }
}

References assert, Exception::errorMessage(), ObjectState::intAttribute(), latency_, ObjectState::name(), OSKEY_EXTENSION, OSKEY_LATENCY, OSNAME_IMMEDIATE_UNIT, OSVALUE_SIGN, OSVALUE_ZERO, setExtensionMode(), setLatency(), TTAMachine::Machine::SIGN, ObjectState::stringAttribute(), and TTAMachine::Machine::ZERO.

Referenced by ImmediateUnit(), and loadState().

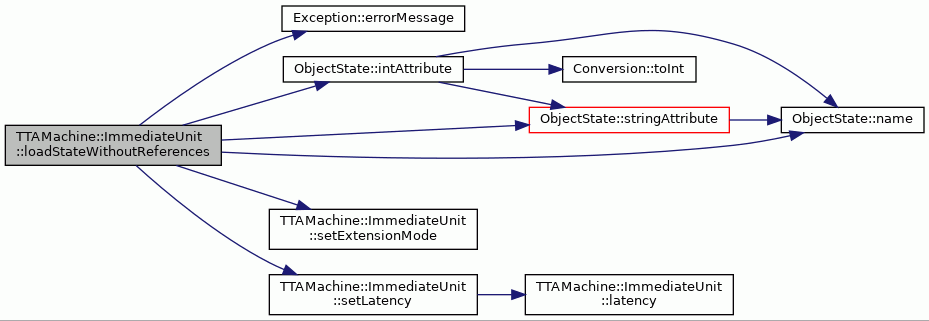

Here is the call graph for this function:

◆ saveState()

ObjectState * TTAMachine::ImmediateUnit::saveState ( ) const

virtual

Saves the contents to an ObjectState tree.

Returns: The newly created ObjectState tree.

Reimplemented from TTAMachine::RegisterFile.

Definition at line 233 of file ImmediateUnit.cc.

                               {

    ObjectState* iUnit = RegisterFile::saveState();
    iUnit->setName(OSNAME_IMMEDIATE_UNIT);

    // set extension mode
    if (extension_ == Machine::SIGN) {
        iUnit->setAttribute(OSKEY_EXTENSION, OSVALUE_SIGN);
    } else {
        iUnit->setAttribute(OSKEY_EXTENSION, OSVALUE_ZERO);
    }

    iUnit->setAttribute(OSKEY_LATENCY, latency_);

    return iUnit;
}

References extension_, latency_, OSKEY_EXTENSION, OSKEY_LATENCY, OSNAME_IMMEDIATE_UNIT, OSVALUE_SIGN, OSVALUE_ZERO, TTAMachine::RegisterFile::saveState(), ObjectState::setAttribute(), ObjectState::setName(), and TTAMachine::Machine::SIGN.

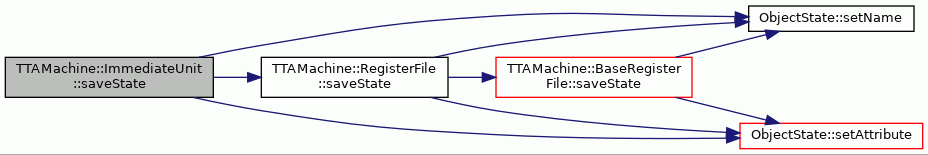

Here is the call graph for this function:

◆ setExtensionMode()

void TTAMachine::ImmediateUnit::setExtensionMode ( Machine::Extension mode )

virtual

Sets the extension mode for the immediate unit.

Parameters

mode	The new extension mode.

Definition at line 185 of file ImmediateUnit.cc.

                                                     {
    extension_ = mode;
}

References extension_.

Referenced by loadStateWithoutReferences(), and IUDialog::onOK().

◆ setLatency()

void TTAMachine::ImmediateUnit::setLatency ( int latency )

privatevirtual

Sets the latency of the immediate unit.

Parameters

latency The new latency.

Exceptions

OutOfRange If the given latency is less than zero.

Definition at line 197 of file ImmediateUnit.cc.

                                     {
    if (latency != LATENCY) {
        string procName = "ImmediateUnit::setLatency";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
    latency_ = latency;
}

References LATENCY, latency(), and latency_.

Referenced by loadStateWithoutReferences().

Here is the call graph for this function:

◆ setMaxWrites()

void TTAMachine::ImmediateUnit::setMaxWrites ( int maxWrites )

virtual

Sets the maximum number of ports that can write a register all in the same cycle.

For immediate unit the value is fixed to 1.

Parameters

writes Maximum number of ports.

Exceptions

OutOfRange If the given number of maximum writes is out of range.

Reimplemented from TTAMachine::RegisterFile.

Definition at line 171 of file ImmediateUnit.cc.

                                         {
    if (maxWrites != MAX_WRITES) {
        std::string procName = "ImmediateUnit::setMaxWrites";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
    RegisterFile::setMaxWrites(maxWrites);
}

References MAX_WRITES, TTAMachine::RegisterFile::maxWrites(), and TTAMachine::RegisterFile::setMaxWrites().

Here is the call graph for this function:

◆ setName()

void TTAMachine::ImmediateUnit::setName ( const std::string & name )

virtual

Sets the name of the immediate unit.

Parameters

name	Name of the immediate unit.

Exceptions

ComponentAlreadyExists	If an immediate unit with the given name is already in the same machine.
InvalidName	If the given name is not a valid name for a component.

Reimplemented from TTAMachine::RegisterFile.

Definition at line 120 of file ImmediateUnit.cc.

                                         {
    if (name == this->name()) {
        return;
    }

    if (machine() != NULL) {
        if (machine()->immediateUnitNavigator().hasItem(name)) {
            string procName = "ImmediateUnit::setName";
            throw ComponentAlreadyExists(__FILE__, __LINE__, procName);
        } else {
            Component::setName(name);
        }
    } else {
        Component::setName(name);
    }
}

References machine, TTAMachine::Component::name(), and TTAMachine::Component::setName().

Referenced by IUDialog::onOK().

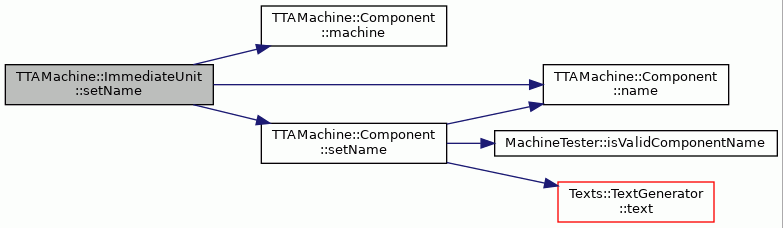

Here is the call graph for this function:

◆ signExtends()

bool TTAMachine::ImmediateUnit::signExtends ( ) const

inline

Definition at line 62 of file ImmediateUnit.hh.

62{ return extension_ == Machine::SIGN; }

References extension_, and TTAMachine::Machine::SIGN.

Referenced by ITemplateBroker::assign(), MachineConnectivityCheck::canWriteAllImmediates(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createImmediateAssignment(), TTAProgram::TPEFProgramFactory::createInstruction(), and CompiledSimCodeGenerator::generateInstruction().

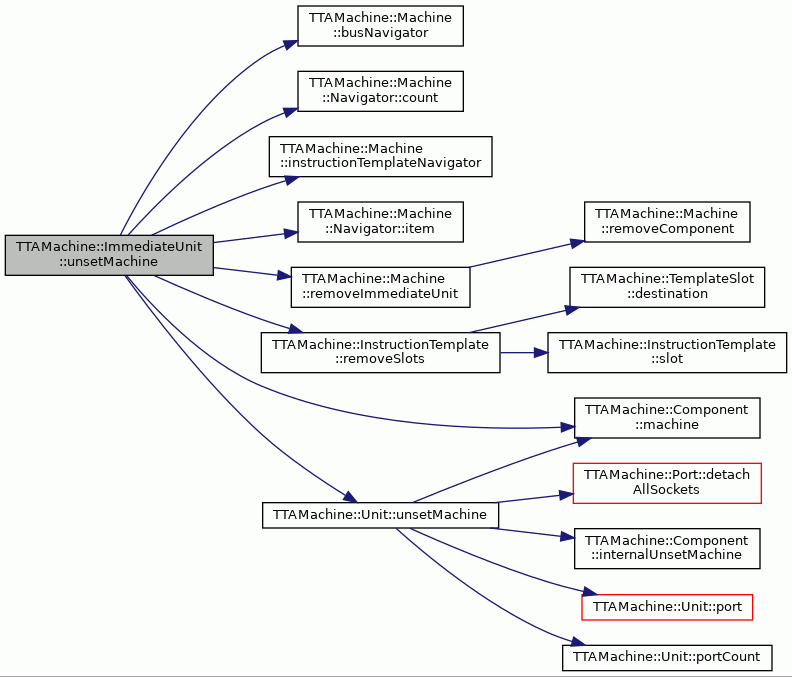

◆ unsetMachine()

void TTAMachine::ImmediateUnit::unsetMachine ( )

virtual

Removes the immediate unit from machine.

Reimplemented from TTAMachine::RegisterFile.

Definition at line 209 of file ImmediateUnit.cc.

                            {
    Machine* mach = machine();
    if (mach == NULL) {
        return;
    }

    Machine::InstructionTemplateNavigator itNav =
        mach->instructionTemplateNavigator();
    Machine::BusNavigator busNav = mach->busNavigator();
    for (int itIndex = 0; itIndex < itNav.count(); itIndex++) {
        InstructionTemplate* it = itNav.item(itIndex);
        it->removeSlots(*this);
    }
    BaseRegisterFile::unsetMachine();
    mach->removeImmediateUnit(*this);
}
