#include <ControlFlowEdge.hh>

Inheritance diagram for ControlFlowEdge:

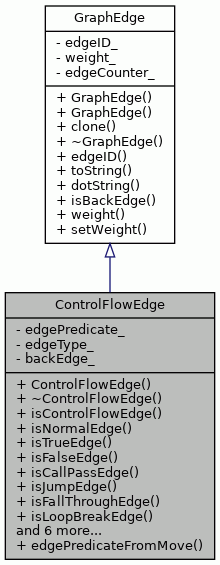

Collaboration diagram for ControlFlowEdge:

Public Types
enum	CFGEdgePredicate { CFLOW_EDGE_NORMAL , CFLOW_EDGE_TRUE , CFLOW_EDGE_FALSE , CFLOW_EDGE_LOOP_BREAK , CFLOW_EDGE_FAKE }

enum	CFGEdgeType { CFLOW_EDGE_JUMP , CFLOW_EDGE_CALL , CFLOW_EDGE_FALLTHROUGH }

Public Member Functions
	ControlFlowEdge (CFGEdgePredicate edgePredicate=CFLOW_EDGE_NORMAL, CFGEdgeType edgeType=CFLOW_EDGE_JUMP)

virtual	~ControlFlowEdge ()

bool	isControlFlowEdge () const

bool	isNormalEdge () const

bool	isTrueEdge () const

bool	isFalseEdge () const

bool	isCallPassEdge () const

bool	isJumpEdge () const

bool	isFallThroughEdge () const

bool	isLoopBreakEdge () const

bool	isBackEdge () const

TCEString	toString () const

void	setPredicate (CFGEdgePredicate pred)

CFGEdgePredicate	edgePredicate () const

CFGEdgeType	edgeType ()

void	setBackEdge ()
	Add property to edge to mark is as back edge - loop edge DO NOT USE unless you know what you are doing!!!

Public Member Functions inherited from GraphEdge
	GraphEdge ()

	GraphEdge (const GraphEdge &edge)

virtual GraphEdge *	clone () const

virtual	~GraphEdge ()

virtual int	edgeID () const

virtual TCEString	dotString () const

int	weight () const

void	setWeight (int w)

Static Public Member Functions
static ControlFlowEdge::CFGEdgePredicate	edgePredicateFromMove (const TTAProgram::Move &move)

Private Attributes
CFGEdgePredicate	edgePredicate_

CFGEdgeType	edgeType_

bool	backEdge_

Detailed Description

Edge of the control flow graph (control flow edge). Each edge implies a possible change of execution flow from the source basic block to the target basic block.

Definition at line 50 of file ControlFlowEdge.hh.

Member Enumeration Documentation

◆ CFGEdgePredicate

enum ControlFlowEdge::CFGEdgePredicate

Enumerator
CFLOW_EDGE_NORMAL
CFLOW_EDGE_TRUE
CFLOW_EDGE_FALSE
CFLOW_EDGE_LOOP_BREAK
CFLOW_EDGE_FAKE

Definition at line 52 of file ControlFlowEdge.hh.

                          {
        CFLOW_EDGE_NORMAL,
        CFLOW_EDGE_TRUE,
        CFLOW_EDGE_FALSE,
        CFLOW_EDGE_LOOP_BREAK,
        CFLOW_EDGE_FAKE
    };

◆ CFGEdgeType

enum ControlFlowEdge::CFGEdgeType

Enumerator
CFLOW_EDGE_JUMP
CFLOW_EDGE_CALL
CFLOW_EDGE_FALLTHROUGH

Definition at line 59 of file ControlFlowEdge.hh.

                     {
        CFLOW_EDGE_JUMP,
        CFLOW_EDGE_CALL,
        CFLOW_EDGE_FALLTHROUGH
    };

Constructor & Destructor Documentation

◆ ControlFlowEdge()

ControlFlowEdge::ControlFlowEdge	(	CFGEdgePredicate	edgePredicate = `CFLOW_EDGE_NORMAL`,
		CFGEdgeType	edgeType = `CFLOW_EDGE_JUMP`
	)

Constructor creates Control Flow Edge of given type

Parameters

edgePredicate	The truth value of edge (or normal)
edgeType	Define if edge represents jump, if false the it is call

Definition at line 47 of file ControlFlowEdge.cc.

                          :
    edgePredicate_(edgePredicate), edgeType_(edgeType), backEdge_(false) {
}

◆ ~ControlFlowEdge()

ControlFlowEdge::~ControlFlowEdge ( )

virtual

Destructor

Definition at line 56 of file ControlFlowEdge.cc.

56{ }

Member Function Documentation

◆ edgePredicate()

CFGEdgePredicate ControlFlowEdge::edgePredicate ( ) const

inline

Definition at line 83 of file ControlFlowEdge.hh.

83{ return edgePredicate_; }

References edgePredicate_.

Referenced by ControlFlowGraph::copyToProcedure(), SimpleIfConverter::detectDiamond(), ControlFlowGraph::findJumpAddress(), LoopPrologAndEpilogBuilder::moveJumpDestination(), ControlFlowGraph::optimizeBBOrdering(), and CopyingDelaySlotFiller::updateFTBBAndCfg().

◆ edgePredicateFromMove()

ControlFlowEdge::CFGEdgePredicate ControlFlowEdge::edgePredicateFromMove ( const TTAProgram::Move & move )

static

Creates an edge predicate based on the guard of a move

Definition at line 187 of file ControlFlowEdge.cc.

                                                                 {
    if (move.isUnconditional()) {
        if (move.isTriggering()) {
            Operation& o = move.destination().operation();
            if (o.name() == "BNZ" || o.name() == "IRFJUMPNZ" ||
                o.name() == "BNZ1" || o.name() == "IRFJUMPNZ1") {
                return ControlFlowEdge::CFLOW_EDGE_TRUE;
            }
            if (o.name() == "BZ" || o.name() == "IRFJUMPZ" ||
                o.name() == "BZ1" || o.name() == "IRFJUMPZ1") {
                return ControlFlowEdge::CFLOW_EDGE_FALSE;
            }
        } else {
            Operation& o = move.destination().hintOperation();
            if (&o != &NullOperation::instance()) {
                if (o.name() == "BNZ" || o.name() == "IRFJUMPNZ" ||
                    o.name() == "BNZ1" || o.name() == "IRFJUMPNZ1") {
                    return ControlFlowEdge::CFLOW_EDGE_TRUE;
                }
                if (o.name() == "BZ" || o.name() == "IRFJUMPZ" ||
                    o.name() == "BZ1" || o.name() == "IRFJUMPZ1") {
                    return ControlFlowEdge::CFLOW_EDGE_FALSE;
                }
            }
        }
        return ControlFlowEdge::CFLOW_EDGE_NORMAL;
    }
    TTAProgram::MoveGuard& mg = move.guard();
    return mg.isInverted() ?
        ControlFlowEdge::CFLOW_EDGE_FALSE :
        ControlFlowEdge::CFLOW_EDGE_TRUE;
}

References CFLOW_EDGE_FALSE, CFLOW_EDGE_NORMAL, CFLOW_EDGE_TRUE, TTAProgram::Move::destination(), TTAProgram::Move::guard(), TTAProgram::Terminal::hintOperation(), NullOperation::instance(), TTAProgram::MoveGuard::isInverted(), TTAProgram::Move::isTriggering(), TTAProgram::Move::isUnconditional(), Operation::name(), and TTAProgram::Terminal::operation().

Referenced by ControlFlowGraph::findJumpAddress().

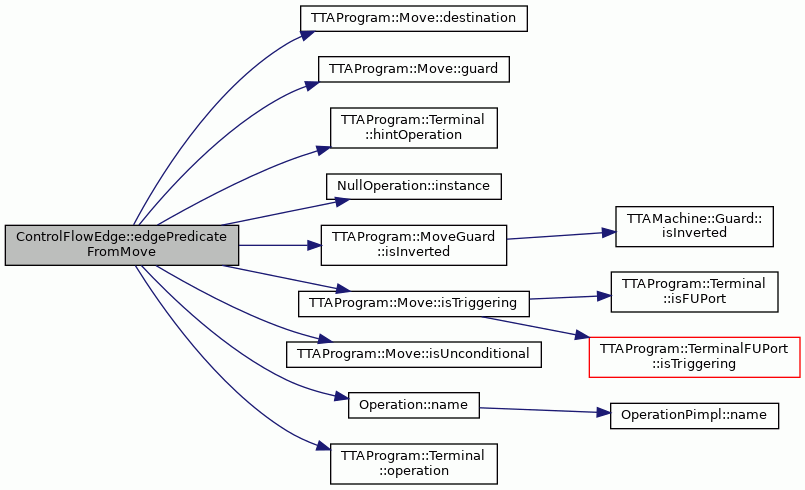

Here is the call graph for this function:

◆ edgeType()

CFGEdgeType ControlFlowEdge::edgeType ( )

inline

Definition at line 84 of file ControlFlowEdge.hh.

84{ return edgeType_; }

References edgeType_.

Referenced by SimpleIfConverter::detectDiamond(), and CopyingDelaySlotFiller::updateFTBBAndCfg().

◆ isBackEdge()

bool ControlFlowEdge::isBackEdge ( ) const

virtual

Returns true if edge is loop back edge

Returns: True if edge is loop back edge

Reimplemented from GraphEdge.

Definition at line 179 of file ControlFlowEdge.cc.

                                  {
    return backEdge_;
}

References backEdge_.

Referenced by CopyingDelaySlotFiller::collectMoves(), SimpleIfConverter::detectDiamond(), SimpleIfConverter::detectTriangleViaFt(), SimpleIfConverter::detectTriangleViaJump(), CopyingDelaySlotFiller::fillDelaySlots(), ControlFlowGraph::isSingleBBLoop(), ControlFlowGraph::optimizeBBOrdering(), toString(), and SimpleIfConverter::updateCfg().

◆ isCallPassEdge()

bool ControlFlowEdge::isCallPassEdge ( ) const

Returns true if edge represents control flow over the call in code.

Returns: True if edge is split in basic block when call happened.

Definition at line 138 of file ControlFlowEdge.cc.

                                      {
    return edgeType_ == CFLOW_EDGE_CALL;
}

References CFLOW_EDGE_CALL, and edgeType_.

Referenced by CopyingDelaySlotFiller::bbnScheduled(), SimpleIfConverter::detectDiamond(), SimpleIfConverter::detectTriangleViaFt(), CopyingDelaySlotFiller::fillDelaySlots(), CopyingDelaySlotFiller::finishBB(), ControlFlowGraph::optimizeBBOrdering(), and toString().

◆ isControlFlowEdge()

bool ControlFlowEdge::isControlFlowEdge ( ) const

Returns true if object represents ControlFlowEdge.

Returns: True if object is control flow edge

Definition at line 99 of file ControlFlowEdge.cc.

                                         {
    return true;
}

◆ isFallThroughEdge()

bool ControlFlowEdge::isFallThroughEdge ( ) const

Returns true if the edge is representing fall through.

Returns: True if the edge represents fall through.

Definition at line 158 of file ControlFlowEdge.cc.

                                         {
    return edgeType_ == CFLOW_EDGE_FALLTHROUGH;
}

References CFLOW_EDGE_FALLTHROUGH, and edgeType_.

Referenced by LoopPrologAndEpilogBuilder::addEpilogIntoCfg(), CopyingDelaySlotFiller::fillDelaySlots(), Peel2BBLoops::testIf2BBLoop(), and toString().

◆ isFalseEdge()

bool ControlFlowEdge::isFalseEdge ( ) const

Returns true if edge represents conditional control flow that is taken if condition evaluates to false.

Returns: True if edge represents False path

Definition at line 129 of file ControlFlowEdge.cc.

                                   {
    return edgePredicate_ == CFLOW_EDGE_FALSE;
}

References CFLOW_EDGE_FALSE, and edgePredicate_.

Referenced by PreOptimizer::cfgAllowsJumpReversal(), ControlFlowGraph::reverseGuardOnOutEdges(), and toString().

◆ isJumpEdge()

bool ControlFlowEdge::isJumpEdge ( ) const

Returns true if the edge is representing jump.

Returns: True if the edge represents jump.

Definition at line 148 of file ControlFlowEdge.cc.

                                  {
    return edgeType_ == CFLOW_EDGE_JUMP;
}

References CFLOW_EDGE_JUMP, and edgeType_.

Referenced by LoopPrologAndEpilogBuilder::addPrologIntoCfg(), CopyingDelaySlotFiller::areAllJumpPredsFilled(), CopyingDelaySlotFiller::areAllJumpPredsScheduled(), ControlFlowGraph::isSingleBBLoop(), ControlFlowGraph::jumpSuccessor(), and toString().

◆ isLoopBreakEdge()

bool ControlFlowEdge::isLoopBreakEdge ( ) const

Returns true if edge was added to break infinite loop for control dependence computation.

Returns: True if edge was added to break infinite loop

Definition at line 169 of file ControlFlowEdge.cc.

                                       {
    return edgePredicate_ == CFLOW_EDGE_LOOP_BREAK;
}

References CFLOW_EDGE_LOOP_BREAK, and edgePredicate_.

Referenced by toString().

◆ isNormalEdge()

bool ControlFlowEdge::isNormalEdge ( ) const

Returns true if the edge is representing unconditional jump

Returns: True if jump is not guarded

Definition at line 108 of file ControlFlowEdge.cc.

                                    {
    return edgePredicate_ == CFLOW_EDGE_NORMAL;
}

References CFLOW_EDGE_NORMAL, and edgePredicate_.

Referenced by ControlFlowGraph::hasMultipleUnconditionalSuccessors(), ControlFlowGraph::mergeNodes(), and toString().

◆ isTrueEdge()

bool ControlFlowEdge::isTrueEdge ( ) const

Returns true if edge represents conditional control flow that is taken if condition evaluates to true.

Returns: True if edge represents True path

Definition at line 119 of file ControlFlowEdge.cc.

                                  {
    return edgePredicate_ == CFLOW_EDGE_TRUE;
}

References CFLOW_EDGE_TRUE, and edgePredicate_.

Referenced by PreOptimizer::cfgAllowsJumpReversal(), ControlFlowGraph::reverseGuardOnOutEdges(), SimpleIfConverter::successors(), and toString().

◆ setBackEdge()

void ControlFlowEdge::setBackEdge ( )

inline

Add property to edge to mark is as back edge - loop edge DO NOT USE unless you know what you are doing!!!

Definition at line 88 of file ControlFlowEdge.hh.

88{ backEdge_ = true;}

References backEdge_.

Referenced by SimpleIfConverter::updateCfg().

◆ setPredicate()

void ControlFlowEdge::setPredicate ( CFGEdgePredicate pred )

inline

Definition at line 81 of file ControlFlowEdge.hh.

81{ edgePredicate_ = pred; }

References edgePredicate_.

Referenced by ControlFlowGraph::mergeNodes(), and ControlFlowGraph::reverseGuardOnOutEdges().

◆ toString()

TCEString ControlFlowEdge::toString ( ) const

virtual

Returns type as a string. Helper for graph output to dot file.

Returns: String representing type of edge.

Reimplemented from GraphEdge.

Definition at line 64 of file ControlFlowEdge.cc.

                                {
    TCEString result = "";
    if (isJumpEdge()) {
        result += "Jump_";
    }
    if (isFallThroughEdge()) {
        result += "FallThrough_";
    }
    if (isCallPassEdge()) {
        result += "CallPass_";
    }
    if (isBackEdge()) {
        result += "BackEdge_";
    }
    if (isNormalEdge()) {
        result += "normal";
    }
    if (isTrueEdge()) {
        result += "true";
    }
    if (isFalseEdge()) {
        result += "false";
    }
    if (isLoopBreakEdge()) {
        result += "break";
    }
    return result;
}

References isBackEdge(), isCallPassEdge(), isFallThroughEdge(), isFalseEdge(), isJumpEdge(), isLoopBreakEdge(), isNormalEdge(), and isTrueEdge().

Referenced by ControlFlowGraph::reverseGuardOnOutEdges().

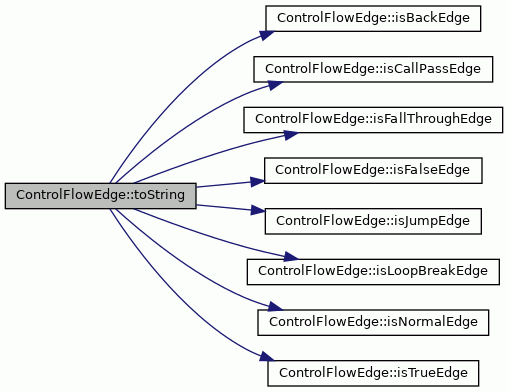

Here is the call graph for this function:

Member Data Documentation

◆ backEdge_

bool ControlFlowEdge::backEdge_

private

Definition at line 96 of file ControlFlowEdge.hh.

Referenced by isBackEdge(), and setBackEdge().

◆ edgePredicate_

CFGEdgePredicate ControlFlowEdge::edgePredicate_

private

Definition at line 94 of file ControlFlowEdge.hh.

Referenced by edgePredicate(), isFalseEdge(), isLoopBreakEdge(), isNormalEdge(), isTrueEdge(), and setPredicate().

◆ edgeType_

CFGEdgeType ControlFlowEdge::edgeType_

private

Definition at line 95 of file ControlFlowEdge.hh.

Referenced by edgeType(), isCallPassEdge(), isFallThroughEdge(), and isJumpEdge().

The documentation for this class was generated from the following files:
