#include <Terminal.hh>

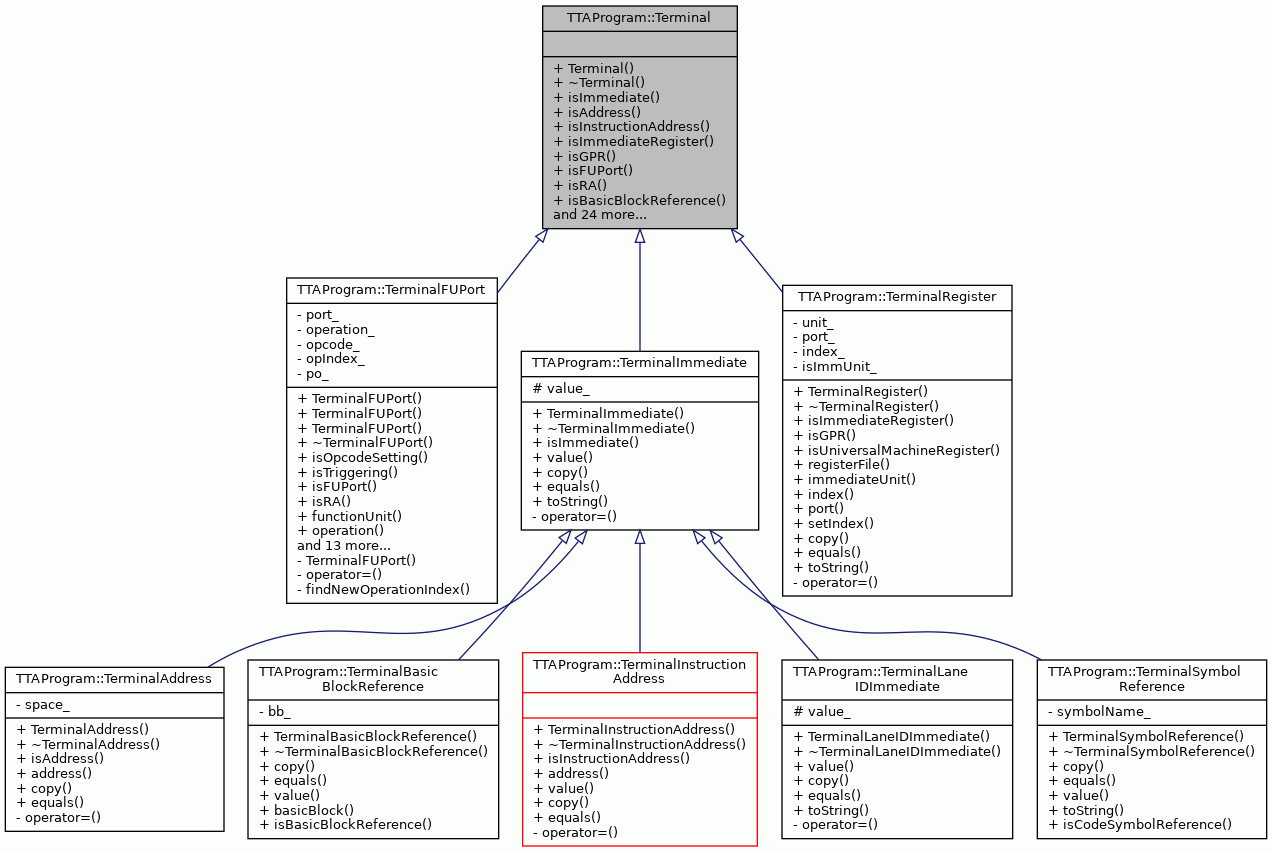

Inheritance diagram for TTAProgram::Terminal:

Collaboration diagram for TTAProgram::Terminal:

Public Member Functions
	Terminal ()

virtual	~Terminal ()

virtual bool	isImmediate () const

virtual bool	isAddress () const

virtual bool	isInstructionAddress () const

virtual bool	isImmediateRegister () const

virtual bool	isGPR () const

virtual bool	isFUPort () const

virtual bool	isRA () const

virtual bool	isBasicBlockReference () const

virtual bool	isProgramOperationReference () const

virtual bool	isCodeSymbolReference () const

virtual bool	isUniversalMachineRegister () const

virtual SimValue	value () const

virtual Address	address () const

virtual const InstructionReference &	instructionReference () const

virtual InstructionReference &	instructionReference ()

virtual const TTAMachine::RegisterFile &	registerFile () const

virtual const TTAMachine::ImmediateUnit &	immediateUnit () const

virtual const TTAMachine::FunctionUnit &	functionUnit () const

virtual const BasicBlock &	basicBlock () const

virtual int	index () const

virtual bool	isOpcodeSetting () const

virtual bool	isTriggering () const

virtual Operation &	operation () const

virtual Operation &	hintOperation () const

virtual int	operationIndex () const

virtual const TTAMachine::Port &	port () const

virtual void	setIndex (int index)

virtual void	setInstructionReference (InstructionReference ref)

virtual Terminal *	copy () const =0

bool	operator== (const Terminal &other) const

virtual bool	equals (const Terminal &other) const =0

virtual TCEString	toString () const =0

Detailed Description

Models any possible source or destination of a move.

Definition at line 60 of file Terminal.hh.

Constructor & Destructor Documentation

◆ Terminal()

TTAProgram::Terminal::Terminal ( )

The constructor.

Definition at line 48 of file Terminal.cc.

48 {

49}

◆ ~Terminal()

TTAProgram::Terminal::~Terminal ( )

virtual

The destructor.

Definition at line 54 of file Terminal.cc.

54 {

55}

Member Function Documentation

◆ address()

Address TTAProgram::Terminal::address ( ) const

virtual

Returns the address held by this terminal.

Returns: A memory address.

Exceptions

WrongSubclass if the terminal is not an instance of TerminalAddress.

Reimplemented in TTAProgram::TerminalAddress, TTAProgram::TerminalInstructionReference, TTAProgram::TerminalProgramOperation, and TTAProgram::TerminalInstructionAddress.

Definition at line 210 of file Terminal.cc.

                        {
    throw WrongSubclass(__FILE__, __LINE__);
}

Referenced by TTAProgram::TPEFProgramFactory::build(), TTAProgram::ProgramWriter::createCodeSection(), and TTAProgram::TerminalAddress::equals().

◆ basicBlock()

const BasicBlock & TTAProgram::Terminal::basicBlock ( ) const

virtual

Returns a reference to the basic block to which the immediate points.

Returns: A reference to the basic block to which the immediate points.

Reimplemented in TTAProgram::TerminalBasicBlockReference.

Definition at line 261 of file Terminal.cc.

                           {
    throw WrongSubclass(__FILE__, __LINE__);
}

Referenced by ControlFlowGraph::buildMBBFromBB(), ControlFlowGraph::convertBBRefsToInstRefs(), and ControlFlowGraph::jumpToBBN().

◆ copy()

virtual Terminal * TTAProgram::Terminal::copy ( ) const

pure virtual

Implemented in TTAProgram::TerminalAddress, TTAProgram::TerminalBasicBlockReference, TTAProgram::TerminalFUPort, TTAProgram::TerminalImmediate, TTAProgram::TerminalInstructionReference, TTAProgram::TerminalLaneIDImmediate, TTAProgram::TerminalProgramOperation, TTAProgram::TerminalRegister, TTAProgram::TerminalSymbolReference, and TTAProgram::TerminalInstructionAddress.

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), IUBroker::allAvailableResources(), IUResource::assign(), SimpleBrokerDirector::assign(), ITemplateBroker::assign(), IUBroker::assign(), SimpleBrokerDirector::canAssign(), TTAProgram::Immediate::copy(), TTAProgram::Move::copy(), TTAProgram::CodeGenerator::createForLoopBufferInit(), TTAProgram::TPEFProgramFactory::createTerminal(), CallsToJumps::handleControlFlowGraph(), DataDependenceGraph::mergeAndKeepSource(), DataDependenceGraph::mergeAndKeepUser(), BFRenameLiveRange::renameLiveRange(), PreOptimizer::tryToOptimizeAddressReg(), PreOptimizer::tryToRemoveGuardInversingOp(), IUResource::unassign(), BFUpdateMoveOnBypass::undoOnlyMe(), BFRenameLiveRange::undoSetTerminal(), BFCopyRegWithOp::undoSplit(), BFRegCopyAfter::undoSplit(), BFRegCopyBefore::undoSplit(), DataDependenceGraph::unMergeUser(), and CopyingDelaySlotFiller::updateJumpsAndCfg().

◆ equals()

virtual bool TTAProgram::Terminal::equals ( const Terminal & other ) const

pure virtual

Implemented in TTAProgram::TerminalAddress, TTAProgram::TerminalBasicBlockReference, TTAProgram::TerminalFUPort, TTAProgram::TerminalImmediate, TTAProgram::TerminalInstructionReference, TTAProgram::TerminalLaneIDImmediate, TTAProgram::TerminalProgramOperation, TTAProgram::TerminalRegister, TTAProgram::TerminalSymbolReference, and TTAProgram::TerminalInstructionAddress.

Referenced by OutputPSocketResource::canAssign(), llvm::LLVMTCEBuilder::emitSelect(), BUBasicBlockScheduler::finalizeSchedule(), BasicBlockScheduler::handleDDG(), ITemplateBroker::isImmediateInTemplate(), DataDependenceGraph::mergeAndKeepSource(), DataDependenceGraph::mergeAndKeepUser(), BFShareOperandsLate::operator()(), operator==(), BF2Scheduler::preAllocateFunctionUnits(), CycleLookBackSoftwareBypasser::removeDeadResults(), DataDependenceGraph::sanityCheck(), BUBasicBlockScheduler::scheduleRRMove(), PostpassOperandSharer::tryRemoveOperandWrite(), CopyingDelaySlotFiller::tryToAssignNodes(), PreOptimizer::tryToRemoveGuardInversingOp(), DataDependenceGraph::unMergeUser(), and BFMergeAndKeepUser::updateEdges().

◆ functionUnit()

const FunctionUnit & TTAProgram::Terminal::functionUnit ( ) const

virtual

Returns the function unit of the port.

Exceptions

WrongSubclass if the terminal is not an instance of TerminalFUPort.

Reimplemented in TTAProgram::TerminalFUPort.

Definition at line 251 of file Terminal.cc.

                             {
    throw WrongSubclass(__FILE__, __LINE__);
}

Referenced by InputFUBroker::allAvailableResources(), MoveNodeGroupBuilder::build(), ControlFlowGraph::buildMBBFromBB(), UtilizationStats::calculateForInstruction(), POMDisassembler::createFUPort(), POMDisassembler::disassemble(), MoveNodeDuplicator::duplicateMove(), ExecutionPipelineBroker::earliestFromDestination(), ExecutionPipelineBroker::earliestFromSource(), MoveNode::earliestResultReadCycle(), CodeCompressorPlugin::encodeFUTerminal(), FUBroker::findDstFUOfMove(), ControlFlowGraph::findNextIndex(), BFOptimization::fuOfTerminal(), CompiledSimCodeGenerator::generateAddFUResult(), CompiledSimCodeGenerator::generateInstruction(), CopyingDelaySlotFiller::getMove(), BFOptimization::immCountPreventsScheduling(), InputFUBroker::isAlreadyAssigned(), OutputFUBroker::isAlreadyAssigned(), POMDisassembler::isCallOrJump(), ExecutionPipelineBroker::isMoveTrigger(), ExecutionPipelineBroker::latestFromDestination(), ExecutionPipelineBroker::latestFromSource(), MoveNode::latestTriggerWriteCycle(), BFLateBypassGuard::operator()(), BFShareOperands::operator()(), BFPostpassBypass::operator()(), SimProgramBuilder::processMove(), BFOptimization::RFReadPortCountPreventsScheduling(), DataDependenceGraph::sanityCheck(), BUBasicBlockScheduler::scheduleMove(), BFOptimization::setPrologDstFUAnno(), BFOptimization::setPrologSrcFUAnno(), BFUnscheduleFromBody::unscheduleOriginal(), and BFUnscheduleMove::unscheduleOriginal().

◆ hintOperation()

Operation & TTAProgram::Terminal::hintOperation ( ) const

virtual

Return the operation to which this terminal was originally bound.

NOTE! : Method must not be used for checkin if terminal contains opcode. See. operation().

Method is mainly used for preserving information to which operation port reference is bound, during TPEF -> POM -> TPEF write cycles.

Returns: The operation code to which terminal was originally bound. Null operation if terminal does not contain operation code.

Todo:: This should be probably merged with operation() as "hints" are not really useful, we should make sure the operation of the move is known.

Reimplemented in TTAProgram::TerminalFUPort.

Definition at line 341 of file Terminal.cc.

                              {
    throw WrongSubclass(
        __FILE__, __LINE__, __func__,
        "Terminal must be TerminalFUPort for this method.");
}

References __func__.

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), ProgramOperation::addNode(), MoveNodeGroupBuilder::build(), MachineConnectivityCheck::busConnectedToAnyFU(), ControlFlowEdge::edgePredicateFromMove(), llvm::LLVMTCEBuilder::hasAmbiguousASpaceRefs(), ExecutionPipelineResource::resourcesAllowTrigger(), DataDependenceGraph::sanityCheck(), and ExecutionPipelineResource::unassignDestination().

◆ immediateUnit()

const ImmediateUnit & TTAProgram::Terminal::immediateUnit ( ) const

virtual

Returns the immediate unit of the long immediate register.

Applicable only if the unit of the terminal is an instance of ImmediateUnit.

Returns: The immediate unit of the long immediate register.

Exceptions

WrongSubclass if the unit of the terminal is not an instance of ImmediateUnit.

Reimplemented in TTAProgram::TerminalRegister.

Definition at line 240 of file Terminal.cc.

                              {
    throw WrongSubclass(__FILE__, __LINE__);
}

Referenced by CodeCompressorPlugin::addBitsForDstRegisterField(), OutputPSocketBroker::allAvailableResources(), IUBroker::allAvailableResources(), ITemplateBroker::assign(), OutputPSocketBroker::assign(), IUBroker::assign(), BFOptimization::assignCopyToPrologEpilog(), UtilizationStats::calculateForInstruction(), BFOptimization::canAssign(), CopyingDelaySlotFiller::checkImmediatesAfter(), POMValidator::checkLongImmediates(), CopyingDelaySlotFiller::collectMoves(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createImmediateAssignment(), POMDisassembler::createImmediateRegister(), CodeCompressorPlugin::encodeIUTerminal(), TTAProgram::TerminalRegister::equals(), CopyingDelaySlotFiller::findJumpImmediate(), ControlFlowGraph::findLimmWrite(), DataDependenceGraph::firstRegisterCycle(), DataDependenceGraph::firstScheduledRegisterRead(), DataDependenceGraph::firstScheduledRegisterReads(), CompiledSimCodeGenerator::generateInstruction(), CompiledSimSymbolGenerator::immediateRegisterSymbol(), OutputPSocketBroker::isAnyResourceAvailable(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraph::lastScheduledRegisterRead(), DataDependenceGraph::lastScheduledRegisterReads(), main(), BFShareOperandLate::operator()(), BFShareOperandWithScheduled::operator()(), LoopPrologAndEpilogBuilder::optimizeProlog(), SimProgramBuilder::processInstruction(), SimProgramBuilder::processSourceTerminal(), CodeCompressorPlugin::programImmediate(), BFOptimization::rmEC(), BFOptimization::rmLC(), TTAProgram::ProgramWriter::terminalResource(), CopyingDelaySlotFiller::tryToAssignNodes(), ITemplateBroker::unassignImmediate(), BFUnscheduleFromBody::unscheduleOriginal(), and BFUnscheduleMove::unscheduleOriginal().

◆ index()

int TTAProgram::Terminal::index ( ) const

virtual

Return the index of the register (either a long immediate or a general-purpose register).

Returns: The index of the register.

Exceptions

WrongSubclass if the terminal is not an instance of TerminalRegister.

Reimplemented in TTAProgram::TerminalRegister.

Definition at line 274 of file Terminal.cc.

                      {
    throw WrongSubclass(__FILE__, __LINE__);
}

◆ instructionReference() [1/2]

InstructionReference & TTAProgram::Terminal::instructionReference ( )

virtual

Returns a reference to the instruction to which the immediate points.

Returns: A reference to the instruction to which the immediate points.

Reimplemented in TTAProgram::TerminalInstructionReference.

Definition at line 198 of file Terminal.cc.

                               {
    throw WrongSubclass(__FILE__, __LINE__);
}

◆ instructionReference() [2/2]

const InstructionReference & TTAProgram::Terminal::instructionReference ( ) const

virtual

Returns a reference to the instruction to which the immediate points.

Returns: A reference to the instruction to which the immediate points.

Reimplemented in TTAProgram::TerminalInstructionReference.

Definition at line 188 of file Terminal.cc.

                                     {
    throw WrongSubclass(__FILE__, __LINE__);
}

Referenced by ControlFlowGraph::computeLeadersFromJumpSuccessors(), ProcedurePass::copyCfgToProcedure(), ControlFlowGraph::createJumps(), POMDisassembler::disassemble(), TTAProgram::Program::fixInstructionReferences(), ControlFlowGraph::jumpToBBN(), and CopyingDelaySlotFiller::updateJumpsAndCfg().

◆ isAddress()

bool TTAProgram::Terminal::isAddress ( ) const

virtual

Tells whether the terminal is an inline immediate value that refers to an address.

Returns: True if the terminal is an inline immediate value that refers to an address.

Reimplemented in TTAProgram::TerminalAddress.

Definition at line 75 of file Terminal.cc.

                          {
    return false;
}

Referenced by TTAProgram::ProgramWriter::createCodeSection(), TTAProgram::TerminalAddress::equals(), ProgramImageGenerator::generateProgramImage(), and TTAProgram::Program::replaceUniversalAddressSpaces().

◆ isBasicBlockReference()

bool TTAProgram::Terminal::isBasicBlockReference ( ) const

virtual

Tells whether the terminal is reference to a basic block.

Returns: True if the terminal is a ref to a basic block

Reimplemented in TTAProgram::TerminalBasicBlockReference.

Definition at line 139 of file Terminal.cc.

                                      {
    return false;
}

Referenced by ITemplateBroker::assign(), ControlFlowGraph::buildMBBFromBB(), SimpleIfConverter::canConvert(), ControlFlowGraph::convertBBRefsToInstRefs(), ControlFlowGraph::jumpToBBN(), and MachineConnectivityCheck::requiredImmediateWidth().

◆ isCodeSymbolReference()

bool TTAProgram::Terminal::isCodeSymbolReference ( ) const

virtual

Tells whether the terminal is reference to a code symbol

Returns: True if the terminal is a ref to a code symbol

Reimplemented in TTAProgram::TerminalSymbolReference.

Definition at line 154 of file Terminal.cc.

                                      {
    return false;
}

Referenced by ITemplateBroker::assign(), ControlFlowGraph::buildMBBFromBB(), TTAProgram::Program::convertSymbolRefsToInsRefs(), POMDisassembler::disassemble(), ControlFlowGraph::jumpToBBN(), and MachineConnectivityCheck::requiredImmediateWidth().

◆ isFUPort()

bool TTAProgram::Terminal::isFUPort ( ) const

virtual

Tells whether the terminal is a function unit port (possibly, including an operation code).

Returns: True if the terminal is a function unit port.

Reimplemented in TTAProgram::TerminalFUPort.

Definition at line 118 of file Terminal.cc.

                         {
    return false;
}

Referenced by CodeCompressorPlugin::addBitsForDestinationField(), CodeCompressorPlugin::addBitsForSourceField(), llvm::LLVMTCEBuilder::addCandidateLSUAnnotations(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopies(), RegisterCopyAdder::addConnectionRegisterCopiesImmediate(), ProximMachineStateWindow::addMoves(), ProgramOperation::addNode(), StaticProgramAnalyzer::addProgram(), InputPSocketBroker::allAvailableResources(), OutputFUBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), MoveNodeGroupBuilder::build(), LLVMTCEDataDependenceGraphBuilder::buildLocalDDG(), ControlFlowGraph::buildMBBFromBB(), MachineConnectivityCheck::busConnectedToDestination(), UtilizationStats::calculateForInstruction(), OutputPSocketResource::canAssign(), POMValidator::checkCompiledSimulatability(), POMValidator::checkConnectivity(), POMValidator::checkSimulatability(), DataDependenceGraphBuilder::constructIndividualBB(), ControlFlowGraph::createJumps(), POMDisassembler::createTerminal(), MoveNodeDuplicator::duplicateMove(), ExecutionPipelineBroker::earliestFromSource(), CodeCompressorPlugin::encodeFUTerminal(), TTAProgram::TerminalFUPort::equals(), FUBroker::findDstFUOfMove(), BFOptimization::fuOfTerminal(), CompiledSimCodeGenerator::generateInstruction(), BF2Scheduler::getDstUnit(), CopyingDelaySlotFiller::getMove(), llvm::LLVMTCEBuilder::hasAmbiguousASpaceRefs(), BFOptimization::immCountPreventsScheduling(), BUMoveNodeSelector::initializeReadylist(), InputFUBroker::isAlreadyAssigned(), OutputFUBroker::isAlreadyAssigned(), OutputPSocketBroker::isAlreadyAssigned(), OutputPSocketBroker::isAnyResourceAvailable(), OutputPSocketBroker::isApplicable(), OutputFUBroker::isApplicable(), InputFUBroker::isApplicable(), TTAProgram::Move::isCall(), POMDisassembler::isCallOrJump(), TTAProgram::Move::isControlFlowMove(), TTAProgram::Move::isJump(), TTAProgram::Move::isTriggering(), ExecutionPipelineResource::operandSharePreventsTriggerForScheduledResult(), BFScheduleBU::operator()(), BFShareOperands::operator()(), BFShareOperandsLate::operator()(), ExecutionPipelineResource::poConflictsWithInputPort(), SimProgramBuilder::processBidirTerminal(), DataDependenceGraphBuilder::processDestination(), SimProgramBuilder::processMove(), DataDependenceGraphBuilder::processSource(), ExecutionPipelineResource::resultCausesTriggerBetweenOperandSharing(), BFOptimization::RFReadPortCountPreventsScheduling(), DataDependenceGraph::sanityCheck(), SequentialScheduler::scheduleOperandWrites(), BFOptimization::setPrologDstFUAnno(), BFOptimization::setPrologSrcFUAnno(), TTAProgram::BasicBlock::statistics(), TTAProgram::ProgramWriter::terminalResource(), ExecutionPipelineResource::testTriggerResult(), ProgramOperation::triggeringMove(), and PostpassOperandSharer::tryRemoveOperandWrite().

◆ isGPR()

bool TTAProgram::Terminal::isGPR ( ) const

virtual

Tells whether the terminal is a general-purpose register.

Returns: True if the terminal is a general-purpose register.

Reimplemented in TTAProgram::TerminalRegister.

Definition at line 107 of file Terminal.cc.

                      {
    return false;
}

◆ isImmediate()

bool TTAProgram::Terminal::isImmediate ( ) const

virtual

Tells whether the terminal is an inline immediate value.

Returns: True if the terminal is an inline immediate value.

Reimplemented in TTAProgram::TerminalImmediate.

Definition at line 63 of file Terminal.cc.

                            {
    return false;
}

Referenced by CodeCompressorPlugin::addBitsForSourceField(), RegisterCopyAdder::addConnectionRegisterCopies(), SimpleICOptimizer::addConnections(), StaticProgramAnalyzer::addProgram(), BusBroker::allAvailableResources(), LoopAnalyzer::analyze(), OffsetAliasAnalyzer::analyze(), BFSwapOperands::BFSwapOperands(), ControlFlowGraph::buildMBBFromBB(), UtilizationStats::calculateForInstruction(), IUResource::canAssign(), RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createMove(), POMDisassembler::createTerminal(), CodeCompressorPlugin::encodeImmediateTerminal(), TTAProgram::TerminalImmediate::equals(), MemoryAliasAnalyzer::findIncrement(), LoopAnalyzer::findInitAndUpdate(), CopyingDelaySlotFiller::findJumpImmediate(), DataDependenceGraph::findLoopIndexUpdate(), DataDependenceGraph::findLoopLimitAndIndex(), ProgramImageGenerator::generateProgramImage(), ConstantAliasAnalyzer::getConstantAddress(), OffsetAliasAnalyzer::isAddressTraceable(), BusBroker::isAvailable(), CompiledSimSymbolGenerator::moveOperandSymbol(), ResourceConstraintAnalyzer::optimalScheduleResourceUsage(), SimProgramBuilder::processMove(), TTAProgram::Move::sourceSocket(), TTAProgram::ProgramWriter::terminalResource(), PreOptimizer::tryToRemoveEq(), PreOptimizer::tryToRemoveXor(), and LoopAnalyzer::tryTrackCommonAncestor().

◆ isImmediateRegister()

bool TTAProgram::Terminal::isImmediateRegister ( ) const

virtual

Tells whether the terminal is a long immediate register.

Returns: True if the terminal is a long immediate register.

Reimplemented in TTAProgram::TerminalRegister.

Definition at line 97 of file Terminal.cc.

                                    {
    return false;
}

Referenced by CodeCompressorPlugin::addBitsForSourceField(), OutputPSocketBroker::allAvailableResources(), IUBroker::allAvailableResources(), LoopAnalyzer::analyze(), IUResource::assign(), OutputPSocketBroker::assign(), IUBroker::assign(), CycleLookBackSoftwareBypasser::bypassNode(), UtilizationStats::calculateForInstruction(), OutputPSocketResource::canAssign(), POMValidator::checkConnectivity(), CopyingDelaySlotFiller::checkImmediatesAfter(), POMValidator::checkLongImmediates(), CopyingDelaySlotFiller::collectMoves(), ControlFlowGraph::computeLeadersFromJumpSuccessors(), TTAProgram::TPEFProgramFactory::createInstruction(), ControlFlowGraph::createJumps(), POMDisassembler::createTerminal(), CodeCompressorPlugin::encodeIUTerminal(), TTAProgram::TerminalRegister::equals(), CopyingDelaySlotFiller::findJumpImmediate(), DataDependenceGraph::firstRegisterCycle(), DataDependenceGraph::firstScheduledRegisterRead(), DataDependenceGraph::firstScheduledRegisterReads(), CompiledSimCodeGenerator::generateInstruction(), IUResource::immediateValue(), IUResource::immediateWriteCycle(), OutputPSocketBroker::isAlreadyAssigned(), OutputPSocketBroker::isAnyResourceAvailable(), OutputPSocketBroker::isApplicable(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraph::lastScheduledRegisterRead(), DataDependenceGraph::lastScheduledRegisterReads(), CompiledSimSymbolGenerator::moveOperandSymbol(), BFShareOperandLate::operator()(), BFShareOperandsLate::operator()(), BFShareOperandWithScheduled::operator()(), LoopPrologAndEpilogBuilder::optimizeProlog(), SimProgramBuilder::processInstruction(), SimProgramBuilder::processSourceTerminal(), CodeCompressorPlugin::programImmediate(), TTAProgram::ProgramWriter::terminalResource(), PostpassOperandSharer::tryRemoveOperandWrite(), CopyingDelaySlotFiller::tryToAssignNodes(), IUResource::unassign(), BFUnscheduleFromBody::unscheduleOriginal(), and BFUnscheduleMove::unscheduleOriginal().

◆ isInstructionAddress()

bool TTAProgram::Terminal::isInstructionAddress ( ) const

virtual

Tells whether the terminal is an inline immediate value that refers to an instruction address.

Returns: True if the terminal is an inline immediate value that refers to an instruction address.

Reimplemented in TTAProgram::TerminalInstructionAddress.

Definition at line 87 of file Terminal.cc.

                                     {
    return false;
}

Referenced by ITemplateBroker::assign(), SimpleIfConverter::canConvert(), ControlFlowGraph::computeLeadersFromJumpSuccessors(), ProcedurePass::copyCfgToProcedure(), BF2Scheduler::countLoopInvariantValueUsages(), ControlFlowGraph::createBBEdges(), TTAProgram::ProgramWriter::createCodeSection(), ControlFlowGraph::createJumps(), POMDisassembler::disassemble(), TTAProgram::TerminalProgramOperation::equals(), CopyingDelaySlotFiller::fillDelaySlots(), TTAProgram::Program::fixInstructionReferences(), ProgramImageGenerator::generateProgramImage(), ControlFlowGraph::jumpToBBN(), LoopPrologAndEpilogBuilder::moveJumpDestination(), ControlFlowGraph::removeJumpToTarget(), TTAProgram::Program::replaceUniversalAddressSpaces(), and MachineConnectivityCheck::requiredImmediateWidth().

◆ isOpcodeSetting()

bool TTAProgram::Terminal::isOpcodeSetting ( ) const

virtual

Tells whether terminal transports an opcode to a function unit port.

Returns: True if the terminal transports an opcode to a function unit port.

Exceptions

WrongSubclass always.

Reimplemented in TTAProgram::TerminalFUPort.

Definition at line 285 of file Terminal.cc.

                                {
    throw WrongSubclass(
        __FILE__, __LINE__, __func__,
        "Terminal must be TerminalFUPort for this method.");
}

References __func__.

Referenced by StaticProgramAnalyzer::addProgram(), ExecutionPipelineResource::assignDestination(), MoveNodeGroupBuilder::build(), POMValidator::checkCompiledSimulatability(), POMValidator::checkSimulatability(), CodeCompressorPlugin::encodeFUTerminal(), ProcedureTransferTracker::handleEvent(), POMDisassembler::isCallOrJump(), BFShareOperandsLate::operator()(), SimProgramBuilder::processBidirTerminal(), ExecutionPipelineResource::resourcesAllowTrigger(), PostpassOperandSharer::tryRemoveOperandWrite(), and ExecutionPipelineResource::unassignDestination().

◆ isProgramOperationReference()

bool TTAProgram::Terminal::isProgramOperationReference ( ) const

virtual

Reimplemented in TTAProgram::TerminalProgramOperation.

Definition at line 144 of file Terminal.cc.

                                            {
    return false;
}

Referenced by ControlFlowGraph::buildMBBFromBB().

◆ isRA()

bool TTAProgram::Terminal::isRA ( ) const

virtual

Tells whether the terminal is a the return address port in gcu.

Returns: True if the terminal is a the RA port.

Reimplemented in TTAProgram::TerminalFUPort.

Definition at line 129 of file Terminal.cc.

                     {
    return false;
}

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), ControlFlowGraph::buildMBBFromBB(), MachineConnectivityCheck::busConnectedToDestination(), CopyingDelaySlotFiller::collectMoves(), RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR(), MoveNodeDuplicator::duplicateMove(), MachineConnectivityCheck::findPossibleDestinationPorts(), MachineConnectivityCheck::findPossibleSourcePorts(), CopyingDelaySlotFiller::getMove(), SequentialScheduler::handleBasicBlock(), BUBasicBlockScheduler::handleDDG(), BasicBlockScheduler::handleDDG(), BasicBlockScheduler::handleLoopDDG(), BUBasicBlockScheduler::handleLoopDDG(), llvm::LLVMTCEBuilder::hasAmbiguousASpaceRefs(), main(), and CriticalPathBBMoveNodeSelector::mightBeReady().

◆ isTriggering()

bool TTAProgram::Terminal::isTriggering ( ) const

virtual

Tells whether terminal is a triggering FU port.

Returns: True if the terminal is a triggering port.

Exceptions

WrongSubclass always.

Reimplemented in TTAProgram::TerminalFUPort.

Definition at line 298 of file Terminal.cc.

                             {
    throw WrongSubclass(
        __FILE__, __LINE__, __func__,
        "Terminal must be TerminalFUPort for this method.");
}

References __func__.

Referenced by ExecutionPipelineResource::assignDestination(), MoveNodeGroupBuilder::build(), main(), BFPushMoveUp::operator()(), BFScheduleBU::operator()(), BFShareOperands::operator()(), BFShareOperandsLate::operator()(), BasicBlockScheduler::scheduleOperandWrites(), SequentialScheduler::scheduleOperandWrites(), BUBasicBlockScheduler::scheduleOperandWrites(), PostpassOperandSharer::tryRemoveOperandWrite(), and ExecutionPipelineResource::unassignDestination().

◆ isUniversalMachineRegister()

bool TTAProgram::Terminal::isUniversalMachineRegister ( ) const

virtual

Tells whether the terminal is a reg in UniversalMachine

Returns: True if the terminal is a register in universalmachine, ie. not in any real machine. This practically means the register is unallocated and meant to be bypassed.

Reimplemented in TTAProgram::TerminalRegister.

Definition at line 166 of file Terminal.cc.

                                           {
    return false;
}

Referenced by BF2Scheduler::isDestinationUniversalReg(), BF2Scheduler::isSourceUniversalReg(), and BUMoveNodeSelector::mightBeReady().

◆ operation()

Operation & TTAProgram::Terminal::operation ( ) const

virtual

Return the operation code transported into the function unit port by this terminal.

Throws an error condition if the terminal does not read from or write to a function unit port (that is, if the terminal if of a wrong type). Throws an error condition also if the terminal does not access an opcode-setting function unit port.

Exceptions

WrongSubclass	If the terminal is of the wrong type.
InvalidData	If the terminal is of the right type, but it does not carry an operation-code.

Returns: The operation carried by this terminal.

Reimplemented in TTAProgram::TerminalFUPort.

Definition at line 319 of file Terminal.cc.

                          {
    throw WrongSubclass(
        __FILE__, __LINE__, __func__,
        "Terminal must be TerminalFUPort for this method.");
}

References __func__.

Referenced by StaticProgramAnalyzer::addProgram(), CopyingDelaySlotFiller::allowedToSpeculate(), ExecutionPipelineResource::assignDestination(), MoveNodeGroupBuilder::build(), UtilizationStats::calculateForInstruction(), POMValidator::checkCompiledSimulatability(), POMValidator::checkSimulatability(), ControlFlowEdge::edgePredicateFromMove(), CodeCompressorPlugin::encodeFUTerminal(), POMDisassembler::isCallOrJump(), SimProgramBuilder::processBidirTerminal(), ExecutionPipelineResource::resourcesAllowTrigger(), and ExecutionPipelineResource::unassignDestination().

◆ operationIndex()

int TTAProgram::Terminal::operationIndex ( ) const

virtual

Return the index that identifies the operation input or output that is represented by this terminal.

Throws an error condition if the terminal does not read from or write to a function unit port (that is, if the terminal if of a wrong type). Throws an error condition also if the terminal does not access an opcode-setting function unit port, nor it bears auxiliary "hint operation" information.

Returns: The index that identifies the operation input or output that is represented by this terminal.

Exceptions

WrongSubclass	If the terminal is of the wrong type.
InvalidData	If the terminal is of the right type, but does not have any operation-related information.

Reimplemented in TTAProgram::TerminalFUPort.

Definition at line 364 of file Terminal.cc.

                               {
    throw WrongSubclass(
        __FILE__, __LINE__, __func__,
        "Terminal must be TerminalFUPort for this method.");
}

References __func__.

◆ operator==()

bool TTAProgram::Terminal::operator== ( const Terminal & other ) const

Comparison operator for Terminals.

Delegates the comparison to dynamically bound equals() method.

Parameters

other Comparison target.

Returns: True in case the objects are equal.

Definition at line 417 of file Terminal.cc.

                                                {
    return equals(other);
}

References equals().

Here is the call graph for this function:

◆ port()

const Port & TTAProgram::Terminal::port ( ) const

virtual

Return the port accessed by this terminal.

Returns: The port of the unit of the terminal.

Exceptions

WrongSubclass if the terminal is not an instance of TerminalFUPort or TerminalRegister.

Reimplemented in TTAProgram::TerminalFUPort, and TTAProgram::TerminalRegister.

Definition at line 378 of file Terminal.cc.

                     {
    throw WrongSubclass(__FILE__, __LINE__);
}

Referenced by RegisterCopyAdder::addConnectionRegisterCopies(), ProximMachineStateWindow::addMoves(), BusBroker::allAvailableResources(), InputPSocketBroker::allAvailableResources(), OutputPSocketBroker::allAvailableResources(), OutputPSocketResource::assign(), MoveNodeGroupBuilder::build(), ControlFlowGraph::buildMBBFromBB(), MachineConnectivityCheck::busConnectedToDestination(), UtilizationStats::calculateForInstruction(), OutputPSocketResource::canAssign(), BusResource::canAssign(), POMValidator::checkConnectivity(), ExecutionPipelineResource::checkOperandAllowed(), CopyingDelaySlotFiller::collectMoves(), RegisterCopyAdder::countAndAddConnectionRegisterCopiesToRR(), POMDisassembler::createFUPort(), TTAProgram::TPEFProgramFactory::createInstruction(), llvm::LLVMTCEBuilder::createMove(), TTAProgram::Move::destinationSocket(), llvm::LLVMTCEBuilder::emitMove(), CodeCompressorPlugin::encodeFUTerminal(), CodeCompressorPlugin::encodeIUTerminal(), CodeCompressorPlugin::encodeRFTerminal(), BUBasicBlockScheduler::findBypassDestinations(), MachineConnectivityCheck::findPossibleDestinationPorts(), MachineConnectivityCheck::findPossibleSourcePorts(), CompiledSimCodeGenerator::generateAddFUResult(), CompiledSimCodeGenerator::generateInstruction(), BF2Scheduler::getDstUnit(), ControlFlowGraph::indirectJump(), InputPSocketBroker::isAlreadyAssigned(), OutputPSocketBroker::isAlreadyAssigned(), OutputPSocketBroker::isAnyResourceAvailable(), BusBroker::isAvailable(), main(), CompiledSimSymbolGenerator::moveOperandSymbol(), ExecutionPipelineResource::operandSharePreventsTriggerForScheduledResult(), BFLateBypasses::operator()(), BFShareOperands::operator()(), ExecutionPipelineResource::poConflictsWithInputPort(), SimProgramBuilder::processBidirTerminal(), DataDependenceGraphBuilder::processDestination(), SimProgramBuilder::processMove(), DataDependenceGraphBuilder::processSource(), RegisterRenamer::renameLiveRange(), TTAProgram::Move::sourceSocket(), TTAProgram::ProgramWriter::terminalResource(), ProgramOperation::triggeringMove(), ExecutionPipelineResource::triggerTooEarly(), PostpassOperandSharer::tryRemoveOperandWrite(), and InputPSocketBroker::unassign().

◆ registerFile()

const RegisterFile & TTAProgram::Terminal::registerFile ( ) const

virtual

Returns the register file of the general-purpose register.

Applicable only if the unit of the terminal is an instance of RegisterFile.

Returns: The register file of the general-purpose register.

Exceptions

WrongSubclass if the unit of the terminal is not an instance of RegisterFile.

Reimplemented in TTAProgram::TerminalRegister.

Definition at line 225 of file Terminal.cc.

                             {
    throw WrongSubclass(__FILE__, __LINE__);
}

◆ setIndex()

void TTAProgram::Terminal::setIndex ( int index )

virtual

Change the register of the register file to the given index.

Parameters

index The new register index.

Exceptions

OutOfRange	if index is not smaller than the size of the register file or immediate unit it belongs to.
WrongSubclass	if the terminal is not an instance of TerminalRegister.

Reimplemented in TTAProgram::TerminalRegister.

Definition at line 392 of file Terminal.cc.

                      {
    throw WrongSubclass(__FILE__, __LINE__);
}

◆ setInstructionReference()

void TTAProgram::Terminal::setInstructionReference ( InstructionReference ref )

virtual

Set a new referred instruction.

Parameters

ref	The new instruction reference.

Exceptions

WrongSubclass if the terminal is not an instance of TerminalInstructionAddress

Reimplemented in TTAProgram::TerminalInstructionReference.

Definition at line 404 of file Terminal.cc.

                                                      {
    throw WrongSubclass(__FILE__, __LINE__);
}

Referenced by llvm::LLVMTCEBuilder::doFinalization(), TTAProgram::Program::fixInstructionReferences(), and LoopPrologAndEpilogBuilder::moveJumpDestination().

◆ toString()

virtual TCEString TTAProgram::Terminal::toString ( ) const

pure virtual

Implemented in TTAProgram::TerminalFUPort, TTAProgram::TerminalImmediate, TTAProgram::TerminalLaneIDImmediate, TTAProgram::TerminalRegister, and TTAProgram::TerminalSymbolReference.

Referenced by ControlFlowGraph::buildMBBFromBB(), TTAProgram::Program::convertSymbolRef(), TTAProgram::Program::convertSymbolRefsToInsRefs(), POMDisassembler::disassemble(), and main().

◆ value()

SimValue TTAProgram::Terminal::value ( ) const

virtual

Returns the value of the inline immediate.

Returns: The value of the inline immediate.

Exceptions

WrongSubclass if the terminal is not an instance of TerminalImmediate.

Reimplemented in TTAProgram::TerminalBasicBlockReference, TTAProgram::TerminalImmediate, TTAProgram::TerminalInstructionAddress, TTAProgram::TerminalLaneIDImmediate, and TTAProgram::TerminalSymbolReference.

Definition at line 178 of file Terminal.cc.

                      {
    throw WrongSubclass(__FILE__, __LINE__);
}

Referenced by StaticProgramAnalyzer::addProgram(), LoopAnalyzer::analyze(), OffsetAliasAnalyzer::analyze(), ControlFlowGraph::buildMBBFromBB(), BF2Scheduler::countLoopInvariantValueUsages(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createInlineImmediate(), POMDisassembler::createMove(), MemoryAliasAnalyzer::detectConstantScale(), CodeCompressorPlugin::encodeImmediateTerminal(), TTAProgram::TerminalImmediate::equals(), TTAProgram::TerminalLaneIDImmediate::equals(), LoopAnalyzer::findEndCond(), MemoryAliasAnalyzer::findIncrement(), LoopAnalyzer::findInitAndUpdate(), DataDependenceGraph::findLoopIndexUpdate(), ProgramImageGenerator::generateProgramImage(), ConstantAliasAnalyzer::getConstantAddress(), StackAliasAnalyzer::getStackOffset(), CompiledSimSymbolGenerator::moveOperandSymbol(), SimProgramBuilder::processMove(), TTAProgram::Program::replaceUniversalAddressSpaces(), MemoryAliasAnalyzer::searchLoopIndexBasedIncrement(), PreOptimizer::tryToRemoveEq(), PreOptimizer::tryToRemoveXor(), and LoopAnalyzer::tryTrackCommonAncestor().

The documentation for this class was generated from the following files:

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ Terminal()

◆ ~Terminal()

Member Function Documentation

◆ address()

◆ basicBlock()

◆ copy()

◆ equals()

◆ functionUnit()

◆ hintOperation()

◆ immediateUnit()

◆ index()

◆ instructionReference() [1/2]

◆ instructionReference() [2/2]

◆ isAddress()

◆ isBasicBlockReference()

◆ isCodeSymbolReference()

◆ isFUPort()

◆ isGPR()

◆ isImmediate()

◆ isImmediateRegister()

◆ isInstructionAddress()

◆ isOpcodeSetting()

◆ isProgramOperationReference()

◆ isRA()

◆ isTriggering()

◆ isUniversalMachineRegister()

◆ operation()

◆ operationIndex()

◆ operator==()

◆ port()

◆ registerFile()

◆ setIndex()

◆ setInstructionReference()

◆ toString()

◆ value()
