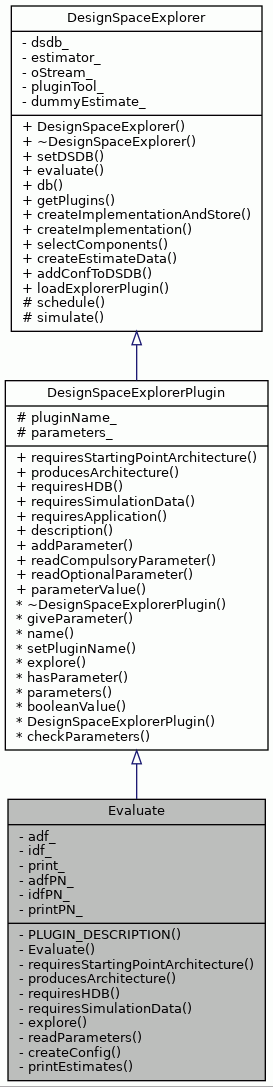

Inheritance diagram for Evaluate:

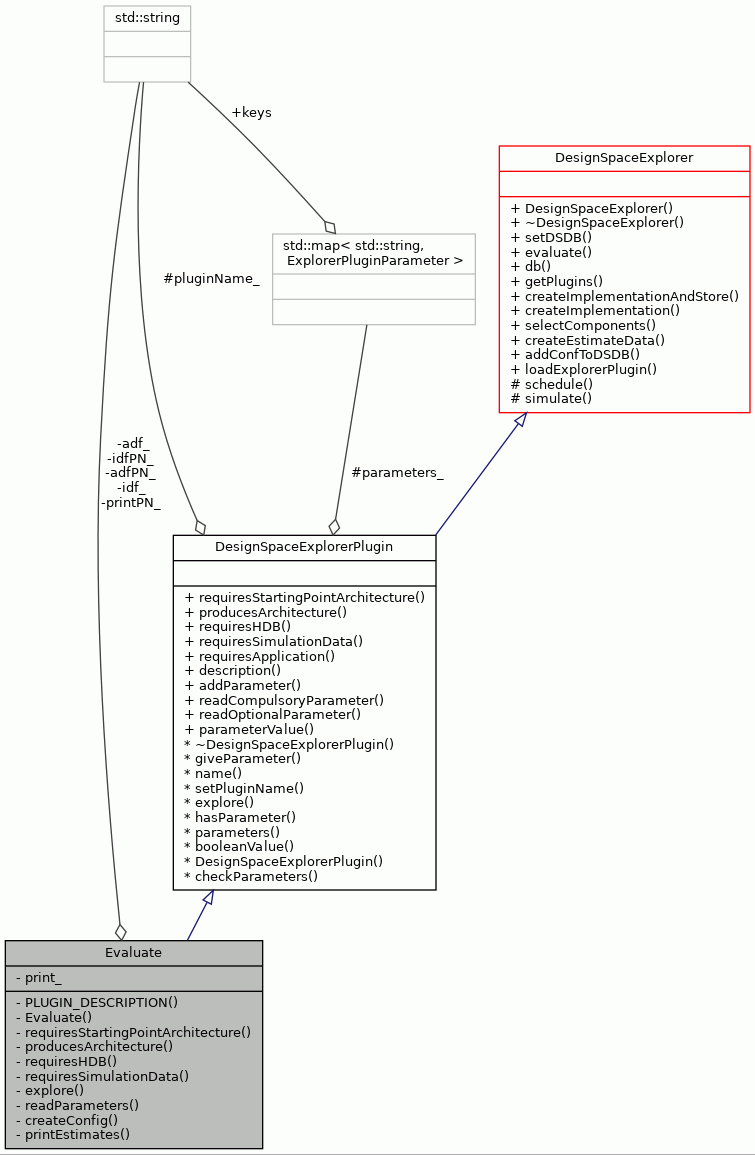

Collaboration diagram for Evaluate:

Private Member Functions
	PLUGIN_DESCRIPTION ("Evaluates and/or estimates a configuration.")

	Evaluate ()

virtual bool	requiresStartingPointArchitecture () const

virtual bool	producesArchitecture () const

virtual bool	requiresHDB () const

virtual bool	requiresSimulationData () const

virtual std::vector< RowID >	explore (const RowID &configurationID, const unsigned int &)

void	readParameters ()

bool	createConfig (const std::string &adf, const std::string &idf, DSDBManager &dsdb, DSDBManager::MachineConfiguration &conf)

void	printEstimates (const CostEstimates &estimates, const DSDBManager::MachineConfiguration &configuration)

Private Attributes
std::string	adf_
	name of the adf file to evaluate

std::string	idf_
	name of the idf file to evaluate

bool	print_
	print evaluation results

Static Private Attributes
static const std::string	adfPN_

static const std::string	idfPN_

static const std::string	printPN_

Additional Inherited Members
Public Types inherited from DesignSpaceExplorerPlugin
typedef std::pair< std::string, ExplorerPluginParameter >	Parameter

typedef std::map< std::string, ExplorerPluginParameter >	ParameterMap

typedef std::map< std::string, ExplorerPluginParameter >::iterator	PMIt

typedef std::map< std::string, ExplorerPluginParameter >::const_iterator	PMCIt

Public Member Functions inherited from DesignSpaceExplorerPlugin
virtual bool	requiresApplication () const

virtual std::string	description () const

void	addParameter (TCEString name, ExplorerPluginParameterType type, bool compulsory=true, TCEString defaultValue="", TCEString description="")

template<typename T >
void	readCompulsoryParameter (const std::string paramName, T &param) const

template<typename T >
void	readOptionalParameter (const std::string paramName, T &param) const

template<typename RT >
RT	parameterValue (const std::string &paramName) const

virtual	~DesignSpaceExplorerPlugin ()

virtual void	giveParameter (const std::string &name, const std::string &value)

virtual std::string	name () const

virtual void	setPluginName (const std::string &pluginName)

virtual bool	hasParameter (const std::string &paramName) const

ParameterMap	parameters () const

virtual bool	booleanValue (const std::string &parameter) const

Public Member Functions inherited from DesignSpaceExplorer
	DesignSpaceExplorer ()

virtual	~DesignSpaceExplorer ()

virtual void	setDSDB (DSDBManager &dsdb)

virtual bool	evaluate (const DSDBManager::MachineConfiguration &configuration, CostEstimates &results=dummyEstimate_, bool estimate=false)

virtual DSDBManager &	db ()

std::vector< DesignSpaceExplorerPlugin * >	getPlugins ()

RowID	createImplementationAndStore (const DSDBManager::MachineConfiguration &conf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

bool	createImplementation (const DSDBManager::MachineConfiguration &conf, DSDBManager::MachineConfiguration &newConf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

IDF::MachineImplementation *	selectComponents (const TTAMachine::Machine &mach, const double &frequency=0.0, const double &maxArea=0.0, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb") const

void	createEstimateData (const TTAMachine::Machine &mach, const IDF::MachineImplementation &idf, CostEstimator::AreaInGates &area, CostEstimator::DelayInNanoSeconds &longestPathDelay)

RowID	addConfToDSDB (const DSDBManager::MachineConfiguration &conf)

Static Public Member Functions inherited from DesignSpaceExplorer
static DesignSpaceExplorerPlugin *	loadExplorerPlugin (const std::string &pluginName, DSDBManager *dsdb=NULL)

Protected Member Functions inherited from DesignSpaceExplorerPlugin
	DesignSpaceExplorerPlugin ()

void	checkParameters () const

Protected Member Functions inherited from DesignSpaceExplorer
TTAProgram::Program *	schedule (const std::string applicationFile, TTAMachine::Machine &machine, TCEString paramOptions="-O3")

const ExecutionTrace *	simulate (const TTAProgram::Program &program, const TTAMachine::Machine &machine, const TestApplication &testApplication, const ClockCycleCount &maxCycles, ClockCycleCount &runnedCycles, const bool tracing, const bool useCompiledSimulation=false, std::vector< ClockCycleCount > *executionCounts=NULL)

Protected Attributes inherited from DesignSpaceExplorerPlugin
std::string	pluginName_
	the name of the explorer plugin

ParameterMap	parameters_
	Parameters for the plugin.

Detailed Description

Explorer plugin that evaluates a configuration and estimates it if the configuration has an implementation.

Definition at line 59 of file Evaluate.cc.

Constructor & Destructor Documentation

◆ Evaluate()

Evaluate::Evaluate ( )

inlineprivate

Definition at line 62 of file Evaluate.cc.

              : DesignSpaceExplorerPlugin(),
        adf_(""),
        idf_(""),
        print_(true) {

        // compulsory parameters
        // no compulsory parameters

        // parameters that have a default value
        addParameter(adfPN_, STRING, false, adf_);
        addParameter(idfPN_, STRING, false, idf_);
        addParameter(printPN_, BOOL, false, Conversion::toString(print_));
    }

References DesignSpaceExplorerPlugin::addParameter(), adf_, adfPN_, BOOL, idf_, idfPN_, print_, printPN_, STRING, and Conversion::toString().

Here is the call graph for this function:

Member Function Documentation

◆ createConfig()

bool Evaluate::createConfig	(	const std::string &	adf,
		const std::string &	idf,
		DSDBManager &	dsdb,
		DSDBManager::MachineConfiguration &	conf
	)

inlineprivate

Load adf and idf from files and store to given dsdb and config.

Parameters

adf	Path of architecture definition file.
idf	Path of implementation definition file.
dsdb	Database where to store adf and idf.
conf	Configuration for adf/idf ids.

Returns: True if creating config succeeded, else false.

Definition at line 174 of file Evaluate.cc.

                                               {

        assert(adf != "");

        IDF::MachineImplementation* idfo = NULL;
        TTAMachine::Machine* mach = NULL;
        try {
            if (adf != "") {
                mach = TTAMachine::Machine::loadFromADF(adf);
                conf.architectureID = dsdb.addArchitecture(*mach);
            } else {
                return false;
            }
            if (idf != "") {
                idfo = IDF::MachineImplementation::loadFromIDF(idf);
                conf.implementationID =
                    dsdb.addImplementation(*idfo, 0,0);
                conf.hasImplementation = true;
            } else {
                conf.hasImplementation = false;
            }
        } catch (const Exception& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error loading the adf/idf." << std::endl;
            verboseLog(msg.str());
            delete mach;
            return false;
        }
        delete mach;
        return true;
    }

References DSDBManager::addArchitecture(), DSDBManager::addImplementation(), DSDBManager::MachineConfiguration::architectureID, assert, DSDBManager::MachineConfiguration::hasImplementation, DSDBManager::MachineConfiguration::implementationID, TTAMachine::Machine::loadFromADF(), IDF::MachineImplementation::loadFromIDF(), and verboseLog.

Referenced by explore().

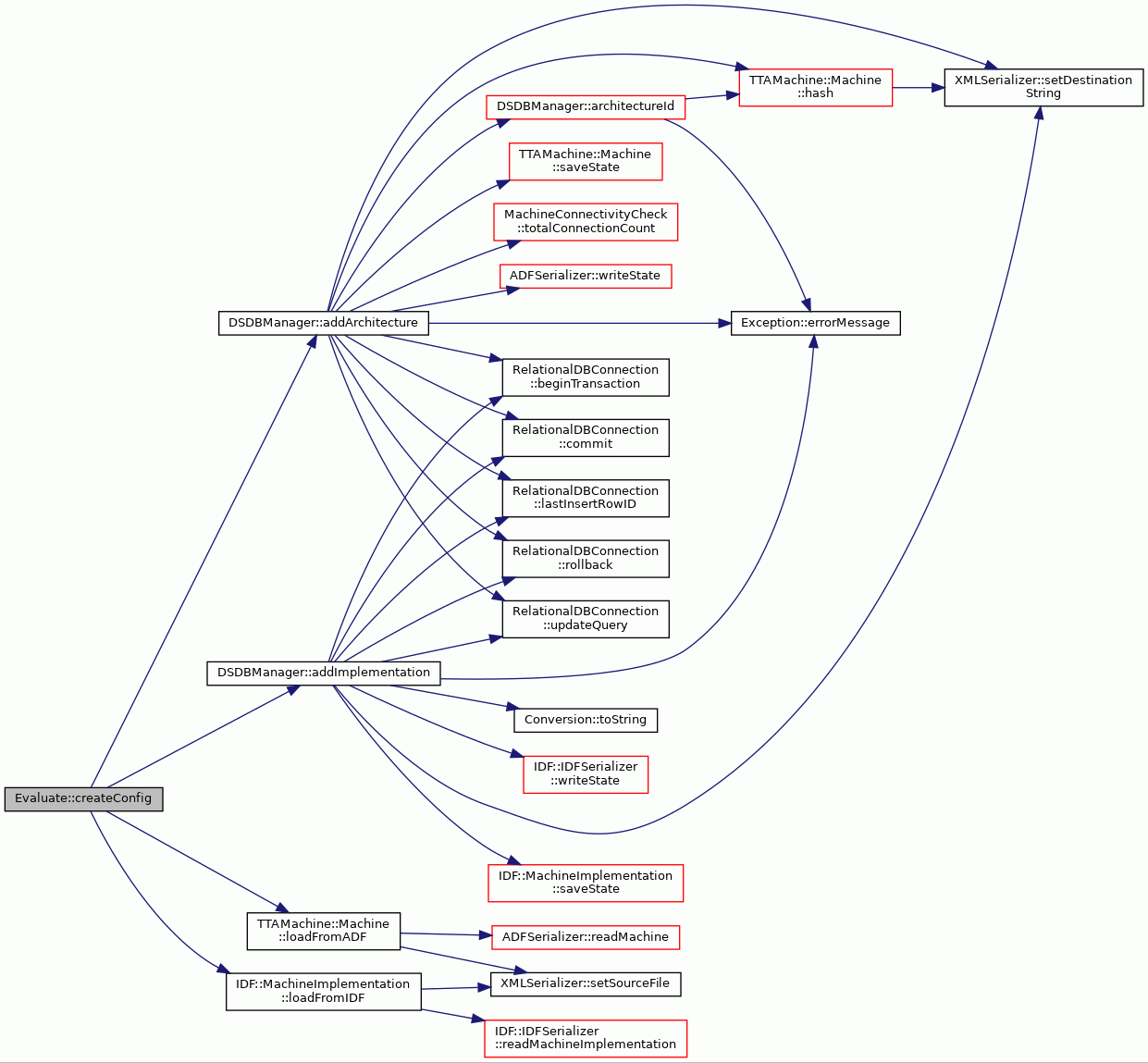

Here is the call graph for this function:

◆ explore()

virtual std::vector< RowID > Evaluate::explore	(	const RowID &	startPointConfigurationID,
		const unsigned int &	maxIter
	)

inlineprivatevirtual

Explores the design space from the starting point machine and returns best exploring results as configuration IDs.

Exploring creates new machine configurations (architecture, implementation) that are ordered so that the best results are first in the result vector.

Parameters

startPoint	Starting point machine configuration for the plugin.
maxIter	Maximum number of design space points the plugin is allowed to explore. Default value for maxIter is zero when the iteration number is not taken into account. In that case the exploration runs indefinetly or stops at a point defined by the algorithm.

Returns: Ordered vector of IDs of the best machine configurations where the target programs can be successfully run. The IDs of the best machine configurations are first in the result vector. Returns an empty vector if does not find any possible machine configurations.

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 82 of file Evaluate.cc.

                                                               {
        readParameters();
        std::vector<RowID> result;

        // make params for adf and idf, so no configuration needed
        if (configurationID == 0 && adf_ == "") {
            std::ostringstream msg(std::ostringstream::out);
            msg << "No configuration nor adf defined. Use -s <confID> to "
                << "define the configuration to be optimized or give adf "
                << "as plugin parameter." << endl;
            verboseLog(msg.str());
            return result;
        }

        DSDBManager& dsdb = db();
        DSDBManager::MachineConfiguration conf;

        // load adf/idf from file if no configuration was given
        if (configurationID == 0) {
            if (!createConfig(adf_, idf_, dsdb, conf)) {
               return result;
            }
        } else {
            // if starting configuration given load it
            conf = dsdb.configuration(configurationID);
        }

        CostEstimates estimates;
        bool estimate = (conf.hasImplementation ? true : false);
        try {
            if (!evaluate(conf, estimates, estimate)) {
                verboseLog(std::string("Evaluate failed."))
                return result;
            }
        } catch (const Exception& e) {
            debugLog(std::string("Error in Evaluate plugin: ")
                    + e.errorMessage() + std::string(" ")
                    + e.errorMessageStack());
            return result;
        }

        verboseLogC(std::string("Evalution OK, ")
                + (estimate ? "with" : "without") + " estimation.",1)

        if (print_ && estimate) {
            printEstimates(estimates, conf);
        }

        // add new configuration to the database
        if (configurationID == 0) {
            RowID newConfID = addConfToDSDB(conf);
            if (newConfID != 0) {
                result.push_back(newConfID);
            }
        }
        return result;
    }

References DesignSpaceExplorer::addConfToDSDB(), adf_, DSDBManager::configuration(), createConfig(), DesignSpaceExplorer::db(), debugLog, Exception::errorMessage(), Exception::errorMessageStack(), DesignSpaceExplorer::evaluate(), DSDBManager::MachineConfiguration::hasImplementation, idf_, print_, printEstimates(), readParameters(), verboseLog, and verboseLogC.

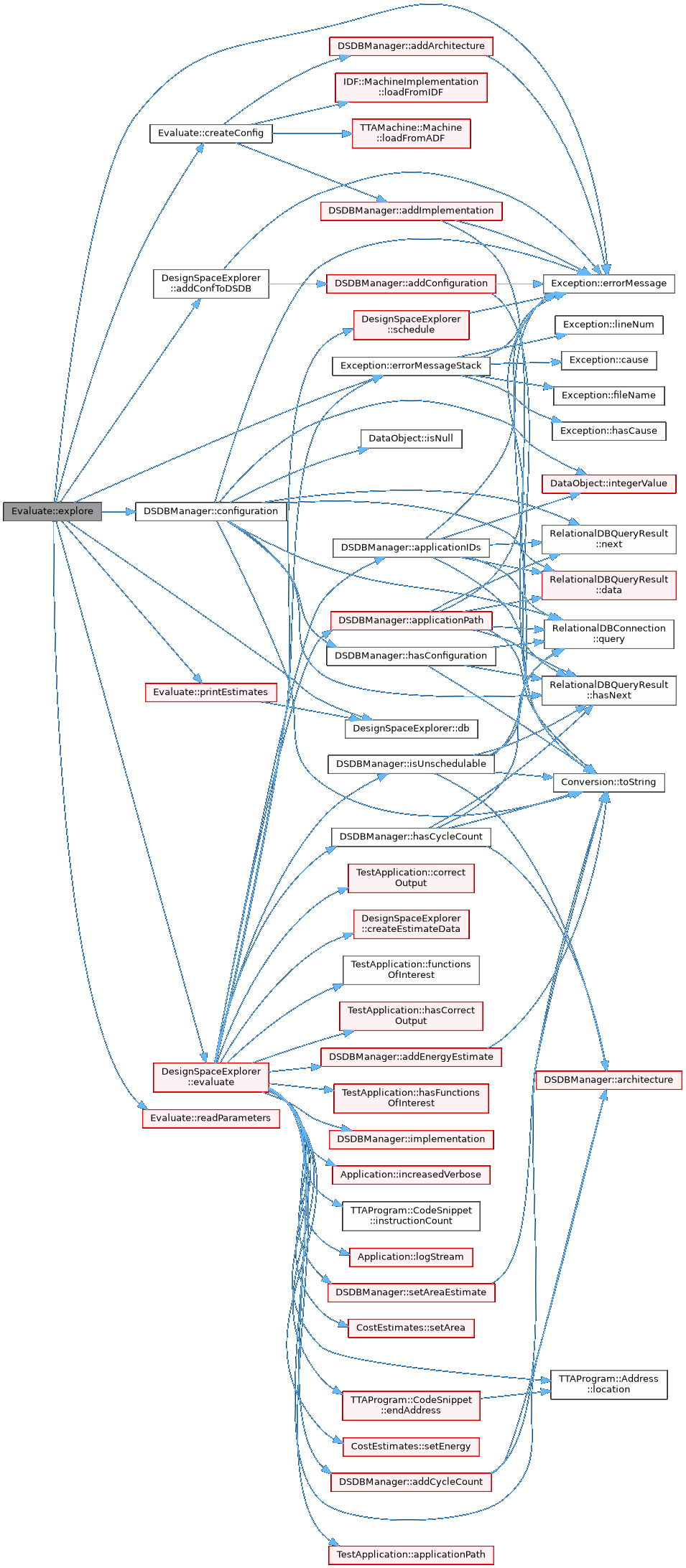

Here is the call graph for this function:

◆ PLUGIN_DESCRIPTION()

Evaluate::PLUGIN_DESCRIPTION ( "Evaluates and/or estimates a configuration." )

private

◆ printEstimates()

void Evaluate::printEstimates	(	const CostEstimates &	estimates,
		const DSDBManager::MachineConfiguration &	configuration
	)

inlineprivate

Print estimates

Parameters

estimates The cost estimates to be printed.

Definition at line 216 of file Evaluate.cc.

                                                              {
        std::ostream& log = std::cout;
        log.flags(std::ios::left);
        int fw = 27;

        log << setw(fw) << "Area: " << estimates.area() << endl;
        log << setw(fw) << "Longest path delay: " <<
            estimates.longestPathDelay() << endl;
        for (int i = 0; i < estimates.energies(); ++i) {
            log << "application " << i << setw(14) << " energy: " <<
                estimates.energy(i) << endl;
        }

        std::vector<ClockCycleCount> cycleCounts =
            db().cycleCounts(configuration);

        for (int i = 0; i < (int)cycleCounts.size(); ++i) {
            log << "application " << i << " cycle count: " <<
                cycleCounts.at(i) << endl;
        }
    }

References CostEstimates::area(), DSDBManager::cycleCounts(), DesignSpaceExplorer::db(), CostEstimates::energies(), CostEstimates::energy(), and CostEstimates::longestPathDelay().

Referenced by explore().

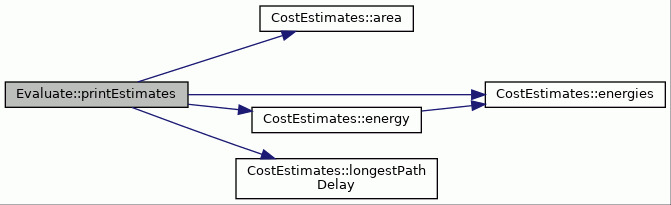

Here is the call graph for this function:

◆ producesArchitecture()

virtual bool Evaluate::producesArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 77 of file Evaluate.cc.

77{ return false; }

◆ readParameters()

void Evaluate::readParameters ( )

inlineprivate

Reads the parameters given to the plugin.

Definition at line 157 of file Evaluate.cc.

                          {
        // optional parameters
        readOptionalParameter(adfPN_, adf_);
        readOptionalParameter(idfPN_, idf_);
        readOptionalParameter(printPN_, print_);
    }

References adf_, adfPN_, idf_, idfPN_, print_, printPN_, and DesignSpaceExplorerPlugin::readOptionalParameter().

Referenced by explore().

Here is the call graph for this function:

◆ requiresHDB()

virtual bool Evaluate::requiresHDB ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 78 of file Evaluate.cc.

78{ return false; }

◆ requiresSimulationData()

virtual bool Evaluate::requiresSimulationData ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 79 of file Evaluate.cc.

79{ return true; }

◆ requiresStartingPointArchitecture()

virtual bool Evaluate::requiresStartingPointArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 76 of file Evaluate.cc.

76{ return false; }

Member Data Documentation

◆ adf_

std::string Evaluate::adf_

private

name of the adf file to evaluate

Definition at line 148 of file Evaluate.cc.

Referenced by Evaluate(), explore(), and readParameters().

◆ adfPN_

const std::string Evaluate::adfPN_

staticprivate

Definition at line 142 of file Evaluate.cc.

Referenced by Evaluate(), and readParameters().

◆ idf_

std::string Evaluate::idf_

private

name of the idf file to evaluate

Definition at line 150 of file Evaluate.cc.

Referenced by Evaluate(), explore(), and readParameters().

◆ idfPN_

const std::string Evaluate::idfPN_

staticprivate

Definition at line 143 of file Evaluate.cc.

Referenced by Evaluate(), and readParameters().

◆ print_

bool Evaluate::print_

private

print evaluation results

Definition at line 152 of file Evaluate.cc.

Referenced by Evaluate(), explore(), and readParameters().

◆ printPN_

const std::string Evaluate::printPN_

staticprivate

Definition at line 144 of file Evaluate.cc.

Referenced by Evaluate(), and readParameters().

The documentation for this class was generated from the following file:

Evaluate.cc

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Evaluate()

Member Function Documentation

◆ createConfig()

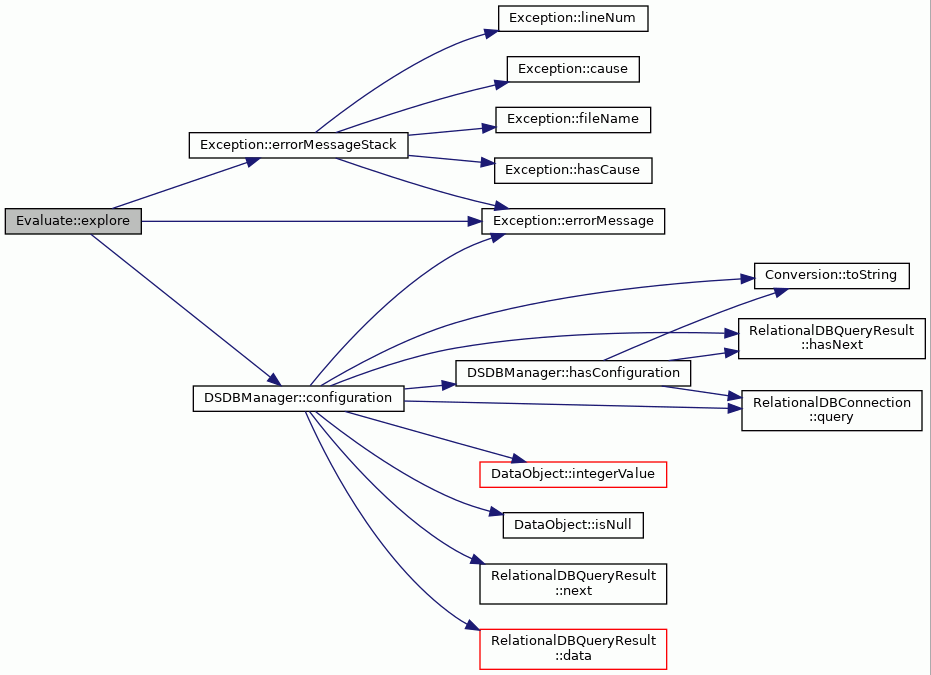

◆ explore()

◆ PLUGIN_DESCRIPTION()

◆ printEstimates()

◆ producesArchitecture()

◆ readParameters()

◆ requiresHDB()

◆ requiresSimulationData()

◆ requiresStartingPointArchitecture()

Member Data Documentation

◆ adf_

◆ adfPN_

◆ idf_

◆ idfPN_

◆ print_

◆ printPN_
