#include <FUPortCode.hh>

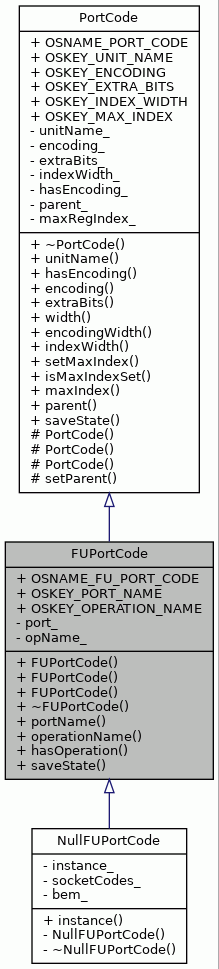

Inheritance diagram for FUPortCode:

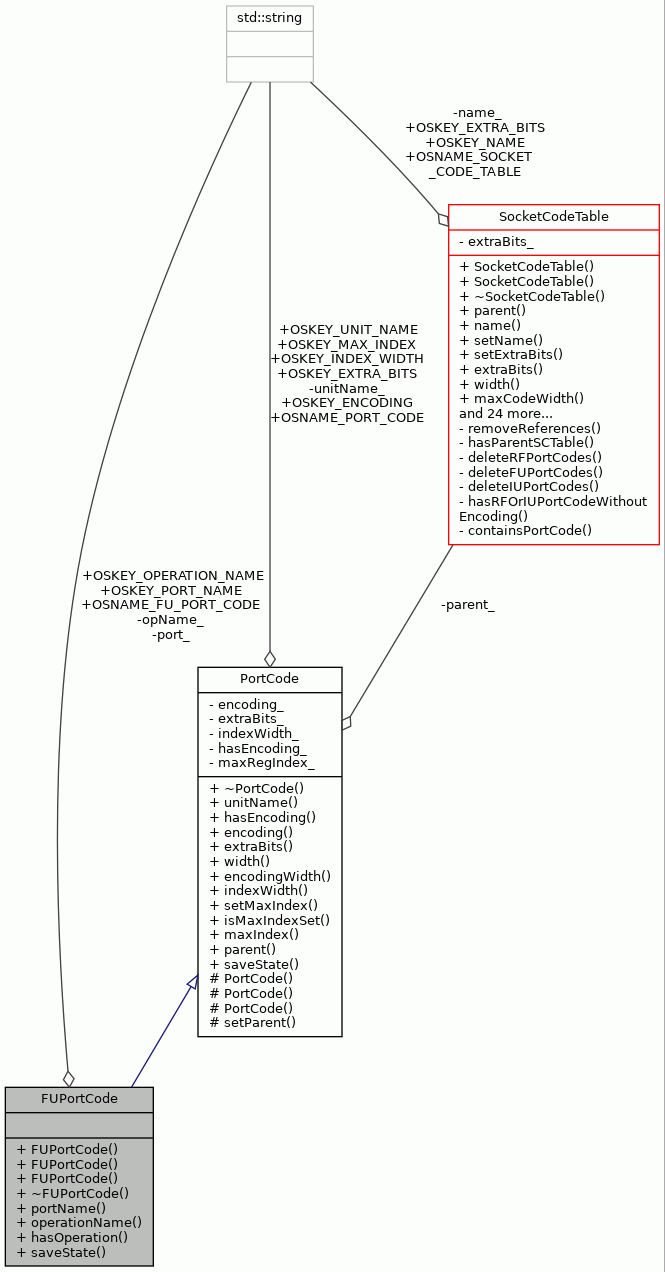

Collaboration diagram for FUPortCode:

Public Member Functions
	FUPortCode (const std::string &fu, const std::string &port, unsigned int encoding, unsigned int extraBits, SocketCodeTable &parent)

	FUPortCode (const std::string &fu, const std::string &port, const std::string &operation, unsigned int encoding, unsigned int extraBits, SocketCodeTable &parent)

	FUPortCode (const ObjectState *state, SocketCodeTable &parent)

virtual	~FUPortCode ()

std::string	portName () const

std::string	operationName () const

bool	hasOperation () const

virtual ObjectState *	saveState () const

Public Member Functions inherited from PortCode
virtual	~PortCode ()

std::string	unitName () const

bool	hasEncoding () const

unsigned int	encoding () const

unsigned int	extraBits () const

int	width () const

int	encodingWidth () const

int	indexWidth () const

void	setMaxIndex (unsigned regIndex)

bool	isMaxIndexSet () const

unsigned	maxIndex () const

SocketCodeTable *	parent () const

Static Public Attributes
static const std::string	OSNAME_FU_PORT_CODE = "fu_port_code"
	ObjectState name for FU port code.

static const std::string	OSKEY_PORT_NAME = "port"
	ObjectState attribute key for the name of the port.

static const std::string	OSKEY_OPERATION_NAME = "operation"
	ObjectState attribute key for the name of the operation.

Static Public Attributes inherited from PortCode
static const std::string	OSNAME_PORT_CODE = "port_code"
	ObjectState name for PortCode.

static const std::string	OSKEY_UNIT_NAME = "unit_name"
	ObjectState attribute key for the name of the unit.

static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding.

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits.

static const std::string	OSKEY_INDEX_WIDTH = "index_width"
	ObjectState attribute key for the widht of register index.

static const std::string	OSKEY_MAX_INDEX = "max-index"
	ObjectState attribute key for the max-index attribute.

Private Attributes
std::string	port_
	Name of the port.

std::string	opName_
	Name of the operation.

Additional Inherited Members
Protected Member Functions inherited from PortCode
	PortCode (const std::string &unitName, unsigned int encoding, unsigned int extraBits, int indexWidth)

	PortCode (const std::string &unitName, int indexWidth)

	PortCode (const ObjectState *state)

void	setParent (SocketCodeTable *parent)

Detailed Description

Class FUPortCode represents the control code that identifies an FU port or, if the port carries an opcode, the combination of port and operation.

Definition at line 47 of file FUPortCode.hh.

Constructor & Destructor Documentation

◆ FUPortCode() [1/3]

FUPortCode::FUPortCode	(	const std::string &	fu,
		const std::string &	port,
		unsigned int	encoding,
		unsigned int	extraBits,
		SocketCodeTable &	parent
	)

The constructor.

Creates an encoding for a FU port and registers it into a socket code table. The port is identified by a name string and by the name of its function unit.

Parameters

fu	Name of the function unit.
port	Name of the port.
encoding	The encoding.
extraBits	The number of extra (zero) bits in the encoding.
parent	The parent socket code table.

Exceptions

ObjectAlreadyExists	If the given socket code table already has a code for the same port or if the encoding is ambiguous with another encoding in the same socket code table.
OutOfRange	If some of the given values is out of range.

Definition at line 62 of file FUPortCode.cc.

    : PortCode(fu, encoding, extraBits, 0), port_(port), opName_("") {
    parent.addFUPortCode(*this);
    setParent(&parent);
}

References SocketCodeTable::addFUPortCode(), PortCode::parent(), and PortCode::setParent().

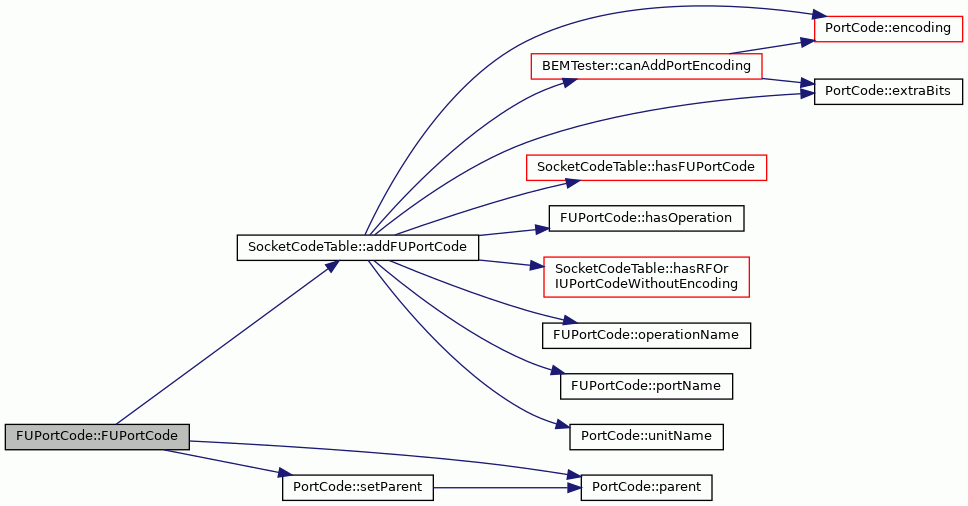

Here is the call graph for this function:

◆ FUPortCode() [2/3]

FUPortCode::FUPortCode	(	const std::string &	fu,
		const std::string &	port,
		const std::string &	operation,
		unsigned int	encoding,
		unsigned int	extraBits,
		SocketCodeTable &	parent
	)

The constructor.

Creates an encoding for a FU port and registers it into a socket code table. The port is identified by a name string, the operation carried by it and the name of the parent function unit.

Parameters

fu	Name of the function unit.
port	Name of the port.
operation	Name of the operation carried by the port.
encoding	The encoding for the port + operation.
extraBits	The number of extra zero bits in the encoding.
parent	The parent socket code table.

Exceptions

ObjectAlreadyExists	If the given socket code table already has a code for this port and the operation carried or if the encoding is ambiguous with another encoding in the same socket code table.
OutOfRange	If some of the given values is out of range.

Definition at line 90 of file FUPortCode.cc.

    : PortCode(fu, encoding, extraBits, 0), port_(port), opName_(operation) {
    parent.addFUPortCode(*this);
    setParent(&parent);
}

References SocketCodeTable::addFUPortCode(), PortCode::parent(), and PortCode::setParent().

Here is the call graph for this function:

◆ FUPortCode() [3/3]

FUPortCode::FUPortCode	(	const ObjectState *	state,
		SocketCodeTable &	parent
	)

The constructor.

Loads the state of the object from the given ObjectState tree.

Parameters

state	The ObjectState tree.
parent	The parent socket code table.

Exceptions

ObjectStateLoadingException	If an error occurs while loading the state.
ObjectAlreadyExists	If the given socket code table already has a code for this port and the operation carried or if the encoding is ambiguous with another encoding in the same socket code table.

Definition at line 114 of file FUPortCode.cc.

    : PortCode(state), port_(""), opName_("") {
    const string procName = "FUPortCode::FUPortCode";

    if (state->name() != OSNAME_FU_PORT_CODE) {
    throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    if (state->hasAttribute(OSKEY_OPERATION_NAME)) {
        opName_ = state->stringAttribute(OSKEY_OPERATION_NAME);
    }
    port_ = state->stringAttribute(OSKEY_PORT_NAME);

    parent.addFUPortCode(*this);
    setParent(&parent);
}

References SocketCodeTable::addFUPortCode(), ObjectState::hasAttribute(), ObjectState::name(), opName_, OSKEY_OPERATION_NAME, OSKEY_PORT_NAME, OSNAME_FU_PORT_CODE, PortCode::parent(), port_, PortCode::setParent(), and ObjectState::stringAttribute().

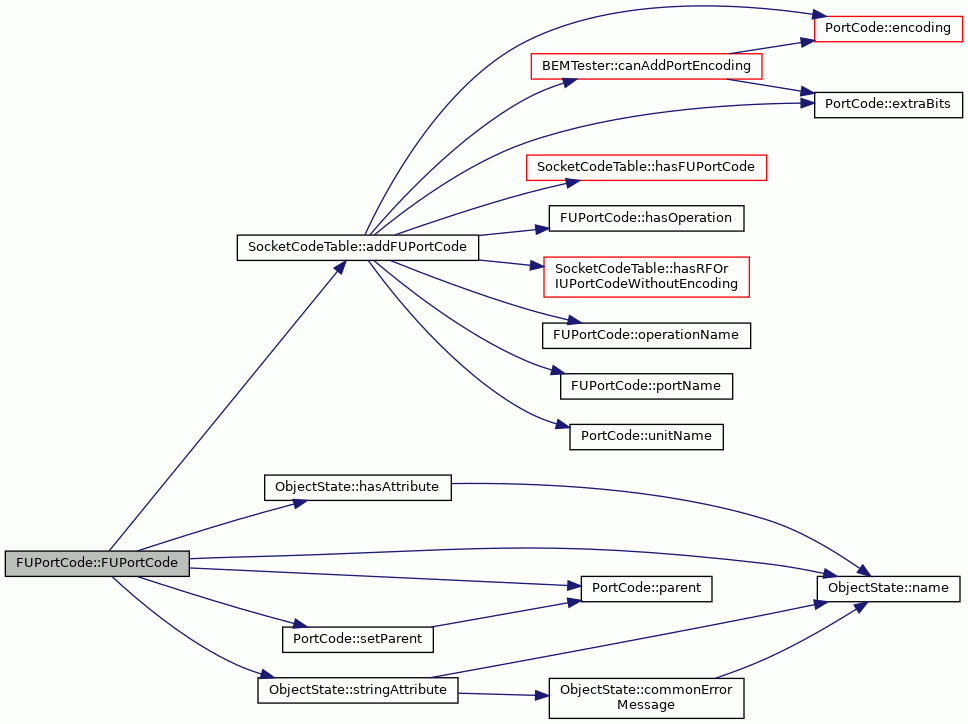

Here is the call graph for this function:

◆ ~FUPortCode()

FUPortCode::~FUPortCode ( )

virtual

The destructor.

Definition at line 134 of file FUPortCode.cc.

                        {
    SocketCodeTable* parent = this->parent();
    setParent(NULL);
    parent->removeFUPortCode(*this);
}

References PortCode::parent(), SocketCodeTable::removeFUPortCode(), and PortCode::setParent().

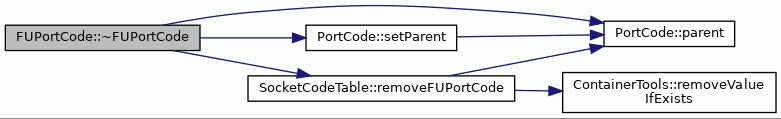

Here is the call graph for this function:

Member Function Documentation

◆ hasOperation()

bool FUPortCode::hasOperation ( ) const

Tells whether this control code identifies also one of the operations carried by the FU port.

Returns: True if the control code identifies an operation, otherwise false.

Definition at line 176 of file FUPortCode.cc.

                               {
    return opName_ != "";
}

References opName_.

Referenced by SocketCodeTable::addFUPortCode(), SocketCodeTable::fuPortCode(), SocketCodeTable::fuPortCode(), portCodeDescription(), and saveState().

◆ operationName()

std::string FUPortCode::operationName ( ) const

Returns the name of the operation.

Returns: The name of the operation.

Exceptions

InstanceNotFound If this control code identifies a plain FU port without operation.

Definition at line 160 of file FUPortCode.cc.

                                {
    if (opName_ == "") {
    const string procName = "FUPortCode::operationName";
    throw InstanceNotFound(__FILE__, __LINE__, procName);
    }

    return opName_;
}

References opName_.

Referenced by SocketCodeTable::addFUPortCode(), SocketCodeTable::fuPortCode(), portCodeDescription(), and saveState().

◆ portName()

std::string FUPortCode::portName ( ) const

Returns the name of the port.

Returns: The name of the port.

Definition at line 147 of file FUPortCode.cc.

                           {
    return port_;
}

References port_.

Referenced by SocketCodeTable::addFUPortCode(), SocketCodeTable::fuPortCode(), SocketCodeTable::fuPortCode(), portCodeDescription(), and saveState().

◆ saveState()

ObjectState * FUPortCode::saveState ( ) const

virtual

Saves the state of the object to an ObjectState tree.

Returns: The newly created ObjectState tree.

Reimplemented from PortCode.

Definition at line 187 of file FUPortCode.cc.

                            {
    ObjectState* state = PortCode::saveState();
    state->setName(OSNAME_FU_PORT_CODE);
    state->setAttribute(OSKEY_PORT_NAME, portName());
    if (hasOperation()) {
    state->setAttribute(OSKEY_OPERATION_NAME, operationName());
    }
    return state;
}

References hasOperation(), operationName(), OSKEY_OPERATION_NAME, OSKEY_PORT_NAME, OSNAME_FU_PORT_CODE, portName(), PortCode::saveState(), ObjectState::setAttribute(), and ObjectState::setName().

Referenced by SocketCodeTable::saveState().

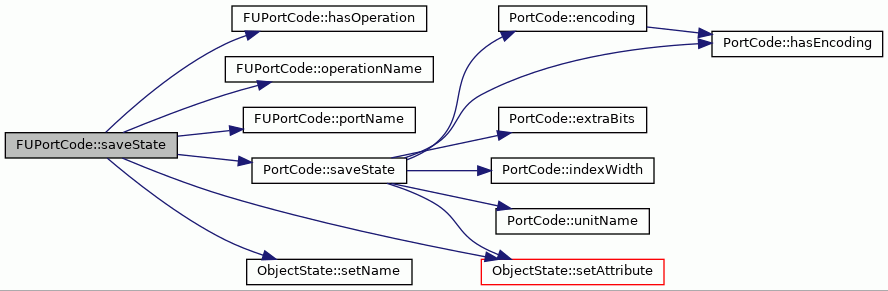

Here is the call graph for this function:

Member Data Documentation

◆ opName_

std::string FUPortCode::opName_

private

Name of the operation.

Definition at line 76 of file FUPortCode.hh.

Referenced by FUPortCode(), hasOperation(), and operationName().

◆ OSKEY_OPERATION_NAME

const std::string FUPortCode::OSKEY_OPERATION_NAME = "operation"

static

ObjectState attribute key for the name of the operation.

Definition at line 70 of file FUPortCode.hh.

Referenced by FUPortCode(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

◆ OSKEY_PORT_NAME

const std::string FUPortCode::OSKEY_PORT_NAME = "port"

static

ObjectState attribute key for the name of the port.

Definition at line 68 of file FUPortCode.hh.

Referenced by FUPortCode(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

◆ OSNAME_FU_PORT_CODE

const std::string FUPortCode::OSNAME_FU_PORT_CODE = "fu_port_code"

static

ObjectState name for FU port code.

Definition at line 66 of file FUPortCode.hh.

Referenced by FUPortCode(), SocketCodeTable::loadState(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

◆ port_

std::string FUPortCode::port_

private

Name of the port.

Definition at line 74 of file FUPortCode.hh.

Referenced by FUPortCode(), and portName().

The documentation for this class was generated from the following files:
