#include <PortCode.hh>

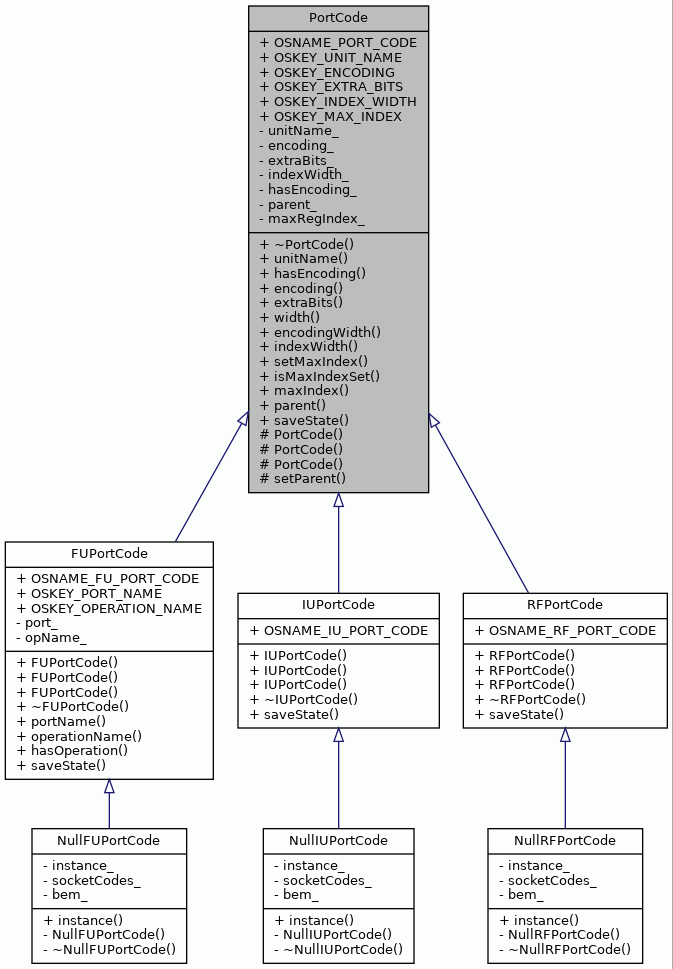

Inheritance diagram for PortCode:

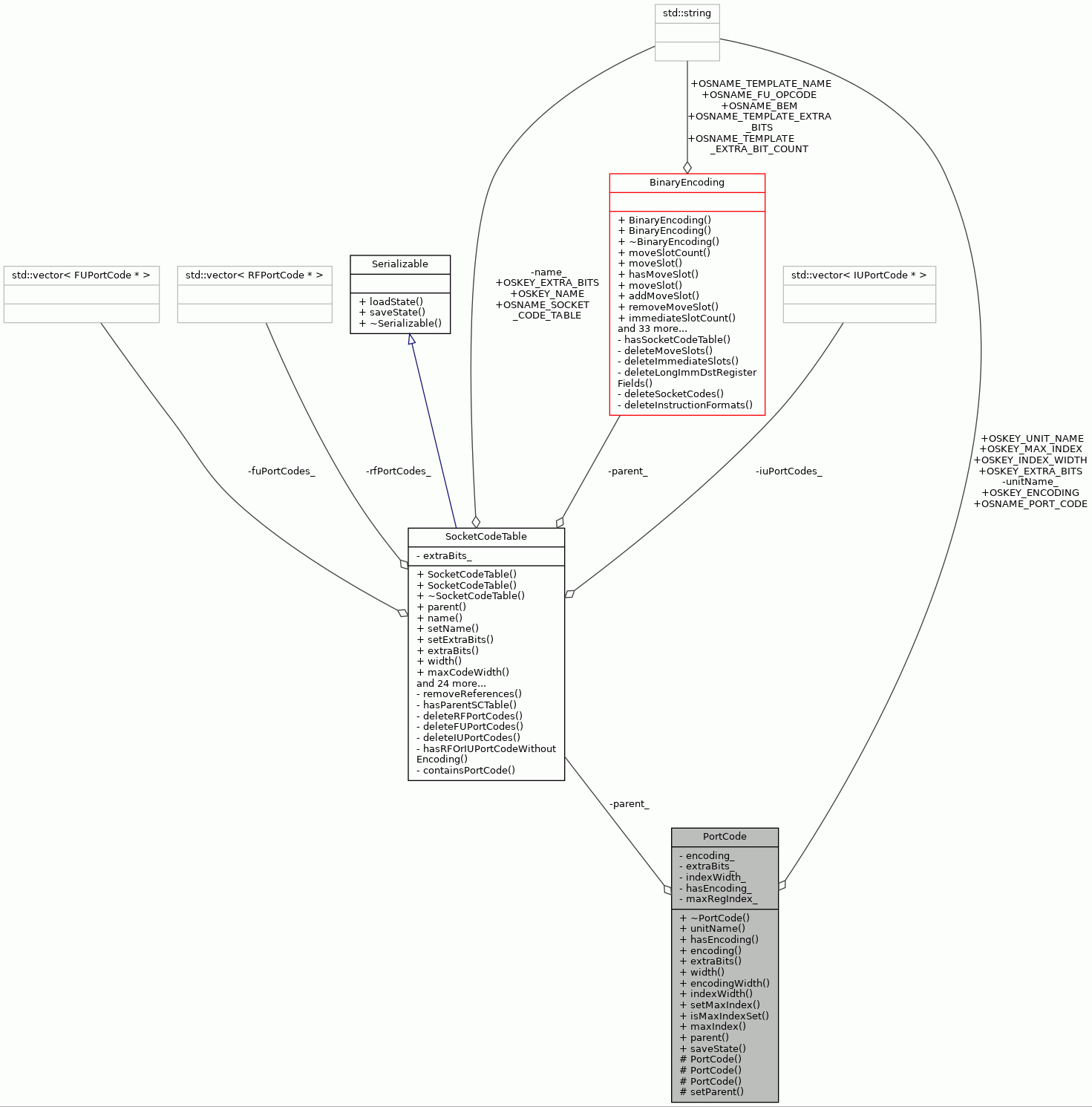

Collaboration diagram for PortCode:

Public Member Functions
virtual	~PortCode ()

std::string	unitName () const

bool	hasEncoding () const

unsigned int	encoding () const

unsigned int	extraBits () const

int	width () const

int	encodingWidth () const

int	indexWidth () const

void	setMaxIndex (unsigned regIndex)

bool	isMaxIndexSet () const

unsigned	maxIndex () const

SocketCodeTable *	parent () const

virtual ObjectState *	saveState () const

Static Public Attributes
static const std::string	OSNAME_PORT_CODE = "port_code"
	ObjectState name for PortCode.

static const std::string	OSKEY_UNIT_NAME = "unit_name"
	ObjectState attribute key for the name of the unit.

static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding.

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits.

static const std::string	OSKEY_INDEX_WIDTH = "index_width"
	ObjectState attribute key for the widht of register index.

static const std::string	OSKEY_MAX_INDEX = "max-index"
	ObjectState attribute key for the max-index attribute.

Protected Member Functions
	PortCode (const std::string &unitName, unsigned int encoding, unsigned int extraBits, int indexWidth)

	PortCode (const std::string &unitName, int indexWidth)

	PortCode (const ObjectState *state)

void	setParent (SocketCodeTable *parent)

Private Attributes
std::string	unitName_
	Name of the unit.

unsigned int	encoding_
	The encoding.

unsigned int	extraBits_
	The number of extra bits in the encoding.

int	indexWidth_
	The width of the register index in the port code.

bool	hasEncoding_
	Tells whether the port code has an encoding.

SocketCodeTable *	parent_
	The parent socket code table.

unsigned	maxRegIndex_
	In case this is set to non-zero, the whole width of the index field is not used because the number of register indices is not an exponent of two. This allow sharing the field with other values.

Detailed Description

Base class for FUPortCode, RFPortCode and IUPortCode.

Definition at line 45 of file PortCode.hh.

Constructor & Destructor Documentation

◆ ~PortCode()

PortCode::~PortCode ( )

virtual

The destructor.

Definition at line 130 of file PortCode.cc.

130 {

131}

◆ PortCode() [1/3]

PortCode::PortCode	(	const std::string &	unitName,
		unsigned int	encoding,
		unsigned int	extraBits,
		int	indexWidth
	)

protected

The constructor.

Creates a port code with port ID.

Parameters

unitName	Name of the unit.
encoding	The encoding.
extraBits	The number of extra bits in the encoding.
indexWidth	The width of the register index.

Exceptions

OutOfRange If the some of the given values is negative.

Definition at line 56 of file PortCode.cc.

    : unitName_(unitName),
      encoding_(encoding),
      extraBits_(extraBits),
      indexWidth_(indexWidth),
      hasEncoding_(true),
      parent_(NULL),
      maxRegIndex_(0) {
    if (indexWidth_ < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
}

References __func__, and indexWidth_.

◆ PortCode() [2/3]

PortCode::PortCode	(	const std::string &	unitName,
		int	indexWidth
	)

protected

The constructor.

Creates a port code without port ID.

Parameters

unitName	Name of the unit.
indexWidth	The width of the register index.

Exceptions

OutOfRange If the some of the given values is negative.

Definition at line 80 of file PortCode.cc.

    : unitName_(unitName),
      encoding_(0),
      extraBits_(0),
      indexWidth_(indexWidth),
      hasEncoding_(false),
      parent_(NULL),
      maxRegIndex_(0) {
    if (indexWidth_ < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
}

References __func__, and indexWidth_.

◆ PortCode() [3/3]

PortCode::PortCode ( const ObjectState * state )

protected

The constructor.

Loads the state of the object from the given ObjectState instance.

Parameters

state The ObjectState instance.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is erroneous.

Definition at line 102 of file PortCode.cc.

    : unitName_(""),
      encoding_(0),
      extraBits_(0),
      indexWidth_(0),
      hasEncoding_(false),
      parent_(NULL),
      maxRegIndex_(0) {
    try {
        unitName_ = state->stringAttribute(OSKEY_UNIT_NAME);
        if (state->hasAttribute(OSKEY_MAX_INDEX))
            maxRegIndex_ = state->intAttribute(OSKEY_MAX_INDEX);
        if (state->hasAttribute(OSKEY_ENCODING)) {
            encoding_ = state->intAttribute(OSKEY_ENCODING);
            extraBits_ = state->intAttribute(OSKEY_EXTRA_BITS);
            hasEncoding_ = true;
        }
        if (state->hasAttribute(OSKEY_INDEX_WIDTH)) {
            indexWidth_ = state->intAttribute(OSKEY_INDEX_WIDTH);
        }
    } catch (const Exception&) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, __func__);
    }
}

References __func__, encoding_, extraBits_, ObjectState::hasAttribute(), hasEncoding_, indexWidth_, ObjectState::intAttribute(), maxRegIndex_, OSKEY_ENCODING, OSKEY_EXTRA_BITS, OSKEY_INDEX_WIDTH, OSKEY_MAX_INDEX, OSKEY_UNIT_NAME, ObjectState::stringAttribute(), and unitName_.

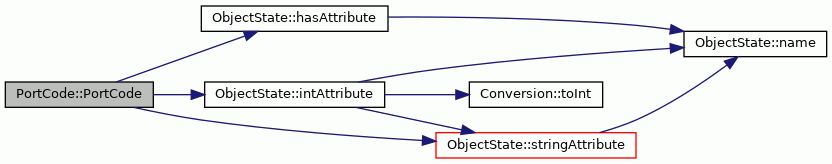

Here is the call graph for this function:

Member Function Documentation

◆ encoding()

unsigned int PortCode::encoding ( ) const

Returns the encoding.

Returns: The encoding.

Exceptions

NotAvailable If the port code does not have an encoding (port ID).

Definition at line 164 of file PortCode.cc.

                         {
    if (!hasEncoding()) {
        throw NotAvailable(__FILE__, __LINE__, __func__);
    }
    return encoding_;
}

References __func__, encoding_, and hasEncoding().

Referenced by SocketCodeTable::addFUPortCode(), SocketCodeTable::addIUPortCode(), SocketCodeTable::addRFPortCode(), BEMTester::canAddPortEncoding(), BEMTester::conflictsWithSocketTableEncodings(), CodeCompressorPlugin::encodeFUTerminal(), portCodeBits(), DefaultDecoderGenerator::portCodeCondition(), saveState(), CodeCompressorPlugin::socketCodeBits(), width(), and DefaultDecoderGenerator::writeControlRulesOfFUInputPort().

Here is the call graph for this function:

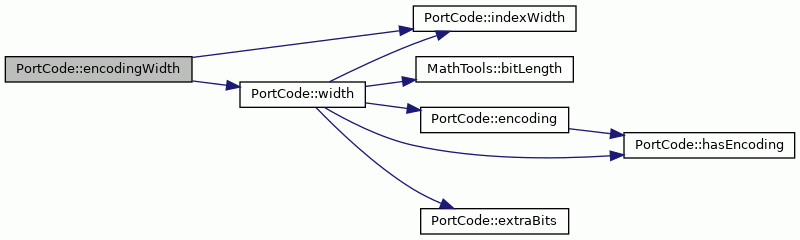

◆ encodingWidth()

int PortCode::encodingWidth ( ) const

Returns the width of the encoding (port ID).

Returns: The width of the encoding.

Definition at line 204 of file PortCode.cc.

                              {
    return width() - indexWidth();
}

References indexWidth(), and width().

Referenced by BEMTester::canAddPortEncoding(), BEMTester::conflictsWithSocketTableEncodings(), portCodeBits(), DefaultDecoderGenerator::portCodeCondition(), and DefaultDecoderGenerator::writeControlRulesOfFUInputPort().

Here is the call graph for this function:

◆ extraBits()

unsigned int PortCode::extraBits ( ) const

Returns the number of extra bits in the encoding.

Returns: The number of extra bits.

Definition at line 177 of file PortCode.cc.

                          {
    return extraBits_;
}

References extraBits_.

Referenced by SocketCodeTable::addFUPortCode(), SocketCodeTable::addIUPortCode(), SocketCodeTable::addRFPortCode(), BEMTester::canAddPortEncoding(), saveState(), and width().

◆ hasEncoding()

bool PortCode::hasEncoding ( ) const

Tells whether the port code has an encoding (port ID).

Returns: True if the port code has an encoding, otherwise false.

Definition at line 151 of file PortCode.cc.

                            {
    return hasEncoding_;
}

References hasEncoding_.

Referenced by SocketCodeTable::addIUPortCode(), SocketCodeTable::addRFPortCode(), encoding(), portCodeBits(), saveState(), CodeCompressorPlugin::socketCodeBits(), width(), DefaultDecoderGenerator::writeControlRulesOfRFReadPort(), and DefaultDecoderGenerator::writeControlRulesOfRFWritePort().

◆ indexWidth()

int PortCode::indexWidth ( ) const

Returns the width of the register index (opcode).

Returns: The width of the register index.

Definition at line 215 of file PortCode.cc.

                           {
    return indexWidth_;
}

References indexWidth_.

Referenced by BEMTester::conflictsWithSocketTableEncodings(), encodingWidth(), portCodeBits(), DefaultDecoderGenerator::portCodeCondition(), DefaultDecoderGenerator::rfOpcodeFromSrcOrDstField(), saveState(), CodeCompressorPlugin::socketCodeBits(), width(), and DefaultDecoderGenerator::writeControlRulesOfFUInputPort().

◆ isMaxIndexSet()

bool PortCode::isMaxIndexSet ( ) const

inline

Definition at line 59 of file PortCode.hh.

59{ return maxRegIndex_ != 0; }

References maxRegIndex_.

◆ maxIndex()

unsigned PortCode::maxIndex ( ) const

inline

Definition at line 60 of file PortCode.hh.

60{ return maxRegIndex_; }

References maxRegIndex_.

◆ parent()

SocketCodeTable * PortCode::parent ( ) const

Returns the parent socket code table.

Returns: The parent socket code table.

Definition at line 226 of file PortCode.cc.

                       {
    return parent_;
}

References parent_.

Referenced by SocketCodeTable::addIUPortCode(), SocketCodeTable::addRFPortCode(), FUPortCode::FUPortCode(), FUPortCode::FUPortCode(), FUPortCode::FUPortCode(), IUPortCode::IUPortCode(), IUPortCode::IUPortCode(), IUPortCode::IUPortCode(), portCodeBits(), SocketCodeTable::removeFUPortCode(), SocketCodeTable::removeIUPortCode(), SocketCodeTable::removeRFPortCode(), RFPortCode::RFPortCode(), RFPortCode::RFPortCode(), RFPortCode::RFPortCode(), setParent(), FUPortCode::~FUPortCode(), IUPortCode::~IUPortCode(), and RFPortCode::~RFPortCode().

◆ saveState()

ObjectState * PortCode::saveState ( ) const

virtual

Saves the state of the object to an ObjectState instance.

Returns: The newly created ObjectState instance.

Reimplemented in FUPortCode, IUPortCode, and RFPortCode.

Definition at line 237 of file PortCode.cc.

                          {
    ObjectState* state = new ObjectState(OSNAME_PORT_CODE);
    state->setAttribute(OSKEY_UNIT_NAME, unitName());
    if (hasEncoding()) {
        state->setAttribute(OSKEY_ENCODING, encoding());
        state->setAttribute(OSKEY_EXTRA_BITS, extraBits());
    }
    if (maxRegIndex_ != 0) state->setAttribute(OSKEY_MAX_INDEX, maxRegIndex_);
    state->setAttribute(OSKEY_INDEX_WIDTH, indexWidth());
    return state;
}

References encoding(), extraBits(), hasEncoding(), indexWidth(), maxRegIndex_, OSKEY_ENCODING, OSKEY_EXTRA_BITS, OSKEY_INDEX_WIDTH, OSKEY_MAX_INDEX, OSKEY_UNIT_NAME, OSNAME_PORT_CODE, ObjectState::setAttribute(), and unitName().

Referenced by FUPortCode::saveState(), IUPortCode::saveState(), and RFPortCode::saveState().

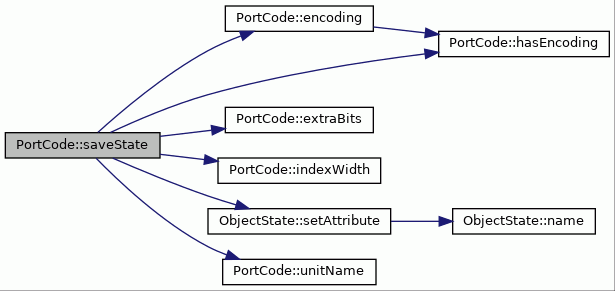

Here is the call graph for this function:

◆ setMaxIndex()

void PortCode::setMaxIndex ( unsigned regIndex )

inline

Definition at line 58 of file PortCode.hh.

58{ maxRegIndex_ = regIndex; }

References maxRegIndex_.

◆ setParent()

void PortCode::setParent ( SocketCodeTable * parent )

protected

Sets the parent socket code table pointer.

Parameters

parent The parent pointer.

Definition at line 256 of file PortCode.cc.

                                           {
    parent_ = parent;
}

References parent(), and parent_.

Referenced by FUPortCode::FUPortCode(), FUPortCode::FUPortCode(), FUPortCode::FUPortCode(), IUPortCode::IUPortCode(), IUPortCode::IUPortCode(), IUPortCode::IUPortCode(), RFPortCode::RFPortCode(), RFPortCode::RFPortCode(), RFPortCode::RFPortCode(), FUPortCode::~FUPortCode(), IUPortCode::~IUPortCode(), and RFPortCode::~RFPortCode().

Here is the call graph for this function:

◆ unitName()

std::string PortCode::unitName ( ) const

Returns the name of the unit.

Returns: The name of the unit.

Definition at line 140 of file PortCode.cc.

                         {
    return unitName_;
}

References unitName_.

Referenced by SocketCodeTable::addFUPortCode(), SocketCodeTable::addIUPortCode(), SocketCodeTable::addRFPortCode(), SocketCodeTable::fuPortCode(), SocketCodeTable::fuPortCode(), SocketCodeTable::iuPortCode(), portCodeDescription(), portCodeDescription(), portCodeDescription(), SocketCodeTable::rfPortCode(), and saveState().

◆ width()

int PortCode::width ( ) const

Returns the width of the whole port code (portID + opcode).

Returns: The width.

Definition at line 188 of file PortCode.cc.

                      {
    if (hasEncoding()) {
        return MathTools::bitLength(encoding()) + extraBits() +
            indexWidth();
    } else {
        return indexWidth();
    }
}

References MathTools::bitLength(), encoding(), extraBits(), hasEncoding(), and indexWidth().

Referenced by encodingWidth(), SocketCodeTable::maxCodeWidth(), portCodeBits(), and CodeCompressorPlugin::socketCodeBits().

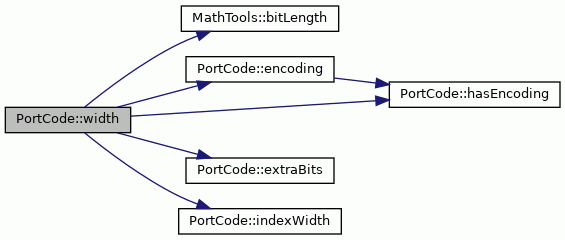

Here is the call graph for this function:

Member Data Documentation

◆ encoding_

unsigned int PortCode::encoding_

private

The encoding.

Definition at line 91 of file PortCode.hh.

Referenced by encoding(), and PortCode().

◆ extraBits_

unsigned int PortCode::extraBits_

private

The number of extra bits in the encoding.

Definition at line 93 of file PortCode.hh.

Referenced by extraBits(), and PortCode().

◆ hasEncoding_

bool PortCode::hasEncoding_

private

Tells whether the port code has an encoding.

Definition at line 97 of file PortCode.hh.

Referenced by hasEncoding(), and PortCode().

◆ indexWidth_

int PortCode::indexWidth_

private

The width of the register index in the port code.

Definition at line 95 of file PortCode.hh.

Referenced by indexWidth(), PortCode(), PortCode(), and PortCode().

◆ maxRegIndex_

unsigned PortCode::maxRegIndex_

private

In case this is set to non-zero, the whole width of the index field is not used because the number of register indices is not an exponent of two. This allow sharing the field with other values.

Definition at line 104 of file PortCode.hh.

Referenced by isMaxIndexSet(), maxIndex(), PortCode(), saveState(), and setMaxIndex().

◆ OSKEY_ENCODING

const std::string PortCode::OSKEY_ENCODING = "encoding"

static

ObjectState attribute key for the encoding.

Definition at line 71 of file PortCode.hh.

Referenced by PortCode(), BEMSerializer::readRegisterFilePortCode(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

◆ OSKEY_EXTRA_BITS

const std::string PortCode::OSKEY_EXTRA_BITS = "extra_bits"

static

ObjectState attribute key for the number of extra bits.

Definition at line 73 of file PortCode.hh.

Referenced by PortCode(), BEMSerializer::readRegisterFilePortCode(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

◆ OSKEY_INDEX_WIDTH

const std::string PortCode::OSKEY_INDEX_WIDTH = "index_width"

static

ObjectState attribute key for the widht of register index.

Definition at line 75 of file PortCode.hh.

Referenced by PortCode(), BEMSerializer::readRegisterFilePortCode(), saveState(), and BEMSerializer::socketCodeTableToFile().

◆ OSKEY_MAX_INDEX

const std::string PortCode::OSKEY_MAX_INDEX = "max-index"

static

ObjectState attribute key for the max-index attribute.

Definition at line 77 of file PortCode.hh.

Referenced by PortCode(), saveState(), and BEMSerializer::socketCodeTableToFile().

◆ OSKEY_UNIT_NAME

const std::string PortCode::OSKEY_UNIT_NAME = "unit_name"

static

ObjectState attribute key for the name of the unit.

Definition at line 69 of file PortCode.hh.

Referenced by PortCode(), BEMSerializer::readRegisterFilePortCode(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

◆ OSNAME_PORT_CODE

const std::string PortCode::OSNAME_PORT_CODE = "port_code"

static

ObjectState name for PortCode.

Definition at line 67 of file PortCode.hh.

Referenced by saveState().

◆ parent_

SocketCodeTable* PortCode::parent_

private

The parent socket code table.

Definition at line 99 of file PortCode.hh.

Referenced by parent(), and setParent().

◆ unitName_

std::string PortCode::unitName_

private

Name of the unit.

Definition at line 89 of file PortCode.hh.

Referenced by PortCode(), and unitName().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Protected Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~PortCode()

◆ PortCode() [1/3]

◆ PortCode() [2/3]

◆ PortCode() [3/3]

Member Function Documentation

◆ encoding()

◆ encodingWidth()

◆ extraBits()

◆ hasEncoding()

◆ indexWidth()

◆ isMaxIndexSet()

◆ maxIndex()

◆ parent()

◆ saveState()

◆ setMaxIndex()

◆ setParent()

◆ unitName()

◆ width()

Member Data Documentation

◆ encoding_

◆ extraBits_

◆ hasEncoding_

◆ indexWidth_

◆ maxRegIndex_

◆ OSKEY_ENCODING

◆ OSKEY_EXTRA_BITS

◆ OSKEY_INDEX_WIDTH

◆ OSKEY_MAX_INDEX

◆ OSKEY_UNIT_NAME

◆ OSNAME_PORT_CODE

◆ parent_

◆ unitName_
