HDLGenerator::Asynchronous Class Reference

#include <HDLGenerator.hh>

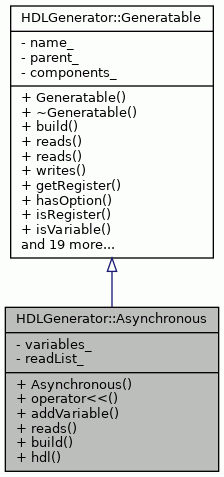

Inheritance diagram for HDLGenerator::Asynchronous:

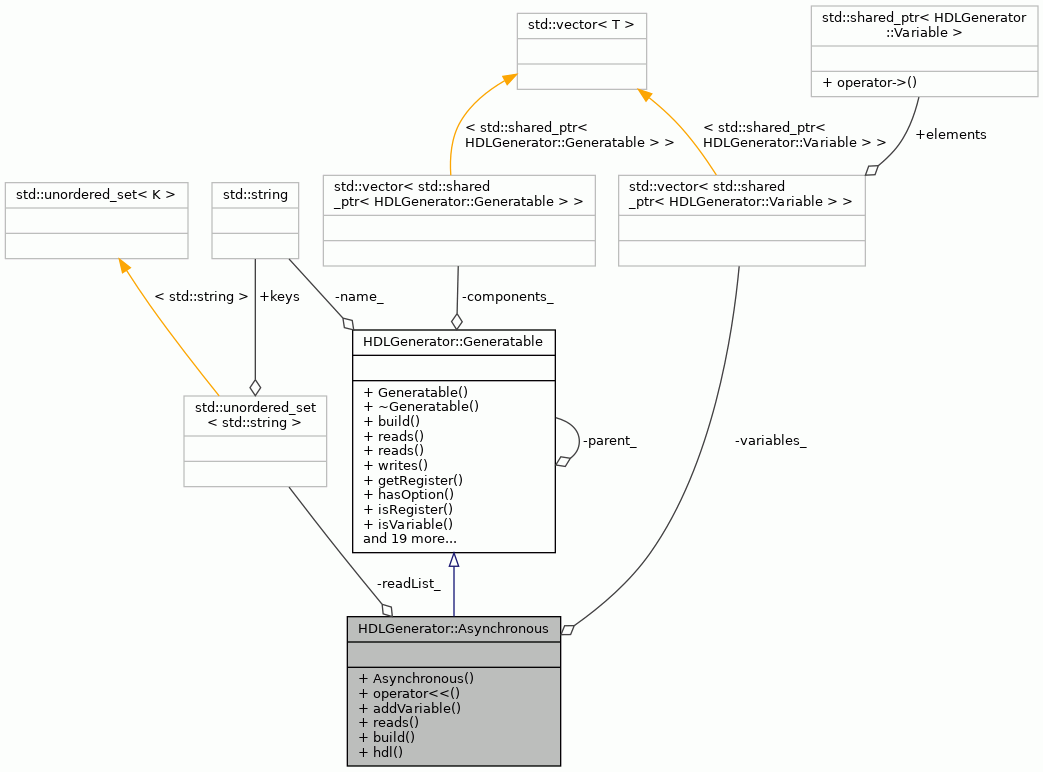

Collaboration diagram for HDLGenerator::Asynchronous:

Public Member Functions
	Asynchronous (const std::string &name)
template<typename SS >
Asynchronous &	operator<< (SS op)
template<typename Var >
void	addVariable (Var op)
virtual void	reads (const std::string &var) override
virtual void	build () override
virtual void	hdl (std::ostream &stream, Language lang, int level) override
Public Member Functions inherited from HDLGenerator::Generatable
	Generatable (std::string name)
virtual	~Generatable ()=default
virtual void	reads (const LHSValue &var)
virtual void	writes (const std::string &var)
virtual Register &	getRegister (const std::string &var)
virtual bool	hasOption (const std::string &var)
virtual bool	isRegister (const std::string &name)
virtual bool	isVariable (const std::string &name)
virtual bool	isConstant (const std::string &name)
virtual Width	width (const std::string &name)
int	integerWidth (const std::string &name)
virtual WireType	wireType (const std::string &name)
virtual Width	width ()
virtual WireType	wireType () const
virtual void	hdl (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang, int indent)
template<typename Func >
void	forAll (Func func)
template<typename Type , typename Func >
void	forAll (Func func)
template<class Type >
bool	parentIs ()
template<class Type >
Type *	parentType ()
void	pushComponent (std::shared_ptr< Generatable > c)
template<class Component >
void	addComponent (Component c)
const std::string &	name () const noexcept
void	setParent (Generatable *parent) noexcept
Generatable *	parent () const noexcept

Private Attributes
std::vector< std::shared_ptr< Variable > >	variables_
std::unordered_set< std::string >	readList_

Detailed Description

Async process/always.

Definition at line 901 of file HDLGenerator.hh.

Constructor & Destructor Documentation

Asynchronous()

HDLGenerator::Asynchronous::Asynchronous ( const std::string &  name )

inline

Definition at line 904 of file HDLGenerator.hh.

: Generatable(name) {}

Member Function Documentation

addVariable()

template<typename Var >

void HDLGenerator::Asynchronous::addVariable ( Var  op )

inline

Definition at line 914 of file HDLGenerator.hh.

                                 {
            std::shared_ptr<Variable> ptr = std::make_shared<Var>(op);
            variables_.push_back(ptr);
        }

References variables_.

Referenced by FUGen::buildOperations().

build()

void HDLGenerator::Asynchronous::build ( )

overridevirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 47 of file HDLGenerator.cc.

                    {
    Generatable::build();
    for (auto&& v : variables_) {
        parentType<Module>()->registerVariable(v);
    }
}

References HDLGenerator::Generatable::build(), and variables_.

Here is the call graph for this function:

hdl()

virtual void HDLGenerator::Asynchronous::hdl ( std::ostream &  stream, Language  lang, int  level  )

inlineoverridevirtual

@lassetodo Sensitivity list implementation here for verilog if needed.

If sensitivity list is needed for verilog replace
@* with @(, uncomment following code, and add ) before
begin

std::string separator = "";
for (auto&& r : readList_) {
  stream << separator << r;
  separator = " or ";
}

Reimplemented from HDLGenerator::Generatable.

Definition at line 929 of file HDLGenerator.hh.

                                                                   {
            if (lang == Language::VHDL) {
                stream << "\n";
                stream << StringTools::indent(level) << name() << " : process(";
                std::string separator = "";
                for (auto&& r : readList_) {
                    if (!isConstant(r)) {
                        stream << separator << r;
                        separator = ", ";
                    }
                }
                stream << ")\n";
                for (auto&& v : variables_) {
                    v->declare(stream, lang, level + 1);
                }
                stream << StringTools::indent(level) << "begin\n";
                implementAll(stream, lang, level + 1);
                stream << StringTools::indent(level) << "end process "
                       << name() << ";\n";
            } else if (lang == Language::Verilog) {
                stream << "\n";
                stream << StringTools::indent(level) << "// " << name() << "\n";
                stream << StringTools::indent(level) << "always @*";
                /**
                 * @lassetodo Sensitivity list implementation here
                 * for verilog if needed.
                 * <pre>
                 * If sensitivity list is needed for verilog replace
                 * @* with @(, uncomment following code, and add ) before
                 * begin
                 *
                 * std::string separator = "";
                 * for (auto&& r : readList_) {
                 *   stream << separator << r;
                 *   separator = " or ";
                 * }
                 * </pre>
                 */
                stream << " begin\n";
                implementAll(stream, lang, level + 1);
                stream << StringTools::indent(level) << "end\n";
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References HDLGenerator::Generatable::implementAll(), StringTools::indent(), HDLGenerator::Generatable::isConstant(), HDLGenerator::Generatable::name(), readList_, variables_, HDLGenerator::Verilog, and HDLGenerator::VHDL.

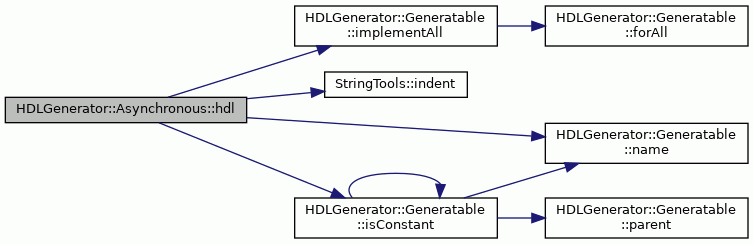

Here is the call graph for this function:

operator<<()

template<typename SS >

Asynchronous & HDLGenerator::Asynchronous::operator<< ( SS  op )

inline

Definition at line 907 of file HDLGenerator.hh.

                                        {
            std::shared_ptr<SequentialStatement> ptr = std::make_shared<SS>(op);
            pushComponent(ptr);
            return *this;
        }

References HDLGenerator::Generatable::pushComponent().

Here is the call graph for this function:

reads()

virtual void HDLGenerator::Asynchronous::reads ( const std::string &  var )

inlineoverridevirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 919 of file HDLGenerator.hh.

                                                          {
            readList_.emplace(var);
            if (parent() != nullptr) {
                parent()->reads(var);
            }
        }

References HDLGenerator::Generatable::parent(), readList_, and HDLGenerator::Generatable::reads().

Referenced by FUGen::buildOperations().

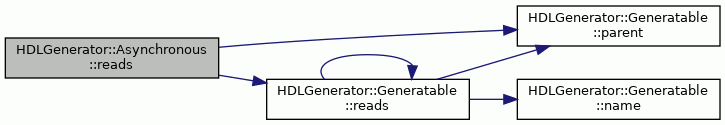

Here is the call graph for this function:

Member Data Documentation

readList_

std::unordered_set<std::string> HDLGenerator::Asynchronous::readList_

private

Definition at line 977 of file HDLGenerator.hh.

Referenced by hdl(), and reads().

variables_

std::vector< std::shared_ptr<Variable> > HDLGenerator::Asynchronous::variables_

private

Definition at line 976 of file HDLGenerator.hh.

Referenced by addVariable(), build(), and hdl().

---

The documentation for this class was generated from the following files:

• HDLGenerator.hh
• HDLGenerator.cc
