HDLGenerator::CodeBlock Class Reference

#include <HDLGenerator.hh>

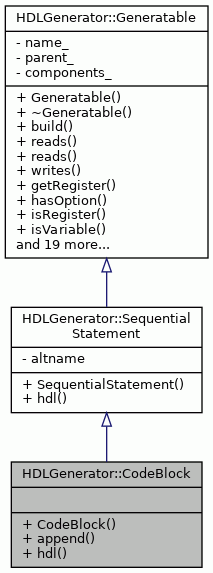

Inheritance diagram for HDLGenerator::CodeBlock:
Inheritance graph

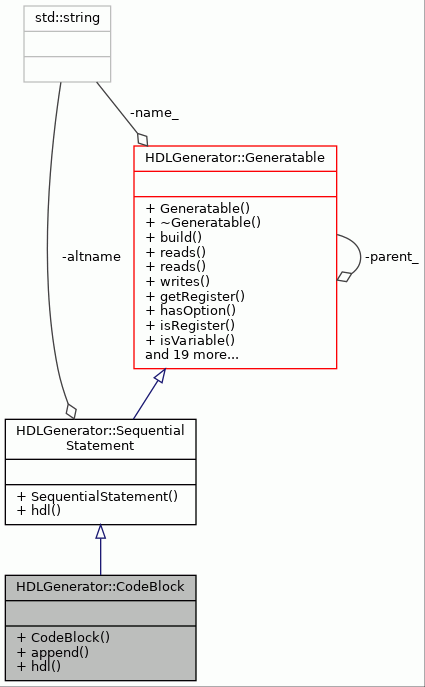

Collaboration diagram for HDLGenerator::CodeBlock:
Collaboration graph

Public Member Functions

 CodeBlock ()

template<typename SS >
void append (SS cc)

void hdl (std::ostream &stream, Language lang, int level) override

- Public Member Functions inherited from HDLGenerator::SequentialStatement
 SequentialStatement (std::string name)

- Public Member Functions inherited from HDLGenerator::Generatable
 Generatable (std::string name)

virtual ~Generatable ()=default

virtual void build ()

virtual void reads (const std::string &var)

virtual void reads (const LHSValue &var)

virtual void writes (const std::string &var)

virtual RegistergetRegister (const std::string &var)

virtual bool hasOption (const std::string &var)

virtual bool isRegister (const std::string &name)

virtual bool isVariable (const std::string &name)

virtual bool isConstant (const std::string &name)

virtual Width width (const std::string &name)

int integerWidth (const std::string &name)

virtual WireType wireType (const std::string &name)

virtual Width width ()

virtual WireType wireType () const

virtual void hdl (std::ostream &stream, Language lang)

virtual void implementAll (std::ostream &stream, Language lang)

virtual void implementAll (std::ostream &stream, Language lang, int indent)

template<typename Func >
void forAll (Func func)

template<typename Type , typename Func >
void forAll (Func func)

template<class Type >
bool parentIs ()

template<class Type >
Type * parentType ()

void pushComponent (std::shared_ptr< Generatable > c)

template<class Component >
void addComponent (Component c)

const std::string & name () const noexcept

void setParent (Generatable *parent) noexcept

Generatableparent () const noexcept


Detailed Description

Code block, i.e., a collection of concurrent statements

Definition at line 877 of file HDLGenerator.hh.

Constructor & Destructor Documentation

◆ CodeBlock()

HDLGenerator::CodeBlock::CodeBlock ( )
inline

Definition at line 879 of file HDLGenerator.hh.

879: SequentialStatement("codeBlock") {}

Member Function Documentation

◆ append()

template<typename SS >
void HDLGenerator::CodeBlock::append ( SS  cc)
inline

Definition at line 882 of file HDLGenerator.hh.

882 {
883 std::shared_ptr<SequentialStatement> ptr = std::make_shared<SS>(cc);
884 pushComponent(ptr);
885 }
void pushComponent(std::shared_ptr< Generatable > c)

References HDLGenerator::Generatable::pushComponent().

Referenced by FUGen::buildOperations(), FUGen::createOutputPipeline(), FUGen::createPortPipeline(), and FUGen::prepareSnippet().

Here is the call graph for this function:

◆ hdl()

void HDLGenerator::CodeBlock::hdl ( std::ostream &  stream,
Language  lang,
int  level
)
inlineoverridevirtual

Reimplemented from HDLGenerator::SequentialStatement.

Definition at line 887 of file HDLGenerator.hh.

887 {
888 if (lang == Language::VHDL) {
889 implementAll(stream, lang, level);
890 } else if (lang == Language::Verilog) {
891 implementAll(stream, lang, level);
892 } else {
893 throw std::runtime_error(__PRETTY_FUNCTION__);
894 }
895 }
virtual void implementAll(std::ostream &stream, Language lang)

References HDLGenerator::Generatable::implementAll(), HDLGenerator::Verilog, and HDLGenerator::VHDL.

Here is the call graph for this function:

The documentation for this class was generated from the following file:
