HDLGenerator::RawCodeLine Class Reference

#include <HDLGenerator.hh>

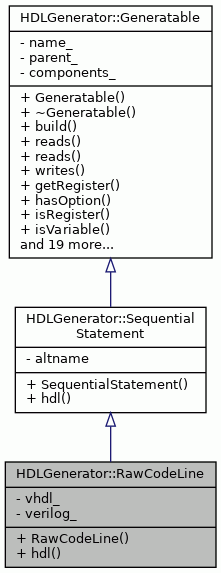

Inheritance diagram for HDLGenerator::RawCodeLine:

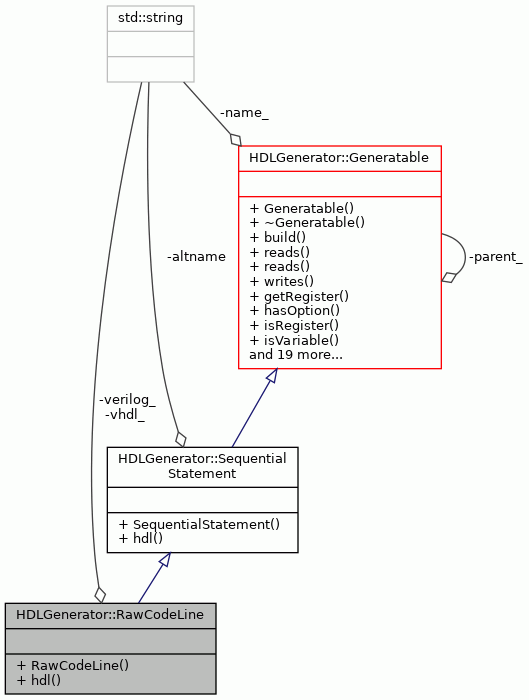

Collaboration diagram for HDLGenerator::RawCodeLine:

Public Member Functions
	RawCodeLine (std::string vhdl, std::string verilog)
void	hdl (std::ostream &stream, Language lang, int level) final
Public Member Functions inherited from HDLGenerator::SequentialStatement
	SequentialStatement (std::string name)
Public Member Functions inherited from HDLGenerator::Generatable
	Generatable (std::string name)
virtual	~Generatable ()=default
virtual void	build ()
virtual void	reads (const std::string &var)
virtual void	reads (const LHSValue &var)
virtual void	writes (const std::string &var)
virtual Register &	getRegister (const std::string &var)
virtual bool	hasOption (const std::string &var)
virtual bool	isRegister (const std::string &name)
virtual bool	isVariable (const std::string &name)
virtual bool	isConstant (const std::string &name)
virtual Width	width (const std::string &name)
int	integerWidth (const std::string &name)
virtual WireType	wireType (const std::string &name)
virtual Width	width ()
virtual WireType	wireType () const
virtual void	hdl (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang, int indent)
template<typename Func >
void	forAll (Func func)
template<typename Type , typename Func >
void	forAll (Func func)
template<class Type >
bool	parentIs ()
template<class Type >
Type *	parentType ()
void	pushComponent (std::shared_ptr< Generatable > c)
template<class Component >
void	addComponent (Component c)
const std::string &	name () const noexcept
void	setParent (Generatable *parent) noexcept
Generatable *	parent () const noexcept

Private Attributes
std::string	vhdl_
std::string	verilog_

Detailed Description

Raw code.

Definition at line 184 of file HDLGenerator.hh.

Constructor & Destructor Documentation

RawCodeLine()

HDLGenerator::RawCodeLine::RawCodeLine ( std::string  vhdl, std::string  verilog  )

inline

Definition at line 186 of file HDLGenerator.hh.

            : SequentialStatement("raw code line"),
              vhdl_(vhdl), verilog_(verilog) {}

Member Function Documentation

hdl()

void HDLGenerator::RawCodeLine::hdl ( std::ostream &  stream, Language  lang, int  level  )

inlinefinalvirtual

Reimplemented from HDLGenerator::SequentialStatement.

Definition at line 190 of file HDLGenerator.hh.

                                                                     {
            if (lang == Language::VHDL) {
                stream << StringTools::indent(level) <<  vhdl_ << "\n";
            } else if (lang == Language::Verilog) {
                stream << StringTools::indent(level) <<  verilog_ << "\n";
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References StringTools::indent(), HDLGenerator::Verilog, verilog_, HDLGenerator::VHDL, and vhdl_.

Here is the call graph for this function:

Member Data Documentation

verilog_

std::string HDLGenerator::RawCodeLine::verilog_

private

Definition at line 202 of file HDLGenerator.hh.

Referenced by hdl().

vhdl_

std::string HDLGenerator::RawCodeLine::vhdl_

private

Definition at line 201 of file HDLGenerator.hh.

Referenced by hdl().

---

The documentation for this class was generated from the following file:

• HDLGenerator.hh
