HDLTemplateInstantiator Class Reference

#include <HDLTemplateInstantiator.hh>

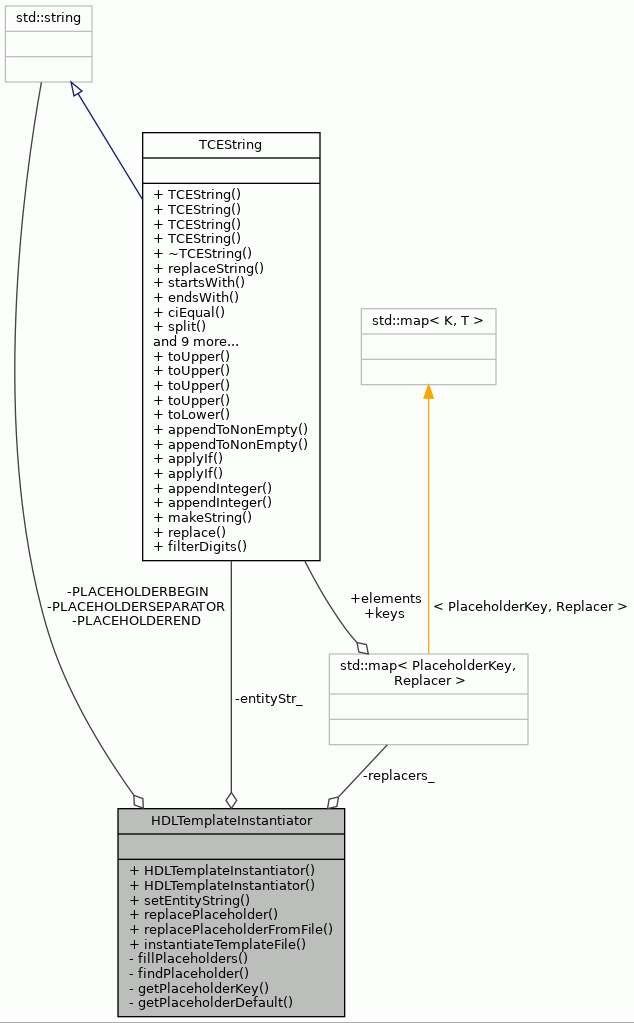

Collaboration diagram for HDLTemplateInstantiator:

Public Member Functions
	HDLTemplateInstantiator ()
	HDLTemplateInstantiator (const TCEString &entityStr)
void	setEntityString (const TCEString &entityStr)
void	replacePlaceholder (const std::string &key, const std::string &replacer, bool append=false)
void	replacePlaceholderFromFile (const std::string &key, const Path &filePath, bool append=false)
void	instantiateTemplateFile (const std::string &templateFile, const std::string &dstFile)

Private Types
typedef TCEString	PlaceholderKey
typedef TCEString	Replacer
typedef std::map< PlaceholderKey, Replacer >	ReplacerMap

Private Member Functions
void	fillPlaceholders (TCEString &str)
TCEString	findPlaceholder (const TCEString &str)
TCEString	getPlaceholderKey (const TCEString &str)
TCEString	getPlaceholderDefault (const TCEString &str)

Private Attributes
TCEString	entityStr_
ReplacerMap	replacers_

Static Private Attributes
static const std::string	PLACEHOLDERSEPARATOR = ","
static const std::string	PLACEHOLDERBEGIN
static const std::string	PLACEHOLDEREND = ">>"

Friends
class	HDLTemplateInstantiatorTest

Detailed Description

Helper class for instantiating HDL template files.

Definition at line 45 of file HDLTemplateInstantiator.hh.

Member Typedef Documentation

PlaceholderKey

typedef TCEString HDLTemplateInstantiator::PlaceholderKey

private

Definition at line 65 of file HDLTemplateInstantiator.hh.

Replacer

typedef TCEString HDLTemplateInstantiator::Replacer

private

Definition at line 66 of file HDLTemplateInstantiator.hh.

ReplacerMap

typedef std::map<PlaceholderKey, Replacer> HDLTemplateInstantiator::ReplacerMap

private

Definition at line 67 of file HDLTemplateInstantiator.hh.

Constructor & Destructor Documentation

HDLTemplateInstantiator() [1/2]

HDLTemplateInstantiator::HDLTemplateInstantiator

(

)

Definition at line 42 of file HDLTemplateInstantiator.cc.

    : HDLTemplateInstantiator(TCEString()) {}

HDLTemplateInstantiator() [2/2]

HDLTemplateInstantiator::HDLTemplateInstantiator

(

const TCEString &

entityStr

)

Definition at line 45 of file HDLTemplateInstantiator.cc.

    : entityStr_(entityStr), replacers_() {}

Member Function Documentation

fillPlaceholders()

void HDLTemplateInstantiator::fillPlaceholders ( TCEString &  str )

private

Fills all placeholder templates with added replace strings by key.

The placeholder markers are in form "<<placeholder,key>>" or "<<placeholder,key,default-value>>". If no replacer is not found for the key the placeholder template is replaced with empty string or default-value if defined.

Parameters

str	The string to search and fill placeholders.

Definition at line 153 of file HDLTemplateInstantiator.cc.

                                                        {
    TCEString target(str);
    TCEString placeholder;
    while (!(placeholder = findPlaceholder(target)).empty()) {
        TCEString replacer("");
        TCEString key = getPlaceholderKey(placeholder);
        if (replacers_.count(key)) {
            replacer = replacers_[key];
        } else {
            replacer = getPlaceholderDefault(placeholder);
        }
        target.replaceString(placeholder, replacer);
    }

    // Correct indentation
    if (!target.empty()) {
        TCEString identation("");
        unsigned int i = 0;
        while (i < target.size() && target.at(i) == ' ') {
            identation.append(" ");
            i++;
        }
        // Note: only LF newline convention is considered.
        target.replaceString("\n", "\n" + identation);
    }

    str = target;
}

References findPlaceholder(), getPlaceholderDefault(), getPlaceholderKey(), replacers_, and TCEString::replaceString().

Referenced by instantiateTemplateFile().

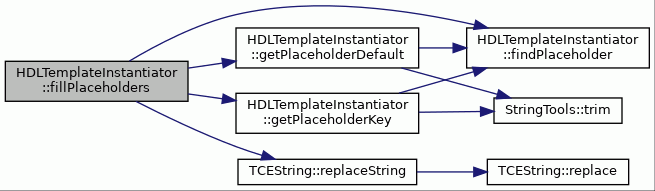

Here is the call graph for this function:

findPlaceholder()

TCEString HDLTemplateInstantiator::findPlaceholder ( const TCEString &  str )

private

Searches placeholder template over given string.

Parameters

str	The string to search over for placeholder template.

Returns

The placeholder string or empty string if not found.

Definition at line 189 of file HDLTemplateInstantiator.cc.

                                                             {
    size_t beginpos = str.find(PLACEHOLDERBEGIN);
    if (beginpos == std::string::npos) {
        return "";
    }
    size_t endpos =
        str.find(PLACEHOLDEREND, beginpos + PLACEHOLDERBEGIN.size());
    if (endpos == std::string::npos) {
        return "";
    }
    TCEString placeholder;
    placeholder =
        str.substr(beginpos, endpos - beginpos + PLACEHOLDEREND.size());
    return placeholder;
}

References PLACEHOLDERBEGIN, and PLACEHOLDEREND.

Referenced by fillPlaceholders(), getPlaceholderDefault(), and getPlaceholderKey().

getPlaceholderDefault()

TCEString HDLTemplateInstantiator::getPlaceholderDefault ( const TCEString &  str )

private

Searches placeholder template over given string and returns its default part.

The placeholder template is in form of <placeholder,keystring,default> and this function return default part.

Definition at line 247 of file HDLTemplateInstantiator.cc.

                                                                   {
    TCEString placeholder = findPlaceholder(str);
    if (placeholder.empty()) {
        return "";
    }
    int count = 0;
    for (size_t offset = placeholder.find(PLACEHOLDERSEPARATOR);
         offset != std::string::npos;
         offset = placeholder.find(
             PLACEHOLDERSEPARATOR, offset + PLACEHOLDERSEPARATOR.size())) {
        count++;
    }
    if (count == 2) {
        size_t beginpos = placeholder.rfind(PLACEHOLDERSEPARATOR);
        size_t endpos = placeholder.rfind(PLACEHOLDEREND);
        if (beginpos == std::string::npos || endpos == std::string::npos) {
            return "";
        }
        assert(endpos >= beginpos);
        TCEString defaultStr;
        defaultStr = placeholder.substr(
            beginpos + PLACEHOLDERSEPARATOR.size(),
            endpos - beginpos - PLACEHOLDERSEPARATOR.size());
        return StringTools::trim(defaultStr);
    } else {
        return "";
    }
}

References assert, findPlaceholder(), PLACEHOLDEREND, PLACEHOLDERSEPARATOR, and StringTools::trim().

Referenced by fillPlaceholders().

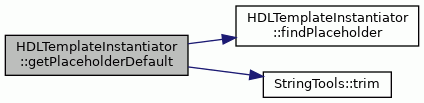

Here is the call graph for this function:

getPlaceholderKey()

TCEString HDLTemplateInstantiator::getPlaceholderKey ( const TCEString &  str )

private

Searches placeholder template over given string and returns its key.

The placeholder template is in form of <placeholder, keystring, default> and this function return keystring part.

Parameters

str	The string to search over for placeholder template

Returns

Key for the placeholder or empty string if not found.

Definition at line 215 of file HDLTemplateInstantiator.cc.

                                                               {
    TCEString placeholder = findPlaceholder(str);
    if (placeholder.empty()) {
        return "";
    }
    // todo Better field separation
    size_t beginpos = placeholder.find(PLACEHOLDERBEGIN);
    size_t midpos = placeholder.rfind(PLACEHOLDERSEPARATOR);
    size_t endpos = placeholder.find(PLACEHOLDEREND);
    if (beginpos == std::string::npos || endpos == std::string::npos) {
        return "";
    }
    // Check for optional default value field
    if ((beginpos + PLACEHOLDERBEGIN.size()) < midpos && midpos < endpos) {
        endpos = midpos;
    }
    assert(endpos >= beginpos);
    TCEString key = placeholder.substr(
        beginpos + PLACEHOLDERBEGIN.size(),
        endpos - beginpos - PLACEHOLDERBEGIN.size());
    return StringTools::trim(key);
}

References assert, findPlaceholder(), PLACEHOLDERBEGIN, PLACEHOLDEREND, PLACEHOLDERSEPARATOR, and StringTools::trim().

Referenced by fillPlaceholders().

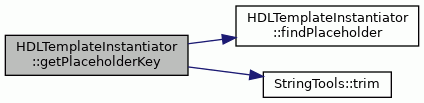

Here is the call graph for this function:

instantiateTemplateFile()

void HDLTemplateInstantiator::instantiateTemplateFile	(	const std::string &	templateFile,
		const std::string &	dstFile
	)

Creates a target HDL file from a HDL template, replacing certain magic strings with certain variable contents.

Currently supported magic strings: ENTITY_STR The entity name string used to make entities unique. Same as the toplevel entity name.

Definition at line 113 of file HDLTemplateInstantiator.cc.

                              {
    std::ifstream input(templateFile.c_str());

    if (!input.is_open())
        throw UnreachableStream(
            __FILE__, __LINE__, __func__,
            TCEString("Could not open ") + templateFile + " for reading.");

    std::ofstream output(dstFile.c_str(), std::ios::trunc);

    if (!output.is_open())
        throw UnreachableStream(
            __FILE__, __LINE__, __func__,
            TCEString("Could not open ") + dstFile + " for writing.");

    while (!input.eof()) {
        char line_buf[1024];
        input.getline(line_buf, 1024);
        TCEString line(line_buf);
        line.replaceString("ENTITY_STR", entityStr_);
        fillPlaceholders(line);
        output << line << std::endl;
    }
    input.close();
    output.close();
}

References __func__, entityStr_, fillPlaceholders(), and TCEString::replaceString().

Referenced by AlmaIFIntegrator::addAlmaifFiles(), ProGe::BlockSourceCopier::copyProcessorSpecific(), ProGeTestBenchGenerator::copyTestBenchFiles(), AlmaIFIntegrator::generateIntegratedTestbench(), ProGe::RV32MicroCodeGenerator::generateWrapper(), ProGe::BlockSourceCopier::instantiateHDLTemplate(), MemoryGenerator::instantiateTemplate(), ProGe::LoopBufferBlock::write(), ProGe::SinglePortByteMaskSSRAMBlock::write(), ProGe::SinglePortSSRAMBlock::write(), and ProGe::TestBenchBlock::write().

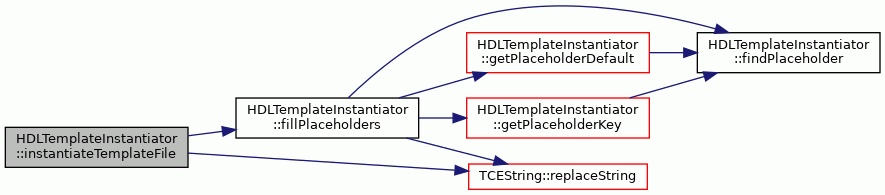

Here is the call graph for this function:

replacePlaceholder()

void HDLTemplateInstantiator::replacePlaceholder	(	const std::string &	key,
		const std::string &	replacer,
		bool	append = false
	)

Adds replace string for the template placeholder by key.

During HDL template instantiation all placeholders by the key will be replaced with given replace string.

Parameters

key	The key to identify placeholder.
replacer	The string to replace the placeholder.
append	Appends the given string to the existing placeholder filler at the key.

Exceptions

KeyAlreadyExists

If a placeholder is already filled by the key and append flag is false.

Definition at line 62 of file HDLTemplateInstantiator.cc.

                                                                  {
    // todo: add rule for key (all uppercase)?
    if (append) {
        replacers_[key] += replacer;
    } else {
        if (replacers_.count(key)) {
            THROW_EXCEPTION(
                KeyAlreadyExists,
                "The placeholder \"" + key + "\" is already filled. ");
        }
        replacers_.insert(std::pair<PlaceholderKey, Replacer>(key, replacer));
    }
}

References replacers_, and THROW_EXCEPTION.

Referenced by AlmaIFIntegrator::addAlmaifFiles(), DefaultICDecoderGenerator::generate(), ProGe::RV32MicroCodeGenerator::generateOperationLatencyLogic(), ProGe::ProcessorGenerator::generateProcessor(), ProGe::RV32MicroCodeGenerator::generateWrapper(), AlmaIFIntegrator::initAlmaifBlock(), replacePlaceholderFromFile(), ProGe::LoopBufferBlock::write(), and ProGe::TestBenchBlock::write().

replacePlaceholderFromFile()

void HDLTemplateInstantiator::replacePlaceholderFromFile	(	const std::string &	key,
		const Path &	filePath,
		bool	append = false
	)

Adds replace string from file for the template placeholder by key.

During HDL template instantiation all placeholders by the key will be replaced with given replace string.

Parameters

key	The key to identify placeholder.
replacer	The string to replace the placeholder.
append	Appends the given string to the existing placeholder filler at the key.

Definition at line 89 of file HDLTemplateInstantiator.cc.

                                                             {
    std::string snippetFileName = filePath;
    std::ifstream snippetfile(snippetFileName.c_str());
    if (!snippetfile.is_open()) {
        THROW_EXCEPTION(
            UnreachableStream, "Could not open snippet file: \"" +
                                   snippetFileName + "\" for reading.");
    }
    std::string str(
        (std::istreambuf_iterator<char>(snippetfile)),
        std::istreambuf_iterator<char>());
    replacePlaceholder(key, str, append);
}

References replacePlaceholder(), and THROW_EXCEPTION.

Referenced by AlmaIFIntegrator::addAlmaifFiles(), AlmaIFIntegrator::connectCoreMemories(), DefaultICDecoderGenerator::generate(), AlmaIFIntegrator::generateIntegratedTestbench(), AlmaIFIntegrator::initAlmaifBlock(), and ProGe::LoopBufferBlock::write().

Here is the call graph for this function:

setEntityString()

void HDLTemplateInstantiator::setEntityString ( const TCEString &  entityStr )

inline

Definition at line 51 of file HDLTemplateInstantiator.hh.

                                                     {
        entityStr_ = entityStr; }

References entityStr_.

Referenced by ProGe::BlockSourceCopier::BlockSourceCopier(), ProGeTestBenchGenerator::copyTestBenchFiles(), ProGeTestBenchGenerator::createProcArchVhdl(), and MemoryGenerator::instantiateTemplate().

Friends And Related Symbol Documentation

HDLTemplateInstantiatorTest

friend class HDLTemplateInstantiatorTest

friend

Definition at line 47 of file HDLTemplateInstantiator.hh.

Member Data Documentation

entityStr_

TCEString HDLTemplateInstantiator::entityStr_

private

Definition at line 78 of file HDLTemplateInstantiator.hh.

Referenced by instantiateTemplateFile(), and setEntityString().

PLACEHOLDERBEGIN

const std::string HDLTemplateInstantiator::PLACEHOLDERBEGIN

staticprivate

Initial value:

=
    "<<placeholder" + PLACEHOLDERSEPARATOR

Definition at line 75 of file HDLTemplateInstantiator.hh.

Referenced by findPlaceholder(), and getPlaceholderKey().

PLACEHOLDEREND

const std::string HDLTemplateInstantiator::PLACEHOLDEREND = ">>"

staticprivate

Definition at line 76 of file HDLTemplateInstantiator.hh.

Referenced by findPlaceholder(), getPlaceholderDefault(), and getPlaceholderKey().

PLACEHOLDERSEPARATOR

const std::string HDLTemplateInstantiator::PLACEHOLDERSEPARATOR = ","

staticprivate

Definition at line 74 of file HDLTemplateInstantiator.hh.

Referenced by getPlaceholderDefault(), and getPlaceholderKey().

replacers_

ReplacerMap HDLTemplateInstantiator::replacers_

private

Definition at line 79 of file HDLTemplateInstantiator.hh.

Referenced by fillPlaceholders(), and replacePlaceholder().

---

The documentation for this class was generated from the following files:

• HDLTemplateInstantiator.hh
• HDLTemplateInstantiator.cc
