ImmediateEncoding Class Reference

#include <ImmediateEncoding.hh>

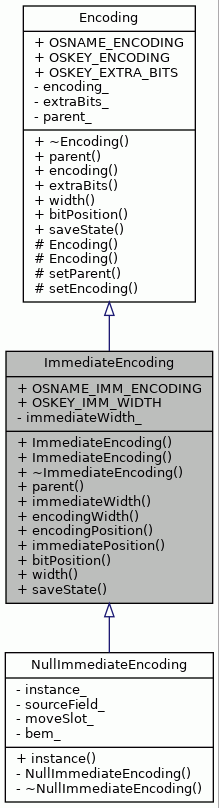

Inheritance diagram for ImmediateEncoding:

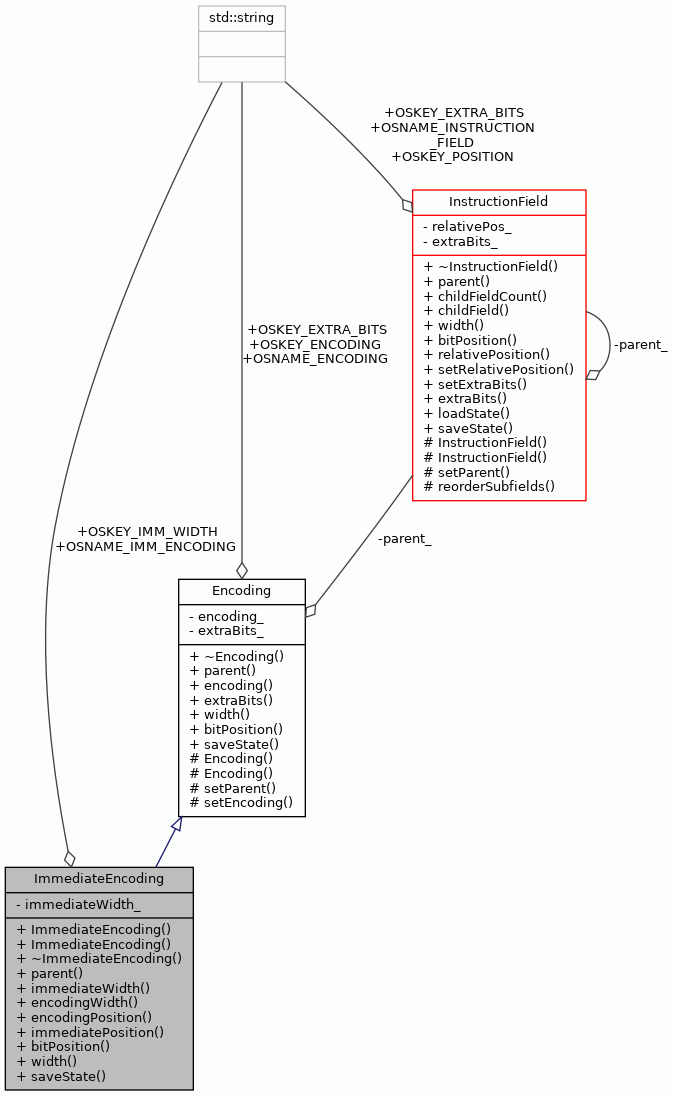

Collaboration diagram for ImmediateEncoding:

Public Member Functions
	ImmediateEncoding (unsigned int encoding, unsigned int extraBits, int immediateWidth, SourceField &parent)
	ImmediateEncoding (const ObjectState *state, SourceField &parent)
virtual	~ImmediateEncoding ()
SourceField *	parent () const
int	immediateWidth () const
int	encodingWidth () const
int	encodingPosition () const
int	immediatePosition () const
virtual int	bitPosition () const
virtual int	width () const
virtual ObjectState *	saveState () const
Public Member Functions inherited from Encoding
virtual	~Encoding ()
InstructionField *	parent () const
unsigned int	encoding () const
unsigned int	extraBits () const

Static Public Attributes
static const std::string	OSNAME_IMM_ENCODING = "imm_encoding"
	ObjectState name for immediate encoding.
static const std::string	OSKEY_IMM_WIDTH = "imm_width"
	ObjectState attribute key for the immediate width.
Static Public Attributes inherited from Encoding
static const std::string	OSNAME_ENCODING = "encoding"
	ObjectState name for Encoding class.
static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding.
static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits.

Private Attributes
int	immediateWidth_

Additional Inherited Members
Protected Member Functions inherited from Encoding
	Encoding (unsigned int encoding, unsigned int extraBits, InstructionField *parent)
	Encoding (const ObjectState *state, InstructionField *parent)
void	setParent (InstructionField *parent)
void	setEncoding (unsigned int encoding, unsigned int extraBits)

Detailed Description

Represents the encoding for inline immediate within the source field.

Definition at line 44 of file ImmediateEncoding.hh.

Constructor & Destructor Documentation

ImmediateEncoding() [1/2]

ImmediateEncoding::ImmediateEncoding	(	unsigned int	encoding,
		unsigned int	extraBits,
		int	immediateWidth,
		SourceField &	parent
	)

The constructor.

Registers the encoding automatically to the parent source field.

Parameters

encoding	The encoding for inline immediates.
extraBits	The number of extra bits in the encoding.
immediateWidth	Width of the inline immediate.
parent	The parent source field.

Exceptions

ObjectAlreadyExists	If the given source field has an immediate encoding already or if the encoding is ambiguous with some socket or bridge encoding in the source field.
OutOfRange	If the given immediate width is negative.

Definition at line 60 of file ImmediateEncoding.cc.

    : Encoding(encoding, extraBits, NULL), immediateWidth_(immediateWidth) {
    if (immediateWidth < 0) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    parent.setImmediateEncoding(*this);
    setParent(&parent);
}

References __func__, immediateWidth(), parent(), SourceField::setImmediateEncoding(), and Encoding::setParent().

Here is the call graph for this function:

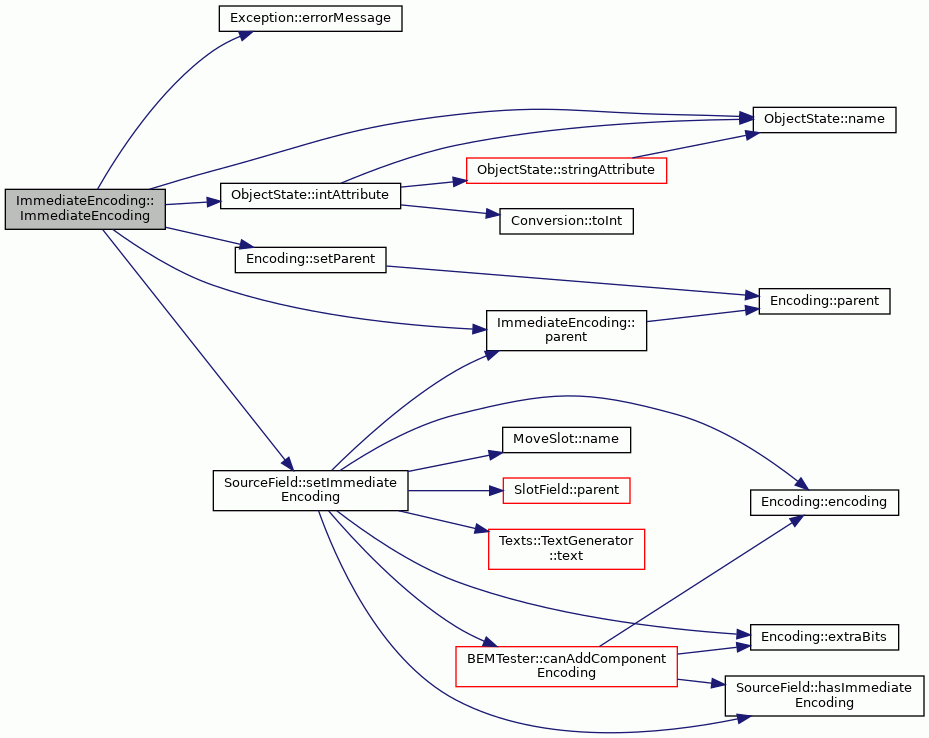

ImmediateEncoding() [2/2]

ImmediateEncoding::ImmediateEncoding	(	const ObjectState *	state,
		SourceField &	parent
	)

The constructor.

Loads the state of the object from the given ObjectState instance.

Parameters

state	The ObjectState instance.
parent	The parent source field.

Exceptions

ObjectAlreadyExists	If the given source field has an immediate encoding already or if the encoding is ambiguous with some socket or bridge encoding in the source field.
ObjectStateLoadingException	If the given ObjectState instance is erroneous.

Definition at line 86 of file ImmediateEncoding.cc.

    : Encoding(state, NULL) {
    const string procName = "ImmediateEncoding::ImmediateEncoding";

    if (state->name() != OSNAME_IMM_ENCODING) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    try {
        immediateWidth_ = state->intAttribute(OSKEY_IMM_WIDTH);
        if (immediateWidth_ < 0) {
            throw OutOfRange(__FILE__, __LINE__, __func__);
        }
    } catch (const Exception& e) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, __func__, e.errorMessage());
    }

    parent.setImmediateEncoding(*this);
    setParent(&parent);
}

References __func__, Exception::errorMessage(), immediateWidth_, ObjectState::intAttribute(), ObjectState::name(), OSKEY_IMM_WIDTH, OSNAME_IMM_ENCODING, parent(), SourceField::setImmediateEncoding(), and Encoding::setParent().

Here is the call graph for this function:

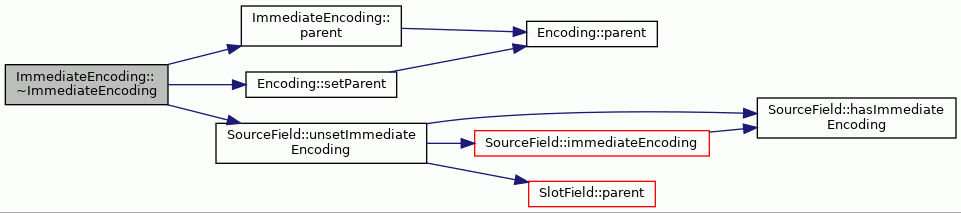

~ImmediateEncoding()

ImmediateEncoding::~ImmediateEncoding ( )

virtual

The destructor.

Definition at line 112 of file ImmediateEncoding.cc.

                                      {
    SourceField* oldParent = parent();
    assert(oldParent != NULL);
    setParent(NULL);
    oldParent->unsetImmediateEncoding();
}

References assert, parent(), Encoding::setParent(), and SourceField::unsetImmediateEncoding().

Here is the call graph for this function:

Member Function Documentation

bitPosition()

int ImmediateEncoding::bitPosition ( ) const

virtual

Returns always 0.

Returns

The position of the encoding.

Implements Encoding.

Definition at line 196 of file ImmediateEncoding.cc.

                                     {
    return 0;
}

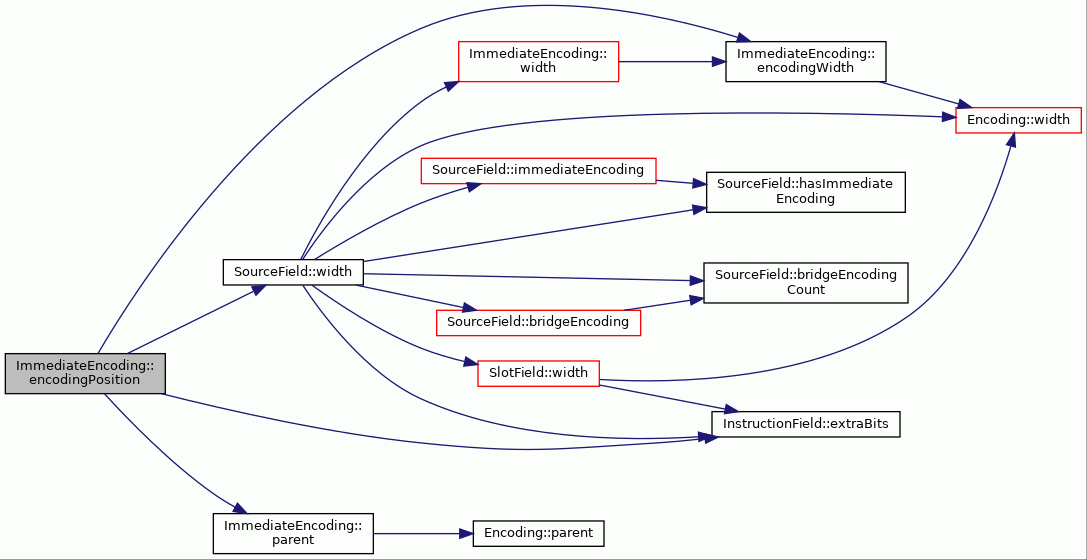

encodingPosition()

int ImmediateEncoding::encodingPosition

(

)

const

Returns the position of the immediate encoding.

Returns

The position of the immediate encoding.

Definition at line 166 of file ImmediateEncoding.cc.

                                          {
    if (parent()->componentIDPosition() == BinaryEncoding::LEFT) {
        return parent()->width() - parent()->extraBits() - encodingWidth();
    } else {
        return 0;
    }
}

References encodingWidth(), InstructionField::extraBits(), BinaryEncoding::LEFT, parent(), and SourceField::width().

Referenced by BEMTester::conflictsWithSourceEncodings(), and DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus().

Here is the call graph for this function:

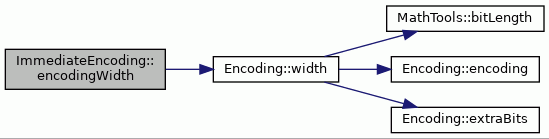

encodingWidth()

int ImmediateEncoding::encodingWidth

(

)

const

Returns the encoding width.

Returns

The encoding width.

Definition at line 155 of file ImmediateEncoding.cc.

                                       {
    return Encoding::width();
}

References Encoding::width().

Referenced by BEMTester::conflictsWithSourceEncodings(), CodeCompressorPlugin::encodeImmediateTerminal(), encodingPosition(), printSourceFieldEncodings(), width(), and DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus().

Here is the call graph for this function:

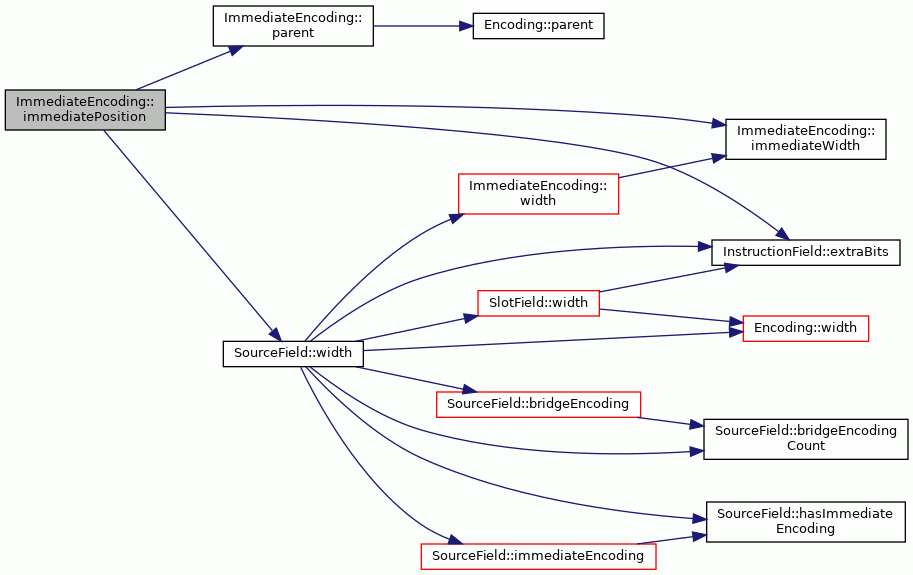

immediatePosition()

int ImmediateEncoding::immediatePosition

(

)

const

Returns the position of the short immediate within the source field.

Returns

The position of the short immediate.

Definition at line 181 of file ImmediateEncoding.cc.

                                           {
    if (parent()->componentIDPosition() == BinaryEncoding::LEFT) {
        return 0;
    } else {
        return parent()->width() - parent()->extraBits() - immediateWidth();
    }
}

References InstructionField::extraBits(), immediateWidth(), BinaryEncoding::LEFT, parent(), and SourceField::width().

Referenced by DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus(), and DefaultDecoderGenerator::writeSimmDataSignal().

Here is the call graph for this function:

immediateWidth()

int ImmediateEncoding::immediateWidth

(

)

const

Returns the immediate width.

Returns

The immediate width.

Definition at line 144 of file ImmediateEncoding.cc.

                                        {
    return immediateWidth_;
}

References immediateWidth_.

Referenced by ImmediateEncoding(), immediatePosition(), printSourceFieldEncodings(), saveState(), width(), DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus(), and DefaultDecoderGenerator::writeSimmDataSignal().

parent()

SourceField * ImmediateEncoding::parent

(

)

const

Returns the parent source field.

Returns

The parent.

Definition at line 126 of file ImmediateEncoding.cc.

                                {
    InstructionField* parent = Encoding::parent();
    if (parent != NULL) {
        SourceField* sField = dynamic_cast<SourceField*>(parent);
        assert(sField != NULL);
        return sField;
    } else {
        return NULL;
    }
}

References assert, Encoding::parent(), and parent().

Referenced by encodingPosition(), ImmediateEncoding(), ImmediateEncoding(), immediatePosition(), parent(), SourceField::setImmediateEncoding(), and ~ImmediateEncoding().

Here is the call graph for this function:

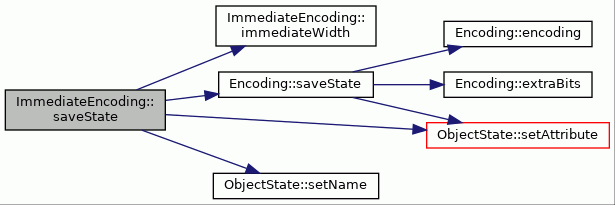

saveState()

ObjectState * ImmediateEncoding::saveState ( ) const

virtual

Saves the state of the object to an ObjectState instance.

Returns

The newly created ObjectState instance.

Reimplemented from Encoding.

Definition at line 218 of file ImmediateEncoding.cc.

                                   {
    ObjectState* state = Encoding::saveState();
    state->setName(OSNAME_IMM_ENCODING);
    state->setAttribute(OSKEY_IMM_WIDTH, immediateWidth());
    return state;
}

References immediateWidth(), OSKEY_IMM_WIDTH, OSNAME_IMM_ENCODING, Encoding::saveState(), ObjectState::setAttribute(), and ObjectState::setName().

Here is the call graph for this function:

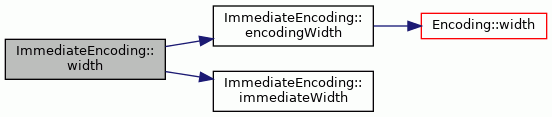

width()

int ImmediateEncoding::width ( ) const

virtual

Returns the width of the encoding + immediate width.

Returns

The width.

Reimplemented from Encoding.

Definition at line 207 of file ImmediateEncoding.cc.

                               {
    return immediateWidth() + encodingWidth();
}

References encodingWidth(), and immediateWidth().

Referenced by BEMTester::canAddComponentEncoding(), printSourceFieldEncodings(), and SourceField::width().

Here is the call graph for this function:

Member Data Documentation

immediateWidth_

int ImmediateEncoding::immediateWidth_

private

Definition at line 68 of file ImmediateEncoding.hh.

Referenced by ImmediateEncoding(), and immediateWidth().

OSKEY_IMM_WIDTH

const std::string ImmediateEncoding::OSKEY_IMM_WIDTH = "imm_width"

static

ObjectState attribute key for the immediate width.

Definition at line 65 of file ImmediateEncoding.hh.

Referenced by ImmediateEncoding(), saveState(), BEMSerializer::sourceFieldToFile(), and BEMSerializer::sourceFieldToOM().

OSNAME_IMM_ENCODING

const std::string ImmediateEncoding::OSNAME_IMM_ENCODING = "imm_encoding"

static

ObjectState name for immediate encoding.

Definition at line 63 of file ImmediateEncoding.hh.

Referenced by ImmediateEncoding(), SourceField::loadState(), saveState(), BEMSerializer::sourceFieldToFile(), and BEMSerializer::sourceFieldToOM().

---

The documentation for this class was generated from the following files:

• ImmediateEncoding.hh
• ImmediateEncoding.cc
