#include <InfoCommand.hh>

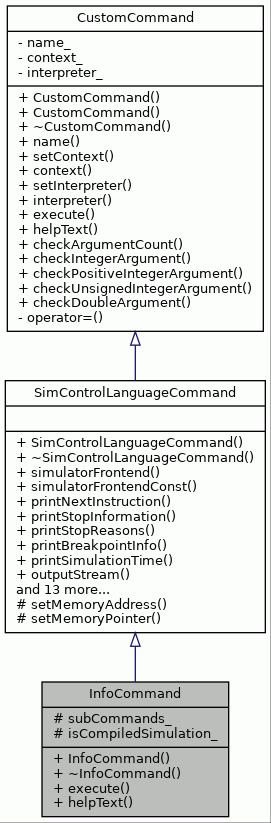

Inheritance diagram for InfoCommand:

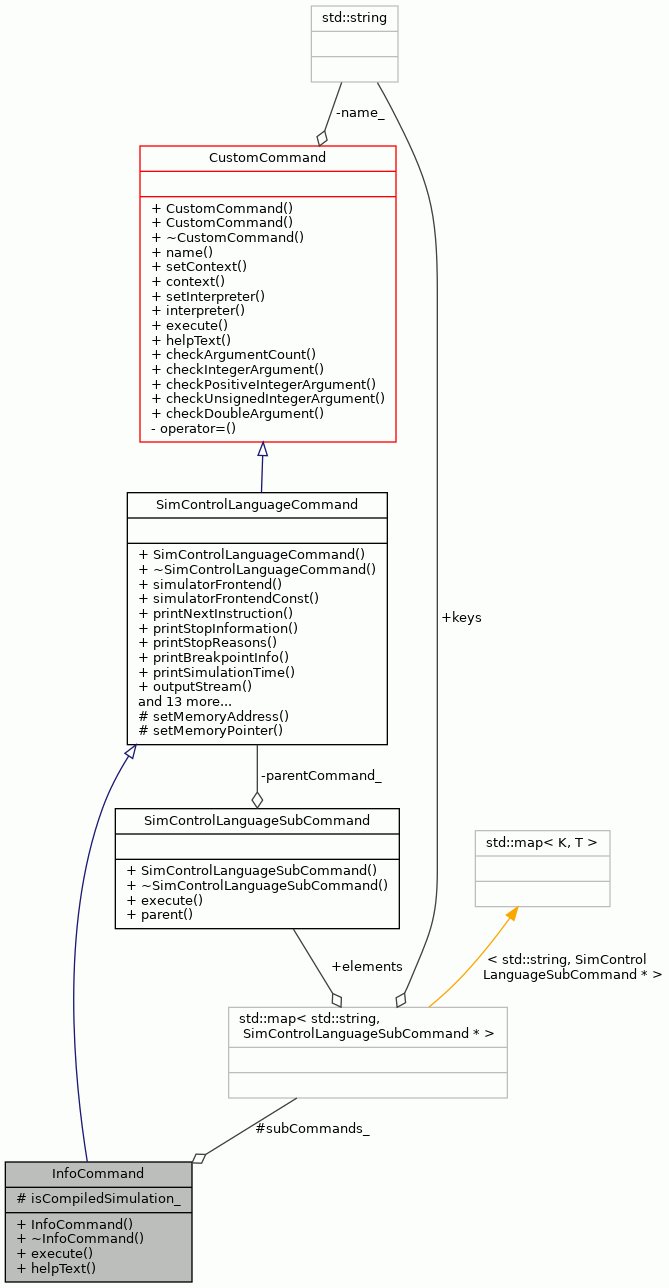

Collaboration diagram for InfoCommand:

Public Member Functions
	InfoCommand (bool isCompiledSimulation=false)

virtual	~InfoCommand ()

virtual bool	execute (const std::vector< DataObject > &arguments)

virtual std::string	helpText () const

Public Member Functions inherited from SimControlLanguageCommand
	SimControlLanguageCommand (const std::string &name)

virtual	~SimControlLanguageCommand ()

SimulatorFrontend &	simulatorFrontend ()

const SimulatorFrontend &	simulatorFrontendConst ()

virtual void	printNextInstruction ()

virtual void	printStopInformation ()

virtual void	printStopReasons ()

virtual bool	printBreakpointInfo (unsigned int breakpointHandle)

virtual void	printSimulationTime ()

virtual std::ostream &	outputStream ()

bool	checkSimulationInitialized ()

bool	checkSimulationNotAlreadyRunning ()

bool	checkSimulationStopped ()

bool	checkSimulationEnded ()

bool	checkProgramLoaded ()

bool	checkMachineLoaded ()

InstructionAddress	parseInstructionAddressExpression (const std::string &expression)

TTAProgram::Address	parseDataAddressExpression (const std::string &expression)

bool	parseBreakpoint (const std::vector< DataObject > &arguments, Breakpoint &target)

bool	askConditionFromUser (TclConditionScript &target)

bool	askExpressionFromUser (ExpressionScript &target)

bool	verifyBreakpointHandles (const std::vector< DataObject > &arguments, std::size_t startIndex=1)

void	setErrorMessage (const TCEString &errorMsg)

Public Member Functions inherited from CustomCommand
	CustomCommand (std::string name)

	CustomCommand (const CustomCommand &cmd)

virtual	~CustomCommand ()

std::string	name () const

void	setContext (InterpreterContext *context)

InterpreterContext *	context () const

void	setInterpreter (ScriptInterpreter *si)

ScriptInterpreter *	interpreter () const

bool	checkArgumentCount (int argumentCount, int minimum, int maximum)

bool	checkIntegerArgument (const DataObject &argument)

bool	checkPositiveIntegerArgument (const DataObject &argument)

bool	checkUnsignedIntegerArgument (const DataObject &argument)

bool	checkDoubleArgument (const DataObject &argument)

Protected Types
typedef std::map< std::string, SimControlLanguageSubCommand * >	SubCommandMap
	container type for subcommands indexed by name

Protected Attributes
SubCommandMap	subCommands_
	storage for subcommands

bool	isCompiledSimulation_
	Is it a compiled simulation?

Additional Inherited Members
Protected Member Functions inherited from SimControlLanguageCommand
bool	setMemoryAddress (const std::string &addressString, std::string &addressSpaceName, std::size_t &memoryAddress)

bool	setMemoryPointer (MemorySystem::MemoryPtr &memory, const std::string &addressSpaceName)

Detailed Description

Implementation of the "info" command of the Simulator Control Language.

Definition at line 48 of file InfoCommand.hh.

Member Typedef Documentation

◆ SubCommandMap

typedef std::map<std::string, SimControlLanguageSubCommand*> InfoCommand::SubCommandMap

protected

container type for subcommands indexed by name

Definition at line 57 of file InfoCommand.hh.

Constructor & Destructor Documentation

◆ InfoCommand()

InfoCommand::InfoCommand ( bool isCompiledSimulation = false )

Constructor.

Sets the name of the command to the base class.

Definition at line 1415 of file InfoCommand.cc.

                                                  :
    SimControlLanguageCommand("info"),
    isCompiledSimulation_(isCompiledSimulation) {

    if (!isCompiledSimulation_) {
        subCommands_["breakpoints"] = new InfoBreakpointsCommand(*this);
        subCommands_["busses"] = new InfoBussesCommand(*this);
        subCommands_["segments"] = new InfoSegmentsCommand(*this);
    }

    subCommands_["stats"] = new InfoStatsCommand(*this);
    subCommands_["registers"] = new InfoRegistersCommand(*this);
    subCommands_["proc"] = new InfoProcCommand(*this);
    subCommands_["program"] = new InfoProgramCommand(*this);
    subCommands_["watches"] = new InfoBreakpointsCommand(*this);
    subCommands_["regfiles"] = new InfoRegFilesCommand(*this);
    subCommands_["iunits"] = new InfoIunitsCommand(*this);
    subCommands_["funits"] = new InfoFunitsCommand(*this);
    subCommands_["ports"] = new InfoPortsCommand(*this);
    subCommands_["immediates"] = new InfoImmediatesCommand(*this);
}

References isCompiledSimulation_, and subCommands_.

◆ ~InfoCommand()

InfoCommand::~InfoCommand ( )

virtual

Destructor.

Definition at line 1440 of file InfoCommand.cc.

                          {
    MapTools::deleteAllValues(subCommands_);
}

References MapTools::deleteAllValues(), and subCommands_.

Here is the call graph for this function:

Member Function Documentation

◆ execute()

bool InfoCommand::execute ( const std::vector< DataObject > & arguments )

virtual

Executes the "info" command.

Provides various information of the simulation.

Parameters

arguments Subcommand and possible arguments to the subcommand.

Returns: Always true if arguments are valid.

Implements CustomCommand.

Definition at line 1453 of file InfoCommand.cc.

                                                           {
    assert(interpreter() != NULL);

    // "info" as such does not do anything, a subcommand is required.
    if (!checkArgumentCount(arguments.size() - 1, 1, INT_MAX)) {
        return false;
    }

    SubCommandMap::iterator subCommandPosition =
        subCommands_.find(
            StringTools::stringToLower(arguments.at(1).stringValue()));
    if (subCommandPosition == subCommands_.end()) {
        interpreter()->setError(
            SimulatorToolbox::textGenerator().text(
                Texts::TXT_UNKNOWN_SUBCOMMAND).str());
        return false;
    }

    assert((*subCommandPosition).second != NULL);
    SimControlLanguageSubCommand& subCommand = *((*subCommandPosition).second);

    return subCommand.execute(arguments);
}

References assert, CustomCommand::checkArgumentCount(), SimControlLanguageSubCommand::execute(), CustomCommand::interpreter(), ScriptInterpreter::setError(), StringTools::stringToLower(), subCommands_, SimulatorToolbox::textGenerator(), and Texts::TXT_UNKNOWN_SUBCOMMAND.

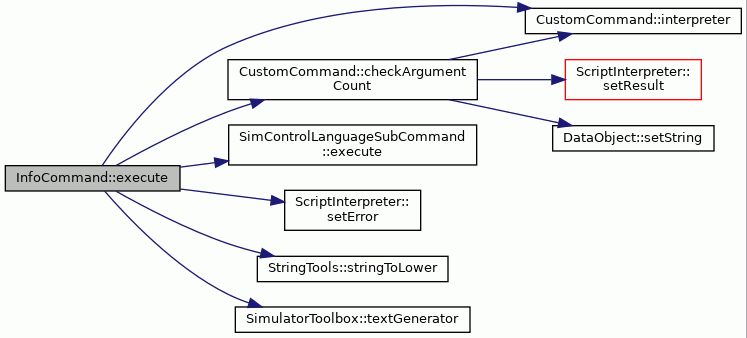

Here is the call graph for this function:

◆ helpText()

std::string InfoCommand::helpText ( ) const

virtual

Returns the help text for this command.

Help text is searched from SimulatorTextGenerator.

Returns: The help text.

Implements CustomCommand.

Definition at line 1485 of file InfoCommand.cc.

                            {
    return SimulatorToolbox::textGenerator().text(
        Texts::TXT_INTERP_HELP_INFO).str();
}

References Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_INTERP_HELP_INFO.

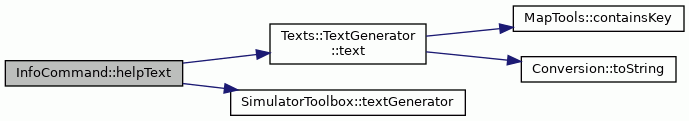

Here is the call graph for this function:

Member Data Documentation

◆ isCompiledSimulation_

bool InfoCommand::isCompiledSimulation_

protected

Is it a compiled simulation?

Definition at line 62 of file InfoCommand.hh.

Referenced by InfoCommand().

◆ subCommands_

SubCommandMap InfoCommand::subCommands_

protected

storage for subcommands

Definition at line 59 of file InfoCommand.hh.

Referenced by execute(), InfoCommand(), and ~InfoCommand().

The documentation for this class was generated from the following files:
