#include <InputFUResource.hh>

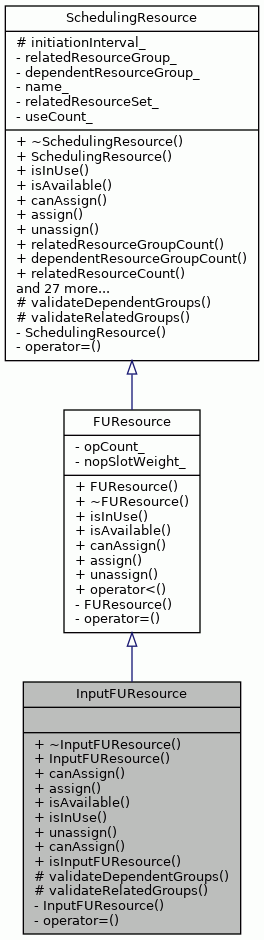

Inheritance diagram for InputFUResource:

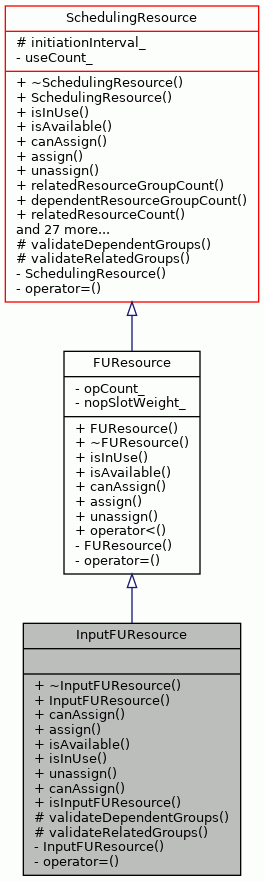

Collaboration diagram for InputFUResource:

Public Member Functions
virtual	~InputFUResource ()

	InputFUResource (const std::string &name, int opCount, int nopSlotWeight, unsigned int initiationInterval=0)

virtual bool	canAssign (const int cycle, const MoveNode &node) const override

virtual void	assign (const int cycle, MoveNode &node) override

virtual bool	isAvailable (const int cycle) const override

virtual bool	isInUse (const int cycle) const override

virtual void	unassign (const int cycle, MoveNode &node) override

virtual bool	canAssign (const int cycle, const MoveNode &node, const InputPSocketResource &pSocket, const bool triggers=false) const

virtual bool	isInputFUResource () const override

Public Member Functions inherited from FUResource
	FUResource (const std::string &name, int operationCount, int nopSlotWeight, unsigned int initiationInterval=0)

virtual	~FUResource ()

virtual bool	operator< (const SchedulingResource &other) const override

Public Member Functions inherited from SchedulingResource
virtual	~SchedulingResource ()

	SchedulingResource (const std::string &name, const unsigned int ii=0)

virtual int	relatedResourceGroupCount () const

virtual int	dependentResourceGroupCount () const

int	relatedResourceCount (const int group) const

int	dependentResourceCount (const int group) const

virtual void	addToRelatedGroup (const int group, SchedulingResource &resource)

virtual void	addToDependentGroup (const int group, SchedulingResource &resource)

virtual SchedulingResource &	relatedResource (const int group, const int index) const

virtual SchedulingResource &	dependentResource (const int group, const int index) const

virtual bool	hasRelatedResource (const SchedulingResource &sResource) const

virtual bool	hasDependentResource (const SchedulingResource &sResource) const

virtual const std::string &	name () const

virtual int	useCount () const

virtual void	increaseUseCount ()

virtual void	decreaseUseCount ()

virtual bool	isInputPSocketResource () const

virtual bool	isOutputPSocketResource () const

virtual bool	isShortImmPSocketResource () const

virtual bool	isOutputFUResource () const

virtual bool	isExecutionPipelineResource () const

virtual bool	isBusResource () const

virtual bool	isSegmentResource () const

virtual bool	isIUResource () const

virtual bool	isITemplateResource () const

int	instructionIndex (int cycle) const

void	setInitiationInterval (unsigned int ii)

int	initiationInterval () const

virtual void	clear ()

virtual void	setMaxCycle (unsigned int)

Protected Member Functions
virtual bool	validateDependentGroups () override

virtual bool	validateRelatedGroups () override

Private Member Functions
	InputFUResource (const InputFUResource &)

InputFUResource &	operator= (const InputFUResource &)

Additional Inherited Members
Protected Attributes inherited from SchedulingResource
int	initiationInterval_

Detailed Description

An interface for scheduling resources of Resource Model. The derived class InputFUResource.

Definition at line 49 of file InputFUResource.hh.

Constructor & Destructor Documentation

◆ ~InputFUResource()

InputFUResource::~InputFUResource ( )

virtual

Empty destructor

Definition at line 61 of file InputFUResource.cc.

61 {

62}

◆ InputFUResource() [1/2]

InputFUResource::InputFUResource	(	const std::string &	name,
		int	opCount,
		int	nopSlotWeight,
		unsigned int	initiationInterval = `0`
	)

Constructor defining name of resource.

Parameters

name	Name of resource

Definition at line 52 of file InputFUResource.cc.

                                     :
    FUResource(name, opCount, nopSlotWeight, initiationInterval) {
}

◆ InputFUResource() [2/2]

InputFUResource::InputFUResource ( const InputFUResource & )

private

Member Function Documentation

◆ assign()

void InputFUResource::assign	(	const int	cycle,
		MoveNode &	node
	)

overridevirtual

Assign resource to given node for given cycle as a side effect, assign also execution pipeline for triggering moves.

Parameters

cycle	Cycle to assign
node	MoveNode assigned
pSocket	InputPSocket used for writting operand

Exceptions

In	case the assignment is impossible, should have been tested with canAssing first.

Reimplemented from FUResource.

Definition at line 86 of file InputFUResource.cc.

                    {

    for (int i = 0; i < dependentResourceGroupCount(); i++) {
        for (int j = 0, count = dependentResourceCount(i); j < count; j++) {
            if (dependentResource(i, j).isExecutionPipelineResource()) {
                SchedulingResource* res = &dependentResource(i, j);
                ExecutionPipelineResource* epRes =
                    dynamic_cast<ExecutionPipelineResource*>(res);
                epRes->assignDestination(cycle, node);
                increaseUseCount();
                return;
            }
        }
    }
    abortWithError("InputFUResource has no execution pipeline registered!");
}

References abortWithError, ExecutionPipelineResource::assignDestination(), SchedulingResource::dependentResource(), SchedulingResource::dependentResourceCount(), SchedulingResource::dependentResourceGroupCount(), SchedulingResource::increaseUseCount(), and SchedulingResource::isExecutionPipelineResource().

Referenced by InputFUBroker::assign().

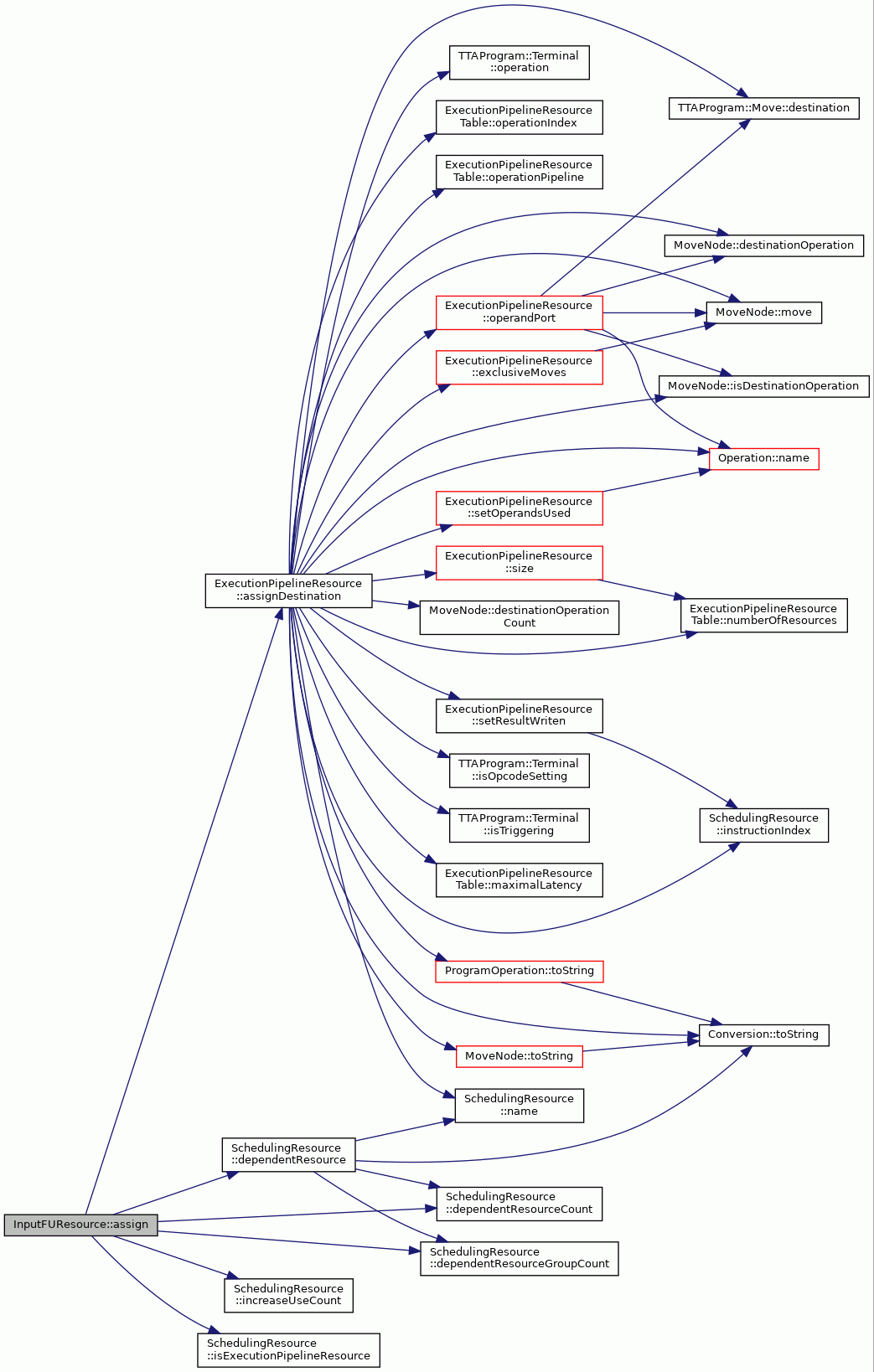

Here is the call graph for this function:

◆ canAssign() [1/2]

bool InputFUResource::canAssign	(	const int	cycle,
		const MoveNode &	node
	)		const

overridevirtual

Not to be used, aborts!

Use version with third InputPSocket operand!

Reimplemented from FUResource.

Definition at line 70 of file InputFUResource.cc.

                                                           {
    abortWithError("Wrong method. Use canAssign with PSocket!");
    return false;
}

References abortWithError.

Referenced by InputFUBroker::allAvailableResources().

◆ canAssign() [2/2]

bool InputFUResource::canAssign	(	const int	cycle,
		const MoveNode &	node,
		const InputPSocketResource &	pSocket,
		const bool	triggers = `false`
	)		const

virtual

Return true if resource can be assigned for given node in given cycle.

Parameters

cycle	Cycle to test
node	MoveNode to test
pSocket	InputPSocket used for writting operand

Returns: true if node can be assigned to cycle

Exceptions

Internal error, PSocket is not conencted to FU or ExecutionPipeline

Definition at line 144 of file InputFUResource.cc.

                               {

    if (!hasDependentResource(pSocket)) {
        std::string msg = "InputPSocket ";
        msg += pSocket.name();
        msg += " is not connected to ";
        msg += name();
        msg += "!";
        throw ModuleRunTimeError(__FILE__, __LINE__, __func__, msg);
        return false;
    }

    if (!pSocket.canAssign(cycle, node)) {
        debugLogRM("cannot assign pSocket");
        return false;
    }

    for (int i = 0; i < dependentResourceGroupCount(); i++) {
        for (int j = 0, count = dependentResourceCount(i); j < count; j++) {
            SchedulingResource& depRes = dependentResource(i, j);
            if (depRes.isExecutionPipelineResource()) {
                ExecutionPipelineResource* epRes =
                    static_cast<ExecutionPipelineResource*>(&depRes);
                if (!(epRes->canAssignDestination(cycle, node, triggers))) {
                    debugLogRM("cannot assign execution pipeline resource");
                    return false;
                } else {
                    return true;
                }
            }
        }
    }
    debugLogRM("could not find a depedent resource I could assign");
    return false;
}

References __func__, InputPSocketResource::canAssign(), ExecutionPipelineResource::canAssignDestination(), debugLogRM, SchedulingResource::dependentResource(), SchedulingResource::dependentResourceCount(), SchedulingResource::dependentResourceGroupCount(), SchedulingResource::hasDependentResource(), SchedulingResource::isExecutionPipelineResource(), and SchedulingResource::name().

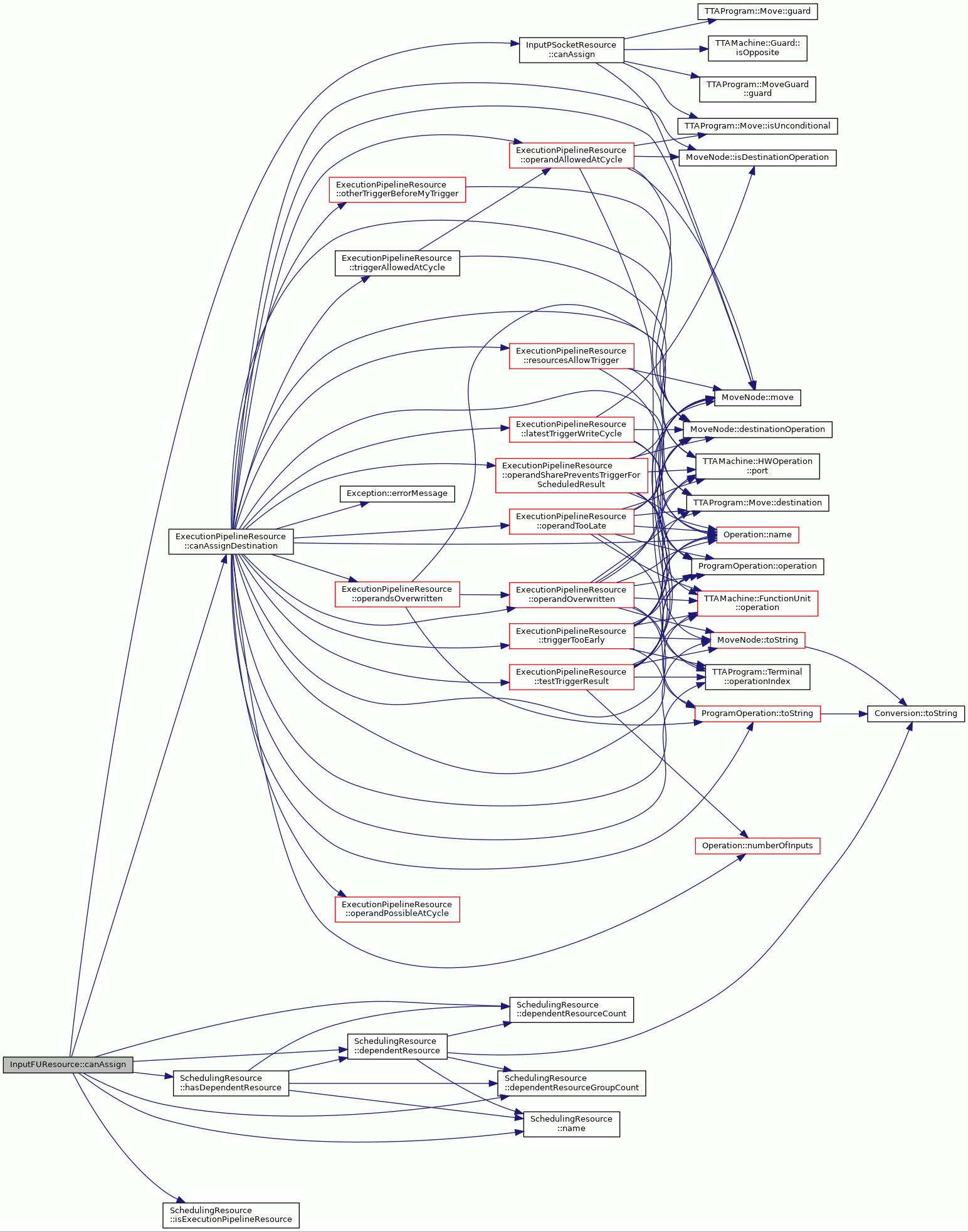

Here is the call graph for this function:

◆ isAvailable()

bool InputFUResource::isAvailable ( const int cycle ) const

overridevirtual

Test if resource InputFUResource is available.

Not all the PSocket are inUse and there is some operation possible for triggering moves.

Parameters

cycle Cycle which to test

Returns: True if FUResource is available in cycle

Reimplemented from FUResource.

Definition at line 194 of file InputFUResource.cc.

                                                  {
    // Test availability of PSockets using parent class
    if (!FUResource::isAvailable(cycle)) {
        return false;
    }
    for (int i = 0; i < dependentResourceGroupCount(); i++) {
        for (int j = 0, count = dependentResourceCount(i); j < count; j++) {
            if (dependentResource(i, j).isExecutionPipelineResource() &&
                dependentResource(i, j).isAvailable(cycle)) {
                return true;
            }
        }
    }
    return false;
}

References SchedulingResource::dependentResource(), SchedulingResource::dependentResourceCount(), SchedulingResource::dependentResourceGroupCount(), SchedulingResource::isAvailable(), FUResource::isAvailable(), and SchedulingResource::isExecutionPipelineResource().

Referenced by InputFUBroker::allAvailableResources().

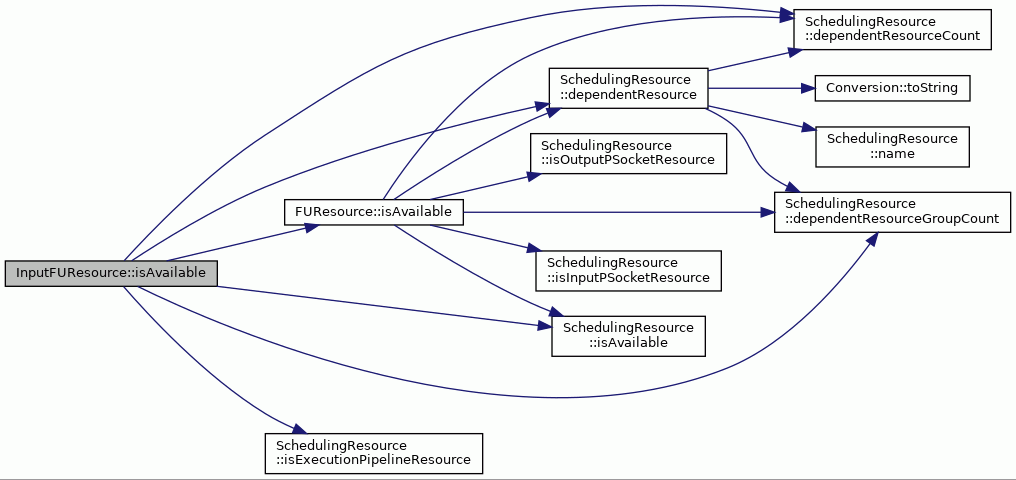

Here is the call graph for this function:

◆ isInputFUResource()

bool InputFUResource::isInputFUResource ( ) const

overridevirtual

Allways return true

Returns: true

Reimplemented from SchedulingResource.

Definition at line 242 of file InputFUResource.cc.

                                         {
    return true;
}

◆ isInUse()

bool InputFUResource::isInUse ( const int cycle ) const

overridevirtual

Test if resource InputFUResource is used in given cycle.

True if some of InputPSockets are already used or there is operation already in execution pipeline.

Parameters

cycle Cycle which to test

Returns: True if InputFUResource is already used in cycle

Reimplemented from FUResource.

Definition at line 220 of file InputFUResource.cc.

                                              {
    // Test isInUse of PSockets using parent class
    if (FUResource::isInUse(cycle)) {
        return true;
    }
    for (int i = 0; i < dependentResourceGroupCount(); i++) {
        for (int j = 0, count = dependentResourceCount(i); j < count; j++) {
            if (dependentResource(i, j).isExecutionPipelineResource() &&
                dependentResource(i, j).isInUse(cycle)) {
                return true;
            }
        }
    }
    return false;
}

References SchedulingResource::dependentResource(), SchedulingResource::dependentResourceCount(), SchedulingResource::dependentResourceGroupCount(), SchedulingResource::isExecutionPipelineResource(), SchedulingResource::isInUse(), and FUResource::isInUse().

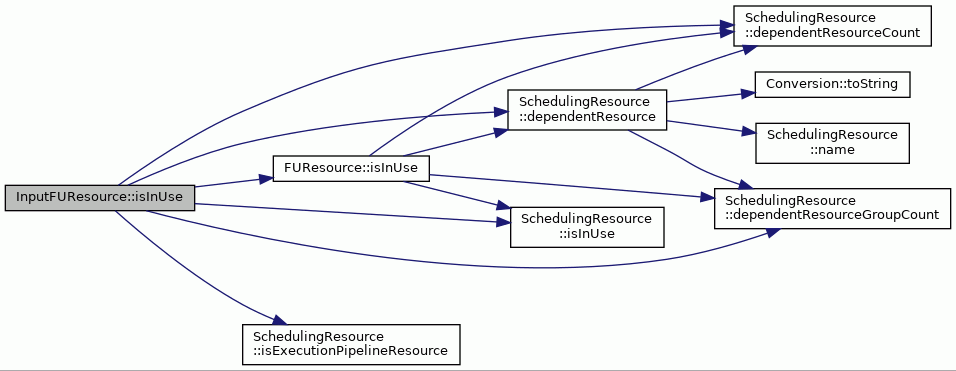

Here is the call graph for this function:

◆ operator=()

InputFUResource & InputFUResource::operator= ( const InputFUResource & )

private

◆ unassign()

void InputFUResource::unassign	(	const int	cycle,
		MoveNode &	node
	)

overridevirtual

Unassign resource from given node for given cycle, for triggering moves also unassign execution pipeline.

Parameters

cycle	Cycle to remove assignment from
node	MoveNode to remove assignment from
pSocket	InputPSocket used for writting operand

Exceptions

In	case PSocket is not connected to FU

Reimplemented from FUResource.

Definition at line 115 of file InputFUResource.cc.

                    {

    for (int i = 0; i < dependentResourceGroupCount(); i++) {
        for (int j = 0, count = dependentResourceCount(i); j < count; j++) {
            if (dependentResource(i, j).isExecutionPipelineResource()) {
                SchedulingResource* res = &dependentResource(i, j);
                ExecutionPipelineResource* epRes =
                    dynamic_cast<ExecutionPipelineResource*>(res);
                epRes->unassignDestination(cycle, node);
                decreaseUseCount();
                return;
            }
        }
    }
    abortWithError("InputFUResource has no execution pipeline registered!");
}

References abortWithError, SchedulingResource::decreaseUseCount(), SchedulingResource::dependentResource(), SchedulingResource::dependentResourceCount(), SchedulingResource::dependentResourceGroupCount(), SchedulingResource::isExecutionPipelineResource(), and ExecutionPipelineResource::unassignDestination().

Referenced by InputFUBroker::unassign().

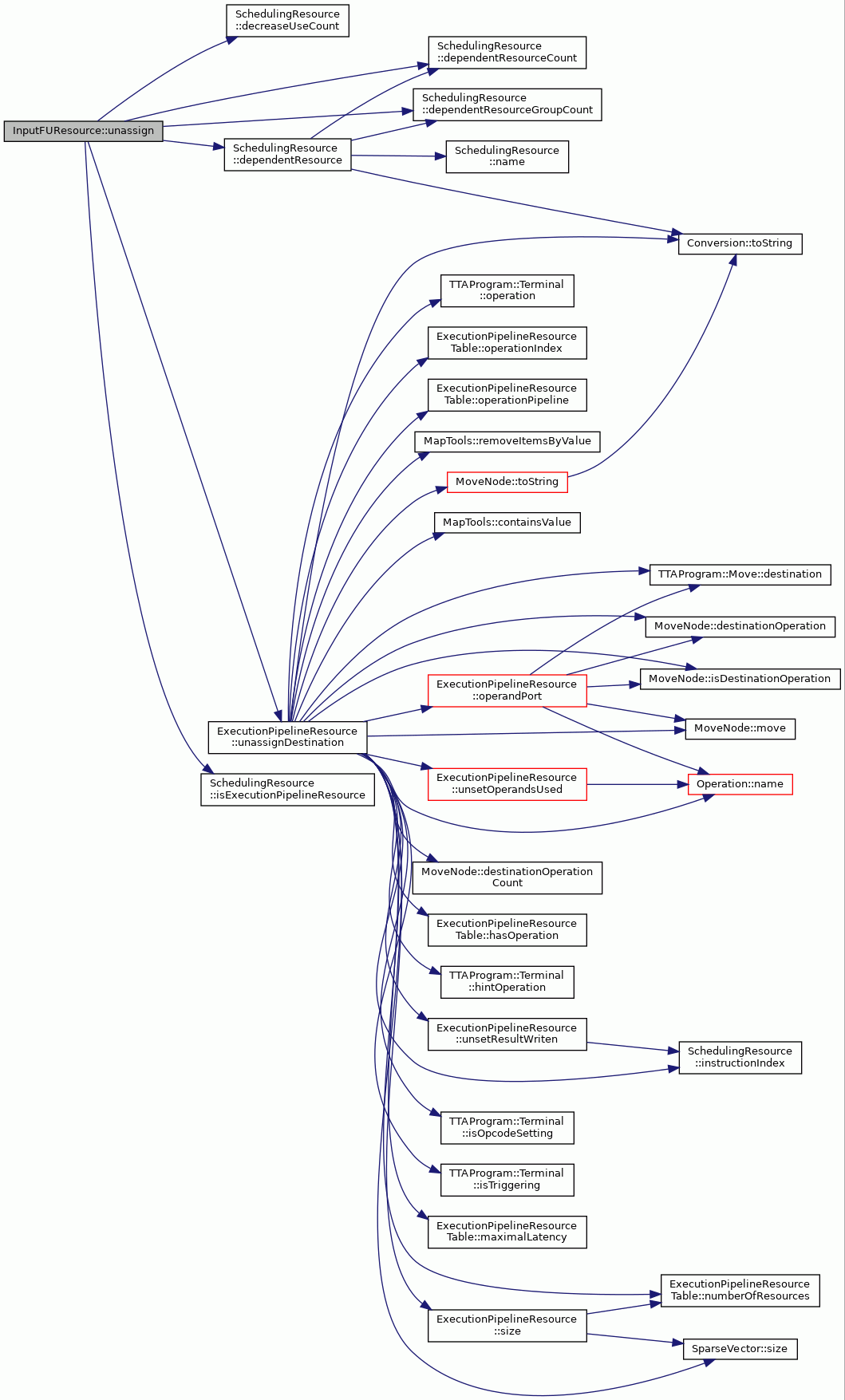

Here is the call graph for this function:

◆ validateDependentGroups()

bool InputFUResource::validateDependentGroups ( )

overrideprotectedvirtual

Tests if all referred resource in dependent groups are of proper types.

Returns: true If all resources in dependent groups are input or output PSockets or executionPipeline

Reimplemented from SchedulingResource.

Definition at line 254 of file InputFUResource.cc.

                                         {
    for (int i = 0; i < dependentResourceGroupCount(); i++) {
        for (int j = 0, count = dependentResourceCount(i); j < count; j++) {
            if (!(dependentResource(i, j).isInputPSocketResource() ||
                dependentResource(i, j).isOutputPSocketResource() ||
                dependentResource(i, j).isExecutionPipelineResource())) {
                return false;
            }
        }
    }
    return true;
}

References SchedulingResource::dependentResource(), SchedulingResource::dependentResourceCount(), SchedulingResource::dependentResourceGroupCount(), SchedulingResource::isExecutionPipelineResource(), SchedulingResource::isInputPSocketResource(), and SchedulingResource::isOutputPSocketResource().

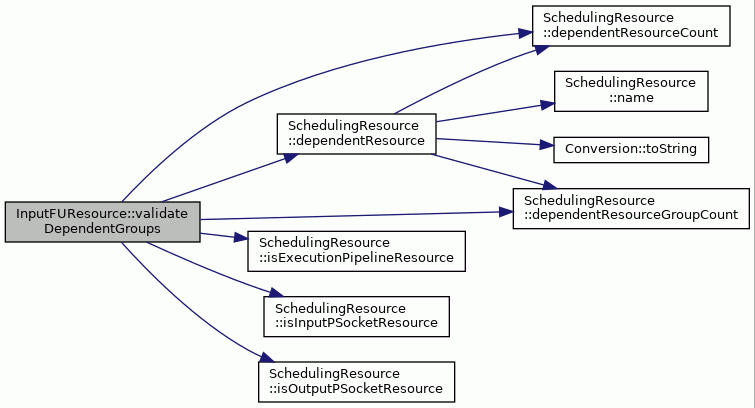

Here is the call graph for this function:

◆ validateRelatedGroups()

bool InputFUResource::validateRelatedGroups ( )

overrideprotectedvirtual

Tests if related resource groups are empty.

Returns: true If all related resource groups are empty

Reimplemented from SchedulingResource.

Definition at line 274 of file InputFUResource.cc.

                                       {
    for (int i = 0; i < relatedResourceGroupCount(); i++) {
        if (relatedResourceCount(i) > 0) {
            return false;
        }
    }
    return true;
}

References SchedulingResource::relatedResourceCount(), and SchedulingResource::relatedResourceGroupCount().

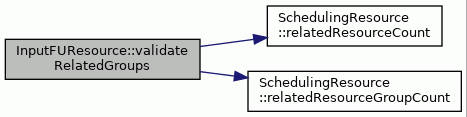

Here is the call graph for this function:

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~InputFUResource()

◆ InputFUResource() [1/2]

◆ InputFUResource() [2/2]

Member Function Documentation

◆ assign()

◆ canAssign() [1/2]

◆ canAssign() [2/2]

◆ isAvailable()

◆ isInputFUResource()

◆ isInUse()

◆ operator=()

◆ unassign()

◆ validateDependentGroups()

◆ validateRelatedGroups()
