#include <MemoryProxy.hh>

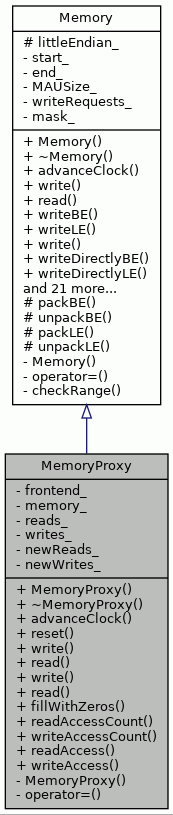

Inheritance diagram for MemoryProxy:

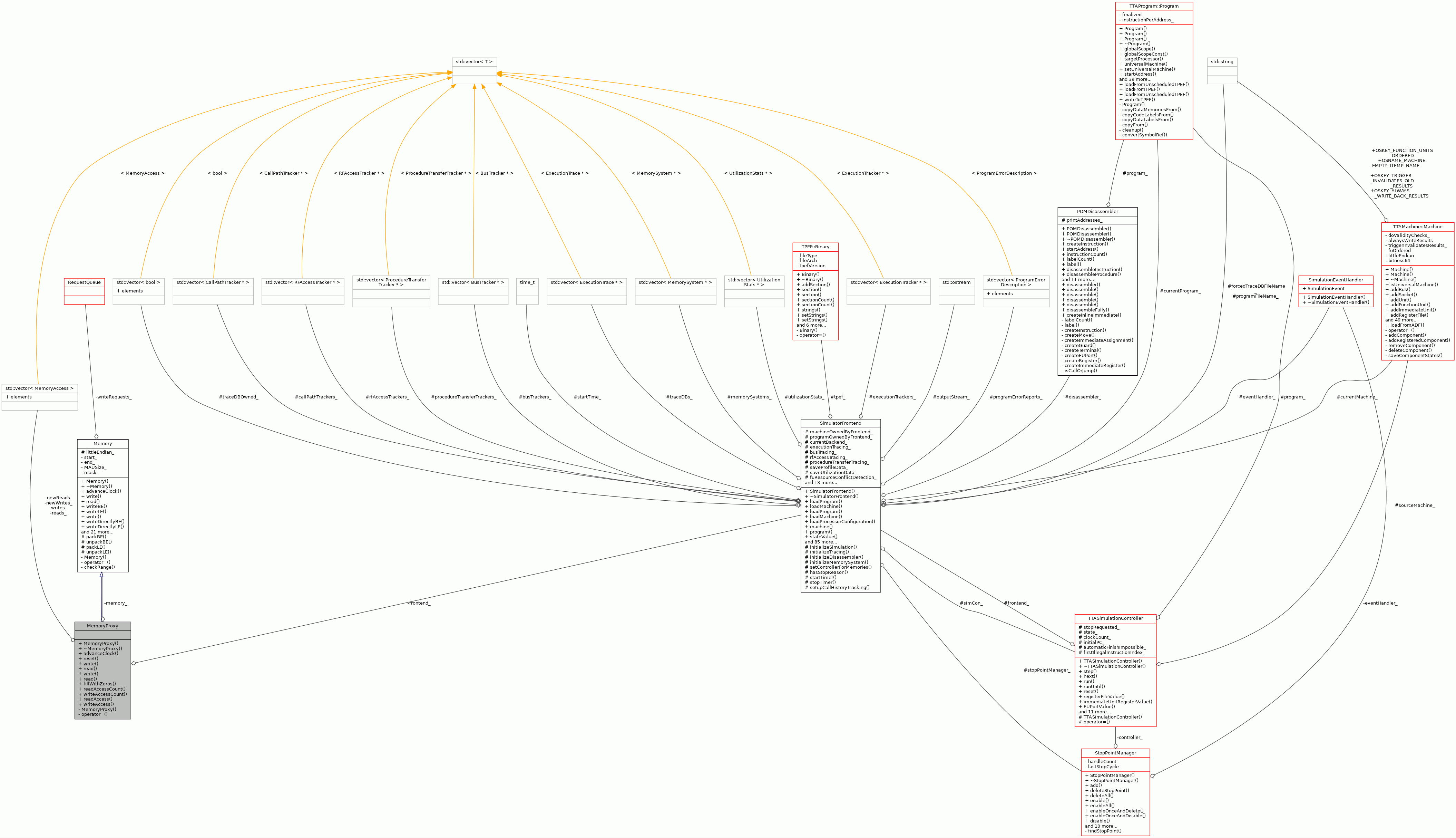

Collaboration diagram for MemoryProxy:

Public Types
typedef std::pair< Word, int >	MemoryAccess

Public Types inherited from Memory
typedef MinimumAddressableUnit	MAU

typedef MAU *	MAUTable

Public Member Functions
	MemoryProxy (SimulatorFrontend &frontend, Memory *memory)

virtual	~MemoryProxy ()

virtual void	advanceClock ()

virtual void	reset ()

virtual void	write (ULongWord address, MAU data) override

virtual Memory::MAU	read (ULongWord address) override

virtual void	write (ULongWord address, int size, ULongWord data)

virtual void	read (ULongWord address, int size, ULongWord &data)

virtual void	fillWithZeros ()

unsigned int	readAccessCount () const

unsigned int	writeAccessCount () const

MemoryAccess	readAccess (unsigned int idx) const

MemoryAccess	writeAccess (unsigned int idx) const

Public Member Functions inherited from Memory
	Memory (ULongWord start, ULongWord end, ULongWord MAUSize, bool littleEndian_)

virtual	~Memory ()

virtual void	writeBE (ULongWord address, int size, ULongWord data)

virtual void	writeLE (ULongWord address, int size, ULongWord data)

void	write (ULongWord address, int size, ULongWord data)

virtual void	writeDirectlyBE (ULongWord address, int size, ULongWord data)

virtual void	writeDirectlyLE (ULongWord address, int size, ULongWord data)

void	write (ULongWord address, FloatWord data)

void	write (ULongWord address, DoubleWord data)

void	read (ULongWord address, int size, ULongWord &data)

void	read (ULongWord address, DoubleWord &data)

void	read (ULongWord address, FloatWord &data)

virtual void	writeBE (ULongWord address, FloatWord data)

virtual void	writeBE (ULongWord address, DoubleWord data)

virtual void	writeLE (ULongWord address, FloatWord data)

virtual void	writeLE (ULongWord address, DoubleWord data)

virtual void	readBE (ULongWord address, int size, ULongWord &data)

virtual void	readLE (ULongWord address, int size, ULongWord &data)

virtual void	readBE (ULongWord address, FloatWord &data)

virtual void	readBE (ULongWord address, DoubleWord &data)

virtual void	readLE (ULongWord address, FloatWord &data)

virtual void	readLE (ULongWord address, DoubleWord &data)

virtual ULongWord	start ()

virtual ULongWord	end ()

virtual ULongWord	MAUSize ()

bool	isLittleEndian ()

Private Member Functions
	MemoryProxy (const MemoryProxy &)
	Copying not allowed.

MemoryProxy &	operator= (const MemoryProxy &)
	Assignment not allowed.

Private Attributes
SimulatorFrontend &	frontend_

Memory *	memory_
	Wrapped memory.

std::vector< MemoryAccess >	reads_
	List of initiated reads on the last cycle.

std::vector< MemoryAccess >	writes_
	List of initiated writes on the last cycle.

std::vector< MemoryAccess >	newReads_
	List of initiated reads.

std::vector< MemoryAccess >	newWrites_
	List of initiated writes.

Additional Inherited Members
Protected Member Functions inherited from Memory
void	packBE (const Memory::MAUTable data, int size, ULongWord &value)

void	unpackBE (const ULongWord &value, int size, Memory::MAUTable data)

void	packLE (const Memory::MAUTable data, int size, ULongWord &value)

void	unpackLE (const ULongWord &value, int size, Memory::MAUTable data)

Protected Attributes inherited from Memory
bool	littleEndian_

Detailed Description

MemoryProxy is a memory access tracker for simulator.

MemoryProxy tracks calls to reads and writes. Memory accesses on the last clock cycle can be listed with readAccessCount(), readAccess(idx), writeAccessCount() and writeAccess(idx) functions. Memory access information is stored for only one cycle. Tracks only single memory accesses, not those made with the block methods.

Definition at line 53 of file MemoryProxy.hh.

Member Typedef Documentation

◆ MemoryAccess

typedef std::pair<Word, int> MemoryProxy::MemoryAccess

Definition at line 56 of file MemoryProxy.hh.

Constructor & Destructor Documentation

◆ MemoryProxy() [1/2]

MemoryProxy::MemoryProxy	(	SimulatorFrontend &	frontend,
		Memory *	memory
	)

The Constructor.

MemoryProxy takes ownership of the wrapped Memory instance.

Parameters

memory Tracked memory.

Definition at line 46 of file MemoryProxy.cc.

                                                                    :
    Memory(memory->start(), memory->end(), memory->MAUSize(),
           memory->isLittleEndian()),
    frontend_(frontend), memory_(memory) {
}

◆ ~MemoryProxy()

MemoryProxy::~MemoryProxy ( )

virtual

The Destructor.

Deletes the tracked memory instance.

Definition at line 58 of file MemoryProxy.cc.

                          {
    delete memory_;
}

References memory_.

◆ MemoryProxy() [2/2]

MemoryProxy::MemoryProxy ( const MemoryProxy & )

private

Copying not allowed.

Member Function Documentation

◆ advanceClock()

void MemoryProxy::advanceClock ( )

virtual

Resets the memory access information for the last cycle when wrapped memory clock is advanced.

Reimplemented from Memory.

Definition at line 98 of file MemoryProxy.cc.

                          {
    writes_ = newWrites_;
    reads_ = newReads_;
    newWrites_.clear();
    newReads_.clear();
    memory_->advanceClock();
}

References Memory::advanceClock(), memory_, newReads_, newWrites_, reads_, and writes_.

Here is the call graph for this function:

◆ fillWithZeros()

virtual void MemoryProxy::fillWithZeros ( )

inlinevirtual

Fills the whole memory with zeros.

This is needed due to some buggy simulated programs which expect uninitialized data to be zero. The default implementation is a slow for-loop which can be overridden with a faster one depending on the storage used.

Reimplemented from Memory.

Definition at line 72 of file MemoryProxy.hh.

72{ memory_->fillWithZeros(); }

Memory::fillWithZeros

virtual void fillWithZeros()

Definition Memory.cc:704

References Memory::fillWithZeros(), and memory_.

Here is the call graph for this function:

◆ operator=()

MemoryProxy & MemoryProxy::operator= ( const MemoryProxy & )

private

Assignment not allowed.

◆ read() [1/2]

Memory::MAU MemoryProxy::read ( ULongWord address )

overridevirtual

Tracks read calls.

Passes the call to the wrapped memory.

Implements Memory.

Definition at line 68 of file MemoryProxy.cc.

                                   {

    frontend_.eventHandler().handleEvent(
        SimulationEventHandler::SE_MEMORY_ACCESS);

    newReads_.push_back(std::make_pair(address, 1));
    return memory_->read(address);
}

References SimulatorFrontend::eventHandler(), frontend_, Informer::handleEvent(), memory_, newReads_, Memory::read(), and SimulationEventHandler::SE_MEMORY_ACCESS.

Here is the call graph for this function:

◆ read() [2/2]

virtual void MemoryProxy::read	(	ULongWord	address,
		int	size,
		ULongWord &	data
	)

inlinevirtual

Definition at line 69 of file MemoryProxy.hh.

70 { memory_->write(address, size, data); }

Memory::write

virtual void write(ULongWord address, MAU data)=0

Definition Memory.cc:95

References memory_, and Memory::write().

Here is the call graph for this function:

◆ readAccess()

MemoryProxy::MemoryAccess MemoryProxy::readAccess ( unsigned int idx ) const

Returns information of the given memory read access.

Parameters

idx	Index of the read access.

Exceptions

OutOfRange If the index is invalid.

Definition at line 133 of file MemoryProxy.cc.

                                          {

    if (idx > reads_.size()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    return reads_[idx];
}

References __func__, and reads_.

Referenced by ProximMemoryWindow::onSimulationStop().

◆ readAccessCount()

unsigned int MemoryProxy::readAccessCount ( ) const

Returns number of read accesses on the last cycle.

Definition at line 122 of file MemoryProxy.cc.

                                   {
    return reads_.size();
}

References reads_.

Referenced by ProximMemoryWindow::onSimulationStop().

◆ reset()

void MemoryProxy::reset ( )

virtual

Resets all memory access information when the wrapped memory is reset.

Reimplemented from Memory.

Definition at line 110 of file MemoryProxy.cc.

                   {
    reads_.clear();
    writes_.clear();
    newReads_.clear();
    newWrites_.clear();
    memory_->reset();
}

References memory_, newReads_, newWrites_, reads_, Memory::reset(), and writes_.

Here is the call graph for this function:

◆ write() [1/2]

virtual void MemoryProxy::write	(	ULongWord	address,
		int	size,
		ULongWord	data
	)

inlinevirtual

Definition at line 67 of file MemoryProxy.hh.

68 { memory_->write(address, size, data); }

References memory_, and Memory::write().

Here is the call graph for this function:

◆ write() [2/2]

void MemoryProxy::write	(	ULongWord	address,
		MAU	data
	)

overridevirtual

Tracks write calls.

Passes the call to the wrapped memory.

Implements Memory.

Definition at line 83 of file MemoryProxy.cc.

                                 {

    frontend_.eventHandler().handleEvent(
        SimulationEventHandler::SE_MEMORY_ACCESS);

    newWrites_.push_back(std::make_pair(address, 1));
    memory_->write(address, data);
}

References SimulatorFrontend::eventHandler(), frontend_, Informer::handleEvent(), memory_, newWrites_, SimulationEventHandler::SE_MEMORY_ACCESS, and Memory::write().

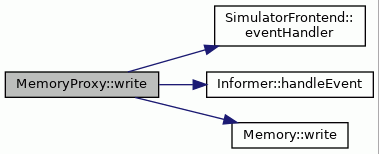

Here is the call graph for this function:

◆ writeAccess()

MemoryProxy::MemoryAccess MemoryProxy::writeAccess ( unsigned int idx ) const

Returns information of the given memory write access.

Parameters

idx	Index of the write access.

Exceptions

OutOfRange If the index is invalid.

Definition at line 157 of file MemoryProxy.cc.

                                           {

    if (idx > writes_.size()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }
    return writes_[idx];
}

References __func__, and writes_.

Referenced by ProximMemoryWindow::onSimulationStop().

◆ writeAccessCount()

unsigned int MemoryProxy::writeAccessCount ( ) const

Returns number of write accesses on the last cycle.

Definition at line 145 of file MemoryProxy.cc.

                                    {
    return writes_.size();
}

References writes_.

Referenced by ProximMemoryWindow::onSimulationStop().

Member Data Documentation

◆ frontend_

SimulatorFrontend& MemoryProxy::frontend_

private

Definition at line 82 of file MemoryProxy.hh.

Referenced by read(), and write().

◆ memory_

Memory* MemoryProxy::memory_

private

Wrapped memory.

Definition at line 85 of file MemoryProxy.hh.

Referenced by advanceClock(), fillWithZeros(), read(), read(), reset(), write(), write(), and ~MemoryProxy().

◆ newReads_

std::vector<MemoryAccess> MemoryProxy::newReads_

private

List of initiated reads.

Definition at line 96 of file MemoryProxy.hh.

Referenced by advanceClock(), read(), and reset().

◆ newWrites_

std::vector<MemoryAccess> MemoryProxy::newWrites_

private

List of initiated writes.

Definition at line 98 of file MemoryProxy.hh.

Referenced by advanceClock(), reset(), and write().

◆ reads_

std::vector<MemoryAccess> MemoryProxy::reads_

private

List of initiated reads on the last cycle.

Definition at line 92 of file MemoryProxy.hh.

Referenced by advanceClock(), readAccess(), readAccessCount(), and reset().

◆ writes_

std::vector<MemoryAccess> MemoryProxy::writes_

private

List of initiated writes on the last cycle.

Definition at line 94 of file MemoryProxy.hh.

Referenced by advanceClock(), reset(), writeAccess(), and writeAccessCount().

The documentation for this class was generated from the following files:
