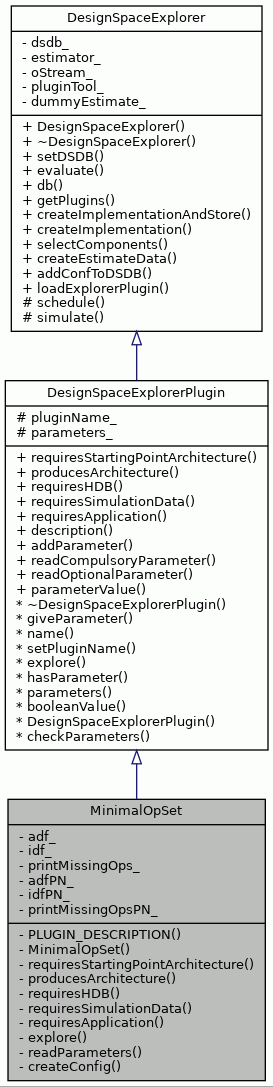

Inheritance diagram for MinimalOpSet:

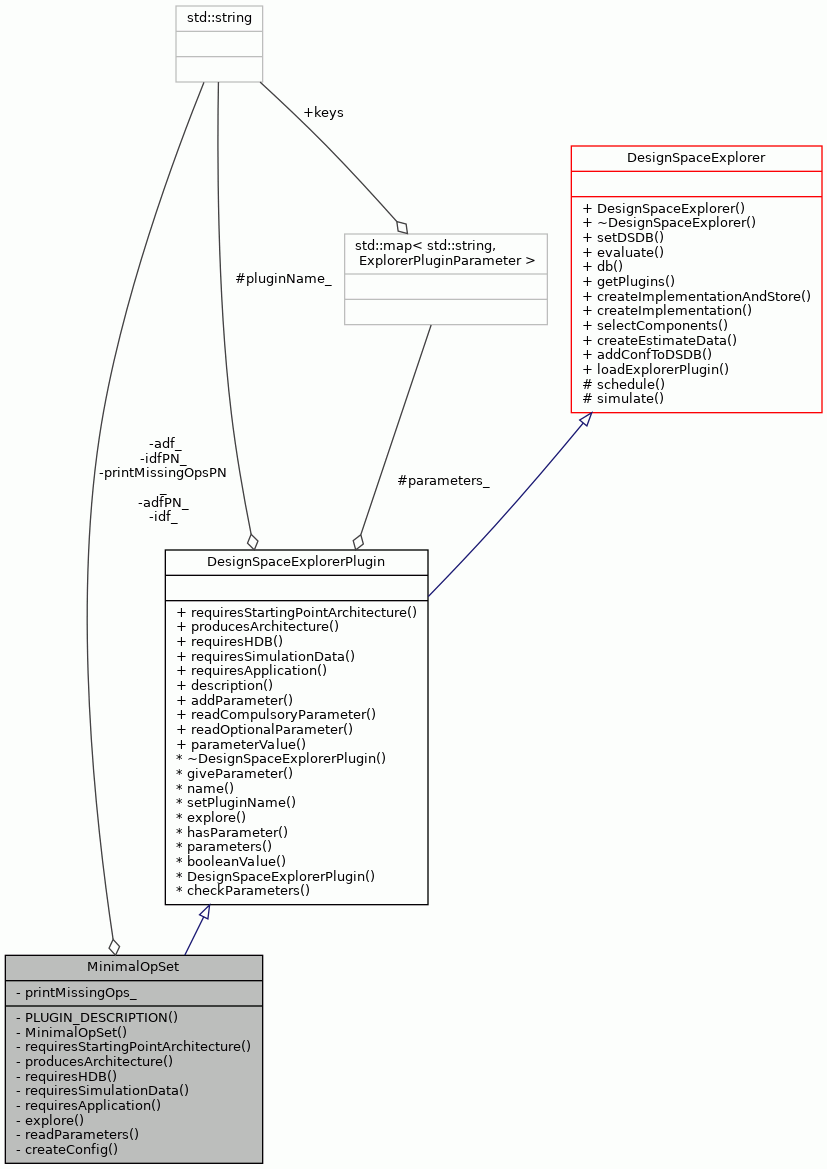

Collaboration diagram for MinimalOpSet:

Private Member Functions
	PLUGIN_DESCRIPTION ("Minimal opset checker and fixer plugin.")

	MinimalOpSet ()

virtual bool	requiresStartingPointArchitecture () const

virtual bool	producesArchitecture () const

virtual bool	requiresHDB () const

virtual bool	requiresSimulationData () const

virtual bool	requiresApplication () const

virtual std::vector< RowID >	explore (const RowID &configurationID, const unsigned int &)

void	readParameters ()

bool	createConfig (const std::string &adf, const std::string &idf, DSDBManager &dsdb, DSDBManager::MachineConfiguration &conf)

Private Attributes
std::string	adf_
	name of the adf file to evaluate

std::string	idf_
	name of the idf file to evaluate

bool	printMissingOps_
	print missing ops

Static Private Attributes
static const std::string	adfPN_

static const std::string	idfPN_

static const std::string	printMissingOpsPN_

Additional Inherited Members
Public Types inherited from DesignSpaceExplorerPlugin
typedef std::pair< std::string, ExplorerPluginParameter >	Parameter

typedef std::map< std::string, ExplorerPluginParameter >	ParameterMap

typedef std::map< std::string, ExplorerPluginParameter >::iterator	PMIt

typedef std::map< std::string, ExplorerPluginParameter >::const_iterator	PMCIt

Public Member Functions inherited from DesignSpaceExplorerPlugin
virtual std::string	description () const

void	addParameter (TCEString name, ExplorerPluginParameterType type, bool compulsory=true, TCEString defaultValue="", TCEString description="")

template<typename T >
void	readCompulsoryParameter (const std::string paramName, T &param) const

template<typename T >
void	readOptionalParameter (const std::string paramName, T &param) const

template<typename RT >
RT	parameterValue (const std::string &paramName) const

virtual	~DesignSpaceExplorerPlugin ()

virtual void	giveParameter (const std::string &name, const std::string &value)

virtual std::string	name () const

virtual void	setPluginName (const std::string &pluginName)

virtual bool	hasParameter (const std::string &paramName) const

ParameterMap	parameters () const

virtual bool	booleanValue (const std::string &parameter) const

Public Member Functions inherited from DesignSpaceExplorer
	DesignSpaceExplorer ()

virtual	~DesignSpaceExplorer ()

virtual void	setDSDB (DSDBManager &dsdb)

virtual bool	evaluate (const DSDBManager::MachineConfiguration &configuration, CostEstimates &results=dummyEstimate_, bool estimate=false)

virtual DSDBManager &	db ()

std::vector< DesignSpaceExplorerPlugin * >	getPlugins ()

RowID	createImplementationAndStore (const DSDBManager::MachineConfiguration &conf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

bool	createImplementation (const DSDBManager::MachineConfiguration &conf, DSDBManager::MachineConfiguration &newConf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

IDF::MachineImplementation *	selectComponents (const TTAMachine::Machine &mach, const double &frequency=0.0, const double &maxArea=0.0, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb") const

void	createEstimateData (const TTAMachine::Machine &mach, const IDF::MachineImplementation &idf, CostEstimator::AreaInGates &area, CostEstimator::DelayInNanoSeconds &longestPathDelay)

RowID	addConfToDSDB (const DSDBManager::MachineConfiguration &conf)

Static Public Member Functions inherited from DesignSpaceExplorer
static DesignSpaceExplorerPlugin *	loadExplorerPlugin (const std::string &pluginName, DSDBManager *dsdb=NULL)

Protected Member Functions inherited from DesignSpaceExplorerPlugin
	DesignSpaceExplorerPlugin ()

void	checkParameters () const

Protected Member Functions inherited from DesignSpaceExplorer
TTAProgram::Program *	schedule (const std::string applicationFile, TTAMachine::Machine &machine, TCEString paramOptions="-O3")

const ExecutionTrace *	simulate (const TTAProgram::Program &program, const TTAMachine::Machine &machine, const TestApplication &testApplication, const ClockCycleCount &maxCycles, ClockCycleCount &runnedCycles, const bool tracing, const bool useCompiledSimulation=false, std::vector< ClockCycleCount > *executionCounts=NULL)

Protected Attributes inherited from DesignSpaceExplorerPlugin
std::string	pluginName_
	the name of the explorer plugin

ParameterMap	parameters_
	Parameters for the plugin.

Detailed Description

Explorer plugin that checks that given config or adf meets minimal opset requirements stated by minimal machine adf or user given reference adf.

Supported parameters:

Definition at line 58 of file MinimalOpSet.cc.

Constructor & Destructor Documentation

◆ MinimalOpSet()

MinimalOpSet::MinimalOpSet ( )

inlineprivate

Definition at line 61 of file MinimalOpSet.cc.

                  : DesignSpaceExplorerPlugin(),
        adf_(""),
        idf_(""),
        printMissingOps_(false) {

        // compulsory parameters
        // no compulsory parameters

        // parameters that have a default value
        addParameter(adfPN_, STRING, false, adf_);
        addParameter(idfPN_, STRING, false, idf_);
        addParameter(printMissingOpsPN_, BOOL, false,
            Conversion::toString(printMissingOps_));
    }

References DesignSpaceExplorerPlugin::addParameter(), adf_, adfPN_, BOOL, idf_, idfPN_, printMissingOps_, printMissingOpsPN_, STRING, and Conversion::toString().

Here is the call graph for this function:

Member Function Documentation

◆ createConfig()

bool MinimalOpSet::createConfig	(	const std::string &	adf,
		const std::string &	idf,
		DSDBManager &	dsdb,
		DSDBManager::MachineConfiguration &	conf
	)

inlineprivate

Load adf and idf from files and store to given dsdb and config.

Parameters

adf	Path of architecture definition file.
idf	Path of implementation definition file.
dsdb	Database where to store adf and idf.
conf	Configuration for adf/idf ids.

Returns: True if creating config succeeded, else false.

Definition at line 219 of file MinimalOpSet.cc.

                                               {

        assert(adf != "");

        IDF::MachineImplementation* idfo = NULL;
        TTAMachine::Machine* mach = NULL;
        try {
            if (adf != "") {
                mach = TTAMachine::Machine::loadFromADF(adf);
                conf.architectureID = dsdb.addArchitecture(*mach);
            } else {
                return false;
            }
            if (idf != "") {
                idfo = IDF::MachineImplementation::loadFromIDF(idf);
                conf.implementationID =
                    dsdb.addImplementation(*idfo, 0,0);
                conf.hasImplementation = true;
            } else {
                conf.hasImplementation = false;
            }
        } catch (const Exception& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error loading the adf/idf." << std::endl;
            verboseLog(msg.str());
            return false;
        }
        return true;
    }

References DSDBManager::addArchitecture(), DSDBManager::addImplementation(), DSDBManager::MachineConfiguration::architectureID, assert, DSDBManager::MachineConfiguration::hasImplementation, DSDBManager::MachineConfiguration::implementationID, TTAMachine::Machine::loadFromADF(), IDF::MachineImplementation::loadFromIDF(), and verboseLog.

Referenced by explore().

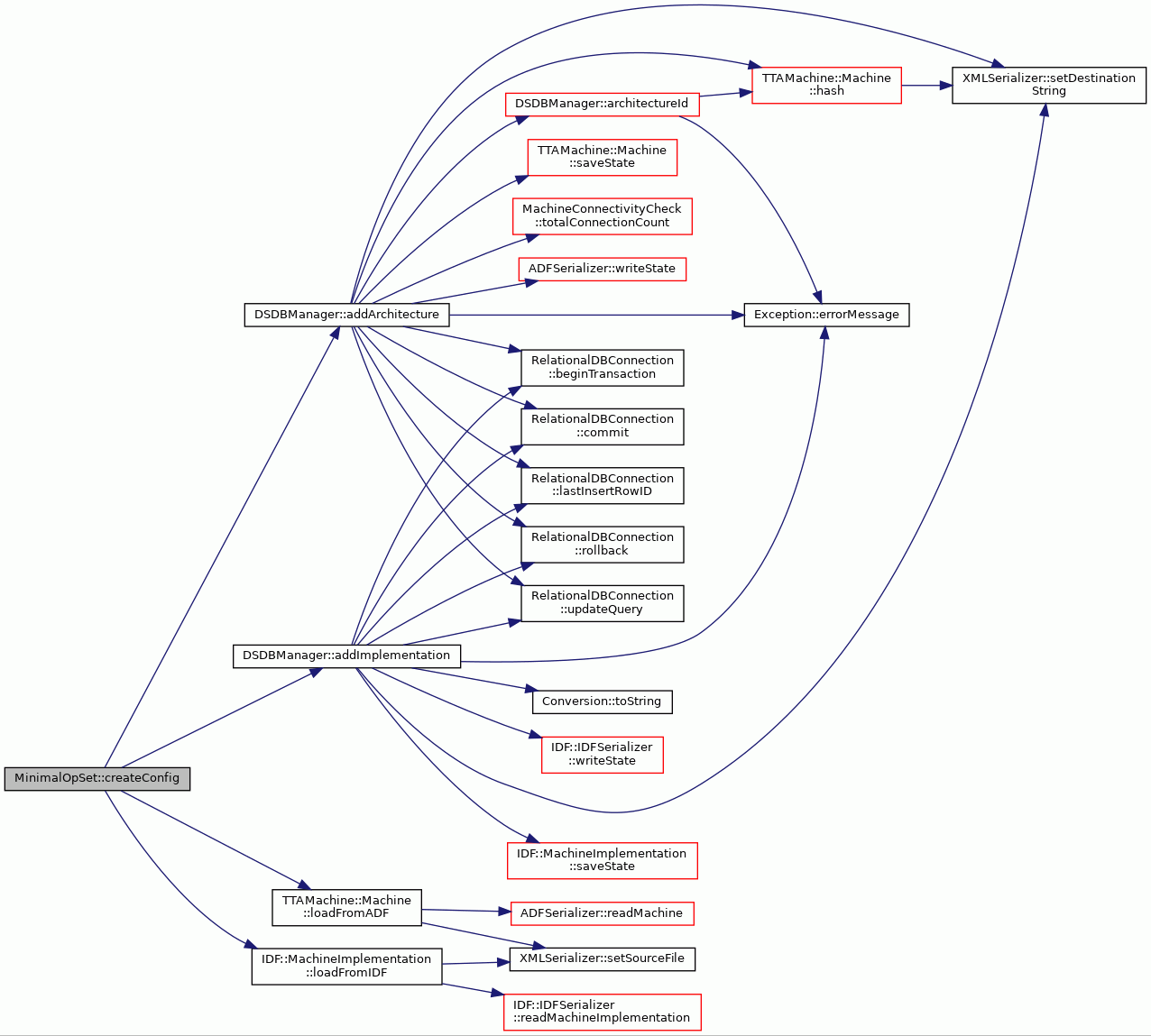

Here is the call graph for this function:

◆ explore()

virtual std::vector< RowID > MinimalOpSet::explore	(	const RowID &	configurationID,
		const unsigned int &
	)

inlineprivatevirtual

Explorer plugin that checks that given config or adf meets minimal opset requirements stated by minimal machine adf or user given reference adf.

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 87 of file MinimalOpSet.cc.

                                                               {
        readParameters();
        std::vector<RowID> result;
        MinimalOpSetCheck minimalOpSetCheck = MinimalOpSetCheck();

        // make params for adf and idf, so no configuration needed
        if (configurationID == 0 && adf_ == "") {
            std::ostringstream msg(std::ostringstream::out);
            msg << "No configuration nor adf defined. Use -s <confID> to "
                << "define the configuration to be optimized or give adf "
                << "as plugin parameter." << std::endl;
            verboseLog(msg.str());
            return result;
        }

        DSDBManager& dsdb = db();
        DSDBManager::MachineConfiguration conf;
        conf.architectureID = -1;
        conf.hasImplementation = false;

        // load adf/idf from file if no configuration was given
        if (configurationID == 0) {
            if (!createConfig(adf_, idf_, dsdb, conf)) {
               return result;
            }
        } else {
            // if starting configuration given load it
            conf = dsdb.configuration(configurationID);
        }

        // load machine from configuration
        // TODO: load machine from file is adf_ is specified.
        Machine* mach = NULL;
        try {
            mach = dsdb.architecture(conf.architectureID);
        } catch (const Exception& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << e.errorMessage() << std::endl;
            verboseLog(msg.str());
            return result;
        }

        // check minimal opset and print missing ops
        if (printMissingOps_) {
            std::vector<std::string> missingOps;
            minimalOpSetCheck.missingOperations(*mach, missingOps);
            if (missingOps.empty()) {
                std::cout << "MinimalOpSet: Configuration/machine has all"
                          << " the operations in the minimal opset already."
                          << std::endl;
                return result;
            }
            for (unsigned int i = 0; i < missingOps.size(); ++i) {
                std::cout << missingOps.at(i) + " : operation is missing."
                          << std::endl;
            }
        }

        // add FUs to the machine, so that it has all the operations in the
        // minimal opset
        try {
            minimalOpSetCheck.fix(*mach);
        } catch (const InvalidData& e) {
            verboseLog("MinimalOpSet: Configuration/machine has all the"
                    "operations in the minimal opset already.")
            return result;
        }

        // create the result config
        DSDBManager::MachineConfiguration newConf;
        newConf.architectureID = dsdb.addArchitecture(*mach);
        newConf.hasImplementation = false;

        // if old config had implementation create a new one for new config
        if (conf.hasImplementation) {
            createImplementation(newConf, newConf);
        }

        CostEstimates estimates;
        bool estimate = (newConf.hasImplementation ? true : false);
        try {
            if (!evaluate(newConf, estimates, estimate)) {
                debugLog(std::string("Evaluate failed."));
                return result;
            }
        } catch (const Exception& e) {
            debugLog(std::string("Error in Evaluate plugin: ")
                    + e.errorMessage() + std::string(" ")
                    + e.errorMessageStack());
            return result;
        }

        RowID newConfID = addConfToDSDB(newConf);
        if (newConfID != 0) {
                result.push_back(newConfID);
        }
        return result;
    }

References DSDBManager::addArchitecture(), DesignSpaceExplorer::addConfToDSDB(), adf_, DSDBManager::architecture(), DSDBManager::MachineConfiguration::architectureID, DSDBManager::configuration(), createConfig(), DesignSpaceExplorer::createImplementation(), DesignSpaceExplorer::db(), debugLog, Exception::errorMessage(), Exception::errorMessageStack(), DesignSpaceExplorer::evaluate(), MinimalOpSetCheck::fix(), DSDBManager::MachineConfiguration::hasImplementation, idf_, MinimalOpSetCheck::missingOperations(), printMissingOps_, readParameters(), and verboseLog.

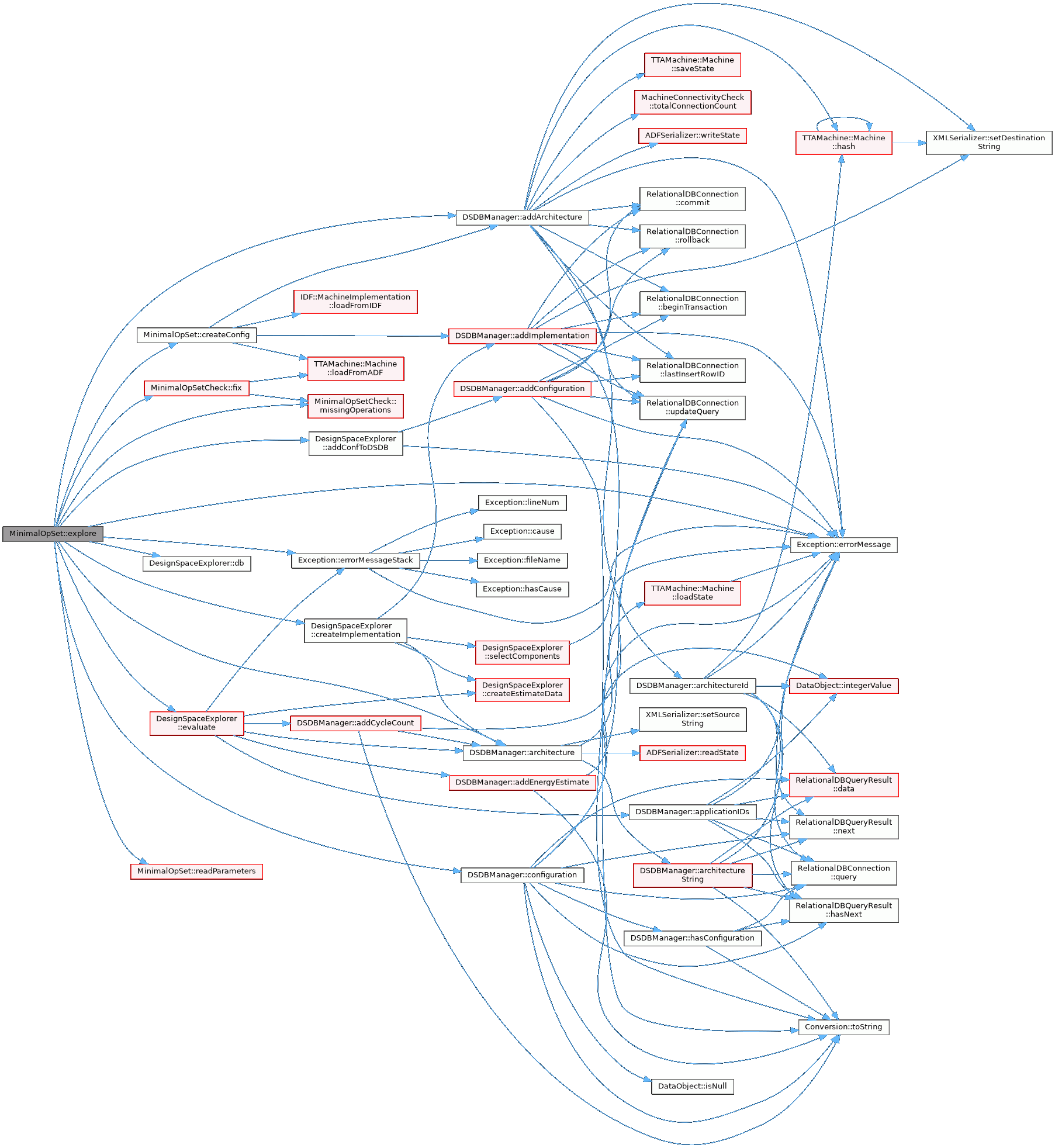

Here is the call graph for this function:

◆ PLUGIN_DESCRIPTION()

MinimalOpSet::PLUGIN_DESCRIPTION ( "Minimal opset checker and fixer plugin." )

private

◆ producesArchitecture()

virtual bool MinimalOpSet::producesArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 77 of file MinimalOpSet.cc.

77{ return false; }

◆ readParameters()

void MinimalOpSet::readParameters ( )

inlineprivate

Reads the parameters given to the plugin.

Definition at line 203 of file MinimalOpSet.cc.

                          {
        readCompulsoryParameter(adfPN_, adf_);
        readCompulsoryParameter(idfPN_, idf_);
        readCompulsoryParameter(printMissingOpsPN_, printMissingOps_);
    }

References adf_, adfPN_, idf_, idfPN_, printMissingOps_, printMissingOpsPN_, and DesignSpaceExplorerPlugin::readCompulsoryParameter().

Referenced by explore().

Here is the call graph for this function:

◆ requiresApplication()

virtual bool MinimalOpSet::requiresApplication ( ) const

inlineprivatevirtual

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 80 of file MinimalOpSet.cc.

80{ return false; }

◆ requiresHDB()

virtual bool MinimalOpSet::requiresHDB ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 78 of file MinimalOpSet.cc.

78{ return false; }

◆ requiresSimulationData()

virtual bool MinimalOpSet::requiresSimulationData ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 79 of file MinimalOpSet.cc.

79{ return false; }

◆ requiresStartingPointArchitecture()

virtual bool MinimalOpSet::requiresStartingPointArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 76 of file MinimalOpSet.cc.

76{ return false; }

Member Data Documentation

◆ adf_

std::string MinimalOpSet::adf_

private

name of the adf file to evaluate

Definition at line 194 of file MinimalOpSet.cc.

Referenced by explore(), MinimalOpSet(), and readParameters().

◆ adfPN_

const std::string MinimalOpSet::adfPN_

staticprivate

Definition at line 188 of file MinimalOpSet.cc.

Referenced by MinimalOpSet(), and readParameters().

◆ idf_

std::string MinimalOpSet::idf_

private

name of the idf file to evaluate

Definition at line 196 of file MinimalOpSet.cc.

Referenced by explore(), MinimalOpSet(), and readParameters().

◆ idfPN_

const std::string MinimalOpSet::idfPN_

staticprivate

Definition at line 189 of file MinimalOpSet.cc.

Referenced by MinimalOpSet(), and readParameters().

◆ printMissingOps_

bool MinimalOpSet::printMissingOps_

private

print missing ops

Definition at line 198 of file MinimalOpSet.cc.

Referenced by explore(), MinimalOpSet(), and readParameters().

◆ printMissingOpsPN_

const std::string MinimalOpSet::printMissingOpsPN_

staticprivate

Definition at line 190 of file MinimalOpSet.cc.

Referenced by MinimalOpSet(), and readParameters().

The documentation for this class was generated from the following file:

MinimalOpSet.cc

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MinimalOpSet()

Member Function Documentation

◆ createConfig()

◆ explore()

◆ PLUGIN_DESCRIPTION()

◆ producesArchitecture()

◆ readParameters()

◆ requiresApplication()

◆ requiresHDB()

◆ requiresSimulationData()

◆ requiresStartingPointArchitecture()

Member Data Documentation

◆ adf_

◆ adfPN_

◆ idf_

◆ idfPN_

◆ printMissingOps_

◆ printMissingOpsPN_
